Model Bosch SEC301CM/01 Range Oven – Common Parts & Diagrams

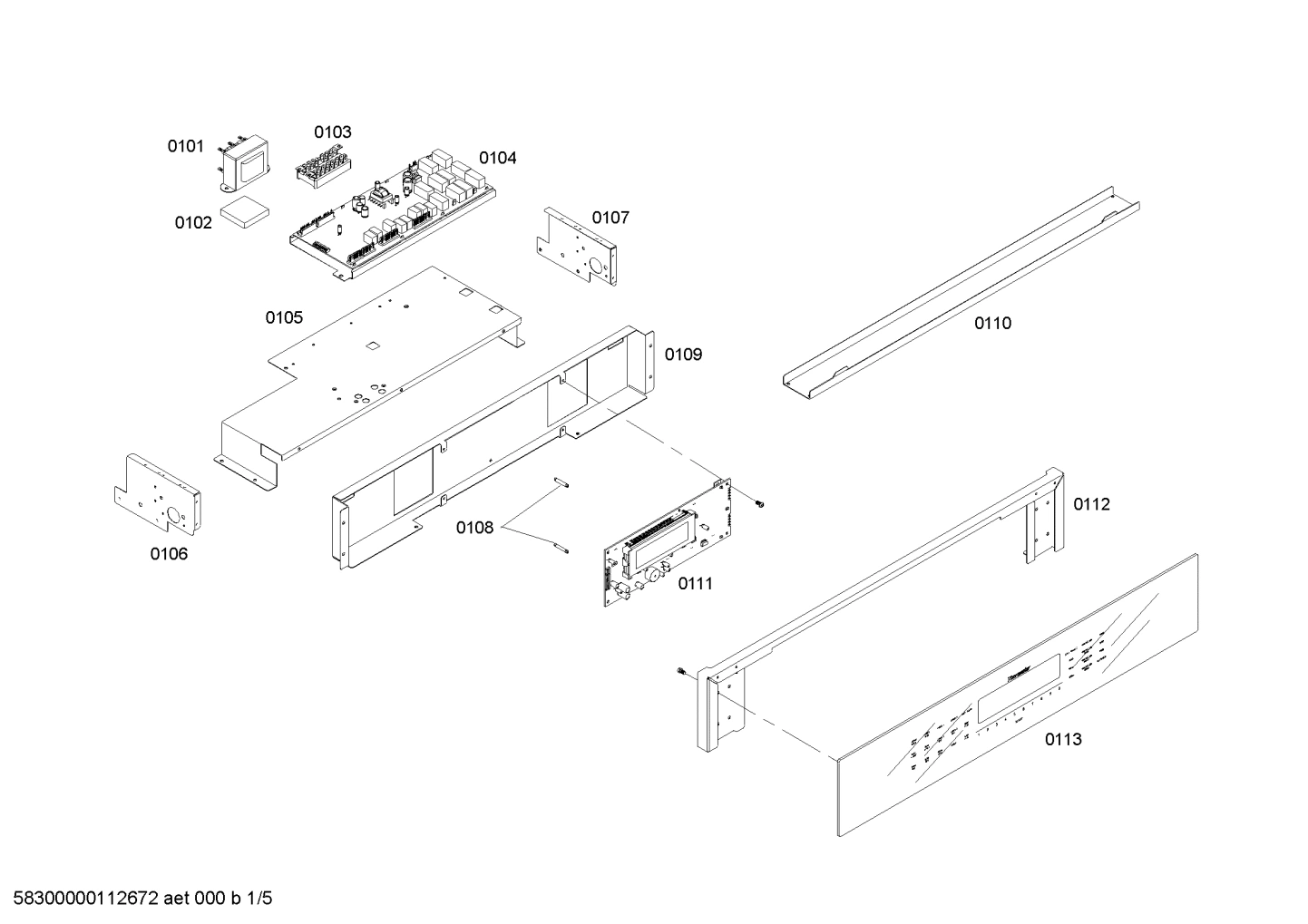

Diagram 1

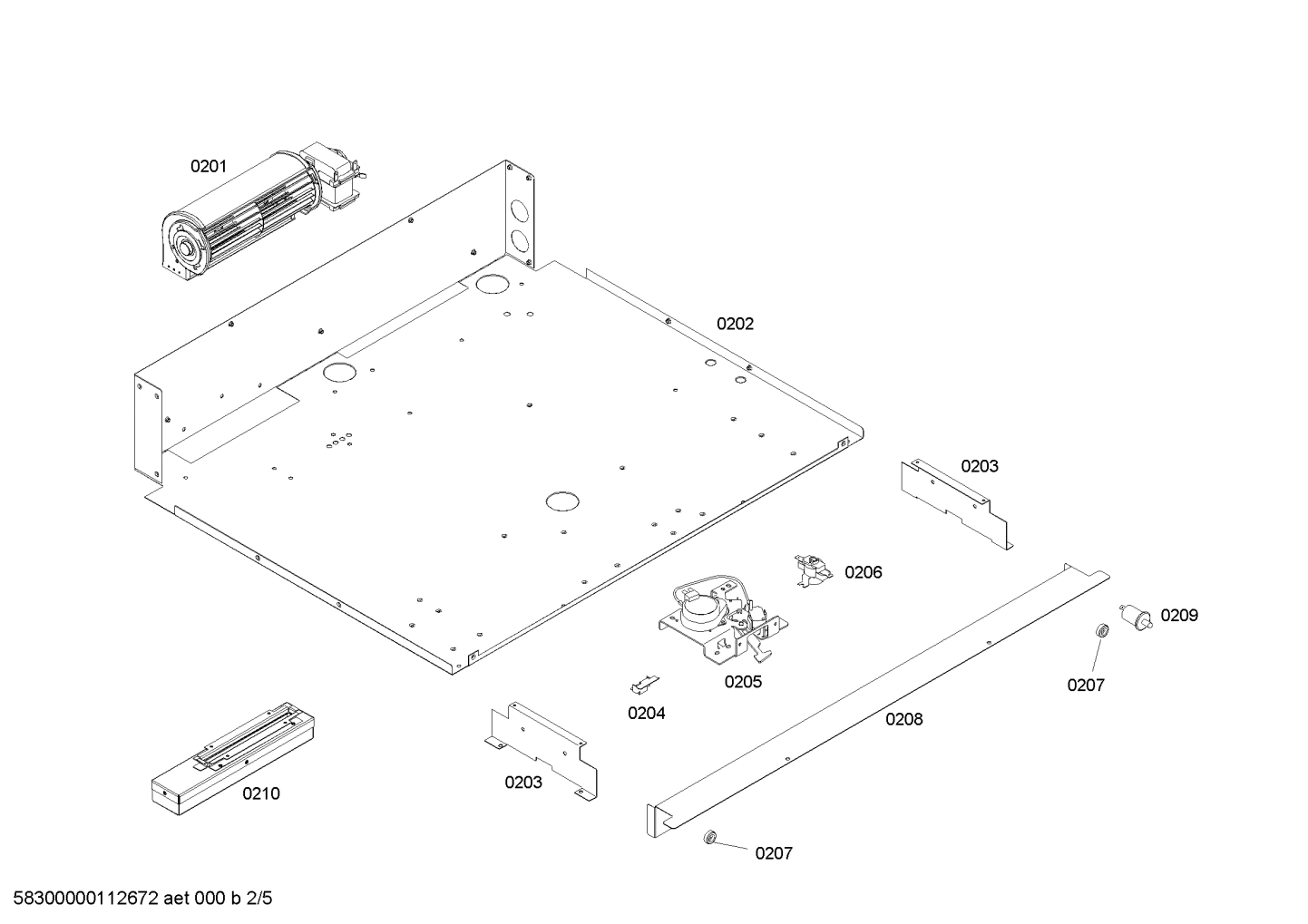

Diagram 2

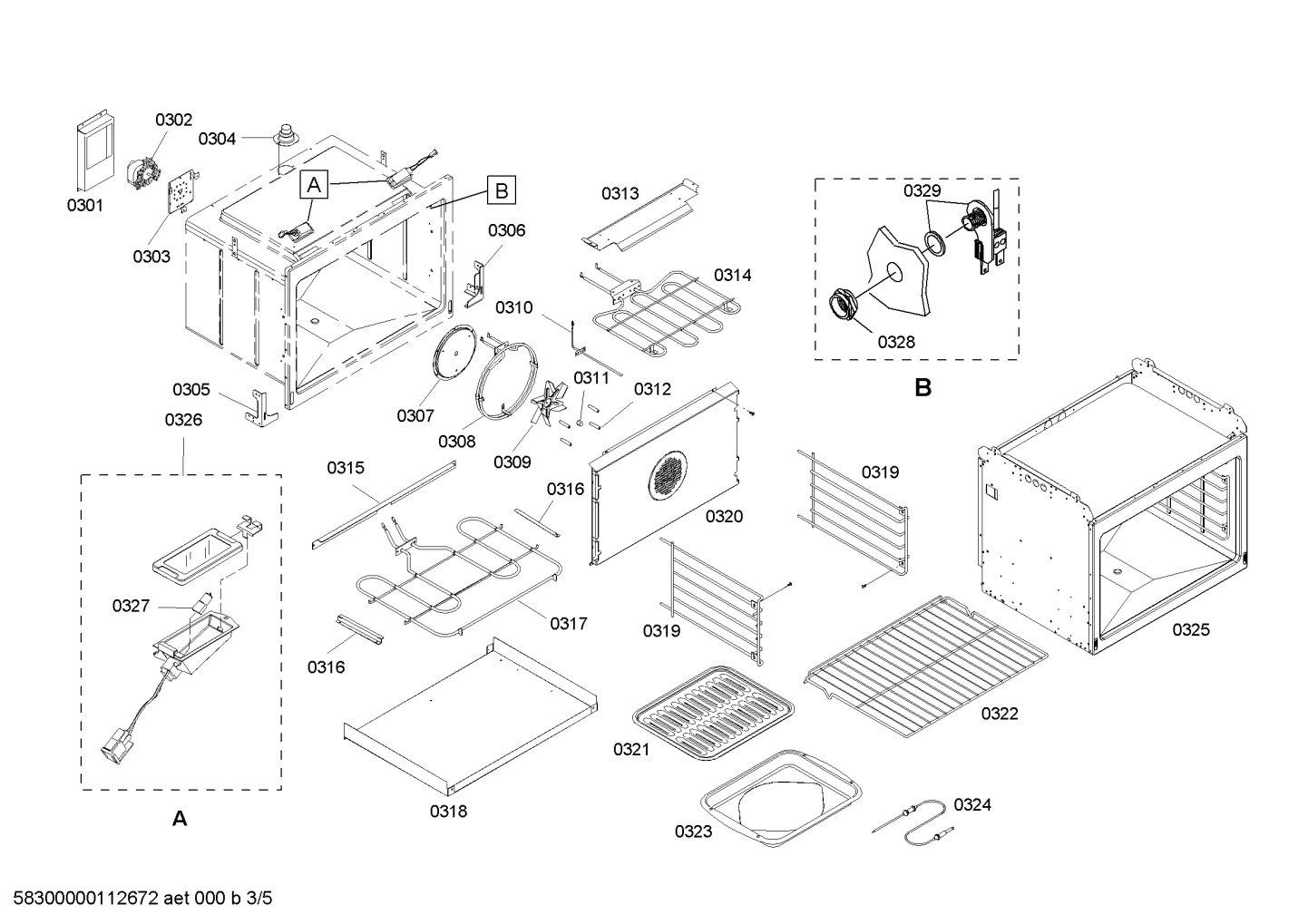

Diagram 3

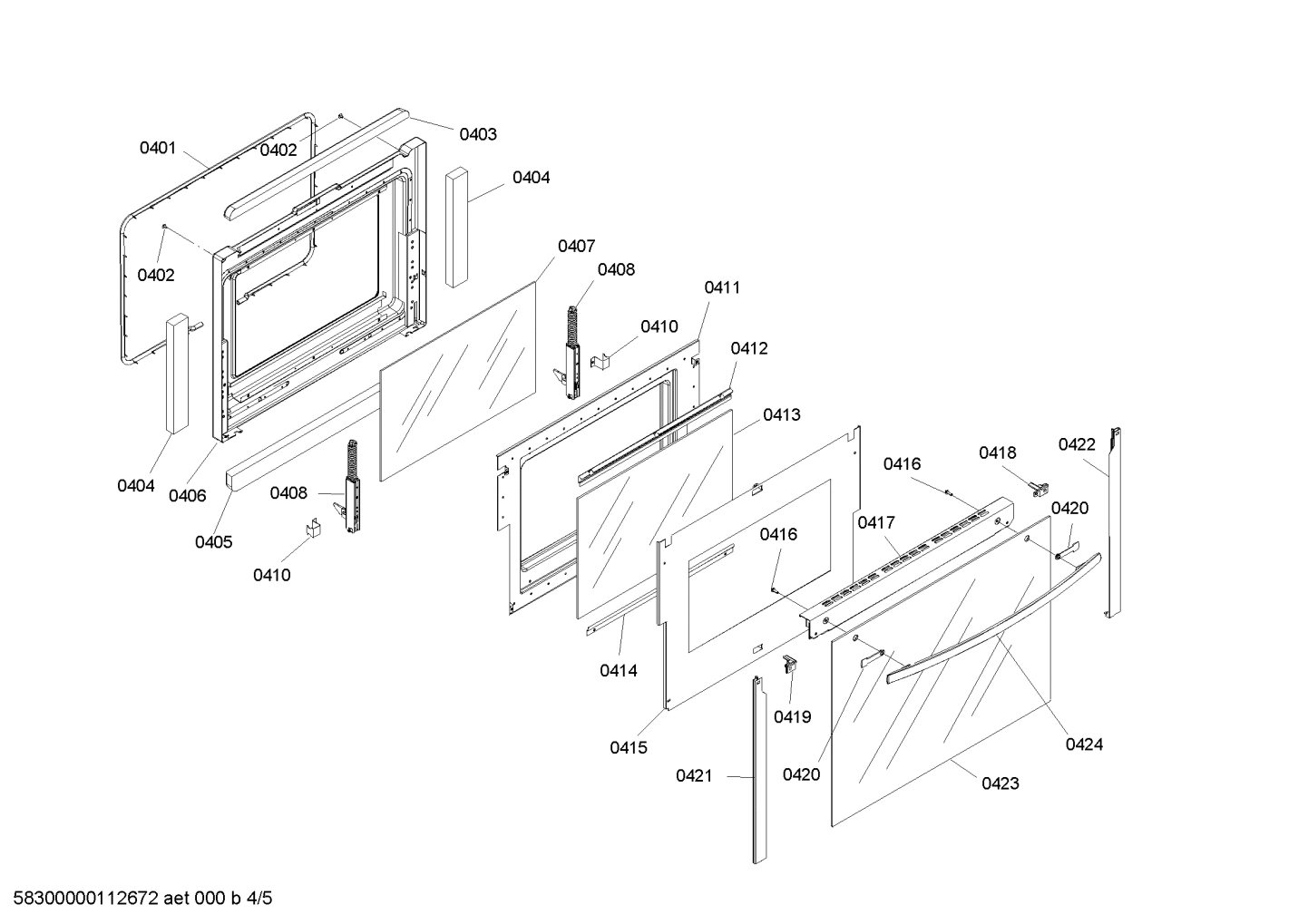

Diagram 4

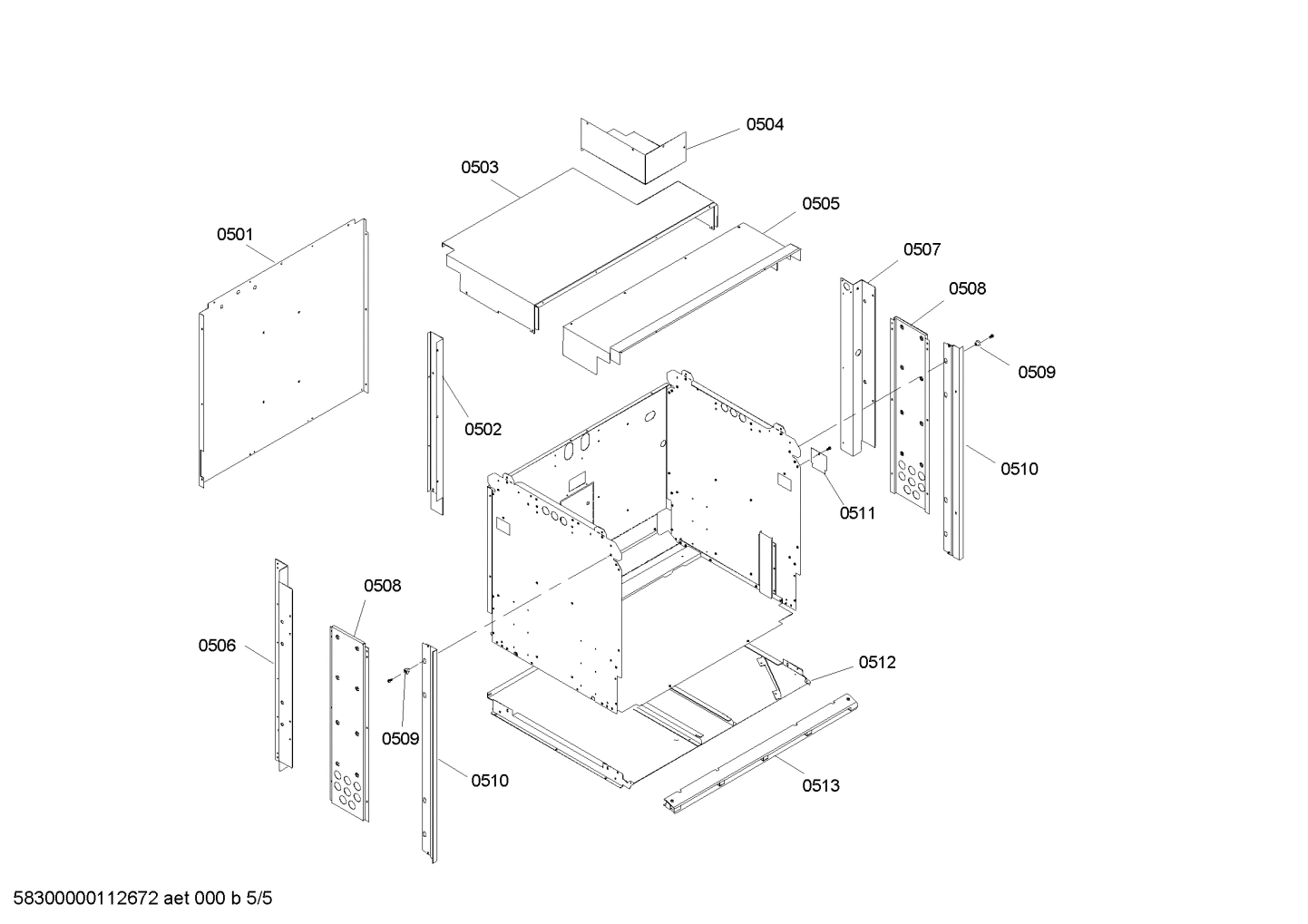

Diagram 5
Common parts from model Bosch SEC301CM/01 Range Oven
0103
Terminal BOS 00484615 Contact Us For Availability
0104
Relay BOS 00427198 Contact Us For Availability
0105
Panel BOS 00473697 Contact Us For Availability
0113
Glass panel BOS 00144205 Contact Us For Availability
0205
Electric lock BOS 00489102 Contact Us For Availability
0302
Motor BOS 00494266 Contact Us For Availability
0304
Catalyzer BOS 00411220 Contact Us For Availability
0317
Heating element BOS 00440215 Contact Us For Availability
0321
Grill tray BOS 00449756 Contact Us For Availability
0322
Shelf BOS 00478315 Contact Us For Availability
0323
Universal pan BOS 00449757 Contact Us For Availability
0402
Screw BOS 00413477 Contact Us For Availability
0404
Insulating part BOS 00241974 Contact Us For Availability
0405
Insulating part BOS 00241975 Contact Us For Availability
0408
Door hinge BOS 00425990 Contact Us For Availability
0413
Glass panel BOS 00241934 Contact Us For Availability
0418
Handle-cap shaped BOS 00414390 Contact Us For Availability
0419
Handle-cap shaped BOS 00414391 Contact Us For Availability
0421
Frame BOS 00473551 Contact Us For Availability
0422
Frame BOS 00473549 Contact Us For Availability
0423
Glass panel BOS 00243043 Contact Us For Availability
0506
Support BOS 00440609 Contact Us For Availability
0507
Support BOS 00440610 Contact Us For Availability
0508
Duct BOS 00440611 Contact Us For Availability
0510
Frame-decor BOS 00440612 Contact Us For Availability
0511
Plate BOS 00425302 Contact Us For Availability
0512
Base BOS 00241973 Contact Us For Availability
0513
Trimplate BOS 00664798 Contact Us For Availability
0550
Insulating part BOS 00665810 Contact Us For Availability
× ![]()
