Model Samsung RH30H9500SR/AA-00 Refrigerator – Common Parts &amp; Diagrams

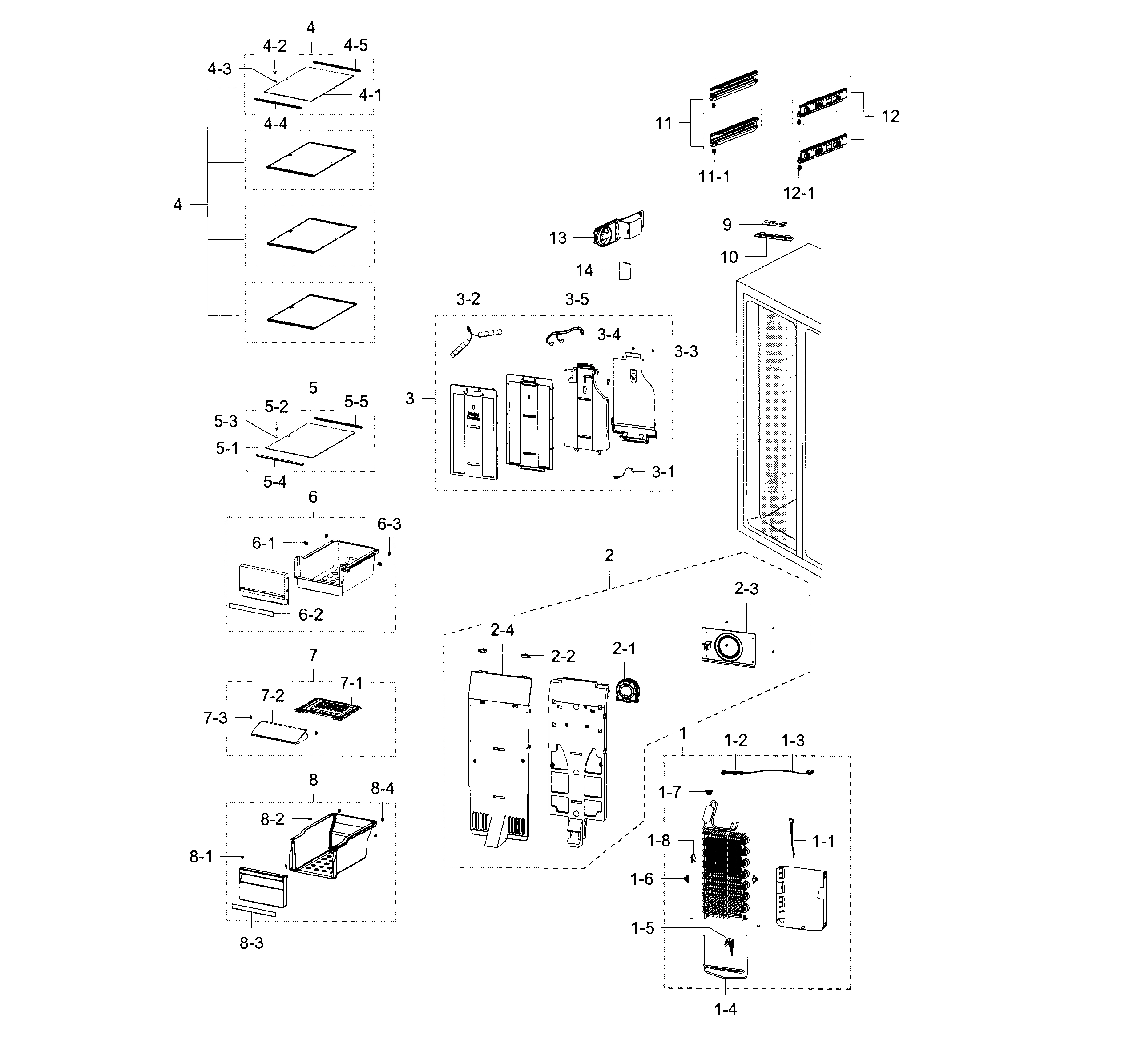

1

DA96-01017B Samsung Refrigerator Polaris FS E Backorder SMG DA96-01017B $241.20

1

DA96-01052A Samsung Refrigerator Evaporator A Backorder SMG DA96-01052A $232.61

1-1

DA32-00029P Samsung Refrigerator Temperature Backorder SMG DA32-00029P $33.63

1-1

DA61-05702B Samsung Drain Plate Evaporator Backorder SMG DA61-05702B $45.36

1-1

DA97-06542H Samsung Refrigerator Water Ice Pi Backorder SMG DA97-06542H $107.60

1-2

DA47-00285S Samsung Refrigerator Bimetal Ther Backorder SMG DA47-00285S $49.48

1-2

DA47-00465A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00465A $177.06

1-2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $6.05

1-3

DA47-00301H Samsung Refrigerator Thermostat F Backorder SMG DA47-00301H $29.15

1-3

DA61-06700A Samsung Refrigerator Heater Wire Backorder SMG DA61-06700A $6.47

1-4

DA32-00029N Samsung Refrigerator Temperature In Stock SMG DA32-00029N $25.92

1-4

DA47-00320P Samsung Refrigerator Heater Sheat Backorder SMG DA47-00320P $145.20

1-4

DA61-07527A Samsung Refrigerator Low Door Sto Backorder SMG DA61-07527A $66.37

1-5

DA61-07085A Samsung Heater Sheath Fixer Backorder SMG DA61-07085A $12.42

1-5

DA66-00558B Samsung Refrigerator Door Closing In Stock SMG DA66-00558B $6.83

1-5

DA71-20265A Samsung Refrigerator Thermo Fuse In Stock SMG DA71-20265A $4.04

1-6

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

1-6

DA61-04921B Samsung Heater Fixer Backorder SMG DA61-04921B $2.01

1-7

DA47-00301E Samsung Refrigerator Fuse Thermos Backorder SMG DA47-00301E $31.86

1-7

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.69

1-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.69

1-13

DA47-00104M Samsung Refrigerator Water Pipe H Backorder SMG DA47-00104M $55.25

2

DA97-04568W Samsung Refrigerator Polaris Gray Backorder SMG DA97-04568W $150.04

2

DA97-13388D Samsung Refrigerator Evaporator C Backorder SMG DA97-13388D $305.28

2

DA97-15534A Samsung Refrigerator Evaporator C Backorder SMG DA97-15534A $306.30

2-1

DA67-02878A Samsung Evaporator Cover Assembly Backorder SMG DA67-02878A $2.16

2-2

DA61-06976A Samsung Air Chilled Guide Backorder SMG DA61-06976A $4.55

2-3

CATALYST;ALL,OPTICAL,T5,W40,L4 Backorder SMG DA02-00123D $24.22

2-3

DA61-08425A Samsung Motor Case Assembly Backorder SMG DA61-08425A $20.52

2-4

DA96-00263E Samsung Assembly Photosynthesis H Backorder SMG DA96-00263E $15.65

2-4

Refrigerator evaporator cover SMG DA63-06058B Contact Us For Availability

2-7

DA61-08438A Samsung Motor Plate Backorder SMG DA61-08438A $23.73

2-8

DA63-03056B Samsung COVER-LED;SAPPHIRE-PJT,SA Backorder SMG DA63-03056B $3.24

2-9

DA63-06030B Samsung Purifier Cover Backorder SMG DA63-06030B $29.19

2-10

Refrigerator evaporator cover SMG DA63-06031A Contact Us For Availability

2-11

DA96-00801A Samsung Refrigerator Humidity Wir Backorder SMG DA96-00801A $16.65

2-12

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $153.67

2-13

DA41-00519R Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519R $12.54

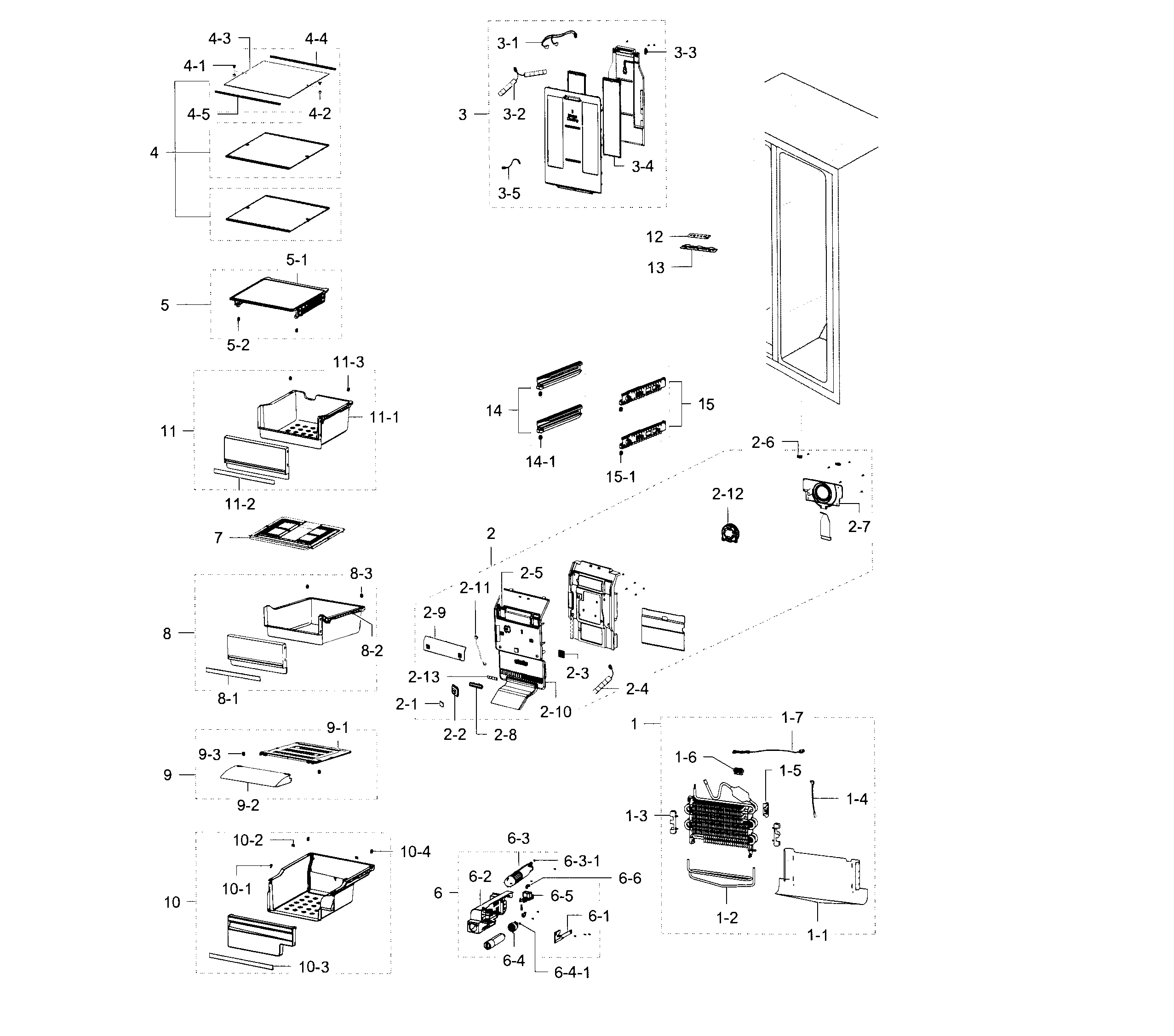

3

Refrigerator cover SMG DA97-10979D Contact Us For Availability

3

Refrigerator cover SMG DA97-10958C Contact Us For Availability

3-1

Refrigerator harness SMG DA96-00768C Contact Us For Availability

3-2

Refrigerator lamp SMG DA41-00749A Contact Us For Availability

3-2

Refrigerator lamp SMG DA41-00749B Contact Us For Availability

3-3

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $73.53

3-3

Refrigerator plate SMG DA61-05180A Contact Us For Availability

3-4

Refrigerator support SMG DA61-06856A Contact Us For Availability

3-5

DA32-00066A Samsung Refrigerator Temperature In Stock SMG DA32-00066A $22.14

3-5

Refrigerator harness SMG DA96-00768D Contact Us For Availability

4

DA97-12323G Samsung Shelf Assembly Backorder SMG DA97-12323G $145.95

4

DA97-15414A Samsung Assembly Shelf Lower Backorder SMG DA97-15414A $148.31

4-1

DA61-06821A Samsung Shelf Stopper Assembly Backorder SMG DA61-06821A $2.01

4-1

Refrigerator glass shelf SMG DA01-01049A Contact Us For Availability

4-2

Refrigerator stopper SMG DA61-06829A Contact Us For Availability

4-3

DA61-09137A Samsung Refrigerator Low Out Hing Backorder SMG DA61-09137A $41.32

4-3

GLASS-SHELF REF;3.2,POLARIS,TE Backorder SMG DA67-03263A $81.76

4-4

Refrigerator shelf trim, rear SMG DA64-03760A Contact Us For Availability

4-5

DA64-03678A Samsung Shelf Front Trim Backorder SMG DA64-03678A $39.51

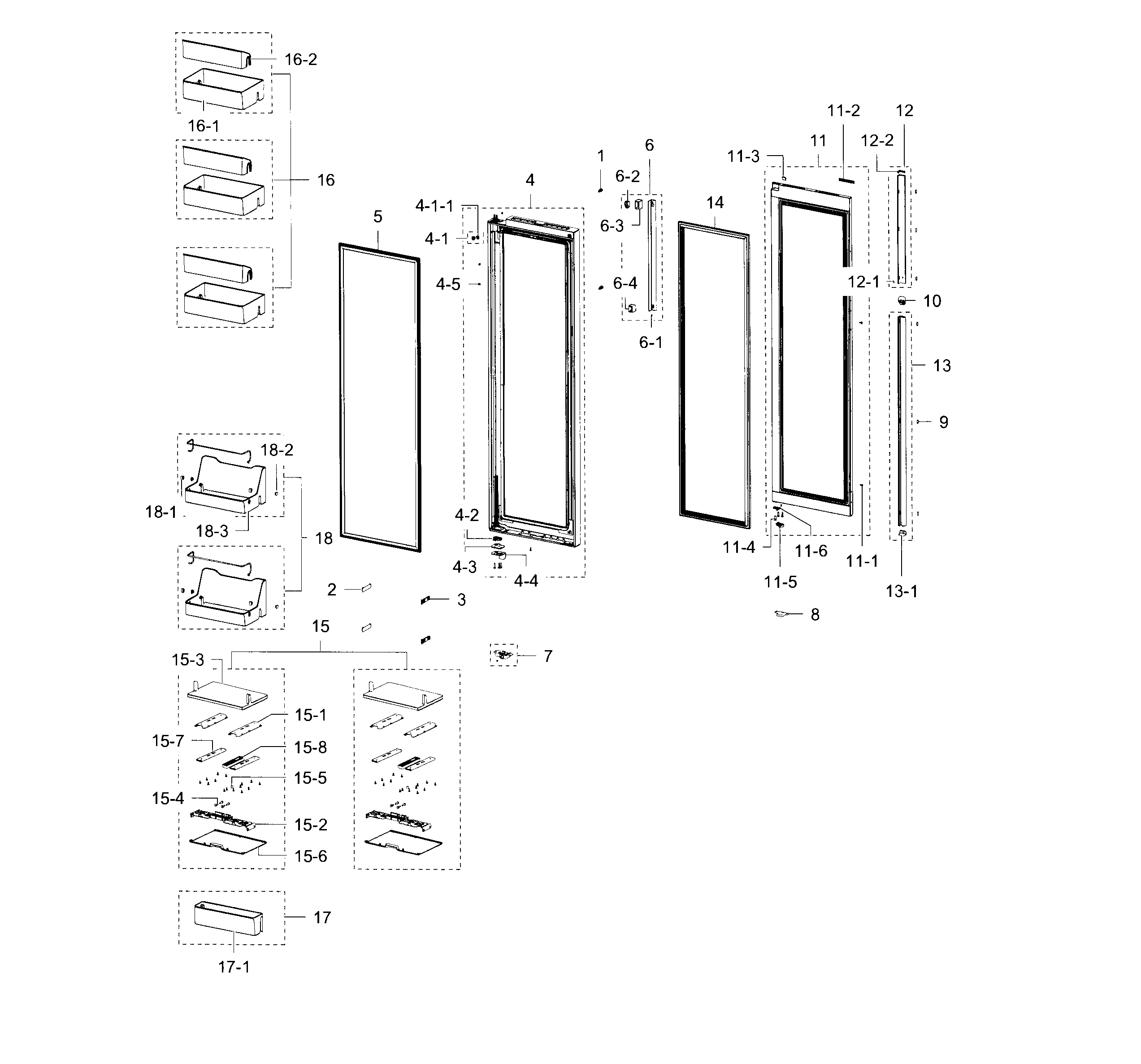

5

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

5

DA97-04568V Samsung Refrigerator Door Gasket Backorder SMG DA97-04568V $202.80

5

DA97-10902B Samsung Refrigerator Chilled Shel Backorder SMG DA97-10902B $112.94

5

DA97-10904G Samsung Low Shelf Assembly Backorder SMG DA97-10904G $97.39

5-1

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $47.08

5-1

DA67-02809F Samsung Glass Shelf Low Backorder SMG DA67-02809F $55.23

5-1

DA67-02816A Samsung Refrigerator Chilled Shel Backorder SMG DA67-02816A $126.45

5-4

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $11.88

5-5

DA92-00635A Samsung Refrigerator LED Touch Di Backorder SMG DA92-00635A $289.48

5-61

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $15.67

6

DA97-06568D Samsung Refrigerator Ice Maker Co In Stock SMG DA97-06568D $89.08

6

DA97-10881D Samsung High Drawer Case Assembly Backorder SMG DA97-10881D $139.54

6

DA97-11527C Samsung Refrigerator Side Water F Backorder SMG DA97-11527C $320.90

6

DA97-13873A Samsung Refrigerator Rear Handle Backorder SMG DA97-13873A $115.95

6-1

Refrigerator door handle set screw SMG 6009-001526 No Longer Available

6-1

DA63-06462A Samsung Cover Plate Assembly Backorder SMG DA63-06462A $19.18

6-2

DA63-06457A Samsung Refrigerator Filter Cover Backorder SMG DA63-06457A $55.67

6-3

DA97-11441A Samsung Refrigerator Water Tank A Backorder SMG DA97-11441A $142.55

6-4

Refrigerator water filter head SMG DA97-08006M Contact Us For Availability

6-5

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $180.05

6-6

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $24.30

7

DA63-06001A Samsung Cover - Humidity Backorder SMG DA63-06001A $88.51

7

DA97-10895B Samsung Refrigerator Drawer Flip Backorder SMG DA97-10895B $79.45

7

DA97-14263A Samsung Refrigerator Ice Tray Ass Backorder SMG DA97-14263A $245.61

7-1

DA61-06822A Samsung Refrigerator Flip Cover F Backorder SMG DA61-06822A $43.55

7-2

DA63-06005B Samsung Refrigerator Flip Drawer Backorder SMG DA63-06005B $50.45

7-4

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $7.55

7-4

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $15.28

7-5

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $3.79

8

DA64-04574A Samsung Locker Assembly Backorder SMG DA64-04574A $5.05

8

DA97-10887D Samsung High Drawer Case Assembly Backorder SMG DA97-10887D $143.67

8

DA97-14253A Samsung Refrigerator Indoor Ice M In Stock SMG DA97-14253A $278.19

8

Refrigerator case SMG DA97-12468A Contact Us For Availability

8-1

DA97-13415B Samsung Refrigerator Ice Maker As Backorder SMG DA97-13415B $262.48

8-2

DA34-00043C Samsung Refrigerator Reed Switch Backorder SMG DA34-00043C $34.10

8-4

DA97-00151B Samsung Refrigerator Reed Switch Backorder SMG DA97-00151B $32.67

8-5

DA61-09458A Samsung Refrigerator Front Foot Backorder SMG DA61-09458A $9.72

9

DA67-03677B Samsung Side Handle Cap Backorder SMG DA67-03677B $9.09

9

DA97-06473K Samsung Refrigerator Ice Route Ca Backorder SMG DA97-06473K $179.61

9

DA97-10894B Samsung Refrigerator Drawer Flip Backorder SMG DA97-10894B $171.96

9-1

DA61-06823A Samsung Refrigerator Flip Cover F Backorder SMG DA61-06823A $48.52

9-2

DA63-06006B Samsung Refrigerator Flip Drawer Backorder SMG DA63-06006B $102.70

9-4

DA97-00883E Samsung Refrigerator Ice Route Co In Stock SMG DA97-00883E $55.86

10

DA67-03727A Samsung CAP Handle Assembly Backorder SMG DA67-03727A $29.78

10

DA97-12469A Samsung Refrigerator Assembly Cas Backorder SMG DA97-12469A $159.42

10-1

DA63-06107A Samsung Refrigerator Flip Drawer Backorder SMG DA63-06107A $3.03

10-4

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $6.47

11

DA91-04350A Samsung Door Foam Assembly OUT Backorder SMG DA91-04350A $421.73

11

DA97-12749B Samsung Refrigerator Compressor C Backorder SMG DA97-12749B $187.03

11

Refrigerator case SMG DA97-10906C Contact Us For Availability

11-1

6002-001406 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001406 $1.69

11-1

Chiller case SMG DA61-06850B Contact Us For Availability

11-2

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

11-3

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $6.47

11-4

DA63-07566A Samsung Refrigerator Low Food Hin Backorder SMG DA63-07566A $4.55

11-5

DA66-01044A Samsung Right Auto Close Cam Backorder SMG DA66-01044A $2.70

11-6

DA61-09426A Samsung Door Stopper Backorder SMG DA61-09426A $36.99

12

DA41-00519B Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00519B $42.73

12

DA97-13874A Samsung Refrigerator Upper Door H Backorder SMG DA97-13874A $136.30

12-1

DA63-07634B Samsung Grommet Handle Backorder SMG DA63-07634B $1.69

12-2

DA67-03675A Samsung Upper Out Handle Cap Backorder SMG DA67-03675A $25.23

13

DA63-06849A Samsung Refrigerator Front LED La Backorder SMG DA63-06849A $11.34

13

DA97-13875A Samsung Assembly Low Handle Backorder SMG DA97-13875A $147.49

13

DA97-14619A Samsung Refrigerator Auger Motor Backorder SMG DA97-14619A $253.70

13-1

DA67-03676A Samsung Low Outer Handle Cap Backorder SMG DA67-03676A $28.32

DA27-00043B Samsung Refrigerator Coil Filter Backorder SMG DA27-00043B $113.37

DA61-09831A Samsung Support Case Auger Backorder SMG DA61-09831A $17.15

DA97-13915A Samsung Refrigerator Food Show Ga Backorder SMG DA97-13915A $163.20

Drawer rail SMG DA97-10870B Contact Us For Availability

15

DA92-00483C Samsung Refrigerator Inverter Ass In Stock SMG DA92-00483C $199.36

15

DA97-13891A Samsung Assembly Middle Tray Backorder SMG DA97-13891A $173.14

15

Drawer rail SMG DA97-10880B Contact Us For Availability

15-1

DA61-09232A Samsung Middle Right Rail Backorder SMG DA61-09232A $28.76

15-2

Refrigerator reinforcement SMG DA61-09252A Contact Us For Availability

15-3

Refrigerator tray SMG DA63-07523A Contact Us For Availability

15-4

DA63-07548A Samsung Grommet Backorder SMG DA63-07548A $3.03

15-5

DA63-07559A Samsung Refrigerator Low Grommet Backorder SMG DA63-07559A $4.33

15-6

Refrigerator rail cover SMG DA63-07630A Contact Us For Availability

15-7

DA97-13887A Samsung Assembly Rail Middle Backorder SMG DA97-13887A $69.40

15-8

DA97-13895A Samsung Refrigerator Rail Assembl Backorder SMG DA97-13895A $29.64

16

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $146.34

16

DA97-13728Q Samsung Refrigerator Food Show Gu Backorder SMG DA97-13728Q $166.21

16-1

DA63-07516D Samsung Refrigerator Upper Food S Backorder SMG DA63-07516D $101.45

16-2

DA61-09441A Samsung Refrigerator Guide Latour Backorder SMG DA61-09441A $21.70

17

DA92-00634Q Samsung Refrigerator Main PCB Foo Backorder SMG DA92-00634Q $345.45

17

Refrigerator guard, lower SMG DA97-13730D Contact Us For Availability

17-1

Refrigerator guard SMG DA63-07518B Contact Us For Availability

18

DA97-13729J Samsung Assembly GUARD-REF MIDDLE Backorder SMG DA97-13729J $148.15

18

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $358.01

18-1

Refrigerator door stopper SMG DA61-09373A Contact Us For Availability

18-2

Refrigerator door stopper SMG DA61-09404A Contact Us For Availability

18-3

Refrigerator guard SMG DA63-07517C Contact Us For Availability

21

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $15.13

23

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $71.04

25

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $37.30

25-3

DA63-00951B Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951B $6.46

26

DA97-08458G Samsung Refrigerator Pipe Connect Backorder SMG DA97-08458G $96.65

27

DA97-08630A Samsung Refrigerator Step Motor A In Stock SMG DA97-08630A $159.99

28

DA97-08310H Samsung Refrigerator Compressor W Backorder SMG DA97-08310H $73.43

28-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $40.19

28-2

DA39-00154J Samsung Refrigerator Compressor W Backorder SMG DA39-00154J $41.79

30-4

Refrigerator condenser coil SMG DA97-08464F Contact Us For Availability

31-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $12.73

31-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $8.27

33

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

34

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

35

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $7.01

36

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $8.64

39

DA32-10109B Samsung Refrigerator Temperature In Stock SMG DA32-10109B $30.74

43

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $25.92

46

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $23.76

3053

DA61-08427A Samsung Refrigerator Motor Circui Backorder SMG DA61-08427A $23.22

3054

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.47

3055

Refrigerator condenser fan motor SMG DA31-00305C Contact Us For Availability

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $31.86

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

DA61-06851A Samsung Fixer Cover Damper Assemb Backorder SMG DA61-06851A $1.69

DA63-06108A Samsung Drawer Roller Grommet Backorder SMG DA63-06108A $5.54

DA64-03678B Samsung Refrigerator Shelf Front Backorder SMG DA64-03678B $20.18

DA64-03685A Samsung Trim Drawer Backorder SMG DA64-03685A $33.23

DA66-10104C Samsung Refrigerator Freezer Door Backorder SMG DA66-10104C $2.16

Refrigerator trim SMG DA64-03760B Contact Us For Availability

Refrigerator trim SMG DA64-03685B Contact Us For Availability
