Model Samsung RH29H9000SR/AA-04 Refrigerator – Common Parts &amp; Diagrams

1

DA91-04329A Samsung Refrigerator Foam Door Backorder SMG DA91-04329A $434.75

1

DA97-13749D Samsung Refrigerator Damper Cover Backorder SMG DA97-13749D $204.20

DA31-00043E Samsung Refrigerator DC Damper Mo In Stock SMG DA31-00043E $156.98

DA32-00029P Samsung Refrigerator Temperature Backorder SMG DA32-00029P $24.03

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $31.86

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

1-2

DA32-10105V Samsung Refrigerator Temperature Backorder SMG DA32-10105V $11.68

1-2

DA47-00301H Samsung Refrigerator Thermostat F Backorder SMG DA47-00301H $31.30

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $79.96

DA47-00463B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00463B $164.22

DA61-07527A Samsung Refrigerator Low Door Sto Backorder SMG DA61-07527A $73.13

DA63-07224A Samsung Cover Deodorizer Backorder SMG DA63-07224A $10.61

DA32-10105B Samsung Refrigerator Temperature In Stock SMG DA32-10105B $20.13

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

DA66-00558B Samsung Refrigerator Door Closing In Stock SMG DA66-00558B $3.68

Refrigerator Damper Control SMG DA63-07525C Contact Us For Availability

1-5

DA02-90106R Samsung Refrigerator Catalyst LTC Backorder SMG DA02-90106R $28.74

1-5

DA97-06542H Samsung Refrigerator Water Ice Pi Backorder SMG DA97-06542H $111.76

1-6

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.76

1-6

DA62-04268A Samsung Seal Damper Backorder SMG DA62-04268A $5.59

2

DA67-03730B Samsung Reinforcement Cap Backorder SMG DA67-03730B $2.66

2

DA97-04568W Samsung Refrigerator Polaris Gray Backorder SMG DA97-04568W $144.16

2

DA97-14084B Samsung Refrigerator Glass Shelf Backorder SMG DA97-14084B $89.37

2-1

DA64-04395E Samsung Refrigerator Rear Shelf T Backorder SMG DA64-04395E $23.43

2-2

Refrigerator Shelf Trim SMG DA64-04407E Contact Us For Availability

3

DA67-03731B Samsung Reinforcement Cap Backorder SMG DA67-03731B $2.66

3

DA97-13719A Samsung Refrigerator Shelf Slide Backorder SMG DA97-13719A $143.11

3

DA97-14704A Samsung Refrigerator Ice Dispense Backorder SMG DA97-14704A $334.65

3-1

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

3-1

DA97-12628M Samsung Refrigerator Dispenser Le Backorder SMG DA97-12628M $173.36

3-1

Refrigerator Glass Shelf SMG DA01-00883A Contact Us For Availability

3-2

DA31-00020R Samsung Refrigerator BLDC Motor D Backorder SMG DA31-00020R $157.95

3-2

DA41-00217A Samsung Refrigerator Printed Circ Backorder SMG DA41-00217A $46.41

3-2

Refrigerator Shelf Trim SMG DA64-04347C Contact Us For Availability

3-3

DA61-05687A Samsung Refrigerator Case LED Lam Backorder SMG DA61-05687A $1.60

3-3

Refrigerator Shelf SMG DA67-03712A Contact Us For Availability

3-4

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.97

3-4

DA63-02446A Samsung Refrigerator Epel ABS Coo Backorder SMG DA63-02446A $3.20

3-5

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $11.70

3-6

DA92-00635A Samsung Refrigerator LED Touch Di Backorder SMG DA92-00635A $283.76

3-7

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

3-11

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

3-12

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

4

DA63-02902A Samsung Cover Housing Fixer Backorder SMG DA63-02902A $6.91

4

DA91-04005J Samsung Refrigerator Foam Door As Backorder SMG DA91-04005J $371.80

4

DA97-14041A Samsung Refrigerator Upper Right- Backorder SMG DA97-14041A $55.39

4

DA97-14068B Samsung Refrigerator Guard Assemb Backorder SMG DA97-14068B $60.28

4

DA97-14619A Samsung Refrigerator Auger Motor Backorder SMG DA97-14619A $231.41

4-1

DA97-11151D Samsung Movable Fixer Assembly Backorder SMG DA97-11151D $9.59

4-1

Refrigerator Guard SMG DA63-07520A Contact Us For Availability

4-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

4-2

DA66-01035A Samsung Refrigerator Cam Riser Mi Backorder SMG DA66-01035A $3.58

4-3

DA61-09137A Samsung Refrigerator Low Out Hing Backorder SMG DA61-09137A $40.73

4-4

DA61-09264A Samsung Refrigerator Door Stopper Backorder SMG DA61-09264A $33.63

4-5

DA63-07538A Samsung Refrigerator Grommet Asse Backorder SMG DA63-07538A $2.14

4-6

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $1.69

4-7

6001-000716 Samsung Refrigerator Machine Scre Backorder SMG 6001-000716 $1.18

4-9

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $1.69

5

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

5

DA97-04568V Samsung Refrigerator Door Gasket Backorder SMG DA97-04568V $209.90

5

DA97-14082E Samsung Refrigerator Vegetable Cr Backorder SMG DA97-14082E $160.06

5

DA97-14096B Samsung Low Guard Assembly Backorder SMG DA97-14096B $56.82

5-1

Vegetable Low Case SMG DA61-09850A Contact Us For Availability

5-1

Refrigerator Freezer Guard SMG DA63-07620A Contact Us For Availability

5-2

Cover Veg-fr SMG DA63-07487A Contact Us For Availability

5-3

Refrigerator Basket Trim SMG DA64-04565D Contact Us For Availability

5-4

DA67-03728A Samsung Cap Tray Assembly Backorder SMG DA67-03728A $12.12

6

DA97-06473K Samsung Refrigerator Ice Route Ca Backorder SMG DA97-06473K $171.21

6

DA97-13873E Samsung Refrigerator Handle Assem Backorder SMG DA97-13873E $142.79

6

DA97-14714A Samsung Refrigerator Low Vegetabl Backorder SMG DA97-14714A $167.74

6-1

DA67-03674A Samsung Low Handle Cap Backorder SMG DA67-03674A $27.39

6-1

Refrigerator Auger Motor SMG DA31-00079B Contact Us For Availability

6-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $17.83

6-2

DA61-09327A Samsung Refrigerator Food Showcas Backorder SMG DA61-09327A $3.74

6-2

Cover Veg-fr SMG DA63-07862A Contact Us For Availability

6-3

DA61-04373A Samsung Refrigerator Ice Route Ca Backorder SMG DA61-04373A $31.26

6-3

DA67-03673A Samsung Upper Handle Cap Assembly Backorder SMG DA67-03673A $29.35

6-4

DA66-00309A Samsung Refrigerator Gear Motor C Backorder SMG DA66-00309A $5.85

6-4

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $6.71

6-4

Refrigerator Door Handle Set Screw SMG 6009-001526 Contact Us For Availability

6-5

DA97-00883E Samsung Refrigerator Ice Route Co In Stock SMG DA97-00883E $51.29

6-6

6002-001364 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001364 $1.18

7

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $22.92

7

DA97-14090A Samsung Latch Cover Assembly Backorder SMG DA97-14090A $44.04

7

Refrigerator Rail SMG DA97-14142A Contact Us For Availability

7-2

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.60

7-4

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $9.22

7-5

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.79

7-7

6003-001435 Samsung Refrigerator Screw, Tap T Backorder SMG 6003-001435 $1.69

8

DA64-04574A Samsung Locker Assembly Backorder SMG DA64-04574A $5.05

8

DA97-14253A Samsung Refrigerator Indoor Ice M In Stock SMG DA97-14253A $260.85

8

Refrigerator Rail SMG DA97-14141A Contact Us For Availability

8-1

DA34-00043C Samsung Refrigerator Reed Switch Backorder SMG DA34-00043C $30.18

8-2

DA97-13415B Samsung Refrigerator Ice Maker As In Stock SMG DA97-13415B $261.33

8-3

DA97-00151B Samsung Refrigerator Reed Switch Backorder SMG DA97-00151B $41.78

8-4

DA61-09458A Samsung Refrigerator Front Foot Backorder SMG DA61-09458A $9.59

8-6

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $1.18

8-8

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.18

9

DA97-14263A Samsung Refrigerator Ice Tray Ass Backorder SMG DA97-14263A $235.21

9

Rail-low-l SMG DA97-14742A Contact Us For Availability

9

Refrigerator Handle Cap SMG DA67-03677C Contact Us For Availability

9-1

DA66-00587A Samsung Refrigerator Lever Bucket Backorder SMG DA66-00587A $11.70

9-2

DA66-00588A Samsung Lever Bucket Assembly Rig Backorder SMG DA66-00588A $3.74

9-3

6002-000473 Samsung Tapping Screw Backorder SMG 6002-000473 $1.69

9-4

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $6.71

9-5

DA61-04378A Samsung Spring Bucket Lever Assem Backorder SMG DA61-04378A $2.14

9-7

DA60-10107A Samsung Screw Machine Backorder SMG DA60-10107A $2.79

10

DA67-03727A Samsung CAP Handle Assembly Backorder SMG DA67-03727A $29.78

10

DA97-06568D Samsung Refrigerator Ice Maker Co Backorder SMG DA97-06568D $64.71

10

Rail-low-r SMG DA97-14743A Contact Us For Availability

11

DA41-00519B Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00519B $40.69

11

DA91-04189K Samsung Refrigerator Door Foam As Backorder SMG DA91-04189K $477.57

11

DA97-12749B Samsung Refrigerator Compressor C Backorder SMG DA97-12749B $131.92

11-1

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $3.35

11-2

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

11-3

DA61-09426A Samsung Door Stopper Backorder SMG DA61-09426A $36.45

11-4

DA63-07566A Samsung Refrigerator Low Food Hin Backorder SMG DA63-07566A $4.79

11-5

DA66-01044A Samsung Right Auto Close Cam Backorder SMG DA66-01044A $2.66

11-6

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $1.18

12

DA63-05431A Samsung Refrigerator LED Cover Si Backorder SMG DA63-05431A $9.59

12

DA97-13874A Samsung Refrigerator Upper Door H Backorder SMG DA97-13874A $136.30

12

DA97-14655E Samsung Refrigerator Side Water F Backorder SMG DA97-14655E $285.69

12-1

DA63-07634B Samsung Grommet Handle Backorder SMG DA63-07634B $1.69

12-2

DA67-03675A Samsung Upper Out Handle Cap Backorder SMG DA67-03675A $25.23

13

DA97-13875A Samsung Assembly Low Handle Backorder SMG DA97-13875A $157.80

13

Refrigerator Lamp Cover SMG DA63-03623D Contact Us For Availability

13-1

DA67-03676A Samsung Low Outer Handle Cap Backorder SMG DA67-03676A $28.32

14

DA27-00043B Samsung Refrigerator Coil Filter Backorder SMG DA27-00043B $111.70

14

DA97-13915A Samsung Refrigerator Food Show Ga Backorder SMG DA97-13915A $160.62

15

DA67-03879A Samsung Air Out Cap Assembly Backorder SMG DA67-03879A $10.09

15

DA92-00483C Samsung Refrigerator Inverter Ass In Stock SMG DA92-00483C $204.55

15

DA97-13891A Samsung Assembly Middle Tray Backorder SMG DA97-13891A $170.38

15-1

DA61-09232A Samsung Middle Right Rail Backorder SMG DA61-09232A $30.34

15-2

Refrigerator Reinforcement SMG DA61-09252A Contact Us For Availability

15-3

Refrigerator Tray SMG DA63-07523A Contact Us For Availability

15-4

DA63-07548A Samsung Grommet Backorder SMG DA63-07548A $3.03

15-5

DA63-07559A Samsung Refrigerator Low Grommet Backorder SMG DA63-07559A $4.25

15-6

Refrigerator Rail Cover SMG DA63-07630A Contact Us For Availability

15-7

DA97-13887A Samsung Assembly Rail Middle Backorder SMG DA97-13887A $74.24

15-8

DA97-13895A Samsung Refrigerator Rail Assembl Backorder SMG DA97-13895A $31.26

15-9

6002-000623 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000623 $1.18

16

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $138.60

16

DA97-13728G Samsung Refrigerator Upper Food S Backorder SMG DA97-13728G $146.96

16-1

DA61-09441A Samsung Refrigerator Guide Latour Backorder SMG DA61-09441A $22.89

16-2

DA63-07516D Samsung Refrigerator Upper Food S Backorder SMG DA63-07516D $101.45

17

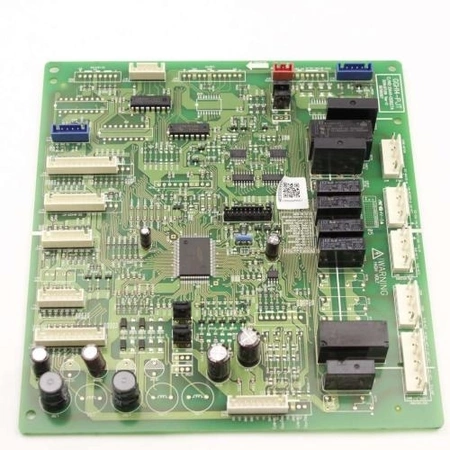

DA92-00634H Samsung Refrigerator Control Boar Backorder SMG DA92-00634H $336.38

17

DA97-13729G Samsung Refrigerator Middle Guard Backorder SMG DA97-13729G $162.60

17-1

Refrigerator Door Stopper SMG DA61-09373A Contact Us For Availability

17-2

Refrigerator Door Stopper SMG DA61-09404A Contact Us For Availability

17-3

Refrigerator Guard SMG DA63-07517C Contact Us For Availability

18

DA97-14095B Samsung Refrigerator Low Guard As Backorder SMG DA97-14095B $157.58

18

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $334.64

18-1

DA63-07619B Samsung Refrigerator Guard Sub Fr Backorder SMG DA63-07619B $83.80

20

DA41-00519P Samsung Refrigerator Pba-Led Lamp Backorder SMG DA41-00519P $31.23

21

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

23

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

23

DA62-01018A Samsung Refrigerator Rubber Seal Backorder SMG DA62-01018A $8.10

25

Refrigerator Drain Tube Kit SMG DA97-04049E No Longer Available

25-3

DA63-00951B Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951B $6.46

26

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

27

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $6.91

29

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $35.00

30-1

Refrigerator Condenser Coil SMG DA97-08464F Contact Us For Availability

30-5

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $201.27

31-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

31-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

36

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

37

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

41-1

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

42

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

151

DA47-00104M Samsung Refrigerator Water Pipe H Backorder SMG DA47-00104M $54.43

152

DA62-01368L Samsung Refrigerator Water Line P Backorder SMG DA62-01368L $7.99

153

DA71-20208A Samsung Refrigerator Water Valve Backorder SMG DA71-20208A $1.69

311

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $17.88

312

DA63-05449A Samsung Refrigerator Cover-Switch Backorder SMG DA63-05449A $4.79

313

DA96-00106J Samsung Dispenser Wire Harness As Backorder SMG DA96-00106J $30.74

821

DA33-10011A Samsung Refrigerator Magnet Backorder SMG DA33-10011A $2.66

3052

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.26

NI

Refrigerator Water Filter SMG DA29-00019A Contact Us For Availability

NI

Refrigerator Owner's Manual SMG DA68-02976A Contact Us For Availability
