Model Samsung RF27T5241SG/AA-00 Refrigerator – Common Parts &amp; Diagrams

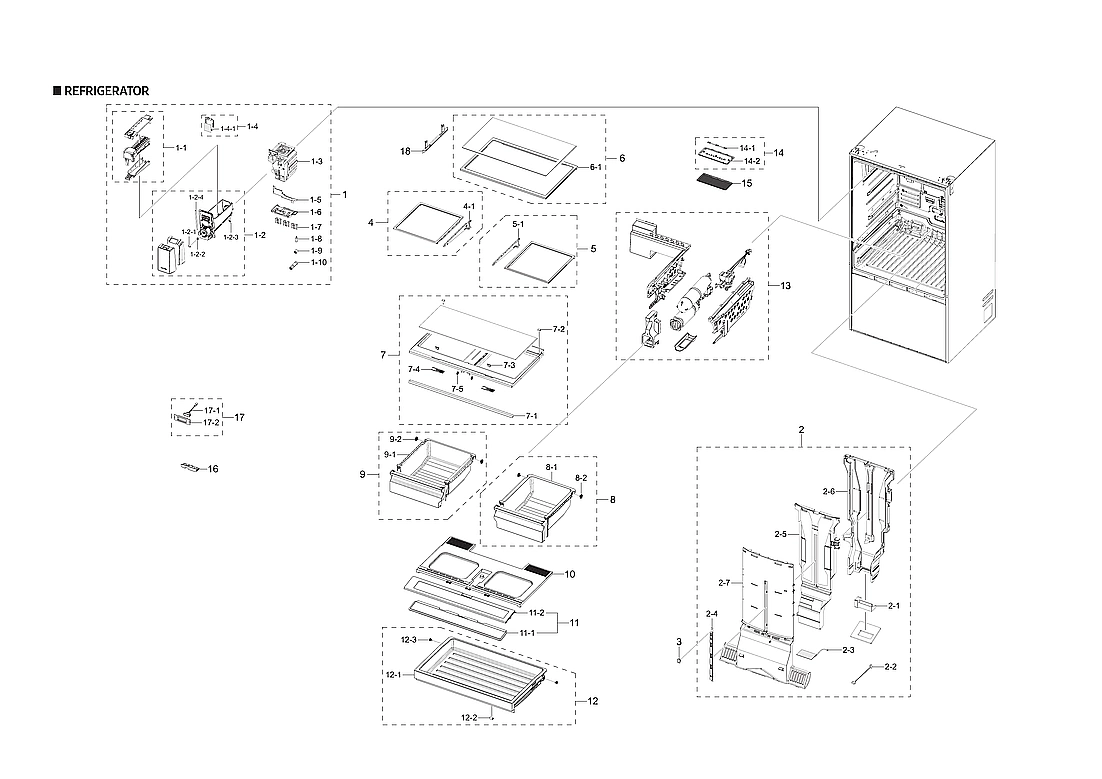

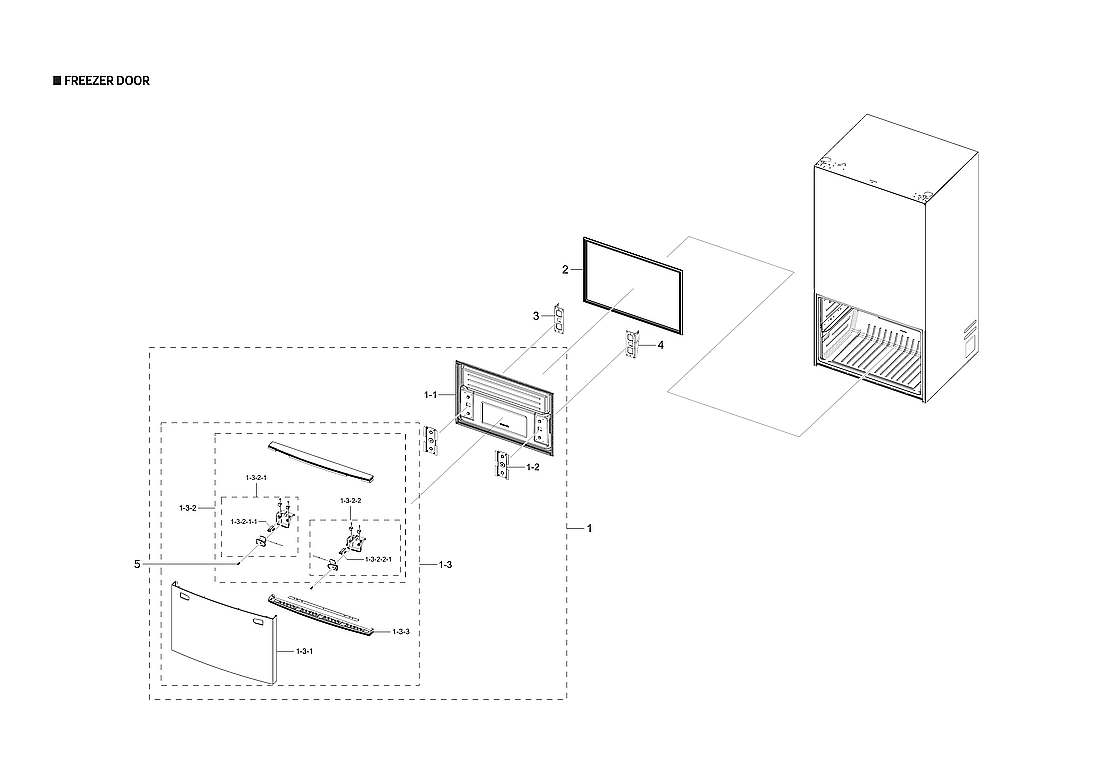

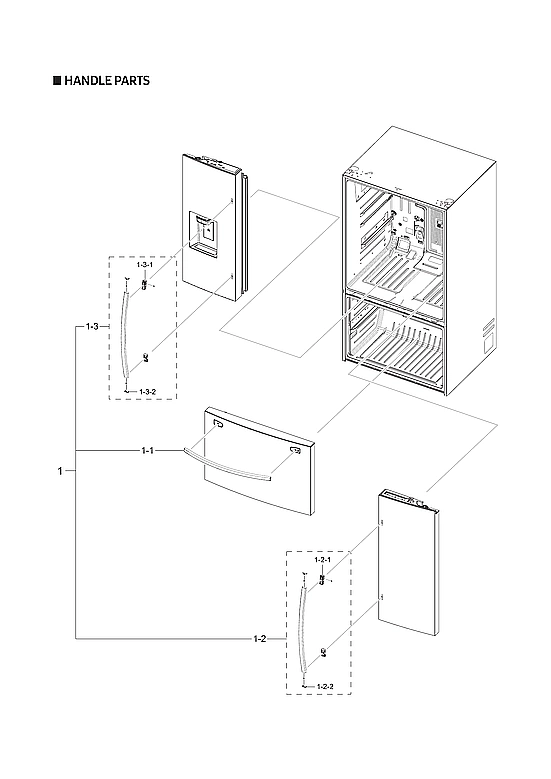

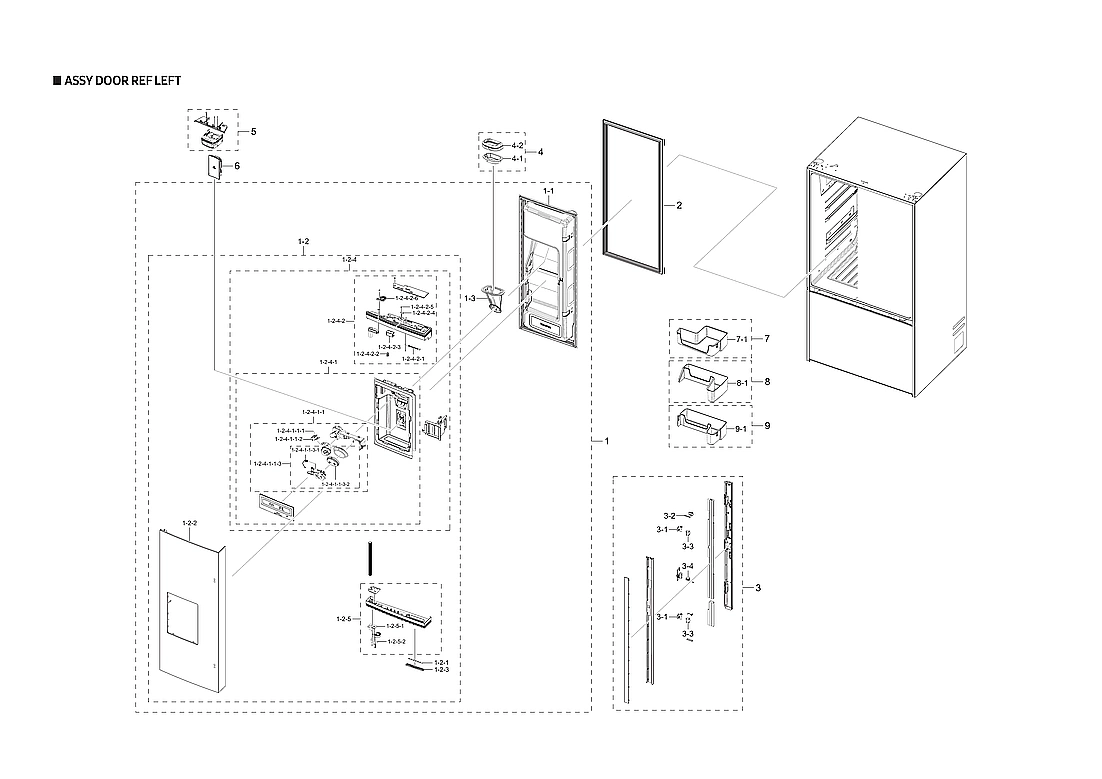

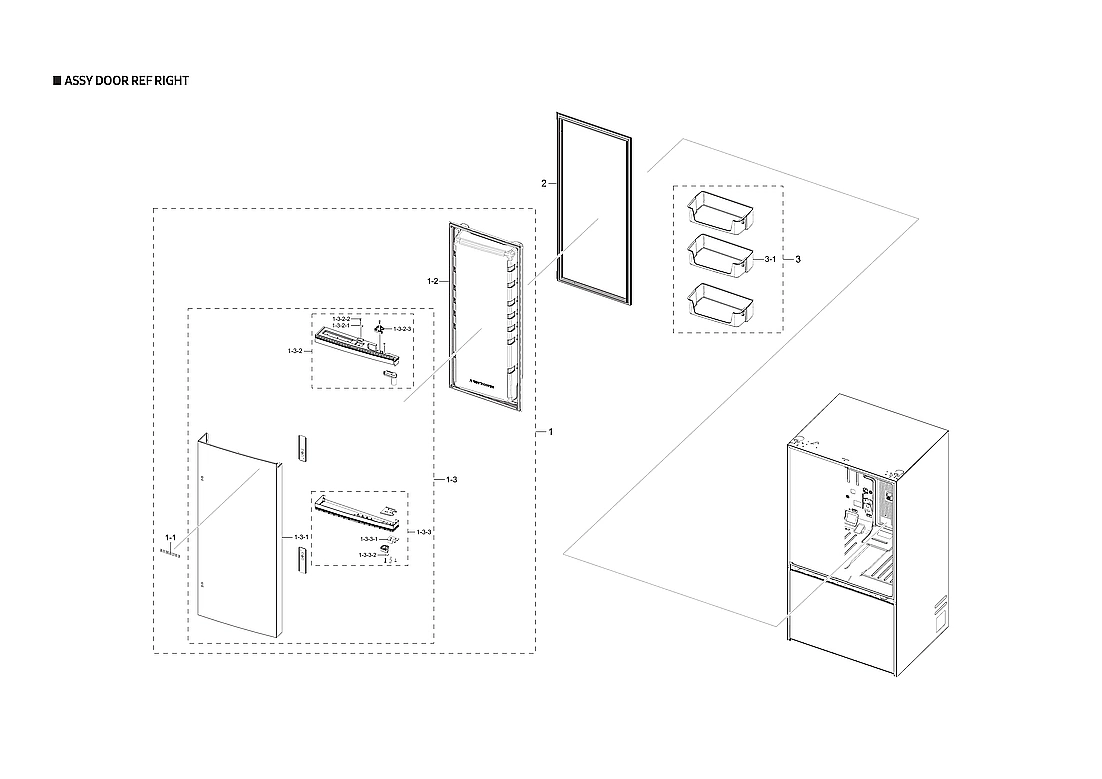

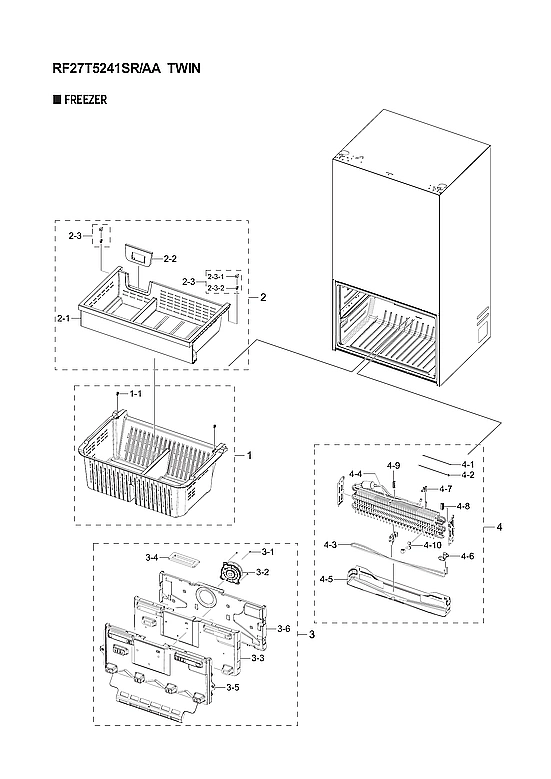

1

Assy ice maker SMG DA90-12111E Contact Us For Availability

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $24.62

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $41.15

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $118.12

Refrigerator freezer door handle assembly SMG DA97-20017A Contact Us For Availability

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.89

DA97-11291A Samsung Refrigerator Right Vegeta Backorder SMG DA97-11291A $43.25

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $217.61

Refrigerator door handle, right SMG DA97-20019A Contact Us For Availability

Panel-ref right SMG DA64-06268A Contact Us For Availability

1-2-1

DA60-00231A Samsung Refrigerator Fastener Rin Backorder SMG DA60-00231A $8.10

1-2-2

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $4.33

1-2-3

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $6.47

1-2-4

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.24

1-2-5-1

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $30.23

DA64-04477B Samsung Refrigerator Table Top As Backorder SMG DA64-04477B $86.68

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $289.90

DA97-20021A Samsung Refrigerator Left Handle Backorder SMG DA97-20021A $167.70

Assy plate door-ref right SMG DA97-21012A Contact Us For Availability

1-3-1

Plate door-ref right SMG DA61-13973A Contact Us For Availability

1-3-2

Assy cap door-ref up right SMG DA97-21013A Contact Us For Availability

1-3-3

Assy cap door-ref low right SMG DA97-21014A Contact Us For Availability

1-3-3-1

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $31.23

1-3-3-2

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

1-4

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $48.52

1-4

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $22.68

1-4-1-1

DA97-13405A Samsung Refrigerator Ice Room Cas Backorder SMG DA97-13405A $299.23

1-5

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $14.58

1-6

DA61-09570A Samsung Refrigerator Cool Abs Cas Backorder SMG DA61-09570A $4.49

1-7

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $27.55

1-8

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $23.76

1-9

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $47.62

1-10

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $8.64

2

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

2

DA97-13015J Samsung Refrigerator Door Gasket Backorder SMG DA97-13015J $115.51

2

DA97-21004A Samsung Refrigerator Cover Assemb Backorder SMG DA97-21004A $189.09

2-1

DA31-00043E Samsung Refrigerator DC Damper Mo Backorder SMG DA31-00043E $169.16

2-2

DA32-00006J Samsung Refrigerator Temperature Backorder SMG DA32-00006J $30.74

2-3

Heater cord- drain SMG DA47-00248H Contact Us For Availability

2-3-1

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $3.89

2-3-2

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $3.48

2-5

Insulation-multi ref a SMG DA62-05456A Contact Us For Availability

2-6

Insulation duct-b SMG DA62-05457A Contact Us For Availability

2-7

Cover multi-ref SMG DA63-09784A Contact Us For Availability

3

DA67-03978B Samsung Refrigerator Evaporator C Backorder SMG DA67-03978B $59.10

3

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $77.03

3

DA97-12624A Samsung Refrigerator French Door In Stock SMG DA97-12624A $168.84

3

DA97-20984A Samsung Refrigerator Right Guard Backorder SMG DA97-20984A $141.47

3-1

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $11.82

3-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $64.66

3-1

DA63-09775A Samsung Refrigerator Right Guard Backorder SMG DA63-09775A $73.02

3-2

DA31-00334C Samsung Refrigerator BLDC Fan Mot In Stock SMG DA31-00334C $153.67

3-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.93

3-3

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $9.72

3-4

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $5.93

4

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $81.46

4

DA62-04309D Samsung Refrigerator Single Moist Backorder SMG DA62-04309D $321.10

4

DA97-12574A Samsung Refrigerator Upper Right In Stock SMG DA97-12574A $71.20

4

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $66.65

4

DA97-20335A Samsung Refrigerator Shelf Module Backorder SMG DA97-20335A $173.88

4-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $35.27

4-1

DA63-08248A Samsung Gasket Refrigerator Backorder SMG DA63-08248A $40.85

4-1

DA97-14398A Samsung Refrigerator Right Hanger Backorder SMG DA97-14398A $57.66

4-2

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $28.44

4-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $12.96

4-3

DA47-00526B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00526B $153.06

4-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.41

4-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $9.72

4-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.26

5

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $215.89

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $9.78

5

DA97-12749B Samsung Refrigerator Compressor C Backorder SMG DA97-12749B $187.03

5

DA97-20336A Samsung Refrigerator Right Fixed Backorder SMG DA97-20336A $176.13

5-1

DA97-15168A Samsung Refrigerator Left Hanger Backorder SMG DA97-15168A $145.54

5-5

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $39.51

5-6

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $5.93

6

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $6.05

6

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

6

DA97-21003A Samsung Refrigerator Upper Shelf Backorder SMG DA97-21003A $132.70

6

DA97-21146C Samsung Refrigerator Dispenser Le Backorder SMG DA97-21146C $78.65

6-1

Shelf-ref up SMG DA67-05002A Contact Us For Availability

7

Refrigerator crisper drawer cover assembly SMG DA97-20333A Contact Us For Availability

7-1

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $158.35

7-2

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $1.69

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $8.27

7-3

DA64-00817B Samsung Refrigerator Humidity Kno Backorder SMG DA64-00817B $9.72

7-4

DA66-00638A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00638A $4.04

7-5

DA97-15997A Samsung Refrigerator Roller Assem Backorder SMG DA97-15997A $17.81

8

DA97-08437H Samsung Refrigerator Right Vegeta Backorder SMG DA97-08437H $212.35

8

Valve step SMG DA62-04678E Contact Us For Availability

8-1

Refrigerator door bin, middle SMG DA63-09777A Contact Us For Availability

8-1

Case veg-right SMG DA61-13474B Contact Us For Availability

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $71.04

9

DA97-08438H Samsung Assembly Case Veg-Left Dr Backorder SMG DA97-08438H $184.22

9

DA97-11541B Samsung Refrigerator Left Pantry Backorder SMG DA97-11541B $60.38

9

DA97-20987A Samsung Refrigerator Lower Door B In Stock SMG DA97-20987A $144.33

9-1

DA63-09778A Samsung Refrigerator Lower Guard Backorder SMG DA63-09778A $32.74

9-1

Case veg-left SMG DA61-13473B Contact Us For Availability

10

DA97-20997A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-20997A $143.43

10-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $4.33

10-2

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $10.26

11

DA94-06786A Samsung Refrigerator EEPROM PCB A In Stock SMG DA94-06786A $234.59

11

DA97-21058A Samsung Refrigerator Slide Cover Backorder SMG DA97-21058A $91.09

11-1

Cover slide-a SMG DA63-09794A Contact Us For Availability

11-2

Cover slide-b SMG DA63-09795A Contact Us For Availability

12

DA97-20998A Samsung Refrigerator Pantry Drawe Backorder SMG DA97-20998A $209.70

12-1

Case pantry SMG DA61-13950A Contact Us For Availability

12-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.69

12-2

DA66-00637A Samsung Refrigerator Pantry Rolle Backorder SMG DA66-00637A $1.18

12-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

12-3

DA97-19988B Samsung Refrigerator Roller Assem Backorder SMG DA97-19988B $47.08

12-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

12-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $15.28

12-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $3.79

13

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $151.09

13

DA97-21041A Samsung Refrigerator Filter Case In Stock SMG DA97-21041A $308.96

14

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $93.64

14

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $258.43

14-1

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $146.51

14-2

Refrigerator lamp case SMG DA61-08237A Contact Us For Availability

15

DA63-06921A Samsung Cover Lamp Backorder SMG DA63-06921A $29.30

15-5

Refrigerator freezer basket slide rail assemb SMG DA61-09087A Contact Us For Availability

16

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $7.55

16

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $202.42

16-3

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $209.51

17

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $30.23

17-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $33.20

17-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $6.47

18

DA61-13962A Samsung Fixer Shelf Rf6000t Hips Backorder SMG DA61-13962A $73.43

18

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $37.30

12411

Refrigerator dispenser ice chute door and mot SMG DA97-17296A Contact Us For Availability

12421

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $56.53

12422

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $30.78

12423

DA61-03769A Samsung Refrigerator Door Magnet Backorder SMG DA61-03769A $6.05

12424

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.34

12425

DA67-02795B Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795B $36.99

12426

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $31.34

124111

DA31-00079C Samsung Refrigerator AC Dispenser Backorder SMG DA31-00079C $126.92

124112

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $104.59

1241131

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $3.79

1241132

DA63-04648A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04648A $6.96

DA61-06014A Samsung Refrigerator Handle Assem Backorder SMG DA61-06014A $3.24

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $32.15

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.69

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $101.20

Non-serviceable part SMG N/P Contact Us For Availability
