Model Samsung RF267ABPN/XAA-00 Refrigerator – Common Parts &amp; Diagrams

1

DA97-05390L Samsung Refrigerator Top Table As Backorder SMG DA97-05390L $105.05

1

DA97-06260B Samsung Refrigerator Upper Tray A Backorder SMG DA97-06260B $202.80

1

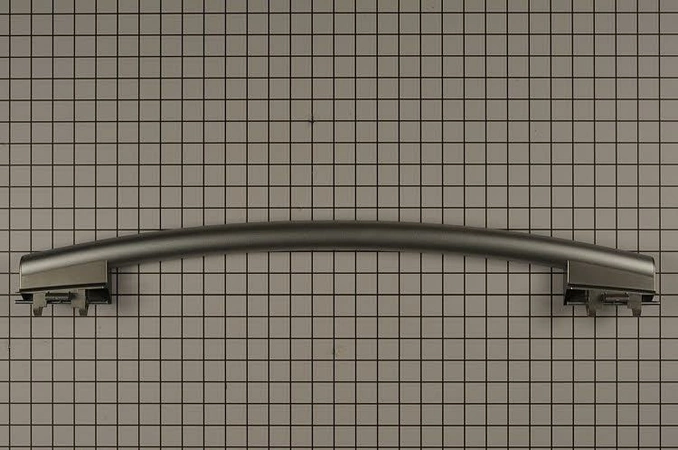

DA97-06429H Samsung Refrigerator Handle Bar A Backorder SMG DA97-06429H $137.62

1

Refrigerator dairy bin and cover SMG DA97-04881B Contact Us For Availability

1-1

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $32.41

1-1

DA63-03455A Samsung Refrigerator Dairy Guard Backorder SMG DA63-03455A $37.62

1-2

Refrigerator dairy bin cover SMG DA63-03462A Contact Us For Availability

1-3

DA64-02256B Samsung Refrigerator Best Abs Top Backorder SMG DA64-02256B $66.43

1-4

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.50

1-4

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.50

1-5

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

2

DA67-01613B Samsung Refrigerator Top Cap Tabl Backorder SMG DA67-01613B $1.60

3

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $44.04

3

DA97-05242A Samsung Refrigerator Assembly Dis Backorder SMG DA97-05242A $56.00

3

DA97-05359A Samsung Refrigerator Quick Space Backorder SMG DA97-05359A $170.34

3

Refrigerator Freezer Handle Cover, Right SMG DA63-04248B Contact Us For Availability

3-4

DA97-04903B Samsung Refrigerator Auto Close L Backorder SMG DA97-04903B $25.03

4

DA61-04255A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04255A $1.18

4

Refrigerator door bin, left SMG DA97-05241A Contact Us For Availability

4-2

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

4-3

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $7.82

5

DA97-04878D Samsung Refrigerator Door Bin Gua Backorder SMG DA97-04878D $75.59

5

Refrigerator Freezer Door Handle Mounting Blo SMG DA61-04254A Contact Us For Availability

5

Refrigerator door assembly, right SMG DA91-02461E Contact Us For Availability

5-4

DA66-00435A Samsung Refrigerator Gear Assembl Backorder SMG DA66-00435A $5.33

6

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $54.92

6

DA66-00441B Samsung Refrigerator Auto Close C Backorder SMG DA66-00441B $5.33

6

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $1.18

6

DA97-06572A Samsung Refrigerator Mid Left Hin Backorder SMG DA97-06572A $90.05

6

Refrigerator flipper assembly SMG DA97-07244C Contact Us For Availability

6-5

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $4.93

6-6

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $1.69

6-7

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $3.68

6-8

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

6-9

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

6-10

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.38

6-11

DA61-03234A Samsung Refrigerator French Door Backorder SMG DA61-03234A $58.66

7

DA61-02984A Samsung Refrigerator Handle Fixer In Stock SMG DA61-02984A $6.08

7

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.66

7

DA97-05353A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-05353A $54.85

7

DA97-06083A Samsung Refrigerator Upper Slide Backorder SMG DA97-06083A $143.31

7-1

DA67-01729A Samsung Refrigerator Ice Chute Ca Backorder SMG DA67-01729A $7.45

7-2

DA61-04108A Samsung Refrigerator Upper Slide Backorder SMG DA61-04108A $143.00

7-2

DA63-03698A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-03698A $58.68

8

DA61-02738F Samsung Refrigerator Magnet Assem Backorder SMG DA61-02738F $5.33

8

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $37.79

8

DA97-04417K Samsung Refrigerator Handle Bar A Backorder SMG DA97-04417K $159.47

8

DA97-04880A Samsung Refrigerator Guard Assemb Backorder SMG DA97-04880A $72.37

8

Refrigerator Light Socket and Housing Assembl SMG DA97-04842E Contact Us For Availability

8-1

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

8-2

DA64-01979B Samsung Refrigerator Handle Bar Backorder SMG DA64-01979B $98.82

8-3

Refrigerator door handle end cap, upper SMG DA67-01527F Contact Us For Availability

8-4

DA47-00243D Samsung Refrigerator Bimetal Ther Backorder SMG DA47-00243D $52.22

8-4

Refrigerator door handle end cap, lower SMG DA67-01528F Contact Us For Availability

9

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

9

DA66-00442B Samsung Refrigerator Auto Close C Backorder SMG DA66-00442B $4.79

9

Refrigerator Freezer Door Shelf Rail End Cap SMG DA61-03763A Contact Us For Availability

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

DA61-03762A Samsung Refrigerator Left Side Su In Stock SMG DA61-03762A $18.10

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $30.34

DA97-05253B Samsung Refrigerator Door Gasket In Stock SMG DA97-05253B $116.58

10-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $27.95

10-2

DA61-04109A Samsung Refrigerator Upper Slide Backorder SMG DA61-04109A $144.67

11

DA97-02019B Samsung Refrigerator Temperature Backorder SMG DA97-02019B $39.39

11

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $28.51

11-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $29.63

11-1

DA67-02055B Samsung Refrigerator Freezer Left Backorder SMG DA67-02055B $6.39

11-2

DA67-02054B Samsung Right Refrigerator Door C Backorder SMG DA67-02054B $9.59

DA63-03420A Samsung Refrigerator Lamp Cover A Backorder SMG DA63-03420A $27.42

DA97-05557Y Samsung Freezer Door Gasket Assem In Stock SMG DA97-05557Y $198.91

DA97-07361A Samsung Refrigerator Ice Route Ca Backorder SMG DA97-07361A $219.75

Refrigerator Drawer Cover SMG DA97-07019A Contact Us For Availability

12-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

12-6

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $1.69

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $109.77

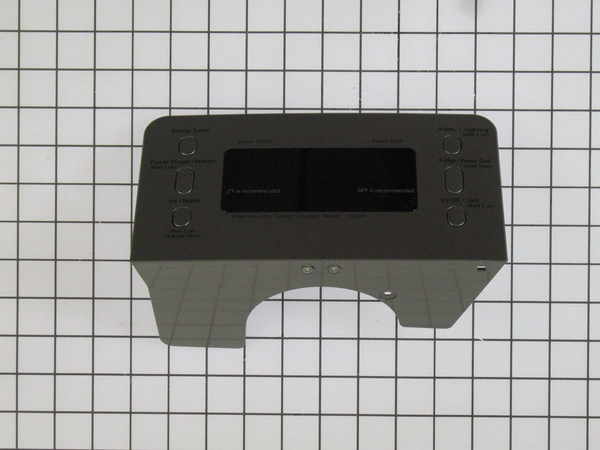

DA97-05401N Samsung Refrigerator Dispenser Co Backorder SMG DA97-05401N $289.24

Refrigerator Evaporator Fan Motor Assembly SMG DA97-06197N Contact Us For Availability

Refrigerator Condenser Coil and Fan Motor Ass SMG DA97-05043C Contact Us For Availability

13-2

Refrigerator Evaporator Insulation SMG DA62-01382A Contact Us For Availability

13-6

DA97-03145L Samsung Refrigerator Circuit Moto Backorder SMG DA97-03145L $206.92

13-8

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

13-9

DA61-03599A Samsung Refrigerator Galvanized H Backorder SMG DA61-03599A $2.16

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $19.08

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $98.61

DA63-03695B Samsung Refrigerator Dispenser Tr In Stock SMG DA63-03695B $22.38

Refrigerator Freezer Evaporator Assembly SMG DA96-00459A Contact Us For Availability

14-1

Refrigerator Defrost Bi-Metal Thermostat SMG DA47-00243R Contact Us For Availability

14-2

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.72

14-5

DA59-00361A Samsung Refrigerator Evaporator I Backorder SMG DA59-00361A $197.73

14-6

Refrigerator Defrost Heater SMG DA47-00244C Contact Us For Availability

15

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $4.25

15

DA97-04846A Samsung Refrigerator Vegetable Ca Backorder SMG DA97-04846A $154.47

16-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

17

DA97-05422A Samsung Refrigerator Ice Maker As In Stock SMG DA97-05422A $251.10

17-2

DA35-00008X Samsung Refrigerator Overload Pro Backorder SMG DA35-00008X $32.33

17-3

DA35-00103B Samsung Refrigerator PTC Thermist Backorder SMG DA35-00103B $104.39

18

DA97-05246C Samsung Refrigerator Auger Motor Backorder SMG DA97-05246C $280.12

18

DA97-05343E Samsung Refrigerator Ice Evaporat Backorder SMG DA97-05343E $296.27

18

DA97-06085A Samsung Refrigerator Suction Conn Backorder SMG DA97-06085A $111.25

18-2

Refrigerator Ice Dispenser Auger Drive Plate SMG DA61-01659B Contact Us For Availability

18-4

DA31-00105G Samsung Refrigerator Geared Auger Backorder SMG DA31-00105G $211.21

18-5

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

18-6

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $1.18

18-8

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $1.18

19

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $25.82

19

DA97-11117A Samsung Refrigerator Freezer Ice In Stock SMG DA97-11117A $194.82

19-1

Refrigerator Ice Container Front Cover Gasket SMG DA63-03737A Contact Us For Availability

19-5

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $7.82

20

Refrigerator Evaporator Assembly SMG DA96-00762C Contact Us For Availability

20-2

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

20-3

Refrigerator Defrost Bi-Metal Thermostat SMG DA47-00243S Contact Us For Availability

20-4

Refrigerator Defrost Sensor SMG DA32-00027B Contact Us For Availability

20-5

Refrigerator Defrost Heater SMG DA47-00244D No Longer Available

20-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

21

DA62-00914B Samsung Refrigerator Water Inlet In Stock SMG DA62-00914B $130.45

22

DA97-05370A Samsung Assembly Refrigerator Cri Backorder SMG DA97-05370A $126.10

22-3

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $50.72

23-2

DA63-03764A Samsung Refrigerator Pantry Drawe Backorder SMG DA63-03764A $40.78

25

DA97-05371B Samsung Refrigerator Left Pantry Backorder SMG DA97-05371B $65.52

25-3

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $15.09

27

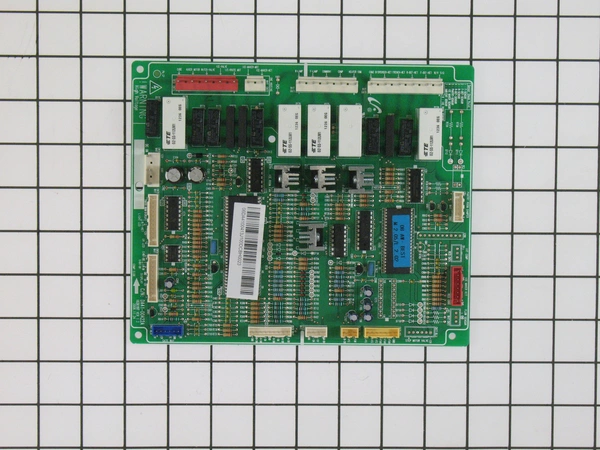

DA41-00413J Samsung Refrigerator Main PCB Ass In Stock SMG DA41-00413J $304.79

27-3

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $20.13

28

Refrigerator Power Control Board SMG DA41-00320A Contact Us For Availability

28

Refrigerator Pantry Drawer Slide Cover Assemb SMG DA97-05384C Contact Us For Availability

28-1

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

28-2

DA41-00423C Samsung Refrigerator Printed Circ Backorder SMG DA41-00423C $37.41

28-3

DA64-02246C Samsung Refrigerator Control Pane Backorder SMG DA64-02246C $20.75

28-5

Refrigerator Slide Rail Cover, Right SMG DA63-03763A Contact Us For Availability

29

DA34-00033B Samsung Refrigerator Door Switch Backorder SMG DA34-00033B $60.72

30

DA61-03202A Samsung Refrigerator Guide French Backorder SMG DA61-03202A $6.39

31

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $97.67

32

DA97-06324A Samsung Refrigerator Damper Cover Backorder SMG DA97-06324A $146.10

32-1

DA31-00071C Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071C $132.85

32-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.97

32-3

DA62-01380A Samsung Refrigerator Damper DC Mo Backorder SMG DA62-01380A $6.39

32-3

Refrigerator Power Cord SMG DA39-10165E Contact Us For Availability

32-4

DA63-04274A Samsung Refrigerator DC Motor Dam Backorder SMG DA63-04274A $12.24

33

DA63-03691A Samsung Refrigerator Ice Room Har Backorder SMG DA63-03691A $11.70

34

Refrigerator Lamp Cover SMG DA63-04608A Contact Us For Availability

1310

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $15.44

1310

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $14.90

1311

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $137.35

1315

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46

1317

DA96-00042J Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042J $46.41

1810

DA32-00011U Samsung Refrigerator Temperature Backorder SMG DA32-00011U $54.43

1814

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $14.53

1815

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

1816

DA31-00146E Samsung Refrigerator Evaporator F In Stock SMG DA31-00146E $146.83

1817

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

NI

Samsung Refrigerator Water Filter SMG DA29-00003G Contact Us For Availability
