Samsung RB215ACWP/XAA-01 Refrigerator Parts List

1

Refrigerator door assembly SMG DA91-02761H Contact Us For Availability

View on Model

1

Refrigerator Shelf Assembly SMG DA97-06686A Contact Us For Availability

View on Model

1

Refrigerator door SMG DA91-02953J Contact Us For Availability

View on Model

1-1

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

View on Model

1-1

Refrigerator Shelf Trim SMG DA64-02645A Contact Us For Availability

View on Model

1-1

Refrigerator control cover SMG DA97-08872C Contact Us For Availability

View on Model

1-2

Refrigerator Glass Shelf SMG DA64-02647A Contact Us For Availability

View on Model

1-3

DA61-04511A Samsung Refrigerator Front Guide Backorder SMG DA61-04511A $48.05

View on Model

1-3

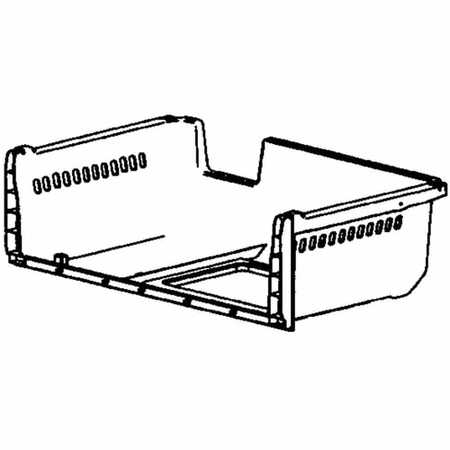

DA63-05607A Samsung Refrigerator Fre-Upp Tray Backorder SMG DA63-05607A $162.22

View on Model

1-4

DA61-04510A Samsung Refrigerator Shelf Suppor Backorder SMG DA61-04510A $48.67

View on Model

1-5

Refrigerator Guide Rail SMG DA61-04505A Contact Us For Availability

View on Model

1-6

Refrigerator Window SMG DA61-02823A Contact Us For Availability

View on Model

1-6

Grommet SMG DA63-00202A Contact Us For Availability

View on Model

2

DA97-06693A Samsung Refrigerator Gasket Assem Backorder SMG DA97-06693A $131.60

View on Model

2

DA97-06694A Samsung Refrigerator Freezer Door Backorder SMG DA97-06694A $131.60

View on Model

2

DA97-06705A Samsung Refrigerator Upper Right Backorder SMG DA97-06705A $54.83

View on Model

2

Refrigerator Ice Maker SMG DA90-04793A Contact Us For Availability

View on Model

2

Refrigerator Ice Tray SMG DA97-06674A Contact Us For Availability

View on Model

2-1

DA61-03189A Samsung Refrigerator Ice Cube Buc Backorder SMG DA61-03189A $57.19

View on Model

2-1

DA63-04441A Samsung Refrigerator Upper Hinge Backorder SMG DA63-04441A $43.57

View on Model

2-1

Refrigerator Tray SMG DA63-04464A Contact Us For Availability

View on Model

2-2

DA34-00043C Samsung Refrigerator Reed Switch Backorder SMG DA34-00043C $30.18

View on Model

2-2

DA67-01231A Samsung Refrigerator Ice Scoop As Backorder SMG DA67-01231A $11.73

View on Model

2-2

Refrigerator Chill Room Tray Cover SMG DA63-04465A Contact Us For Availability

View on Model

3

DA67-02076C Samsung Cap - Hinge Hole Backorder SMG DA67-02076C $2.01

View on Model

3

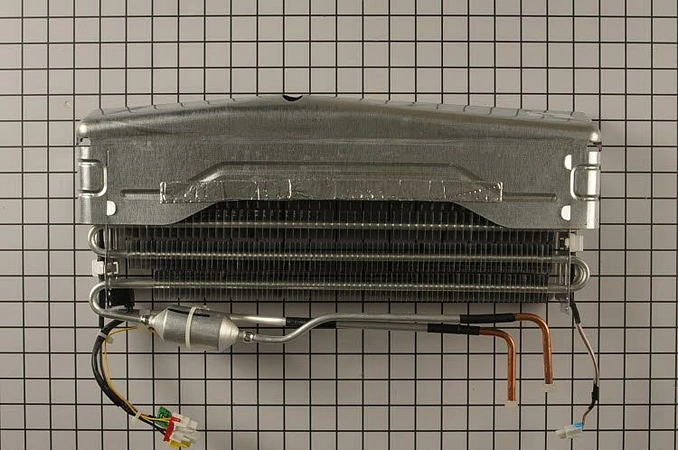

DA96-00480A Samsung Refrigerator Evaporator A Backorder SMG DA96-00480A $186.31

View on Model

3

Refrigerator Shelf Trim SMG DA97-06675A Contact Us For Availability

View on Model

4

DA60-90005A Samsung Refrigerator Rivet Fasten Backorder SMG DA60-90005A $1.18

View on Model

4

DA63-00927D Samsung Refrigerator Door Shelf B Backorder SMG DA63-00927D $113.01

View on Model

4

Refrigerator Cover SMG DA97-00663H Contact Us For Availability

View on Model

4-1

NSP,TRIM,COVER SMG DA64-00448B Contact Us For Availability

View on Model

4-2

DA67-01807H Samsung SHELF-GLASS;W2-PJT(55), G Backorder SMG DA67-01807H $86.36

View on Model

5

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.72

View on Model

5

DA63-01262B Samsung Refrigerator Middle Door Backorder SMG DA63-01262B $165.08

View on Model

5

DA97-07058A Samsung Refrigerator Rail Assembl Backorder SMG DA97-07058A $103.28

View on Model

6

DA61-04462A Samsung Refrigerator Drain Plate Backorder SMG DA61-04462A $60.35

View on Model

6

DA63-01263C Samsung Refrigerator Door Shelf G In Stock SMG DA63-01263C $174.67

View on Model

6

Refrigerator Rail Assembly SMG DA97-00103N Contact Us For Availability

View on Model

6-1

DA61-60126E Samsung Left Rail Backorder SMG DA61-60126E $39.29

View on Model

6-2

c SMG DA63-40006A Contact Us For Availability

View on Model

7

DA47-00243K Samsung Refrigerator Bi-metal Def In Stock SMG DA47-00243K $41.42

View on Model

7

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $4.25

View on Model

7

DA97-00103P Samsung RAIL-VEG Assembly Backorder SMG DA97-00103P $31.26

View on Model

7-1

DA61-60127E Samsung Refrigerator Vegetable Ra Backorder SMG DA61-60127E $31.87

View on Model

8

DA97-08606A Samsung Lamp Cover Assembly Backorder SMG DA97-08606A $113.88

View on Model

8

Refrigerator Cover Assembly SMG DA97-08607A Contact Us For Availability

View on Model

8-1

Refrigerator Freezer Lamp Cover SMG DA63-04955A Contact Us For Availability

View on Model

8-1

c SMG DA63-05430A Contact Us For Availability

View on Model

8-2

DA96-00398F Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-00398F $107.35

View on Model

8-2

DA96-00398K Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-00398K $100.46

View on Model

9

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

View on Model

10

DA97-06667A Samsung Low Rail Assembly Backorder SMG DA97-06667A $48.10

View on Model

10

Refrigerator Light Cover SMG DA97-06700A Contact Us For Availability

View on Model

10-1

Refrigerator Rail SMG DA61-04482A Contact Us For Availability

View on Model

10-1

Refrigerator Lamp Assembly SMG DA61-00762A Contact Us For Availability

View on Model

10-2

Refrigerator Vegetable Case SMG DA63-04445A Contact Us For Availability

View on Model

10-3

DA64-00656A Samsung Refrigerator Humidity Kno In Stock SMG DA64-00656A $2.14

View on Model

10-4

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $6.71

View on Model

10-5

DA71-20145A Samsung Refrigerator Roller Fixer Backorder SMG DA71-20145A $1.18

View on Model

11

DA96-00365E Samsung Refrigerator Evaporator A Backorder SMG DA96-00365E $204.19

View on Model

11

DA97-06668A Samsung Low Rail Assembly Backorder SMG DA97-06668A $67.05

View on Model

11-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

View on Model

11-1

DA61-04481A Samsung Rail Low L Backorder SMG DA61-04481A $85.75

View on Model

11-2

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

View on Model

11-5

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $20.09

View on Model

11-6

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $15.44

View on Model

11-7

DA61-03182A Samsung Refrigerator Evaporator G Backorder SMG DA61-03182A $1.69

View on Model

11-8

DA61-03186A Samsung Refrigerator Evaporator I Backorder SMG DA61-03186A $30.34

View on Model

11-9

DA61-03599A Samsung Refrigerator Galvanized H Backorder SMG DA61-03599A $2.16

View on Model

12

Refrigerator Tray Assembly SMG DA97-06671A Contact Us For Availability

View on Model

12-1

Refrigerator Tray SMG DA63-04459A Contact Us For Availability

View on Model

12-2

Cover-tray SMG DA63-04460A Contact Us For Availability

View on Model

12-3

Refrigerator Freezer Drawer Front Lower SMG DA63-04461A Contact Us For Availability

View on Model

12-4

DA97-03145L Samsung Refrigerator Circuit Moto Backorder SMG DA97-03145L $206.92

View on Model

12-5

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $19.08

View on Model

13

DA97-06657A Samsung Refrigerator Evaporator C Backorder SMG DA97-06657A $170.09

View on Model

13-1

DA60-90146A Samsung Refrigerator Caster Pin M Backorder SMG DA60-90146A $2.14

View on Model

13-1

DA63-04444A Samsung Refrigerator Evaporator C Backorder SMG DA63-04444A $110.97

View on Model

13-2

Insulation Evaporator SMG DA62-01942A Contact Us For Availability

View on Model

13-3

DA61-04461A Samsung Refrigerator Insulation E Backorder SMG DA61-04461A $54.30

View on Model

13-4

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $14.53

View on Model

13-5

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

View on Model

13-6

DA61-03183A Samsung Refrigerator Case Motor Backorder SMG DA61-03183A $7.45

View on Model

13-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

View on Model

13-8

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46

View on Model

13-9

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

View on Model

19

DA97-06707A Samsung Refrigerator Water Valve Backorder SMG DA97-06707A $122.14

View on Model

1110

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $1.18

View on Model

1111

DA62-01383A Samsung Refrigerator Evaporator I Backorder SMG DA62-01383A $1.69

View on Model

1112

DA62-01423A Samsung Refrigerator Insulation E Backorder SMG DA62-01423A $1.18

View on Model

1113

Refrigerator Insulation SMG DA62-01941A Contact Us For Availability

View on Model

1114

Refrigerator Evaporator Cover Air Duct Insula SMG DA62-01969A Contact Us For Availability

View on Model

1118

Refrigerator Fan Motor Grommet SMG DA63-04439A Contact Us For Availability

View on Model

1119

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.60

View on Model

1241

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $137.35

View on Model

NI

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $14.90

View on Model
