Model Bosch C301BS/01 Range Oven – Common Parts & Diagrams

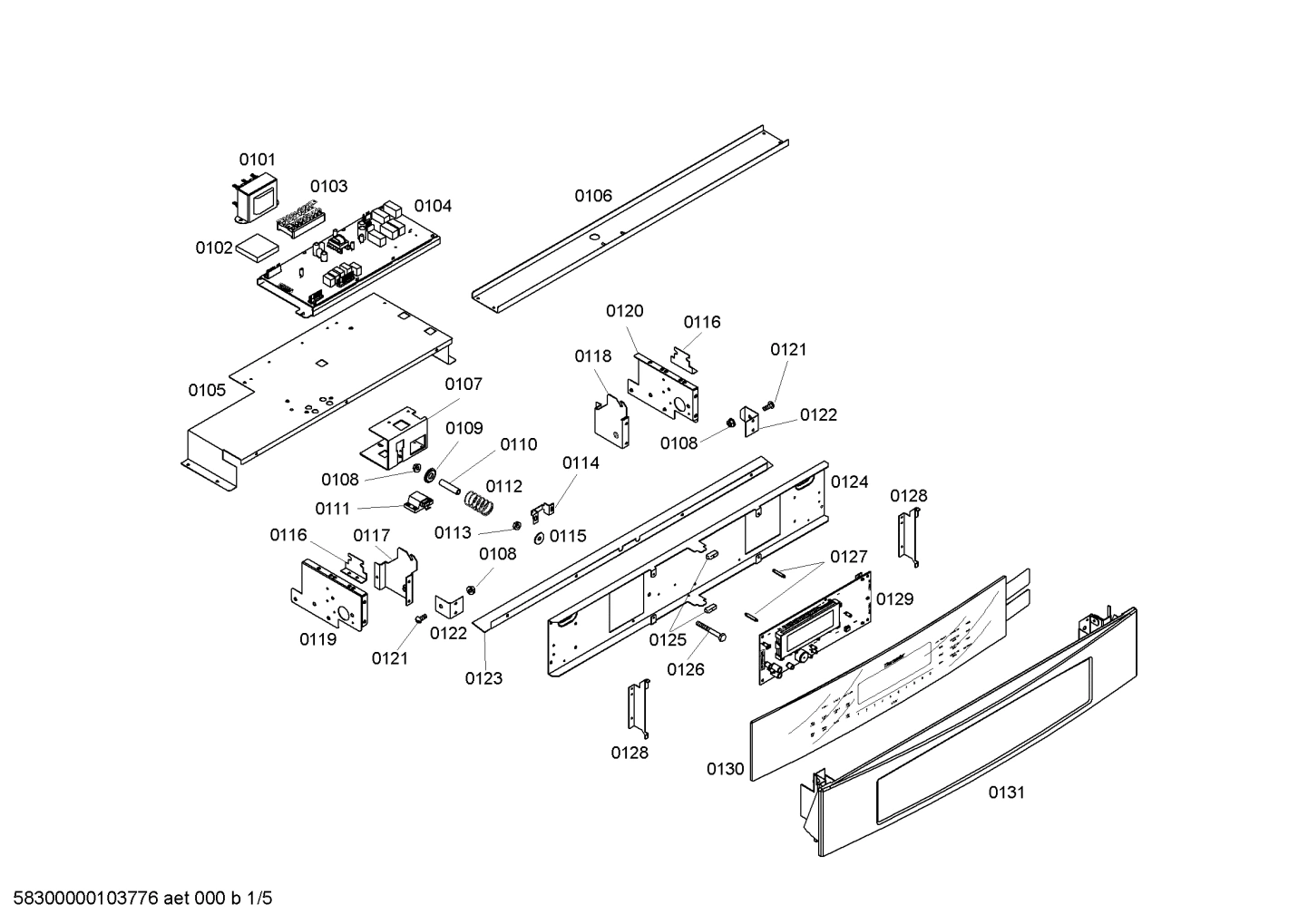

Diagram 1

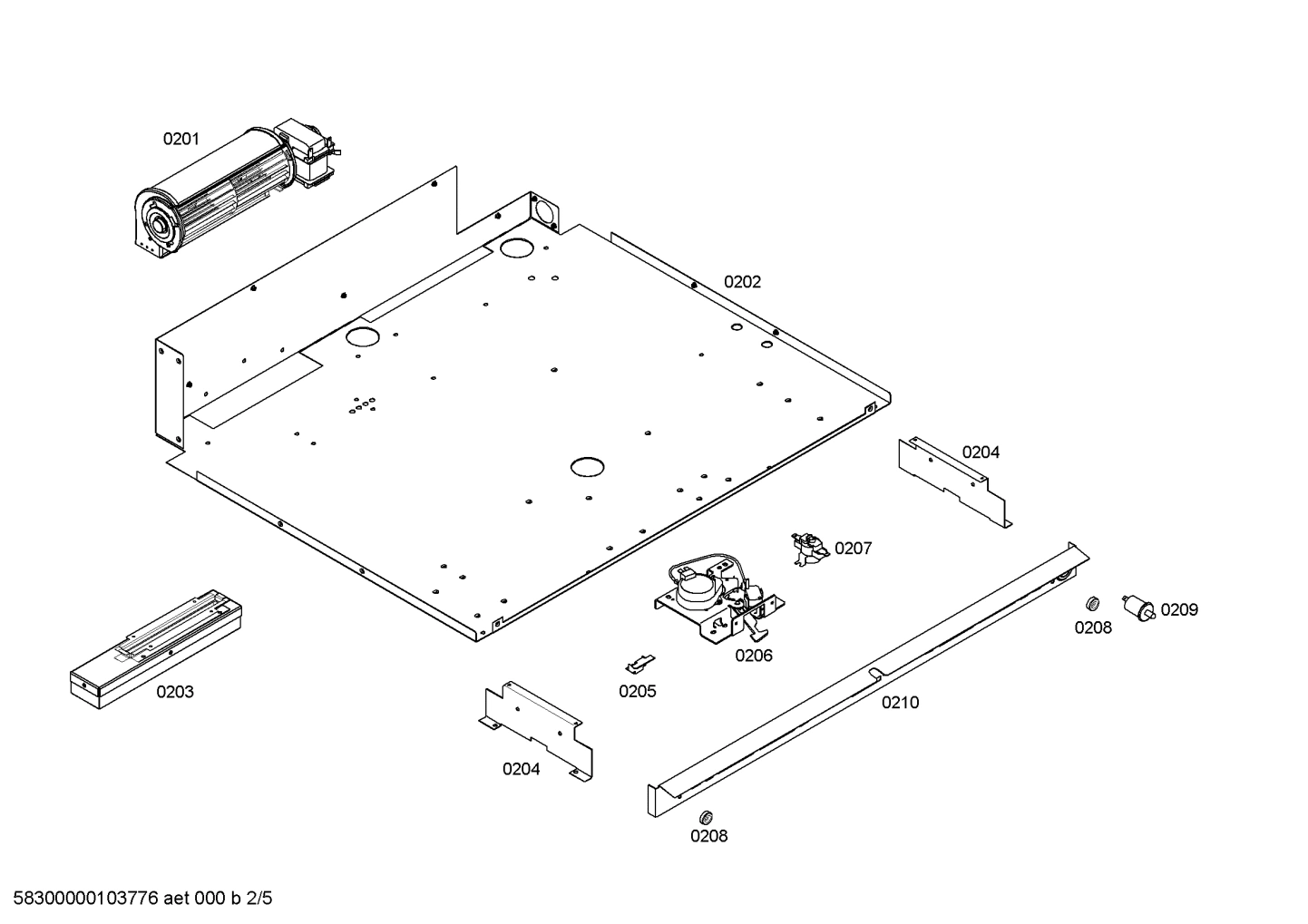

Diagram 2

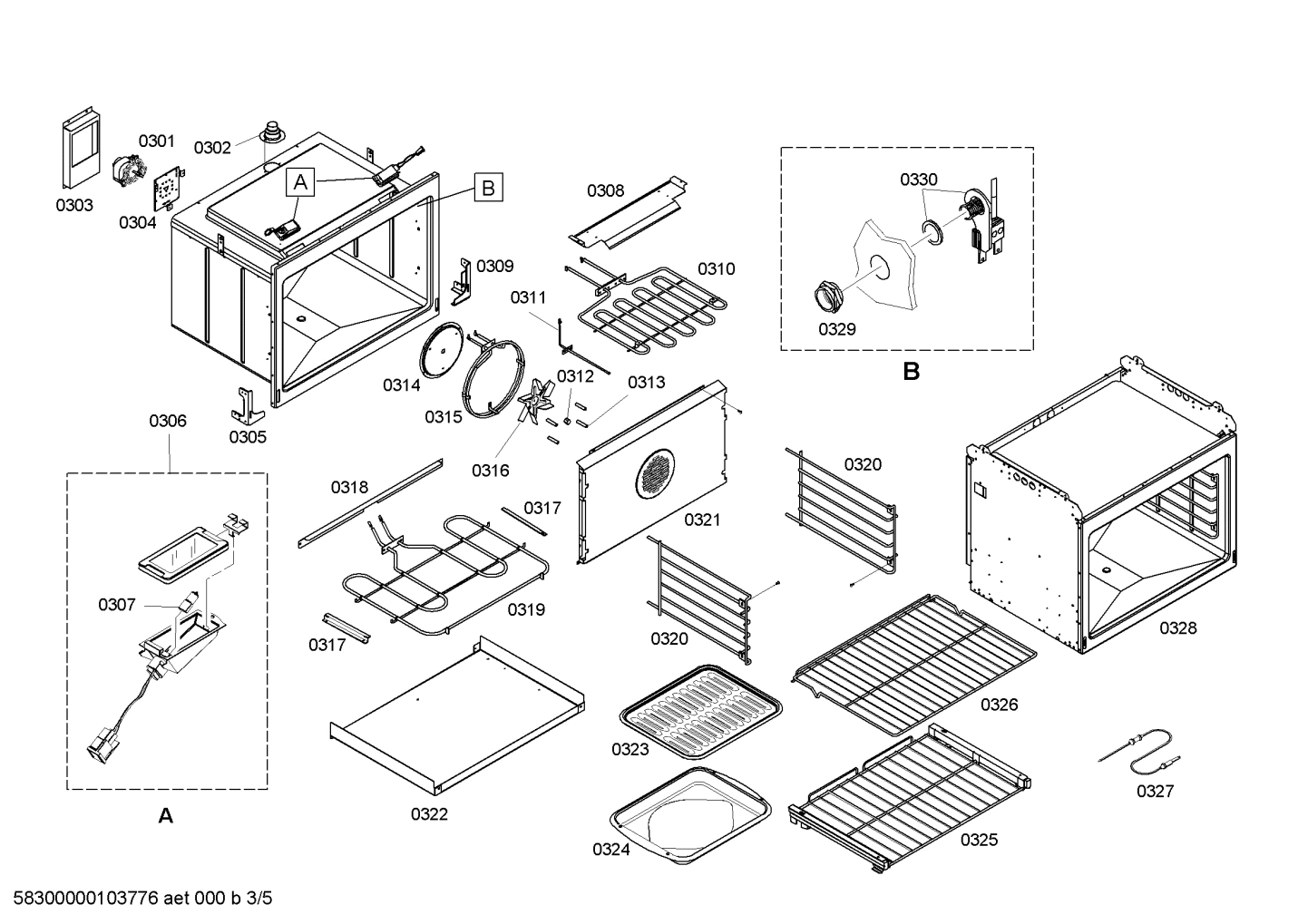

Diagram 3

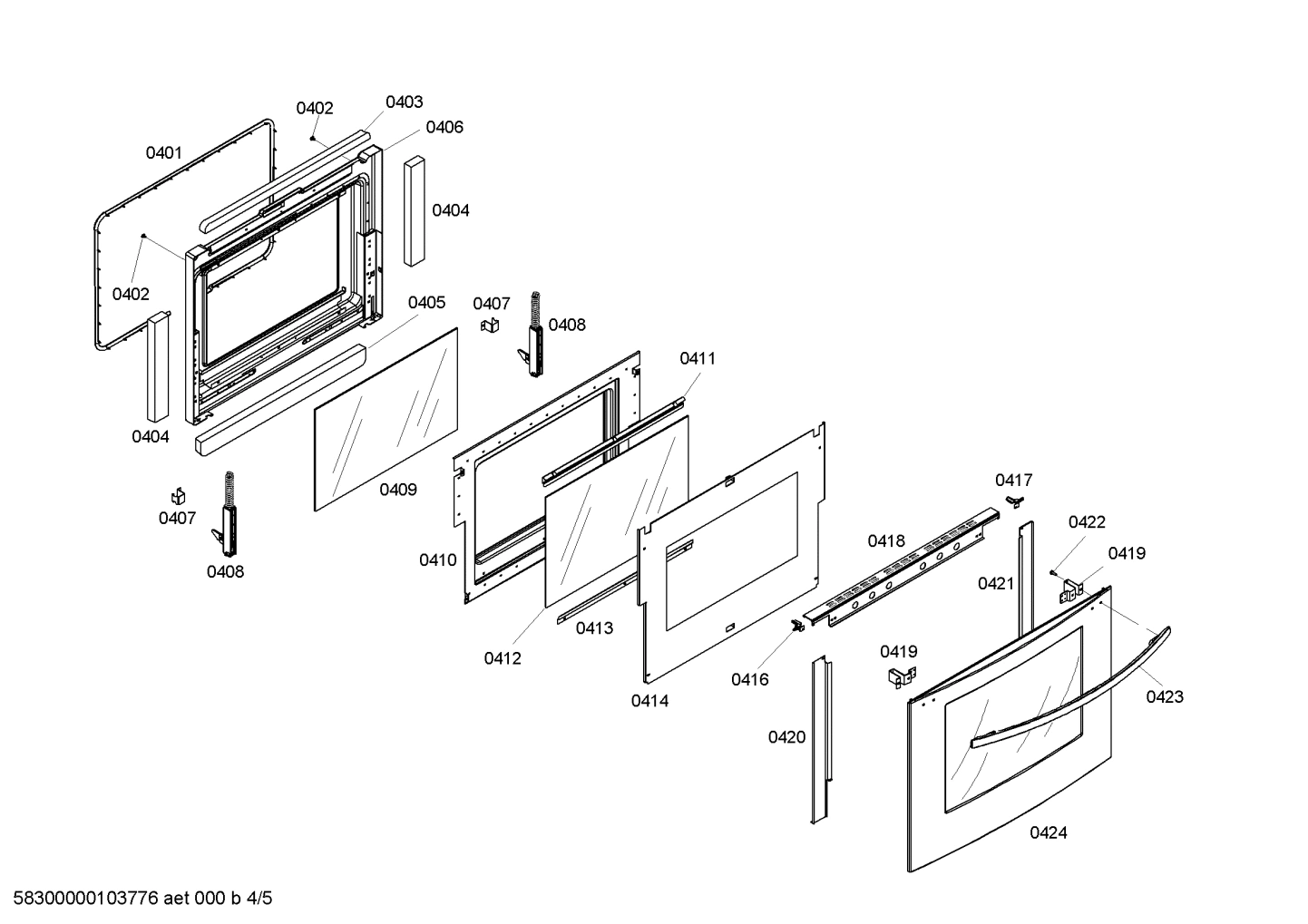

Diagram 4

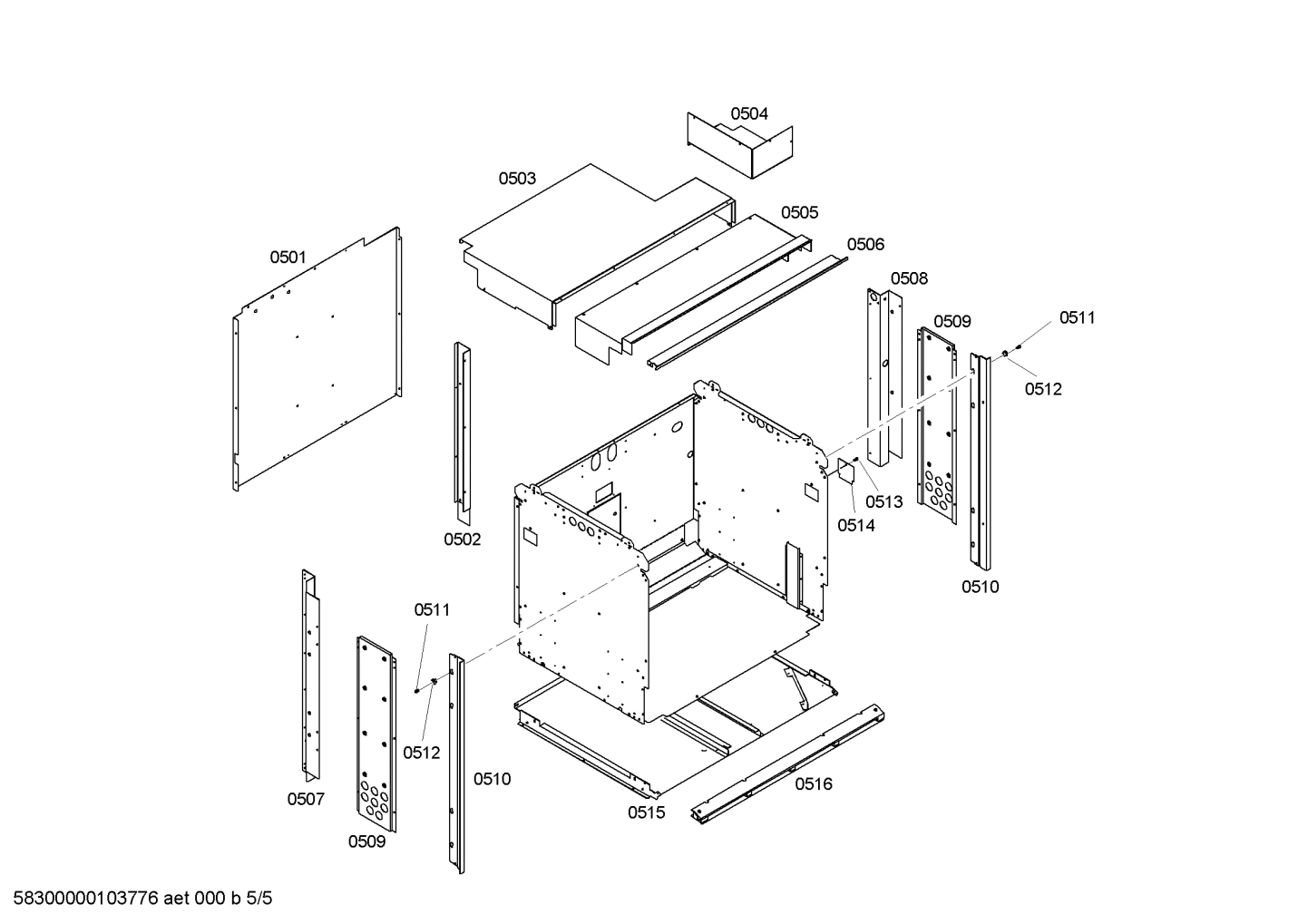

Diagram 5
Common parts from model Bosch C301BS/01 Range Oven
0103
Terminal BOS 00484615 Contact Us For Availability
0104
Relay BOS 00427198 Contact Us For Availability
0105
Panel BOS 00473697 Contact Us For Availability
0111
Latch BOS 00416809 Contact Us For Availability
0130
Glass panel BOS 00473700 Contact Us For Availability
0131
Panel-facia BOS 00368443 Contact Us For Availability
0206
Electric lock BOS 00489102 Contact Us For Availability
0301
Motor BOS 00494266 Contact Us For Availability
0302
Catalyzer BOS 00411220 Contact Us For Availability
0310
Heating element BOS 00143982 Contact Us For Availability
0319
Heating element BOS 00440215 Contact Us For Availability
0323
Grill tray BOS 00449756 Contact Us For Availability
0324
Universal pan BOS 00449757 Contact Us For Availability
0325
Shelf BOS 00143983 Contact Us For Availability
0326
Shelf BOS 00478315 Contact Us For Availability
0350
Cable harness BOS 00499092 Contact Us For Availability
0352
Cable harness BOS 00640589 Contact Us For Availability
0354
Cable harness BOS 00497359 Contact Us For Availability
0355
Cable harness BOS 00662765 Contact Us For Availability
0356
Cable harness BOS 00662780 Contact Us For Availability
0402
Screw BOS 00413477 Contact Us For Availability
0403
Insulating part BOS 00241976 Contact Us For Availability
0404
Insulating part BOS 00241974 Contact Us For Availability
0405
Insulating part BOS 00241975 Contact Us For Availability
0406
Door BOS 00241926 Contact Us For Availability
0407
Clip BOS 00425272 Contact Us For Availability
0408
Door hinge BOS 00425990 Contact Us For Availability
0410
Frame-window BOS 00241932 Contact Us For Availability
0411
Clip BOS 00425275 Contact Us For Availability
0412
Glass panel BOS 00241934 Contact Us For Availability
0414
Heat shield BOS 00241933 Contact Us For Availability
0416
Cover BOS 00413565 Contact Us For Availability
0417
Cover BOS 00413566 Contact Us For Availability
0418
Frame-decor BOS 00440615 Contact Us For Availability
0419
Bracket BOS 00425589 Contact Us For Availability
0420
Bracket BOS 00440616 Contact Us For Availability
0421
Bracket BOS 00440617 Contact Us For Availability
0423
Handle-door BOS 00473709 Contact Us For Availability
0424
Glass panel BOS 00242305 Contact Us For Availability
0450
Seal-door BOS 00144078 Contact Us For Availability
0501
Cover BOS 00242175 Contact Us For Availability
0502
Duct BOS 00440608 Contact Us For Availability
0503
Cover BOS 00242177 Contact Us For Availability
0504
Cover BOS 00440613 Contact Us For Availability
0505
Cover BOS 00473704 Contact Us For Availability
0506
Frame-decor BOS 00473705 Contact Us For Availability
0507
Support BOS 00440609 Contact Us For Availability
0508
Support BOS 00440610 Contact Us For Availability
0509
Duct BOS 00440611 Contact Us For Availability
0511
Screw BOS 00189249 Contact Us For Availability
0514
Plate BOS 00425302 Contact Us For Availability
0515
Base BOS 00241973 Contact Us For Availability
0516
Trimplate BOS 00664798 Contact Us For Availability
0550
Insulating part BOS 00665810 Contact Us For Availability
× ![]()
