Model Bosch B20CS30SNS/01 Refrigerator – Common Parts & Diagrams
Diagram 8
Diagram 5

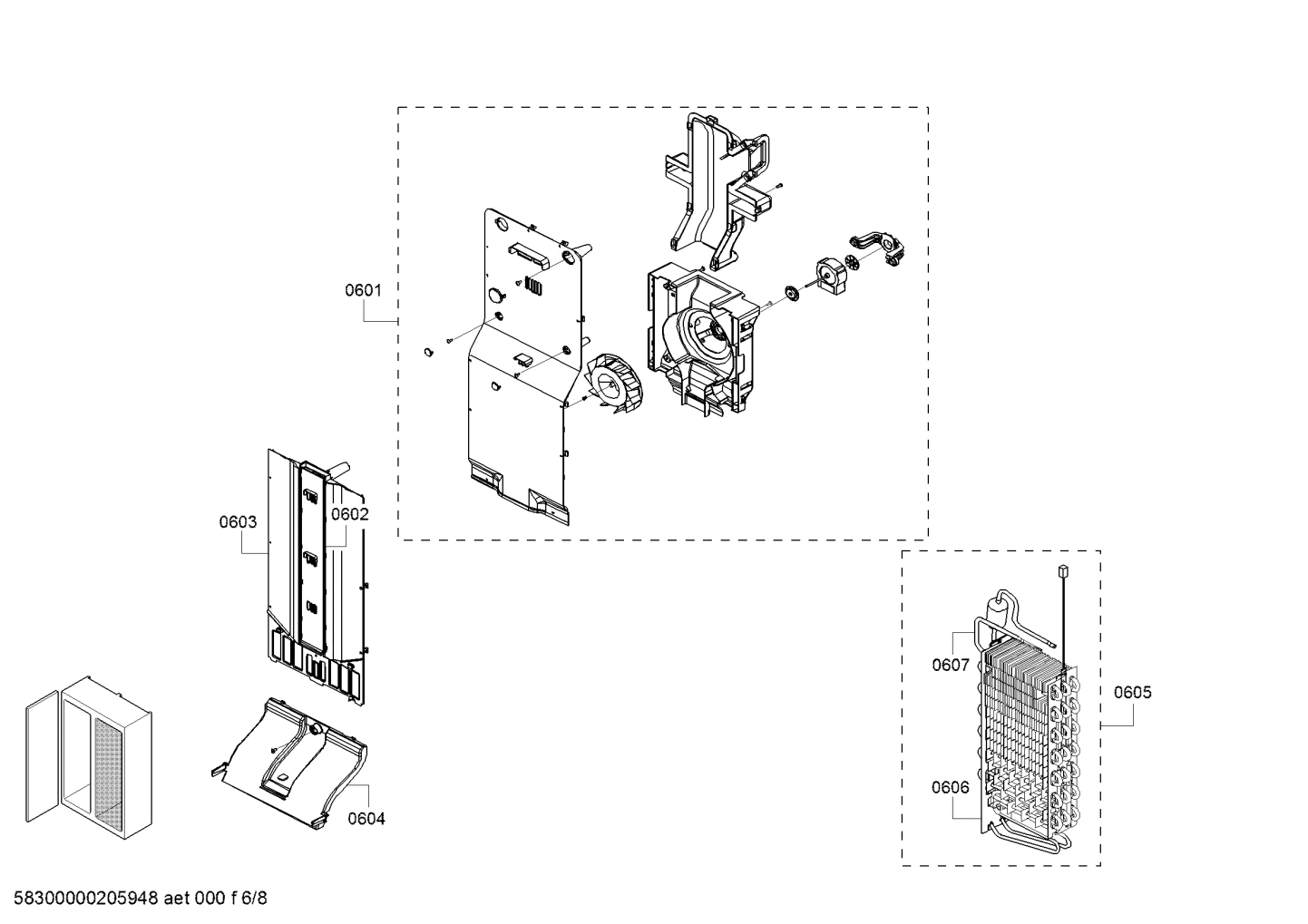

Diagram 6

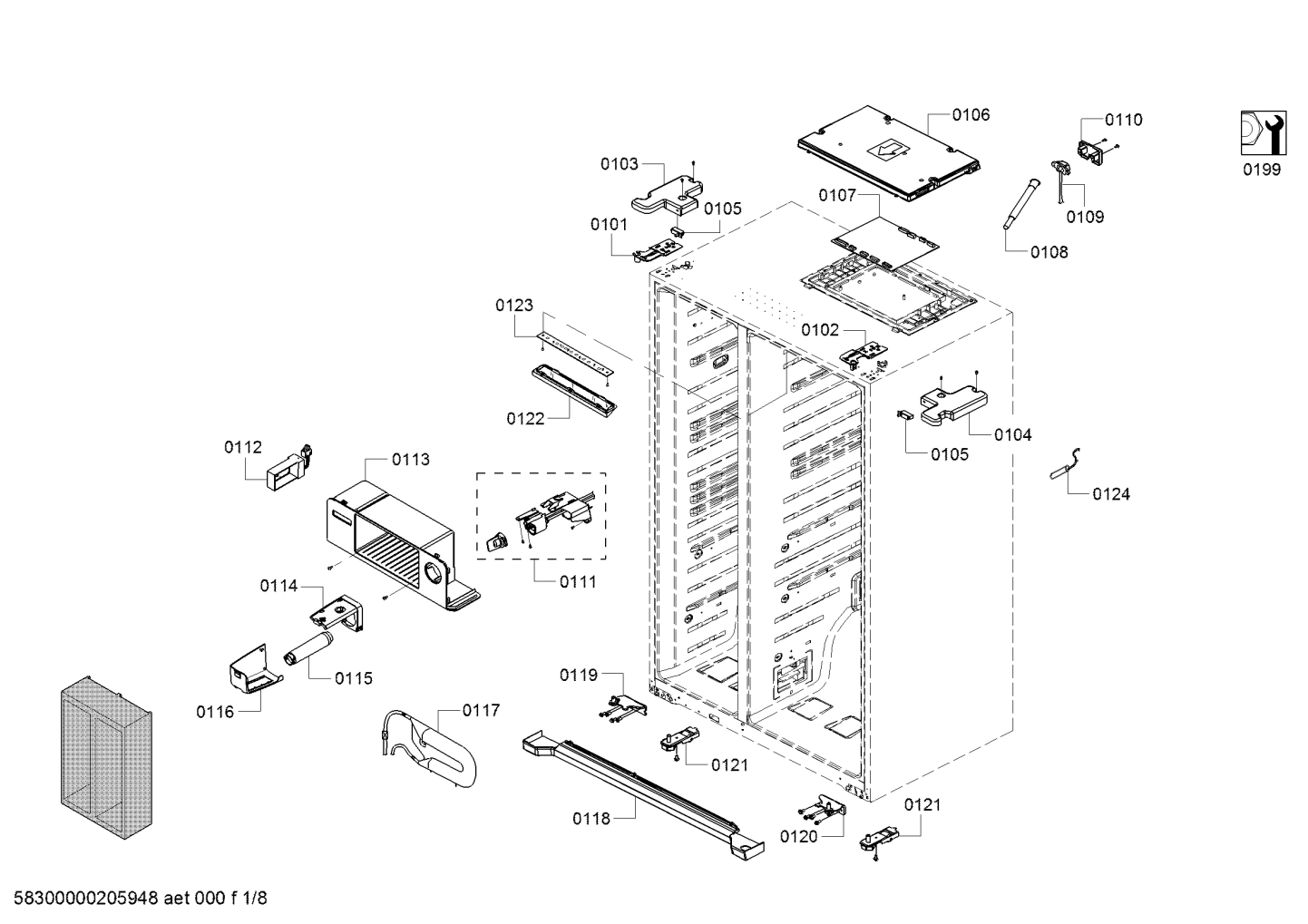

Diagram 1

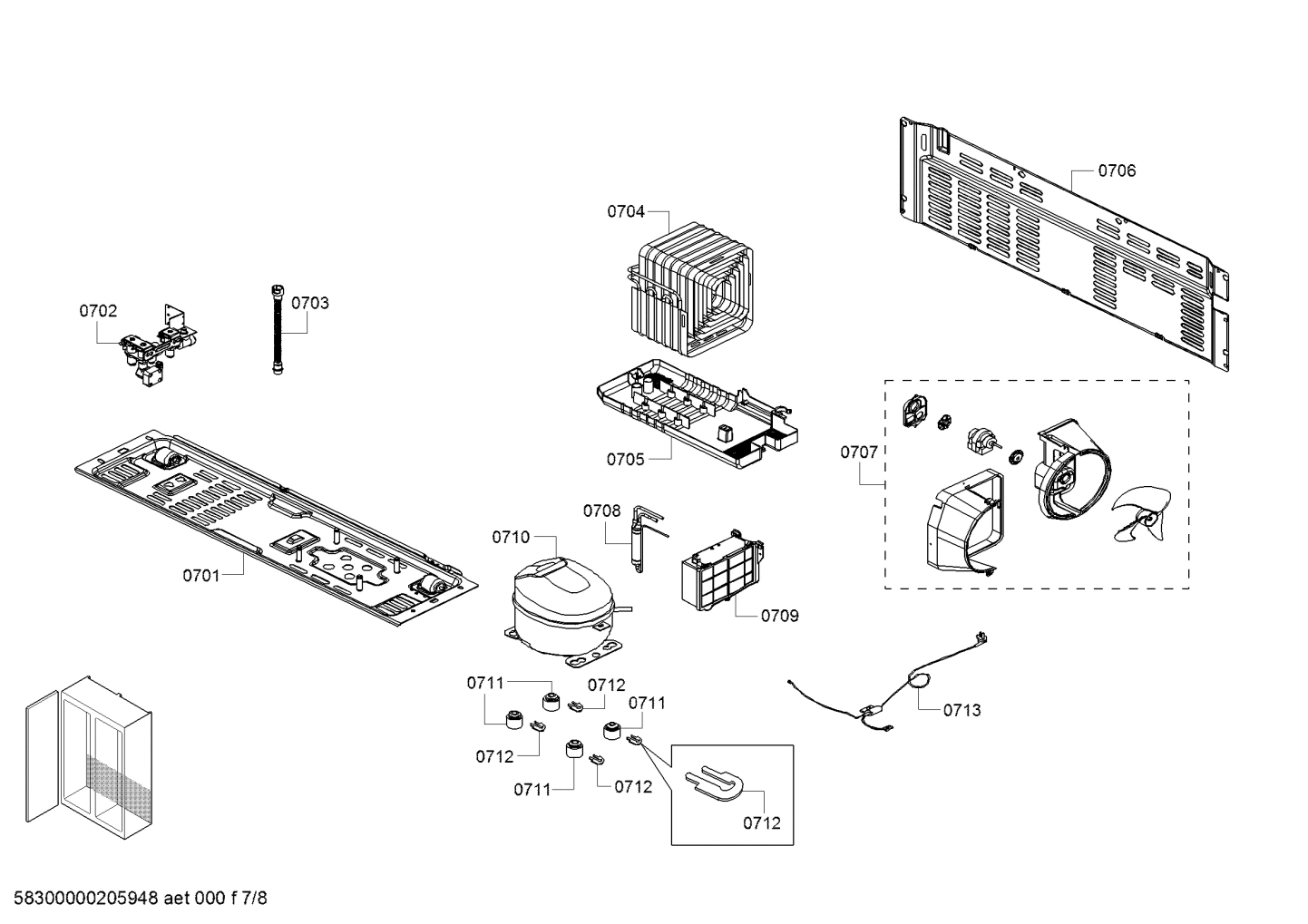

Diagram 7

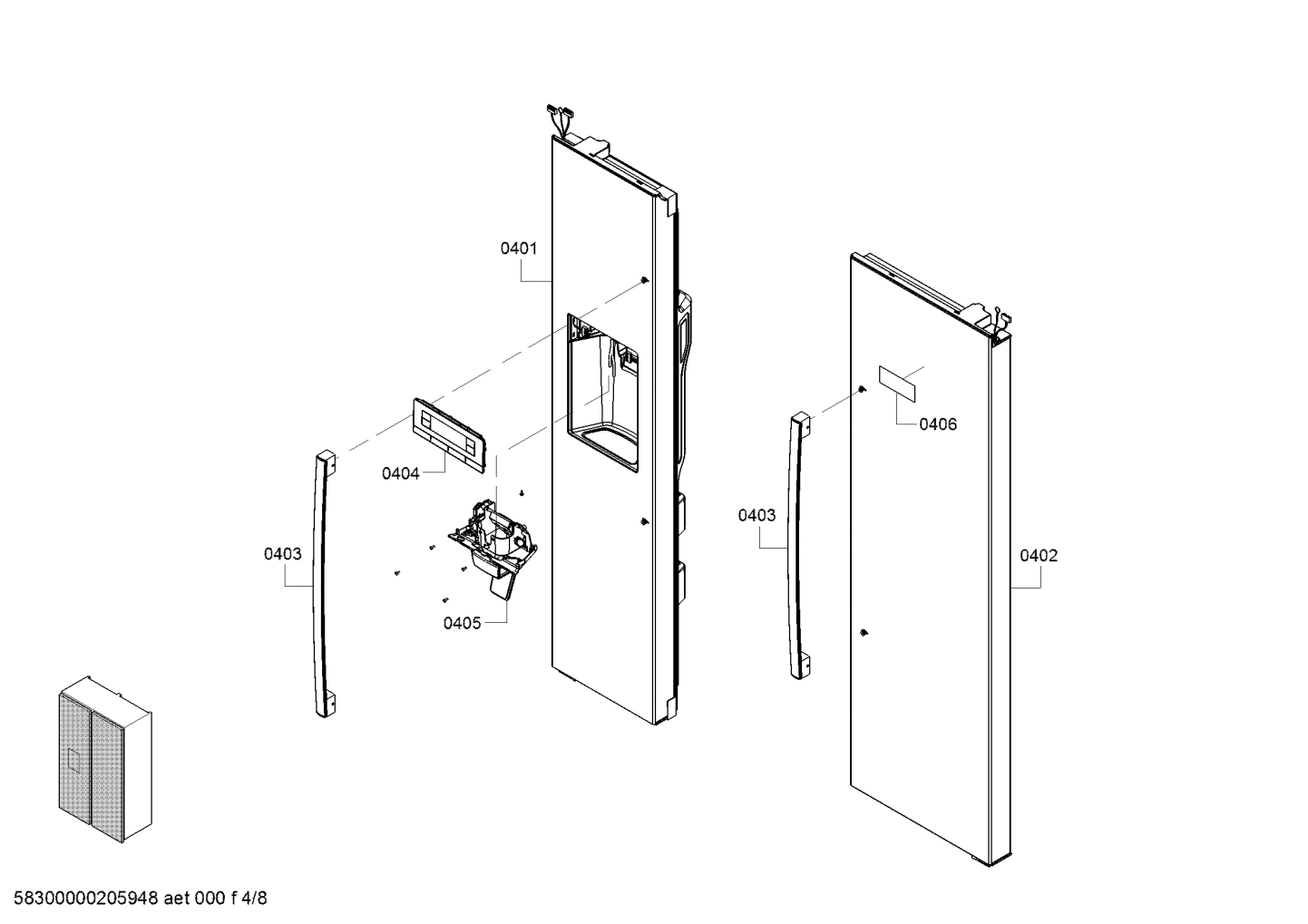

Diagram 4

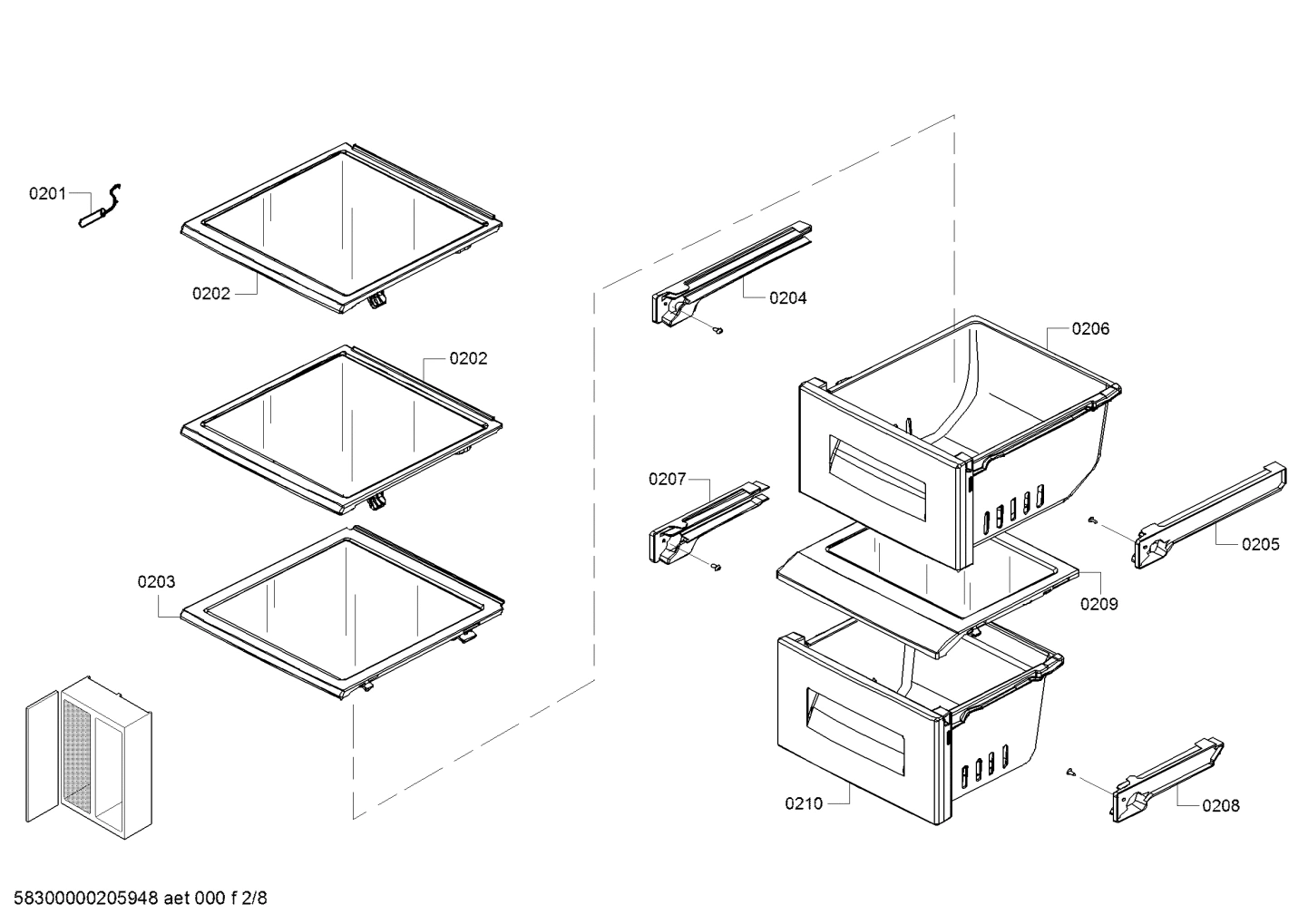

Diagram 2

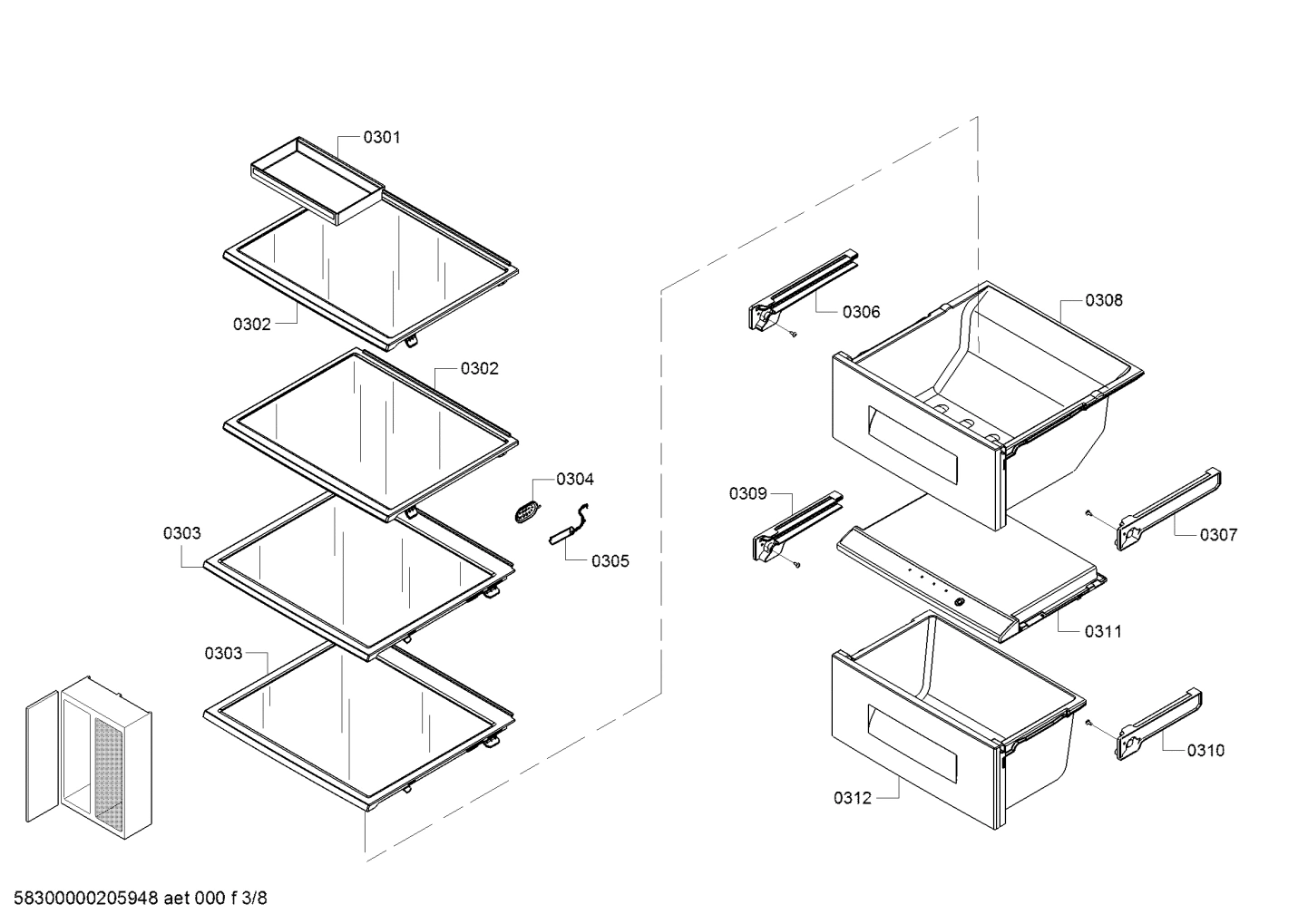

Diagram 3
Common parts from model Bosch B20CS30SNS/01 Refrigerator
0105
Switch BOS 00622348 Contact Us For Availability
0111
Filter holder BOS 11035492 Contact Us For Availability
0112
Damper BOS 11023246 Contact Us For Availability
0117
Tank BOS 00497859 Contact Us For Availability
0118
Grille BOS 00776635 Contact Us For Availability
0124
Sensor BOS 12020249 Contact Us For Availability
0145
Condenser BOS 11023229 Contact Us For Availability
0202
Shelf BOS 00776641 Contact Us For Availability
0203
Cover BOS 00145956 Contact Us For Availability
0206
Drawer BOS 00776800 Contact Us For Availability
0209
Cover BOS 11023243 Contact Us For Availability
0210
Case BOS 00717067 Contact Us For Availability
0301
Container BOS 11023249 Contact Us For Availability
0302
Shelf BOS 00776649 Contact Us For Availability
0305
Temperature sensor BOS 12020260 Contact Us For Availability
0306
Guide BOS 11023241 Contact Us For Availability
0307
Guide BOS 11023242 Contact Us For Availability
0308
Case BOS 00717076 Contact Us For Availability
0309
Guide BOS 11023244 Contact Us For Availability
0310
Guide BOS 11023245 Contact Us For Availability
0311
Cover BOS 00717077 Contact Us For Availability
0320
Case BOS 00717078 Contact Us For Availability
0401
Door-freezer compartment BOS 00717080 Contact Us For Availability
0402
Refrigerator compartment door BOS 00717083 Contact Us For Availability
0403
Handle BOS 00776661 Contact Us For Availability
0405
Door BOS 00776660 Contact Us For Availability
0407
Part not included in this appliance BOS 00552829 Contact Us For Availability
0501
Seal-door BOS 00717081 Contact Us For Availability
0502
Seal-door BOS 00776662 Contact Us For Availability
0504
Shelf BOS 00776658 Contact Us For Availability
0507
Shelf BOS 00717084 Contact Us For Availability
0508
Shelf BOS 00776663 Contact Us For Availability
0601
Fan BOS 00717065 Contact Us For Availability
0701
Base BOS 00776636 Contact Us For Availability
0702
Valve-magnet BOS 12020256 Contact Us For Availability
0705
Defrosting drawer BOS 12012883 Contact Us For Availability
0706
Cover BOS 00717063 Contact Us For Availability
0708
Dryer BOS 11023231 Contact Us For Availability
0709
Inverter BOS 12019152 Contact Us For Availability
0710
Compressor BOS 00145914 No Longer Available
0711
Shock absorber BOS 12019151 Contact Us For Availability
0712
Washer BOS 10005604 Contact Us For Availability
0713
Power cord BOS 00649627 Contact Us For Availability
0803
Ice maker BOS 11023236 Contact Us For Availability
0804
Case BOS 11023237 Contact Us For Availability
0807
Motor BOS 00776640 Contact Us For Availability
0811
Dispenser BOS 00717066 Contact Us For Availability
× ![]()
