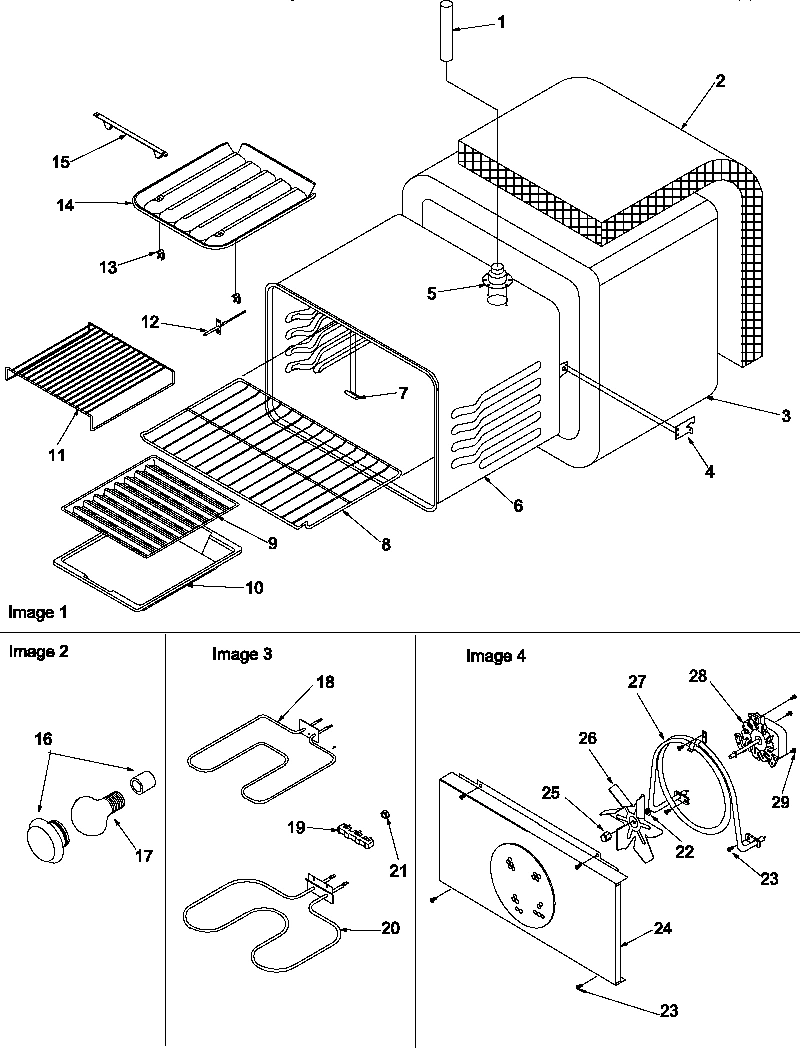

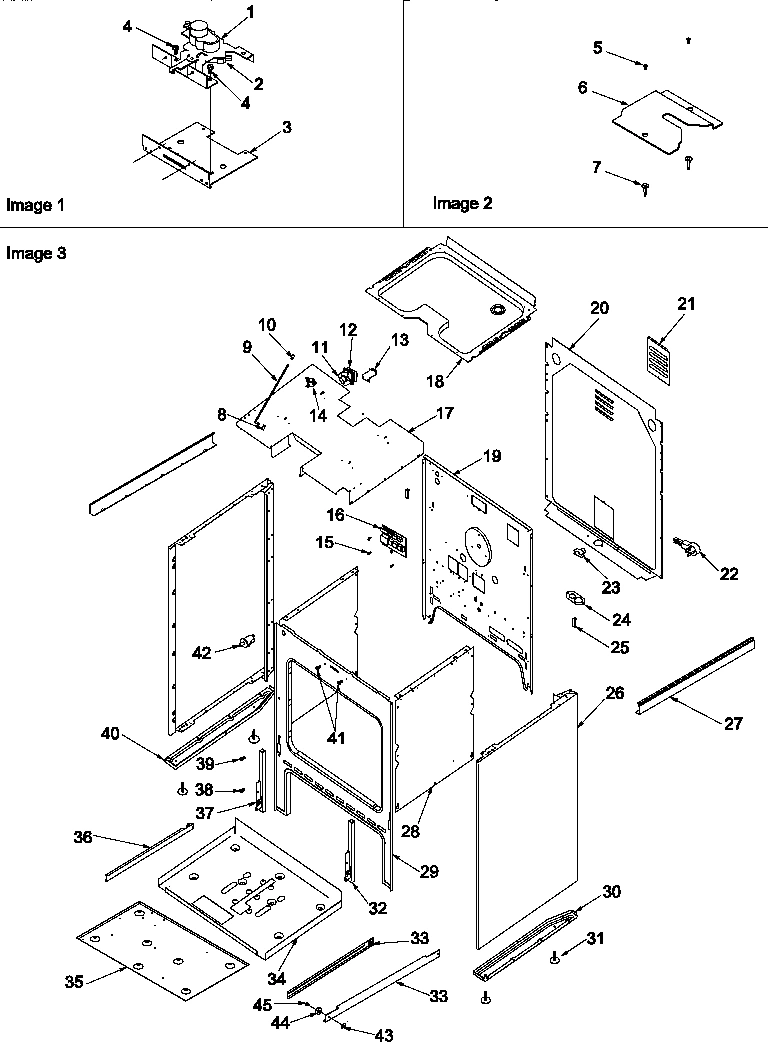

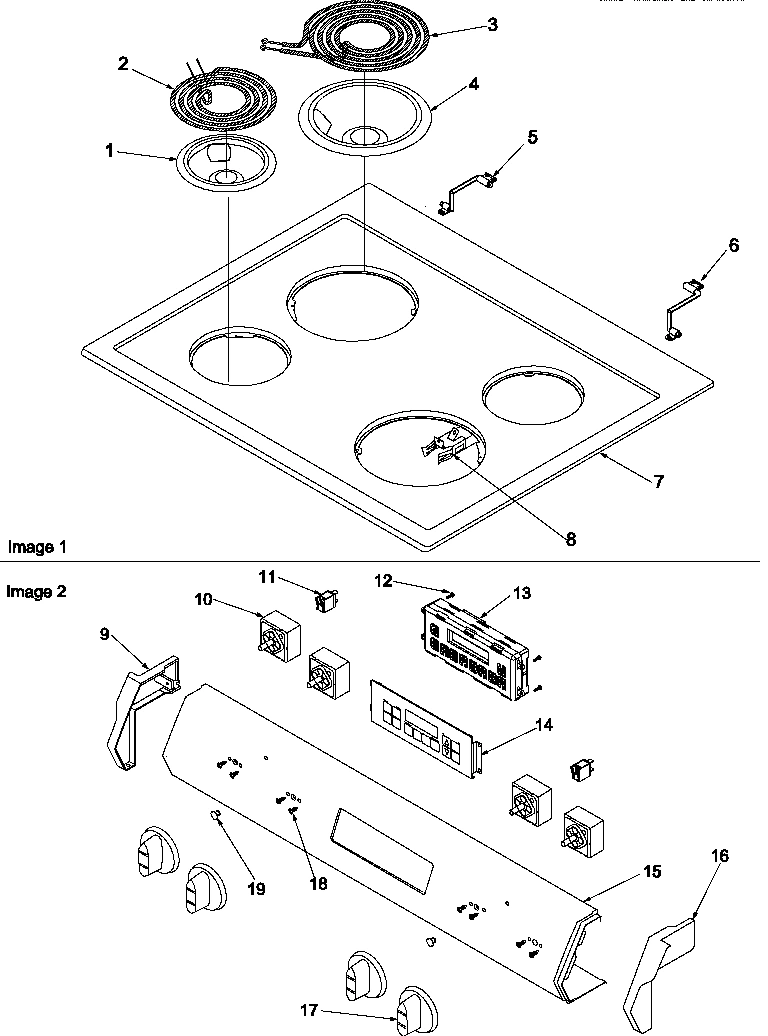

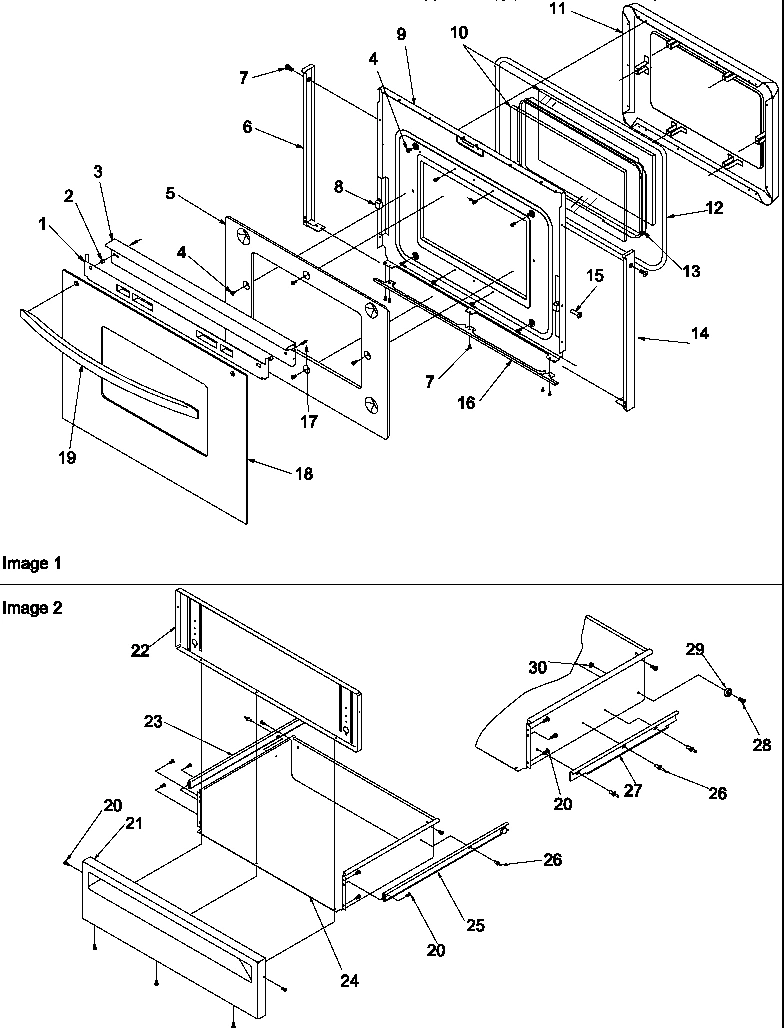

Model Whirlpool ZRRSC8050WW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

ASSY, GLASS HEAT SHIELD WPL 316981W Contact Us For Availability

1

TUBE, VENT WPL 0316041 Contact Us For Availability

2

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $84.34

2

BUSHING, HANDLE (NAL) WPL Y0309461 Contact Us For Availability

2

INSULATION, REAR WPL Y0300974 Contact Us For Availability

3

WPW10259865 Whirlpool Range 8" Surface Elemen In Stock WPL WPW10259865 $95.06

3

BRACKET, LATCH MOUNTING WPL Y0315910 Contact Us For Availability

3

TRIM, DOOR TOP (WHT) WPL 316980W Contact Us For Availability

3

INSULATION, WRAPPER WPL 0300973 Contact Us For Availability

4

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.45

4

BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability

5

SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability

5

HINGE, MAIN TOP (LT) WPL 31769702 Contact Us For Availability

5

SHIELD, HEAT WPL Y0309068 Contact Us For Availability

5

SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability

6

BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability

6

HINGE, MAIN TOP (RT) WPL 31769701 Contact Us For Availability

6

END CAP, DOOR (LT-WHT) WPL 309523W Contact Us For Availability

6

OVEN, CAVITY (ENAMELLED) WPL 309775CG Contact Us For Availability

7

ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability

7

MAINTOP, ELEC. (WHITE) WPL 315554W Contact Us For Availability

7

COVER, CHIP WPL Y0315022 Contact Us For Availability

8

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $13.57

8

TIMERMAN WPL Y0041869 Contact Us For Availability

8

BUMPER, RUBBER WPL Y0309627 Contact Us For Availability

8

RACK, OVEN WPL 309988J Contact Us For Availability

9

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

9

PROP ROD, MAIN TOP WPL Y0316701 Contact Us For Availability

9

END CAP, CONT PNL (LT-WHT) WPL 31742702W Contact Us For Availability

9

BACKER, OVEN DOOR WPL 317023CG Contact Us For Availability

10

WP74011243 Whirlpool Oven Switch Backorder WPL WP74011243 $99.24

10

ROD TIP, RUBBER WPL Y0042002 Contact Us For Availability

10

GLASS WINDOW 18`` X 11`` X 3/16`` WPL Y0309074 Contact Us For Availability

11

BLADE, FAN WPL Y0314375 Contact Us For Availability

11

PAD, OVEN DOOR WPL 317021CG Contact Us For Availability

11

RACK, BROILER WPL Y0306531 Contact Us For Availability

12

WPY0314907 Whirlpool Sensor Backorder WPL WPY0314907 $165.28

12

FAN ASSY, COOLING (W/BLADE) WPL Y0309884 Contact Us For Availability

12

GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability

BRACKET, Z FAN WPL 0314183 Contact Us For Availability

CONTROL, ELECTRONIC RANGE WPL Y0315614 Contact Us For Availability

FRAME, WINDOW PACK WPL Y0309071 Contact Us For Availability

BRACKET, MOUNTING WPL 0315402 Contact Us For Availability

THERMOSTAT, HIGH LIMIT WPL Y0316699 Contact Us For Availability

MEMBRANE, SWITCH PANEL (WHT) WPL 316189W Contact Us For Availability

END CAP, DOOR (RT-WHT) WPL 309522W Contact Us For Availability

REFLECTOR, BROIL ELEMENT WPL Y0315403 Contact Us For Availability

SUPPORT WPL Y0300662 Contact Us For Availability

PANEL, CONTROL (WHITE) WPL 316361W Contact Us For Availability

RIVET, POP WPL Y0302648 Contact Us For Availability

BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability

WP74011278 Whirlpool Light Backorder WPL WP74011278 $78.30

BOARD, RELAY ERC WPL Y0315615 Contact Us For Availability

END CAP, CONT PNL (RT-WHT) WPL 31742705W Contact Us For Availability

SUPPORT, GLASS (WHT) WPL 309460W Contact Us For Availability

RETAINER, TOP INSULATION WPL 31723601 Contact Us For Availability

KNOB, INFINITE SW (WHT) WPL 316368W Contact Us For Availability

SCREW, No.10-32 X 1.250`` PAN HD WPL 31750518 Contact Us For Availability

BULB, LIGHT WPL Y0042175 Contact Us For Availability

WPY0061732 Whirlpool Bake Element Backorder WPL WPY0061732 $134.49

BAFFLE, DRIP (CG) WPL 316050CG Contact Us For Availability

SCREW, No.8-32 X 3/16`` WPL Y0316546 Contact Us For Availability

GLASS, OVEN DOOR (WHT) WPL 316238W Contact Us For Availability

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $19.62

RETAINER, REAR INSUL WPL Y0315778 Contact Us For Availability

LENS, INDICATOR WPL Y0316265 Contact Us For Availability

HANDLE, OVEN DOOR (WHT) WPL 31689503W Contact Us For Availability

20

WP77001094 Whirlpool Range Bake Element In Stock WPL WP77001094 $28.83

20

COVER, REAR WPL Y0307342 Contact Us For Availability

21

ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability

21

PANEL, DRAWER (WHT) WPL 309176W Contact Us For Availability

21

HEX NUT (NKL) WPL 31750124 Contact Us For Availability

22

CORD, POWER WPL Y0308896 Contact Us For Availability

22

LINER, DRAWER PANEL (BLK) WPL 309178B Contact Us For Availability

22

WASHER (ZN) WPL 0307038 Contact Us For Availability

23

CONNECTOR, CONDUIT WPL Y0309078 Contact Us For Availability

23

RUNNER STORAGE DWR-LH WPL 0314664 Contact Us For Availability

24

PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability

24

DRAWER, STORAGE (WHT) WPL 31733502W Contact Us For Availability

24

COVER, FAN (ENAMELED) WPL 309774CG Contact Us For Availability

25

CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability

25

RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability

25

NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability

26

PANEL, SIDE (WHT) WPL 317036W Contact Us For Availability

26

RIVET, POP WPL Y0076357 Contact Us For Availability

26

BLADE, FAN WPL Y0307036 Contact Us For Availability

27

FILLER STRIP (WHT) WPL 316325W Contact Us For Availability

27

ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability

28

RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability

28

ASSY, CONV. FAN & BLADE WPL Y0305246 Contact Us For Availability

29

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

29

SEE NOTE FRONT FRAME-ENAMELED -- (NOT FIELD R WPL Y00000000 Contact Us For Availability

30

$LEVELING LEG\BOTTOM BRACE RT$

LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability

31

LEG,LEVELING xxx WPL 314187B Contact Us For Availability

32

HINGE, OVEN DOOR (RT) WPL 31715202 Contact Us For Availability

33

TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability

34

RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability

35

SHIELD, HEAT WPL Y0315146 Contact Us For Availability

36

TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability

37

HINGE, OVEN DOOR (LT) WPL 31715201 Contact Us For Availability

38

WP4159193 Whirlpool Screw Backorder WPL WP4159193 $5.01

40

$LEVELING LEG\BOTTOM BRACE LT$

LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability

41

SCREW, No.8-18 X 1/2 WASHER HD WPL 31750707 Contact Us For Availability

42

SWITCH- OVEN DOOR WPL Y0316882 Contact Us For Availability

W11245710 Whirlpool Refrigerator Screw Backorder WPL W11245710 $8.89

WPY04100059 Whirlpool Screw In Stock WPL WPY04100059 $4.82

SCREW, No.10-32X1/2 (PH TAPTITE) WPL 31750511 Contact Us For Availability

SCREW, No.10-32X1/2 (PAN PH HD) WPL 31750517 Contact Us For Availability

HARNESS, INPUT (CONNECTOR) WPL 0316347 Contact Us For Availability

SCREW, No.6-32 X .375 PAN HD PH WPL 31750305 Contact Us For Availability

SCREW, No.6-32 X .312 PAN HD PH WPL 31750317 Contact Us For Availability

SCREW, No.8-32 X3/8 P TRS HD LP WPL 31750420 Contact Us For Availability

SCREW, No.8-18 X 1/4 P TRS HD WPL 31750422 Contact Us For Availability

CLIP, ELEMENT RETAINER WPL Y0307930 Contact Us For Availability

HARNESS, WIRE (INF SWITCH) WPL Y0316043 Contact Us For Availability

TAPE, FOAM WPL 0043184 Contact Us For Availability

LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability

INSULATION,OVEN DOOR WPL Y0309772 Contact Us For Availability

RIVET, POP WPL Y0097822 Contact Us For Availability
