Model Whirlpool ZRHSC8750E ELECTRIC RANGE – Common Parts & Diagrams

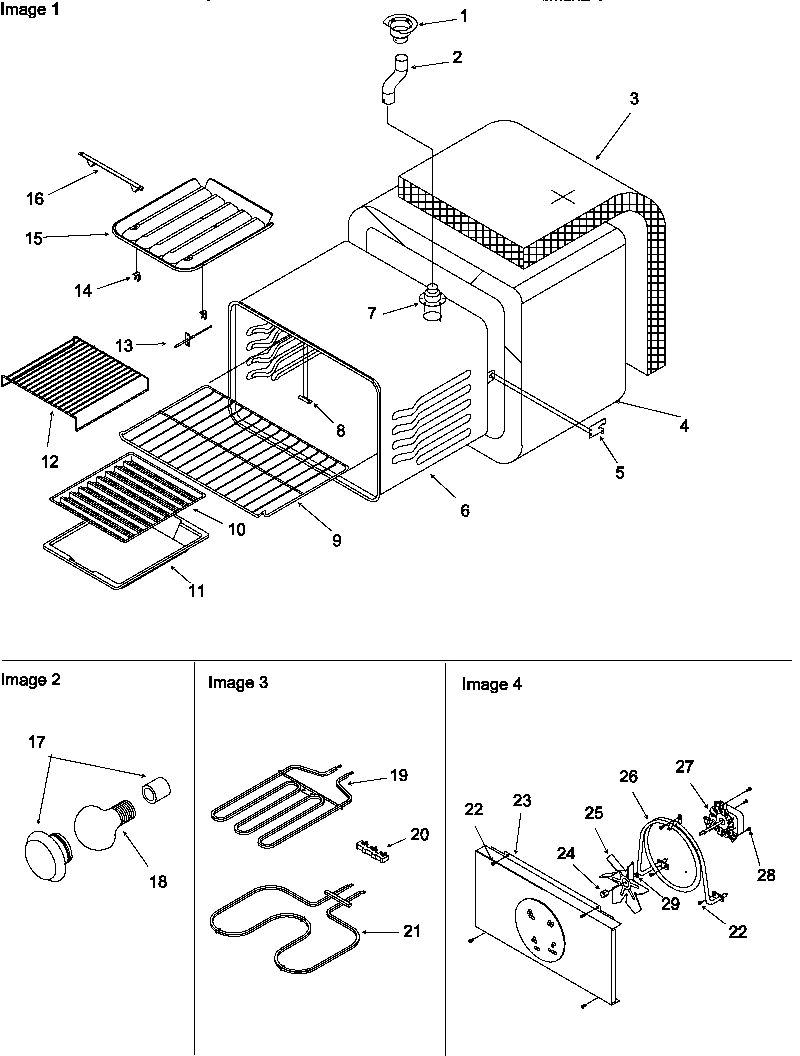

02 - CAVITY

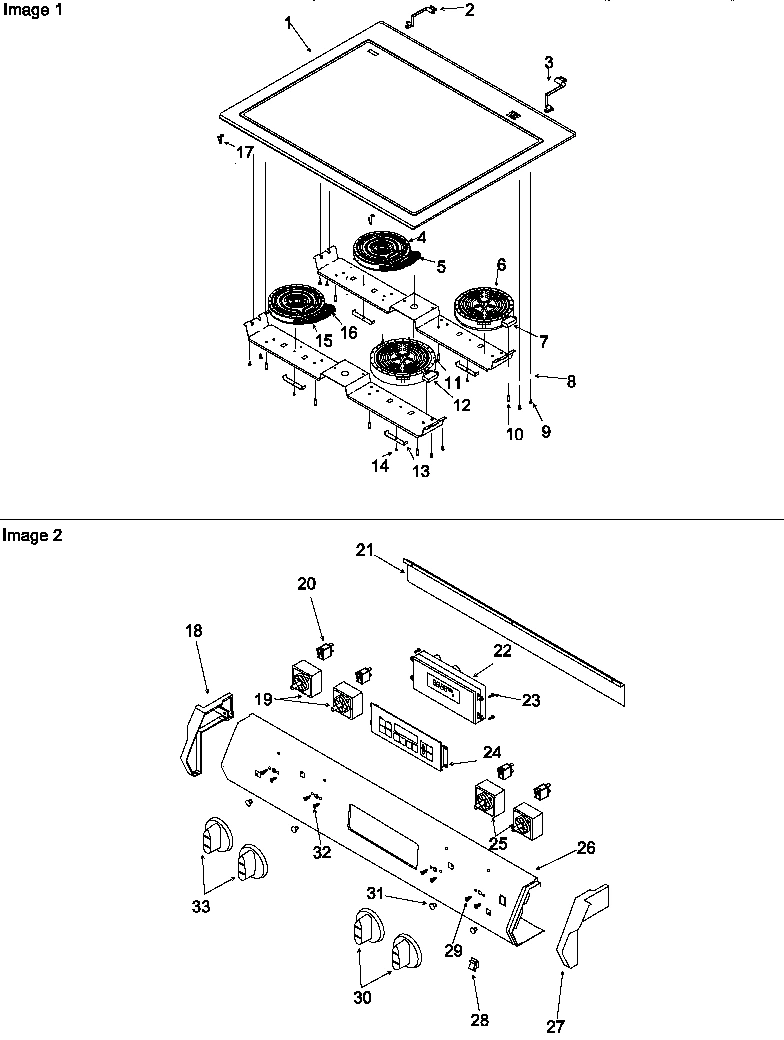

03 - MAIN TOP & CONTROL PANEL
04 - MISCELLANEOUS INFORMATION

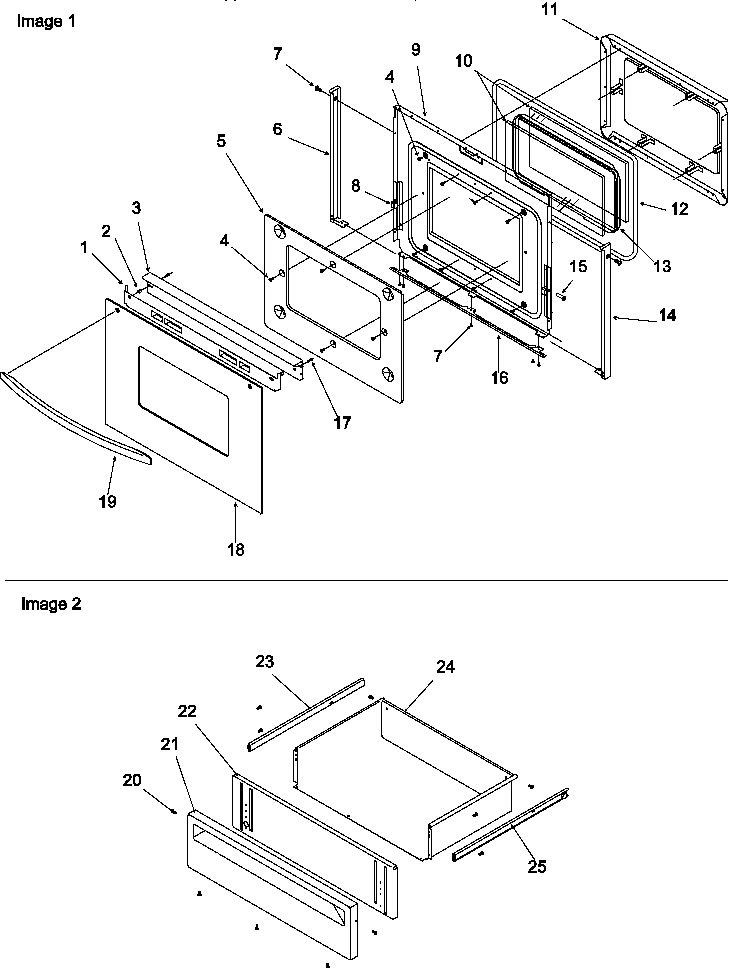

05 - OVEN DOOR & STORAGE DRAWER

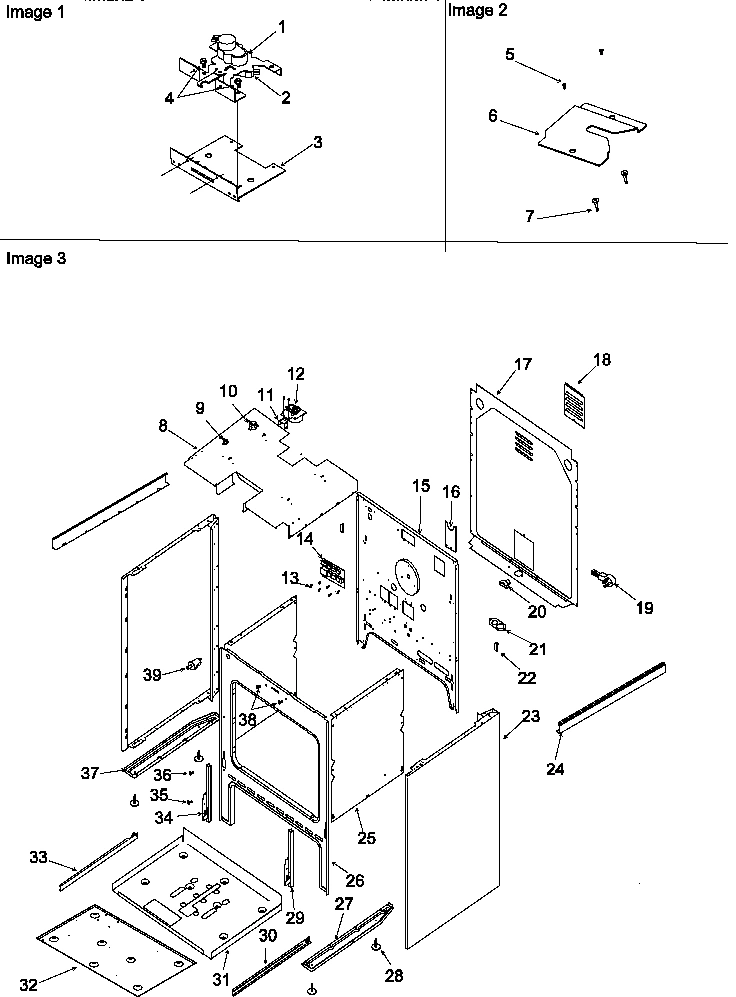

01 - CABINET
Common parts from model Whirlpool ZRHSC8750E ELECTRIC RANGE
1
ASSY, MAINTOP/GLASS WPL 316318B Contact Us For Availability
1
ASSY, GLASS HEAT SHIELD WPL 316981B Contact Us For Availability
1
LATCH, AUTO WPL Y0315908 Contact Us For Availability
2
ADAPTER, VENT TUBE WPL Y0316762 Contact Us For Availability
2
HINGE, MAIN TOP L.H. WPL Y0316176 Contact Us For Availability
2
BUSHING, HANDLE (BLK) WPL 309461B Contact Us For Availability
2
SWITCH WPL 0316767 Contact Us For Availability
3
INSULATION, REAR WPL Y0300974 Contact Us For Availability
3
HINGE, MAIN TOP R.H. WPL Y0316047 Contact Us For Availability
3
TRIM, DOOR TOP WPL 315945B Contact Us For Availability
3
BRACKET, LATCH MOUNTING WPL Y0315910 Contact Us For Availability
4
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
4
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
4
ELEMENT, HALORING-1800 W WPL Y0307433 Contact Us For Availability
5
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
5
LIMITER, TEMP, LARGE WPL 10061003 Contact Us For Availability
5
SHIELD, HEAT WPL Y0309068 Contact Us For Availability
5
SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability
6
OVEN, CAVITY (ENAMELLED) WPL 309775CG Contact Us For Availability
6
ELEMENT, RIBBON (1200 WATTS) WPL Y0314909 Contact Us For Availability
6
END CAP, DOOR (LT-BLK) WPL 309523B Contact Us For Availability
6
BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability
7
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
7
LIMITER (1200 WATTS) WPL 0316686 Contact Us For Availability
7
SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability
7
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
8
COVER, CHIP WPL Y0315022 Contact Us For Availability
8
BRACKET, ELEMENT WPL Y0316165 Contact Us For Availability
8
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
8
RETAINER, TOP INSULATION WPL Y0316522 Contact Us For Availability
9
RACK, OVEN WPL 309988J Contact Us For Availability
9
SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability
9
LINER, OVEN DOOR WPL 315983CG Contact Us For Availability
9
LIMIT CONTROL-UPPER OVEN-200 WPL Y0042045 Contact Us For Availability
10
SCREW, SHOULDER WPL Y0316569 Contact Us For Availability
10
GLASS WINDOW 18`` X 11`` X 3/16`` WPL Y0309074 Contact Us For Availability
10
THERMOSTAT, HIGH LIMIT WPL Y0316699 Contact Us For Availability
11
PAD, OVEN DOOR WPL 309781CG Contact Us For Availability
11
BRACKET, FAN MTG WPL Y0308923 Contact Us For Availability
12
RACK, BROILER WPL Y0306531 Contact Us For Availability
12
SEE NOTE SEE NOTE LIMITER-DUAL ELEM WPL Y00000000 Contact Us For Availability
12
GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability
12
BLOWER, ERC CLG WPL Y0308607 Contact Us For Availability
13
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
13
FRAME, WINDOW PACK WPL Y0309071 Contact Us For Availability
13
SUPPORT WPL Y0300662 Contact Us For Availability
14
BRACKET, MOUNTING WPL 0315402 Contact Us For Availability
14
END CAP, DOOR (RT-BLK) WPL 309522B Contact Us For Availability
14
BOARD, RELAY ERC WPL Y0315615 Contact Us For Availability
15
REFLECTOR, BROIL ELEMENT WPL Y0315403 Contact Us For Availability
15
ELEMENT, HALORING-1500 W WPL Y0307432 Contact Us For Availability
15
RIVET, POP WPL Y0302648 Contact Us For Availability
15
RETAINER, REAR INSUL WPL Y0315778 Contact Us For Availability
16
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
16
ELEMENT, HALORING-1500 W WPL 10061005 Contact Us For Availability
16
SUPPORT, GLASS (BLK) WPL 309460B Contact Us For Availability
16
BRKT, VENT TUBE WPL 0316382 Contact Us For Availability
17
CLIP, MAIN TOP RETAINER WPL Y0317100 Contact Us For Availability
17
SCREW, 10-32 X 1.250`` PAN HD WPL Y0316239 Contact Us For Availability
17
COVER, REAR WPL Y0307342 Contact Us For Availability
18
BULB, LIGHT WPL Y0042175 Contact Us For Availability
18
KIT,END CAP/HINGE-BLK WPL 316058B Contact Us For Availability
18
GLASS, OVEN DOOR (BLK) WPL 316238B Contact Us For Availability
18
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
19
SWITCH, 10-POS SURFACE WPL Y0315854 Contact Us For Availability
19
HANDLE, DOOR (BLK) WPL 316792B Contact Us For Availability
19
CORD, POWER WPL Y0308896 Contact Us For Availability
20
CONNECTOR, CONDUIT WPL Y0309078 Contact Us For Availability
21
HEAT SHIELD, CONTROL PANEL WPL 0316650 Contact Us For Availability
21
PANEL, DRAWER (BLK) WPL 309176B Contact Us For Availability
21
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
22
CONTROL, ELECTRONIC RANGE WPL Y0315614 Contact Us For Availability
22
LINER, DRAWER PANEL (BLK) WPL 309178B Contact Us For Availability
22
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
23
COVER, FAN (ENAMELED) WPL 309774CG Contact Us For Availability
23
RUNNER STORAGE DWR-LH WPL 0314664 Contact Us For Availability
23
PANEL, SIDE (BLK) WPL 317036B Contact Us For Availability
24
NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability
24
MEMBRANE, SWITCH PANEL (BLK) WPL 316189B Contact Us For Availability
24
DRAWER, STORAGE (WHT) WPL 316253W Contact Us For Availability
24
FILLER STRIP (BLK) WPL 316325B Contact Us For Availability
25
BLADE, FAN WPL Y0307036 Contact Us For Availability
25
RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability
25
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
26
ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability
26
PNL, CONTROL-SCREENED (BLACK) WPL 316359B Contact Us For Availability
26
FRAME-FRONT (CG) WPL 317149CG Contact Us For Availability
27
ASSY, CONV. FAN & BLADE WPL Y0305246 Contact Us For Availability
27
KIT,END CAP/HINGE-BLK WPL 316057B Contact Us For Availability
27
LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability
28
SWITCH, ROCKER WPL 316160B Contact Us For Availability
28
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
29
WASHER (ZN) WPL 0307038 Contact Us For Availability
29
SCREW, No.8-32 X 3/16`` WPL Y0316546 Contact Us For Availability
29
KIT, DOOR HINGE(RH-SS) WPL Y0317068 Contact Us For Availability
30
KNOB, INFINITE SW (BLK) WPL 316368B Contact Us For Availability
30
TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability
31
LENS, INDICATOR WPL Y0316265 Contact Us For Availability
31
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
32
SCREW, No.8-32 X 3/8`` WPL Y0316661 Contact Us For Availability
32
SHIELD, HEAT WPL Y0315146 Contact Us For Availability
33
KNOB, TOP BURNER (10 POS) WPL 316369B Contact Us For Availability
33
TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability
34
KIT, DOOR HINGE(LH-HS) WPL Y0317067 Contact Us For Availability
37
LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability
38
SCREW, No.8-18 X .500 AB (BLK) WPL Y0305004 Contact Us For Availability
39
SWITCH- OVEN DOOR WPL Y0316882 Contact Us For Availability
NI
HEX NUT No.10-32 NICKEL WPL 0306381 Contact Us For Availability
NI
RIVET, POP WPL Y0097822 Contact Us For Availability
NI
HARNESS, INPUT (CONNECTOR) WPL 0316347 Contact Us For Availability
NI
SCREW No.8 - 18 X .250 WPL Y0061164 Contact Us For Availability
NI
SCREW, No.8-18 X 7/8 PPH WPL Y0076035 Contact Us For Availability
NI
SCREW, No.6-20 X .375 PANHD(BLK) WPL Y0092373 Contact Us For Availability
NI
SCREW TYPE 23 6-32X5/16 WPL Y0094682 Contact Us For Availability
NI
MNL, PTS RANGE WPL RP2320035 Contact Us For Availability
NI
MANUAL, SERVICE WPL RS2320004 Contact Us For Availability
NI
MNL, TECH SEE NOTE WPL RT2320009 Contact Us For Availability
NI
ASSY, ANTI-TIP PACK WPL Y0316652 Contact Us For Availability
NI
CLEANER, COOKTOP(SMOOTH)ELCO 1 WPL Y0317105 Contact Us For Availability
NI
TAPE, FOAM WPL 0043184 Contact Us For Availability
NI
LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability
NI
INSULATION,OVEN DOOR WPL Y0309772 Contact Us For Availability
NI
SCREW, No.10-32X1/2 (PAN PH HD) WPL Y0316004 Contact Us For Availability
× ![]()
