Model Whirlpool YMH2175XSB1 Microwave Oven 1.7 Cu. Ft. – Common Parts & Diagrams

Template, Upper
Template, Upper WPL 8184731 Contact Us For Availability
View on Model
Ground Wire Assy.
Ground Wire Assy. WPL 8205635 Contact Us For Availability
View on Model
H.V. Wire Assy
H.V. Wire Assy WPL 8206415 Contact Us For Availability
View on Model
Miscellaneous
Miscellaneous WPL ARI166912A Contact Us For Availability
View on Model
Main Harness
Main Harness WPL W10107710 Contact Us For Availability
View on Model
Hdlmp/TT Wire Assy
Hdlmp/TT Wire Assy WPL W10107730 Contact Us For Availability
View on Model
HV Trnsfmr Wr Assy
HV Trnsfmr Wr Assy WPL W10107740 Contact Us For Availability
View on Model
Grnd Wire, Filter
Grnd Wire, Filter WPL W10107760 Contact Us For Availability
View on Model
Harness Wire, NTC
Harness Wire, NTC WPL W10107770 Contact Us For Availability
View on Model
1
Deflector, Air
Deflector, Air WPL 8206340 Contact Us For Availability
View on Model
1
Cover, Inlet Includes Nails and Bushings
Cover, Inlet Includes Nails and Bushings WPL 8206389 Contact Us For Availability
View on Model
1
Cook Guide Label (English)
Cook Guide Label (English) WPL 8205888 Contact Us For Availability
View on Model
1
Cook Guide Label (French)
Cook Guide Label (French) WPL 8206004 Contact Us For Availability
View on Model
1
Literature (U & C Guide)
Literature (U & C Guide) WPL W10110893 Contact Us For Availability
View on Model
1
Literature (Tech Sheet)
Literature (Tech Sheet) WPL W10110898 Contact Us For Availability
View on Model
2

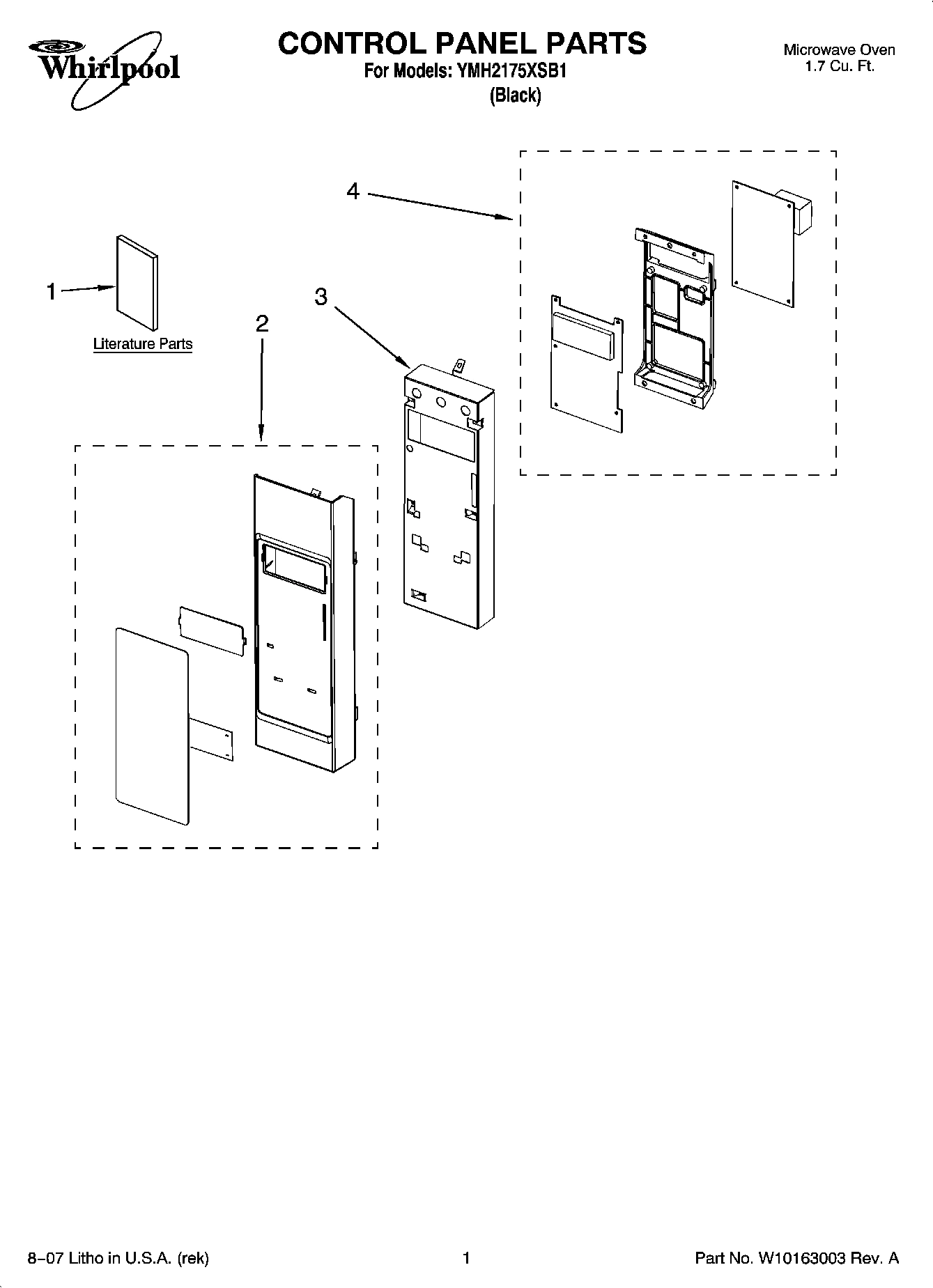

Panel Asy, Control Includes Lens and Membrane
Panel Asy, Control Includes Lens and Membrane WPL 8206621 Contact Us For Availability
View on Model
3
Sensor, Humidity
Sensor, Humidity WPL 8206626 Contact Us For Availability
View on Model
3
Bracket, Control
Bracket, Control WPL W10156814 Contact Us For Availability
View on Model
4
Turntable
Turntable WPL 4393799 No Longer Available
View on Model
4
Microcomputer
Microcomputer WPL W10114516 Contact Us For Availability
View on Model
5
Cover, Side Inlet
Cover, Side Inlet WPL 8206371 Contact Us For Availability
View on Model
5
Case, Outer (Black)
Case, Outer (Black) WPL 8206338 Contact Us For Availability
View on Model
6

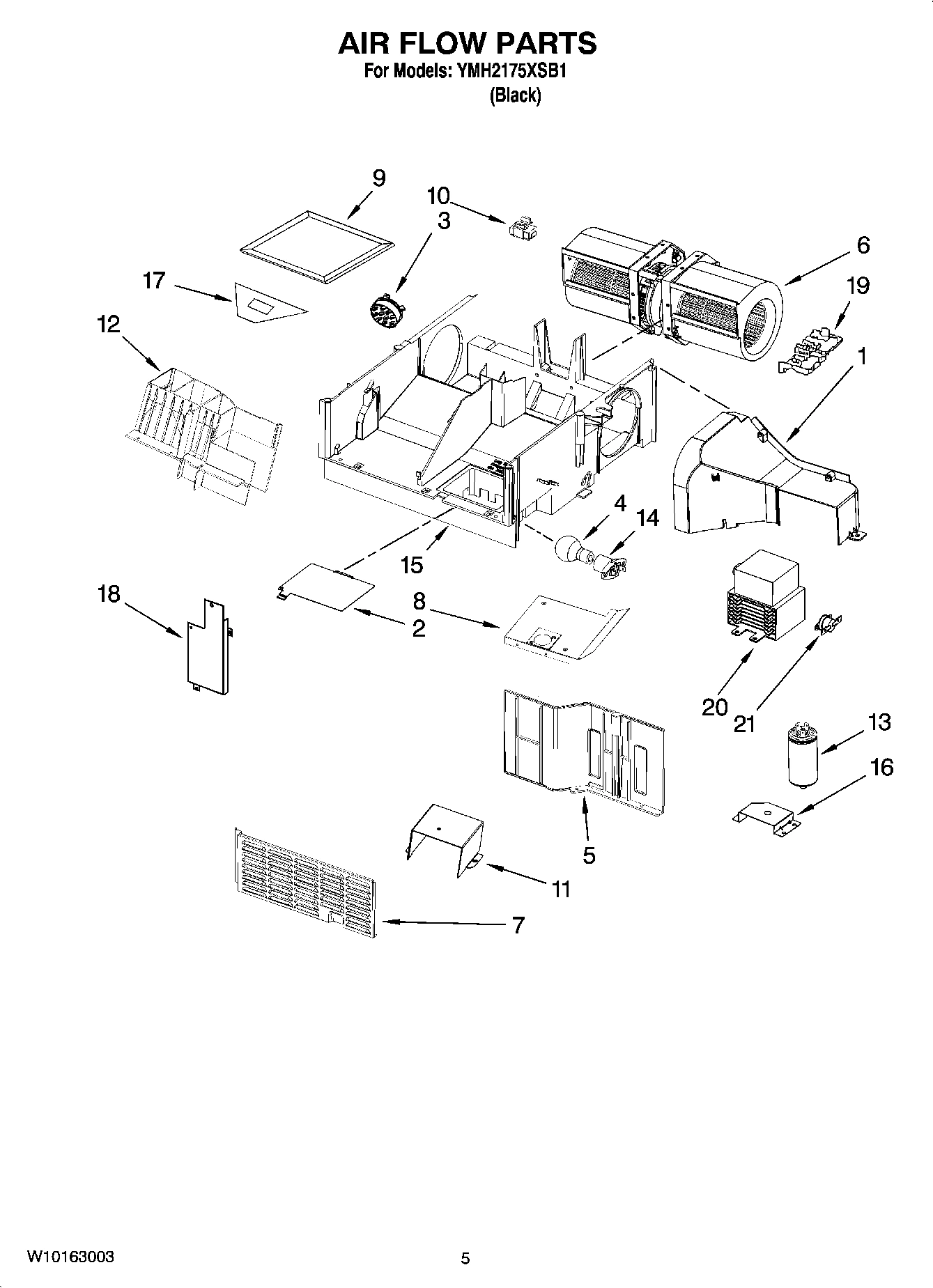

Motor, Fan Assy
Motor, Fan Assy WPL W10113981 Contact Us For Availability
View on Model
7
SHIELD
SHIELD WPL W10156816 Contact Us For Availability
View on Model
7
Plate, Damper
Plate, Damper WPL W10157207 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL 8206618 Contact Us For Availability
View on Model
11
Channel, Air
Channel, Air WPL 8206625 Contact Us For Availability
View on Model
12
AIR GUIDE,PLATE
AIR GUIDE,PLATE WPL W10158781 Contact Us For Availability
View on Model
13
Filter
Filter WPL 8206624 Contact Us For Availability
View on Model
15
Base Plate, Air Guide
Base Plate, Air Guide WPL W10138799 Contact Us For Availability
View on Model
16
Brkt-Mntg, Filter
Brkt-Mntg, Filter WPL W10156815 Contact Us For Availability
View on Model
17
Socket, Motor Wire
Socket, Motor Wire WPL W10139750 Contact Us For Availability
View on Model
18
Cover, Inlet Air Cavity Guide
Cover, Inlet Air Cavity Guide WPL 8206629 Contact Us For Availability
View on Model
19
Cover, Terminal
Cover, Terminal WPL W10110598 Contact Us For Availability
View on Model
25

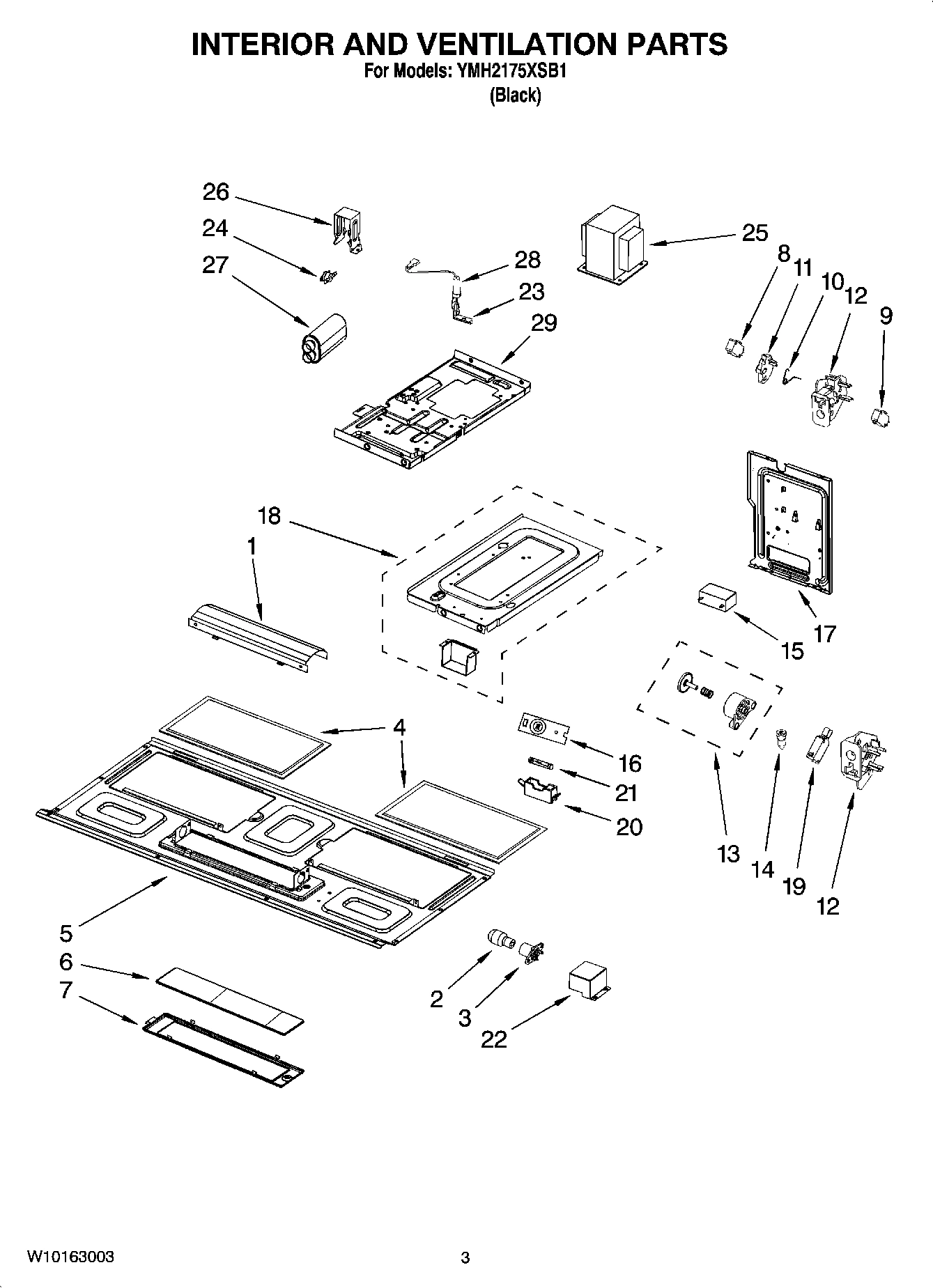

Transformer, H.V.
Transformer, H.V. WPL 8206343 Contact Us For Availability
View on Model
28
Diode, H.V.
Diode, H.V. WPL W10138796 Contact Us For Availability
View on Model
