Model Whirlpool YKHMS1850SB0 MICROWAVE HOOD COMBINATION 1.8 CU. FT. – Common Parts & Diagrams

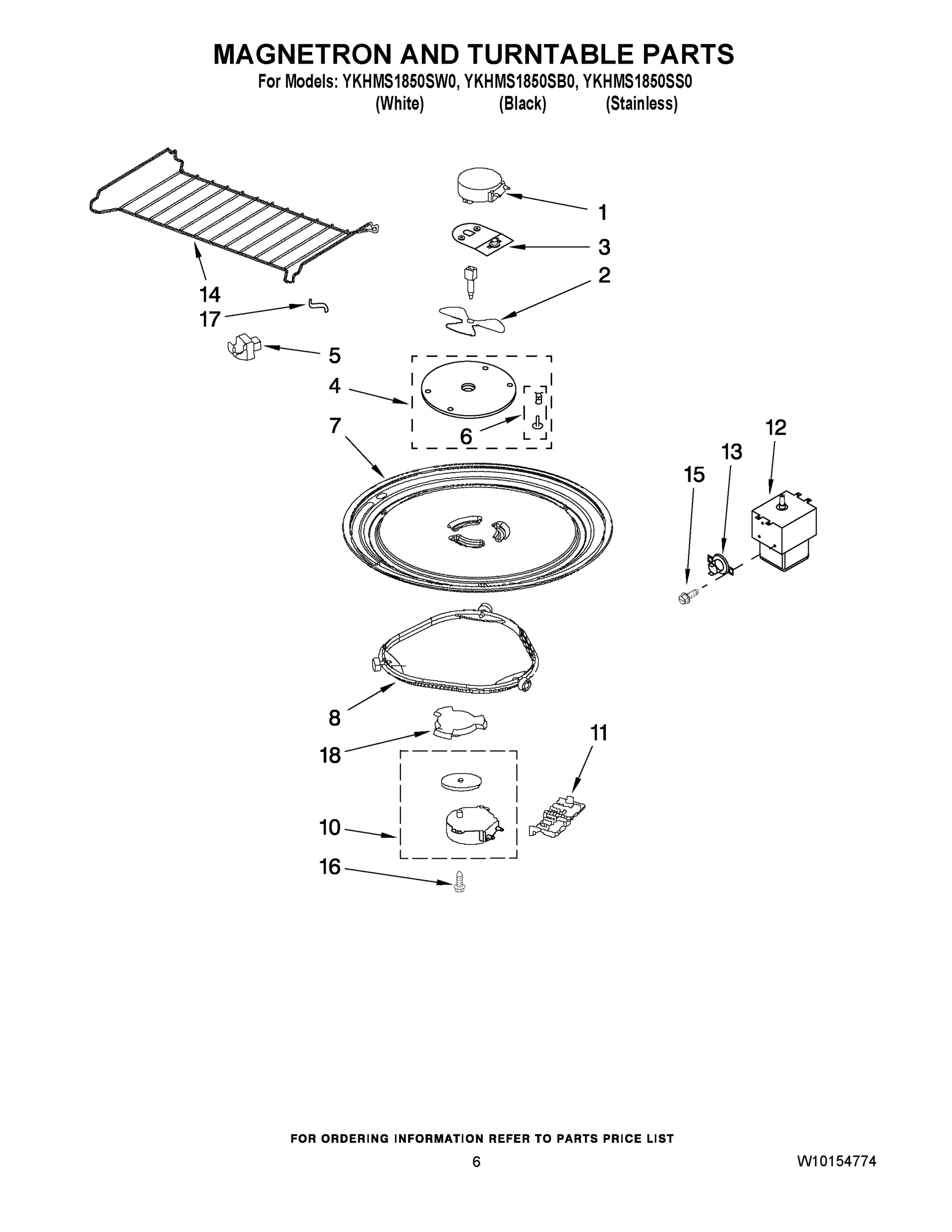

05 - MAGNETRON AND TURNTABLE PARTS

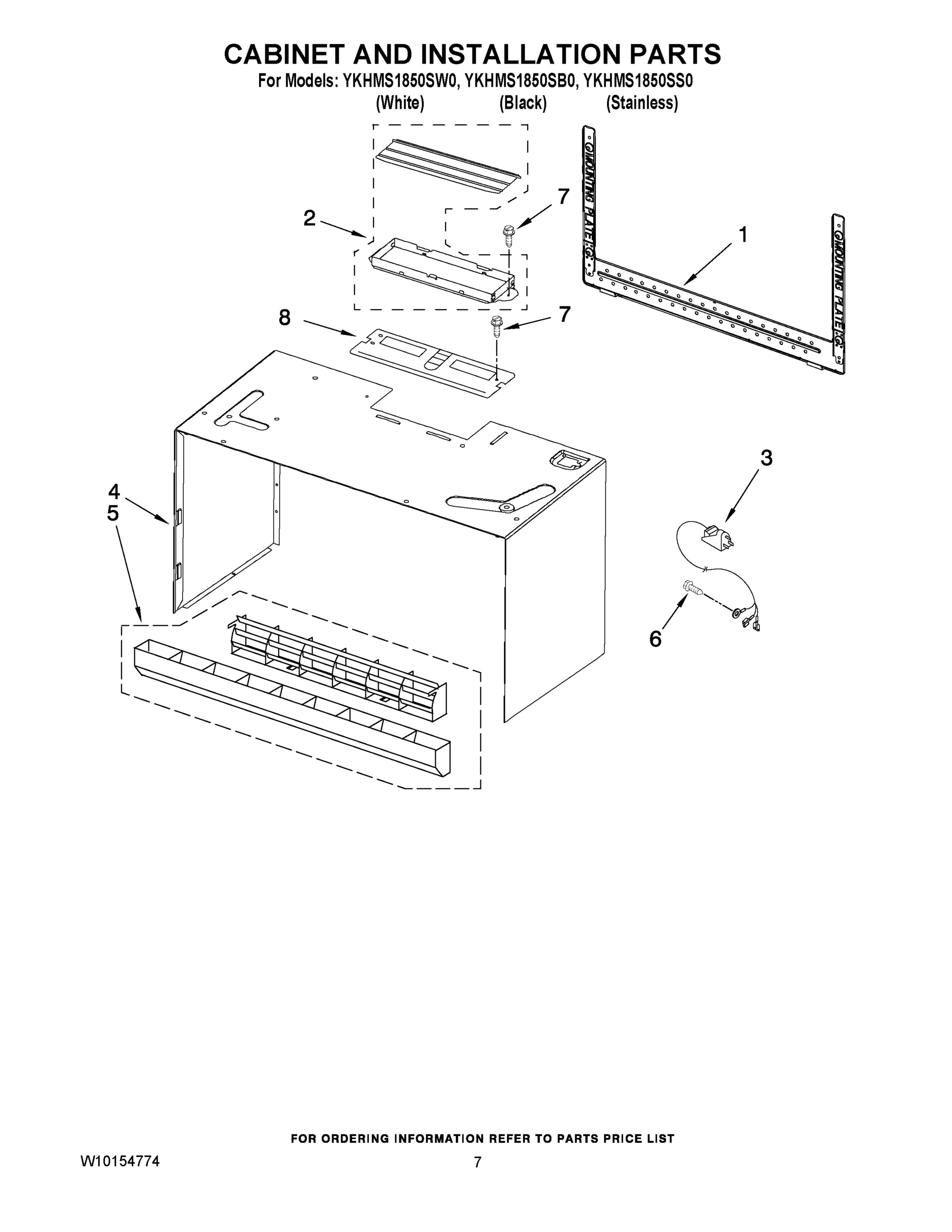

06 - CABINET AND INSTALLATION PARTS

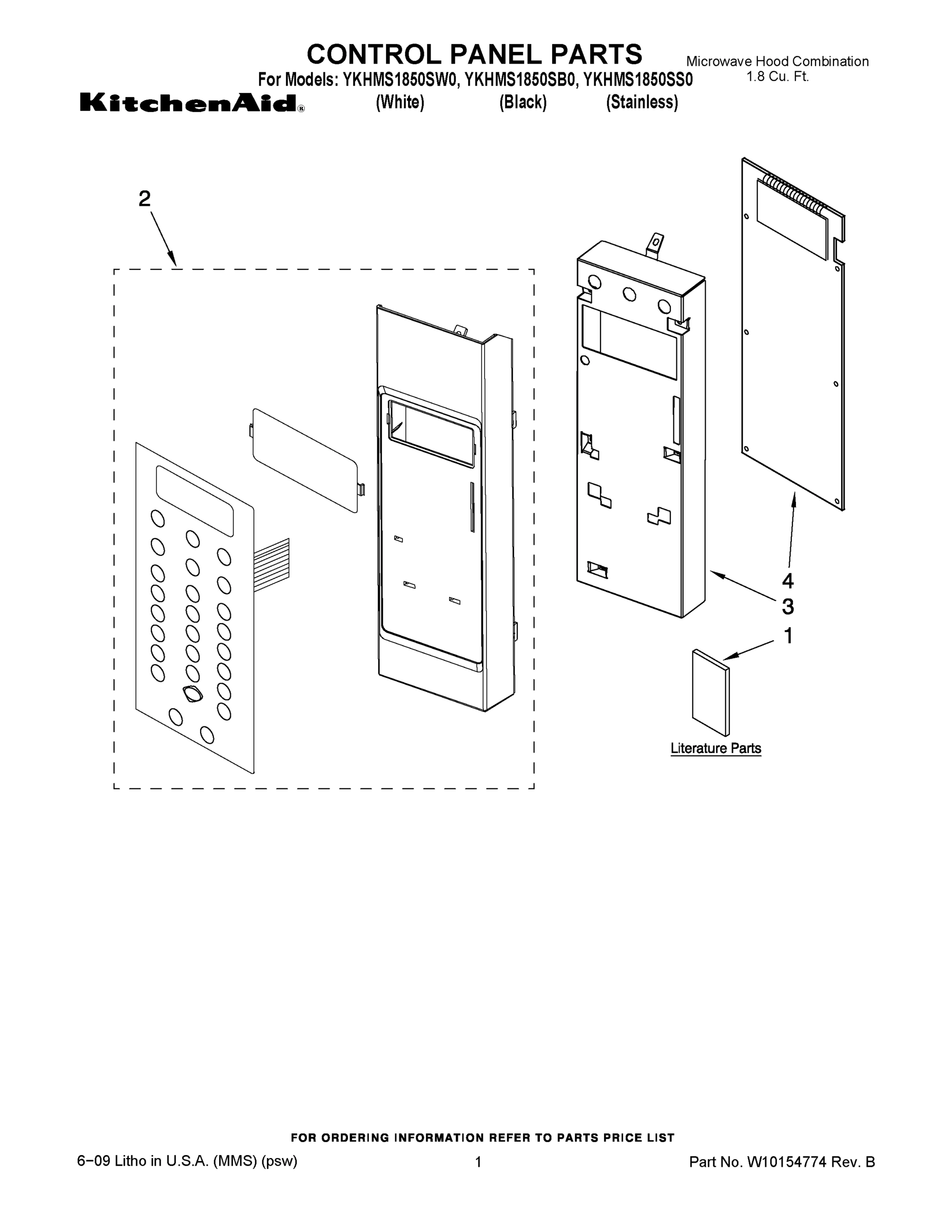

01 - CONTROL PANEL PARTS

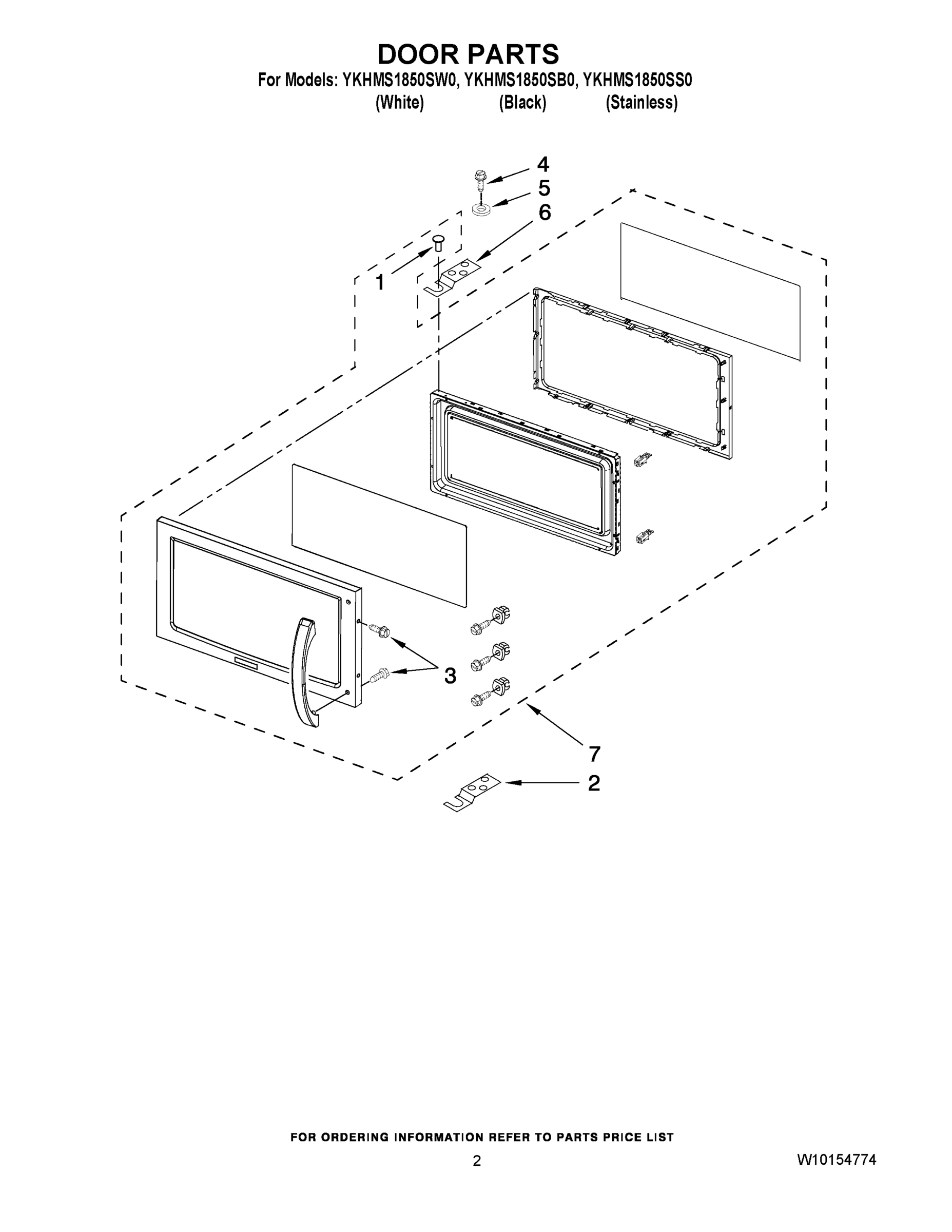

02 - DOOR PARTS

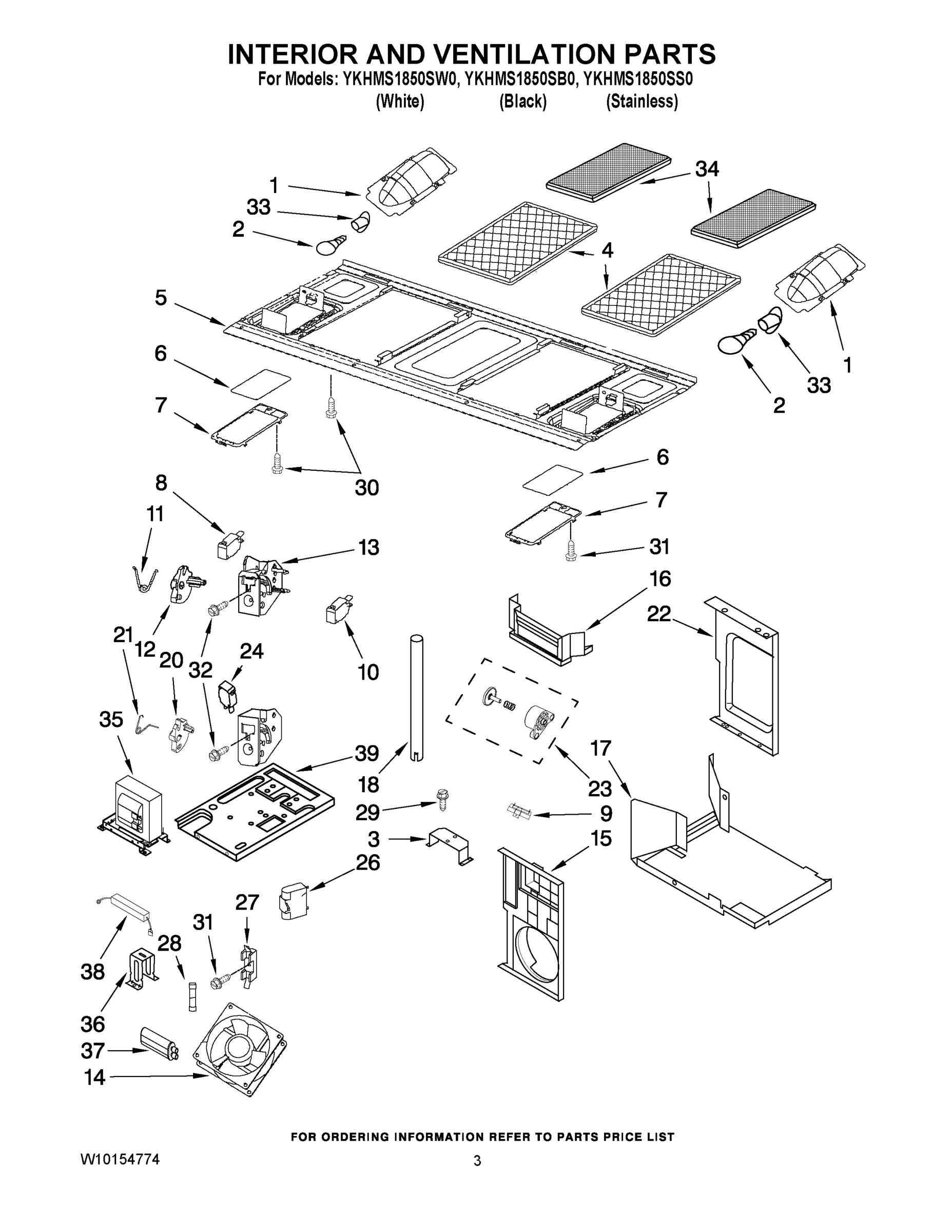

03 - INTERIOR AND VENTILATION PARTS

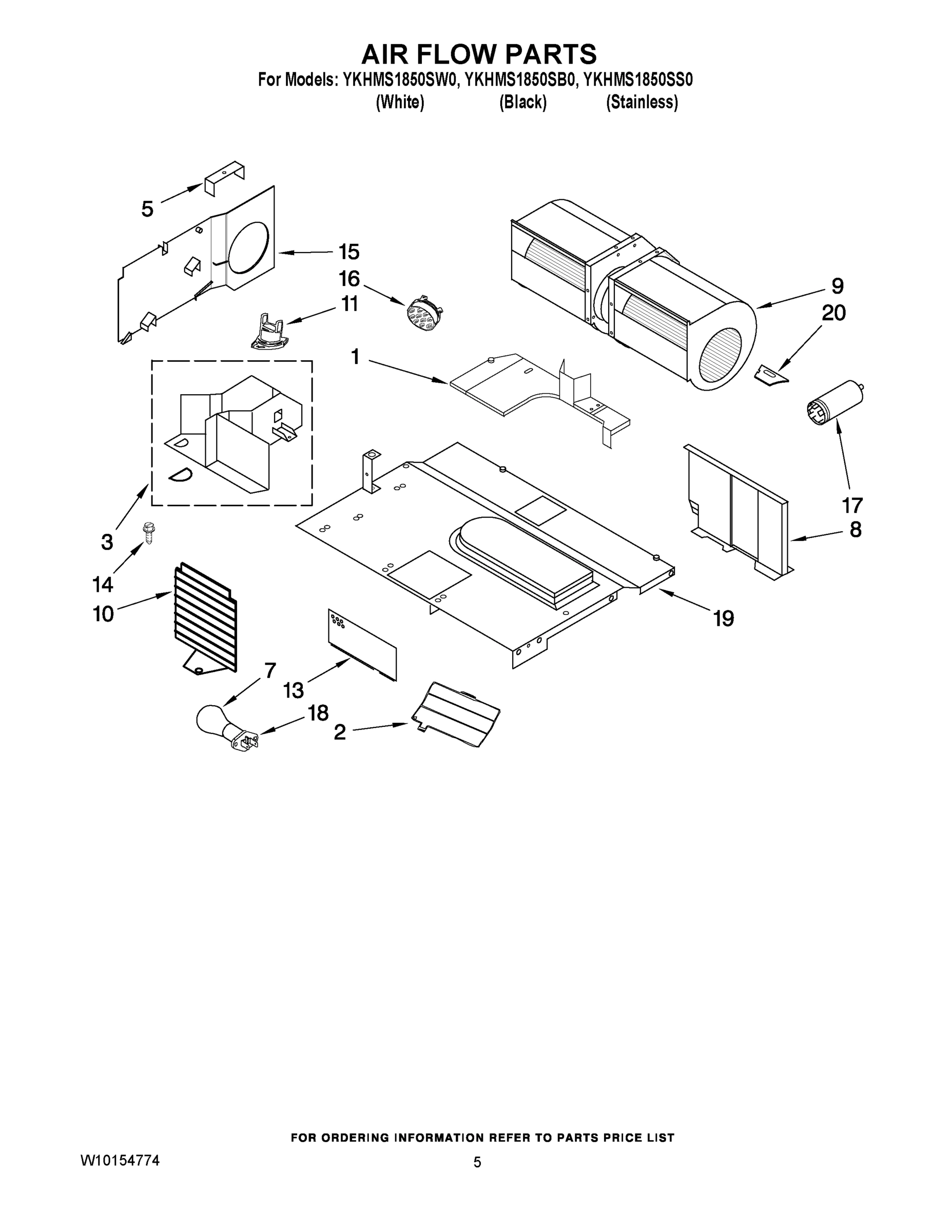

04 - AIR FLOW PARTS
Common parts from model Whirlpool YKHMS1850SB0 MICROWAVE HOOD COMBINATION 1.8 CU. FT.
1
Pivot, Door WPL 8184922 Contact Us For Availability
1
Cook Guide Label (English) WPL W10113153 Contact Us For Availability
1
Tech Sheet WPL W10113154 Contact Us For Availability
1
Inst. Instructions WPL W10113155 Contact Us For Availability
1
Cook Guide Label (French) WPL W10113894 Contact Us For Availability
1
Reflector, Lamp WPL 8205096 Contact Us For Availability
1
DEFLECTOR, AIR WPL W10280381 Contact Us For Availability
2
PANEL ASY, CONTROL INCLUDES LENS AND MEMBRANE WPL W10246507 Contact Us For Availability
2
PANEL ASY, CONTROL INCLUDES LENS AND MEMBRANE WPL W10246508 Contact Us For Availability
2
PANEL ASY, CONTROL INCLUDES LENS AND MEMBRANE WPL W10280391 Contact Us For Availability
2
Lower Hinge WPL W10114254 Contact Us For Availability
2
Cover, Lamp WPL W10117848 Contact Us For Availability
3
Bracket, Control WPL W10155345 Contact Us For Availability
3
TC0, Brkt. Assy. WPL 8205578 Contact Us For Availability
3
Duct, Air WPL 8205368 Contact Us For Availability
4
Microcomputer WPL W10155347 Contact Us For Availability
5
Grille, Vent (Black) WPL W10250596 Contact Us For Availability
5
Grille, Vent (White) WPL W10246506 Contact Us For Availability
5
PLATE, BOTTOM WPL W10222511 Contact Us For Availability
5
METAL CLAPBOARD WPL W10280388 Contact Us For Availability
6
Upper Hinge WPL W10114255 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
7
Turntable WPL 4393799 No Longer Available
7
Complete Door (White) WPL W10117920 Contact Us For Availability
7
Complete Door (Stainless) WPL W10117921 Contact Us For Availability
7
Complete Door (Black) WPL W10117922 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
8
Air Guide, Back WPL 8205354 Contact Us For Availability
9
Resistor WPL 8205152 Contact Us For Availability
9
Motor, Fan Assy WPL W10117942 Contact Us For Availability
10
Shield (Left) WPL 8206460 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Thrmst, Cavity WPL W10155340 Contact Us For Availability
12
Plate, Cam WPL 8183824 Contact Us For Availability
13
Support, Interlock WPL W10117909 Contact Us For Availability
13
Shield (Right) WPL W10117916 Contact Us For Availability
14
Screw WPL 8169474 Contact Us For Availability
14
Fan, DC 12 Volt WPL W10153570 Contact Us For Availability
15
HOUSING, FAN WPL W10280384 Contact Us For Availability
15
Air Guide (Right) WPL 8205352 Contact Us For Availability
15
Air Guide (Left) WPL 8205367 Contact Us For Availability
16
Humidity, Sensor WPL 8206446 Contact Us For Availability
16
SHIELD,WTR.SPILL. WPL W10280382 Contact Us For Availability
17
Filter WPL 8206624 Contact Us For Availability
17
DIFFUSER, HOUSING WPL W10280383 Contact Us For Availability
18
TUBE,WATERSHOOT WPL W10155349 Contact Us For Availability
19
Base Plate, Air Guide WPL 8205351 Contact Us For Availability
20
Plate, Cam WPL W10117910 Contact Us For Availability
20
Socket, Motor Wire WPL W10117846 Contact Us For Availability
21
Spring, Interlock WPL W10117911 Contact Us For Availability
22
Plate, Side WPL 8206455 Contact Us For Availability
23
Piston Assembly WPL W10117912 Contact Us For Availability
27
Holder, Fuse WPL W10117908 Contact Us For Availability
29
SCREW WPL 8184199 Contact Us For Availability
31
SCREW WPL 8184200 Contact Us For Availability
35
Transformer, H.V. WPL 8206456 Contact Us For Availability
36
Bracket, Capacitor WPL 8206457 Contact Us For Availability
37
Capacitor, H.V. WPL W10155351 Contact Us For Availability
39
Chassis WPL W10155350 Contact Us For Availability
× ![]()
