Model Whirlpool YG20JY4 GAS DRYER – Common Parts & Diagrams

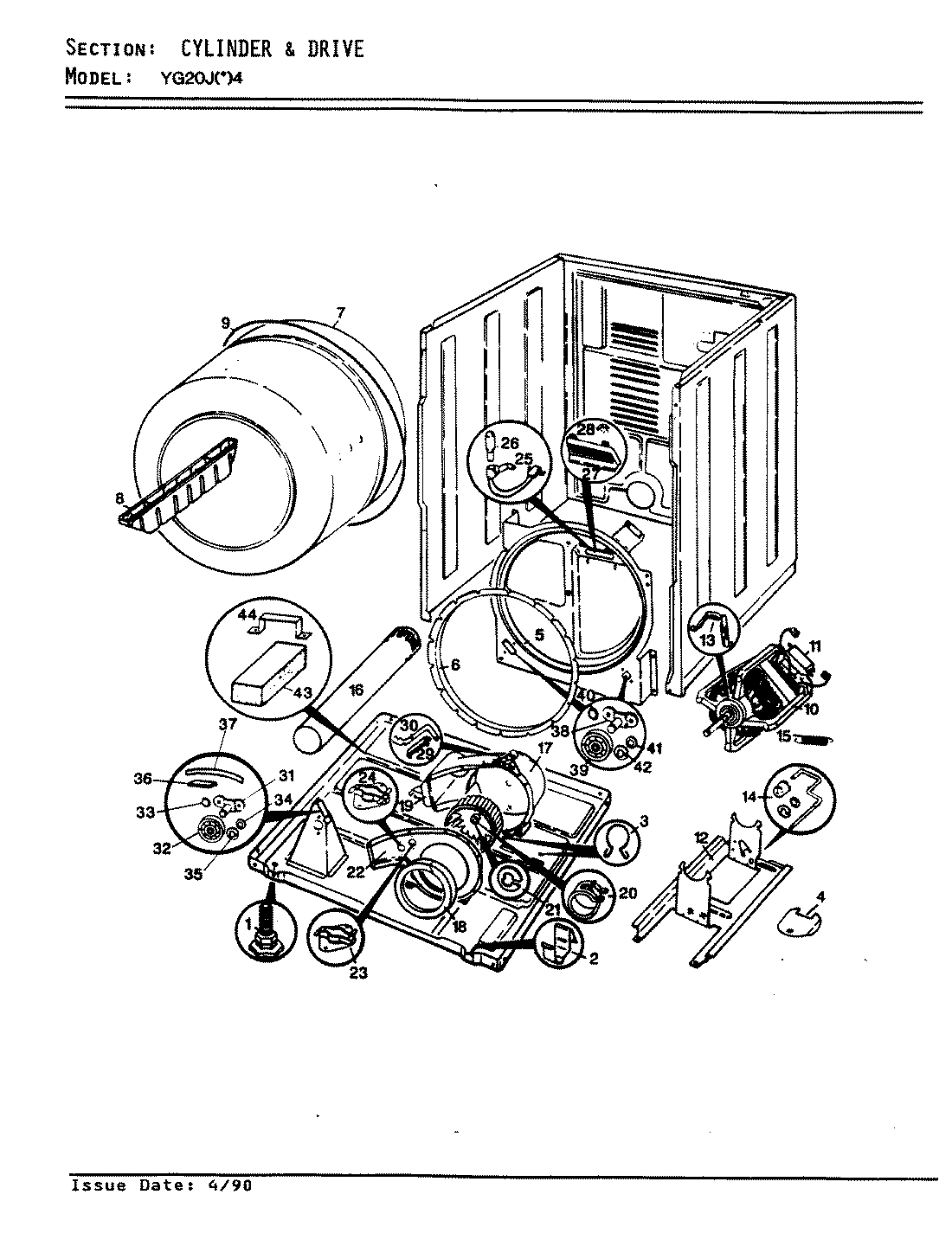

03 - CYLINDER & DRIVE (REV. A-D)

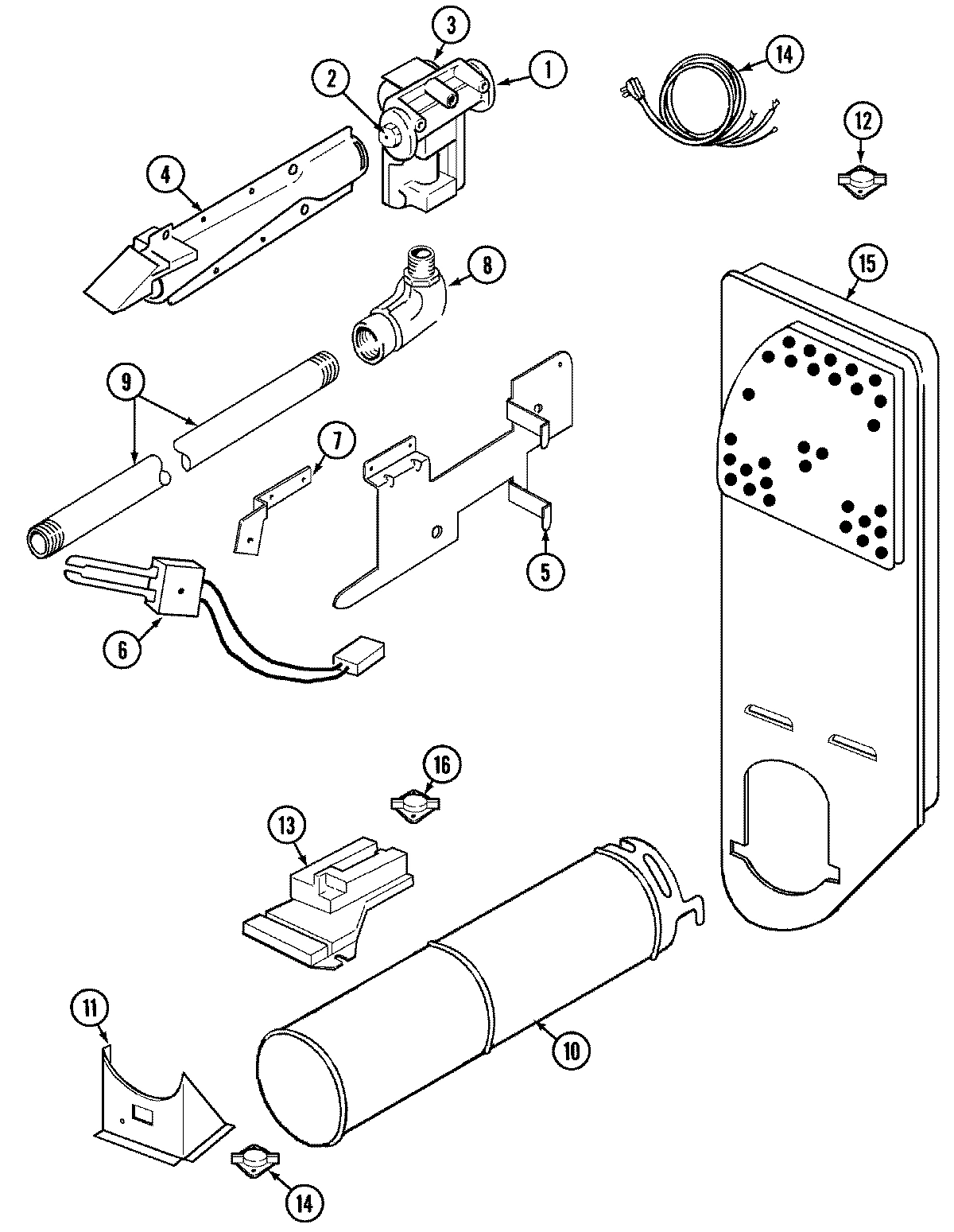

06 - GAS CARRYING (REV. F)

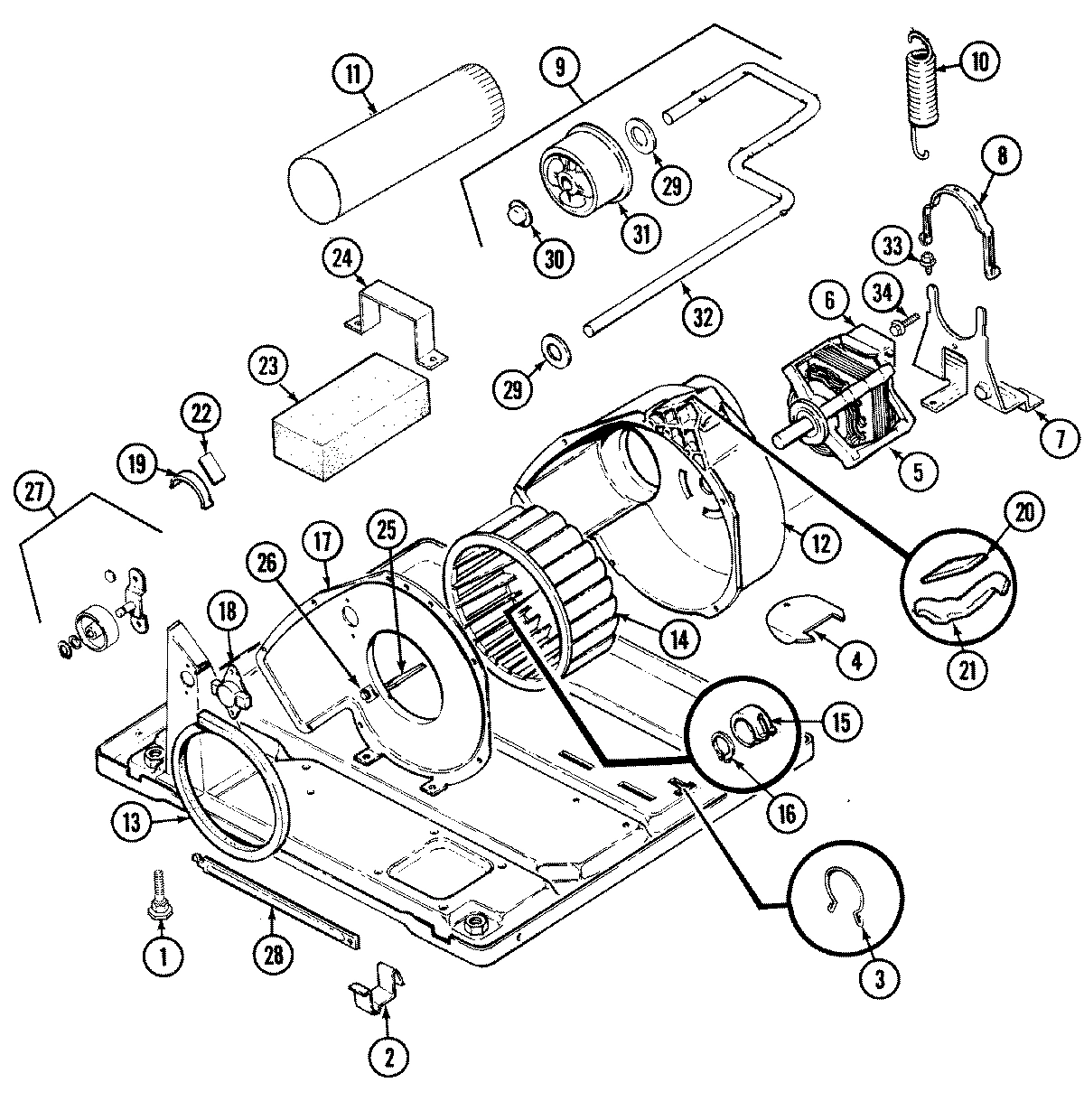

07 - MOTOR & DRIVE (REV. F)

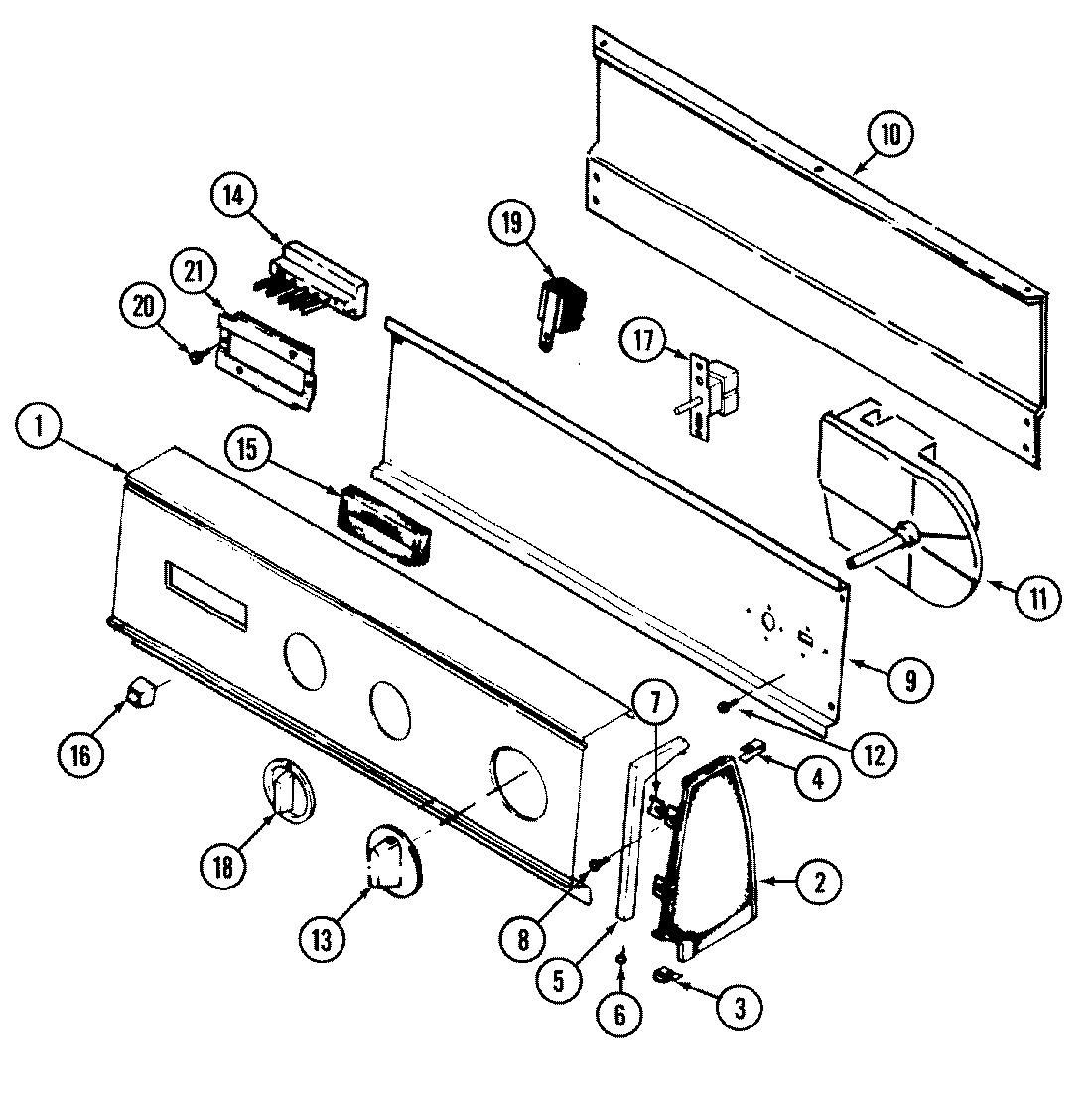

02 - CONTROL PANEL (REV. F)

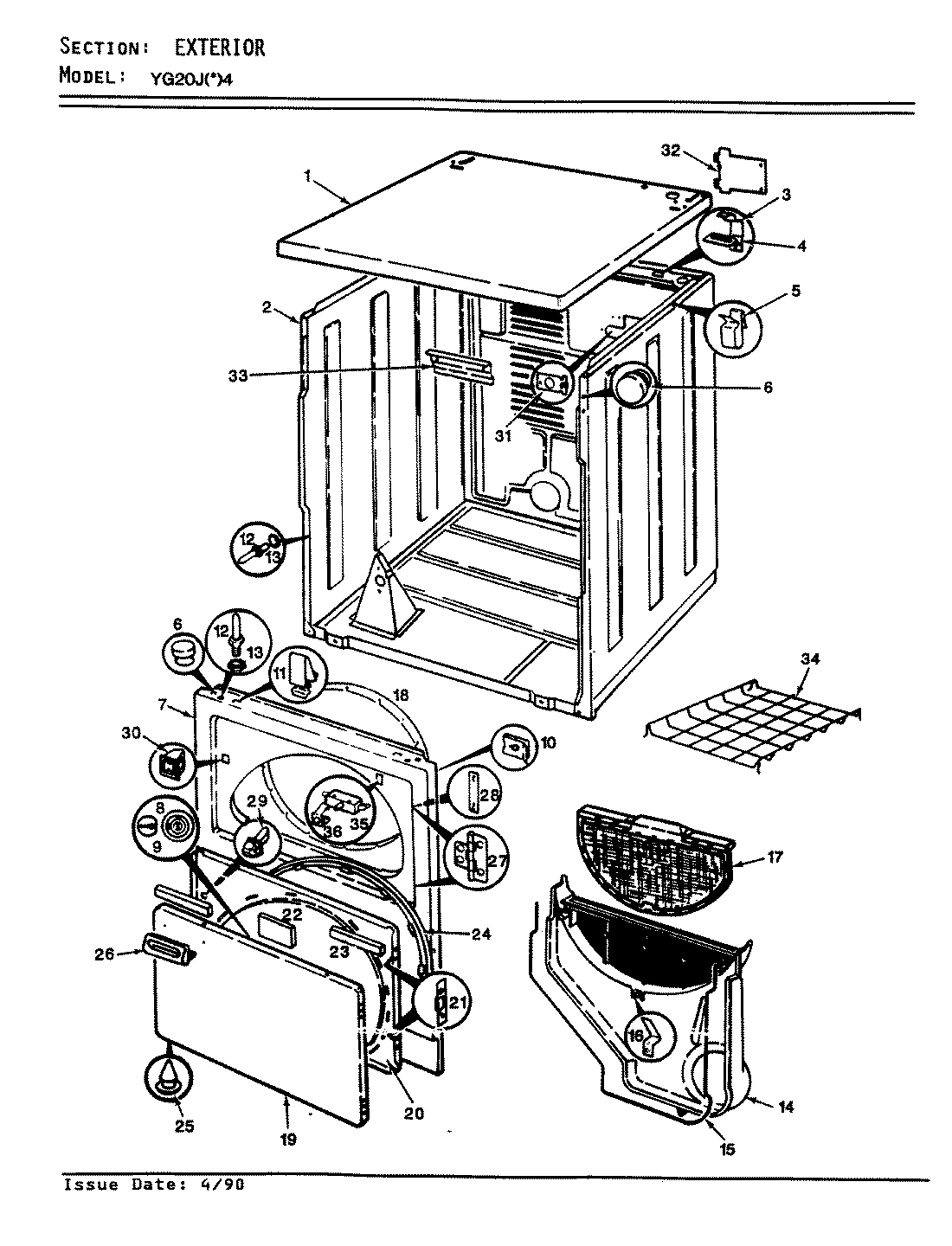

04 - EXTERIOR (REV. A-D)

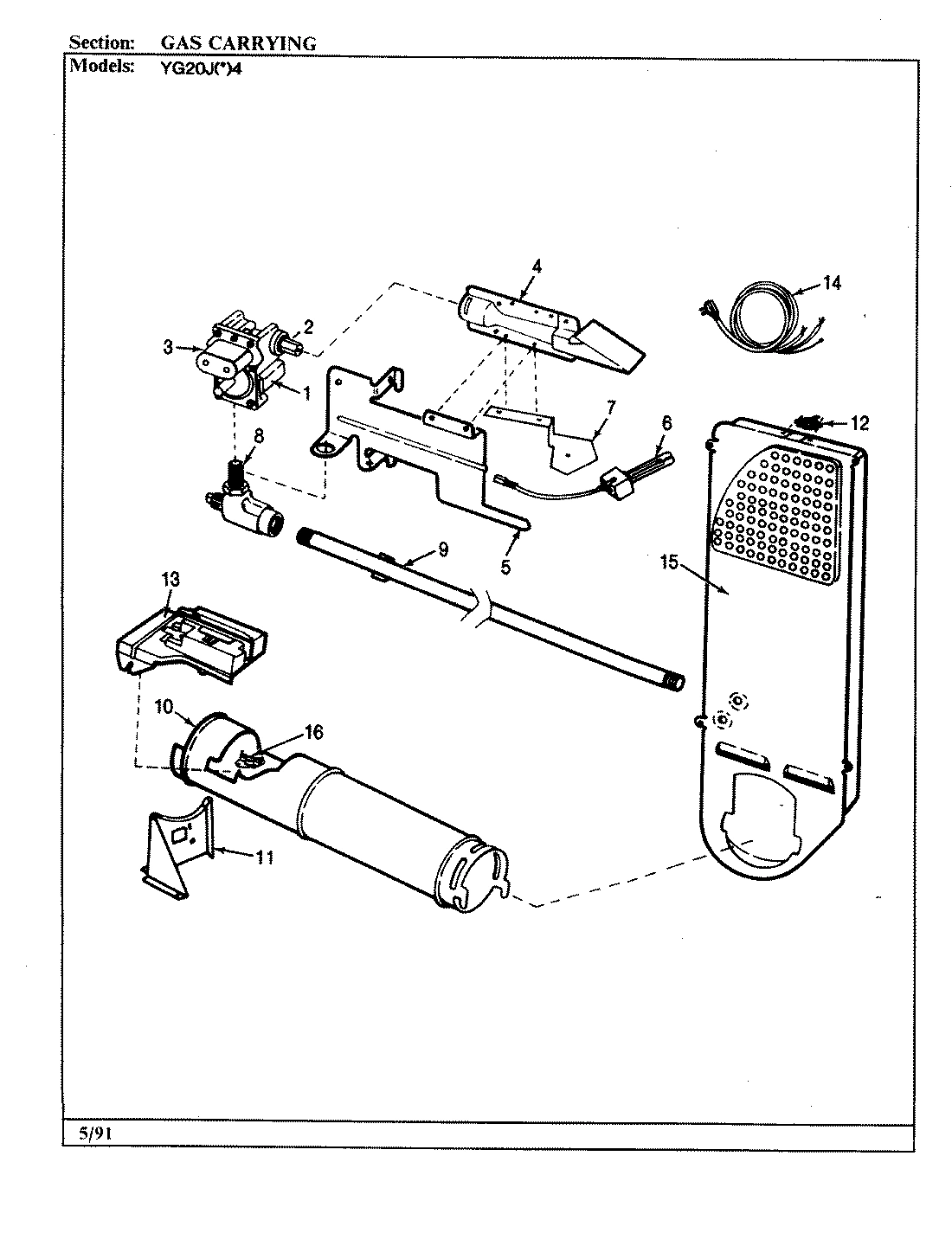

05 - GAS CARRYING (REV. A-D)

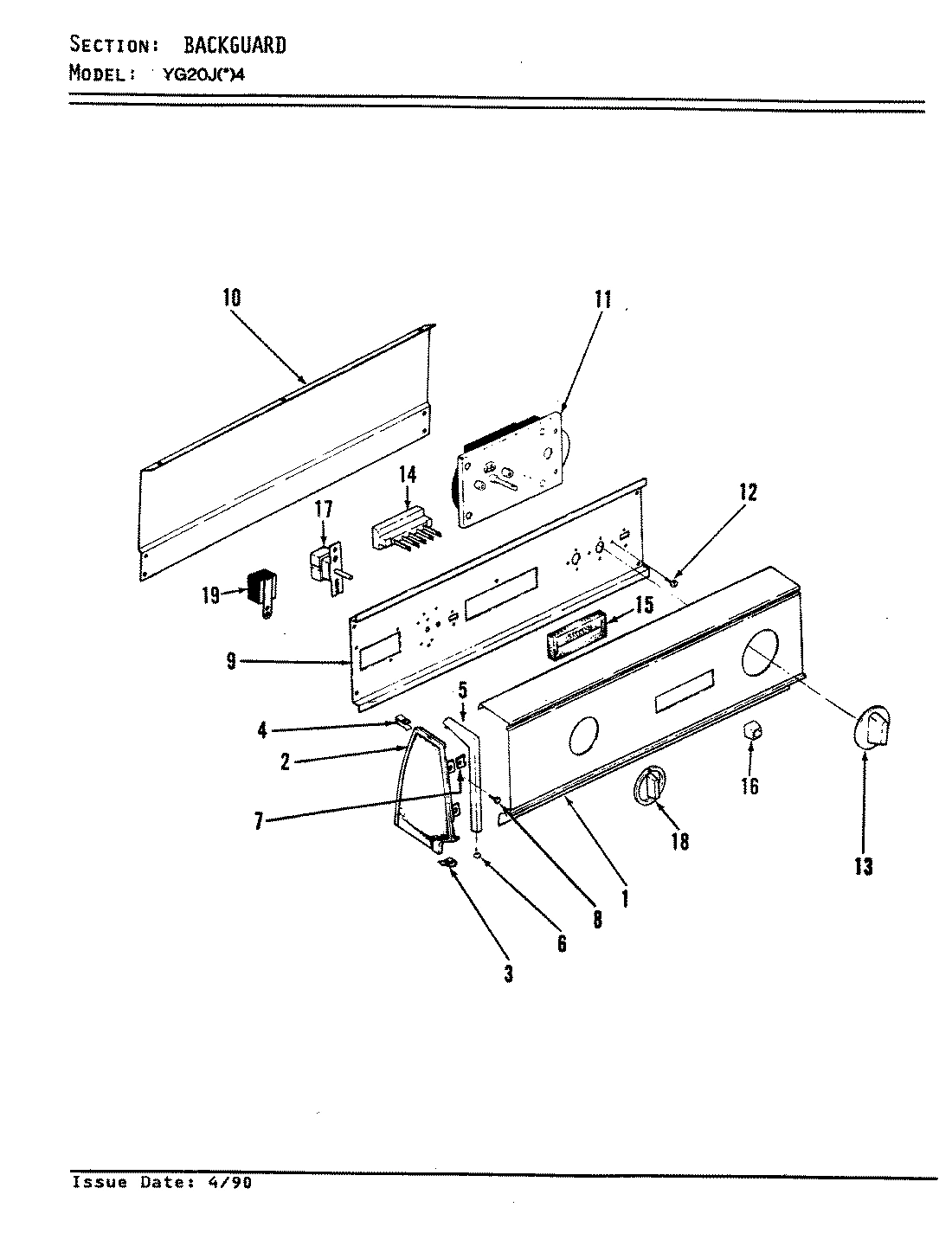

01 - CONTROL PANEL (REV. A-D)

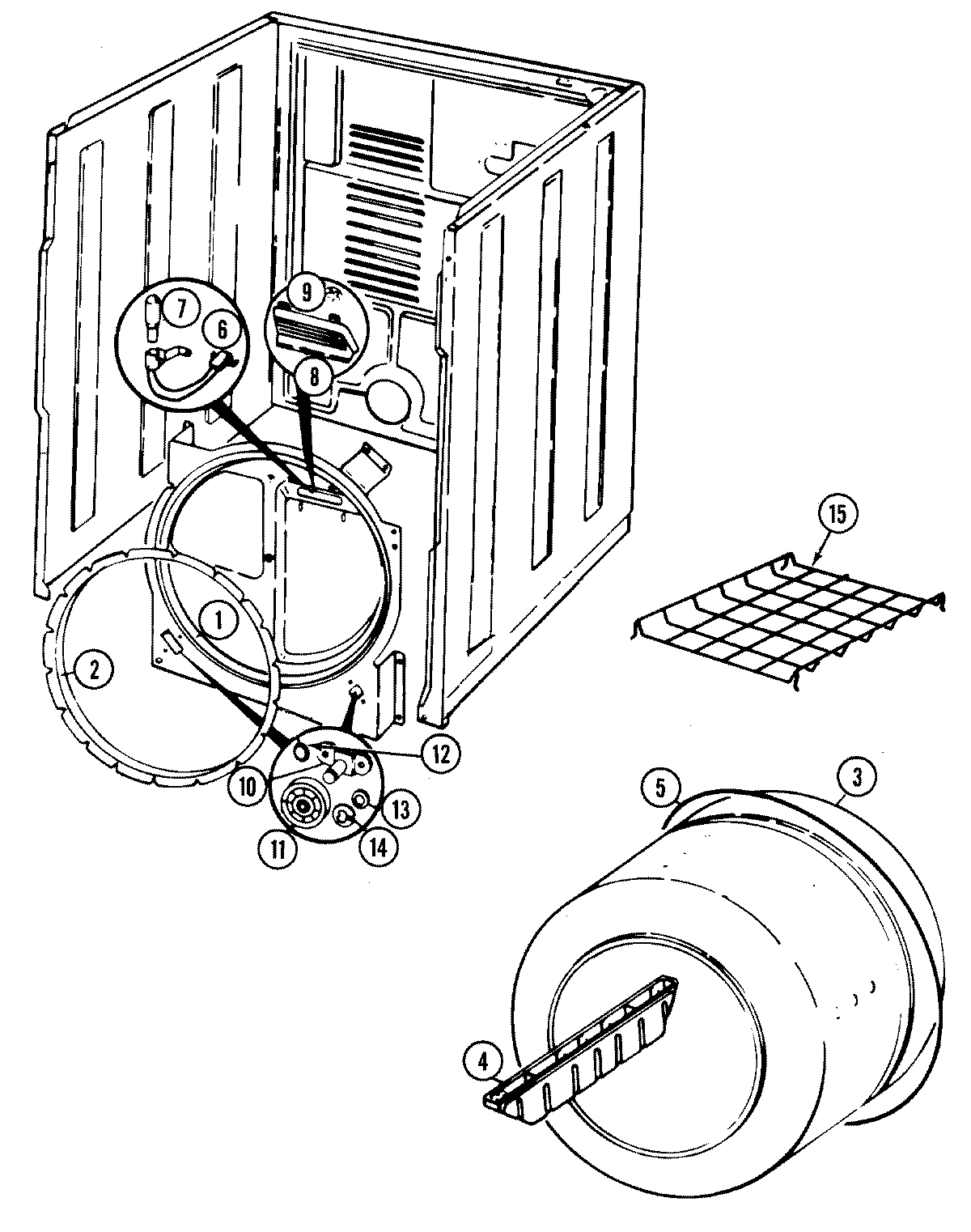

08 - TUMBLER (REV. F)
Common parts from model Whirlpool YG20JY4 GAS DRYER
1
LEG, LEVELING WPL 635834 Contact Us For Availability
1
SCREW WPL 257733 Contact Us For Availability
1
BULKHEAD WPL Y02100001 Contact Us For Availability
1
GAS CONTROL VALVE WPL 530194 Contact Us For Availability
1
CONTROL PANEL WPL 531275 Contact Us For Availability
1
CABINET TOP WPL 53031425 Contact Us For Availability
1
CABINET TOP (DRYER) WPL 53171125 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
2
BURNER ORIFICE WPL 633570 Contact Us For Availability
2
SCREW WPL 257649 Contact Us For Availability
2
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
2
CAP, END (RT) WPL 352487 Contact Us For Availability
2
CAP, END (LT) WPL 352488 Contact Us For Availability
2
CABINET ASM WPL 53016025 Contact Us For Availability
2
CABINET & BASE ASSY.(WHT) WPL 53164425 Contact Us For Availability
2
RH ENDCAP WPL 530264 Contact Us For Availability
2
LH ENDCAP WPL 530265 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
3
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
3
SECONDARY COIL WPL 636614 Contact Us For Availability
3
DUAL COIL WPL 636615 Contact Us For Availability
3
SCREW WPL 257697 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
4
SHIELD, WIRING WPL 530153 Contact Us For Availability
4
SCREW WPL 257759 Contact Us For Availability
4
BURNER ASM WPL 636682 Contact Us For Availability
4
PAD, TOP HINGE WPL 330930 Contact Us For Availability
4
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
4
BAFFLE (WHT) WPL Y02100002 Contact Us For Availability
5
CYLINDER BELT WPL 531080 Contact Us For Availability
5
MTG BRACKET WPL 530140 Contact Us For Availability
5
MOTOR & PULLEY ASSY (115V,60HZ WPL 532275 Contact Us For Availability
5
TRIM, END CAP (RT) WPL 530277 Contact Us For Availability
5
TRIM, END CAP (LT) WPL 530278 Contact Us For Availability
6
SWITCH, MOTOR WPL 530693 Contact Us For Availability
6
SCREW, SEMS WPL 253457 Contact Us For Availability
6
IGNITER WPL 530689 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
6
BUMPER, CABINET WPL 332653 Contact Us For Availability
6
BLADE-FAN WPL 531580 Contact Us For Availability
7
SCREW WPL 257811 Contact Us For Availability
7
CYL LIGHT BULB WPL 530570 Contact Us For Availability
7
CLIP, WIRING WPL 253034 Contact Us For Availability
7
SCREW WPL 257744 Contact Us For Availability
7
BRACKET WPL 530686 Contact Us For Availability
7
SCREW WPL 257435 Contact Us For Availability
7
PANEL, FRONT (H WHT)GAS WPL 53072725 Contact Us For Availability
8
BAFFLE, WHITE WPL 531249 Contact Us For Availability
8
CLAMP, MOTOR WPL 530214 Contact Us For Availability
8
LENS, BULB WPL 530174 Contact Us For Availability
8
SHUTOFF VALVE WPL 530101 Contact Us For Availability
8
HRV WHT PLUG WPL 530598 Contact Us For Availability
9
MOTOR MTG. KIT (DRYER) WPL LA1004 Contact Us For Availability
9
CLIP, PUSH-ON WPL 253562 Contact Us For Availability
9
GAS PIPE WPL 530173 Contact Us For Availability
9
IDLER ASSY. WPL 532287 Contact Us For Availability
9
HRV WHT BUTTON WPL 530597 Contact Us For Availability
9
CONTROL SHIELD WPL 530323 Contact Us For Availability
10
MOTOR ASM WPL 531041 Contact Us For Availability
10
SCREW WPL 257101 Contact Us For Availability
10
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
10
WIRING CLIP WPL 253032 Contact Us For Availability
10
HOUSING, HEATER WPL 531884 Contact Us For Availability
10
SPRING, IDLER WPL 532209 Contact Us For Availability
10
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
10
CLIP, U-TYPE WPL 257817 Contact Us For Availability
10
SCREW, FRONT PANEL TO CABINET WPL 257820 Contact Us For Availability
10
HEATER HOUSING WPL 530138 Contact Us For Availability
10
REAR SHIELD WPL 530268 Contact Us For Availability
11
SCREW WPL 257741 Contact Us For Availability
11
DUCT, EXHAUST WPL 530134 Contact Us For Availability
11
CYL ROLLER WPL 530642 Contact Us For Availability
11
HEATER SUPPORT WPL 530139 Contact Us For Availability
11
TIMER WPL 531816 Contact Us For Availability
11
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
11
TIMER WPL 531300 Contact Us For Availability
11
TIMER MOTOR WPL 635685 Contact Us For Availability
12
MOTOR BRACKET WPL 530852 Contact Us For Availability
12
SPACER WPL 257813 Contact Us For Availability
12
SCREW WPL 250168 Contact Us For Availability
12
HI LMT TSTAT WPL 530143 Contact Us For Availability
12
HOUSING, BLOWER WPL 531801 Contact Us For Availability
12
PIN, LOCATOR WPL 636148 Contact Us For Availability
12
SCREW WPL 250205 Contact Us For Availability
13
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
13
SCREW WPL 252134 Contact Us For Availability
13
WASHER WPL 257814 Contact Us For Availability
13
SENSOR WPL 635013 Contact Us For Availability
13
TIMER KNOB & SKIRT ASSY WPL 531529 Contact Us For Availability
13
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
13
SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability
14
BLOWER WHEEL WPL 530106 Contact Us For Availability
14
ROLLER WPL LA1008 Contact Us For Availability
14
RING, RETAINING WPL 257854 Contact Us For Availability
14
CORD, POWER WPL 636259 Contact Us For Availability
14
SWITCH WPL 531296 Contact Us For Availability
14
SCREW WPL 257712 Contact Us For Availability
14
BRACKET, SWITCH WPL 336621 Contact Us For Availability
14
COLLECTOR DUCT WPL 531299 Contact Us For Availability
15
IDLER SPRING WPL 530207 Contact Us For Availability
15
IDLER SPRING WPL 531648 Contact Us For Availability
15
CLAMP WPL 257823 Contact Us For Availability
15
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
15
INLET AIR DUCT WPL 530169 Contact Us For Availability
15
SWITCH PAD WPL 338541 Contact Us For Availability
15
SEAL WPL 530204 Contact Us For Availability
15
RACK, DRYING WPL 530772 Contact Us For Availability
16
RING, RETAINING WPL 257855 Contact Us For Availability
16
THRMST-FIX WPL 531096 Contact Us For Availability
16
PUSHBUTTON - BLACK WPL 352588 Contact Us For Availability
16
CLIP WPL 530123 Contact Us For Availability
17
BLOWER HOUSING WPL 530774 Contact Us For Availability
17
SCREW WPL 257807 Contact Us For Availability
17
FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability
17
COVER, BLOWER HOUSING WPL 531933 Contact Us For Availability
17
ROTARY SWITCH WPL 531263 Contact Us For Availability
17
FILTER, LINT WPL 530918 Contact Us For Availability
18
COVER & SEAL WPL 530705 Contact Us For Availability
18
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
18
THERMOSTAT, LO-LIMIT (120/110) WPL 530170 Contact Us For Availability
18
CONVERSION KIT (NAT-LP) WPL 636766 Contact Us For Availability
18
KNOB, SELECTOR (BLK) WPL 352185 Contact Us For Availability
19
LH CYL GLIDE WPL 530185 Contact Us For Availability
19
SCREW WPL 253092 Contact Us For Availability
19
BUZZER WPL 636731 Contact Us For Availability
19
PANEL, OUTER DOOR (H WHT) WPL 53015425 Contact Us For Availability
20
RH GLD CUSHION WPL 530724 Contact Us For Availability
20
MANUAL, USE & CARE WPL 531444 Contact Us For Availability
20
PANEL, INNER DOOR (HWHT) WPL 53091225 Contact Us For Availability
21
RH CYL GLIDE WPL 530183 Contact Us For Availability
21
CLIP, HINGE WPL 530119 Contact Us For Availability
22
BLOWER COVER WPL 531024 Contact Us For Availability
22
CUSHION, TUMBLER GLIDE WPL 531684 Contact Us For Availability
22
PAD, DOOR WPL 530251 Contact Us For Availability
23
COUNTERWEIGHT WPL 530645 Contact Us For Availability
23
PAD, DOOR WPL 530252 Contact Us For Availability
24
BRACKET WPL 530644 Contact Us For Availability
24
SCREW WPL 257732 Contact Us For Availability
24
SCREW, OUTER TO INNER DOOR WPL 257770 Contact Us For Availability
24
DOOR SEAL WPL 530112 Contact Us For Availability
25
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
25
LAMP SOCKET WPL 530152 Contact Us For Availability
25
PLUG BUTTON, DOOR WPL 253534 Contact Us For Availability
26
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
26
HANDLE, DOOR (CHR) WPL 530928 Contact Us For Availability
27
SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability
27
HINGE, DOOR WPL 530122 Contact Us For Availability
28
CYL SUPT REINFORCE BRACE KIT WPL LA2010 Contact Us For Availability
28
TWIN NUT WPL 530121 Contact Us For Availability
29
RH GLD CUSHION WPL 530182 Contact Us For Availability
29
WASHER WPL 257815 Contact Us For Availability
29
STRIKE, DOOR WPL 730033 Contact Us For Availability
30
PUSHNUT WPL 257957 Contact Us For Availability
30
CATCH, DOOR WPL 530187 Contact Us For Availability
31
PULLEY, IDLER WPL 531628 Contact Us For Availability
31
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
31
SUPPORT, POWER CORD WPL 530135 Contact Us For Availability
32
ARM, IDLER WPL 532250 Contact Us For Availability
32
SCREW WPL 257857 Contact Us For Availability
32
COVER, TERMINAL WPL 530284 Contact Us For Availability
33
STRAIN RELIEF WPL 257699 Contact Us For Availability
33
SHIELD, HEAT WPL 530133 Contact Us For Availability
34
SCREW WPL 257674 Contact Us For Availability
34
SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability
35
SWITCH, DOOR WPL 530148 Contact Us For Availability
36
LH GLIDE CUSHION WPL 530723 Contact Us For Availability
36
CLIP, SWITCH WPL 635990 Contact Us For Availability
× ![]()
