Model Whirlpool YG20FA4K GAS DRYER – Common Parts & Diagrams

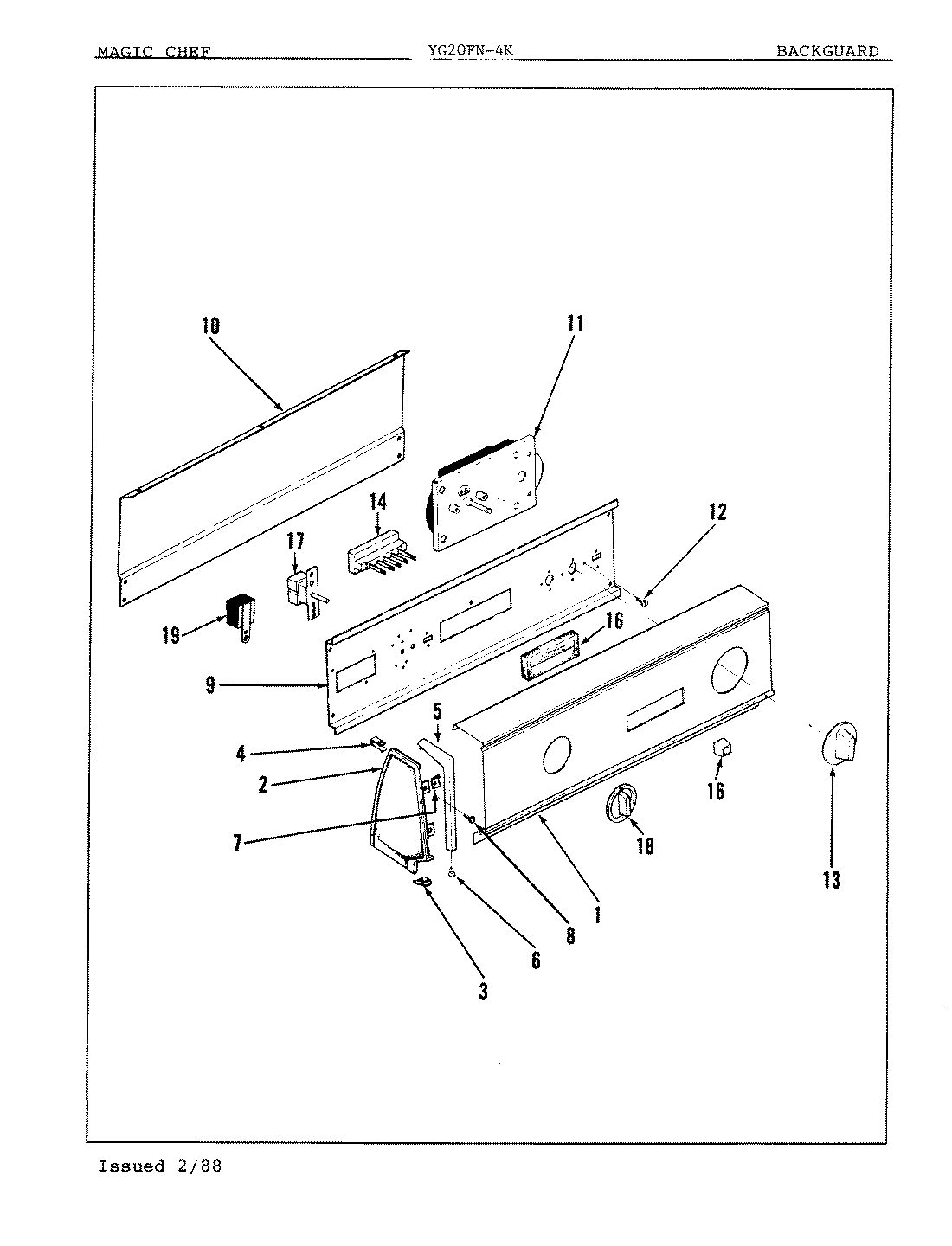

01 - CONTROL PANEL

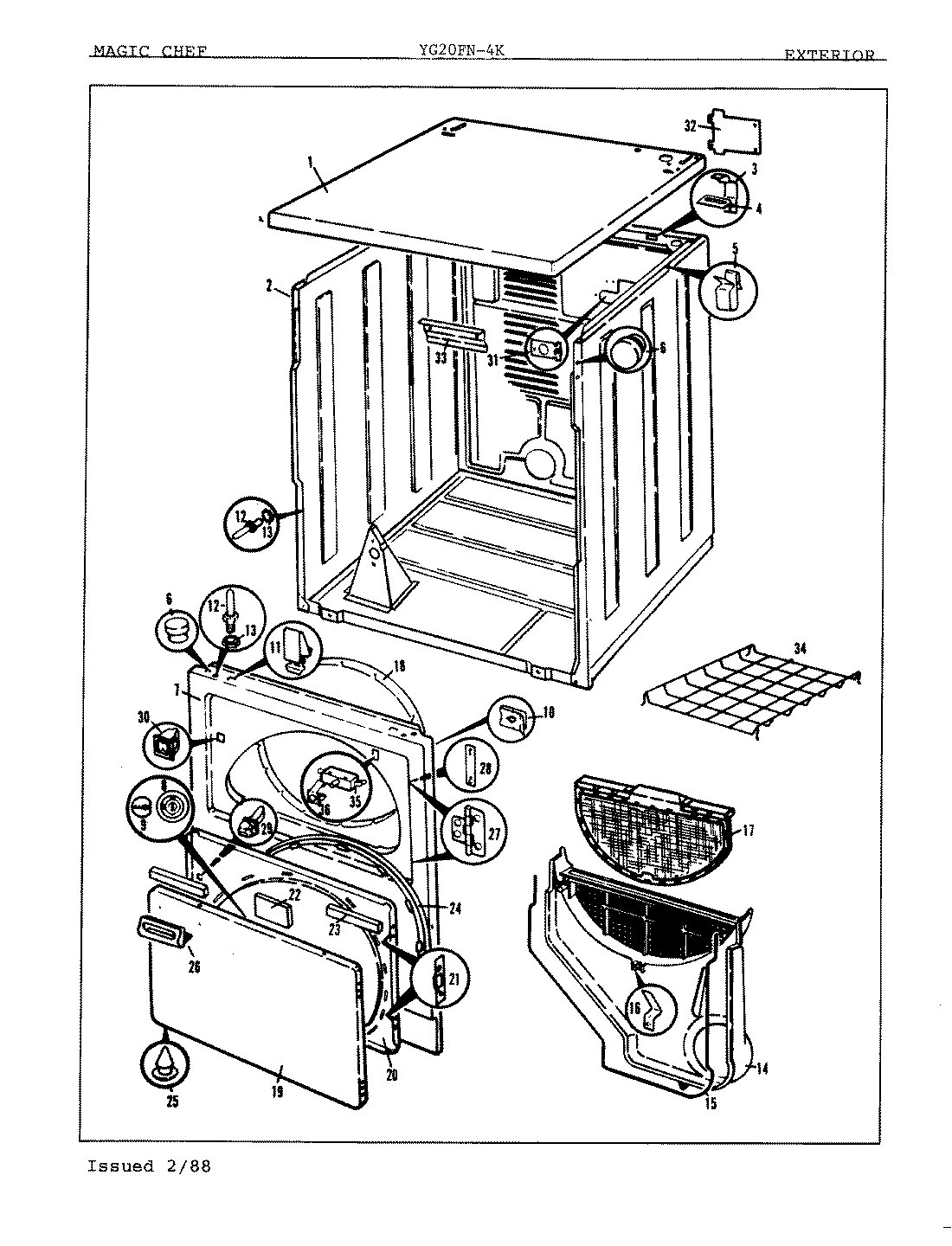

03 - EXTERIOR

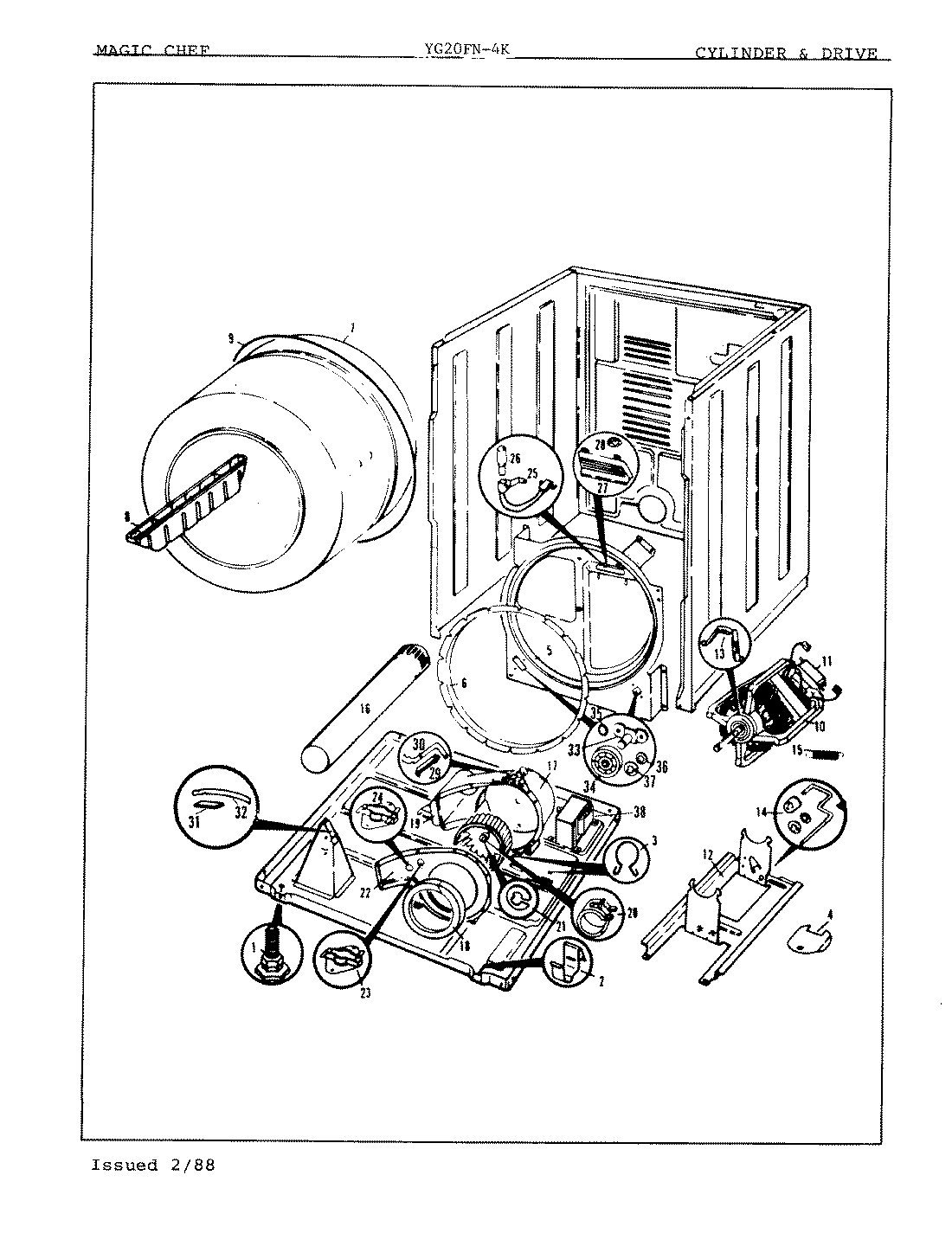

02 - CYLINDER & DRIVE

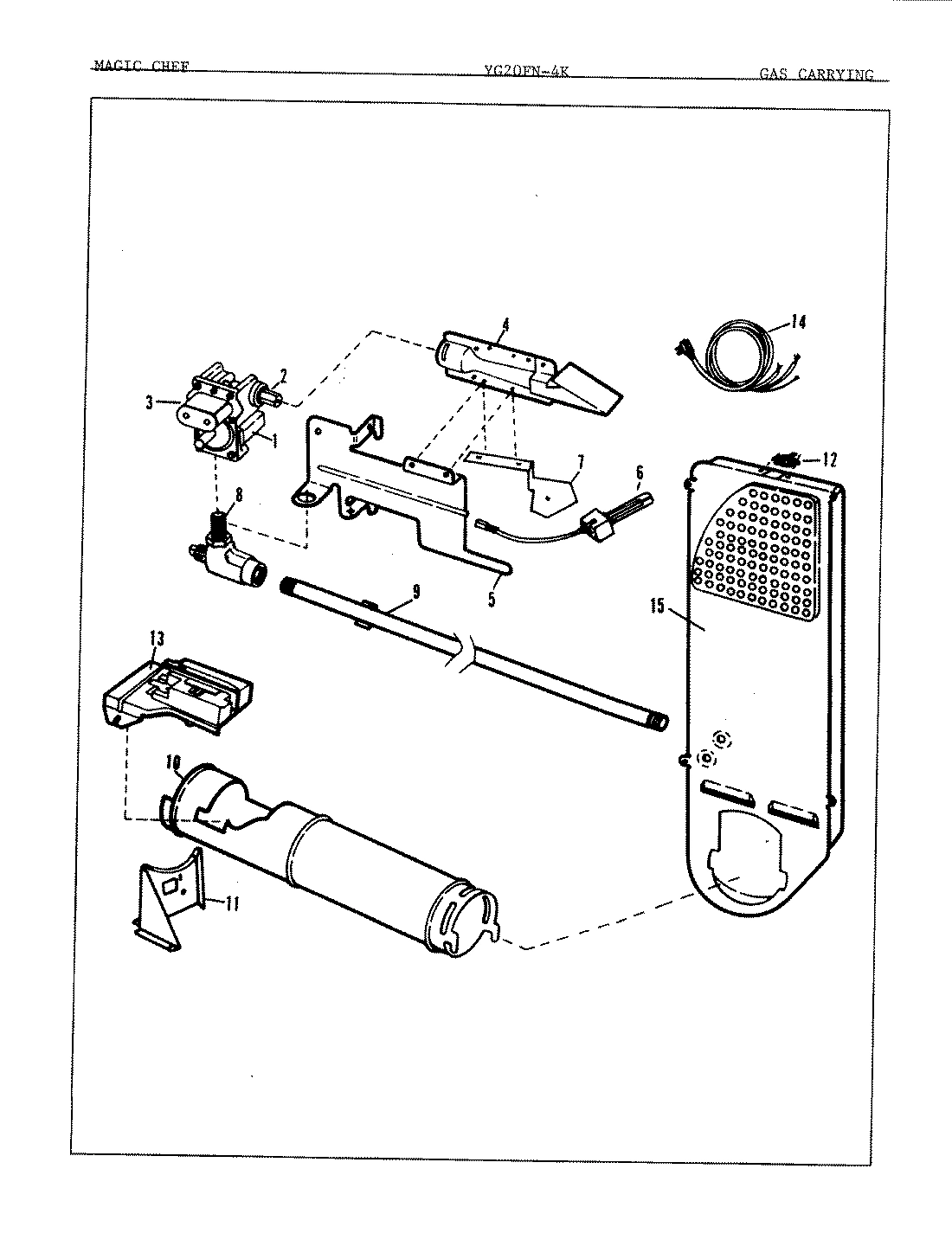

04 - GAS CARRYING
Common parts from model Whirlpool YG20FA4K GAS DRYER
1
CONTROL PANEL WPL 530993 Contact Us For Availability
1
CABINET TOP WPL 53031424 Contact Us For Availability
1
LEG, LEVELING WPL 635519 Contact Us For Availability
1
GAS CONTROL VALVE WPL 530194 Contact Us For Availability
2
SCREW WPL 257649 Contact Us For Availability
2
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
2
RH ENDCAP WPL 530264 Contact Us For Availability
2
LH ENDCAP WPL 530265 Contact Us For Availability
2
CABINET ASM WPL 53016024 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
BURNER ORIFICE WPL 633570 Contact Us For Availability
3
SCREW WPL 257697 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
3
DUAL COIL WPL 636615 Contact Us For Availability
3
SEE NOTE SCREW, 8-32 X 7/16 (PURCHASE LO WPL Y00000000 Contact Us For Availability
4
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
4
PAD, TOP HINGE WPL 330930 Contact Us For Availability
4
SHIELD, WIRING WPL 530153 Contact Us For Availability
4
BURNER ASM WPL 636682 Contact Us For Availability
5
TRIM, END CAP (RT) WPL 530277 Contact Us For Availability
5
TRIM, END CAP (LT) WPL 530278 Contact Us For Availability
5
SCREW WPL 257733 Contact Us For Availability
5
BULKHEAD WPL 530175 Contact Us For Availability
5
MTG BRACKET WPL 530140 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
6
BUMPER, CABINET WPL 332653 Contact Us For Availability
6
SEAL WPL 530218 Contact Us For Availability
6
IGNITER WPL 530689 Contact Us For Availability
7
SCREW WPL 257435 Contact Us For Availability
7
CLIP, WIRING WPL 253034 Contact Us For Availability
7
PANEL, FRONT (ALM)GAS WPL 53072724 Contact Us For Availability
7
TUMBLER ASSY. WPL 530178 Contact Us For Availability
7
SCREW WPL 257744 Contact Us For Availability
7
BRACKET WPL 530686 Contact Us For Availability
8
PLUG, GAS ACCESS (ALM) WPL 530161 Contact Us For Availability
8
CHROME PLUG WPL 530592 Contact Us For Availability
8
SCREW WPL 257759 Contact Us For Availability
8
BAFFLE, GRAY WPL 530117 Contact Us For Availability
8
SHUTOFF VALVE WPL 530101 Contact Us For Availability
9
CONTROL SHIELD WPL 530323 Contact Us For Availability
9
BUTTON, GAS ACCESS (ALM) WPL 530162 Contact Us For Availability
9
CHROME BUTTON WPL 530593 Contact Us For Availability
9
CYL DRIVE BELT WPL 530186 Contact Us For Availability
9
MOTOR MTG. KIT (DRYER) WPL LA1004 Contact Us For Availability
9
GAS PIPE WPL 530173 Contact Us For Availability
10
REAR SHIELD WPL 530268 Contact Us For Availability
10
CLIP, U-TYPE WPL 257817 Contact Us For Availability
10
SCREW, FRONT PANEL TO CABINET WPL 257820 Contact Us For Availability
10
MOTOR ASM WPL 531041 Contact Us For Availability
10
HEATER HOUSING WPL 530138 Contact Us For Availability
11
TIMER WPL 530660 Contact Us For Availability
11
TIMER MOTOR WPL 635685 Contact Us For Availability
11
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
11
MOTOR SWITCH WPL 730467 Contact Us For Availability
11
HEATER SUPPORT WPL 530139 Contact Us For Availability
12
SCREW WPL 250205 Contact Us For Availability
12
PIN, LOCATOR WPL 636148 Contact Us For Availability
12
SCREW WPL 257811 Contact Us For Availability
12
BRACKET WPL 530105 Contact Us For Availability
12
SCREW WPL 250168 Contact Us For Availability
12
HI LMT TSTAT WPL 530143 Contact Us For Availability
13
KNOB WPL 530653 Contact Us For Availability
13
SCREW WPL 253092 Contact Us For Availability
13
SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability
13
SCREW WPL 257741 Contact Us For Availability
13
SCREW WPL 257674 Contact Us For Availability
13
CLAMP, MOTOR WPL 530214 Contact Us For Availability
13
SCREW WPL 252134 Contact Us For Availability
13
SENSOR WPL 635013 Contact Us For Availability
14
SCREW WPL 257712 Contact Us For Availability
14
BRACKET, SWITCH WPL 336621 Contact Us For Availability
14
5 PB SWITCH WPL 635483 Contact Us For Availability
14
COLLECTOR DUCT WPL 530917 Contact Us For Availability
14
IDLER ARM WPL 530199 Contact Us For Availability
14
CORD, POWER WPL 636259 Contact Us For Availability
15
SWITCH PAD WPL 338541 Contact Us For Availability
15
SEAL WPL 530204 Contact Us For Availability
15
IDLER SPRING WPL 530207 Contact Us For Availability
15
INLET AIR DUCT WPL 530169 Contact Us For Availability
15
CONVERSION KIT (NAT-LP) WPL 636766 Contact Us For Availability
16
PUSHBUTTON WPL 350385 Contact Us For Availability
16
CLIP WPL 530123 Contact Us For Availability
16
DUCT, EXHAUST WPL 530134 Contact Us For Availability
17
SWITCH, WRINKLE OUT WPL 530346 Contact Us For Availability
17
FILTER, LINT WPL 530918 Contact Us For Availability
17
BLOWER HOUSING WPL 530157 Contact Us For Availability
18
SELECTOR KNOB WPL 350168 Contact Us For Availability
18
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
18
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
18
BLOWER HSG&SEAL WPL 530205 Contact Us For Availability
18
COVER & SEAL WPL 530206 Contact Us For Availability
19
BUZZER WPL 636731 Contact Us For Availability
19
PANEL, OUTER DOOR (ALM) WPL 53015424 Contact Us For Availability
19
PANEL, OUTER DOOR (H WHT) WPL 53015425 Contact Us For Availability
19
BLOWER WHEEL WPL 530106 Contact Us For Availability
20
INNER PANEL WPL 530104 Contact Us For Availability
20
CLAMP WPL 257823 Contact Us For Availability
21
CLIP, HINGE WPL 530119 Contact Us For Availability
21
RETAINING RING WPL 257812 Contact Us For Availability
22
PAD, DOOR WPL 530251 Contact Us For Availability
22
SCREW WPL 257807 Contact Us For Availability
22
HOUSING COVER WPL 530103 Contact Us For Availability
22
BLOWER COVER WPL 531024 Contact Us For Availability
22
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
23
PAD, DOOR WPL 530252 Contact Us For Availability
23
THERMOSTAT WPL 530263 Contact Us For Availability
24
SCREW, OUTER TO INNER DOOR WPL 257770 Contact Us For Availability
24
DOOR SEAL WPL 530112 Contact Us For Availability
24
THERMOSTAT WPL 530262 Contact Us For Availability
25
PLUG BUTTON, DOOR WPL 253534 Contact Us For Availability
25
LAMP SOCKET WPL 530152 Contact Us For Availability
26
SCREW, SEMS WPL 253457 Contact Us For Availability
26
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
26
HANDLE, DOOR (CHR) WPL 530928 Contact Us For Availability
26
CYL LIGHT BULB WPL 530570 Contact Us For Availability
27
SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability
27
HINGE, DOOR WPL 530122 Contact Us For Availability
27
LENS, BULB WPL 530174 Contact Us For Availability
28
TWIN NUT WPL 530121 Contact Us For Availability
28
CLIP, PUSH-ON WPL 253562 Contact Us For Availability
29
STRIKE, DOOR WPL 730033 Contact Us For Availability
29
RH GLD CUSHION WPL 530182 Contact Us For Availability
30
CATCH, DOOR WPL 530187 Contact Us For Availability
30
RH CYL GLIDE WPL 530183 Contact Us For Availability
31
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
31
SUPPORT, POWER CORD WPL 530135 Contact Us For Availability
31
LH GLD CUSHION WPL 530184 Contact Us For Availability
32
SCREW WPL 257857 Contact Us For Availability
32
COVER, TERMINAL WPL 530284 Contact Us For Availability
32
LH CYL GLIDE WPL 530185 Contact Us For Availability
32
ROLLER WPL LA1008 Contact Us For Availability
33
SHIELD, HEAT WPL 530133 Contact Us For Availability
33
SCREW WPL 257101 Contact Us For Availability
33
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
34
RACK, DRYING WPL 530772 Contact Us For Availability
34
SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability
34
CYLINDER ROLLER WPL 530163 Contact Us For Availability
35
SWITCH, DOOR WPL 530147 Contact Us For Availability
35
SPACER WPL 257813 Contact Us For Availability
36
CLIP, SWITCH WPL 635990 Contact Us For Availability
36
WASHER WPL 257814 Contact Us For Availability
37
RETAINING RING WPL 257574 Contact Us For Availability
38
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
38
BRACKET WPL 338577 Contact Us For Availability
38
CAPACITOR WPL 633199 Contact Us For Availability
38
WASHER WPL 253382 Contact Us For Availability
38
EXPORT XFMR WPL 530776 Contact Us For Availability
× ![]()
