Model Whirlpool YE20FN4 ELECTRIC DRYER – Common Parts & Diagrams

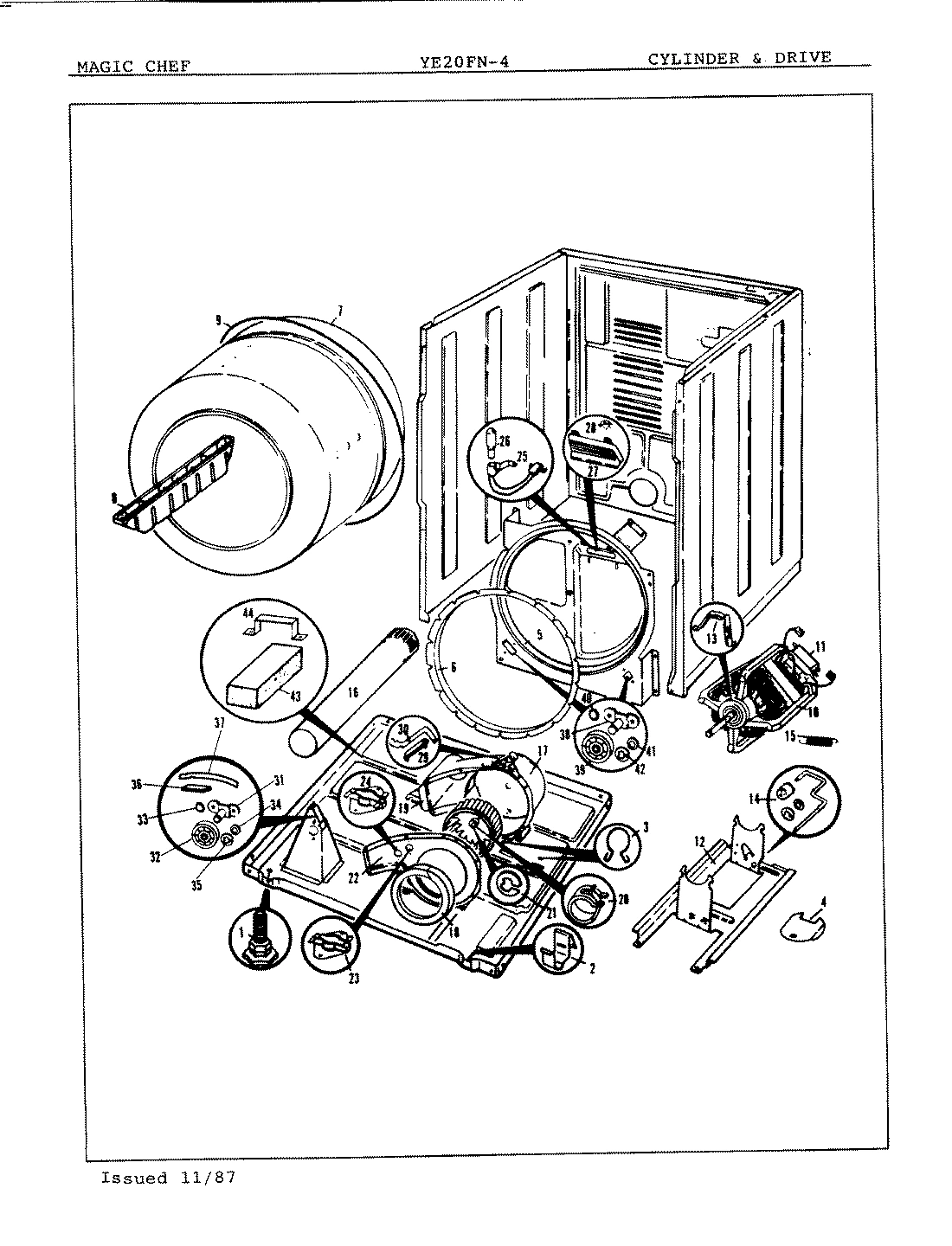

02 - CYLINDER & DRIVE
01 - CONTROL PANEL
03 - EXTERIOR
04 - HEATER
Common parts from model Whirlpool YE20FN4 ELECTRIC DRYER
1
LEG, LEVELING WPL 635519 Contact Us For Availability
1
CONTROL PANEL WPL 530993 Contact Us For Availability
1
CABINET TOP WPL 530314 Contact Us For Availability
1
SCREW WPL 257863 Contact Us For Availability
1
HEATER ELEMENT WPL 530920 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
SCREW WPL 257649 Contact Us For Availability
2
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
2
RH ENDCAP WPL 530264 Contact Us For Availability
2
LH ENDCAP WPL 530265 Contact Us For Availability
2
CABINET ASM WPL 530160 Contact Us For Availability
2
SCREW No.8-18X1/2 PAN HD WPL 257819 Contact Us For Availability
2
HTR HOUSING ASM WPL 530191 Contact Us For Availability
2
HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
3
SCREW WPL 257697 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
3
SCREW WPL 253083 Contact Us For Availability
3
THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
SHIELD, WIRING WPL 530153 Contact Us For Availability
4
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
4
SCREW WPL 253092 Contact Us For Availability
4
PAD, TOP HINGE WPL 330930 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
5
SCREW WPL 257733 Contact Us For Availability
5
BULKHEAD WPL 530175 Contact Us For Availability
5
TRIM, END CAP (RT) WPL 530277 Contact Us For Availability
5
TRIM, END CAP (LT) WPL 530278 Contact Us For Availability
5
CLIP, WIRING WPL 253034 Contact Us For Availability
5
NUT (No.10-32) WPL 250027 Contact Us For Availability
5
WASHER, FLAT WPL 253122 Contact Us For Availability
5
WASHER, CUP WPL 253123 Contact Us For Availability
5
NUT WPL 256124 Contact Us For Availability
5
SCREW WPL 257803 Contact Us For Availability
5
TERMINAL BLOCK WPL 530166 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
6
BUMPER, CABINET WPL 332653 Contact Us For Availability
6
FUSE, THERMAL WPL 531182 Contact Us For Availability
7
TUMBLER ASSY. WPL 530178 Contact Us For Availability
7
SCREW WPL 257435 Contact Us For Availability
7
PANEL, FRONT (WHT) WPL 530726 Contact Us For Availability
8
SCREW WPL 257759 Contact Us For Availability
8
BAFFLE, GRAY WPL 530117 Contact Us For Availability
9
CYL DRIVE BELT WPL 530186 Contact Us For Availability
9
MOTOR MTG. KIT (DRYER) WPL LA1004 Contact Us For Availability
9
CONTROL SHIELD WPL 530323 Contact Us For Availability
10
MOTOR ASM WPL 531041 Contact Us For Availability
10
REAR SHIELD WPL 530268 Contact Us For Availability
10
CLIP, U-TYPE WPL 257817 Contact Us For Availability
10
SCREW, FRONT PANEL TO CABINET WPL 257820 Contact Us For Availability
11
MOTOR SWITCH WPL 730467 Contact Us For Availability
11
TIMER WPL 530660 Contact Us For Availability
11
RESISTOR ASSY. WPL 636743 Contact Us For Availability
11
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
12
SCREW WPL 257811 Contact Us For Availability
12
MOTOR BRACKET WPL 530852 Contact Us For Availability
12
SCREW WPL 250205 Contact Us For Availability
12
PIN, LOCATOR WPL 636148 Contact Us For Availability
13
SCREW WPL 257674 Contact Us For Availability
13
CLAMP, MOTOR WPL 530214 Contact Us For Availability
13
KNOB WPL 530653 Contact Us For Availability
13
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
13
SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability
14
SCREW WPL 257712 Contact Us For Availability
14
BRACKET, SWITCH WPL 336621 Contact Us For Availability
14
5 PB SWITCH WPL 635483 Contact Us For Availability
14
COLLECTOR DUCT WPL 530917 Contact Us For Availability
15
IDLER SPRING WPL 530207 Contact Us For Availability
15
SWITCH PAD WPL 338541 Contact Us For Availability
15
SEAL WPL 530204 Contact Us For Availability
16
DUCT, EXHAUST WPL 530134 Contact Us For Availability
16
CLIP WPL 530123 Contact Us For Availability
17
BLOWER HOUSING WPL 530774 Contact Us For Availability
17
SWITCH, WRINKLE OUT WPL 530346 Contact Us For Availability
17
FILTER, LINT WPL 530918 Contact Us For Availability
18
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
18
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
18
COVER & SEAL WPL 530705 Contact Us For Availability
18
SELECTOR KNOB WPL 350168 Contact Us For Availability
19
BLOWER WHEEL WPL 530106 Contact Us For Availability
19
BUZZER WPL 636731 Contact Us For Availability
19
PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability
20
CLAMP WPL 257823 Contact Us For Availability
20
INNER PANEL WPL 530104 Contact Us For Availability
21
RING, RETAINING WPL 257855 Contact Us For Availability
21
CLIP, HINGE WPL 530119 Contact Us For Availability
22
SCREW WPL 257807 Contact Us For Availability
22
BLOWR HSG COVER WPL 530752 Contact Us For Availability
22
BLOWER COVER WPL 531024 Contact Us For Availability
22
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
22
PAD, DOOR WPL 530251 Contact Us For Availability
23
THERMOSTAT WPL 530263 Contact Us For Availability
23
PAD, DOOR WPL 530252 Contact Us For Availability
24
SCREW WPL 252134 Contact Us For Availability
24
THERMOSTAT WPL 530262 Contact Us For Availability
24
SCREW, OUTER TO INNER DOOR WPL 257770 Contact Us For Availability
24
DOOR SEAL WPL 530112 Contact Us For Availability
25
LAMP SOCKET WPL 530152 Contact Us For Availability
25
PLUG BUTTON, DOOR WPL 253534 Contact Us For Availability
26
CYL LIGHT BULB WPL 530570 Contact Us For Availability
26
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
26
HANDLE, DOOR (CHR) WPL 530928 Contact Us For Availability
27
LENS, BULB WPL 530174 Contact Us For Availability
27
HINGE, DOOR WPL 530122 Contact Us For Availability
28
CLIP, PUSH-ON WPL 253562 Contact Us For Availability
28
SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability
28
TWIN NUT WPL 530121 Contact Us For Availability
29
RH GLD CUSHION WPL 530182 Contact Us For Availability
29
STRIKE, DOOR WPL 730033 Contact Us For Availability
30
RH CYL GLIDE WPL 530183 Contact Us For Availability
30
CATCH, DOOR WPL 530187 Contact Us For Availability
31
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
31
SUPPORT, POWER CORD WPL 530135 Contact Us For Availability
32
SCREW WPL 257857 Contact Us For Availability
32
COVER, TERMINAL WPL 530284 Contact Us For Availability
33
SCREW, SEMS WPL 253457 Contact Us For Availability
33
SHIELD, HEAT WPL 530133 Contact Us For Availability
34
RACK, DRYING WPL 530772 Contact Us For Availability
34
SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability
35
SWITCH, DOOR WPL 530147 Contact Us For Availability
36
LH GLIDE CUSHION WPL 530723 Contact Us For Availability
36
CLIP, SWITCH WPL 635990 Contact Us For Availability
37
LH CYL GLIDE WPL 530185 Contact Us For Availability
37
ROLLER WPL LA1008 Contact Us For Availability
38
SCREW WPL 257101 Contact Us For Availability
38
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
39
CYL ROLLER WPL 530642 Contact Us For Availability
40
SPACER WPL 257813 Contact Us For Availability
41
WASHER WPL 257814 Contact Us For Availability
42
RING, RETAINING WPL 257854 Contact Us For Availability
× ![]()
