Model Whirlpool YE208KA ELECTRIC DRYER – Common Parts & Diagrams
02 - HEATER
03 - MOTOR & DRIVE

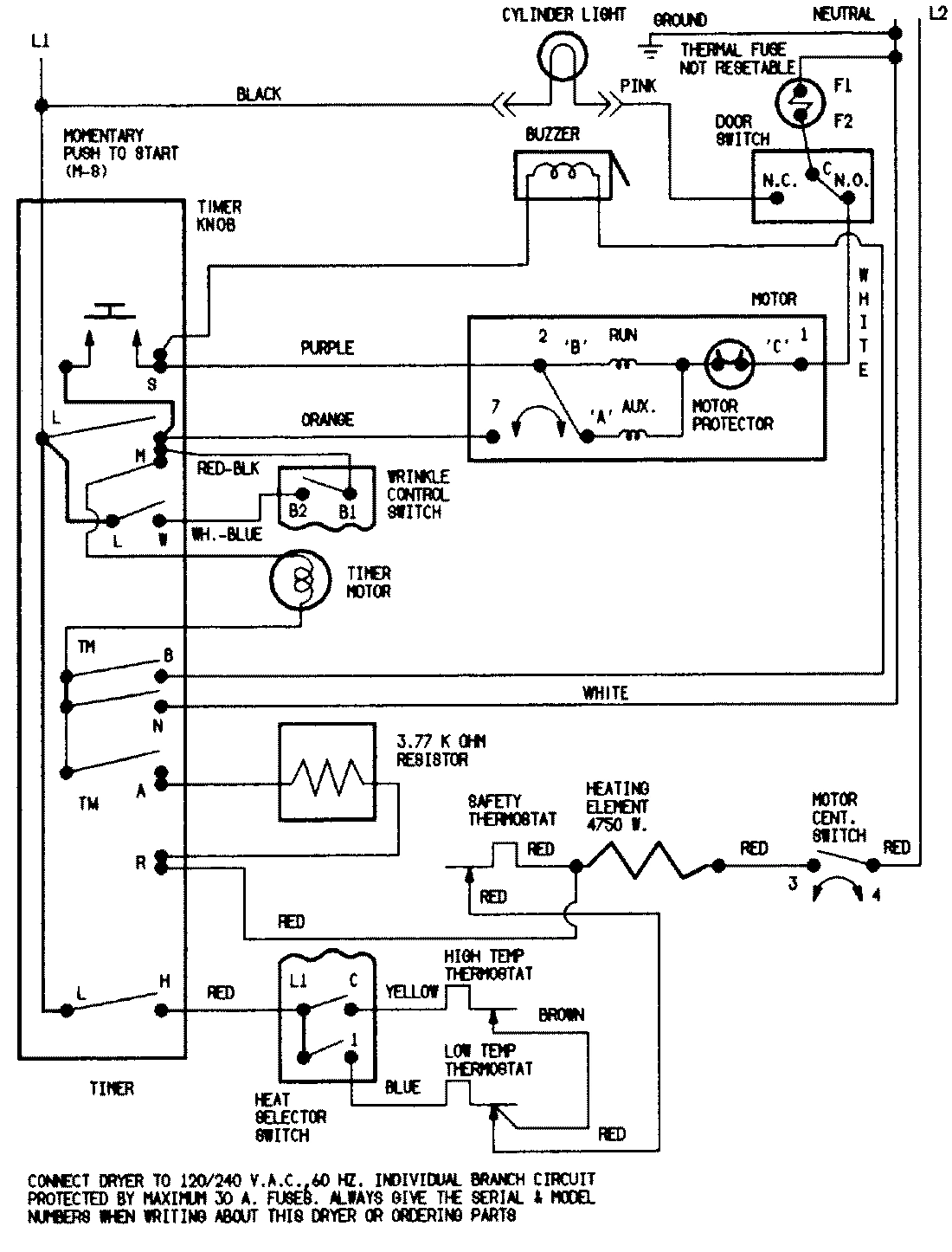

05 - WIRING INFORMATION

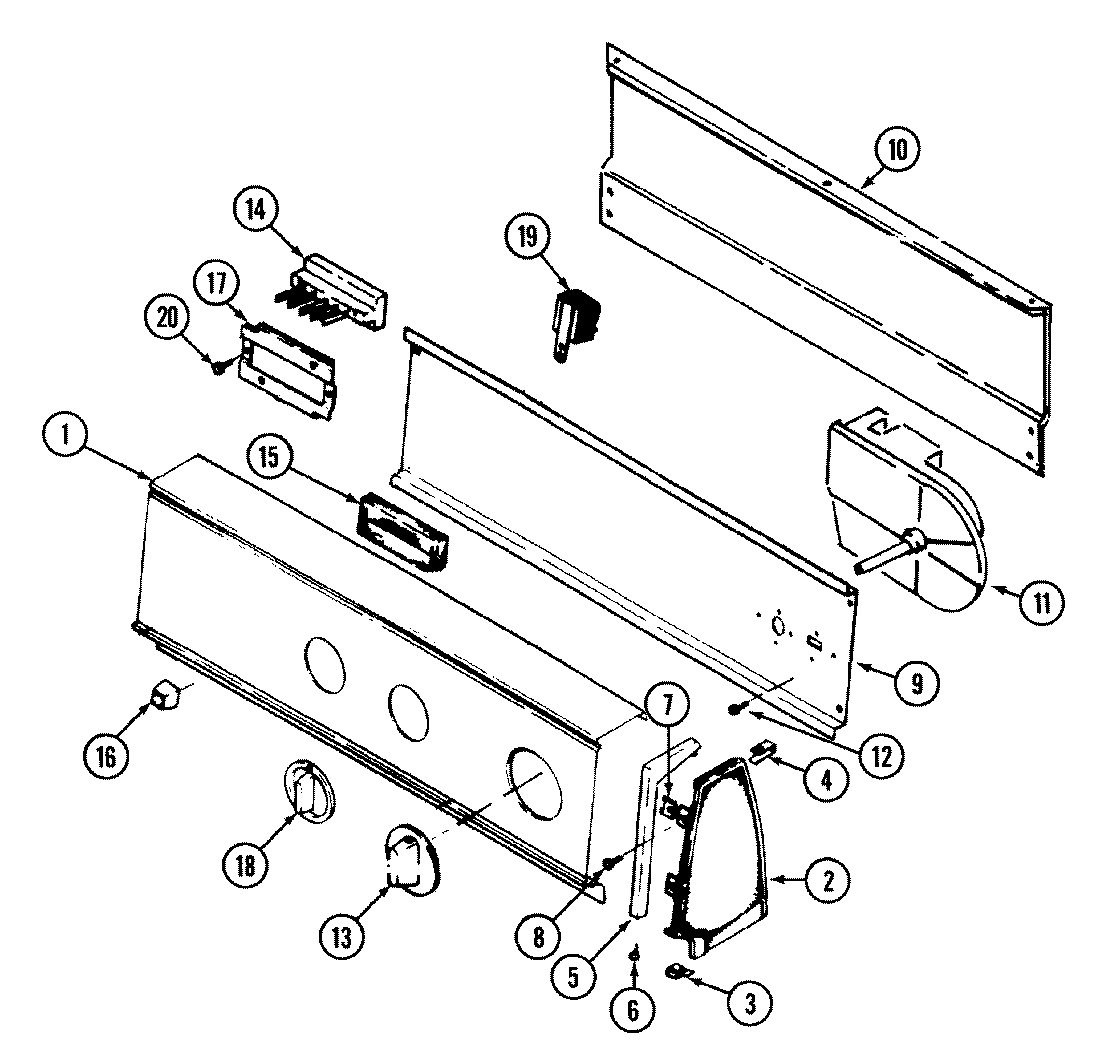

01 - CONTROL PANEL

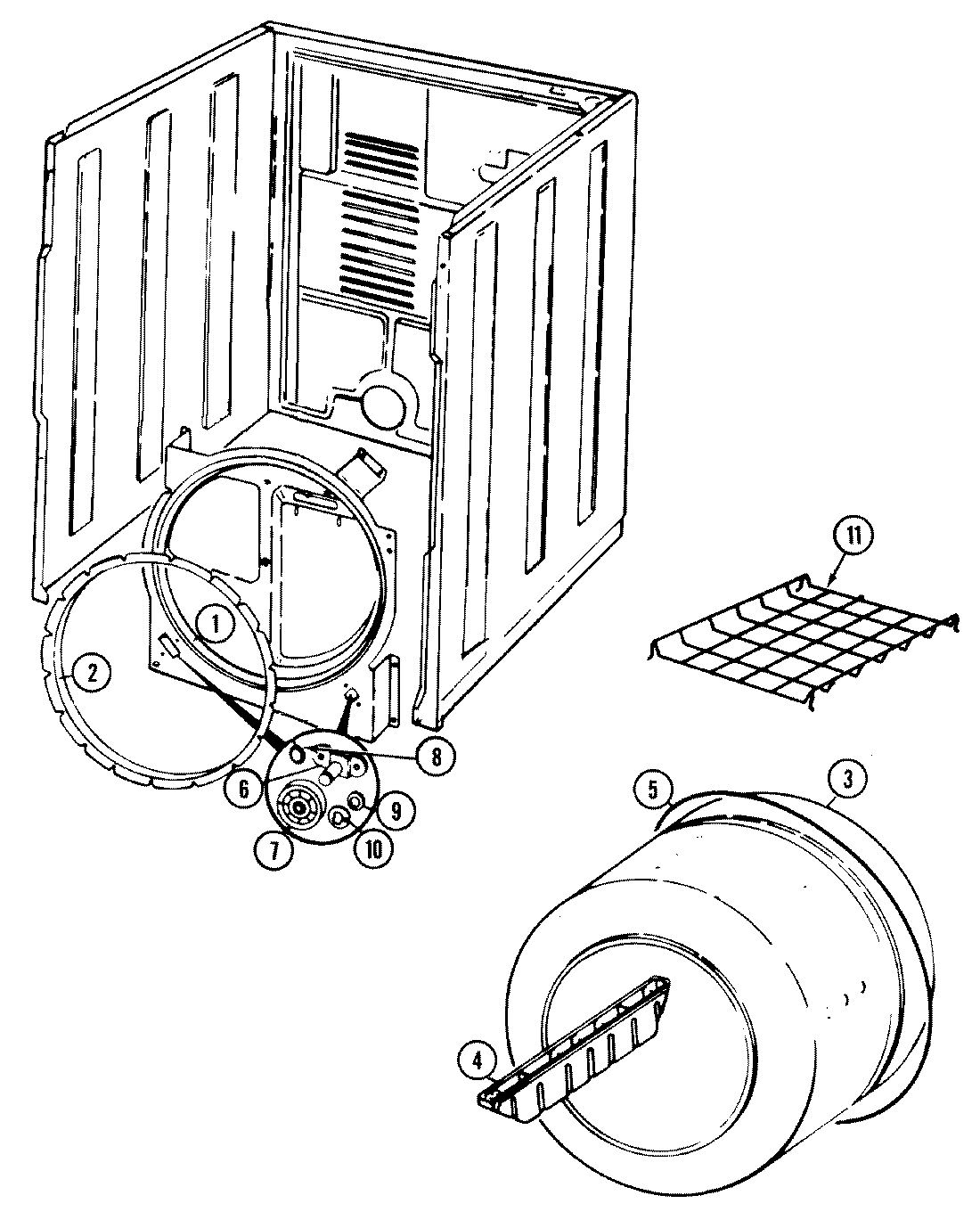

04 - TUMBLER
Common parts from model Whirlpool YE208KA ELECTRIC DRYER
1
ELEMENT, HEATER WPL 531641 Contact Us For Availability
1
LEG, LEVELING WPL 635519 Contact Us For Availability
1
PANEL, CONTROL WPL 532474 Contact Us For Availability
1
SCREW WPL 257733 Contact Us For Availability
1
BULKHEAD W/CYLINDER LIGHT WHT WPL 531709 Contact Us For Availability
2
SCREW No.8-18X1/2 PAN HD WPL 257819 Contact Us For Availability
2
HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
SCREW WPL 257496 Contact Us For Availability
2
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
2
CAP, END (RT) WPL 352487 Contact Us For Availability
2
CAP, END (LT) WPL 352488 Contact Us For Availability
2
SEAL ASSY (WHITE) WPL 530281 Contact Us For Availability
3
SCREW WPL 253083 Contact Us For Availability
3
THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
3
SCREW WPL 257697 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
4
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
4
SHIELD, WIRING WPL 531921 Contact Us For Availability
4
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
4
SCREW WPL 257759 Contact Us For Availability
4
BAFFLE, WHITE WPL 531249 Contact Us For Availability
5
NUT (No.10-32) WPL 250027 Contact Us For Availability
5
WASHER, FLAT WPL 253122 Contact Us For Availability
5
WASHER, CUP WPL 253123 Contact Us For Availability
5
NUT WPL 256124 Contact Us For Availability
5
SCREW WPL 257803 Contact Us For Availability
5
STRAP, GROUND WPL 530965 Contact Us For Availability
5
BLOCK, TERMINAL WPL 531518 Contact Us For Availability
5
MOTOR & PULLEY ASSY (115V,60HZ WPL 532275 Contact Us For Availability
5
END TRIM R.H. (BLK) WPL 532412 Contact Us For Availability
5
END TRIM L.H. (BLK) WPL 532413 Contact Us For Availability
5
BELT, CYLINDER WPL 531589 Contact Us For Availability
6
FUSE, THERMAL WPL 531182 Contact Us For Availability
6
SWITCH, MOTOR WPL 530693 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
6
SCREW WPL 257101 Contact Us For Availability
6
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
7
BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability
7
SCREW WPL 257811 Contact Us For Availability
7
CYL ROLLER WPL 531578 Contact Us For Availability
8
CLAMP, MOTOR WPL 530214 Contact Us For Availability
8
SPACER WPL 257813 Contact Us For Availability
9
IDLER ASSY. WPL 532287 Contact Us For Availability
9
WASHER WPL 257814 Contact Us For Availability
10
SPRING, IDLER WPL 532209 Contact Us For Availability
10
SCREW, SEMS WPL 253457 Contact Us For Availability
10
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
10
RING, RETAINING WPL 257854 Contact Us For Availability
11
DUCT, EXHAUST WPL 530134 Contact Us For Availability
11
ROLLER WPL LA1008 Contact Us For Availability
11
TIMER WPL 531816 Contact Us For Availability
11
RACK, DRYING WPL 530772 Contact Us For Availability
12
HOUSING, BLOWER WPL 531801 Contact Us For Availability
12
SCREW WPL 257435 Contact Us For Availability
13
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
13
KNOB & SKIRT ASSY WPL 532501 Contact Us For Availability
14
BLOWER WHEEL WPL 530106 Contact Us For Availability
14
SCREW WPL 253092 Contact Us For Availability
14
SWITCH, 5 PUSHBUTTON WPL 532416 Contact Us For Availability
15
CLAMP WPL 257823 Contact Us For Availability
15
PAD, SWITCH WPL 353394 Contact Us For Availability
16
RING, RETAINING WPL 257855 Contact Us For Availability
17
SCREW WPL 257807 Contact Us For Availability
17
COVER, BLOWER HOUSING WPL 531933 Contact Us For Availability
17
BRACKET, SWITCH WPL 336621 Contact Us For Availability
18
SCREW WPL 252134 Contact Us For Availability
18
THERMOSTAT, LO-LIMIT (120/110) WPL 530170 Contact Us For Availability
18
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
18
KNOB, SELECTOR WPL 353960 Contact Us For Availability
19
GLIDE, TUMBLER (LT) WPL 532273 Contact Us For Availability
19
SCREW WPL 263092 Contact Us For Availability
19
BUZZER - ADJUSTABLE WPL 531666 Contact Us For Availability
20
RH GLD CUSHION WPL 530724 Contact Us For Availability
20
SCREW WPL 257712 Contact Us For Availability
21
GLIDE, TUMBLER (RT) WPL 532272 Contact Us For Availability
21
MANUAL, USE & CARE WPL 31001050 Contact Us For Availability
21
MANUAL, USE & CARE WPL 532489 Contact Us For Availability
22
CUSHION, TUMBLER GLIDE WPL 531684 Contact Us For Availability
22
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
23
STRAIN RELIEF WPL 257699 Contact Us For Availability
24
SCREW WPL 257674 Contact Us For Availability
24
SCREW WPL 257732 Contact Us For Availability
25
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
28
BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability
29
WASHER WPL 257815 Contact Us For Availability
30
PUSHNUT WPL 257957 Contact Us For Availability
31
PULLEY, IDLER WPL 531628 Contact Us For Availability
32
ARM, IDLER WPL 532250 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001225 Contact Us For Availability
× ![]()
