Model Whirlpool YE205KA ELECTRIC DRYER – Common Parts & Diagrams

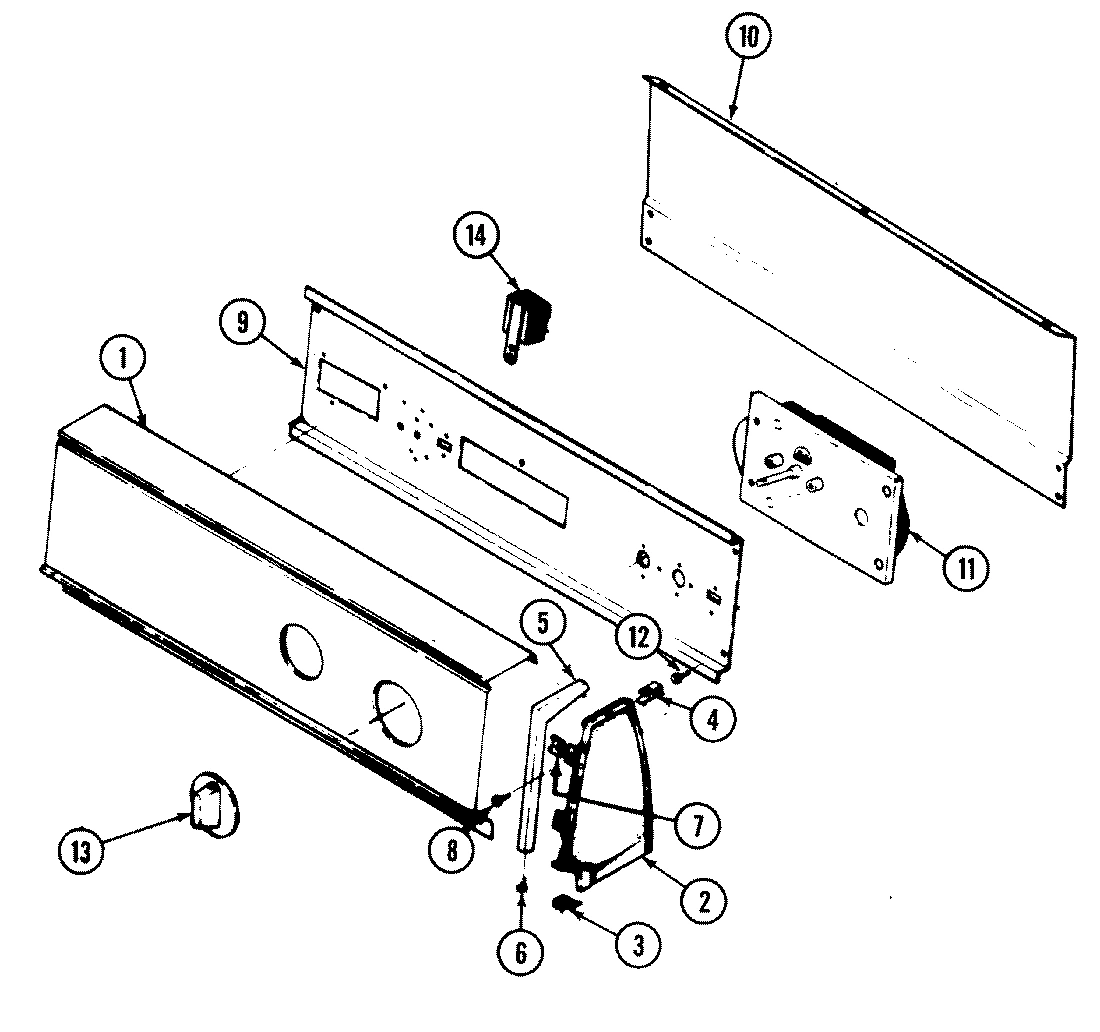

01 - CONTROL PANEL

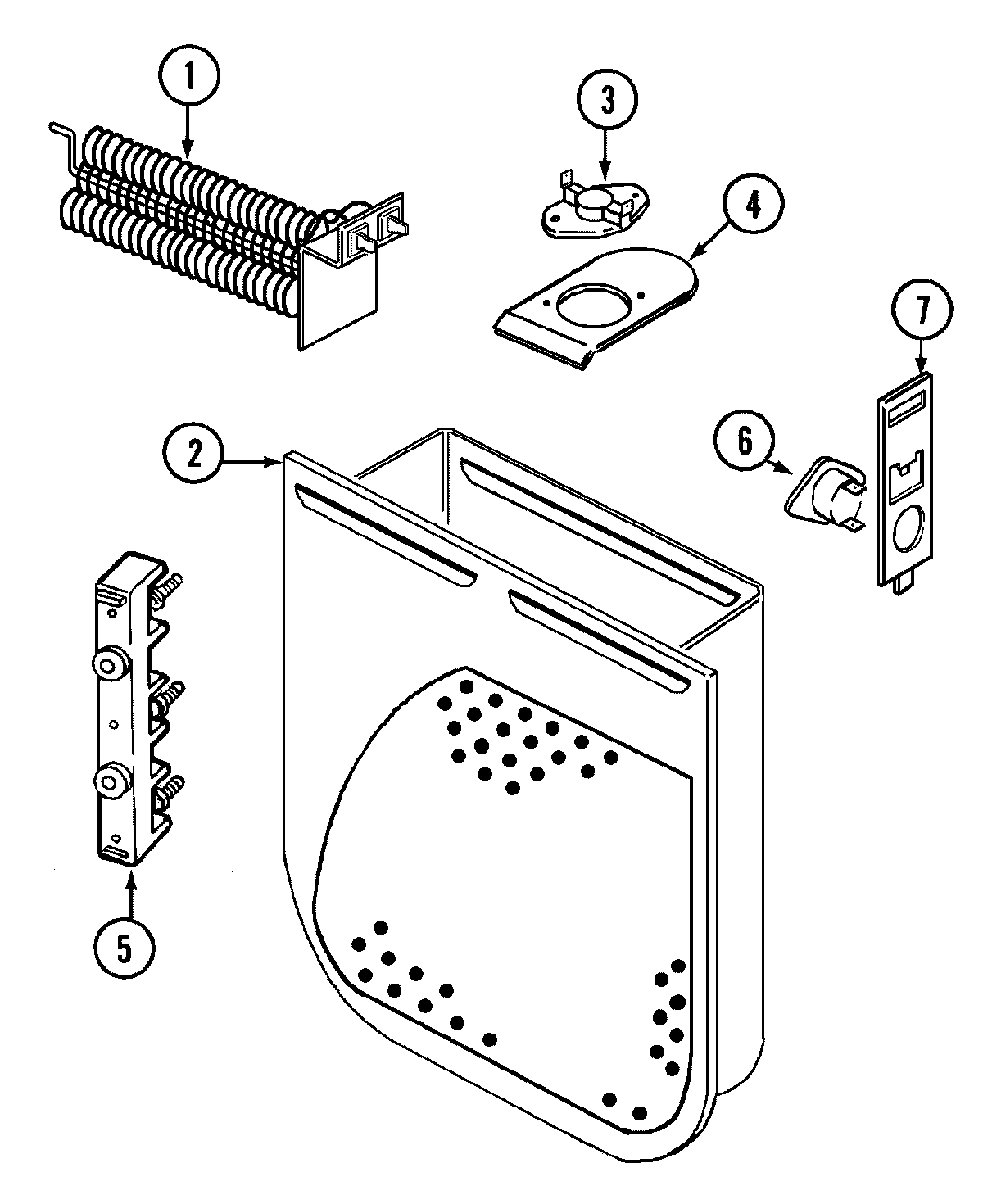

02 - HEATER

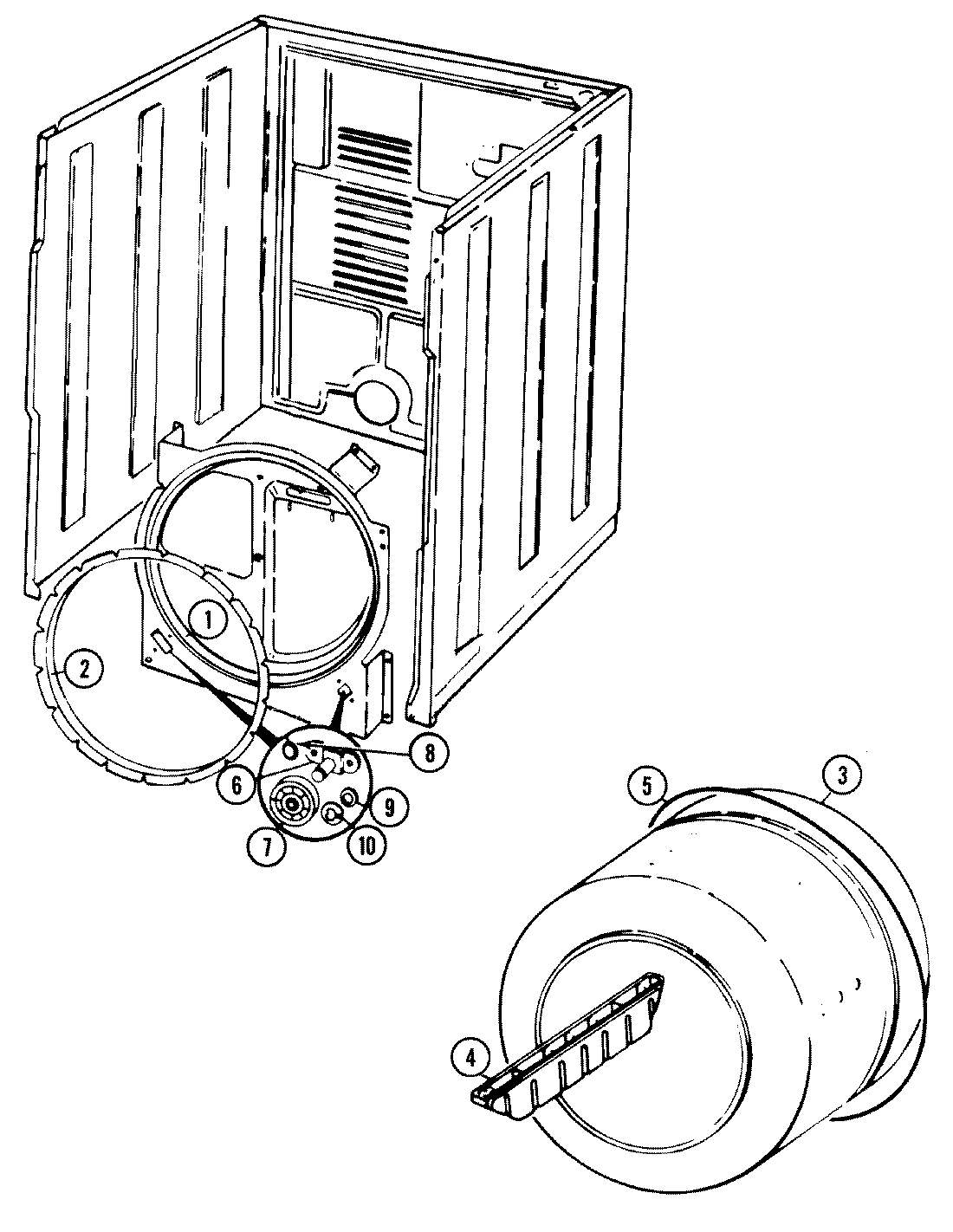

04 - TUMBLER

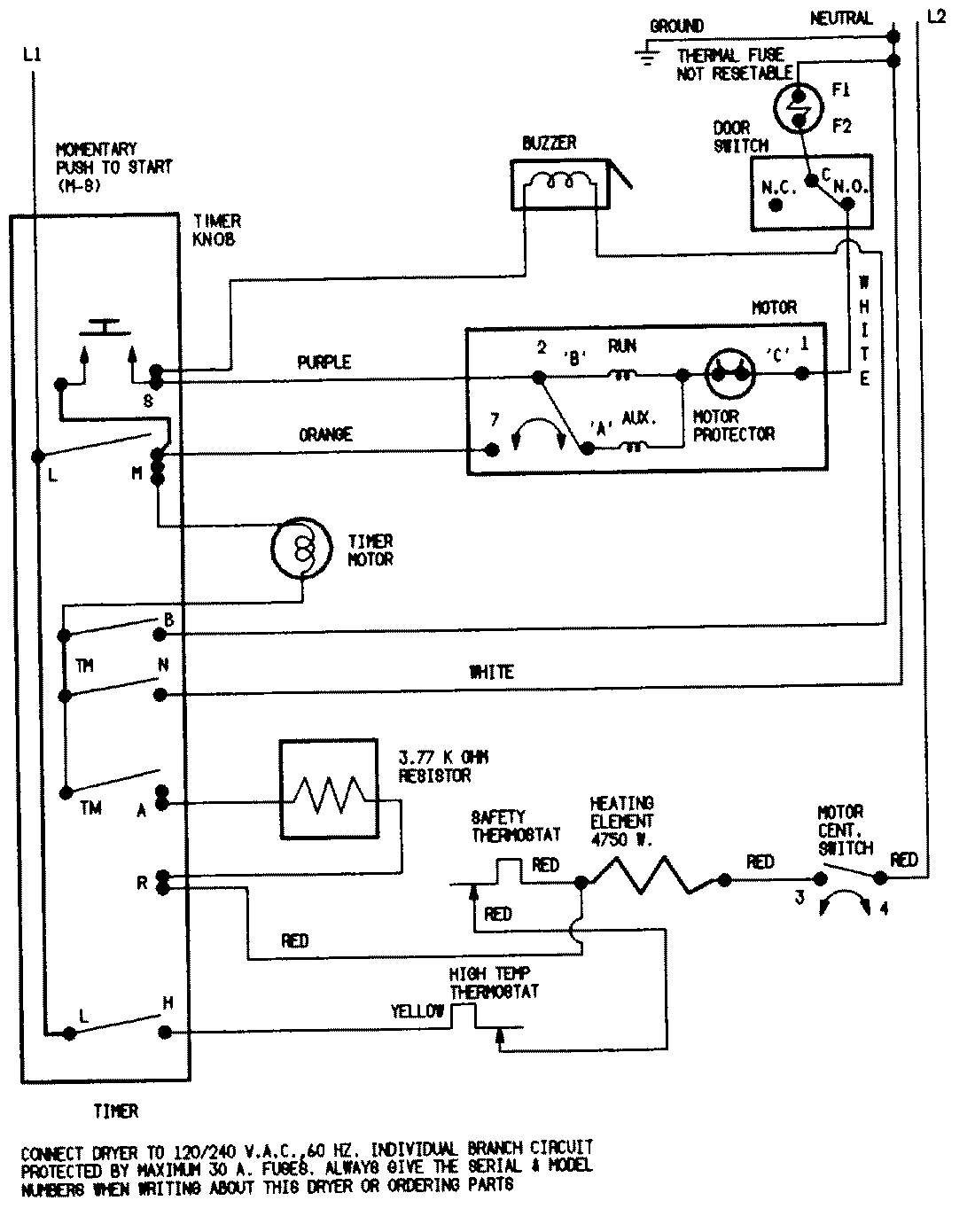

05 - WIRING INFORMATION

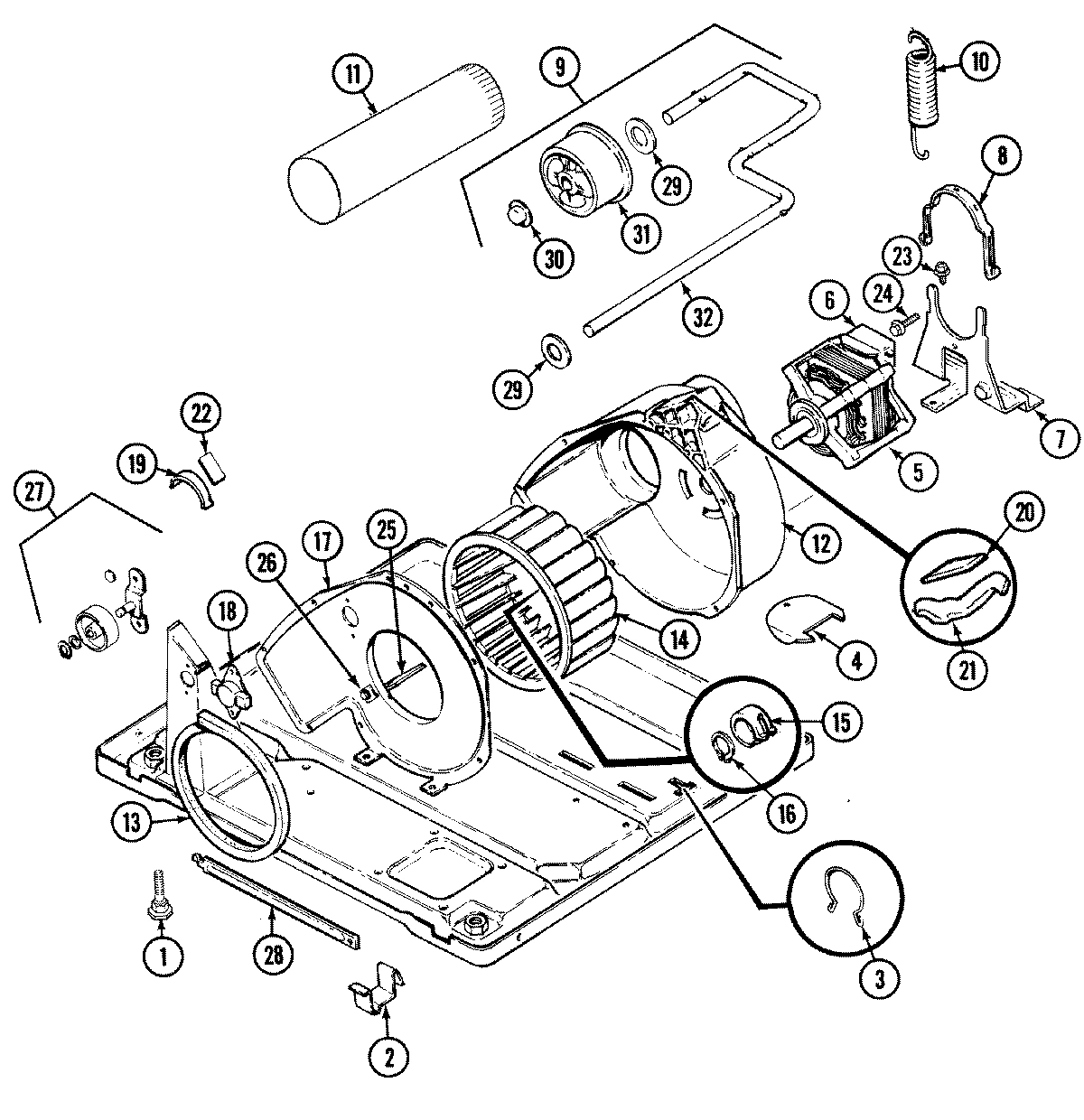

03 - MOTOR & DRIVE
Common parts from model Whirlpool YE205KA ELECTRIC DRYER
1
SCREW WPL 257863 Contact Us For Availability
1
ELEMENT, HEATER WPL 531641 Contact Us For Availability
1
SCREW WPL 257733 Contact Us For Availability
1
BULKHEAD W/O CYLINDER LIGHT GR WPL 531703 Contact Us For Availability
1
LEG, LEVELING WPL 635519 Contact Us For Availability
2
SCREW WPL 257649 Contact Us For Availability
2
CAP, END (RT) WPL 352487 Contact Us For Availability
2
CAP, END (LT) WPL 352488 Contact Us For Availability
2
HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability
2
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
3
SCREW WPL 257697 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
SCREW WPL 253083 Contact Us For Availability
3
THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability
3
TUMBLER ASSY. WPL 530178 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
4
SCREW WPL 257759 Contact Us For Availability
4
BAFFLE, GRAY WPL 530117 Contact Us For Availability
4
SHIELD, WIRING WPL 531921 Contact Us For Availability
5
END TRIM R.H. (BLK) WPL 532412 Contact Us For Availability
5
END TRIM L.H. (BLK) WPL 532413 Contact Us For Availability
5
NUT (No.10-32) WPL 250027 Contact Us For Availability
5
WASHER, FLAT WPL 253122 Contact Us For Availability
5
WASHER, CUP WPL 253123 Contact Us For Availability
5
NUT WPL 256124 Contact Us For Availability
5
SCREW WPL 257803 Contact Us For Availability
5
TERMINAL BLOCK WPL 530166 Contact Us For Availability
5
BELT, CYLINDER WPL 531589 Contact Us For Availability
5
MOTOR & PULLEY ASSY (115V,60HZ WPL 532275 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
6
FUSE, THERMAL WPL 531182 Contact Us For Availability
6
SCREW WPL 257101 Contact Us For Availability
6
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
6
SWITCH, MOTOR WPL 530693 Contact Us For Availability
7
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
7
BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability
7
CYL ROLLER WPL 530642 Contact Us For Availability
7
SCREW WPL 257811 Contact Us For Availability
8
SPACER WPL 257813 Contact Us For Availability
8
CLAMP, MOTOR WPL 530214 Contact Us For Availability
9
SHIELD, CONTROL WPL 31001128 Contact Us For Availability
9
SPACER, CONTROL SHIELD WPL 532504 Contact Us For Availability
9
WASHER WPL 257814 Contact Us For Availability
9
IDLER ASSY. WPL 532287 Contact Us For Availability
10
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
10
RING, RETAINING WPL 257854 Contact Us For Availability
10
SPRING, IDLER WPL 532209 Contact Us For Availability
11
TIMER WPL 531758 Contact Us For Availability
11
RESISTOR ASSY. WPL 636743 Contact Us For Availability
11
DUCT, EXHAUST WPL 530134 Contact Us For Availability
12
SCREW WPL 257435 Contact Us For Availability
12
HOUSING, BLOWER WPL 531801 Contact Us For Availability
13
KNOB & SKIRT ASSY WPL 532501 Contact Us For Availability
13
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
14
SCREW WPL 253092 Contact Us For Availability
14
BUZZER ASSY. WPL 531639 Contact Us For Availability
14
BLOWER WHEEL WPL 530106 Contact Us For Availability
15
MANUAL, USE & CARE WPL 31001050 Contact Us For Availability
15
MANUAL, USE & CARE WPL 532486 Contact Us For Availability
15
CLAMP WPL 257823 Contact Us For Availability
16
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
16
RING, RETAINING WPL 257855 Contact Us For Availability
17
SCREW WPL 257807 Contact Us For Availability
17
COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability
18
SCREW WPL 252134 Contact Us For Availability
18
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
19
GLIDE, TUMBLER (LT) WPL 532273 Contact Us For Availability
20
RH GLD CUSHION WPL 530724 Contact Us For Availability
21
GLIDE, TUMBLER (RT) WPL 532272 Contact Us For Availability
22
CUSHION, TUMBLER GLIDE WPL 531684 Contact Us For Availability
23
STRAIN RELIEF WPL 257699 Contact Us For Availability
24
SCREW WPL 257674 Contact Us For Availability
25
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
26
SCREW, SEMS WPL 253457 Contact Us For Availability
27
ROLLER WPL LA1008 Contact Us For Availability
28
BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability
29
WASHER WPL 257815 Contact Us For Availability
30
PUSHNUT WPL 257957 Contact Us For Availability
31
PULLEY, IDLER WPL 531628 Contact Us For Availability
32
ARM, IDLER WPL 532250 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001202 Contact Us For Availability
× ![]()
