Model Whirlpool WW2750W ELECTRIC WALL OVEN – Common Parts & Diagrams

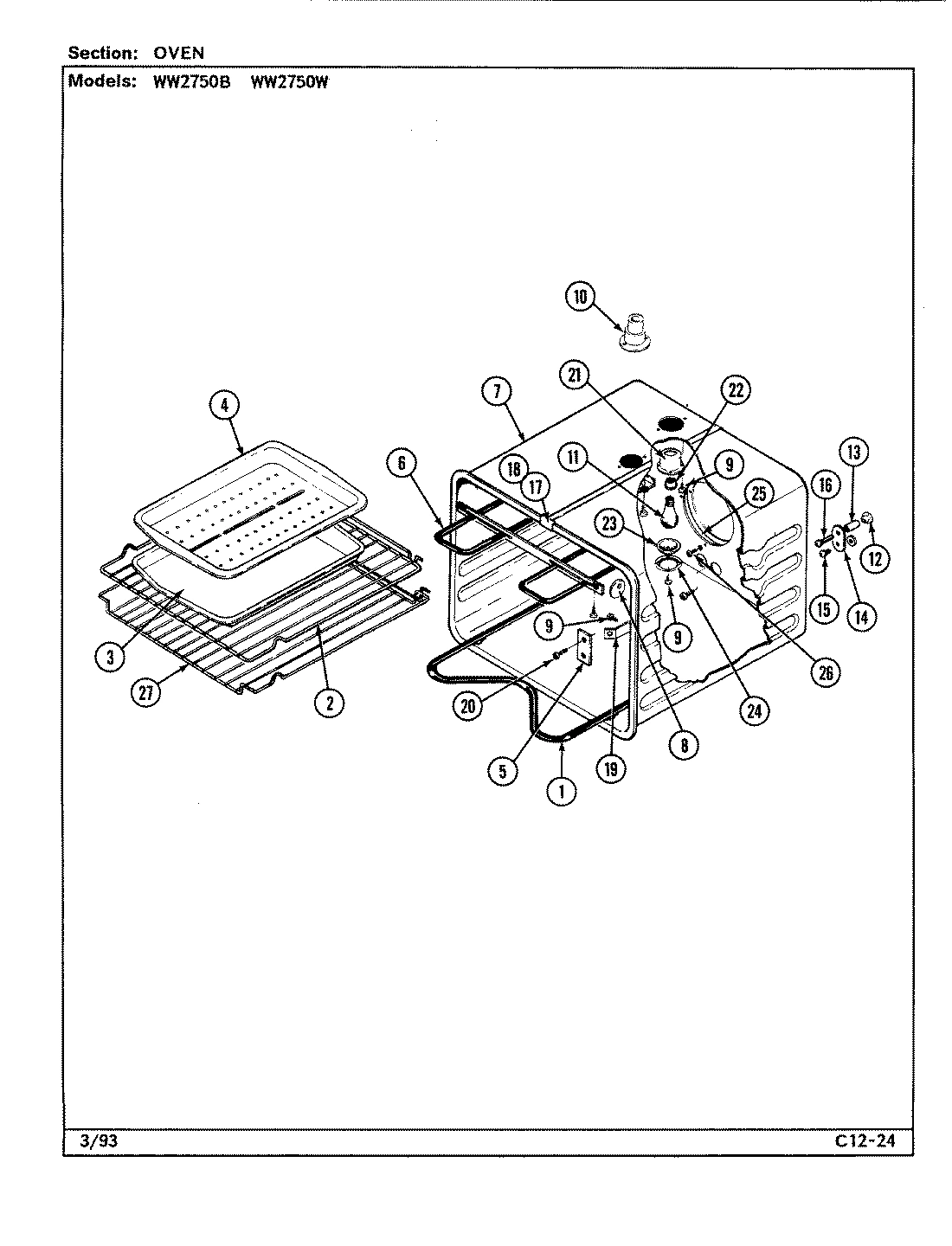

05 - OVEN

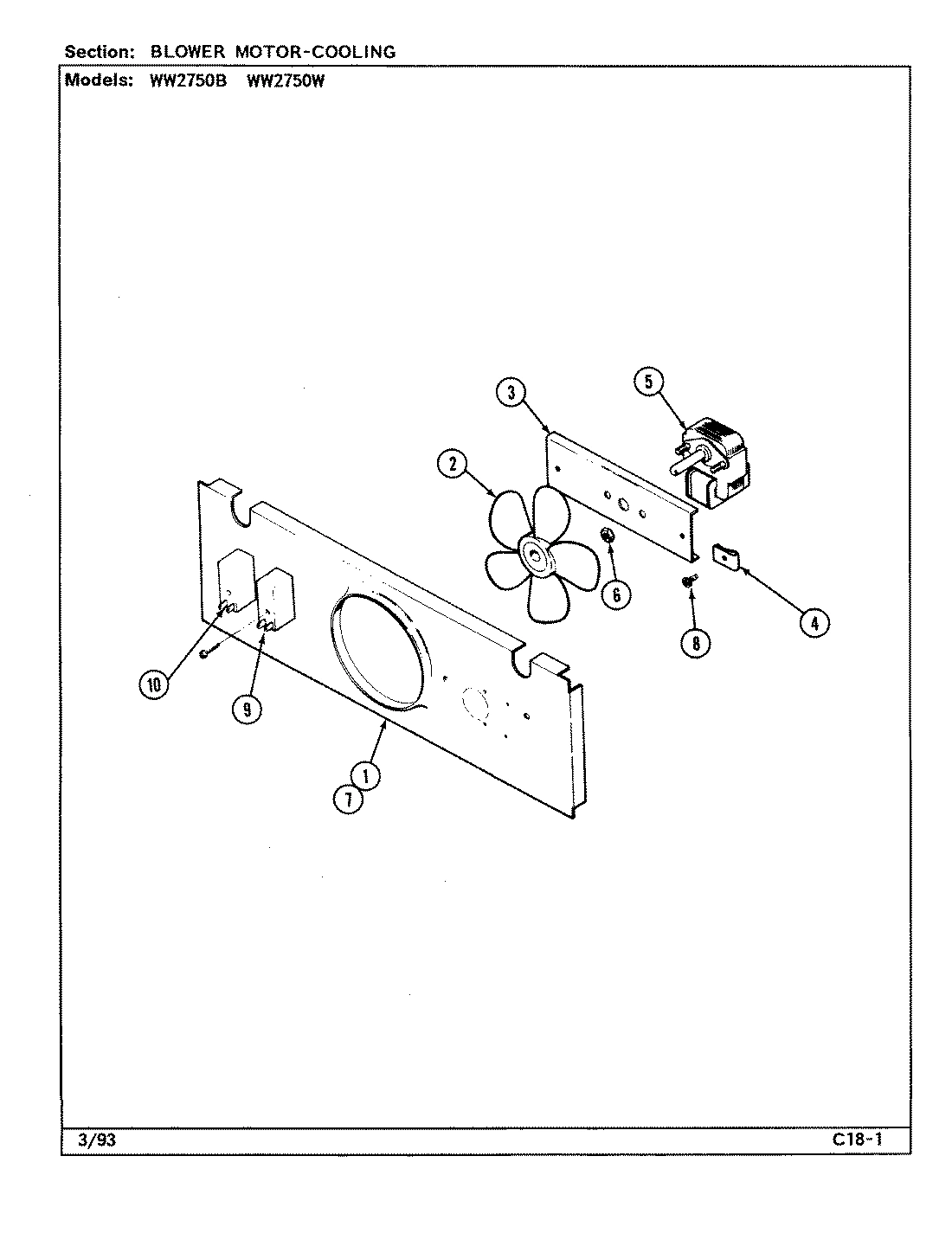

02 - BLOWER MOTOR (COOLING)

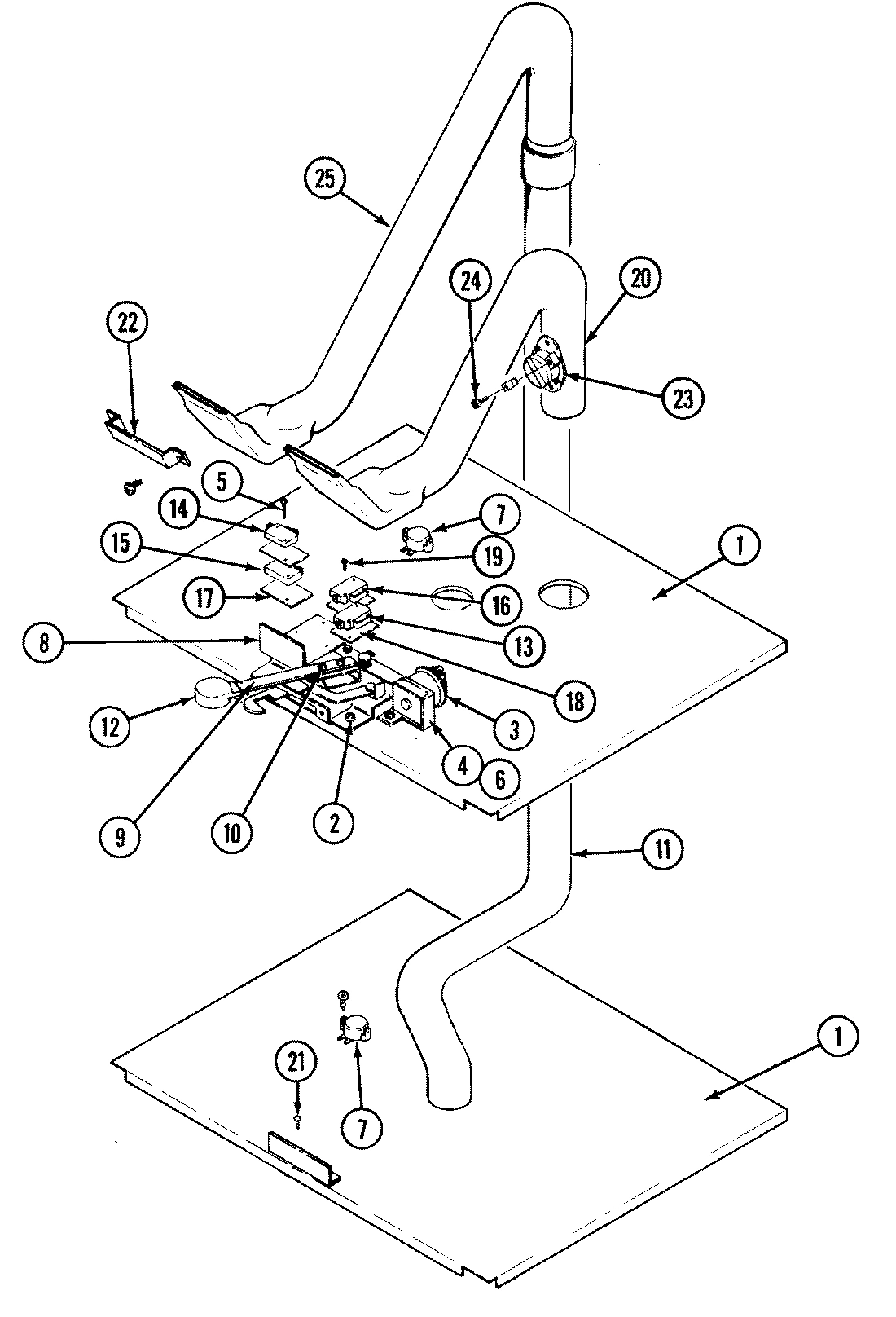

04 - INTERNAL CONTROLS

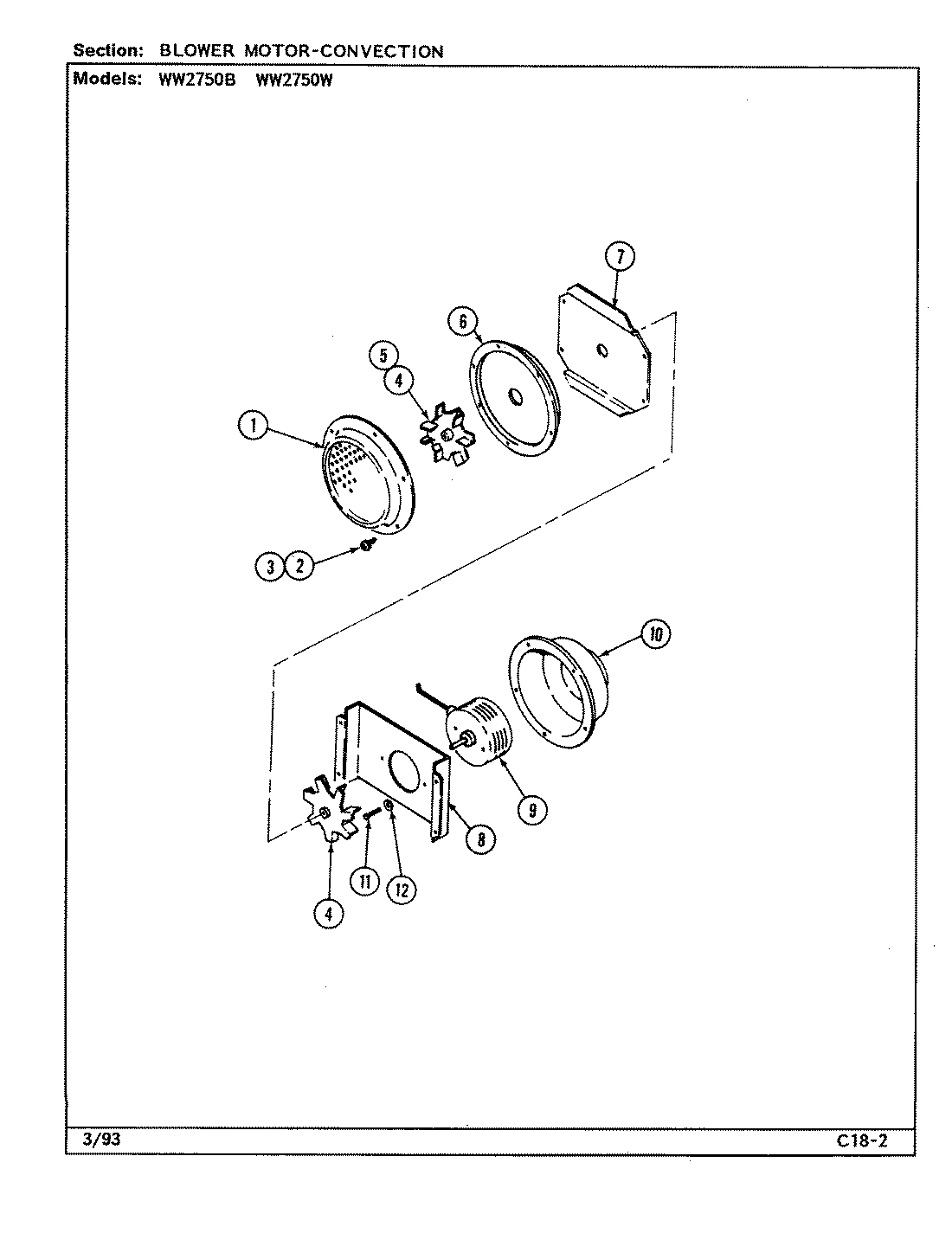

01 - BLOWER MOTOR (CONVECTION)

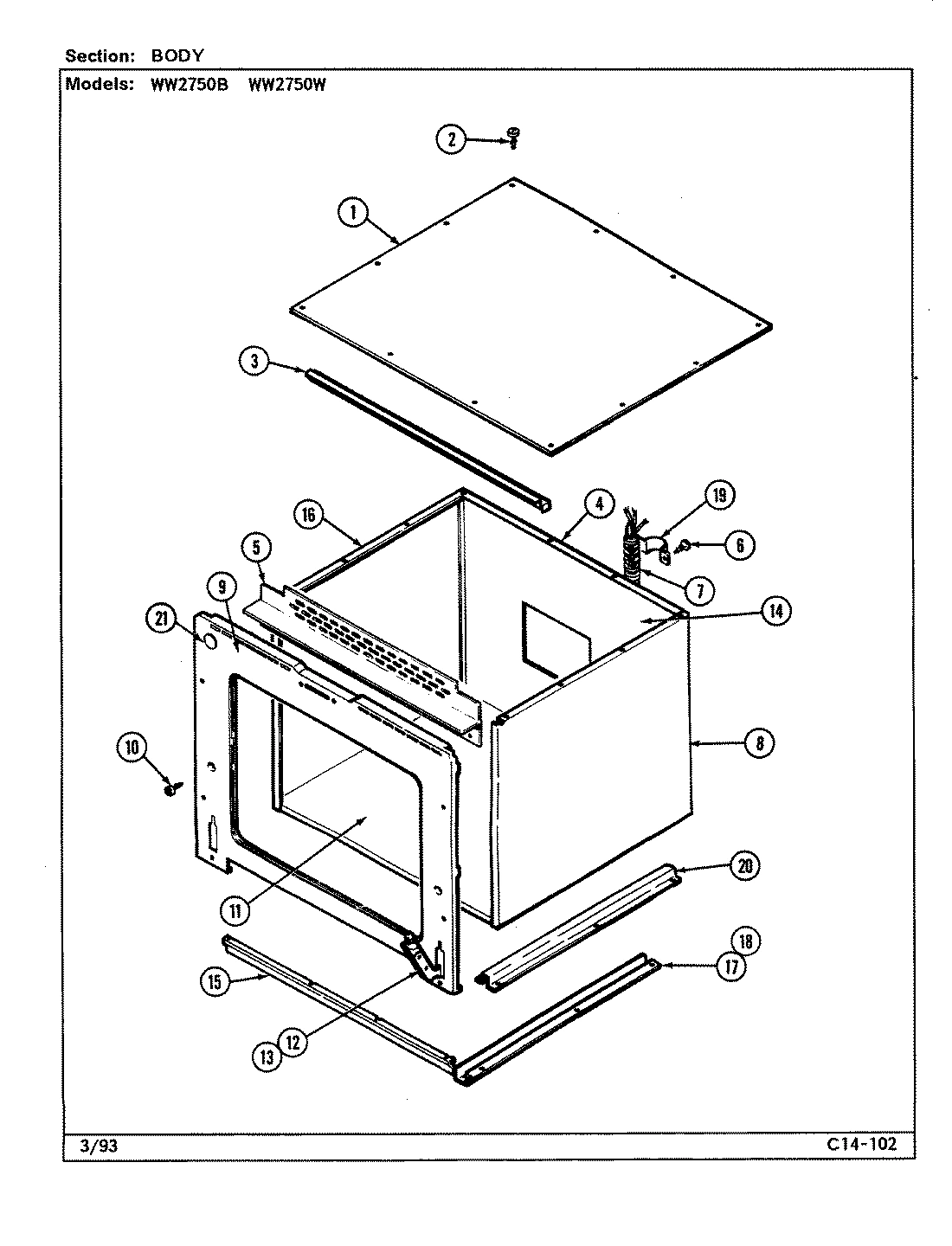

03 - BODY
Common parts from model Whirlpool WW2750W ELECTRIC WALL OVEN
1
SHROUD, FAN WPL 04100560 Contact Us For Availability
1
PANEL, INNER TOP WPL 04100559 Contact Us For Availability
1
PLATE, CONVECTION FRONT WPL 71001378 Contact Us For Availability
1
TOP, UNIT (OUTER) WPL 04100567 Contact Us For Availability
2
RACK, OVEN WPL Y704660 Contact Us For Availability
2
BLADE, FAN WPL 702944 Contact Us For Availability
2
LATCH ASSY. WPL Y703357 Contact Us For Availability
3
MOUNT, MOTOR WPL Y704732 Contact Us For Availability
3
PIN, COTTER WPL Y701686 Contact Us For Availability
3
SUPPORT, TOP WPL 703095 Contact Us For Availability
4
WIRE, GRAY WPL 703767 Contact Us For Availability
4
SOLENOID WPL Y702526 Contact Us For Availability
4
WHEEL, CONVECTION WPL 701711 Contact Us For Availability
4
BACK, OUTER WPL 04100665 Contact Us For Availability
4
BACK, OUTER WPL 04100666 Contact Us For Availability
5
COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability
5
MOTOR, FAN WPL Y701721 Contact Us For Availability
5
EXTRUSION (CTR-WHT) WPL 04100672 Contact Us For Availability
6
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
7
OVEN WELD ASSEMBLY WPL 04100572 Contact Us For Availability
7
WASHER, ALUM WPL 71001403 Contact Us For Availability
7
OVEN WELD ASSY. WPL 71001490 Contact Us For Availability
7
THERMOSTAT WPL 701687 Contact Us For Availability
7
LIMIT, THERMOSTAT WPL 703259 Contact Us For Availability
7
COVER, MOTOR FRONT WPL 701713 Contact Us For Availability
7
CABLE ASSY. WPL 04100673 Contact Us For Availability
8
STANDOFF WPL 703007 Contact Us For Availability
8
COVER, MEAT PROBE WPL 712088 Contact Us For Availability
8
SHIELD, SWITCH WPL 701706 Contact Us For Availability
8
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
8
PANEL, SIDE (RH) WPL 04100558 Contact Us For Availability
9
SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability
9
LEVER, LATCH (WHT) WPL Y703848 Contact Us For Availability
9
MOTOR, CONVECT WPL Y703035 Contact Us For Availability
9
BRACKET WPL 04100566 Contact Us For Availability
9
FRT, CLOSURE (UPPER) WPL 04100662 Contact Us For Availability
9
FRT, CLOSURE (LOWER) WPL 04100663 Contact Us For Availability
10
TUBE, VENT WPL 701738 Contact Us For Availability
10
SPACER WPL 04100569 Contact Us For Availability
10
SCREW WPL 704335 Contact Us For Availability
10
SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability
10
SCREW WPL 707407 Contact Us For Availability
10
WASHER WPL Y700862 Contact Us For Availability
10
COVER, MOTOR WPL 701716 Contact Us For Availability
11
TUBE, VENT WPL 04100660 Contact Us For Availability
11
PANEL, BOTTOM WPL 04100562 Contact Us For Availability
12
NUT, TEE WPL 715294 Contact Us For Availability
12
SPRING, KNOB WPL 701671 Contact Us For Availability
12
KNOB (WHT) WPL 704460 Contact Us For Availability
12
WASHER, LOCK WPL 715910 Contact Us For Availability
12
BACKPLATE, HINGE WPL 04100577 Contact Us For Availability
12
HINGE, OVEN DOOR WPL Y04100337 Contact Us For Availability
13
SPACER, OVEN WPL 701741 Contact Us For Availability
13
SWITCH, SOLENOID WPL Y702360 Contact Us For Availability
13
WASHER WPL Y703449 Contact Us For Availability
14
PLATE, GROUNDING WPL 701742 Contact Us For Availability
14
SWITCH, DOOR WPL 702806 Contact Us For Availability
14
BACK, INNER WPL 04100561 Contact Us For Availability
14
INSULATION WRAP WPL 04100565 Contact Us For Availability
15
SWITCH, DOOR WPL 702805 Contact Us For Availability
15
TRIM, OVEN (LWR-WHT) WPL 04100551 Contact Us For Availability
15
TRIM, OVEN (LT/WHT) WPL 71001456 Contact Us For Availability
15
TRIM, OVEN (RT/WHT) WPL 71001457 Contact Us For Availability
15
TRIM, OVEN (LT/WHT) WPL 71001462 Contact Us For Availability
15
TRIM, OVEN (RT/WHT) WPL 71001463 Contact Us For Availability
16
INSULATION-BACK WPL 702283 Contact Us For Availability
16
SCREW WPL 705170 Contact Us For Availability
16
SWITCH, LATCH WPL Y703732 Contact Us For Availability
16
PANEL, SIDE (LH) WPL 04100557 Contact Us For Availability
17
CLIP, OVEN WPL 71001170 Contact Us For Availability
17
CLIP, OVEN WPL Y702618 Contact Us For Availability
17
INSULATOR WPL Y702350 Contact Us For Availability
17
RAIL, BOTTOM WPL 700596 Contact Us For Availability
18
CLIP, J WPL Y700556 Contact Us For Availability
18
INSULATOR WPL 703264 Contact Us For Availability
19
CLIP, BULB WPL Y701541 Contact Us For Availability
19
SCREW WPL 702807 Contact Us For Availability
19
CLAMP, CONDUIT WPL 701692 Contact Us For Availability
19
ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability
20
TUBE, VENT (UPR OVEN) WPL 04100539 Contact Us For Availability
20
RAIL, SUPPORT WPL 04100563 Contact Us For Availability
21
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
21
PANEL, INNER TOP WPL 04100668 Contact Us For Availability
21
SHIELD, CAPILLARY WPL 04100670 Contact Us For Availability
21
BUTTON, PLUG WPL 703688 Contact Us For Availability
21
SUPPORT (CTR) WPL Y04100669 Contact Us For Availability
22
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
22
BRACKET, VENT TUBE WPL 701680 Contact Us For Availability
23
LENS, LIGHT WPL Y704143 Contact Us For Availability
23
LIMIT, FAN WPL Y702750 Contact Us For Availability
24
RETAINER, LENS WPL Y704144 Contact Us For Availability
25
PLATE, NON-CONVECT WPL 705343 Contact Us For Availability
25
TUBE, VENT (LWR OVEN) WPL 04100661 Contact Us For Availability
27
RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability
× ![]()
