Model Whirlpool WW2750B ELECTRIC WALL OVEN – Common Parts & Diagrams

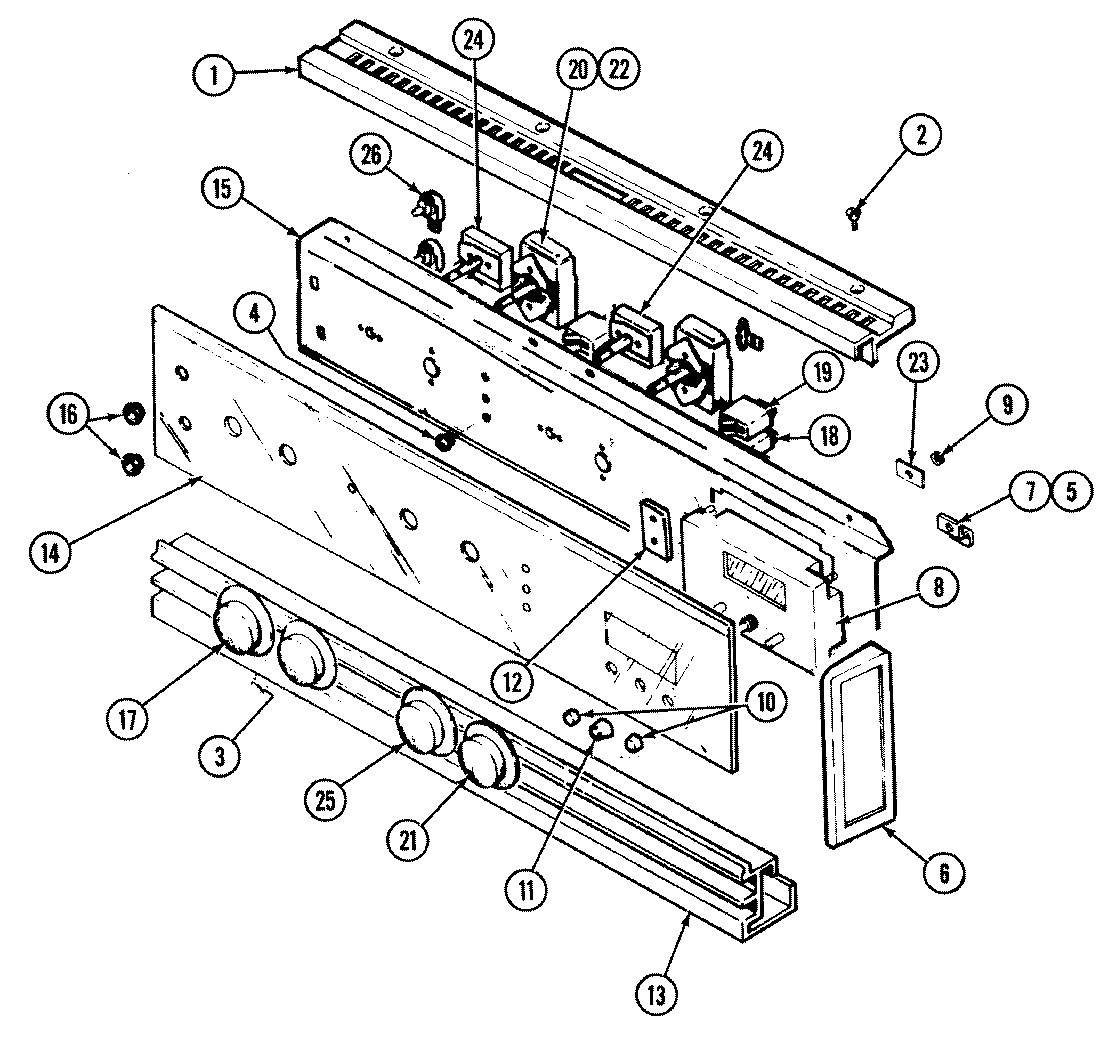

04 - CONTROL PANEL

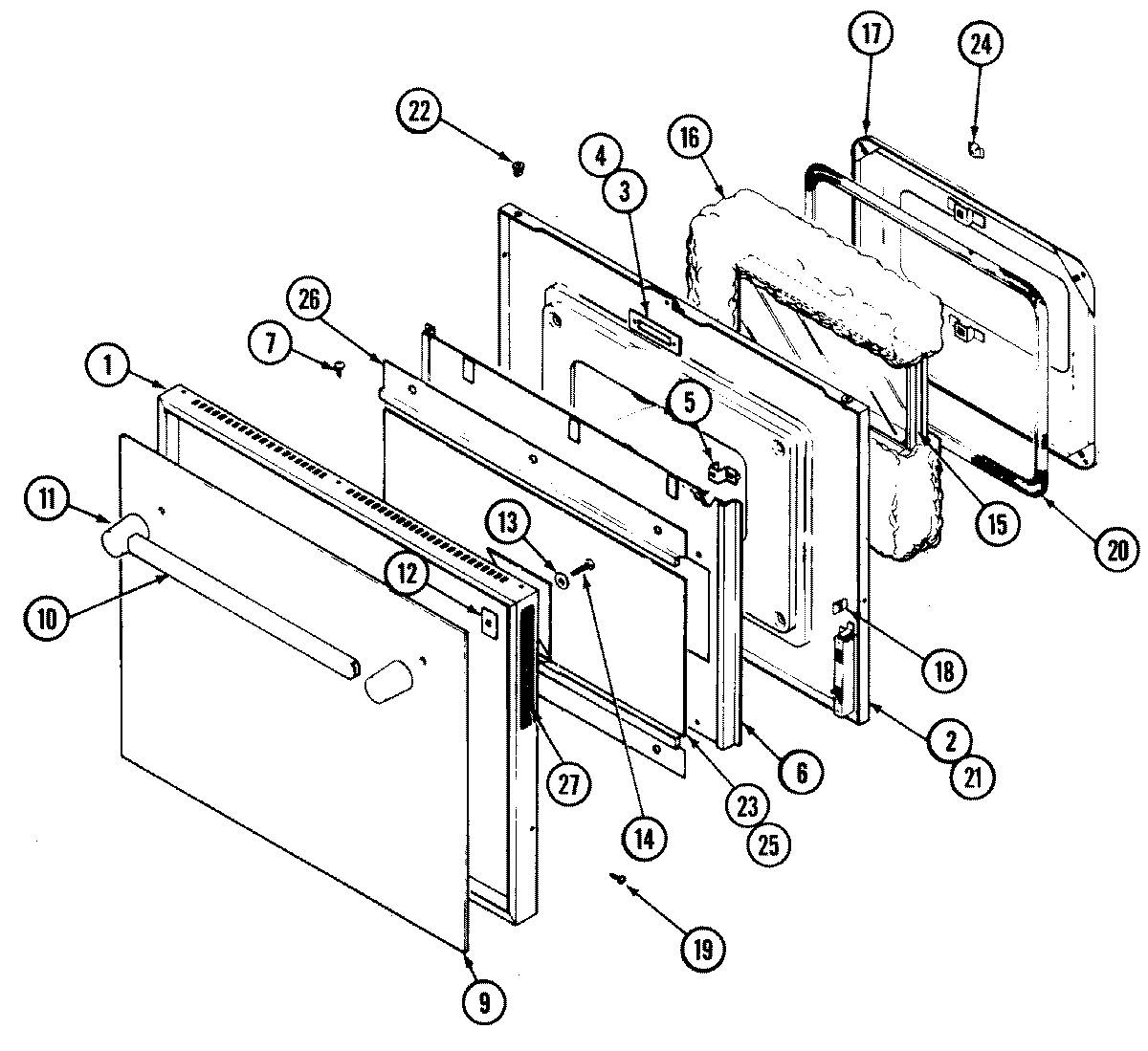

05 - DOOR

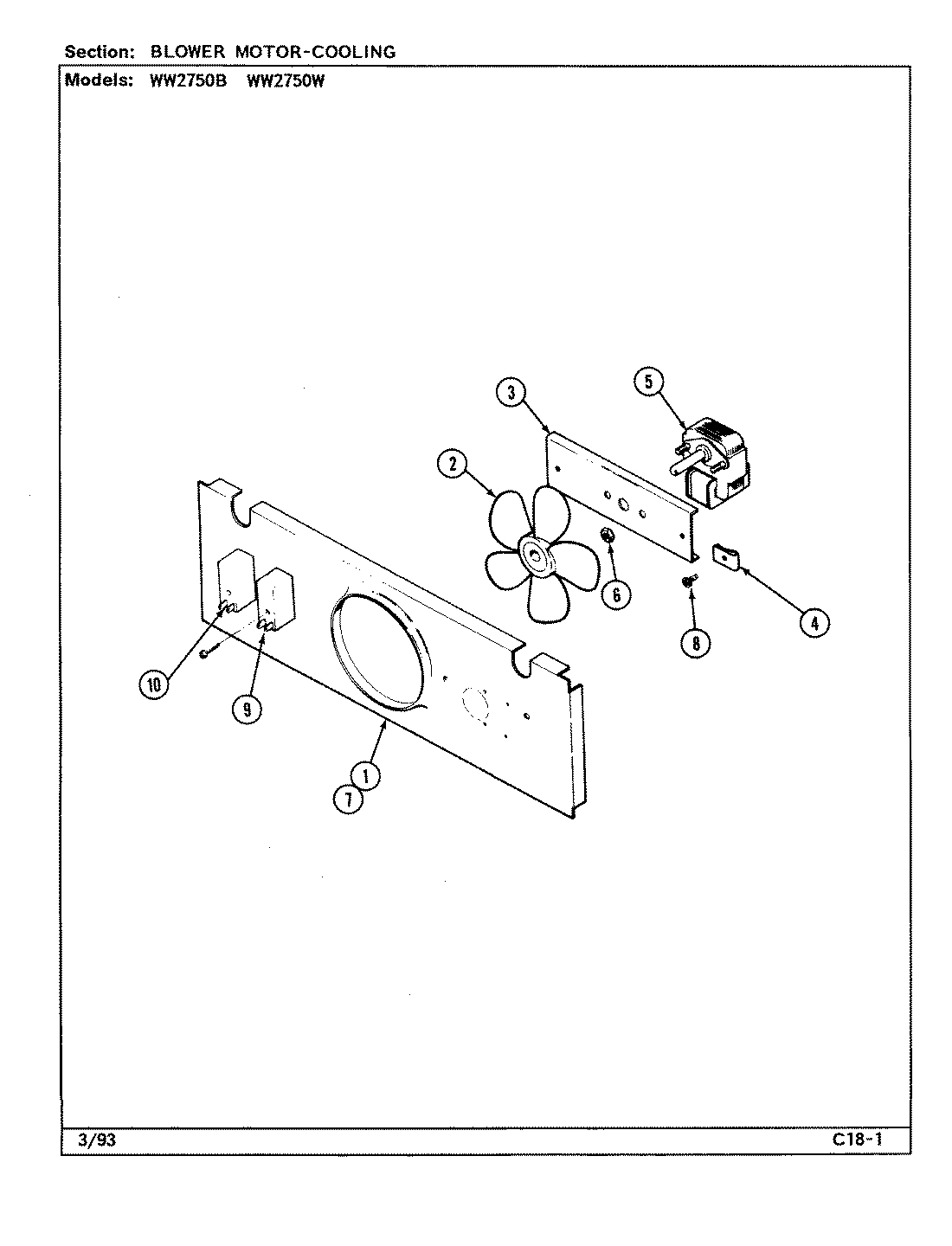

02 - BLOWER MOTOR (COOLING)

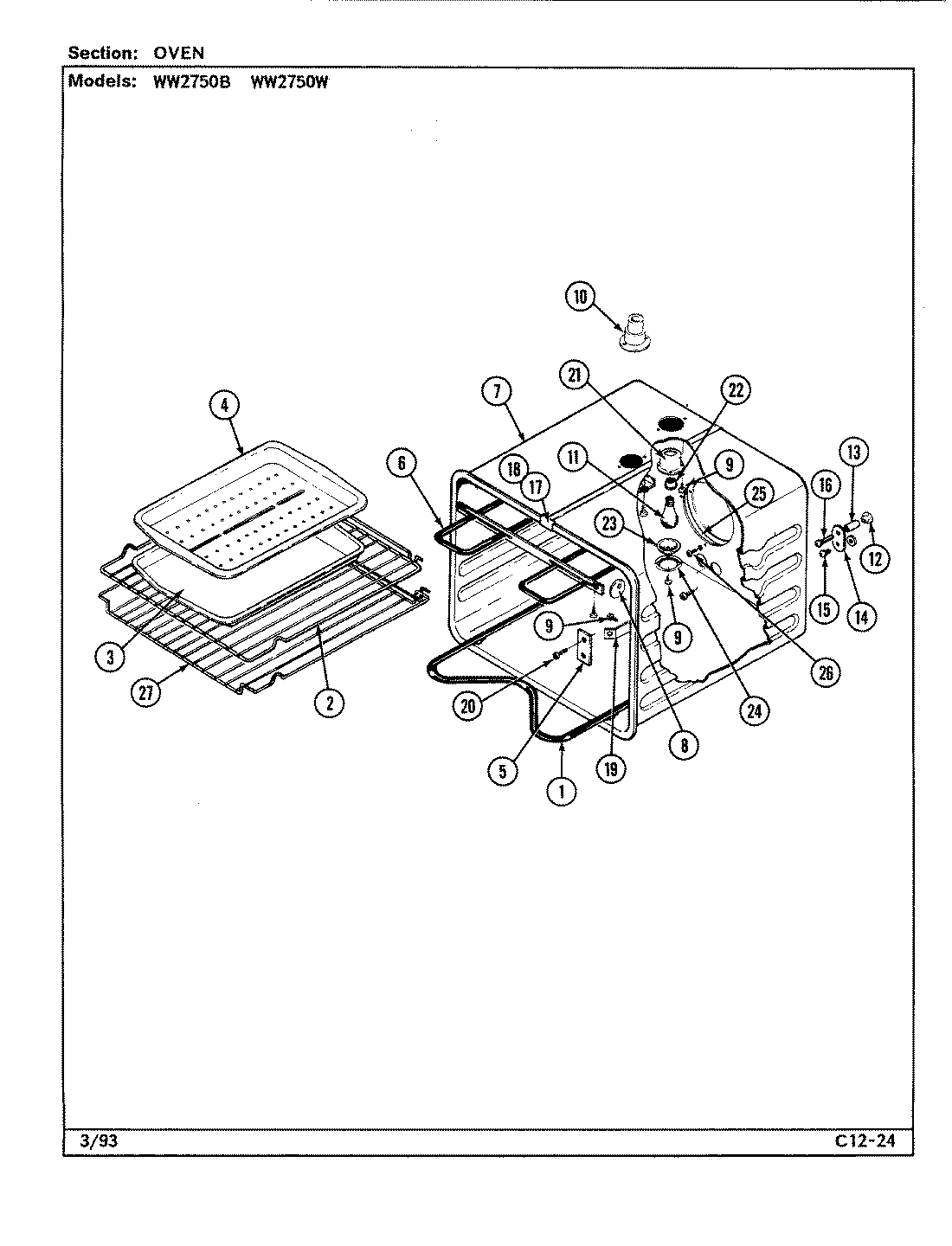

07 - OVEN

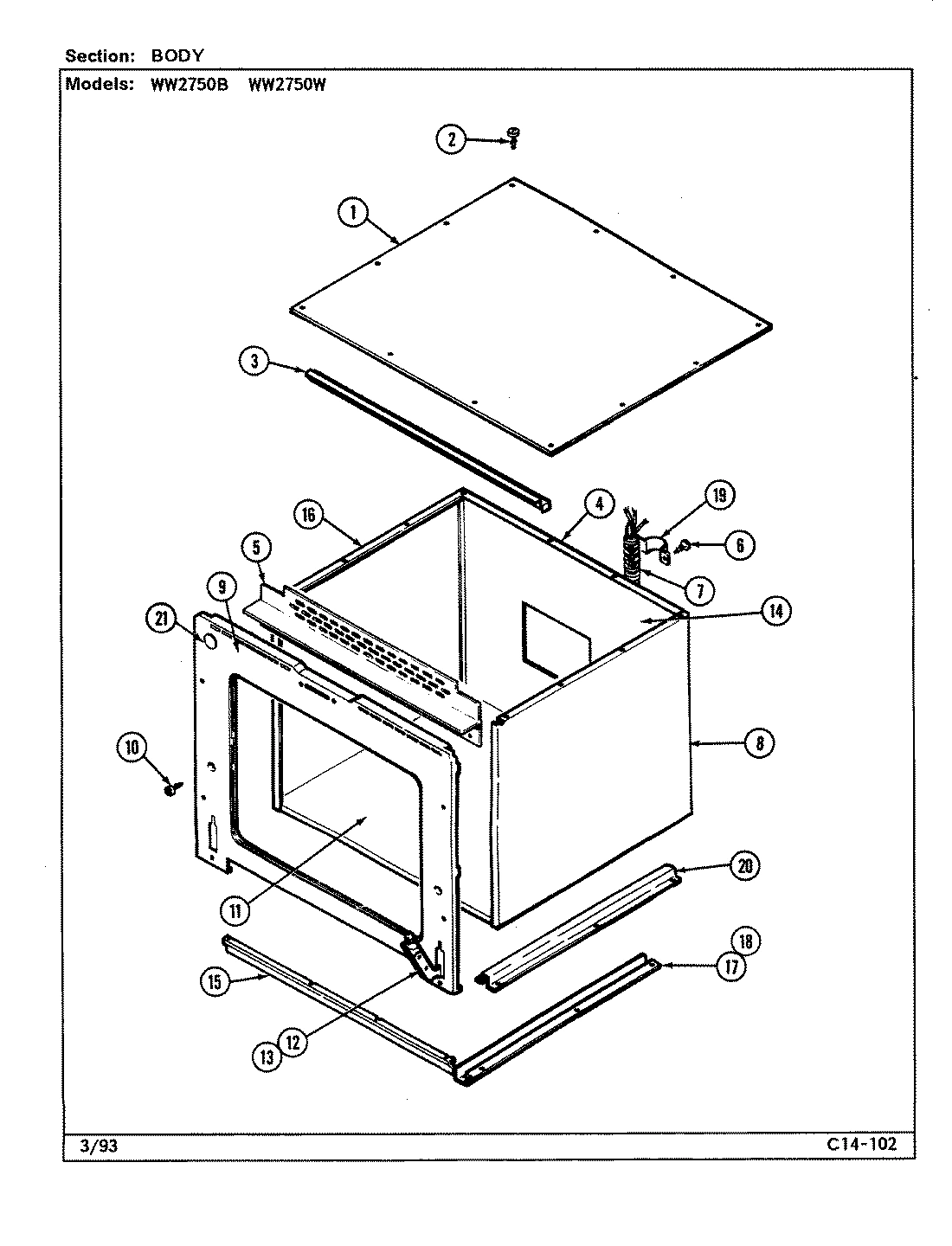

03 - BODY

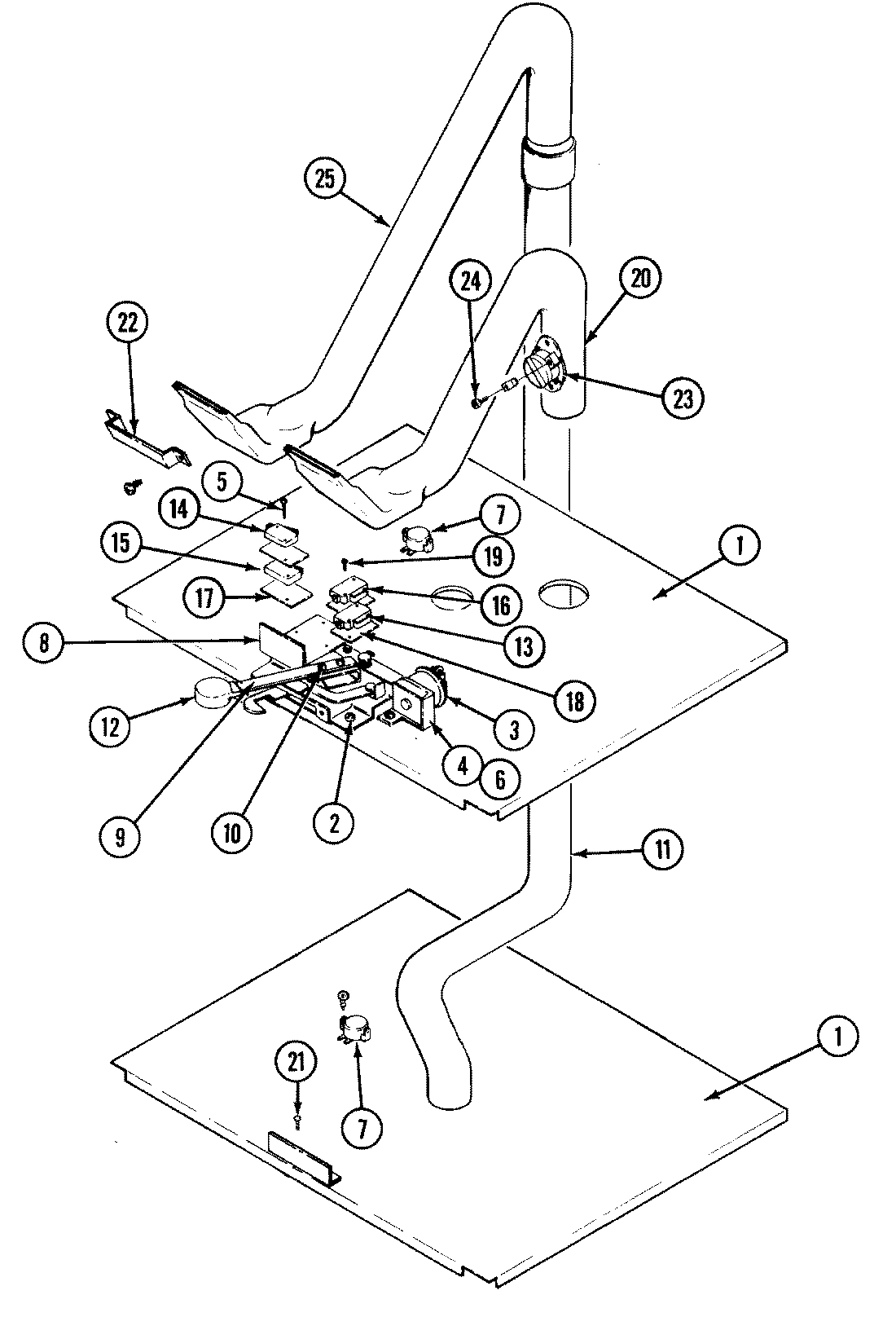

06 - INTERNAL CONTROLS

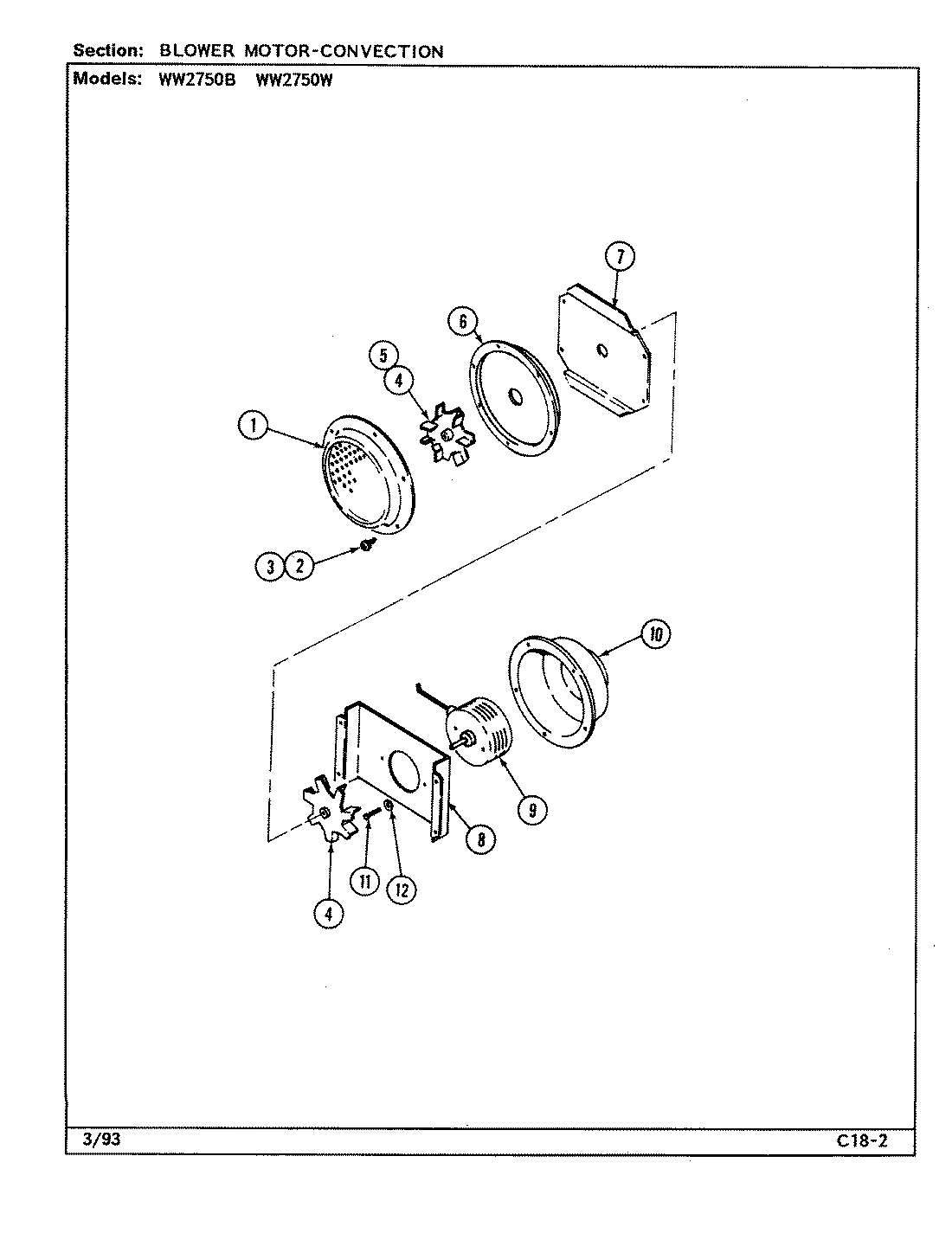

01 - BLOWER MOTOR (CONVECTION)
Common parts from model Whirlpool WW2750B ELECTRIC WALL OVEN
1
FRAME, DOOR (BLK) WPL 04100544 Contact Us For Availability
1
SHROUD, FAN WPL 04100560 Contact Us For Availability
1
ELEMENT, BAKE WPL Y04100387 Contact Us For Availability
1
TOP, UNIT (OUTER) WPL 04100567 Contact Us For Availability
1
PANEL, INNER TOP WPL 04100559 Contact Us For Availability
1
PLATE, CONVECTION FRONT WPL 71001378 Contact Us For Availability
2
RACK, OVEN WPL Y704660 Contact Us For Availability
2
SCREW WPL 712066 Contact Us For Availability
2
LINER, DOOR WPL Y04100543 Contact Us For Availability
2
BLADE, FAN WPL 702944 Contact Us For Availability
2
LATCH ASSY. WPL Y703357 Contact Us For Availability
3
KNOB, THERMOSTAT WPL 04100147 Contact Us For Availability
3
PLATE, LATCH (LOWER) WPL 703275 Contact Us For Availability
3
PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability
3
MOUNT, MOTOR WPL Y704732 Contact Us For Availability
3
SUPPORT, TOP WPL 703095 Contact Us For Availability
3
PIN, COTTER WPL Y701686 Contact Us For Availability
4
LENS, INDICATOR LIGHTS WPL Y700630 Contact Us For Availability
4
BACK, OUTER WPL 04100665 Contact Us For Availability
4
BACK, OUTER WPL 04100666 Contact Us For Availability
4
WIRE, GRAY WPL 703767 Contact Us For Availability
4
SOLENOID WPL Y702526 Contact Us For Availability
4
WHEEL, CONVECTION WPL 701711 Contact Us For Availability
5
BRACKET, STAND-OFF WPL 701652 Contact Us For Availability
5
MOTOR, FAN WPL Y701721 Contact Us For Availability
5
COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability
5
EXTRUSION, CENTER WPL 71001650 Contact Us For Availability
6
END CAP (LT-BLK) WPL 704257 Contact Us For Availability
6
END CAP (RT-BLK) WPL 704258 Contact Us For Availability
6
BAFFLE, DOOR WPL 04100542 Contact Us For Availability
6
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
7
BRACKET, TIMER WPL 703676 Contact Us For Availability
7
OVEN WELD ASSEMBLY WPL 04100572 Contact Us For Availability
7
WASHER, ALUM WPL 71001403 Contact Us For Availability
7
OVEN WELD ASSY. WPL 71001490 Contact Us For Availability
7
CABLE ASSY. WPL 04100673 Contact Us For Availability
7
THERMOSTAT WPL 701687 Contact Us For Availability
7
LIMIT, THERMOSTAT WPL 703259 Contact Us For Availability
7
COVER, MOTOR FRONT WPL 701713 Contact Us For Availability
8
CLOCK KIT, ELECTRONIC WPL 12200028 Contact Us For Availability
8
STANDOFF WPL 703007 Contact Us For Availability
8
COVER, MEAT PROBE WPL 712088 Contact Us For Availability
8
PANEL, SIDE (RH) WPL 04100558 Contact Us For Availability
8
SHIELD, SWITCH WPL 701706 Contact Us For Availability
8
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
9
PALNUT WPL 703679 Contact Us For Availability
9
GLASS (LOWER) WPL 704712 Contact Us For Availability
9
SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability
9
BRACKET WPL 04100566 Contact Us For Availability
9
FRT, CLOSURE (UPPER) WPL 04100662 Contact Us For Availability
9
FRT, CLOSURE (LOWER) WPL 04100663 Contact Us For Availability
9
LEVER, LATCH (BLK) WPL Y704227 Contact Us For Availability
9
MOTOR, CONVECT WPL Y703035 Contact Us For Availability
10
HANDLE WPL Y704225 Contact Us For Availability
10
SPACER WPL 04100569 Contact Us For Availability
10
SCREW WPL 704335 Contact Us For Availability
10
SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability
10
TUBE, VENT WPL 701738 Contact Us For Availability
10
SCREW WPL 707407 Contact Us For Availability
10
WASHER WPL Y700862 Contact Us For Availability
10
COVER, MOTOR WPL 701716 Contact Us For Availability
11
END CAP (BLK) WPL Y704224 Contact Us For Availability
11
PANEL, BOTTOM WPL 04100562 Contact Us For Availability
11
TUBE, VENT WPL 04100660 Contact Us For Availability
12
BRACKET, EXTRUSION (LOWER) WPL 703269 Contact Us For Availability
12
PLATE, COVER WPL 703277 Contact Us For Availability
12
BUSHING WPL Y704489 Contact Us For Availability
12
NUT, TEE WPL 715294 Contact Us For Availability
12
BACKPLATE, HINGE WPL 04100577 Contact Us For Availability
12
HINGE, OVEN DOOR WPL Y04100337 Contact Us For Availability
12
SPRING, KNOB WPL 701671 Contact Us For Availability
12
KNOB (BLK) WPL Y703932 Contact Us For Availability
12
WASHER, LOCK WPL 715910 Contact Us For Availability
13
EXTRUSION, BOTTOM (BLK) WPL 704255 Contact Us For Availability
13
WASHER WPL 701736 Contact Us For Availability
13
GUSSET----NA WPL 704805 Contact Us For Availability
13
SPACER, OVEN WPL 701741 Contact Us For Availability
13
WASHER WPL Y703449 Contact Us For Availability
13
SWITCH, SOLENOID WPL Y702360 Contact Us For Availability
14
GLASS, CONTROL PANEL WPL 04100148 Contact Us For Availability
14
SCREW WPL 704963 Contact Us For Availability
14
PLATE, GROUNDING WPL 701742 Contact Us For Availability
14
BACK, INNER WPL 04100561 Contact Us For Availability
14
INSULATION WRAP WPL 04100565 Contact Us For Availability
14
SWITCH, DOOR WPL 702806 Contact Us For Availability
15
PAD, SPACER WPL 705331 Contact Us For Availability
15
PANEL, CONTROL WPL 705334 Contact Us For Availability
15
TRIM, OVEN (LWR-BLK) WPL 704642 Contact Us For Availability
15
TRIM, OVEN (LT/BLK) WPL 71001454 Contact Us For Availability
15
TRIM, OVEN (RT/BLK) WPL 71001455 Contact Us For Availability
15
TRIM, OVEN (LT/BLK) WPL 71001464 Contact Us For Availability
15
TRIM, OVEN (RT/BLK) WPL 71001465 Contact Us For Availability
15
SWITCH, DOOR WPL 702805 Contact Us For Availability
16
BEZEL, SWITCH WPL 704323 Contact Us For Availability
16
INSULATION, BOTTOM WPL 04100568 Contact Us For Availability
16
INSULATION, TOP WPL 04100570 Contact Us For Availability
16
INSULATION, BOTTOM WPL 702292 Contact Us For Availability
16
INSULATION-BACK WPL 702283 Contact Us For Availability
16
SCREW WPL 705170 Contact Us For Availability
16
PANEL, SIDE (LH) WPL 04100557 Contact Us For Availability
16
SWITCH, LATCH WPL Y703732 Contact Us For Availability
17
KNOB, SELECTOR WPL Y04100146 Contact Us For Availability
17
PLUG WPL 04100600 Contact Us For Availability
17
CLIP, OVEN WPL 71001170 Contact Us For Availability
17
CLIP, OVEN WPL Y702618 Contact Us For Availability
17
RAIL, BOTTOM WPL 700596 Contact Us For Availability
17
INSULATOR WPL Y702350 Contact Us For Availability
18
LIGHT, INDICATOR 240V WPL Y702394 Contact Us For Availability
18
CLIP WPL 704487 Contact Us For Availability
18
CLIP, J WPL Y700556 Contact Us For Availability
18
INSULATOR WPL 703264 Contact Us For Availability
19
SCREW (BLACK) WPL Y704488 Contact Us For Availability
19
CLIP, BULB WPL Y701541 Contact Us For Availability
19
CLAMP, CONDUIT WPL 701692 Contact Us For Availability
19
ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability
19
SCREW WPL 702807 Contact Us For Availability
20
THERMOSTAT WPL Y04100511 Contact Us For Availability
20
THERMOSTAT WPL Y04100575 Contact Us For Availability
20
RAIL, SUPPORT WPL 04100563 Contact Us For Availability
20
TUBE, VENT (UPR OVEN) WPL 04100539 Contact Us For Availability
21
KNOB, THERMOSTAT WPL 703917 Contact Us For Availability
21
RIVET, ACCORDION WPL 701641 Contact Us For Availability
21
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
21
PANEL, INNER TOP WPL 04100668 Contact Us For Availability
21
SHIELD, CAPILLARY WPL 04100670 Contact Us For Availability
21
BUTTON, PLUG WPL 703688 Contact Us For Availability
21
SUPPORT (CTR) WPL Y04100669 Contact Us For Availability
22
NUT, PUSH IN WPL 701643 Contact Us For Availability
22
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
22
BRACKET, VENT TUBE WPL 701680 Contact Us For Availability
23
ANGLE, ATTACHMENT WPL 701609 Contact Us For Availability
23
GLASS, BAFFLE WPL Y704820 Contact Us For Availability
23
LENS, LIGHT WPL Y704143 Contact Us For Availability
23
LIMIT, FAN WPL Y702750 Contact Us For Availability
24
SWITCH, SELECTOR UPPER WPL 703077 Contact Us For Availability
24
SELECTOR-LOWER WPL 703079 Contact Us For Availability
24
CLIP WPL 705404 Contact Us For Availability
24
RETAINER, LENS WPL Y704144 Contact Us For Availability
25
KNOB, SELECTOR SWITCH (BLK) WPL 703901 Contact Us For Availability
25
SCREW WPL 715870 Contact Us For Availability
25
PLATE, NON-CONVECT WPL 705343 Contact Us For Availability
25
TUBE, VENT (LWR OVEN) WPL 04100661 Contact Us For Availability
26
SWITCH, LIGHT (PUSH) WPL 700558 Contact Us For Availability
26
RETAINER, GLASS WPL Y704819 Contact Us For Availability
27
INSERT, FRAME (BLK)----NA WPL Y04100580 Contact Us For Availability
27
RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability
NI
HARNESS WPL 04100656 Contact Us For Availability
NI
WIRE, RESISTOR WPL 04100659 Contact Us For Availability
NI
HARNESS, WIRE WPL 04100667 Contact Us For Availability
NI
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
WIRE, TAN WPL 703089 Contact Us For Availability
NI
WIRE, PINK WPL 703090 Contact Us For Availability
NI
HARNESS-WIRE WPL 703280 Contact Us For Availability
NI
WIRE, WIRE WPL 703370 Contact Us For Availability
NI
WIRE, RESISTOR THERM. WPL 703752 Contact Us For Availability
NI
MANUAL, USE & CARE WPL OU2410UA Contact Us For Availability
NI
BUMPER, BUTTON WPL Y704223 Contact Us For Availability
× ![]()
