Model Whirlpool WW2460B ELECTRIC WALL OVEN – Common Parts & Diagrams

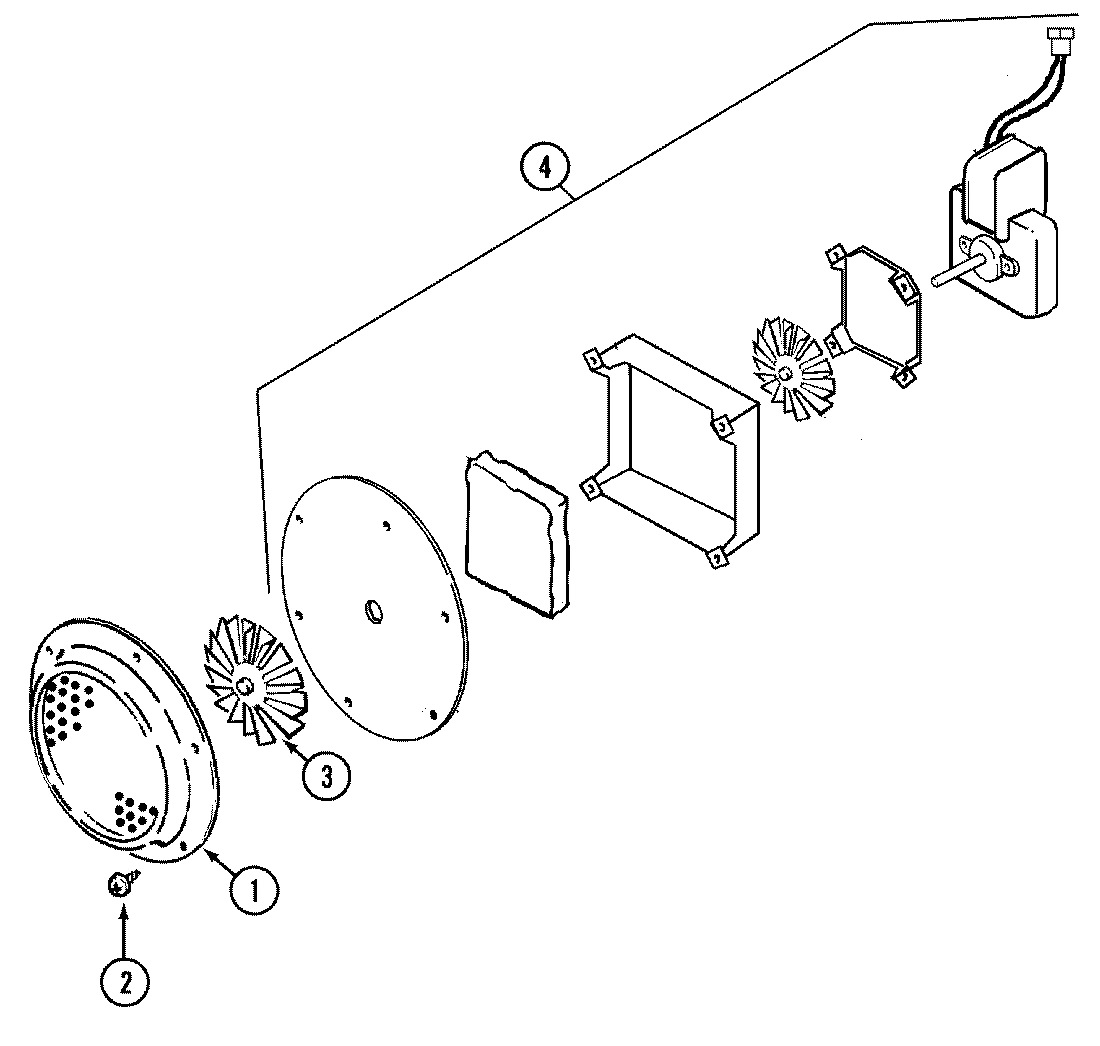

01 - BLOWER MOTOR-CONVECTION

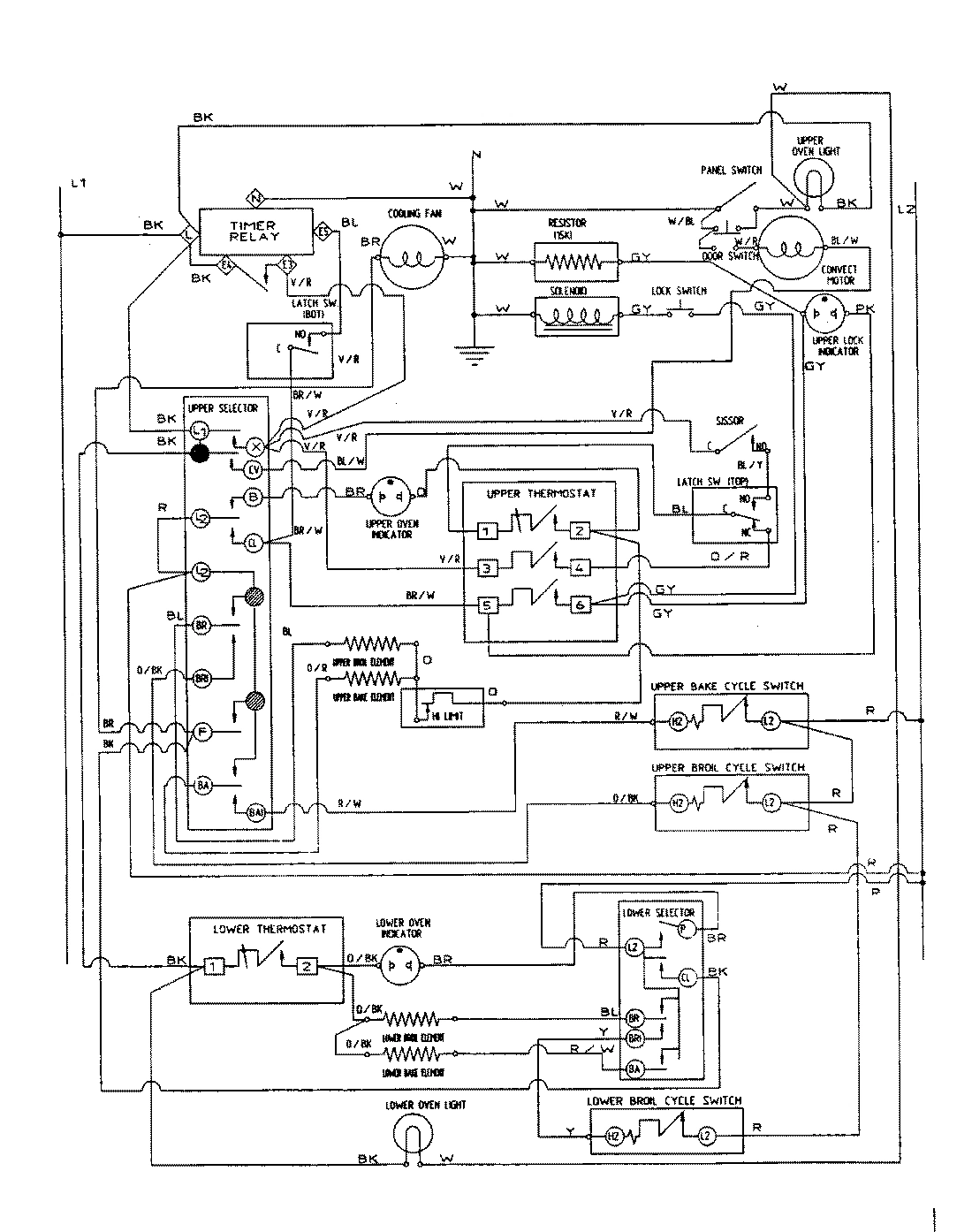

08 - WIRING INFORMATION

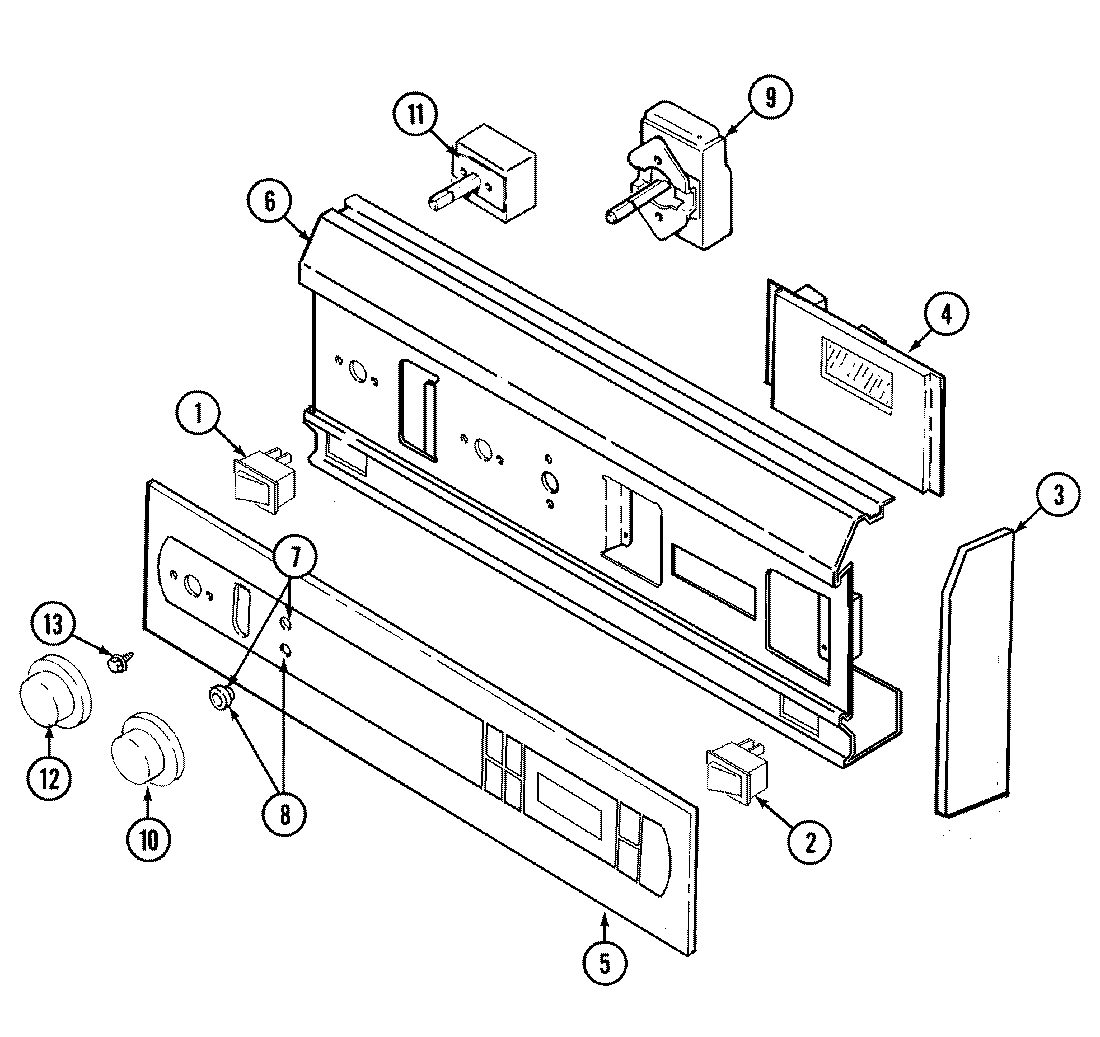

04 - CONTROL PANEL

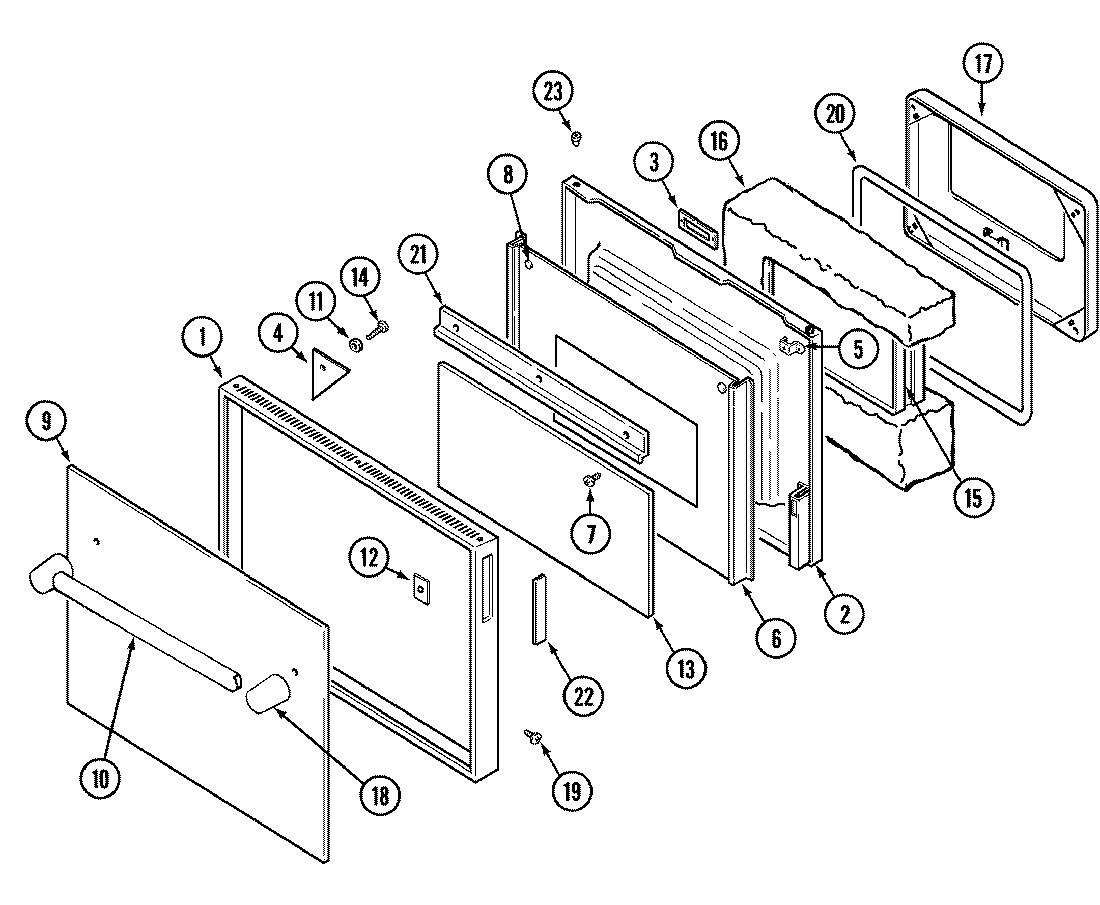

05 - DOOR

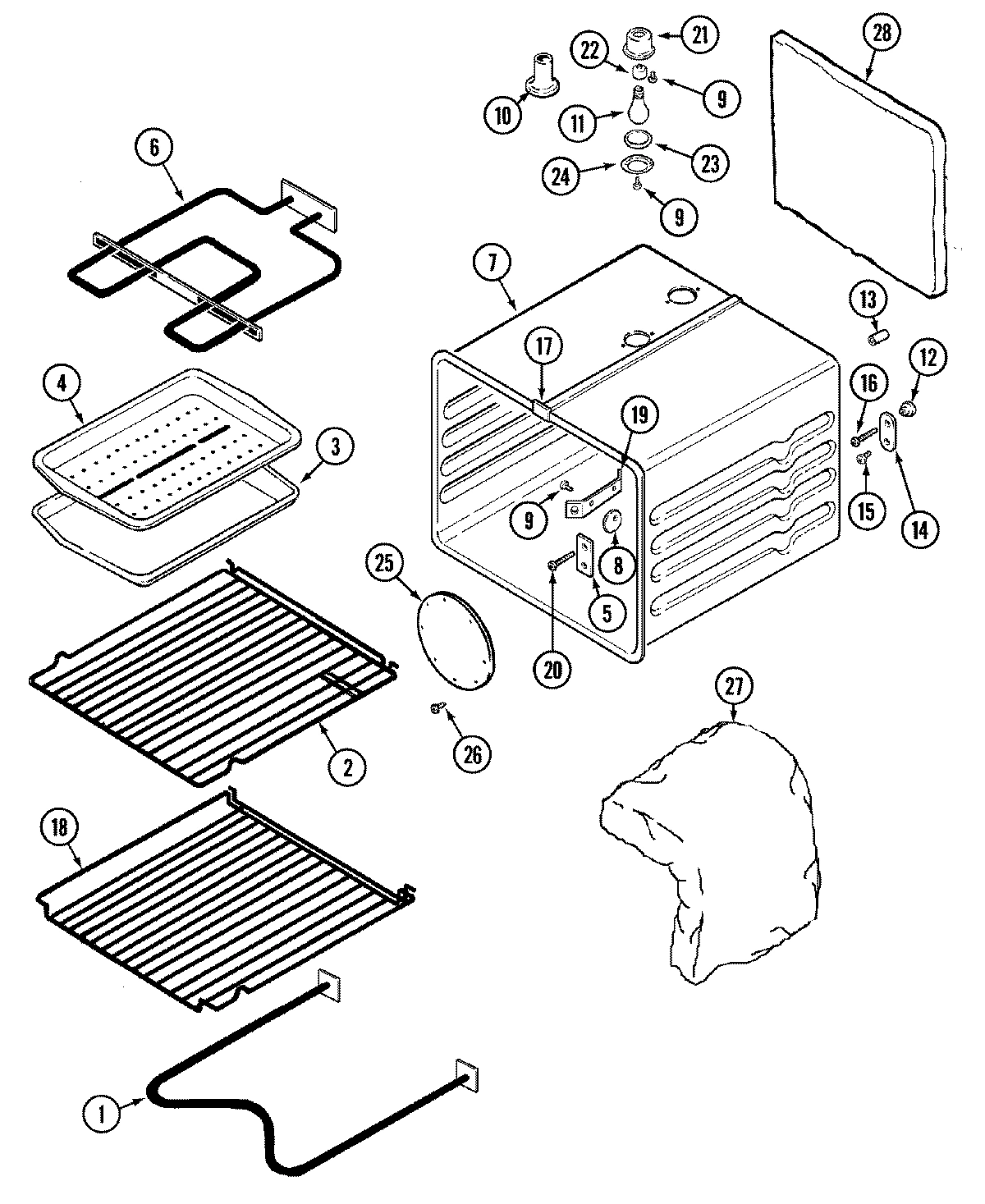

07 - OVEN

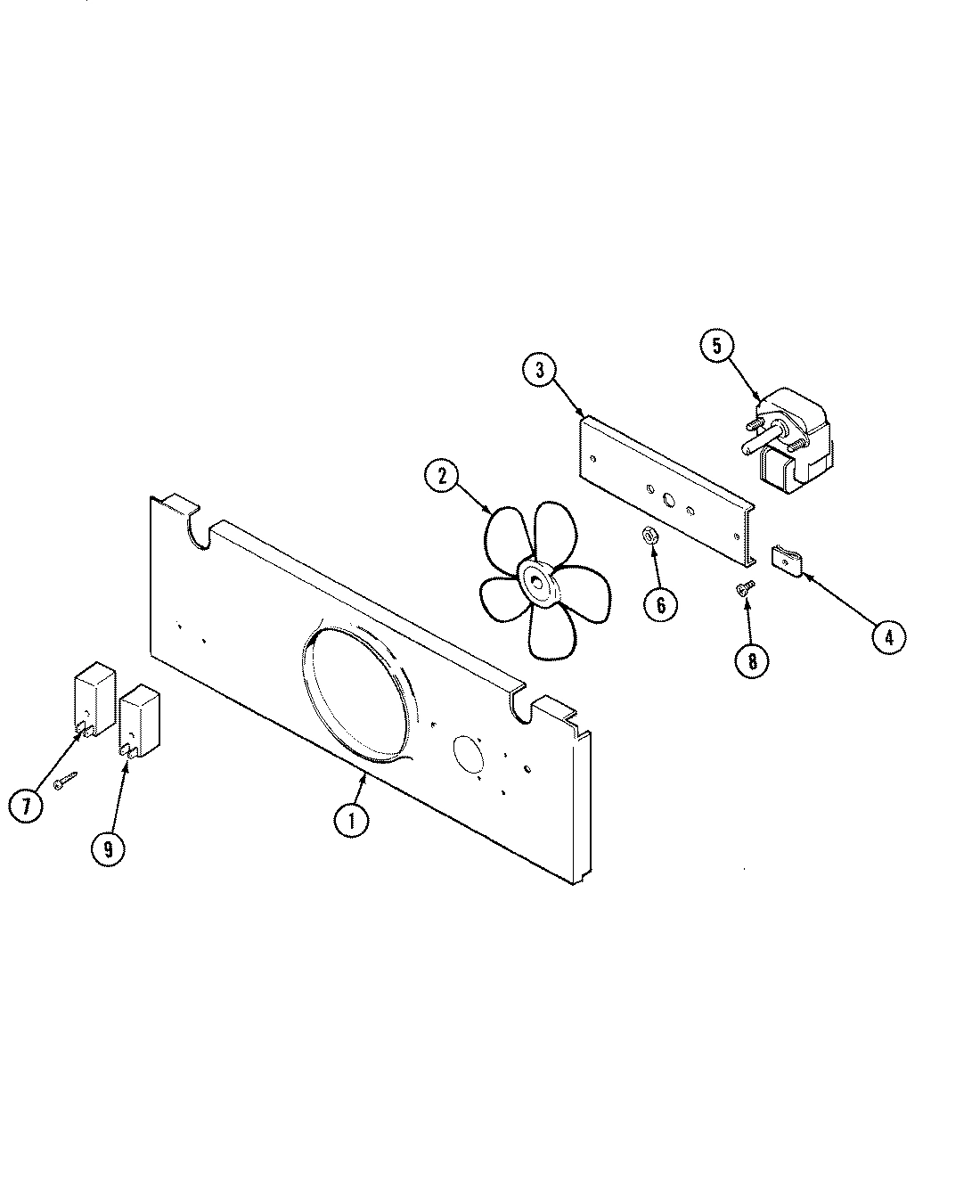

02 - BLOWER MOTOR-COOLING

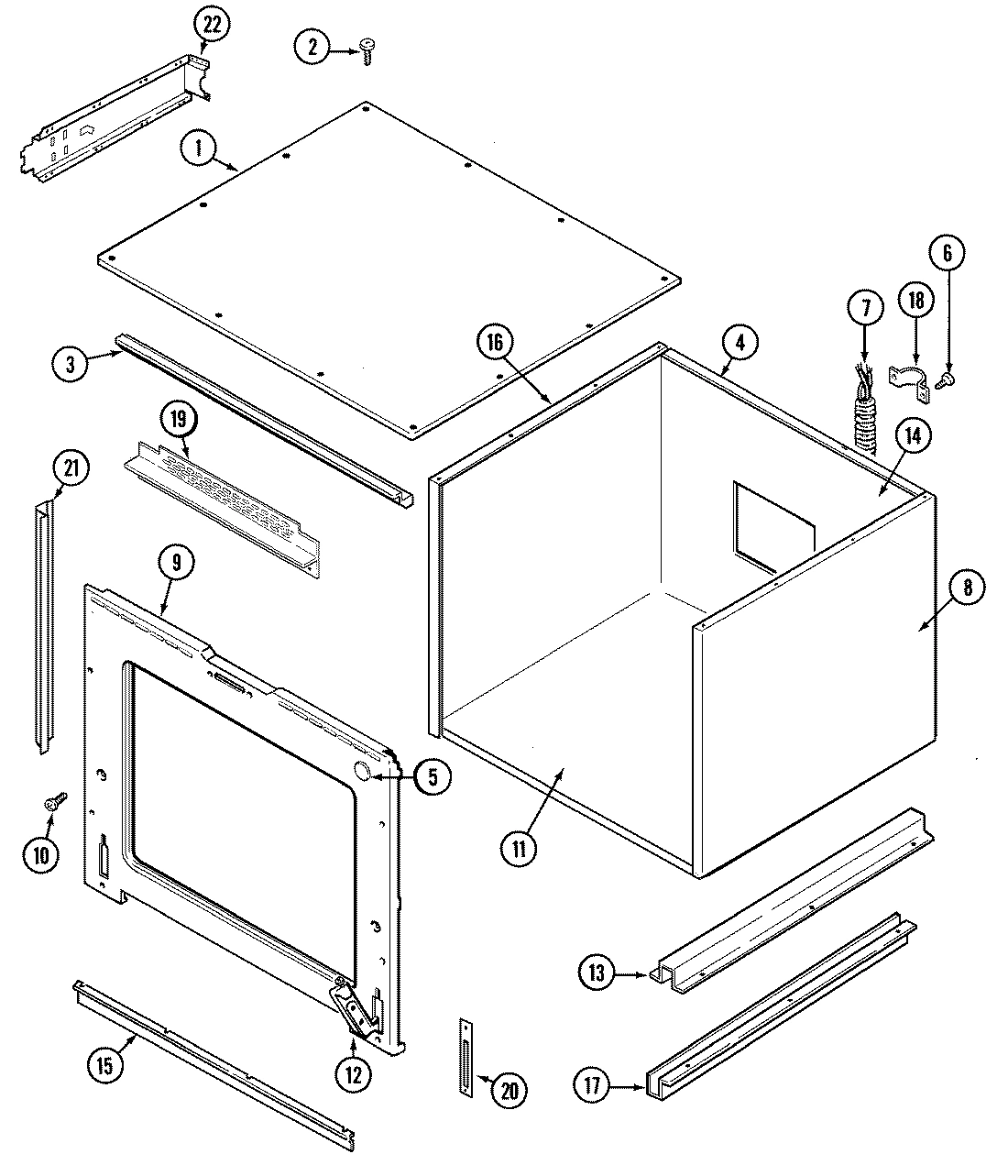

03 - BODY

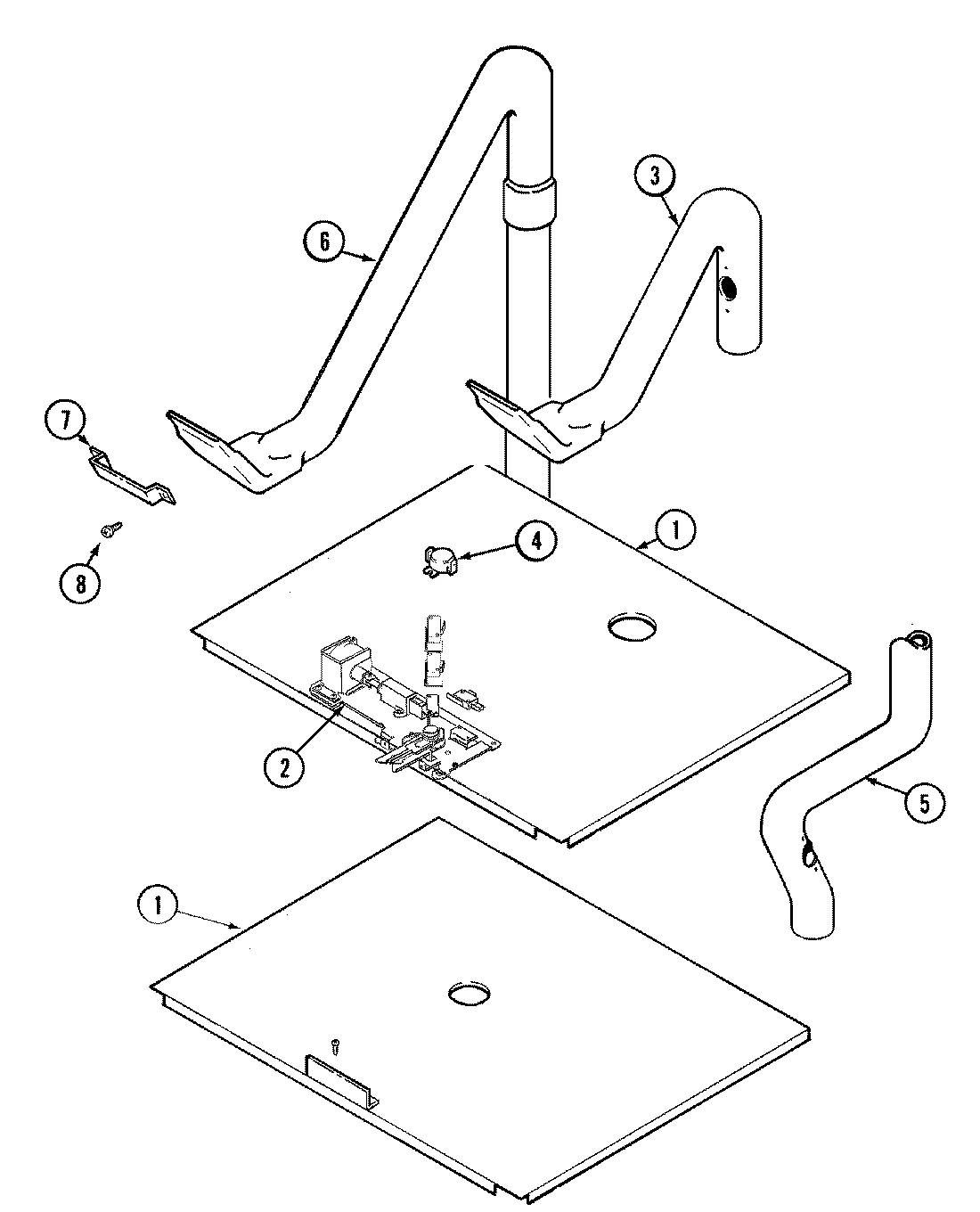

06 - INTERNAL CONTROLS
Common parts from model Whirlpool WW2460B ELECTRIC WALL OVEN
1
PLATE, CONVECTION (FRT) WPL 71001854 Contact Us For Availability
1
SWITCH, MOMENTARY WPL 71001148 Contact Us For Availability
1
FRAME, DOOR WPL 04100633 Contact Us For Availability
1
SHROUD, FAN WPL 04100619 Contact Us For Availability
1
PANEL, OUTER TOP WPL 04100616 Contact Us For Availability
1
PANEL, TOP (INNER) WPL 71001132 Contact Us For Availability
1
PANEL, TOP (INNER) WPL 71001134 Contact Us For Availability
1
PANEL, INNER TOP WPL 04100559 Contact Us For Availability
2
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
2
SWITCH, OVEN LIGHT WPL 71001192 Contact Us For Availability
2
OVEN DOOR WELD WPL 71001137 Contact Us For Availability
2
LINER, OVEN DOOR WPL 71003079 Contact Us For Availability
2
RACK, OVEN WPL Y704661 Contact Us For Availability
2
BLADE, FAN WPL 702944 Contact Us For Availability
2
LATCH, LOWER WPL 71001096 Contact Us For Availability
2
LATCH ASSY. WPL 71001098 Contact Us For Availability
3
WHEEL, CONVECT ASSY. WPL 71001855 Contact Us For Availability
3
CAP, END (LT/BLK) WPL Y704691 Contact Us For Availability
3
CAP, END (RT/BLK) WPL Y704692 Contact Us For Availability
3
PLATE, STRIKER WPL 71001095 Contact Us For Availability
3
MOUNT, MOTOR WPL Y704732 Contact Us For Availability
3
BRACKET, TOP SUPPORT WPL 04100618 Contact Us For Availability
3
TUBE, VENT WPL 71001150 Contact Us For Availability
4
CONVECTION MTR ASSY WPL 71001858 Contact Us For Availability
4
CLOCK WPL 71001097 Contact Us For Availability
4
GUSSET----NA WPL 704805 Contact Us For Availability
4
CLIP, J WPL Y700556 Contact Us For Availability
4
BACK, OUTER WPL 04100665 Contact Us For Availability
4
BACK, OUTER WPL 04100666 Contact Us For Availability
4
THERMOSTAT WPL 701687 Contact Us For Availability
5
INSERT, PANEL ASSY. (BLK) WPL 71001225 Contact Us For Availability
5
COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability
5
SPACER WPL 04100569 Contact Us For Availability
5
MOTOR, FAN WPL Y701721 Contact Us For Availability
5
SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability
5
TUBE, VENT (LWR) WPL 71001123 Contact Us For Availability
6
PANEL, CONTROL (BLK) WPL 71001937 Contact Us For Availability
6
BAFFLE, DOOR WPL 71001295 Contact Us For Availability
6
TUBE, VENT (UPR) WPL 71001122 Contact Us For Availability
7
LIGHT, INDICATOR WPL 71001140 Contact Us For Availability
7
SCREW (10-32) WPL 71001725 Contact Us For Availability
7
OVEN LINER ASSY. WPL 71003059 Contact Us For Availability
7
OVEN WELD ASSY. WPL Y04100817 Contact Us For Availability
7
SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability
7
WIRE CABLE ASSY. (LWR) WPL 71001147 Contact Us For Availability
7
BRACKET, VENT TUBE WPL 701680 Contact Us For Availability
8
LIGHT, LOCK WPL 71001301 Contact Us For Availability
8
BRACKET, STAND-OFF WPL 701652 Contact Us For Availability
8
BUMPER, BUTTON WPL Y704223 Contact Us For Availability
8
BUTTON, PLUG WPL 702929 Contact Us For Availability
8
SCREW WPL 704335 Contact Us For Availability
8
PANEL, SIDE (RH) WPL 04100558 Contact Us For Availability
9
THERMOSTAT (LWR) WPL 71001126 Contact Us For Availability
9
THERMOSTAT WPL 71001138 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 71001142 Contact Us For Availability
9
SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability
9
BRACKET WPL 04100566 Contact Us For Availability
9
CLOSURE, FRONT (UPR) WPL 71001228 Contact Us For Availability
9
CLOSURE, FRONT (LWR) WPL 71001229 Contact Us For Availability
9
CLOSURE, FRONT (UPR) WPL 71003279 Contact Us For Availability
9
CLOSURE, FRONT (LWR) WPL 71003280 Contact Us For Availability
10
KNOB, THERMOSTAT WPL 04100147 Contact Us For Availability
10
KNOB, THERMOSTAT WPL 703917 Contact Us For Availability
10
HANDLE WPL Y04100635 Contact Us For Availability
10
TUBE, VENT WPL 701738 Contact Us For Availability
11
SWITCH, SELECTOR----NA WPL 71001127 Contact Us For Availability
11
SWITCH, SELECTOR (UPR) WPL 71001143 Contact Us For Availability
11
WASHER WPL 701736 Contact Us For Availability
11
PANEL, BOTTOM WPL 04100621 Contact Us For Availability
12
KNOB, SELECTOR SWITCH (BLK) WPL 703901 Contact Us For Availability
12
KNOB, SELECTOR WPL Y04100146 Contact Us For Availability
12
BUSHING WPL Y704489 Contact Us For Availability
12
NUT, TEE WPL 715294 Contact Us For Availability
12
HINGE, OVEN DOOR WPL Y04100337 Contact Us For Availability
13
GLASS, BAFFLE WPL Y704820 Contact Us For Availability
13
SPACER, OVEN WPL 701741 Contact Us For Availability
13
RAIL, SUPPORT WPL 04100563 Contact Us For Availability
14
SCREW WPL 704963 Contact Us For Availability
14
PLATE, GROUNDING WPL 701742 Contact Us For Availability
14
BACK, INNER WPL 04100620 Contact Us For Availability
15
TRIM (BLK) WPL 04100624 Contact Us For Availability
16
INSULATION, OVEN WPL 71001296 Contact Us For Availability
16
SCREW WPL 705170 Contact Us For Availability
16
ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability
16
PANEL, SIDE (LT) WPL 71001128 Contact Us For Availability
17
PLUG, DOOR WPL 71003296 Contact Us For Availability
17
DOOR PLUG WELD WPL Y04100664 Contact Us For Availability
17
CLIP, OVEN WPL Y702618 Contact Us For Availability
17
RAIL, BOTTOM WPL 700596 Contact Us For Availability
18
END CAP (BLK) WPL Y704224 Contact Us For Availability
18
RACK, OVEN (OFFSET) WPL Y704663 Contact Us For Availability
18
CLAMP, CONDUIT WPL 701692 Contact Us For Availability
19
SCREW, BLACK WPL 71002514 Contact Us For Availability
19
CLIP, BULB WPL Y701541 Contact Us For Availability
19
EXTRUSION, CENTER WPL 71001135 Contact Us For Availability
20
BACKPLATE, HINGE WPL 04100577 Contact Us For Availability
21
RETAINER, GLASS WPL 71001290 Contact Us For Availability
21
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
21
TRIM, OVEN (LT/BLK) WPL 71001454 Contact Us For Availability
21
TRIM, OVEN (RT/BLK) WPL 71001455 Contact Us For Availability
21
TRIM, OVEN (LT/BLK) WPL 71001464 Contact Us For Availability
21
TRIM, OVEN (RT/BLK) WPL 71001465 Contact Us For Availability
22
INSERT, FRAME (BLK)----NA WPL Y04100580 Contact Us For Availability
22
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
22
SUPPORT (CTR) WPL Y04100669 Contact Us For Availability
23
NUT, PUSH IN WPL 701643 Contact Us For Availability
23
LENS, LIGHT WPL Y704143 Contact Us For Availability
24
RETAINER, LENS WPL Y704144 Contact Us For Availability
25
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
25
PLATE, NON-CONVECT WPL 705343 Contact Us For Availability
25
PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability
27
INSULATION WRAP WPL 04100565 Contact Us For Availability
28
INSULATION, BOTTOM WPL 04100568 Contact Us For Availability
28
INSULATION WPL 04100819 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001167 Contact Us For Availability
NI
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
HARNESS, AUXILIARY WPL 71001125 Contact Us For Availability
NI
HARNESS, CONTROL (LWR) WPL 71001145 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71001458 Contact Us For Availability
NI
SHIELD, CAPILLARY WPL 04100670 Contact Us For Availability
× ![]()
