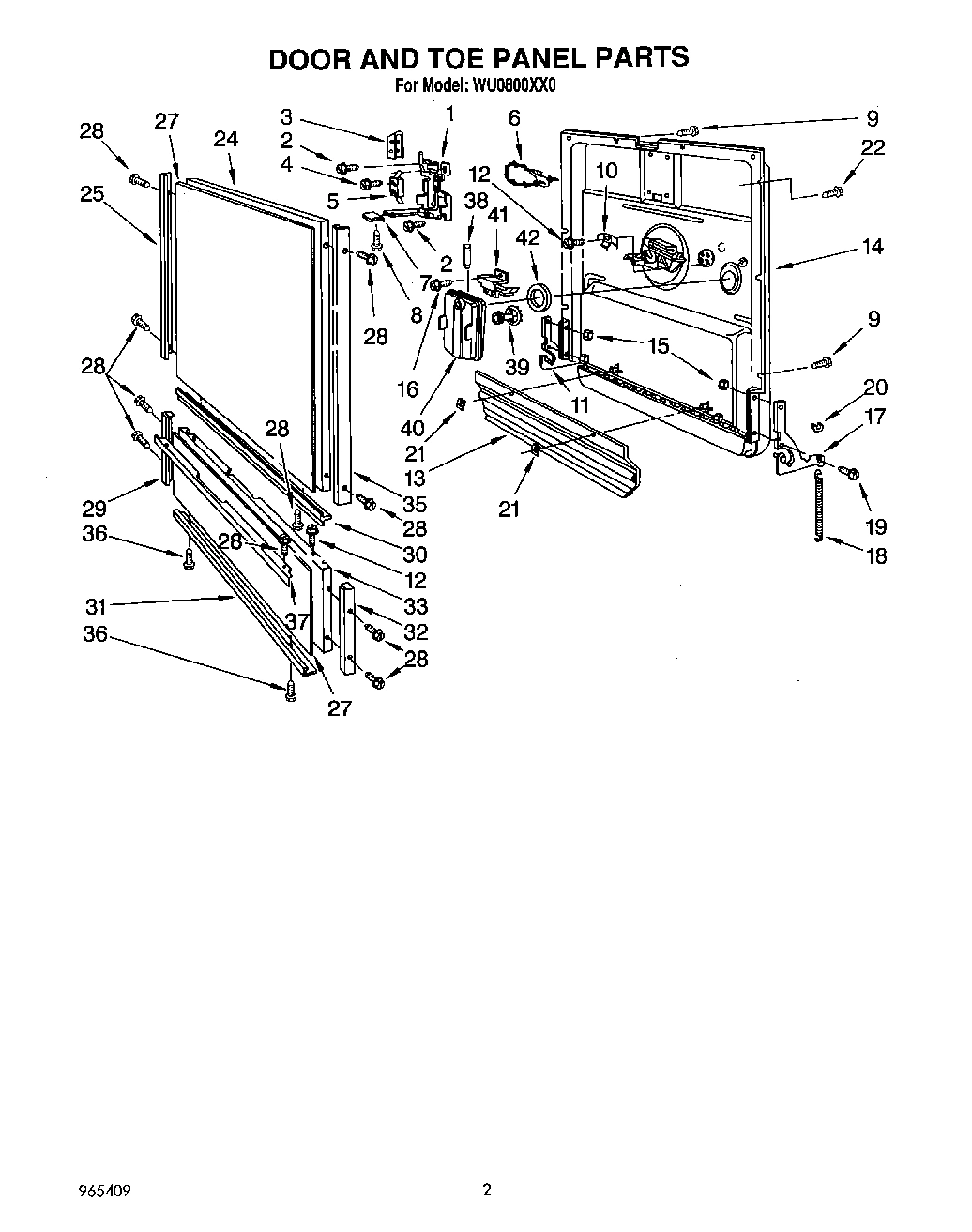

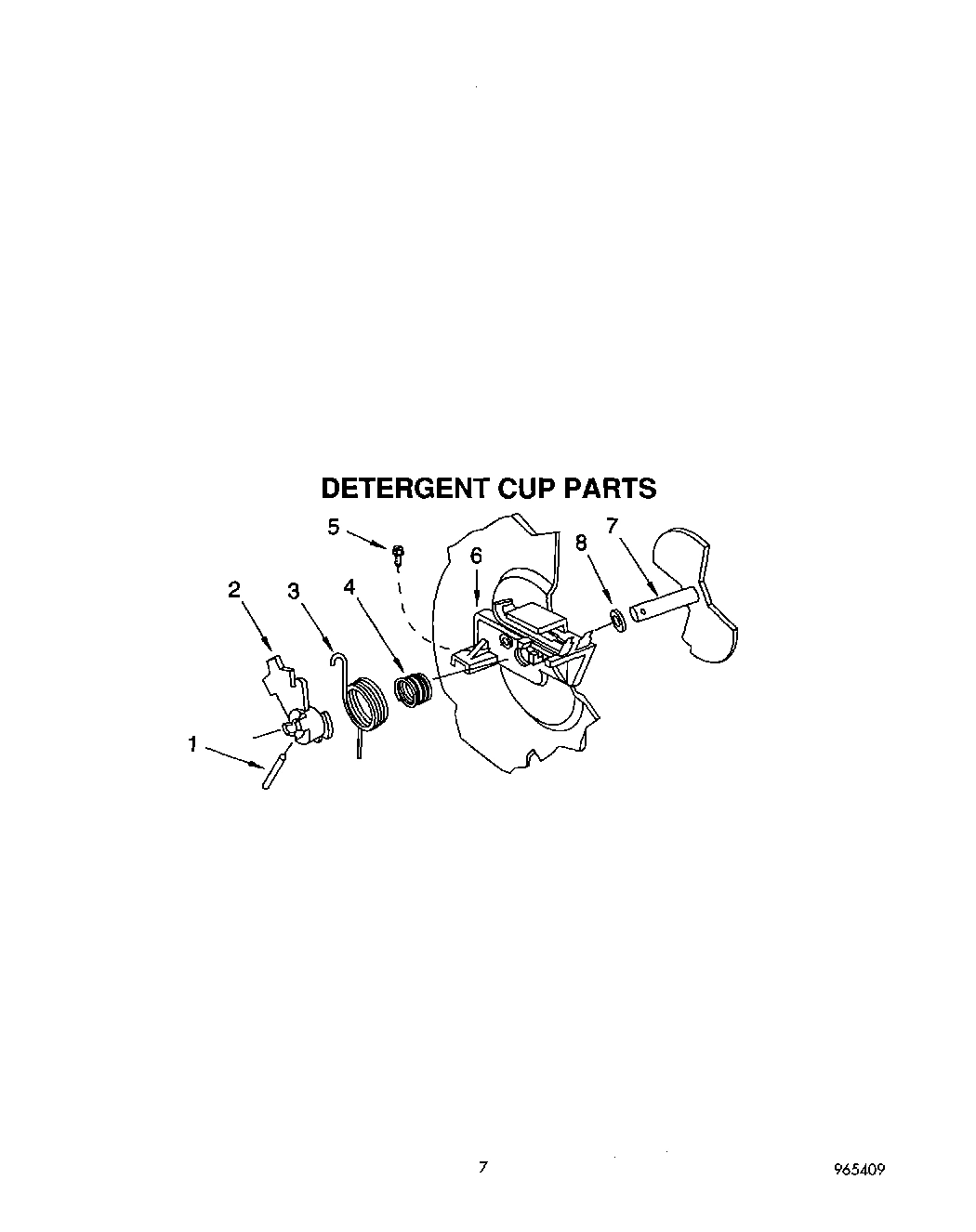

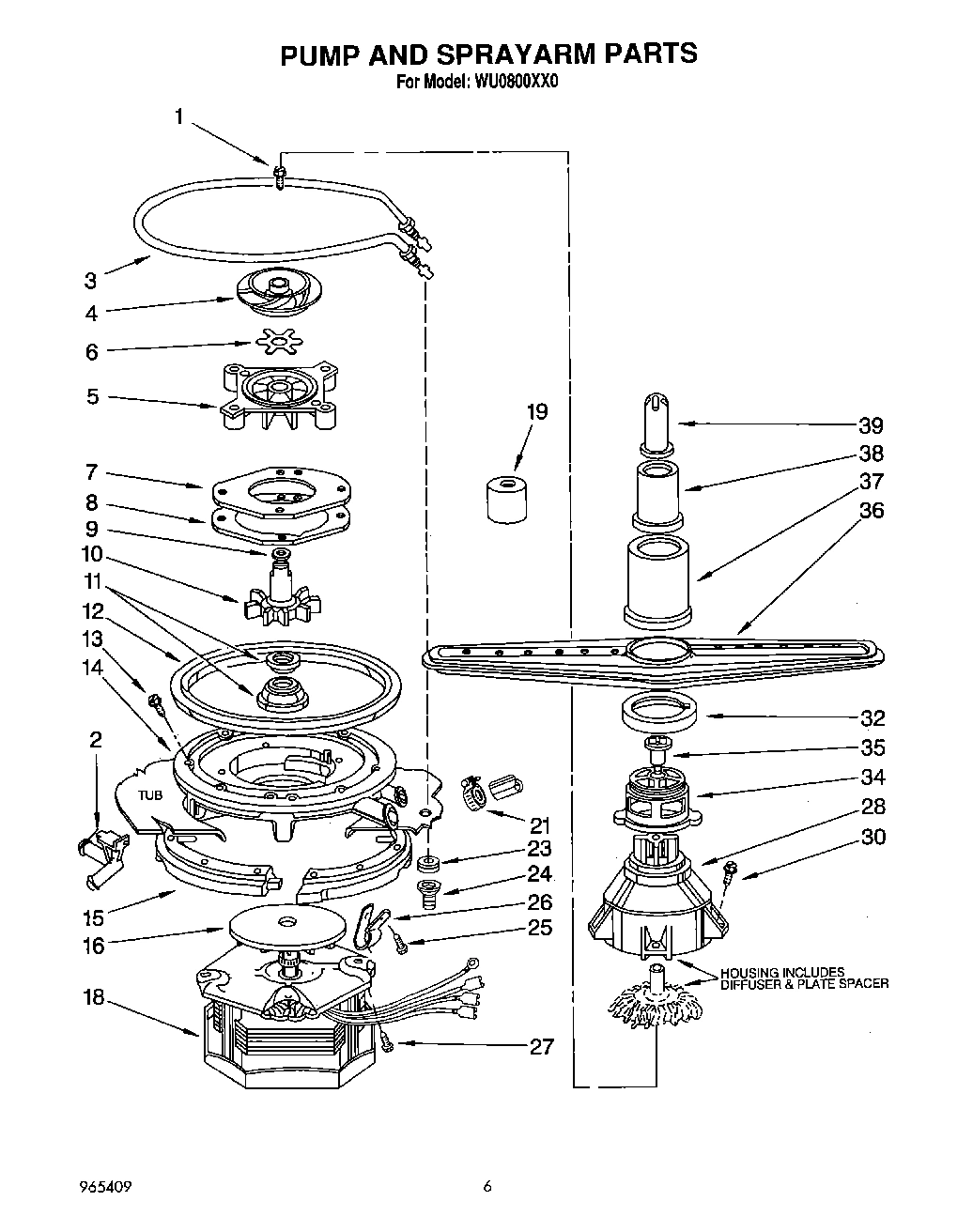

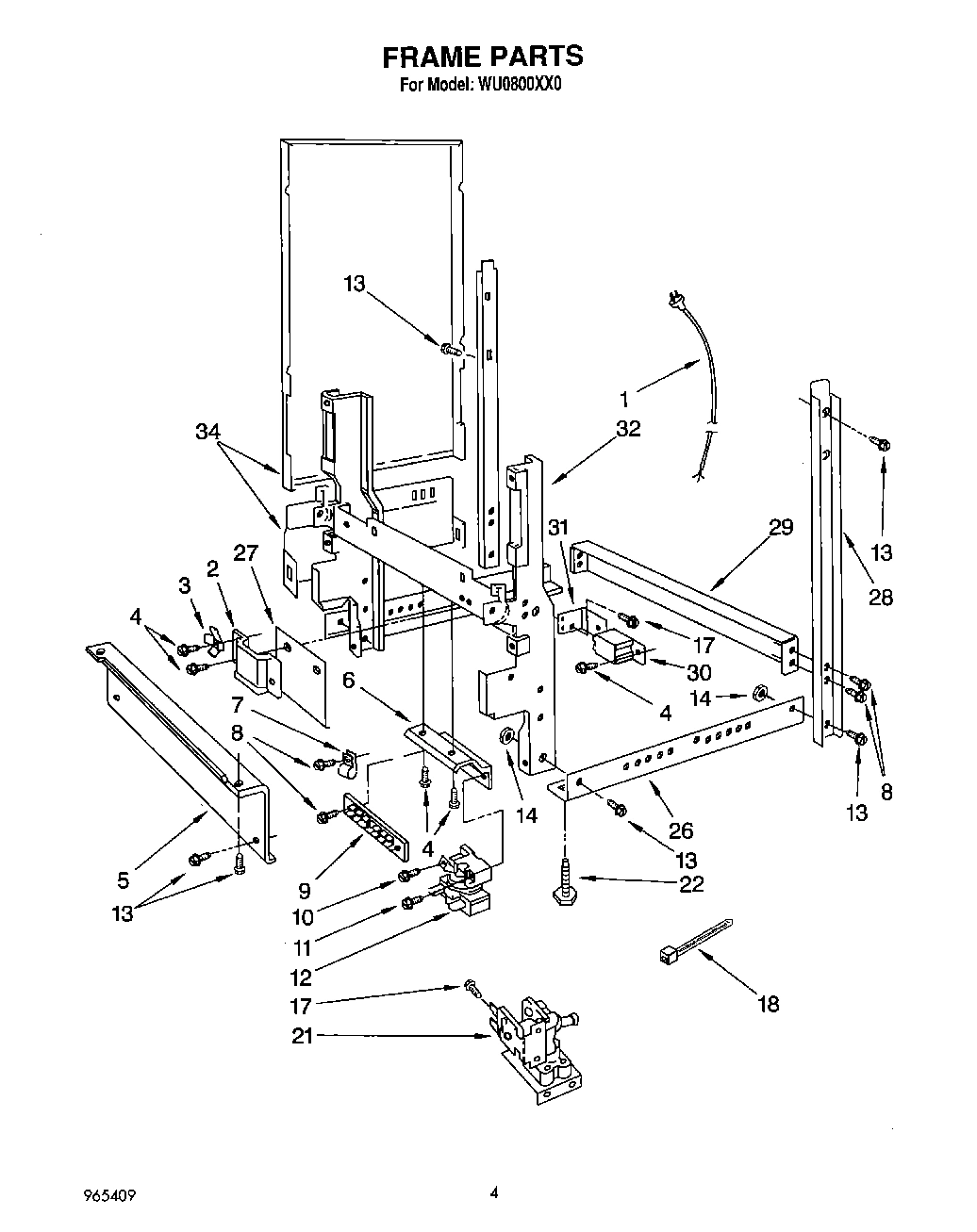

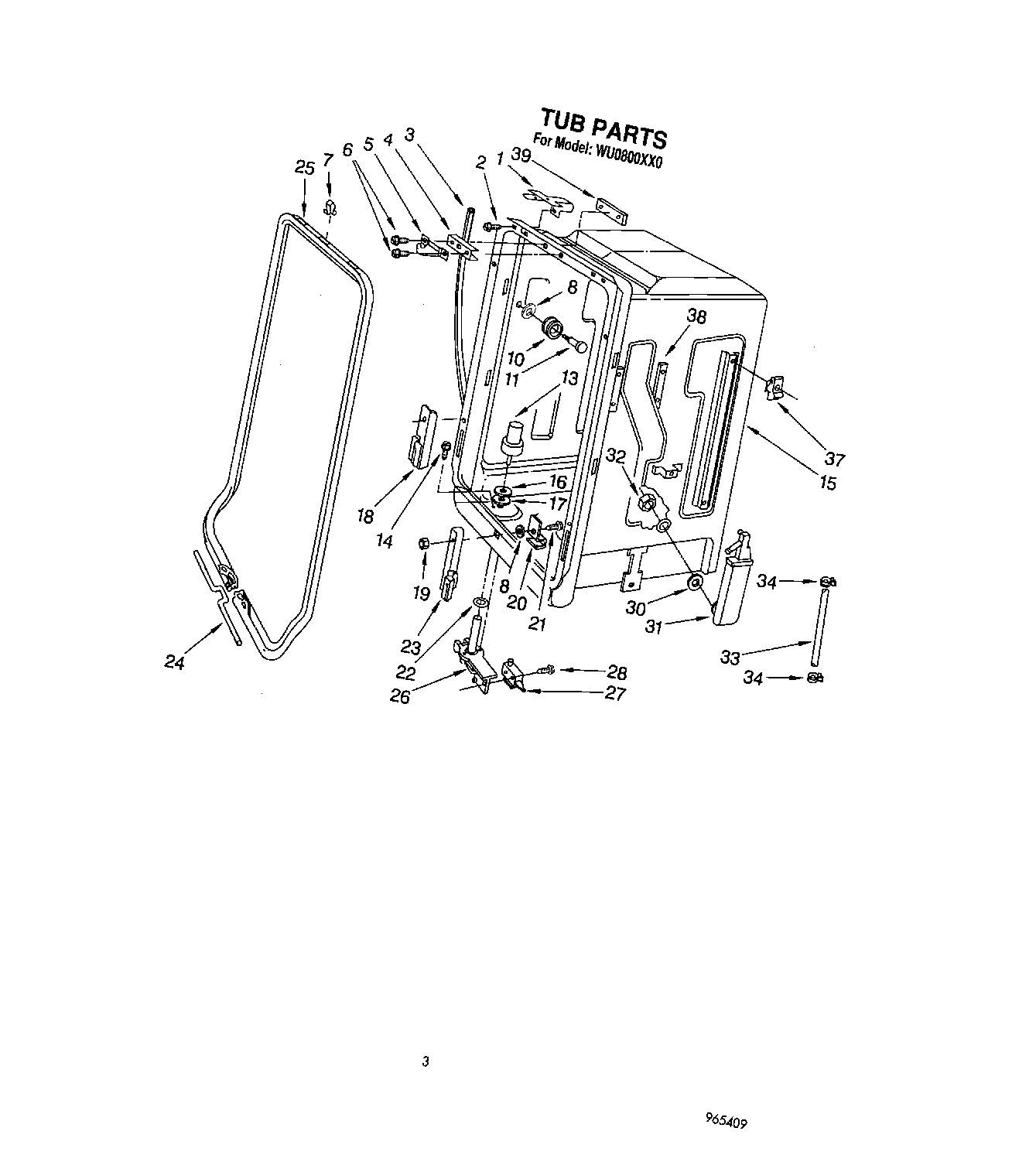

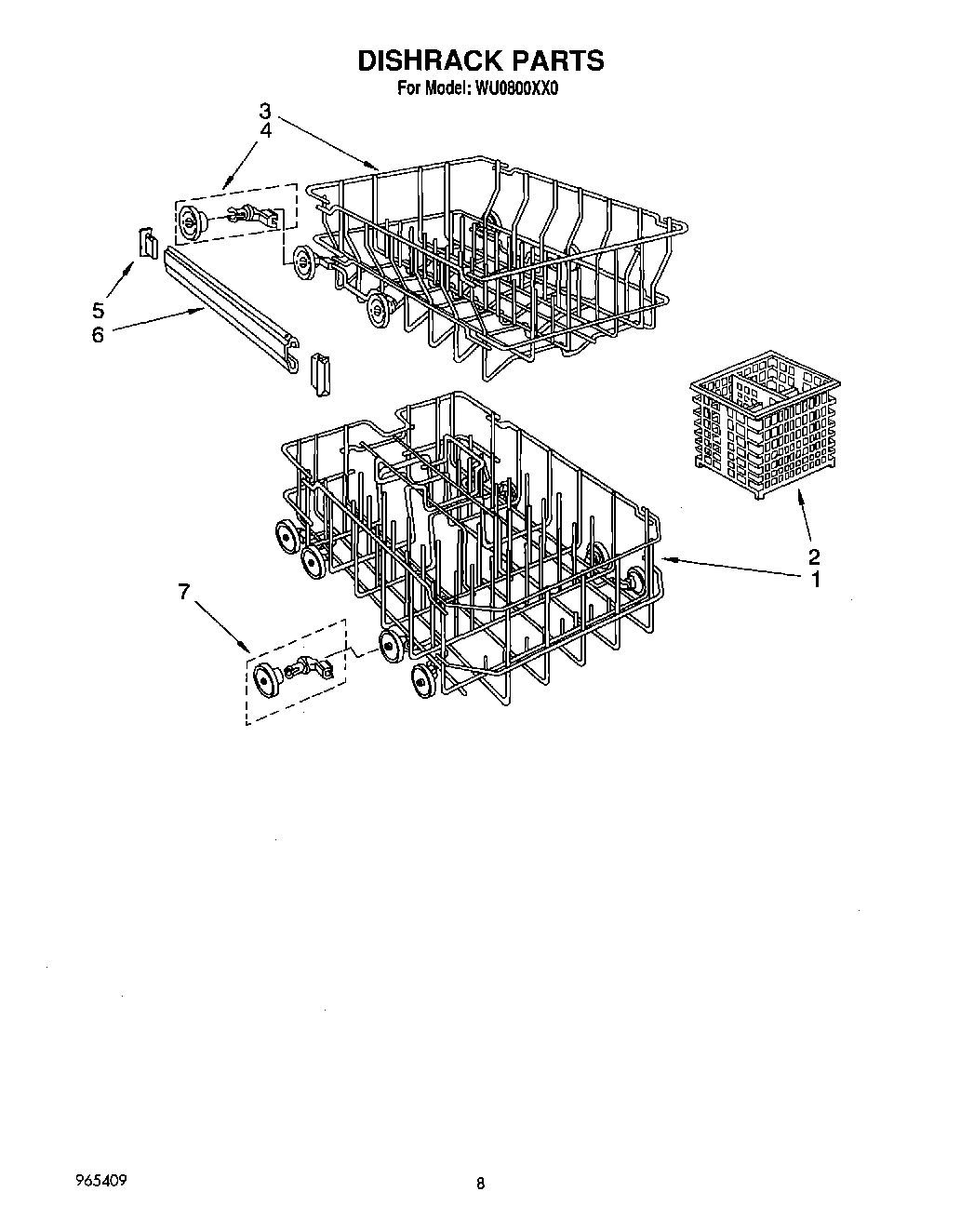

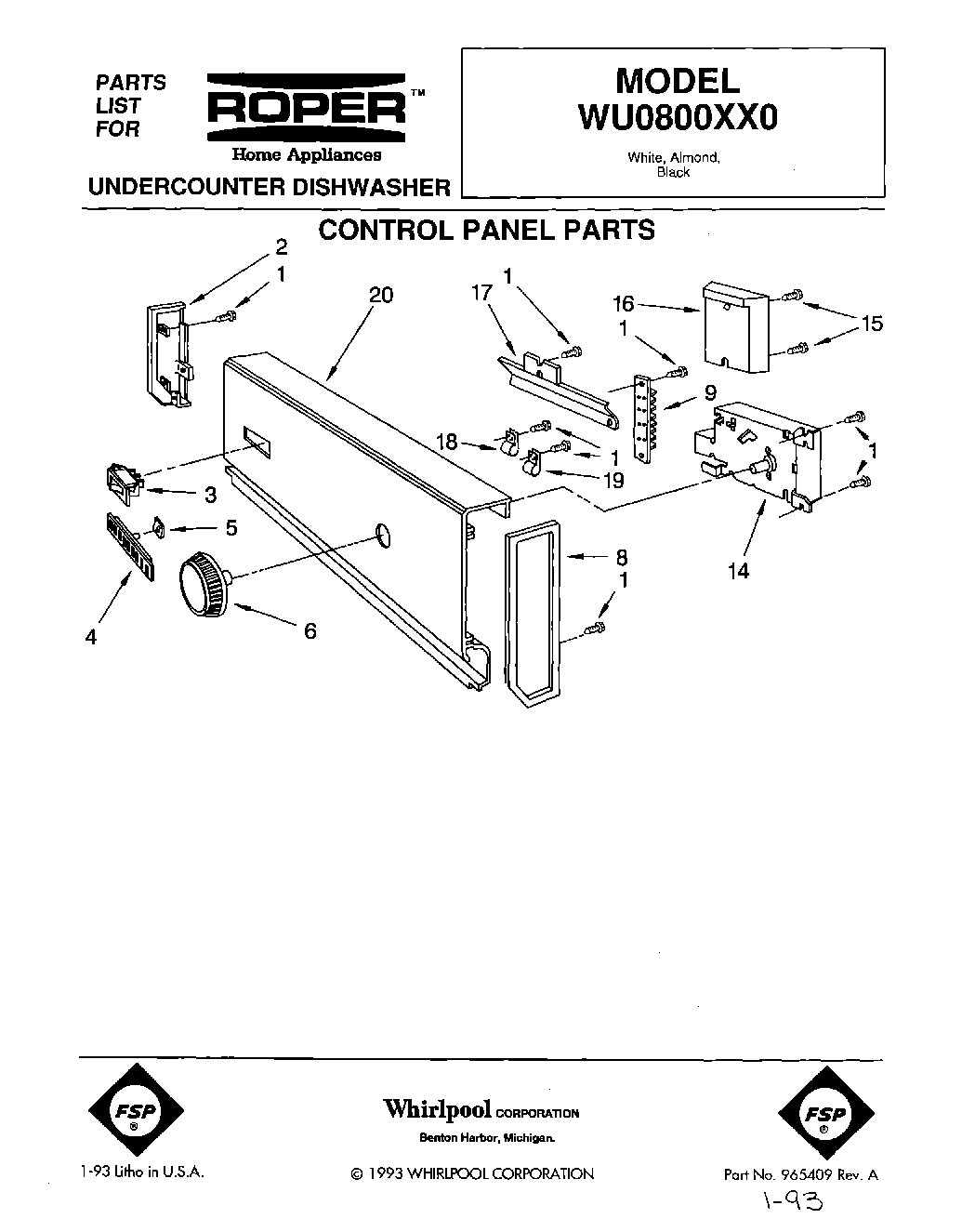

Model Whirlpool WU0800XX0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $21.98

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $26.24

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $25.17

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $24.99

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $18.75

Leveler (Thinner) WPL 350941 Contact Us For Availability

Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability

Kit, Epoxy Patch (White) WPL 799640 Contact Us For Availability

Parts List WPL LIT965409 Contact Us For Availability

Guide, Use & Care WPL LIT965410 Contact Us For Availability

Instructions, Installation WPL LIT965422 Contact Us For Availability

1

Screw, 8 x 7/16 WPL 965333 Contact Us For Availability

1

Latch Assembly WPL 965404 Contact Us For Availability

1

Clip, Attach (2) WPL 4343143 Contact Us For Availability

1

Screw, No.10-32 x 2 1/4 WPL 4340235 Contact Us For Availability

1

Power Cord (optional) WPL 965337 Contact Us For Availability

1

Spiral Pin WPL 965312 Contact Us For Availability

2

WP355214 Whirlpool Screw In Stock WPL WP355214 $6.99

2

End Cap, L.H. WPL 965144 Contact Us For Availability

2

Valve, Check WPL 965418 Contact Us For Availability

2

Clamp, Wiring WPL 965248 Contact Us For Availability

2

Cam WPL 965199 Contact Us For Availability

3

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $55.41

3

Switch Cover WPL 965165 Contact Us For Availability

3

Drain Hose WPL 965406 Contact Us For Availability

3

Heater WPL 4340304 Contact Us For Availability

3

Terminal, Grounding WPL 965300 Contact Us For Availability

3

Spring, Cam WPL 965201 Contact Us For Availability

4

Vent Grille WPL 965146 Contact Us For Availability

4

Screw, 6-32 x 1 WPL 965166 Contact Us For Availability

4

Screw, 8 x 3/8 WPL 965301 Contact Us For Availability

4

Shim WPL 4340875 Contact Us For Availability

4

Upper Impeller WPL 965384 Contact Us For Availability

4

Spring, Cam Compression WPL 965202 Contact Us For Availability

5

Clip WPL 965147 Contact Us For Availability

5

Screw, 8 x 5/8 WPL 4340832 Contact Us For Availability

5

Switch WPL 965167 Contact Us For Availability

5

Strike WPL 965213 Contact Us For Availability

5

Spacer Plate WPL 965385 Contact Us For Availability

5

Toeplate WPL 965249 Contact Us For Availability

6

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

6

Timer Knob WPL 4342579 Contact Us For Availability

6

Screw, 10-24 x 3/4 WPL 965214 Contact Us For Availability

6

Macerator WPL 965390 Contact Us For Availability

6

Terminal Bracket WPL 965334 Contact Us For Availability

6

Bi-Metal Assembly WPL 965430 Contact Us For Availability

7

Clamp, Wire WPL 965161 Contact Us For Availability

7

Latch Knob WPL 965169 Contact Us For Availability

7

Gasket Clip Kit (Includes Item 20) WPL 965215 Contact Us For Availability

7

Pump Plate WPL 4340510 Contact Us For Availability

7

Dispenser Lid WPL 4340831 Contact Us For Availability

8

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

8

End Cap, R.H. WPL 965150 Contact Us For Availability

8

Screw, 8-32 x 5/16 WPL 965194 Contact Us For Availability

8

Sealing Washer WPL 965315 Contact Us For Availability

8

Pump Gasket WPL 4340487 Contact Us For Availability

8

``O`` Ring WPL 965207 Contact Us For Availability

9

Terminal Board WPL 4340654 Contact Us For Availability

9

Screw, 8 x 7/16 WPL 4340841 Contact Us For Availability

9

O-Ring WPL 4340254 Contact Us For Availability

9

Terminal Block WPL 965439 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $4.70

Terminal, Grounding WPL 965171 Contact Us For Availability

Roller WPL 965417 Contact Us For Availability

Pump Seal Kit WPL 965396 Contact Us For Availability

Counterbalance Arm, L.H. WPL 965172 Contact Us For Availability

Shoulder Screw (Includes Item 8) WPL 4340681 Contact Us For Availability

Water Seal WPL 4340106 Contact Us For Availability

Screw, 8-32 x 1-1/4 WPL 965436 Contact Us For Availability

12

Screw, 8 x 3/8 WPL 4340701 Contact Us For Availability

12

Gasket WPL 4340818 Contact Us For Availability

12

Motor Relay WPL 965254 Contact Us For Availability

Baffle Seal WPL 965358 Contact Us For Availability

Float WPL 965375 Contact Us For Availability

Screw, 10 x 1 WPL 4340398 Contact Us For Availability

Screw, 1/4-20 x 1/2 WPL 4340307 Contact Us For Availability

Timer WPL 965411 Contact Us For Availability

Door, Inner WPL 965431 Contact Us For Availability

Screw, 10 x 1 WPL 965222 Contact Us For Availability

Housing, Pump WPL 965386 Contact Us For Availability

Nut, 10-24 (4) WPL 4342593 Contact Us For Availability

15

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

15

Tub & Gasket Assembly (Includes Item 25) WPL 965434 Contact Us For Availability

15

Clamp Ring (2) WPL 965287 Contact Us For Availability

16

Splash Pan WPL 965158 Contact Us For Availability

16

Float Tube Plate WPL 965224 Contact Us For Availability

16

Watershield Assembly WPL 4340897 Contact Us For Availability

Shield, Vent Slot WPL 965159 Contact Us For Availability

Counterbalance Arm, R.H. WPL 965178 Contact Us For Availability

Float Tube Gasket WPL 965225 Contact Us For Availability

Screw, 10 x 1/2 WPL 4340341 Contact Us For Availability

Clamp, Wire WPL 965160 Contact Us For Availability

Door Spring (2) WPL 4340462 Contact Us For Availability

Arm Guide, L.H. WPL 965226 Contact Us For Availability

Motor Assembly WPL 965397 Contact Us For Availability

Wire Tie WPL 4342590 Contact Us For Availability

19

WP486255 Whirlpool Air Conditioner Nut Backorder WPL WP486255 $4.55

19

Screw, 10-24 x 5/8 WPL 965180 Contact Us For Availability

19

Seal Installation Tool WPL 4340107 Contact Us For Availability

20

Console Panel WPL 965403 Contact Us For Availability

20

Spring Pad (2) WPL 965181 Contact Us For Availability

20

Gasket Clip WPL 965228 Contact Us For Availability

Clip WPL 965405 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 965229 Contact Us For Availability

Hose Clamp WPL 4340499 Contact Us For Availability

Valve, Inlet WPL 965335 Contact Us For Availability

22

``O`` Ring WPL 965230 Contact Us For Availability

22

Levelers (4) WPL 965355 Contact Us For Availability

23

Arm Guide, R.H. WPL 965231 Contact Us For Availability

23

Heater Grommet WPL 965283 Contact Us For Availability

24

Door Panel (White) WPL 965184 Contact Us For Availability

24

Junction Rod WPL 965407 Contact Us For Availability

24

Heater Nut, 1/2 WPL 965282 Contact Us For Availability

25

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

25

Trim, Door Side L.H. WPL 965426 Contact Us For Availability

25

Gasket, Tub (Includes Items 7 & 24) WPL 965381 Contact Us For Availability

26

Float Assembly (Includes Items 16, 17, 22, 27 WPL 965419 Contact Us For Availability

26

Clamp WPL 4340643 Contact Us For Availability

26

Angle, Base (2) WPL 4342620 Contact Us For Availability

Door Panel Insert (Almond & Black) WPL 4340800 Contact Us For Availability

Switch WPL 965376 Contact Us For Availability

Screw, 10 x 1 WPL 4340828 Contact Us For Availability

Shield, Wire WPL 4340862 Contact Us For Availability

Screw, 8 x 1/2 WPL 965412 Contact Us For Availability

Screw, 4-24 x 5/8 WPL 965377 Contact Us For Availability

Impeller Housing WPL 965387 Contact Us For Availability

Channel, Side (2) WPL 965269 Contact Us For Availability

29

Trim, Access Panel L.H. WPL 965424 Contact Us For Availability

29

Brace, Rear WPL 965437 Contact Us For Availability

Door Trim, Bottom WPL 965359 Contact Us For Availability

Gasket, Inlet WPL 965342 Contact Us For Availability

Screw, 10 - 2 WPL 4340412 Contact Us For Availability

Cover, Junction Box WPL 965414 Contact Us For Availability

31

Access Trim, Bottom WPL 965413 Contact Us For Availability

31

Water Inlet WPL 4340246 Contact Us For Availability

31

Bracket, Junction Box WPL 965272 Contact Us For Availability

Trim, Access Panel R.H. WPL 965423 Contact Us For Availability

Nut WPL 965341 Contact Us For Availability

Shield, Bearing WPL 965324 Contact Us For Availability

Hinge Weld Assembly WPL 965336 Contact Us For Availability

33

Access Panel (White) WPL 4340601 Contact Us For Availability

33

Tubing, Inlet (Includes Item 34) WPL 965241 Contact Us For Availability

Clamp (2) WPL 965318 Contact Us For Availability

Bearing WPL 965420 Contact Us For Availability

Side Panel Kit (White) WPL 965303 Contact Us For Availability

Side Panel Kit (Coffee) WPL 965304 Contact Us For Availability

Side Panel Kit (Avocado) WPL 965305 Contact Us For Availability

Side Panel Kit (Wheat) WPL 965306 Contact Us For Availability

Side Panel Kit (Almond) WPL 965307 Contact Us For Availability

35

Trim, Door Side R.H. WPL 965425 Contact Us For Availability

35

Sprayarm Bolt WPL 965323 Contact Us For Availability

36

Sprayarm Assembly WPL 965278 Contact Us For Availability

37

Trim, Access Panel Top WPL 965339 Contact Us For Availability

37

Cage Nut WPL 965245 Contact Us For Availability

37

Tower Base WPL 965277 Contact Us For Availability

38

Plunger WPL 965428 Contact Us For Availability

38

Tapping Plate (4) WPL 965246 Contact Us For Availability

38

Tower Section WPL 965276 Contact Us For Availability

39

Plug, Fill WPL 965429 Contact Us For Availability

39

Latch plate WPL 965313 Contact Us For Availability

39

Tower Tip WPL 965275 Contact Us For Availability

40

Body Assembly WPL 4340284 Contact Us For Availability

41

Bi-Metal Assembly WPL 965427 Contact Us For Availability

42

Grommet, Dispenser WPL 4340168 Contact Us For Availability
