Model Electrolux WRS24WRAD0 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS
04 - CABINET PARTS

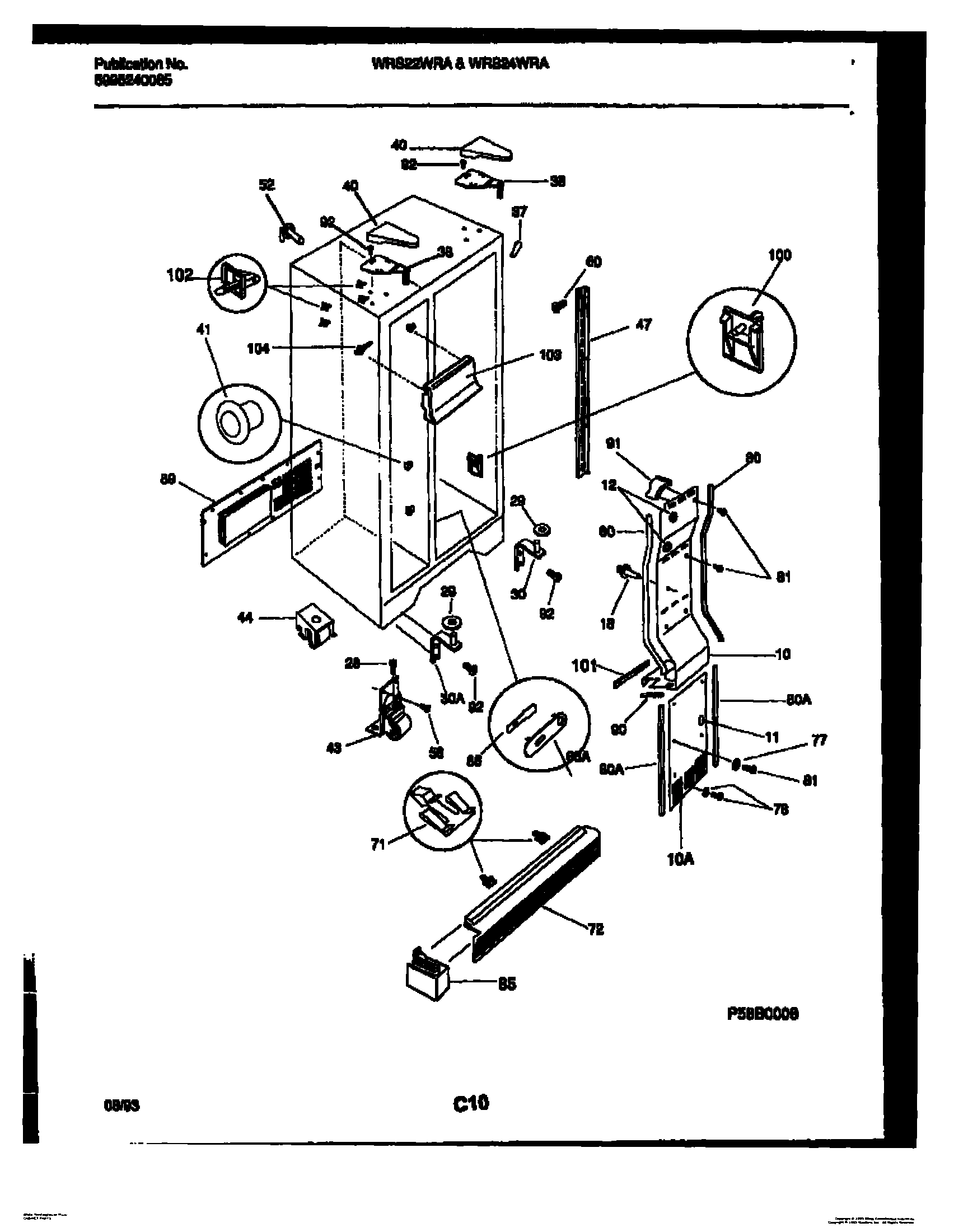

05 - CABINET PARTS

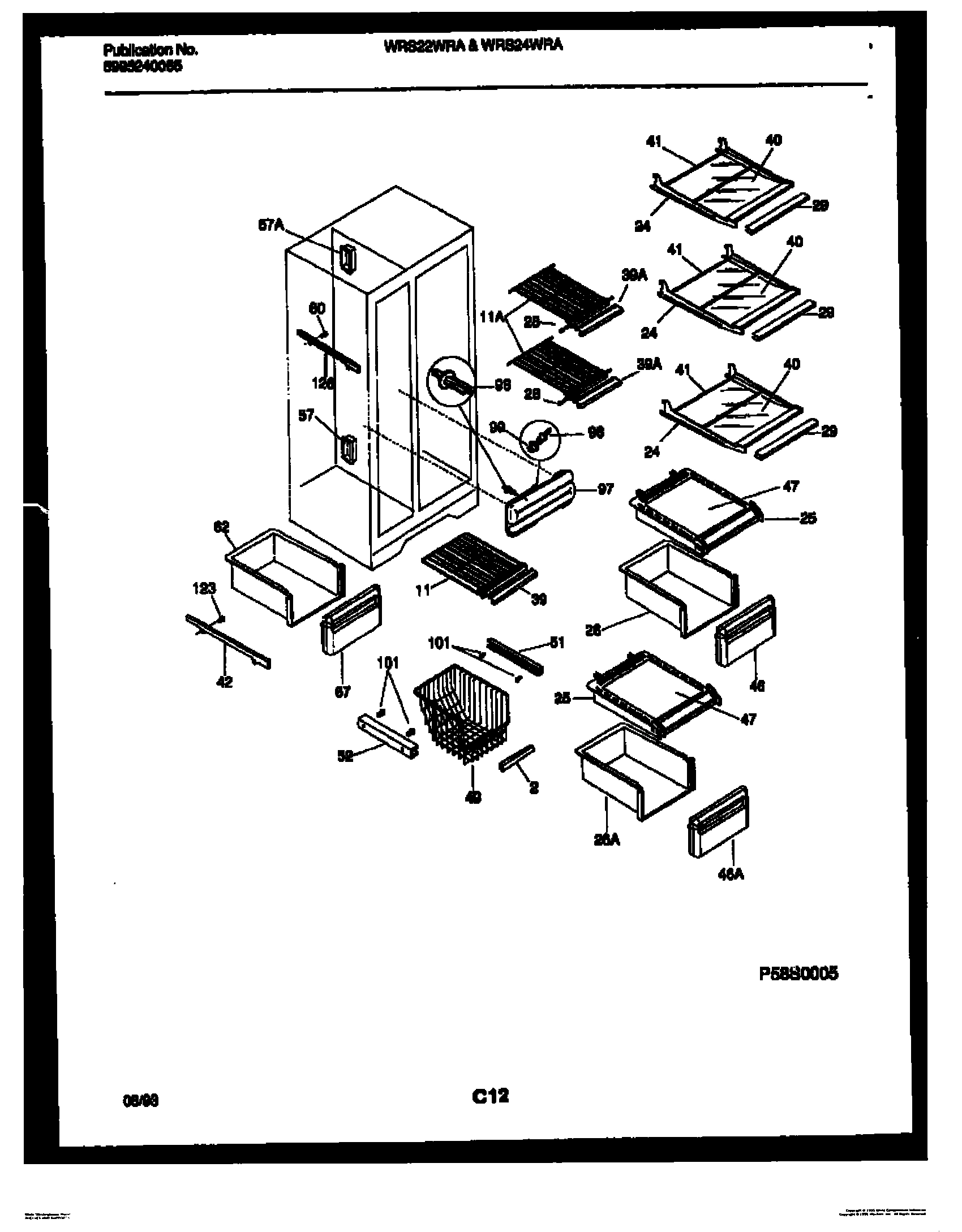

06 - SHELVES AND SUPPORTS
07 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

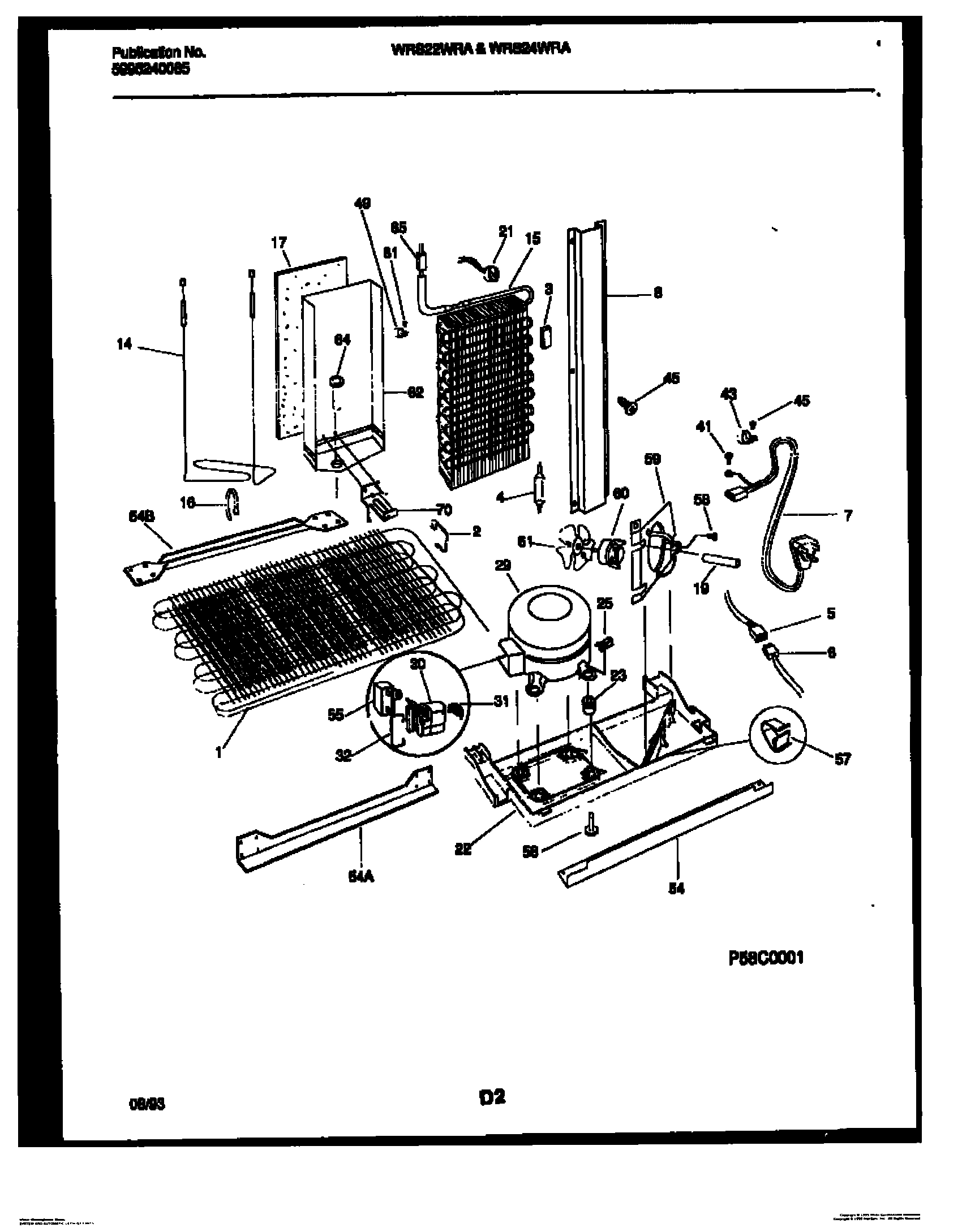

08 - SYSTEM AND AUTOMATIC DEFROST PARTS

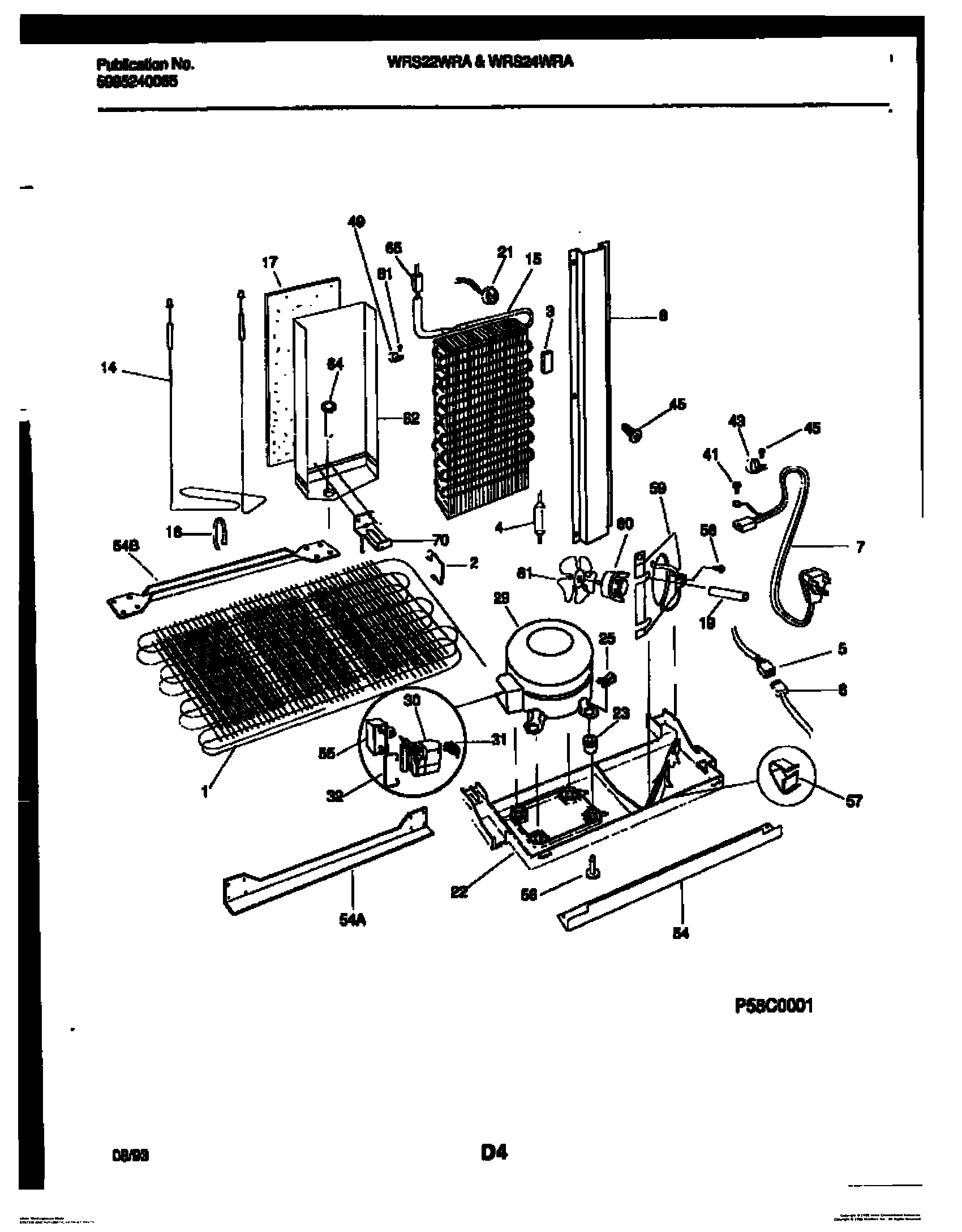

09 - SYSTEM AND AUTOMATIC DEFROST PARTS

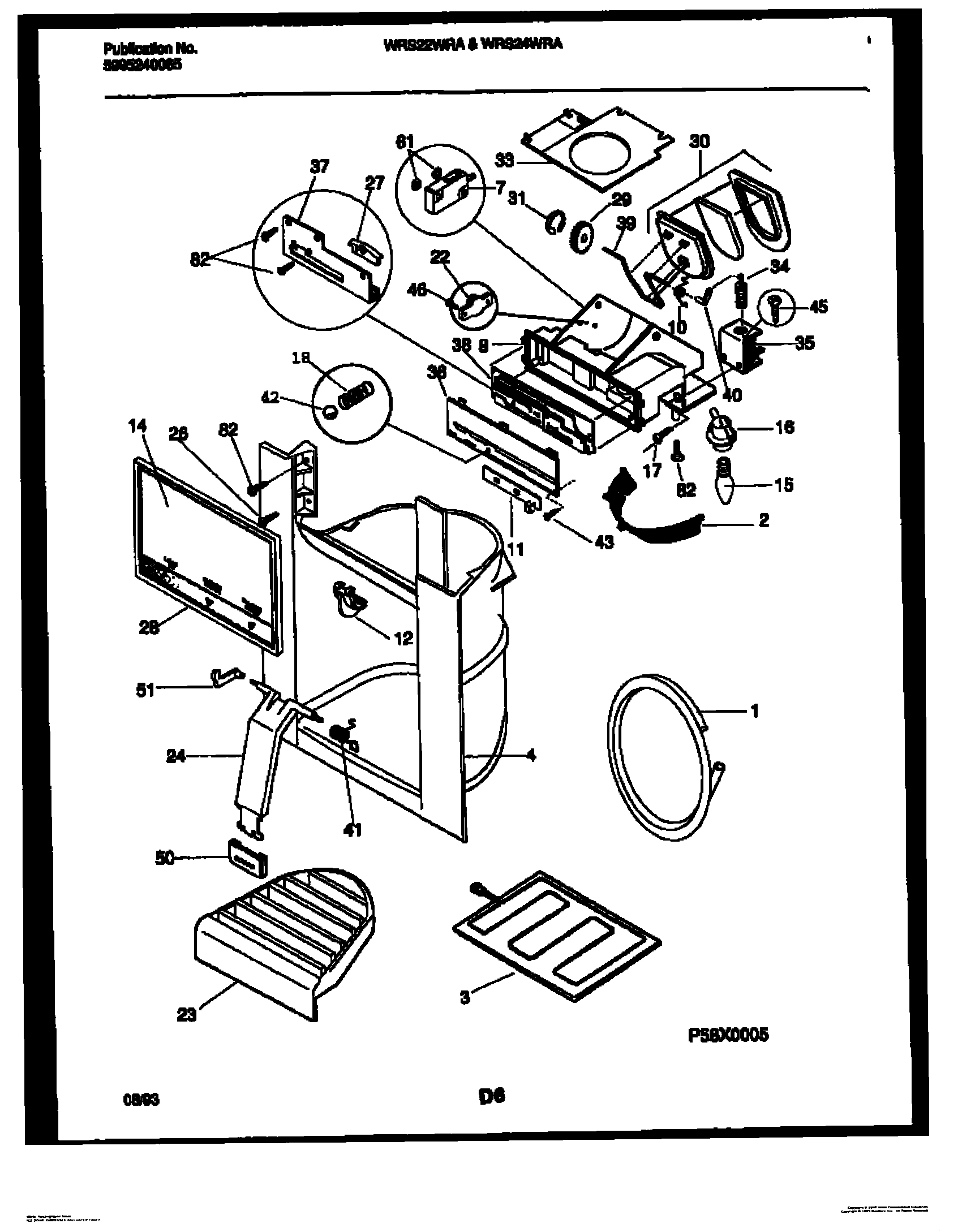

10 - ICE DOOR, DISPENSER AND WATER TANKS

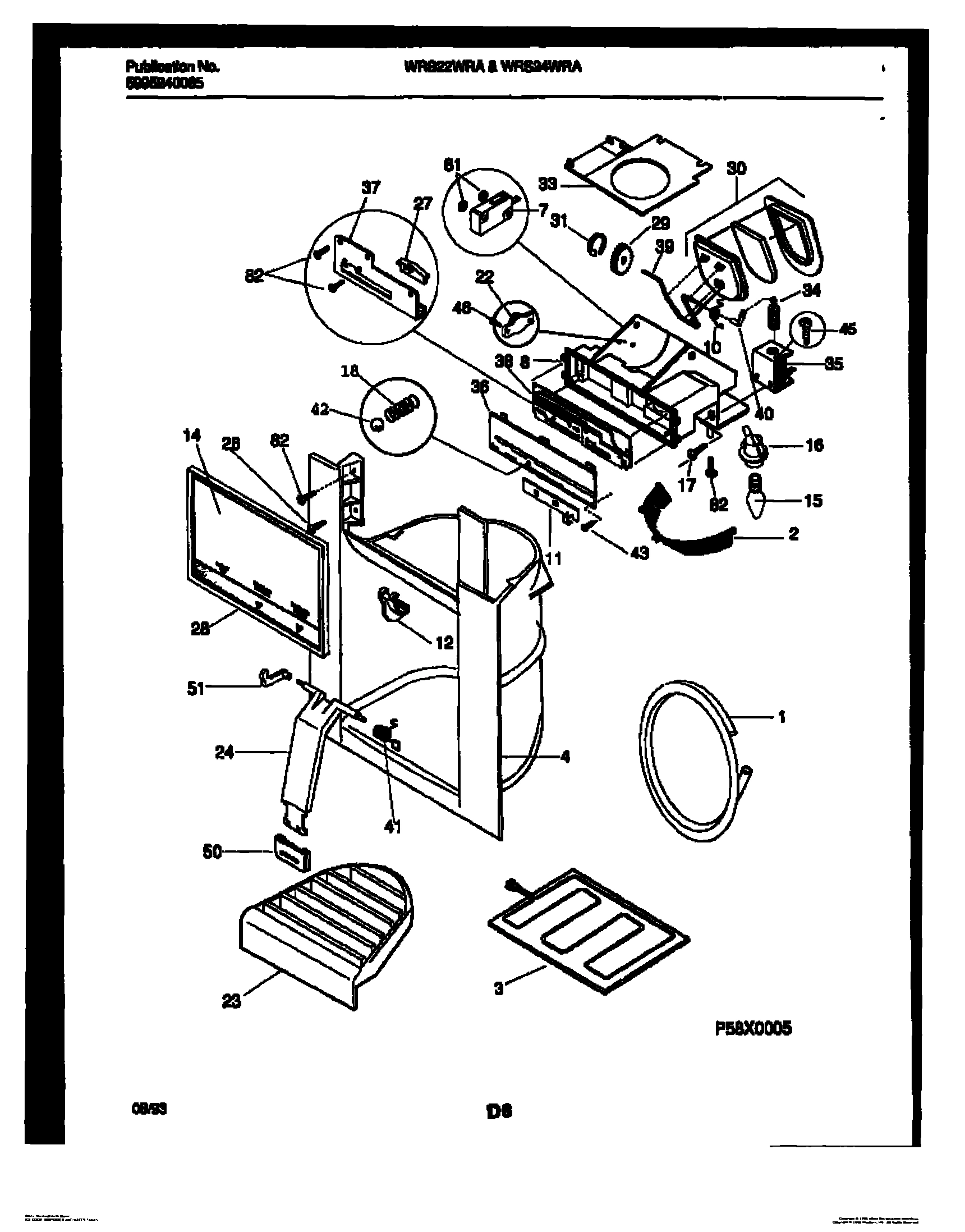

11 - ICE DOOR, DISPENSER AND WATER TANKS

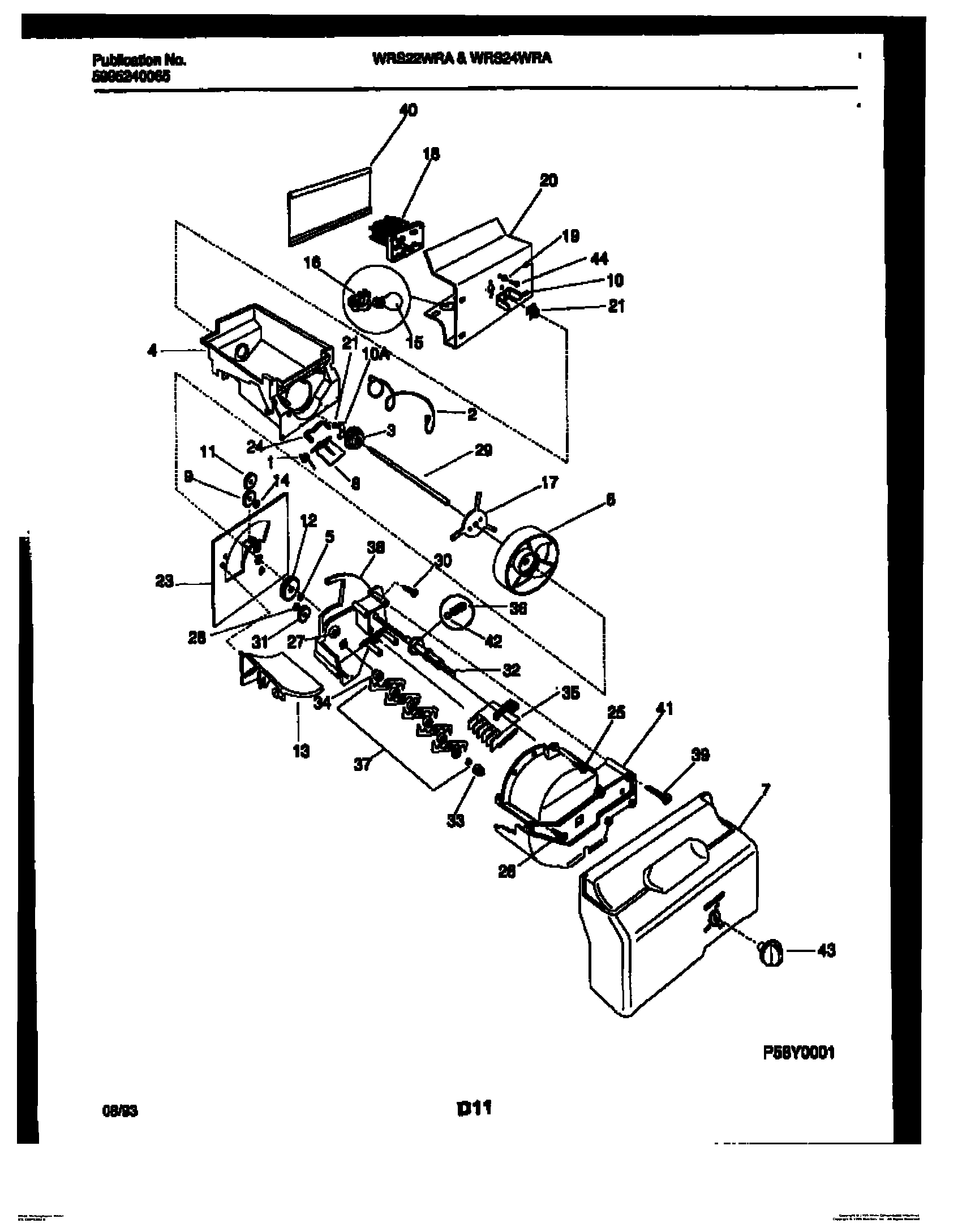

12 - ICE DISPENSER

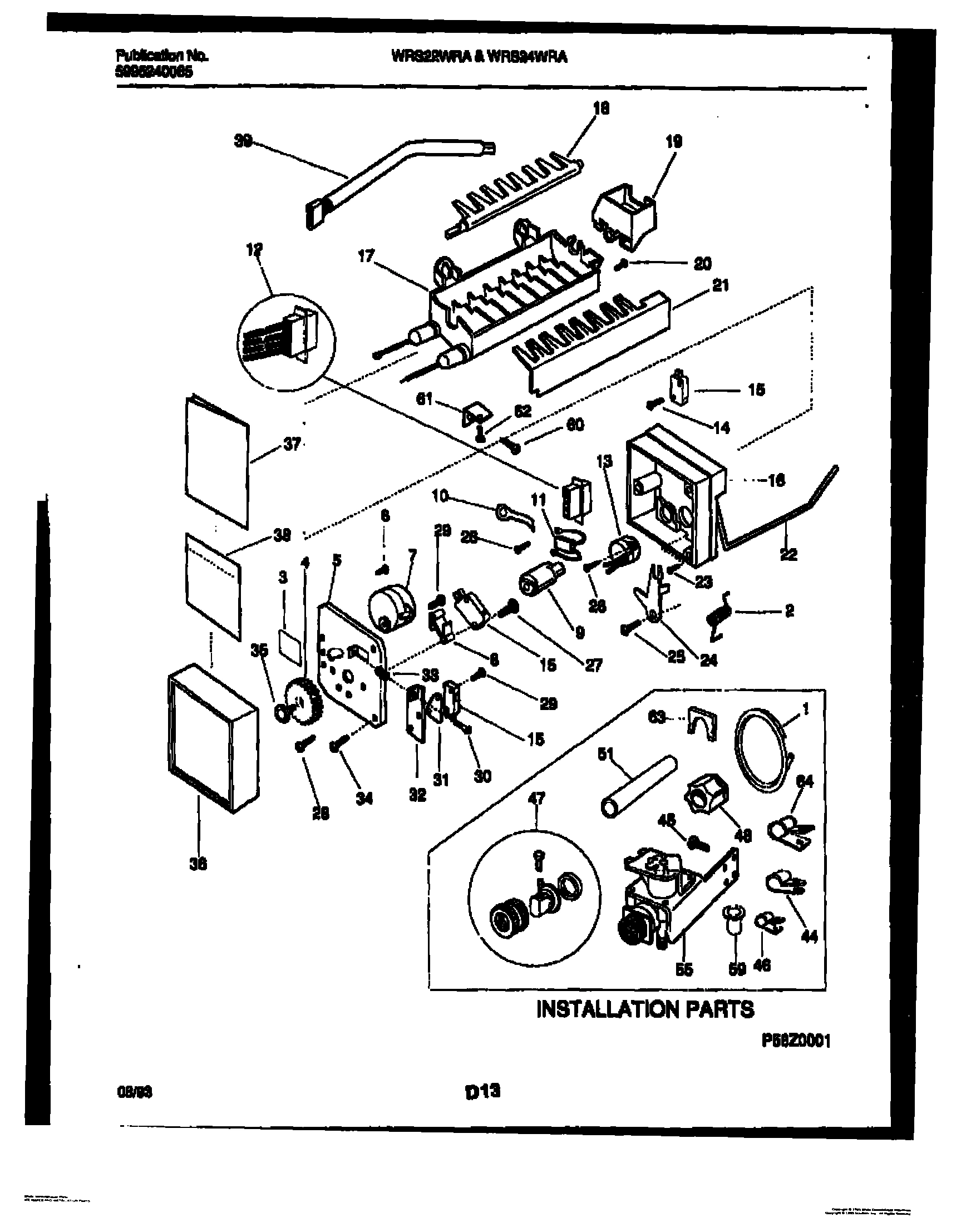

13 - ICE MAKER AND INSTALLATION PARTS

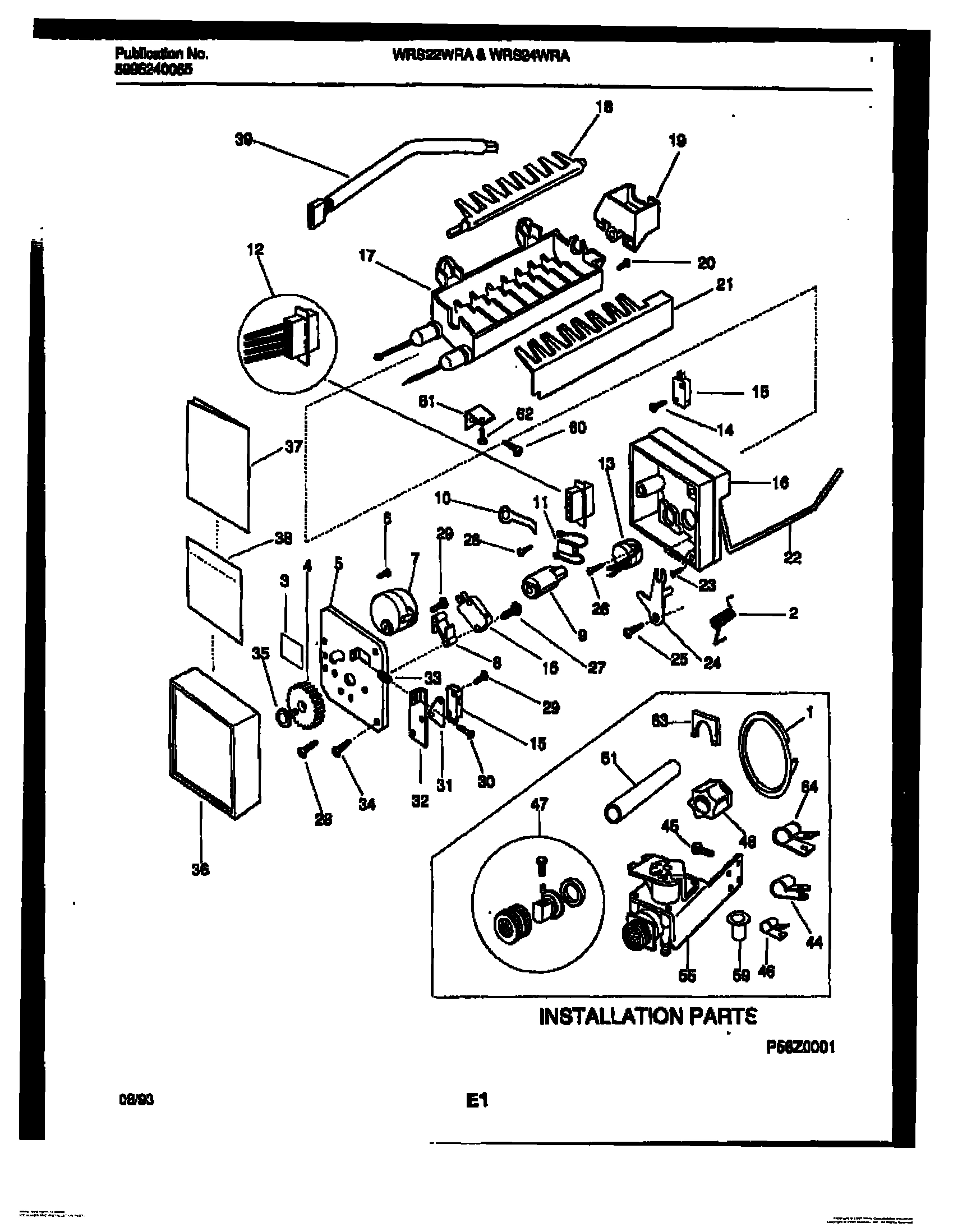

14 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux WRS24WRAD0 REFRIGERATOR
*77754
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*77762
WCI 215339900 WCI 215339900 Contact Us For Availability
*77769
WCI 5303917166 WCI 5303917166 Contact Us For Availability
*77774
WCI 215781700 WCI 215781700 Contact Us For Availability
1
WCI 215294101 WCI 215294101 Contact Us For Availability
1
WCI 215408100 WCI 215408100 Contact Us For Availability
1
WCI 215571300 WCI 215571300 Contact Us For Availability
1A
SPACER-TUBE (NON-ILLUSTRATED) WCI 5303208866 Contact Us For Availability
1A
CLAMP-WATER TUBE, NYLON (NON-ILLUSTRATED) WCI 5303204887 Contact Us For Availability
1B
WCI 5303289026 WCI 5303289026 Contact Us For Availability
2
WCI 5303289382 WCI 5303289382 Contact Us For Availability
2
WCI 215028602 WCI 215028602 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 215732118 WCI 215732118 Contact Us For Availability
2
WCI 215419000 WCI 215419000 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 215226501 WCI 215226501 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
WCI 215419200 WCI 215419200 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
3A
WCI 215305900 WCI 215305900 Contact Us For Availability
4
WCI 215922302 WCI 215922302 Contact Us For Availability
4
WCI 215417700 WCI 215417700 Contact Us For Availability
4A
WCI 215463900 WCI 215463900 Contact Us For Availability
5
WCI 215458900 WCI 215458900 Contact Us For Availability
5
WCI 215748105 WCI 215748105 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
5A
WCI 215013800 WCI 215013800 Contact Us For Availability
5B
WCI 215381000 WCI 215381000 Contact Us For Availability
6
WCI 215501700 WCI 215501700 Contact Us For Availability
6
WCI 215752800 WCI 215752800 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 215765600 WCI 215765600 Contact Us For Availability
7
WCI 215421609 WCI 215421609 Contact Us For Availability
8
WCI 215571200 WCI 215571200 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 5303289033 WCI 5303289033 Contact Us For Availability
8
WCI 215763500 WCI 215763500 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
GEAR-AUGER WCI 215419700 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 215793600 WCI 215793600 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
10A
WCI 215757200 WCI 215757200 Contact Us For Availability
11
WCI 5303296574 WCI 5303296574 Contact Us For Availability
11
SLIDE-SELECTOR SW, (PC BOARD) WCI 215253300 Contact Us For Availability
11
WCI 215755200 WCI 215755200 Contact Us For Availability
11A
WCI 5303296576 WCI 5303296576 Contact Us For Availability
12
PLUG, ``ONLY`` WCI 3206321 Contact Us For Availability
12
HARNESS-WIRING, INTERNAL IM, WITH PLUG WCI 3206349 Contact Us For Availability
12
WCI 215011600 WCI 215011600 Contact Us For Availability
12
WCI 215627211 WCI 215627211 Contact Us For Availability
12
GEAR-AUGER WCI 215420400 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215348100 WCI 215348100 Contact Us For Availability
13
WCI 215420600 WCI 215420600 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 5303289520 WCI 5303289520 Contact Us For Availability
14
WCI 215447500 WCI 215447500 Contact Us For Availability
14
WCI 215419900 WCI 215419900 Contact Us For Availability
14
SCREW-SW TO SUPPORT, 4-24 X 3/4, (2) WCI 3206323 Contact Us For Availability
15
EVAPORATOR, W/HEAT EXCHANGR WCI 215289604 Contact Us For Availability
15A
WCI 3206414 WCI 3206414 Contact Us For Availability
16
WCI 215767100 WCI 215767100 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
BOX-CONTROL,REFR WCI 5303296805 Contact Us For Availability
17
WCI 5303289496 WCI 5303289496 Contact Us For Availability
17
WCI 215630900 WCI 215630900 Contact Us For Availability
17
WCI 215754800 WCI 215754800 Contact Us For Availability
17A
WCI 5303296581 WCI 5303296581 Contact Us For Availability
18
WCI 215051005 WCI 215051005 Contact Us For Availability
18
WCI 215760200 WCI 215760200 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18A
WCI 215285500 WCI 215285500 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 215771000 WCI 215771000 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303297120 WCI 5303297120 Contact Us For Availability
20
WCI 215285301 WCI 215285301 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
20A
WCI 5303299931 WCI 5303299931 Contact Us For Availability
21
WCI 5303294323 WCI 5303294323 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 5303289320 No Longer Available
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 5303289030 WCI 5303289030 Contact Us For Availability
22
WCI 215763700 WCI 215763700 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 215447011 WCI 215447011 Contact Us For Availability
23
WCI 215755300 WCI 215755300 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
23A
WCI 215277000 WCI 215277000 Contact Us For Availability
23A
WCI 215755700 WCI 215755700 Contact Us For Availability
23B
WCI 215755800 WCI 215755800 Contact Us For Availability
23C
WCI 5303289058 WCI 5303289058 Contact Us For Availability
24
WCI 215571400 WCI 215571400 Contact Us For Availability
24
WCI 215069004 WCI 215069004 Contact Us For Availability
24
WCI 215918002 WCI 215918002 Contact Us For Availability
25
COVER-STORAGE PAN, UPPER & LOWER, (2) WCI 5303289587 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
25
WCI 215421400 WCI 215421400 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
25A
WCI 5303289586 WCI 5303289586 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
WCI 215254700 WCI 215254700 Contact Us For Availability
27
BEARING WCI 215748400 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
28
WCI 08013638 WCI 08013638 Contact Us For Availability
28
WCI 215447111 WCI 215447111 Contact Us For Availability
28
WCI 215755100 WCI 215755100 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WASHER, .160, NYLON WCI 215003200 Contact Us For Availability
29
WCI 5303297081 WCI 5303297081 Contact Us For Availability
29
WCI 5303917193 WCI 5303917193 Contact Us For Availability
29
WCI 215764300 WCI 215764300 Contact Us For Availability
29
WCI 215757501 WCI 215757501 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
29A
RETAINER-GLASS (NON-ILLUSTRATED) WCI 5303209742 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30
WCI 215753600 WCI 215753600 Contact Us For Availability
30
WCI 215757300 WCI 215757300 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
30A
TAPPING PLATE,RH(NON-ILLUSTRATED) WCI 5303289291 Contact Us For Availability
31
WCI 5303271616 WCI 5303271616 Contact Us For Availability
31
WCI 215764200 WCI 215764200 Contact Us For Availability
31
GEAR-CRUSHER WCI 215757400 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
32
WCI 215747502 WCI 215747502 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
32A
WCI 215748102 WCI 215748102 Contact Us For Availability
33
WCI 215280800 WCI 215280800 Contact Us For Availability
33
BEARING WCI 215748200 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 215763600 WCI 215763600 Contact Us For Availability
34
WCI 215748300 WCI 215748300 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
WCI 215764400 WCI 215764400 Contact Us For Availability
35
WCI 215753500 WCI 215753500 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
COVER-PC BOARD WCI 215254400 Contact Us For Availability
36
WCI 215756700 WCI 215756700 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
37
WCI 215763400 WCI 215763400 Contact Us For Availability
37
WCI 215756100 WCI 215756100 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
37A
WCI 215753400 WCI 215753400 Contact Us For Availability
37B
WCI 215753300 WCI 215753300 Contact Us For Availability
37C
WCI 215753200 WCI 215753200 Contact Us For Availability
37D
WCI 215753100 WCI 215753100 Contact Us For Availability
37E
WCI 215753000 WCI 215753000 Contact Us For Availability
37F
WCI 215253600 WCI 215253600 Contact Us For Availability
37G
WCI 215748104 WCI 215748104 Contact Us For Availability
37H
WCI 215839400 WCI 215839400 Contact Us For Availability
37I
SPACER (NON-ILLUSTRATED) WCI 215756200 Contact Us For Availability
38
WCI 215595600 WCI 215595600 Contact Us For Availability
38
WCI 215762200 WCI 215762200 Contact Us For Availability
38
WCI 215756900 WCI 215756900 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
38A
WCI 215630800 WCI 215630800 Contact Us For Availability
38B
WCI 215631000 WCI 215631000 Contact Us For Availability
38C
WCI 215763900 WCI 215763900 Contact Us For Availability
39
WCI 5303297079 WCI 5303297079 Contact Us For Availability
39
WCI 215253900 WCI 215253900 Contact Us For Availability
39
WCI 215757000 WCI 215757000 Contact Us For Availability
39
WCI 5303289065 WCI 5303289065 Contact Us For Availability
39A
TRIM-FRZR SHELF WCI 5303297080 Contact Us For Availability
40
WCI 5303288946 WCI 5303288946 Contact Us For Availability
40
WCI 5303300043 WCI 5303300043 Contact Us For Availability
40
WCI 215764100 WCI 215764100 Contact Us For Availability
40
WCI 215363000 WCI 215363000 Contact Us For Availability
41
WCI 215917800 WCI 215917800 Contact Us For Availability
41
WCI 5303289388 WCI 5303289388 Contact Us For Availability
41
WCI 215756800 WCI 215756800 Contact Us For Availability
41A
LOCK-SHELF TRIM, REAR (NON-ILLUSTRATED) WCI 5303211351 Contact Us For Availability
41A
NUT, ``U`` TYPE, NO. 8(A) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
42
WCI 215002301 WCI 215002301 Contact Us For Availability
42
WCI 215756000 WCI 215756000 Contact Us For Availability
42A
WCI 215002401 WCI 215002401 Contact Us For Availability
43
WCI 5303289059 WCI 5303289059 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
43
WCI 215755002 WCI 215755002 Contact Us For Availability
43A
SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) WCI 5308017044 Contact Us For Availability
43A
WCI 215752900 WCI 215752900 Contact Us For Availability
44
WCI 215163900 WCI 215163900 Contact Us For Availability
44
WCI 215285200 WCI 215285200 Contact Us For Availability
45
WCI 215762100 WCI 215762100 Contact Us For Availability
46
WCI 215042017 WCI 215042017 Contact Us For Availability
46
WCI 215763800 WCI 215763800 Contact Us For Availability
46A
WCI 215042016 WCI 215042016 Contact Us For Availability
47
ADAPTER-WATER SPLY WCI 3206360 Contact Us For Availability
47
WCI 5303288974 WCI 5303288974 Contact Us For Availability
47
WCI 5303297076 WCI 5303297076 Contact Us For Availability
47A
INSERT-PAN COVER, GLASS, CLEAR (NON-ILLUSTRAT WCI 5303289387 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
49
WCI 5303296573 WCI 5303296573 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
50
WCI 215918102 WCI 215918102 Contact Us For Availability
51
WCI 5303296575 WCI 5303296575 Contact Us For Availability
51
WCI 215922200 WCI 215922200 Contact Us For Availability
51
WCI 215811600 WCI 215811600 Contact Us For Availability
52
WCI 5303289294 WCI 5303289294 Contact Us For Availability
53
WCI 215553300 WCI 215553300 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54A
SCREW, PAN HEAD, 10-12 X 1/2 (NON-ILLUSTRATED WCI 215732700 Contact Us For Availability
54A
WCI 5303289311 WCI 5303289311 Contact Us For Availability
54B
WCI 5303289292 WCI 5303289292 Contact Us For Availability
55
WCI 215197400 WCI 215197400 Contact Us For Availability
55A
SCREW-SOLENOID VALVE, HX HD-SLOT WSHR, 12-24 WCI 215290100 Contact Us For Availability
55B
WCI 5303015102 WCI 5303015102 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 215073800 WCI 215073800 Contact Us For Availability
57A
WCI 5303289064 WCI 5303289064 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501800 WCI 215501800 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61
WCI 215766000 WCI 215766000 Contact Us For Availability
61A
NUT, SPEED (NON-ILLUSTRATED) WCI 215004700 Contact Us For Availability
61B
WCI 215223700 WCI 215223700 Contact Us For Availability
62
WCI 5303289517 WCI 5303289517 Contact Us For Availability
62
WCI 215048700 WCI 215048700 Contact Us For Availability
63
WCI 5300154167 WCI 5300154167 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
66
WCI 215050201 WCI 215050201 Contact Us For Availability
66A
WCI 215050101 WCI 215050101 Contact Us For Availability
67
WCI 5303297121 WCI 5303297121 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
71
WCI 215003300 WCI 215003300 Contact Us For Availability
71A
SCREW-CLIP/GRILLE,PAN HEAD, 6-AB X 1/4 C R WCI 215608400 Contact Us For Availability
72
WCI 5303295758 WCI 5303295758 Contact Us For Availability
74
SHEILD-LIGHT,FRZR WCI 5303289516 Contact Us For Availability
75
WCI 5303289052 WCI 5303289052 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
78A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
80
WCI 5303289037 WCI 5303289037 Contact Us For Availability
80A
WCI 5303289036 WCI 5303289036 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
84
WCI 5308010289 WCI 5308010289 Contact Us For Availability
85
WCI 215003803 WCI 215003803 Contact Us For Availability
89
WCI 215176300 WCI 215176300 Contact Us For Availability
90
WCI 215022602 WCI 215022602 Contact Us For Availability
91
WCI 215177600 WCI 215177600 Contact Us For Availability
96
WCI 215192600 WCI 215192600 Contact Us For Availability
98
CONNECTOR - TUBE WCI 5308015614 Contact Us For Availability
99
GROMMET-TANK WCI 5300186057 Contact Us For Availability
100
WCI 5303288973 No Longer Available
101
WCI 215305702 WCI 215305702 Contact Us For Availability
102
WCI 215134700 WCI 215134700 Contact Us For Availability
103
WCI 215413100 WCI 215413100 Contact Us For Availability
104
SUPPORT-ICE ACCESS DR WCI 5303001211 Contact Us For Availability
104A
SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X WCI 3001212 Contact Us For Availability
111
WCI 5303297842 WCI 5303297842 Contact Us For Availability
115
WCI 215011501 WCI 215011501 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
117
WCI 215011700 WCI 215011700 Contact Us For Availability
123
WCI 08014528 WCI 08014528 Contact Us For Availability
125
WCI 215334201 WCI 215334201 Contact Us For Availability
126
WCI 215205400 WCI 215205400 Contact Us For Availability
126A
WCI 215205200 WCI 215205200 Contact Us For Availability
× ![]()
