Model Whirlpool WRMC5036RV00 Refrigerator – Common Parts & Diagrams

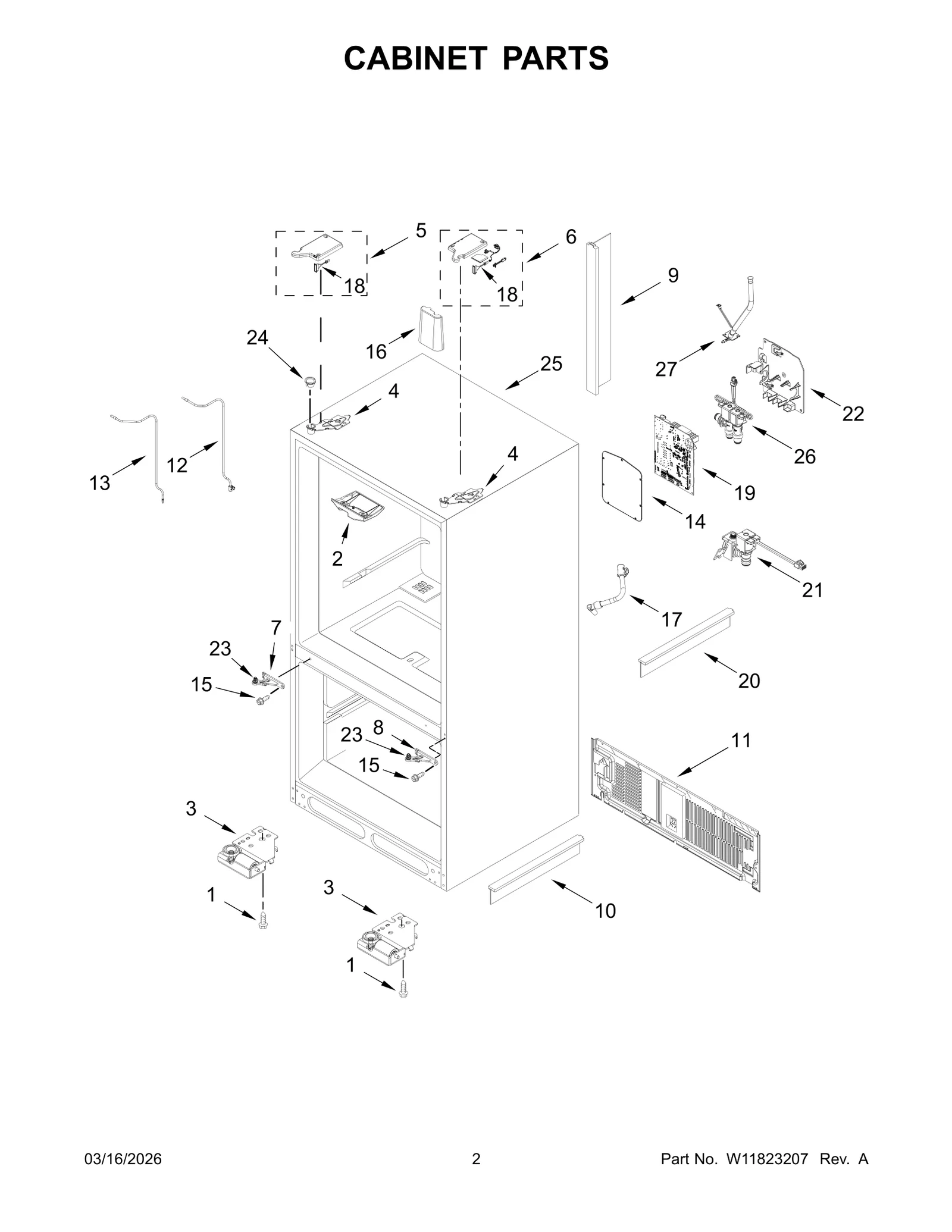

CABINET PARTS
REFRIGERATOR LINER PARTS
FREEZER LINER PARTS
REFRIGERATOR DOOR PARTS
FREEZER DOOR PARTS
UNIT PARTS
SHELF PARTS
DISPENSER FRONT PARTS
ICEMAKER AND ICE CONTAINER PARTS
OPTIONAL PARTS
Common parts from model Whirlpool WRMC5036RV00 Refrigerator
1
Housing, Dispenser WPL N/S Contact Us For Availability
1
Water Reservoir WPL W11556227 Contact Us For Availability
1
Left Door Assembly WPL W11671934 Contact Us For Availability
1
Freezer Door Assembly (Black Stainless) WPL W11782009 Contact Us For Availability
1
Compressor Baseplate WPL W11543386 Contact Us For Availability
1
Stationary Shelf Assembly WPL W11579004 Contact Us For Availability
1
Icemaker Assembly WPL W11621160 Contact Us For Availability
2
Filter Housing Assembly WPL W11611400 Contact Us For Availability
2
Evaporator Assembly WPL W11646272 Contact Us For Availability
2
Right Door Assembly WPL W11672800 Contact Us For Availability
2
Screw WPL W10142287 Contact Us For Availability
2
Drawer Assembly, Pantry WPL W11579341 Contact Us For Availability
2
UI Assembly WPL W11606792 Contact Us For Availability
2
Ice Chute Assembly WPL W11603209 Contact Us For Availability
3
Air Tower Assembly WPL W11547385 Contact Us For Availability
3
Reed Switch Holder WPL W11658592 Contact Us For Availability
3
Ice Door Assembly WPL W11567178 Contact Us For Availability
3
Water Tray WPL W11678106 Contact Us For Availability
3
Glass Crisper Cover WPL W11664743 Contact Us For Availability
3
False Wall (Black) WPL W11623959 Contact Us For Availability
4
Evaporator Cover Assembly WPL W11608168 Contact Us For Availability
4
Door Stopper (Black, Left Hand) WPL W11681260 Contact Us For Availability
4
Basket Bottom Assembly WPL W11534704 Contact Us For Availability
4
Crisper Assembly WPL W11692920 Contact Us For Availability
4
Dispenser Water Pad WPL W11595619 Contact Us For Availability
4
Ice Bin Assembly WPL W11620276 Contact Us For Availability
5
Damper Assembly WPL W11512870 Contact Us For Availability
5
Evaporator Wire Assembly WPL W11559733 Contact Us For Availability
5
Mullion Assembly WPL W11555618 Contact Us For Availability
5
Freezer Door Gasket WPL W11586644 Contact Us For Availability
5
Condenser Assembly WPL W11668494 Contact Us For Availability
5
Divider, Drawer WPL W11579736 Contact Us For Availability
5
Separator, Dispenser WPL W11579851 Contact Us For Availability
6
Water Filter Housing Plug WPL W11669931 Contact Us For Availability
6
Icebox Fan Assembly WPL W11620573 Contact Us For Availability
6
Door Duct Retainer WPL W11685003 Contact Us For Availability
6
Adapter Clip WPL W11578447 Contact Us For Availability
6
Tube Assembly WPL W11614556 Contact Us For Availability
6
Slider and Roller Assembly (Pantry) WPL W11604800 Contact Us For Availability
6
Drip Tray (Black) WPL W11599252 Contact Us For Availability
6
Dispenser Motor WPL W11722714 Contact Us For Availability
7
Light Strip WPL W11549349 Contact Us For Availability
7
Wire Jumper Assembly WPL W11627842 Contact Us For Availability
7
Dispenser Water Tube WPL W11576674 Contact Us For Availability
7
Adapter Assembly WPL W11578796 Contact Us For Availability
7
Adapter Assembly WPL W11578810 Contact Us For Availability
7
Compressor WPL W11754926 Contact Us For Availability
7
Pan Divider (Storage) WPL W11606499 Contact Us For Availability
7
Ice Dispenser Pad WPL W11595616 Contact Us For Availability
8
EPS Holder WPL W11733721 Contact Us For Availability
8
Defrost Heater WPL W11560604 Contact Us For Availability
8
Door Stopper (Black, Right Hand) WPL W11681256 Contact Us For Availability
8
Bottom Basket Divider WPL W11727685 Contact Us For Availability
8
Condenser Fan Assembly WPL W11613932 Contact Us For Availability
8
Magnet Enclosure Assembly (White) WPL W11604803 Contact Us For Availability
8
Microswitch Tray WPL W11577793 Contact Us For Availability
9
Air Return Duct Grille WPL W11608374 Contact Us For Availability
9
Defrost Heater Clip WPL W11365795 Contact Us For Availability
9
Refrigerator Door Gasket (Grey) WPL W11586647 Contact Us For Availability
9
Slider Basket WPL W11632631 Contact Us For Availability
9
Precooler Assembly WPL W11610529 Contact Us For Availability
9
Crisper Cover Frame WPL W11606487 Contact Us For Availability
9
Dispenser Tray WPL W11592235 Contact Us For Availability
10
Air Return Grille WPL W11615361 Contact Us For Availability
10
Air Dam (Left Hand) WPL W11563438 Contact Us For Availability
10
Air Dam (Right Hand) WPL W11563437 Contact Us For Availability
10
Gallon Bin WPL W11695930 Contact Us For Availability
10
Shaft Rack Assembly WPL W11611561 Contact Us For Availability
10
EMI Filter WPL W11670949 Contact Us For Availability
10
Shelf Ladder (White, Right Hand) WPL W11611220 Contact Us For Availability
10
Paddle Wire Assembly WPL W11577046 Contact Us For Availability
11
Torsion Spring WPL W10672578 Contact Us For Availability
11
Wire Jumper Assembly WPL W11669736 Contact Us For Availability
11
Door Bushing (Grey, Right Hand) WPL W11562282 Contact Us For Availability
11
Top Basket Assembly WPL W11629546 Contact Us For Availability
11
Drain Tube Extension WPL W11559668 Contact Us For Availability
11
Shelf Ladder (White, Left Hand) WPL W11611219 Contact Us For Availability
12
False Wall, RC (White) WPL W11608392 Contact Us For Availability
12
Heat Shield Assembly WPL W11547363 Contact Us For Availability
12
Dispenser Bin (Left Hand) WPL W11692527 Contact Us For Availability
12
Shelf Ladder (White, Center) WPL W11611187 Contact Us For Availability
13
Water Filter Housing Cover (Lower) WPL W11611401 Contact Us For Availability
13
Door Bushing (Grey, Left Hand) WPL W11562283 Contact Us For Availability
13
Crisper Roller Assembly WPL W11606482 Contact Us For Availability
13
Foam Gasket WPL W11745627 Contact Us For Availability
14
Dispenser Seal WPL W11728424 Contact Us For Availability
14
Damper Assembly WPL W11619893 Contact Us For Availability
14
Trivet Bin WPL W11692531 Contact Us For Availability
14
Pan Support WPL W11604038 Contact Us For Availability
14
Front Shroud WPL W11613272 Contact Us For Availability
14
Side Support Knob WPL W11607351 Contact Us For Availability
14
Bracket Assembly WPL W11578036 Contact Us For Availability
15
Door Supply Duct Assembly WPL W11740632 Contact Us For Availability
15
Screw WPL W11113841 Contact Us For Availability
15
Inverter Connector Cover WPL W11682571 Contact Us For Availability
15
Pantry Adpater Assembly (Left Hand) WPL W11579321 Contact Us For Availability
15
Pantry Adapter Assembly (Right Hand) WPL W11579336 Contact Us For Availability
15
Sound Insulation WPL W11743056 Contact Us For Availability
16
Port Lid Assembly WPL W11724694 Contact Us For Availability
16
Return Duct Assembly WPL W11740633 Contact Us For Availability
16
Pan Support WPL W11612780 Contact Us For Availability
16
Baseplate Gasket WPL W11642492 Contact Us For Availability
17
False Wall, Lower WPL W11608398 Contact Us For Availability
17
Roller Cover WPL W11613273 Contact Us For Availability
17
Crisper Base Assembly WPL W11606475 Contact Us For Availability
18
Wire Assembly WPL W11595064 Contact Us For Availability
18
Center Support Assembly WPL W11606478 Contact Us For Availability
19
Reed Switch WPL W11553901 Contact Us For Availability
19
Rear Shroud WPL W11611636 Contact Us For Availability
19
Crisper Adapter (Left Hand) WPL W11606483 Contact Us For Availability
20
Air Bottom Separator WPL W11676389 Contact Us For Availability
20
Retainer Plug WPL W11719970 Contact Us For Availability
20
Clip WPL 2223913 Contact Us For Availability
20
Crisper Adapter (Right Hand) WPL W11606485 Contact Us For Availability
21
Single Water Valve WPL W11454773 Contact Us For Availability
21
Retainer Bracket WPL W11684787 Contact Us For Availability
21
Inverter Box Assembly WPL W11754928 Contact Us For Availability
21
Falls Wall WPL W11606492 Contact Us For Availability
22
Triple Valve Bracket WPL W11541794 Contact Us For Availability
22
Supply Gasket WPL W11611713 Contact Us For Availability
22
Side Support Flange WPL W10840918 Contact Us For Availability
23
Door Coupler WPL W10505294 Contact Us For Availability
24
Shaft Assembly WPL W11604593 Contact Us For Availability
25
Pantry Door Assembly WPL W11679937 Contact Us For Availability
26
Dual Water Valve WPL W11454781 Contact Us For Availability
26
Pantry Door Gasket WPL W11608640 Contact Us For Availability
27
Wire, RC Jumper WPL W11669756 Contact Us For Availability
28
Storage Pan WPL W11692922 Contact Us For Availability
29
Reed Switch WPL W11548358 Contact Us For Availability
30
Holder, Reed Switch WPL W11604590 Contact Us For Availability
31
LED Light Module WPL W11598835 Contact Us For Availability
× ![]()
