Model Whirlpool WM2750B ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

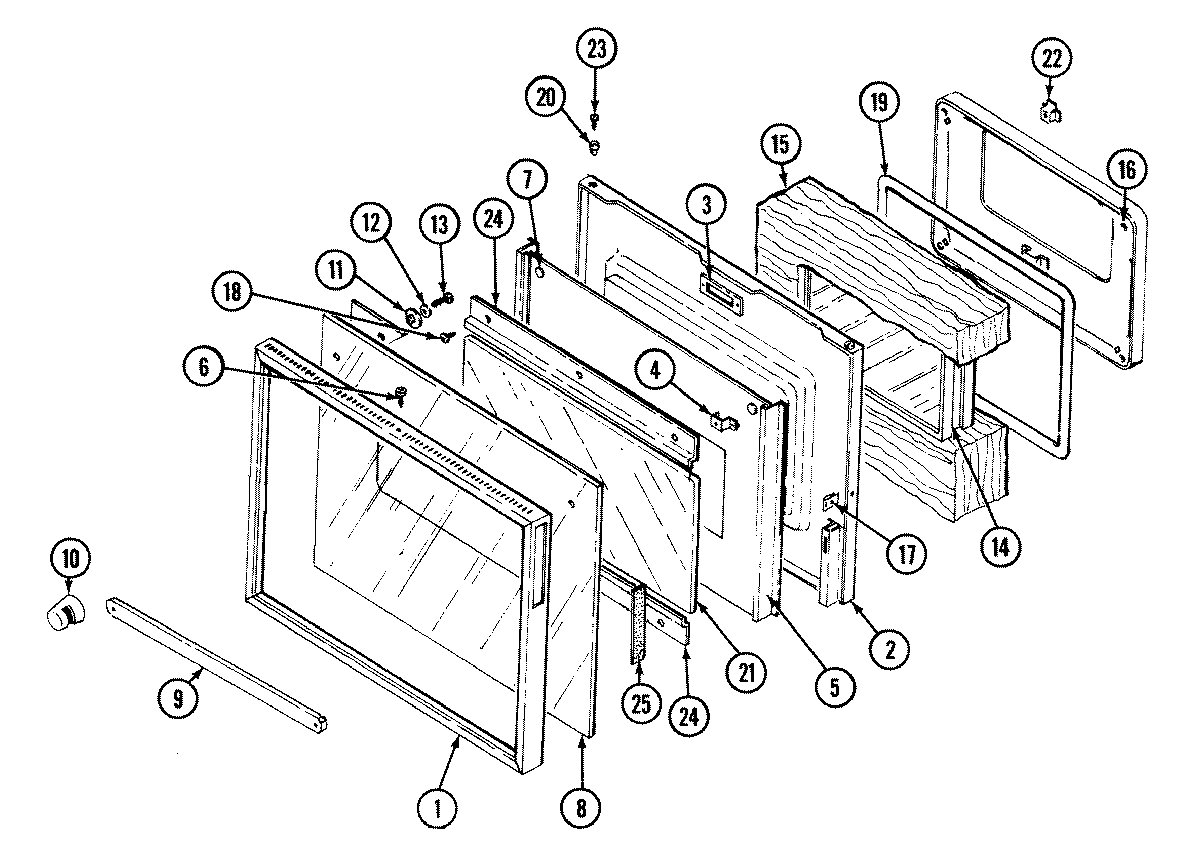

07 - DOOR (LOWER)

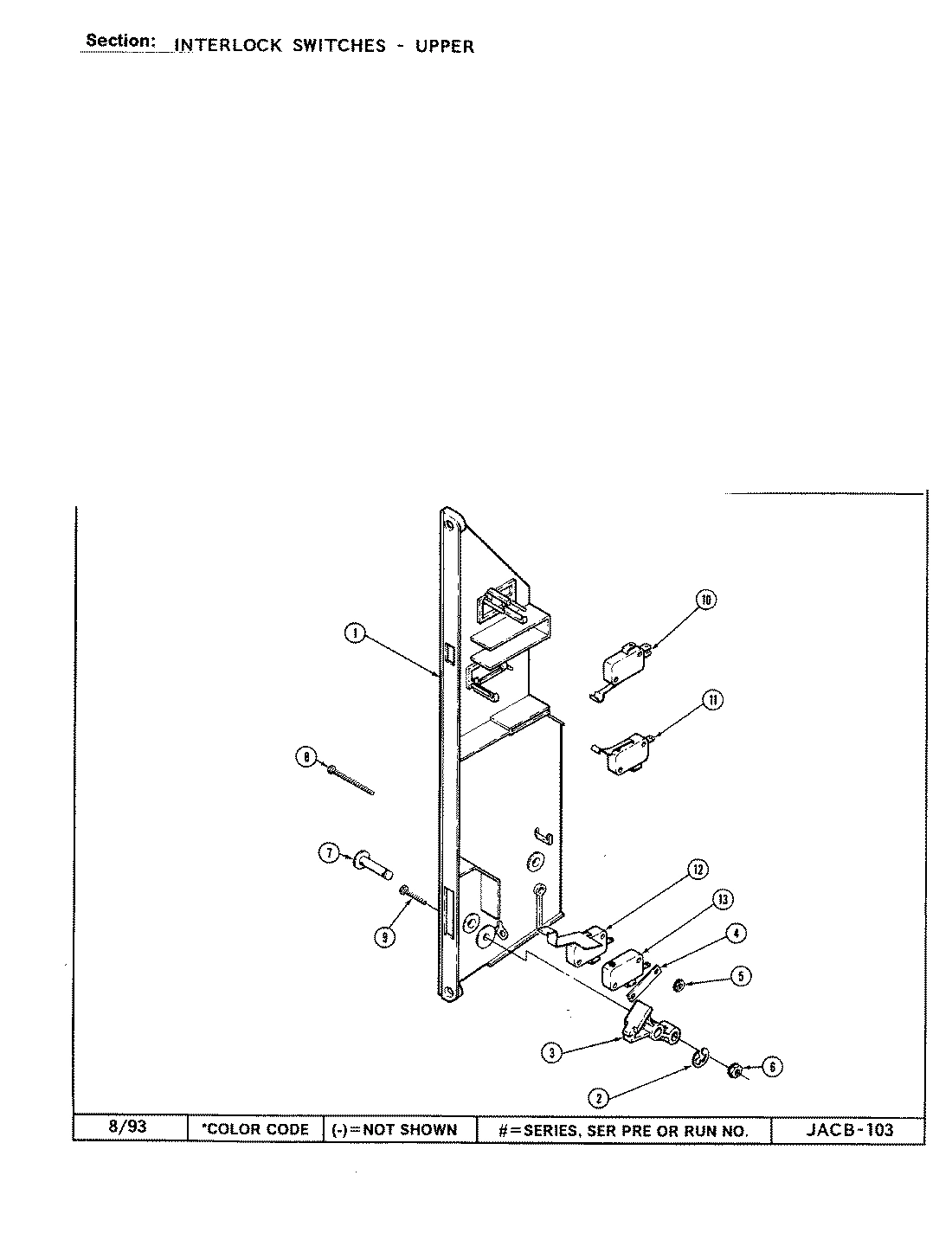

09 - INTERLOCK SWITCHES-UPPER

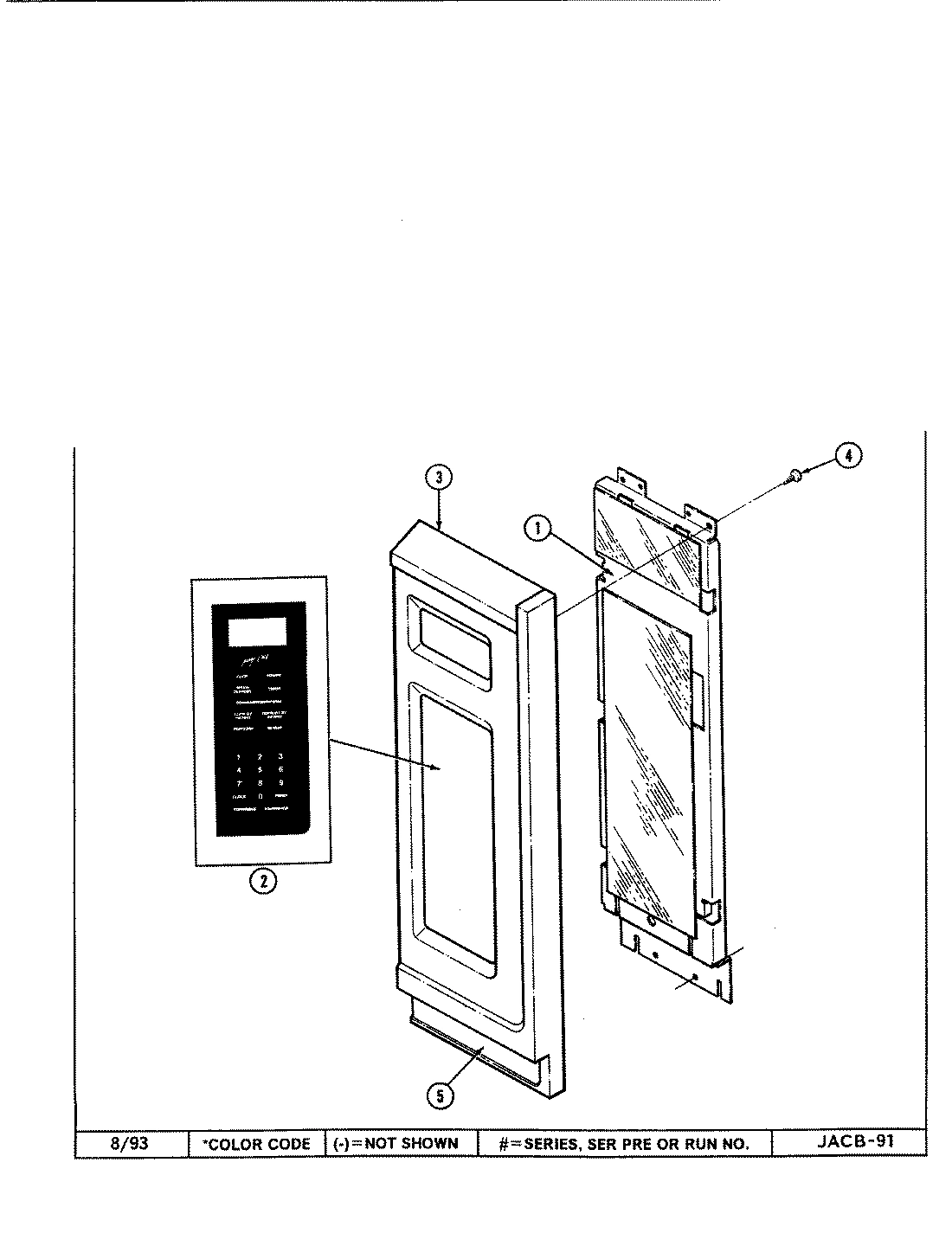

06 - CONTROL PANEL-UPPER (M167)

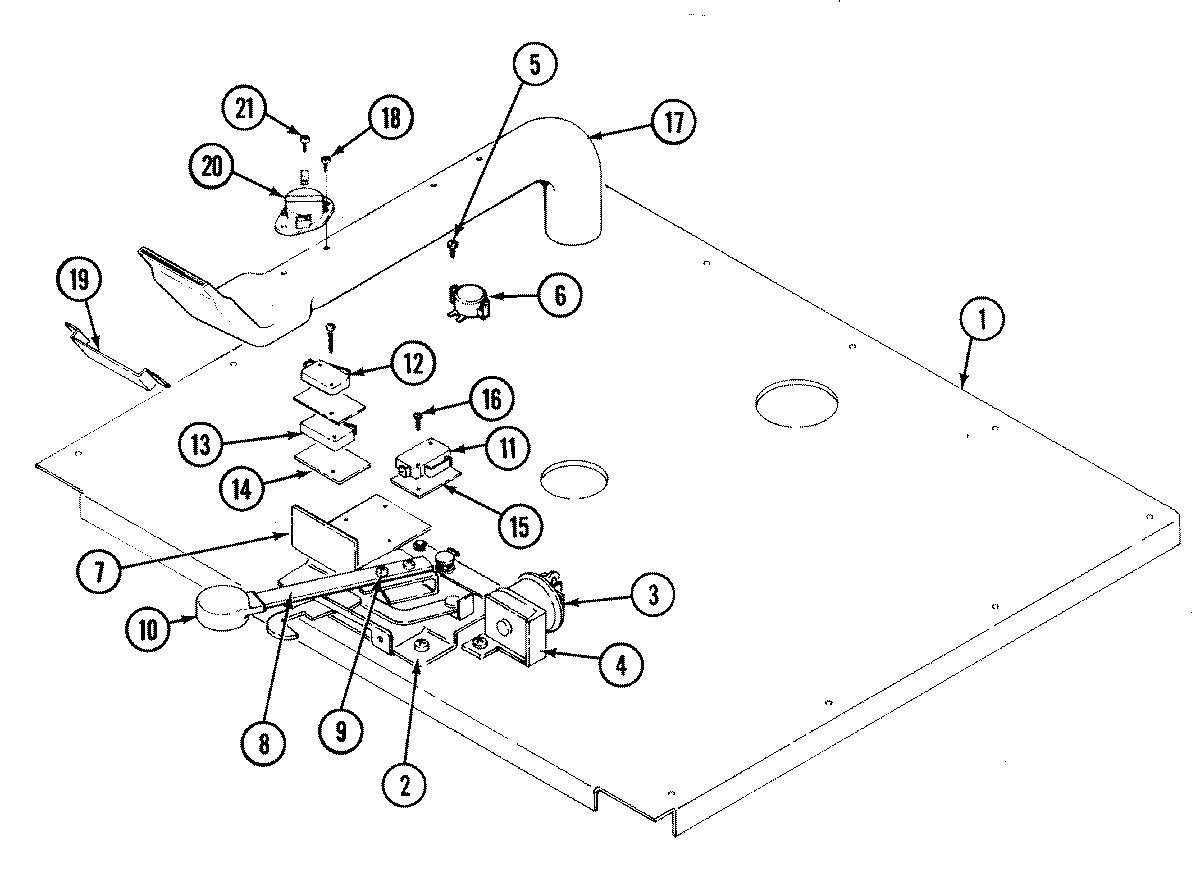

10 - INTERNAL CONTROLS (LOWER)

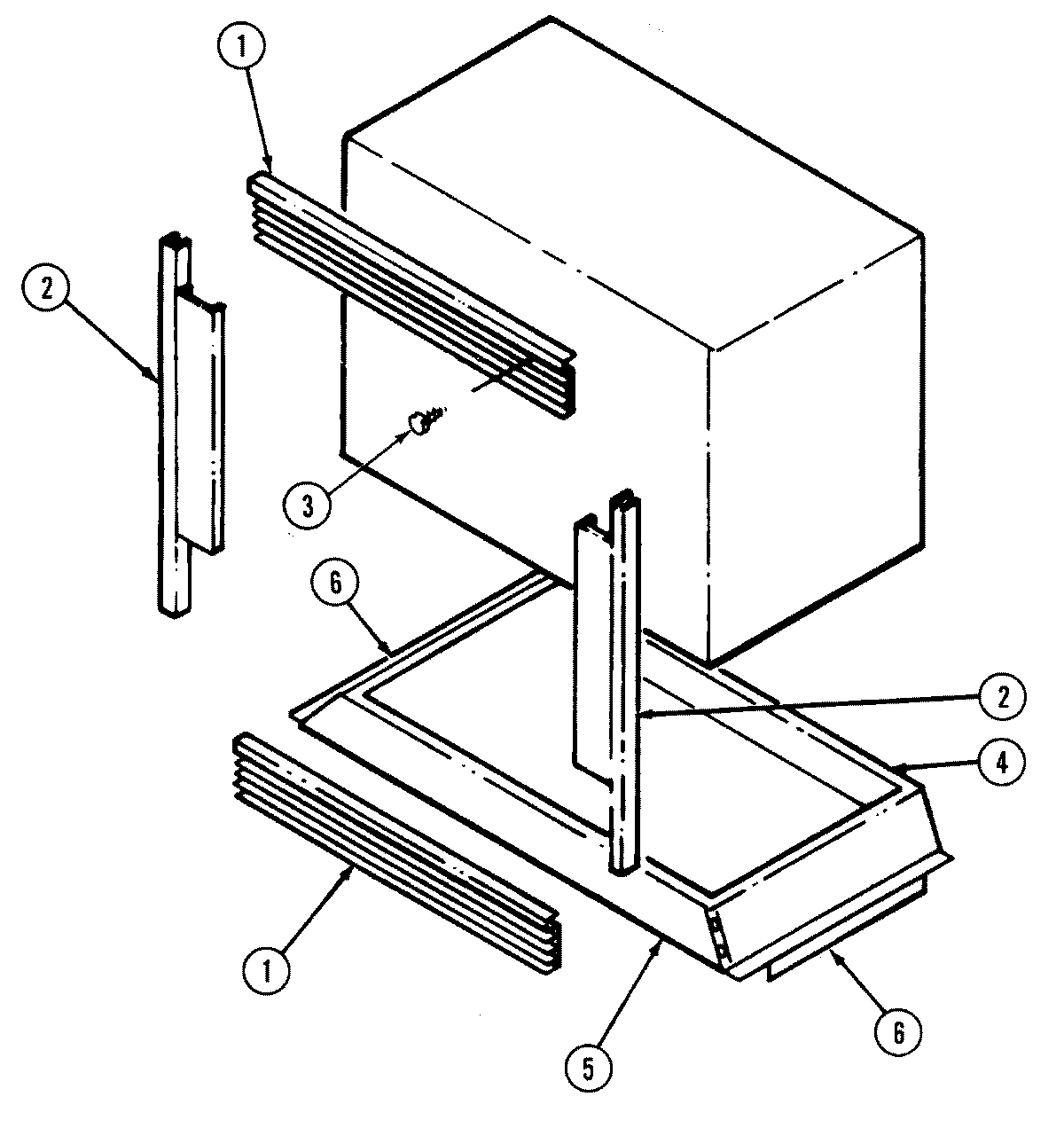

13 - TRIM-MICROWAVE (M167)

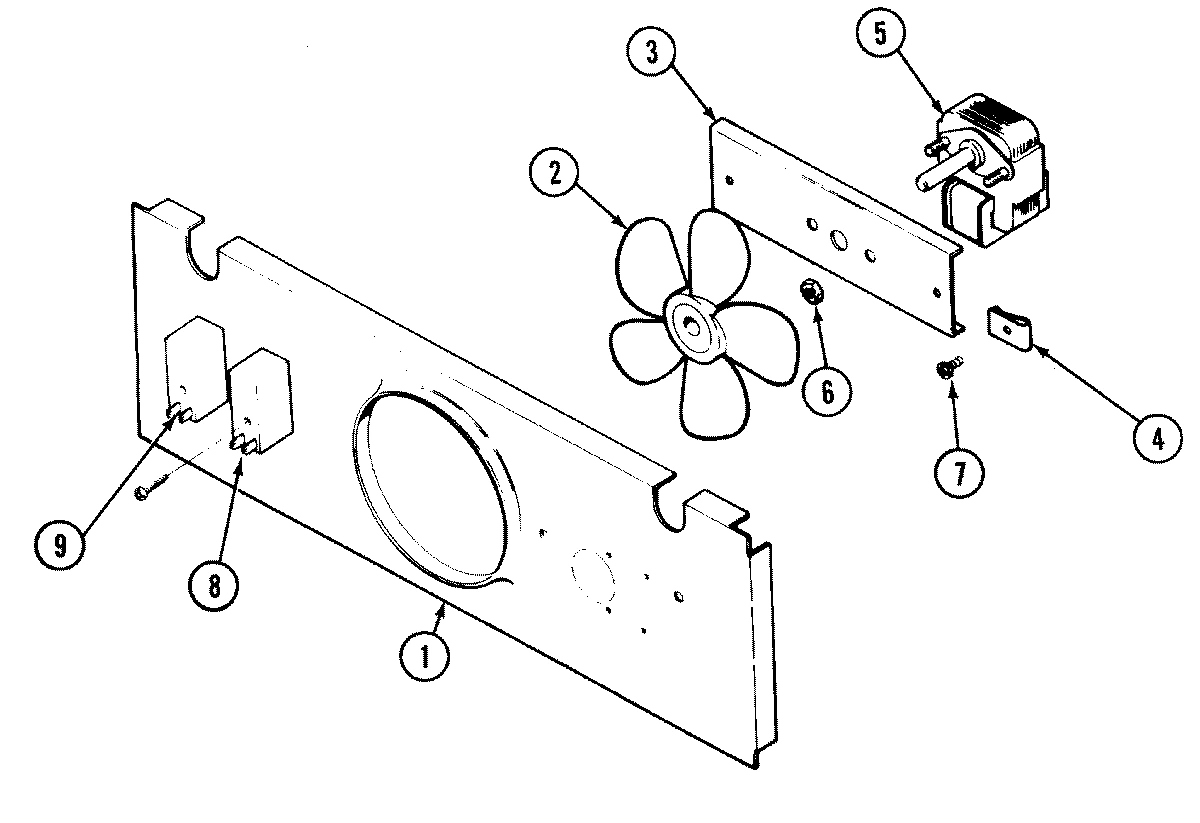

02 - BLOWER MOTOR (COOLING)

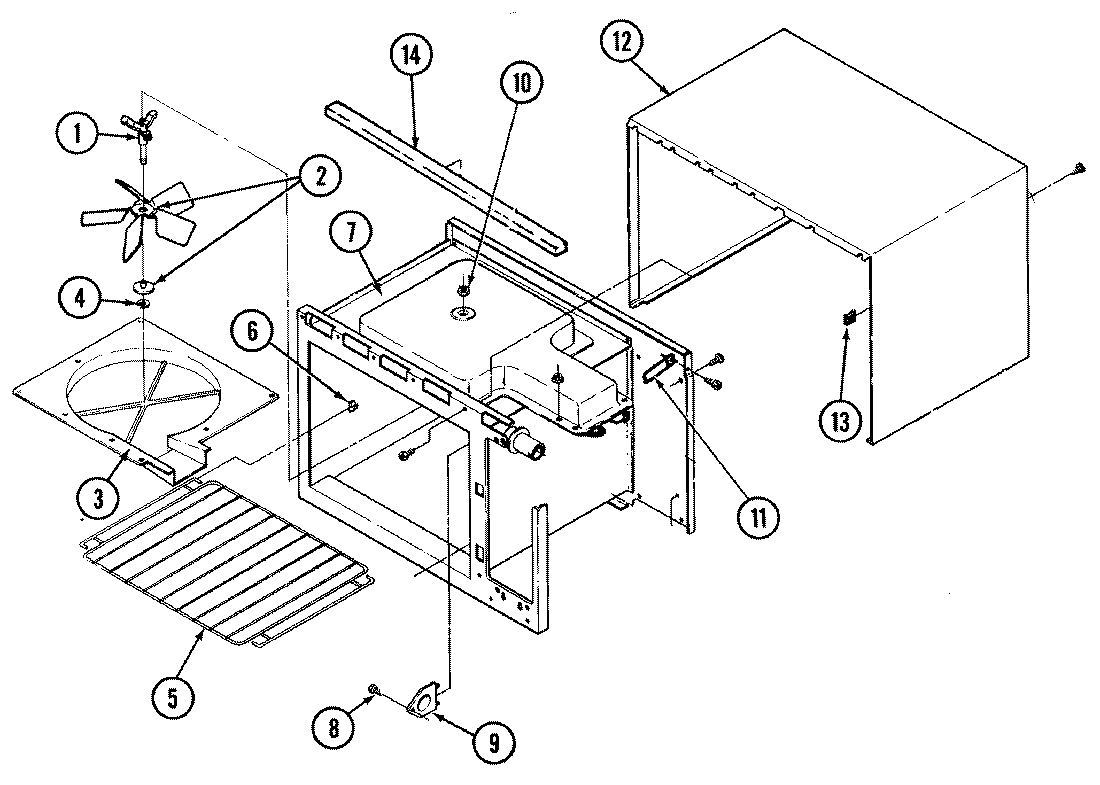

04 - BODY-UPPER (M167)

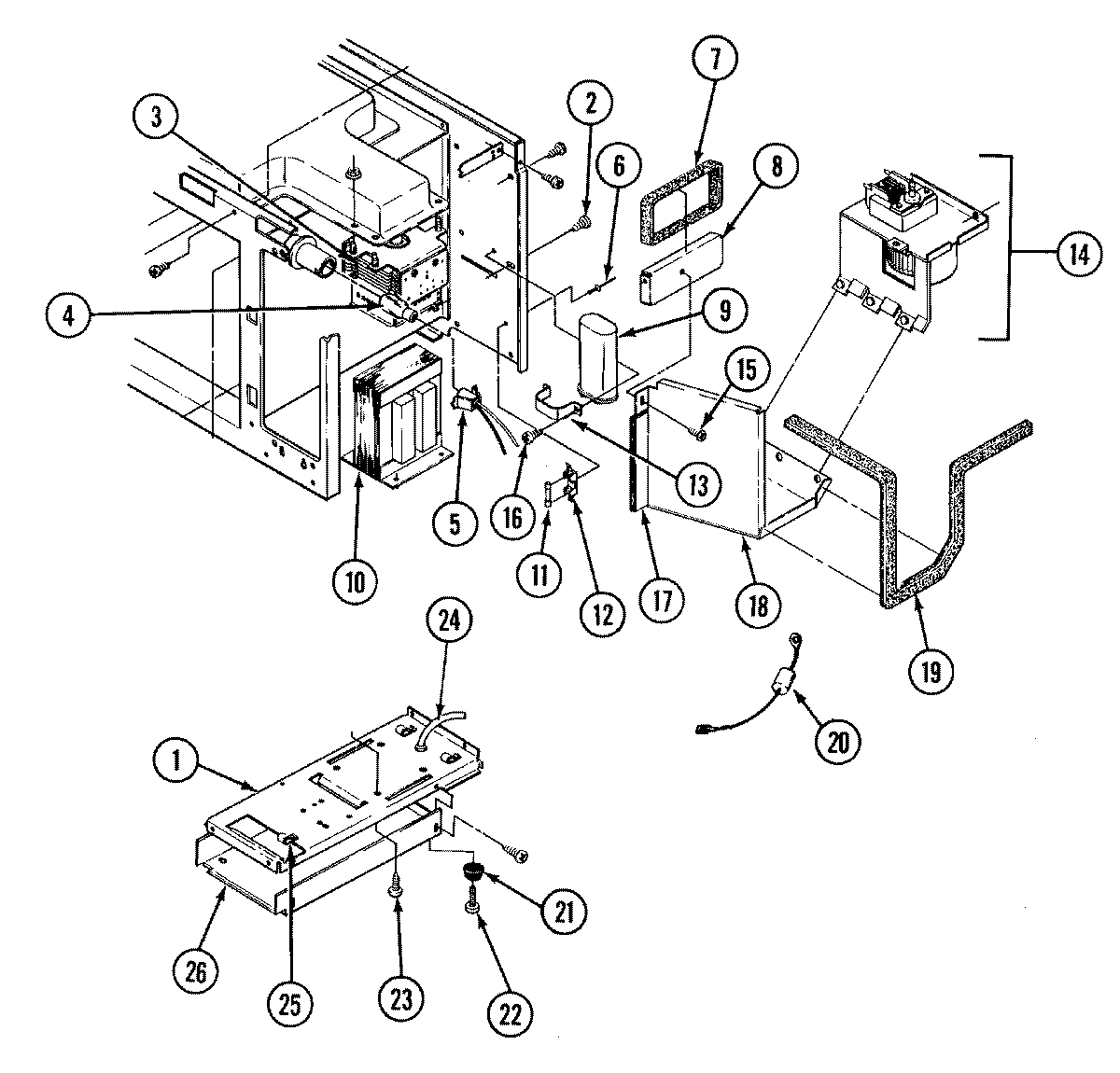

11 - INTERNAL CONTROLS-UPPER

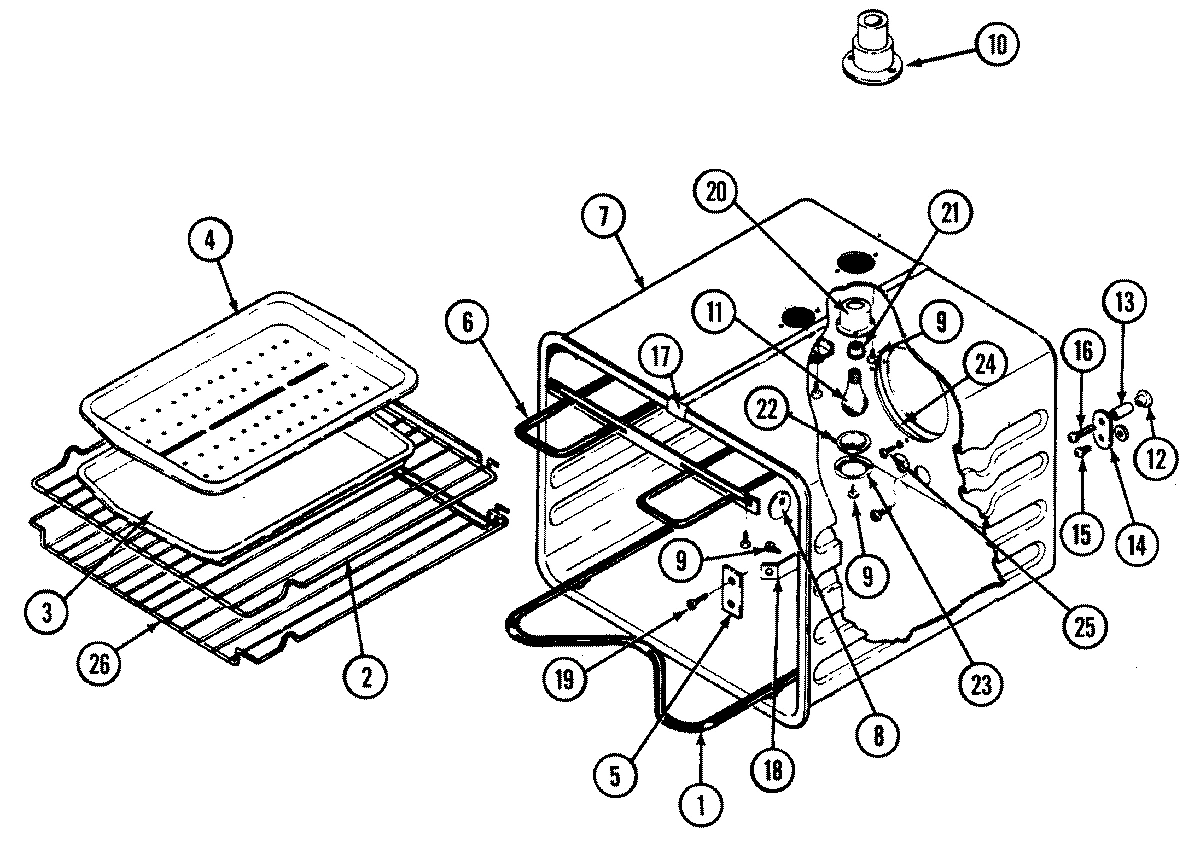

12 - OVEN (LOWER)

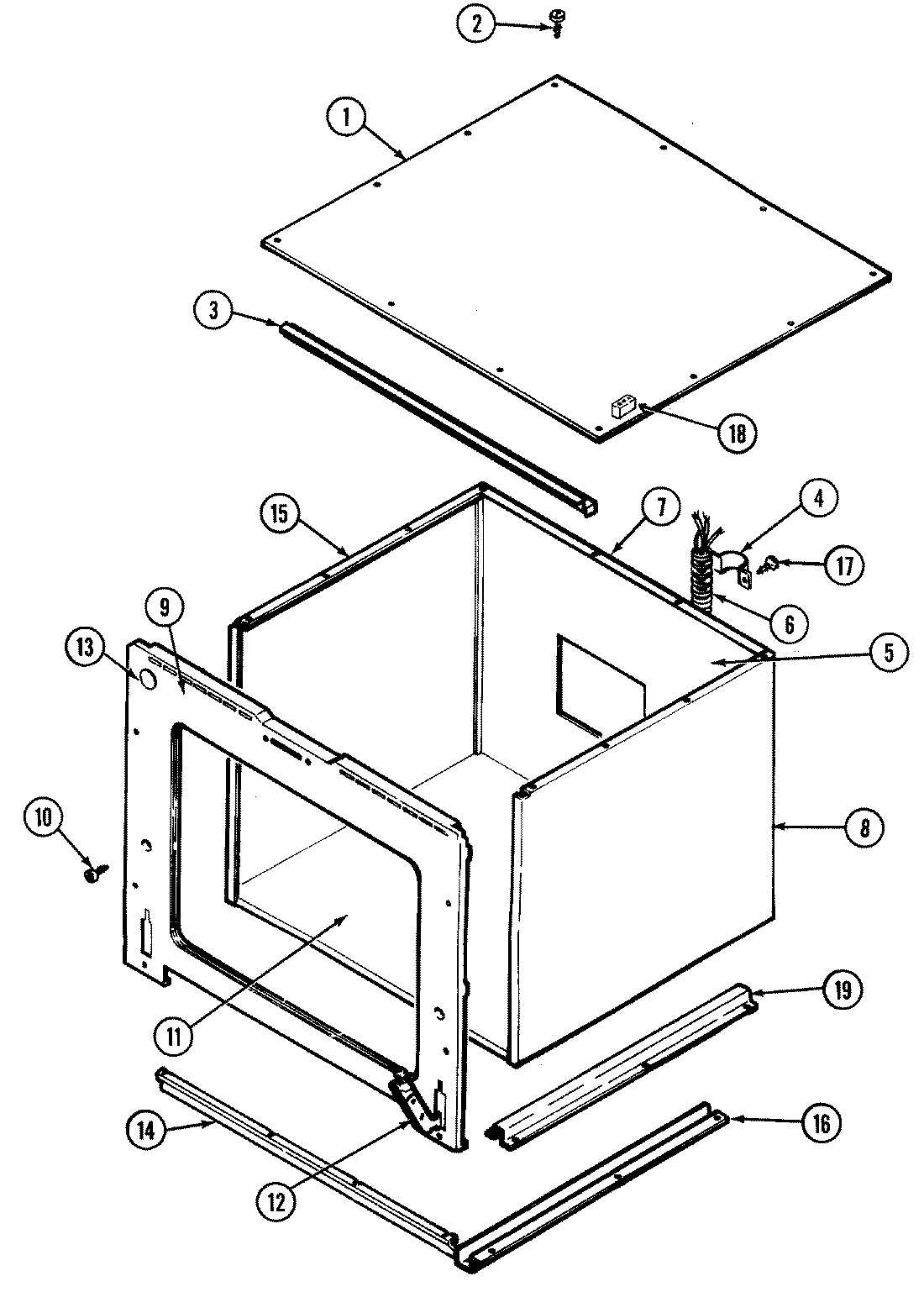

03 - BODY (LOWER)

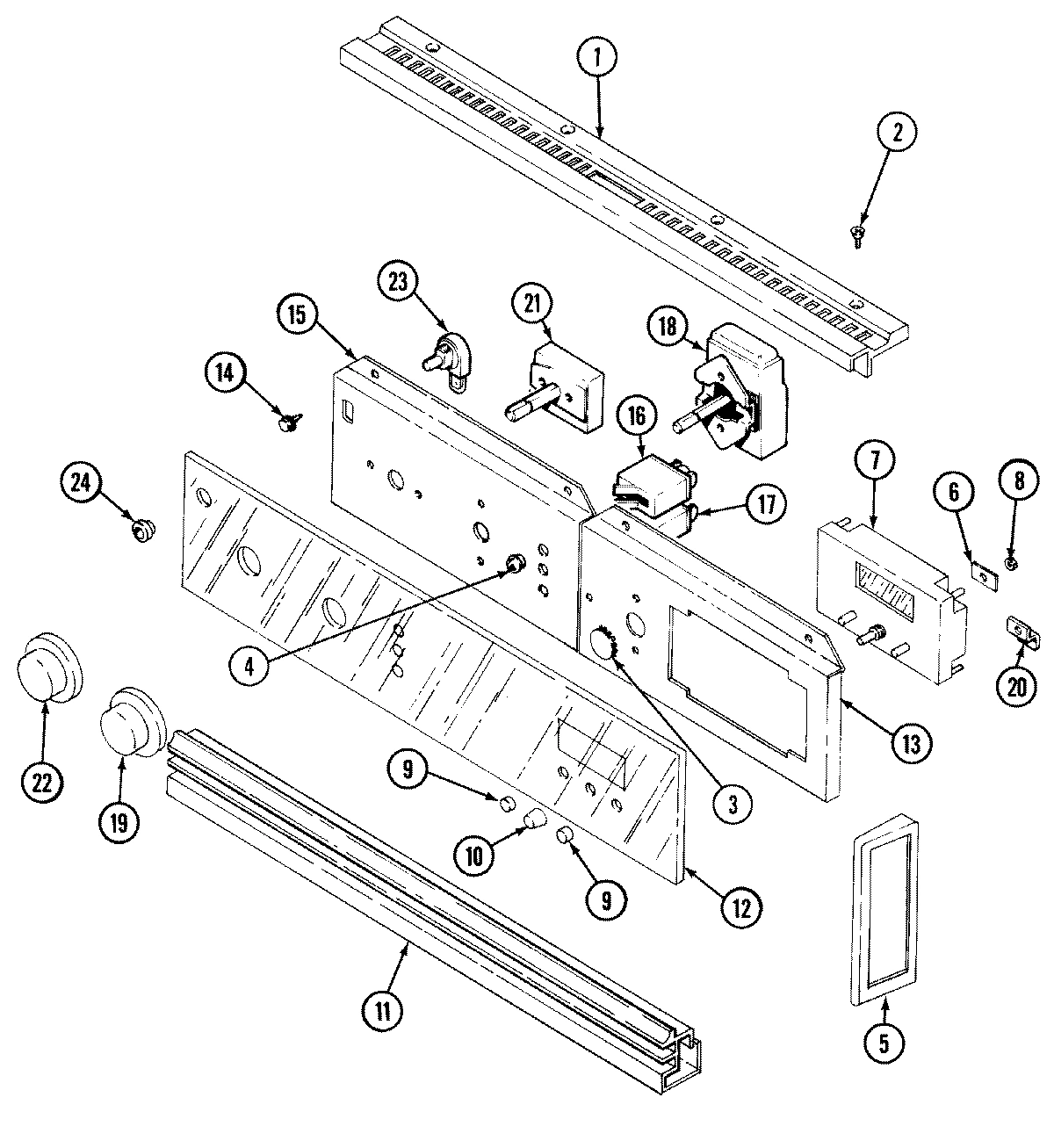

05 - CONTROL PANEL (LOWER)

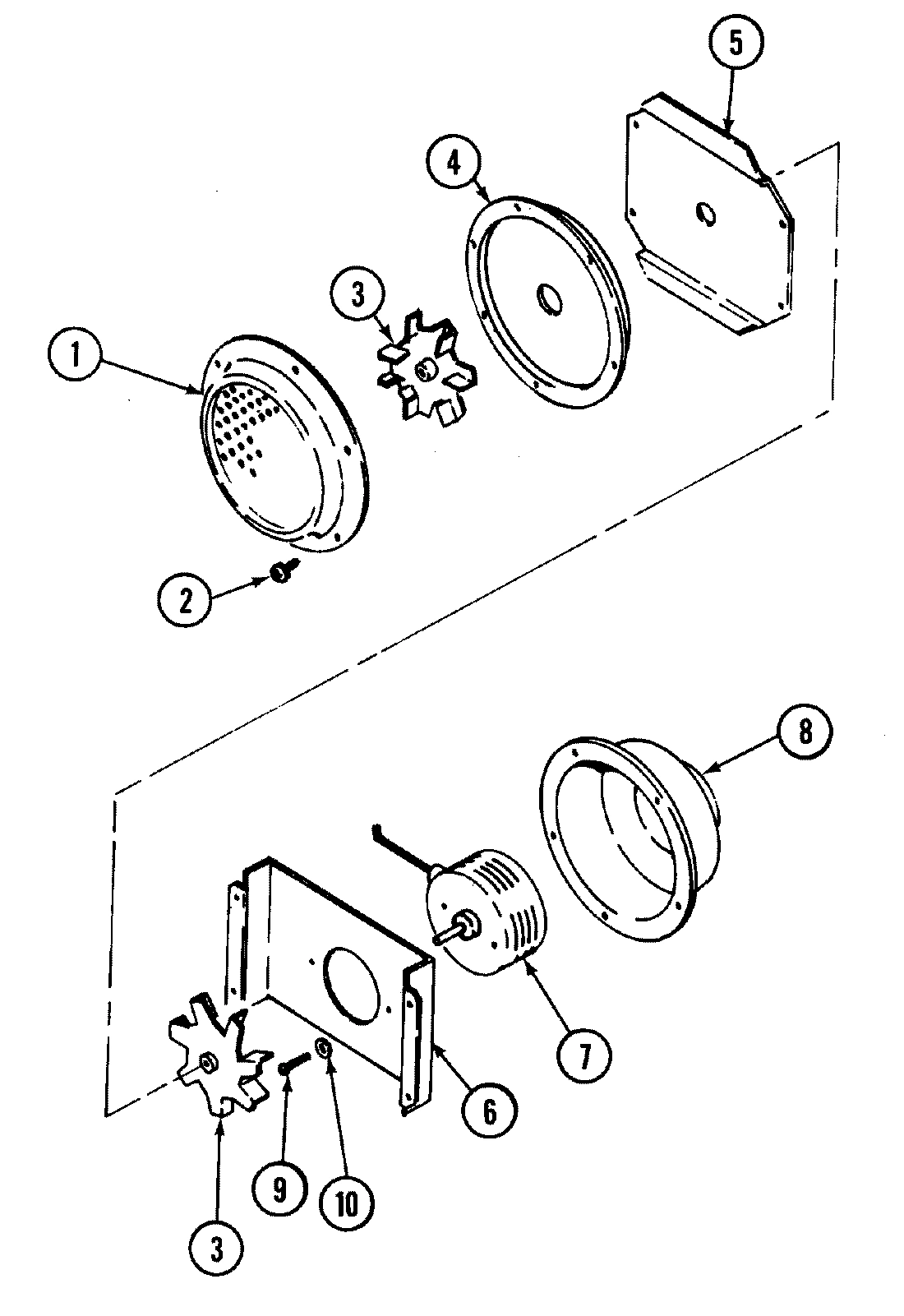

01 - BLOWER MOTOR (CONVECTION)

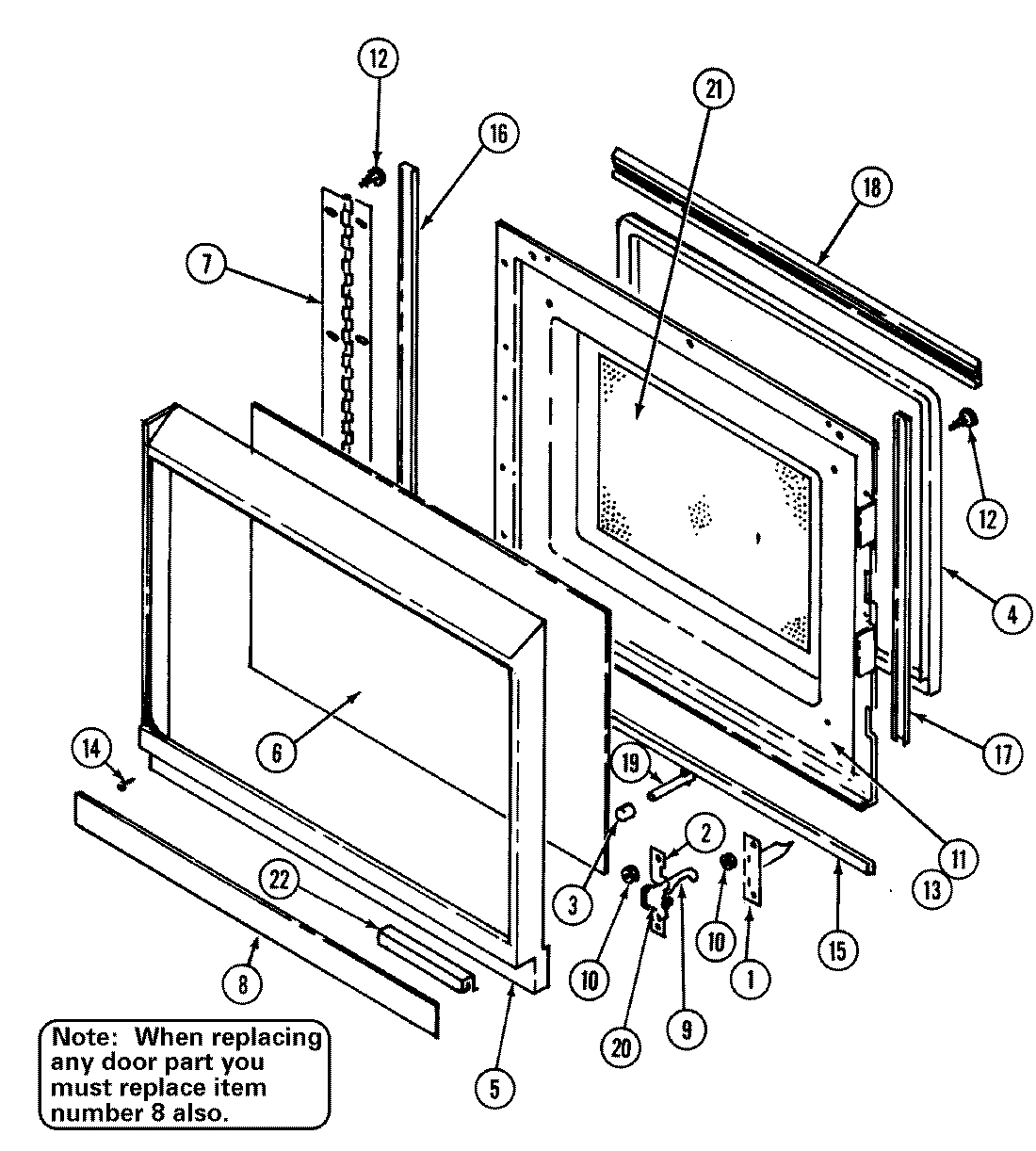

08 - DOOR-UPPER (M167)
Common parts from model Whirlpool WM2750B ELECTRIC WALL OVEN/MICROWAVE COMBO
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
BOARD, CONTROL WPL 01210107 Contact Us For Availability
1
BRACKET, CONTROL WPL Y02030173 Contact Us For Availability
1
PANEL, INNER TOP WPL 04100559 Contact Us For Availability
1
EXTRUSION, TOP/BOTTOM WPL 704676 Contact Us For Availability
1
SHROUD, FAN WPL 04100560 Contact Us For Availability
1
SHAFT, STIRRER WPL 02360058 Contact Us For Availability
1
PLATE, COMPONENT MOUNTING WPL Y02040101 Contact Us For Availability
1
ELEMENT, BAKE WPL Y04100387 Contact Us For Availability
1
TOP, UNIT (OUTER) WPL 04100567 Contact Us For Availability
1
EXTRUSION, TOP (BLK) WPL 04100540 Contact Us For Availability
1
PLATE, CONVECTION FRONT WPL 71001378 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
2
RACK, OVEN WPL Y704660 Contact Us For Availability
2
LINER, DOOR WPL Y04100543 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
SWITCH PANEL WPL 02060377 Contact Us For Availability
2
LATCH ASSY. WPL Y703357 Contact Us For Availability
2
EXTRUSION, SIDE WPL 704395 Contact Us For Availability
2
BLADE, FAN WPL 702944 Contact Us For Availability
2
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
2
SCREW WPL 712066 Contact Us For Availability
2
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
2
SCREW WPL Y03010113 Contact Us For Availability
3
PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
INSERT, BLACK WPL 02100256 Contact Us For Availability
3
PIN, COTTER WPL Y701686 Contact Us For Availability
3
SCREW WPL 703534 Contact Us For Availability
3
MOUNT, MOTOR WPL Y704732 Contact Us For Availability
3
COVER, STIRRER WPL Y02300045 Contact Us For Availability
3
MAGNETRON WPL 01040004 Contact Us For Availability
3
SUPPORT, TOP WPL 703095 Contact Us For Availability
3
PLUG, HOLE WPL 702286 Contact Us For Availability
3
WHEEL, CONVECTION WPL 701711 Contact Us For Availability
3
BUMPER WPL Y02100135 Contact Us For Availability
4
BRACKET, STAND-OFF WPL 701652 Contact Us For Availability
4
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
4
LEVER, INTERLOCK SWITCH WPL Y02180016 Contact Us For Availability
4
SCREW WPL 03020041 Contact Us For Availability
4
SCREW (TOP) WPL Y03010147 Contact Us For Availability
4
WIRE, GRAY WPL 703767 Contact Us For Availability
4
SOLENOID WPL Y702526 Contact Us For Availability
4
BRACKET, STOP WPL 704344 Contact Us For Availability
4
CLIP, STIRRER WPL 03110066 Contact Us For Availability
4
LIGHT, OVEN WPL 01060029 Contact Us For Availability
4
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
4
CLAMP, CONDUIT WPL 701692 Contact Us For Availability
4
LENS, INDICATOR LIGHTS WPL Y700630 Contact Us For Availability
4
CHOKE, FILLER (BLK) WPL Y02100166 Contact Us For Availability
5
BAFFLE, DOOR WPL 04100542 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
5
FRONT, STOP WPL 704342 Contact Us For Availability
5
SUPPORT, FRONT WPL 704343 Contact Us For Availability
5
MOTOR, FAN WPL Y701721 Contact Us For Availability
5
SHELF, BOTTOM (PLASTIC) WPL Y02280041 Contact Us For Availability
5
TRAY WPL Y02280047 Contact Us For Availability
5
RACK, OVEN WPL Y02410004 Contact Us For Availability
5
RECEPTACLE, LIGHT WPL 01100045 Contact Us For Availability
5
COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability
5
BACK, INNER WPL 04100561 Contact Us For Availability
5
END CAP (LT-BLK) WPL 704257 Contact Us For Availability
5
END CAP (RT-BLK) WPL 704258 Contact Us For Availability
5
COVER, MOTOR FRONT WPL 701713 Contact Us For Availability
5
FRAME, DOOR WPL 04021589 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
6
THERMOSTAT WPL 701687 Contact Us For Availability
6
INSULATOR WPL 702898 Contact Us For Availability
6
SUPPORT, BRACKET WPL 704339 Contact Us For Availability
6
RAIL, SUPPORT WPL 704982 Contact Us For Availability
6
SUPPORT, RACK WPL 02010031 Contact Us For Availability
6
WIRE CABLE ASSY WPL 04100579 Contact Us For Availability
6
BRACKET, TIMER WPL 703676 Contact Us For Availability
6
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
6
GLASS, DOOR BLACK WPL Y02220117 Contact Us For Availability
7
BUMPER, BUTTON WPL Y704223 Contact Us For Availability
7
PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability
7
SHIELD, SWITCH WPL 701706 Contact Us For Availability
7
CAVITY WPL 04021553 Contact Us For Availability
7
TAPE, FOAM WPL 02310109 Contact Us For Availability
7
OVEN WELD ASSEMBLY WPL 04100572 Contact Us For Availability
7
WASHER, ALUM WPL 71001403 Contact Us For Availability
7
OVEN WELD ASSY. WPL 71001490 Contact Us For Availability
7
BACK, OUTER WPL 04100564 Contact Us For Availability
7
INSULATION WRAP WPL 04100565 Contact Us For Availability
7
ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability
7
CLOCK KIT, ELECTRONIC WPL 12200028 Contact Us For Availability
7
MOTOR, CONVECT WPL Y704972 Contact Us For Availability
7
HINGE, DOOR WPL Y02200017 Contact Us For Availability
8
GLASS (LOWER) WPL 704712 Contact Us For Availability
8
SCREW WPL 03010117 Contact Us For Availability
8
INSERT, CONTROL/DOOR WPL 02100244 Contact Us For Availability
8
LEVER, LATCH (BLK) WPL Y704240 Contact Us For Availability
8
SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability
8
SUPPORT, DUCT MAGNETRON WPL Y02170111 Contact Us For Availability
8
STANDOFF WPL 703007 Contact Us For Availability
8
COVER, MEAT PROBE WPL 712088 Contact Us For Availability
8
PANEL, SIDE (RH) WPL 04100558 Contact Us For Availability
8
PALNUT WPL 703679 Contact Us For Availability
8
COVER, MOTOR OPENING WPL 703551 Contact Us For Availability
9
HANDLE WPL Y704225 Contact Us For Availability
9
SCREW WPL 03010114 Contact Us For Availability
9
SCREW WPL 707407 Contact Us For Availability
9
WASHER WPL Y700862 Contact Us For Availability
9
SCREW WPL 704335 Contact Us For Availability
9
SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability
9
LENS, BULB WPL Y02400007 Contact Us For Availability
9
RESISTOR, BLEEDER WPL 01010008 Contact Us For Availability
9
CAPACITOR WPL Y01020023 Contact Us For Availability
9
BRACKET WPL 04100566 Contact Us For Availability
9
CLOSURE, FRONT WPL 04100571 Contact Us For Availability
9
CLOSURE, FRONT WPL 71001487 Contact Us For Availability
9
LATCH, DOOR WPL 02190056 Contact Us For Availability
10
END CAP (BLK) WPL Y704224 Contact Us For Availability
10
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
10
SPRING, KNOB WPL 701671 Contact Us For Availability
10
KNOB (WHT) WPL 704460 Contact Us For Availability
10
KNOB (BLK) WPL Y703932 Contact Us For Availability
10
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
10
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
10
TUBE, VENT WPL 701738 Contact Us For Availability
10
WASHER, LOCK WPL 715910 Contact Us For Availability
11
BUSHING WPL Y704489 Contact Us For Availability
11
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
11
SWITCH, SOLENOID WPL Y702360 Contact Us For Availability
11
SWITCH, LATCH WPL Y703732 Contact Us For Availability
11
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
11
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
11
PANEL, BOTTOM WPL 04100562 Contact Us For Availability
11
EXTRUSION, BOTTOM (BLK) WPL 704255 Contact Us For Availability
11
PANEL, INNER DOOR (BLK) WPL 04021377 Contact Us For Availability
12
WASHER WPL 701736 Contact Us For Availability
12
GUSSET----NA WPL 704805 Contact Us For Availability
12
SWITCH, PRIMARY INTERLOCK WPL 01140068 Contact Us For Availability
12
SWITCH, DOOR WPL 702806 Contact Us For Availability
12
CLIP WPL Y03110050 Contact Us For Availability
12
CABINET (BLK) WPL 02140070 Contact Us For Availability
12
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
12
NUT, TEE WPL 715294 Contact Us For Availability
12
BACKPLATE, HINGE WPL 04100577 Contact Us For Availability
12
HINGE WPL Y703419 Contact Us For Availability
12
PANEL, CONTROL WPL 705302 Contact Us For Availability
12
SCREW, 6-32 X 3/8 PH BLACK WPL Y03010157 Contact Us For Availability
13
SCREW WPL 704963 Contact Us For Availability
13
SWITCH, INTERLOCK ASSY. WPL 04021546 Contact Us For Availability
13
SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability
13
SWITCH, DOOR WPL 702805 Contact Us For Availability
13
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
13
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
13
BRACKET WPL 02030123 Contact Us For Availability
13
SPACER, OVEN WPL 701741 Contact Us For Availability
13
BUTTON, PLUG WPL 703688 Contact Us For Availability
13
PANEL, CONTROL (RT) WPL 705336 Contact Us For Availability
13
SCREW WPL Y03010118 Contact Us For Availability
14
INSULATOR WPL Y702350 Contact Us For Availability
14
TRIM, BLACK WPL 02100258 Contact Us For Availability
14
MOTOR, BLOWER WPL 01110029 Contact Us For Availability
14
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
14
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
14
BRACKET, BLOWER SUPPORT WPL Y02030144 Contact Us For Availability
14
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
14
PLATE, GROUNDING WPL 701742 Contact Us For Availability
14
TRIM, OVEN (LWR-BLK) WPL 704642 Contact Us For Availability
14
SCREW, TRIM WPL 704714 Contact Us For Availability
14
TRIM, OVEN (LT/BLK) WPL 71001454 Contact Us For Availability
14
TRIM, OVEN (RT/BLK) WPL 71001455 Contact Us For Availability
14
PAD, SPACER WPL 705331 Contact Us For Availability
15
INSULATION, TOP WPL 701660 Contact Us For Availability
15
INSULATION, BOTTOM WPL 702292 Contact Us For Availability
15
INSULATION WPL 702293 Contact Us For Availability
15
INSULATOR WPL 703264 Contact Us For Availability
15
SCREW WPL 03010098 Contact Us For Availability
15
PANEL, SIDE (LH) WPL 04100557 Contact Us For Availability
15
PANEL, CONTROL (LT) WPL 705337 Contact Us For Availability
15
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
16
PLUG, OVEN DOOR WELD WPL 712011 Contact Us For Availability
16
SCREW WPL 702807 Contact Us For Availability
16
SCREW WPL Y03020076 Contact Us For Availability
16
SCREW WPL 701744 Contact Us For Availability
16
INSULATION-BACK WPL 702283 Contact Us For Availability
16
RAIL, BOTTOM WPL 700596 Contact Us For Availability
16
LIGHT, INDICATOR 240V WPL Y702394 Contact Us For Availability
16
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
17
CLIP WPL 704487 Contact Us For Availability
17
VENT, TUBE (BLK) WPL 04100538 Contact Us For Availability
17
TAPE, FOAM WPL 02310071 Contact Us For Availability
17
CLIP, OVEN WPL Y702618 Contact Us For Availability
17
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
18
SCREW (BLACK) WPL Y704488 Contact Us For Availability
18
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
18
CLIP, BULB WPL Y701541 Contact Us For Availability
18
OUTLET, APPLIANCE WPL 701704 Contact Us For Availability
18
THERMOSTAT WPL Y04100575 Contact Us For Availability
18
SEAL, TOP WPL 02120153 Contact Us For Availability
18
SHIM WPL Y03120064 Contact Us For Availability
19
BRACKET, VENT TUBE WPL 701680 Contact Us For Availability
19
CLIP, J WPL Y700556 Contact Us For Availability
19
TAPE, FOAM WPL 02310070 Contact Us For Availability
19
RAIL, SUPPORT WPL 04100563 Contact Us For Availability
19
KNOB, THERMOSTAT WPL 703917 Contact Us For Availability
19
SPACER, DOOR WINDOW WPL Y03120069 Contact Us For Availability
20
NUT, PUSH IN WPL 701643 Contact Us For Availability
20
LIMIT, FAN WPL Y702750 Contact Us For Availability
20
DIODE WPL Y04010206 Contact Us For Availability
20
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
20
ANGLE, ATTACHMENT WPL 701609 Contact Us For Availability
20
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
21
GLASS, BAFFLE WPL Y704820 Contact Us For Availability
21
FOOT, BASE WPL Y02230008 Contact Us For Availability
21
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
21
SWITCH, SELECTOR UPPER WPL 703077 Contact Us For Availability
21
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
22
CLIP WPL 705404 Contact Us For Availability
22
LENS, LIGHT WPL Y704143 Contact Us For Availability
22
KNOB, SELECTOR SWITCH (BLK) WPL 703901 Contact Us For Availability
22
EXTRUSION, HANDLE (BLK) WPL 02120151 Contact Us For Availability
23
SCREW WPL 703958 Contact Us For Availability
23
SCREW WPL 03010094 Contact Us For Availability
23
RETAINER, LENS WPL Y704144 Contact Us For Availability
23
SWITCH, LIGHT (PUSH) WPL 700558 Contact Us For Availability
24
RETAINER, GLASS WPL Y704819 Contact Us For Availability
24
CORD, POWER (WHT) WPL 01080055 Contact Us For Availability
24
PLATE, NON-CONVECT WPL 705343 Contact Us For Availability
24
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
24
BEZEL, SWITCH WPL 704323 Contact Us For Availability
24
MANUAL, USE & CARE WPL OU2410UA Contact Us For Availability
25
INSERT, FRAME (BLK)----NA WPL Y04100580 Contact Us For Availability
25
CLIP, WIRE HARNESS WPL 03110022 Contact Us For Availability
26
SWITCH, TEMP LIMIT WPL 01180010 Contact Us For Availability
26
COVER, COMP MNTG WPL 02300020 Contact Us For Availability
26
WIRE HARNESS WPL 04010271 Contact Us For Availability
26
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
26
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
26
RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability
NI
LABEL, COOK CODE (B) WPL 02240826 Contact Us For Availability
NI
MANUAL, USE & CARE WPL Y06010320 Contact Us For Availability
× ![]()
Login and Registration Form
