Model Whirlpool WM227W ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

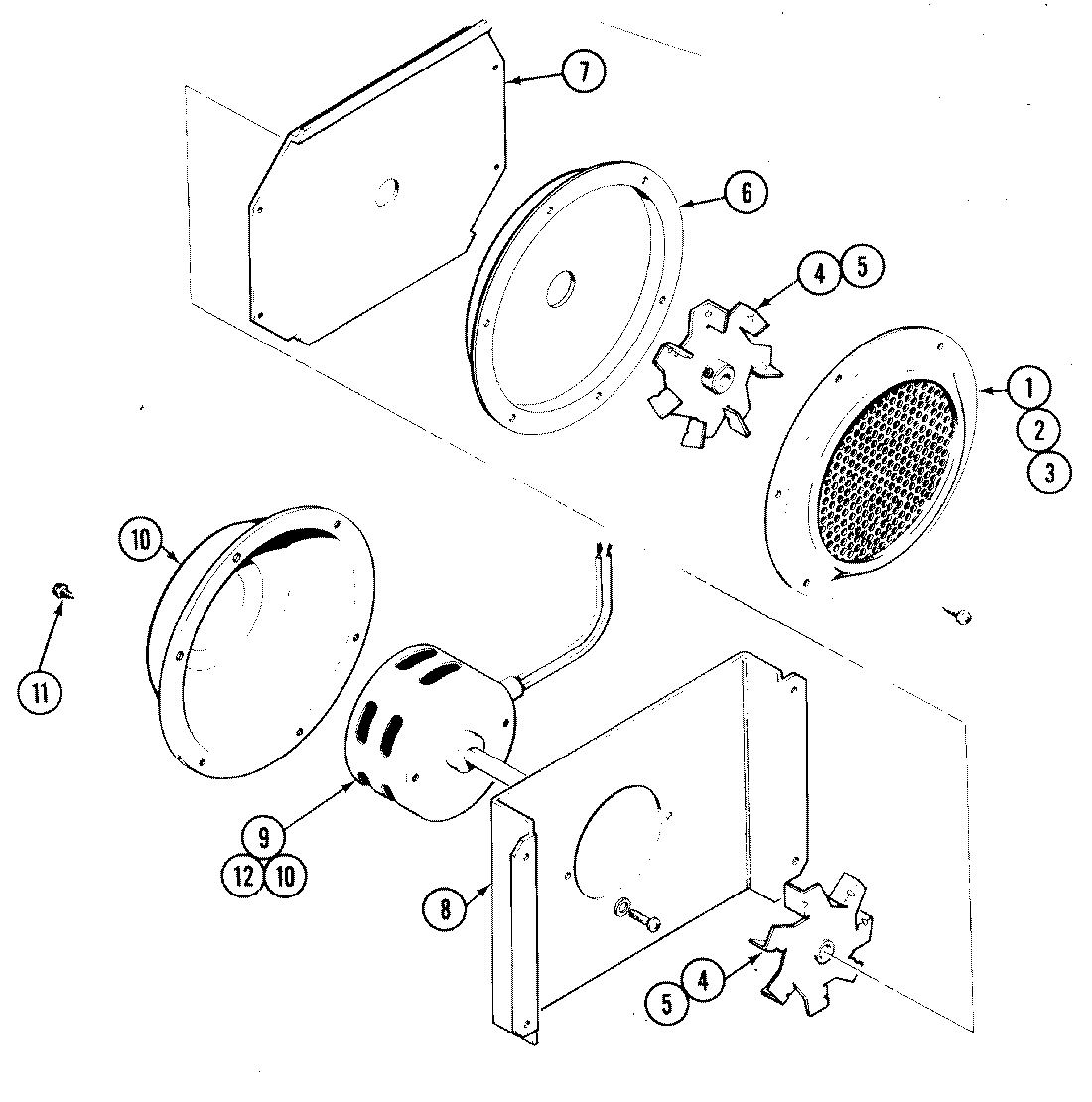

02 - BLOWER MOTOR (LOWER CONVECTION)

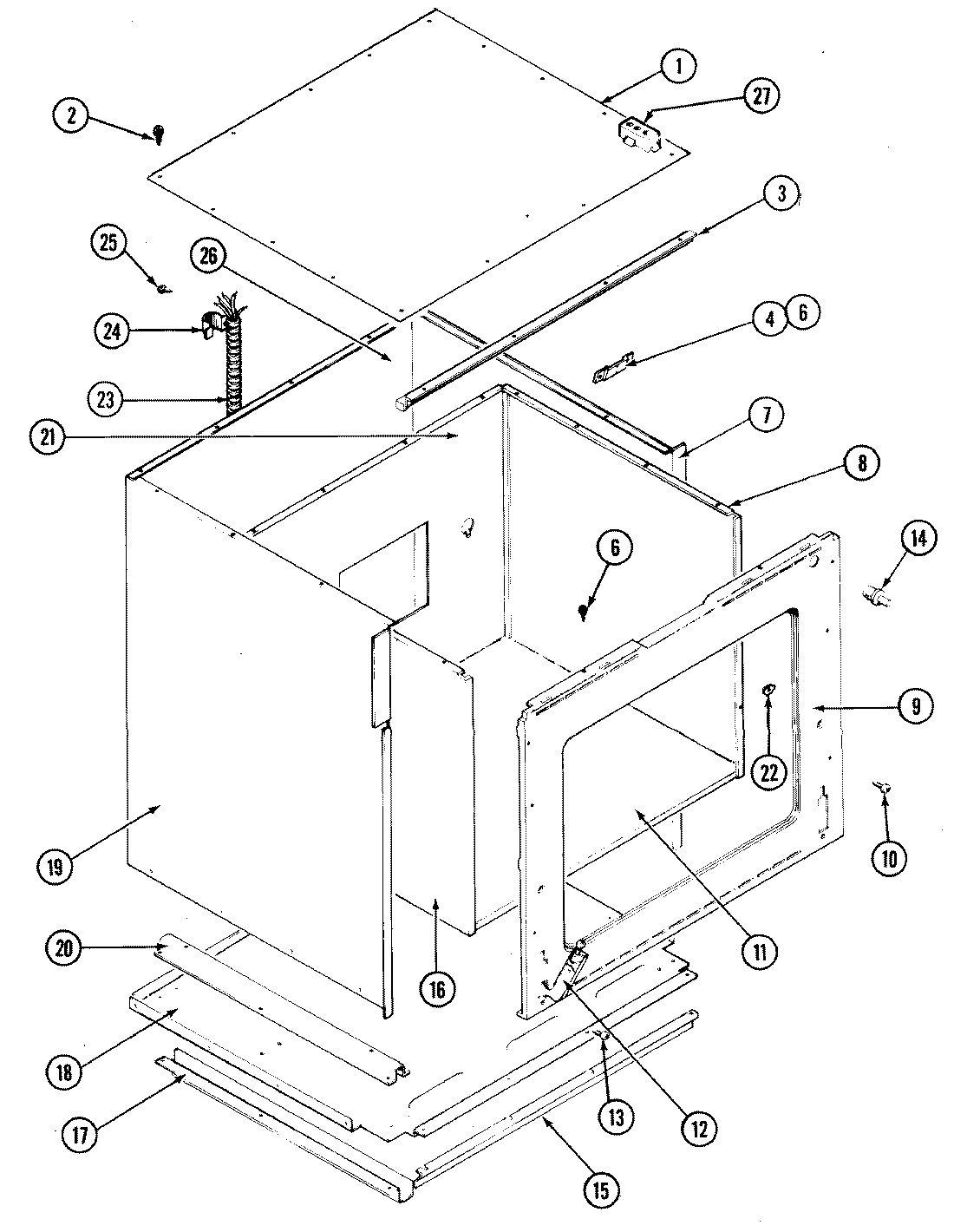

03 - BODY-LOWER

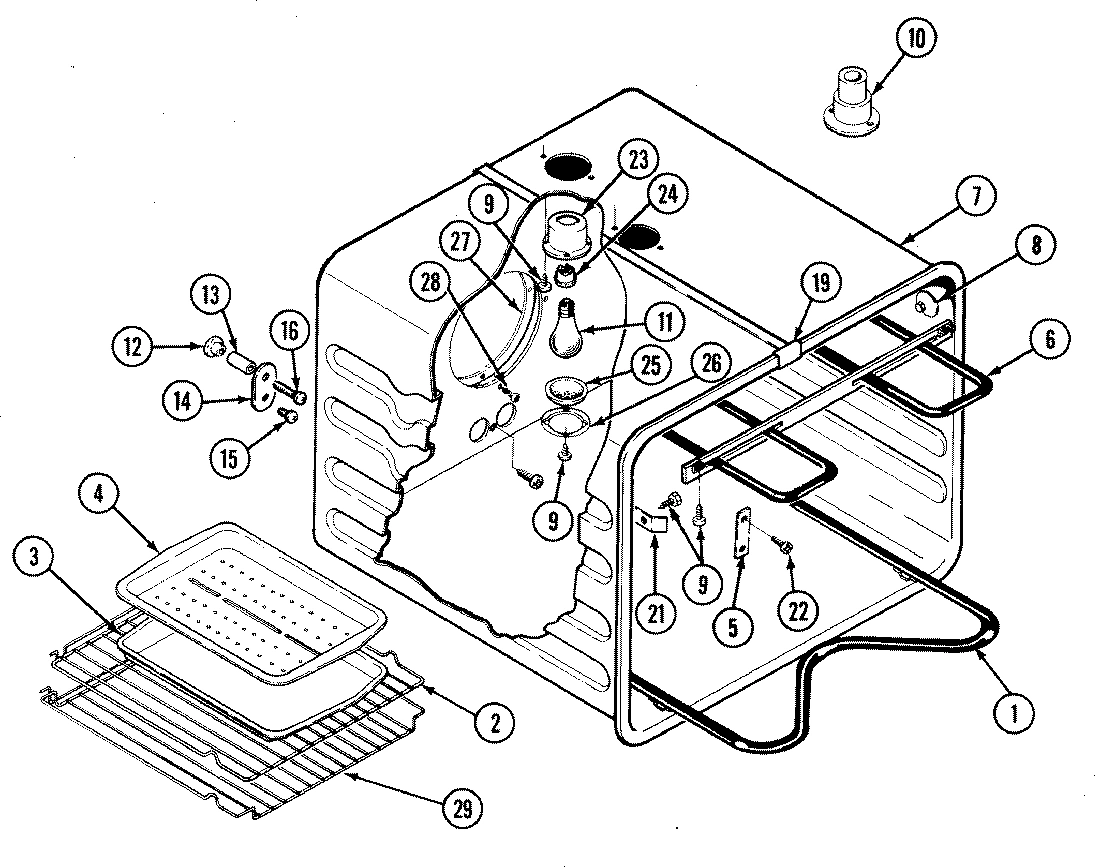

09 - LINER (LOWER)

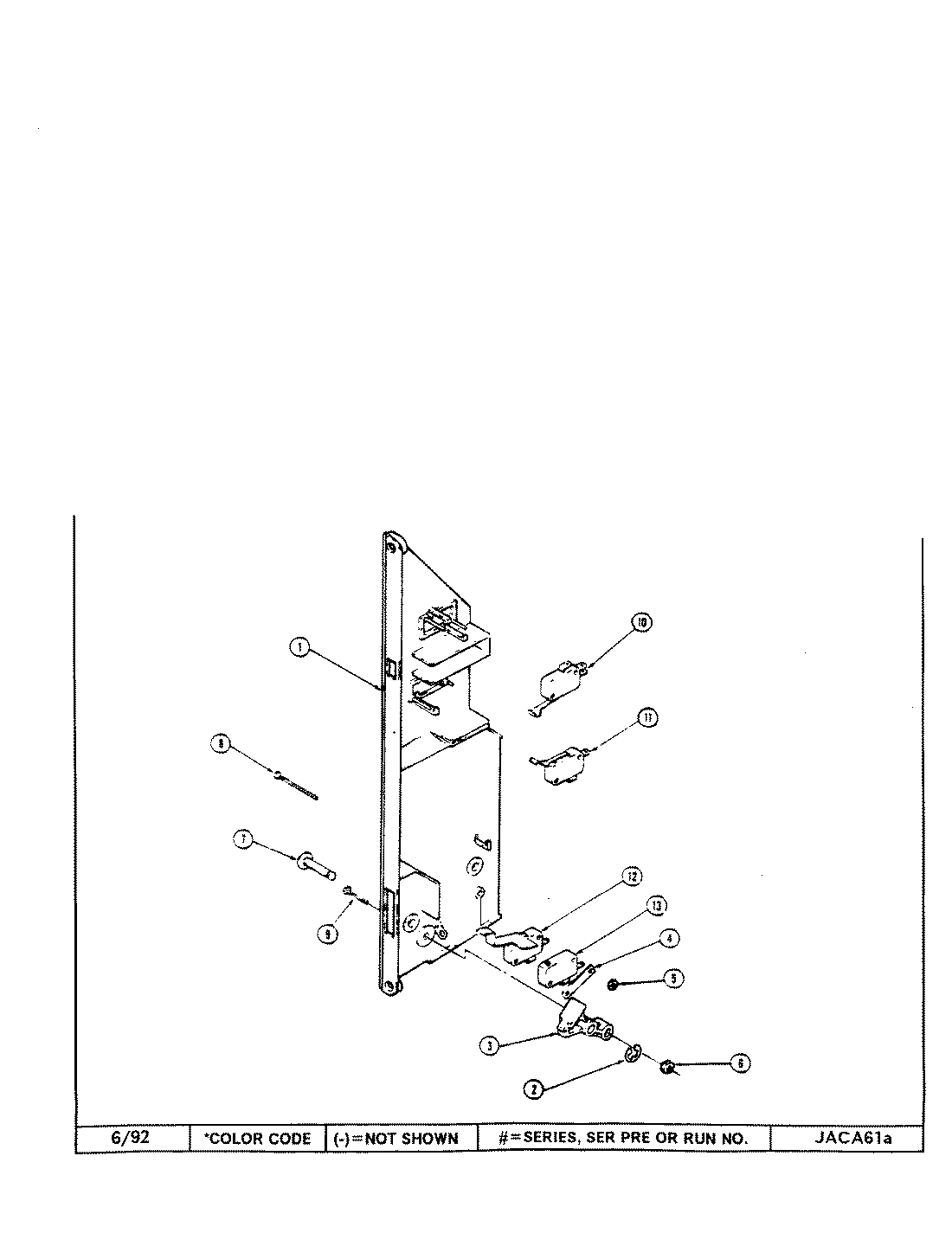

06 - INTERLOCK SWITCHES-UPPER (M166)

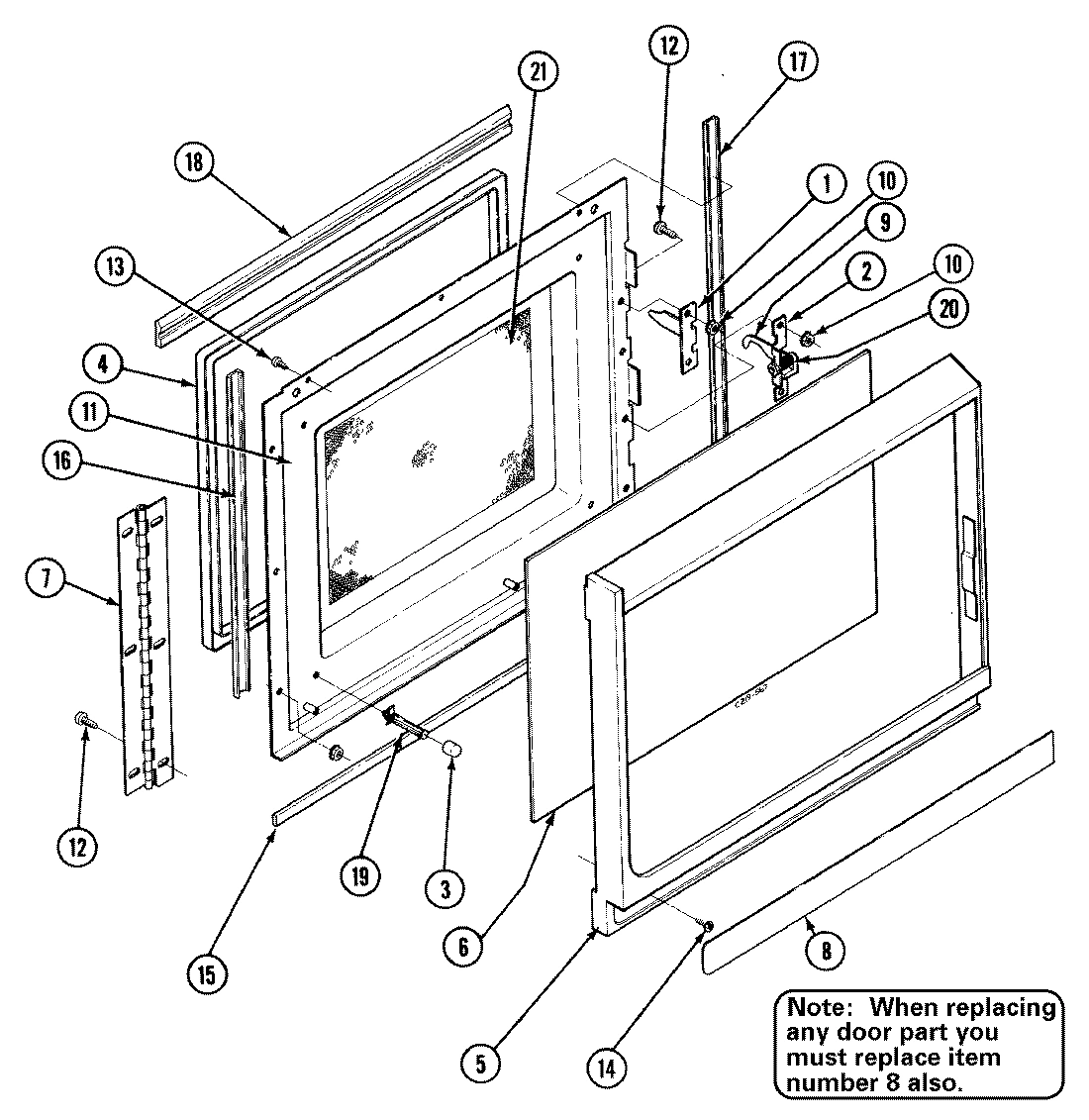

05 - DOOR-UPPER (M166)

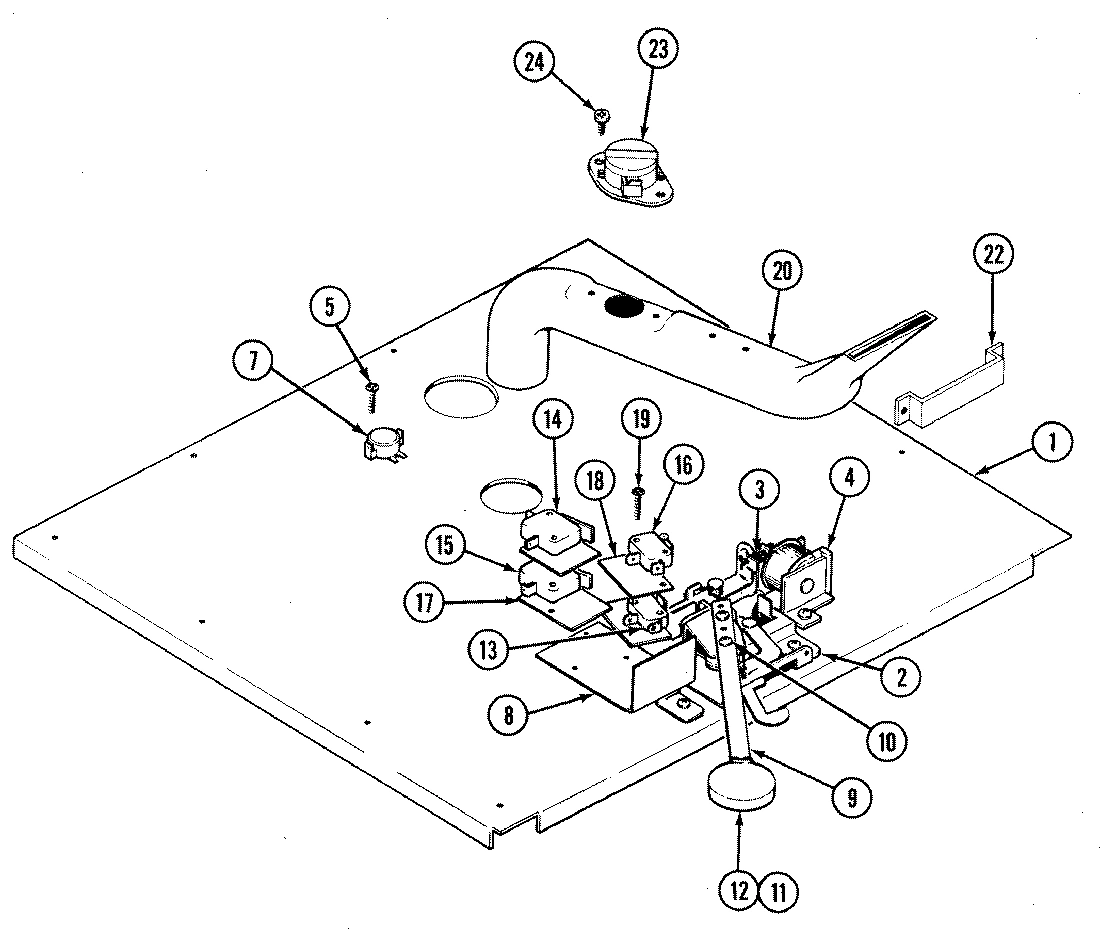

07 - INTERNAL CONTROLS-LOWER

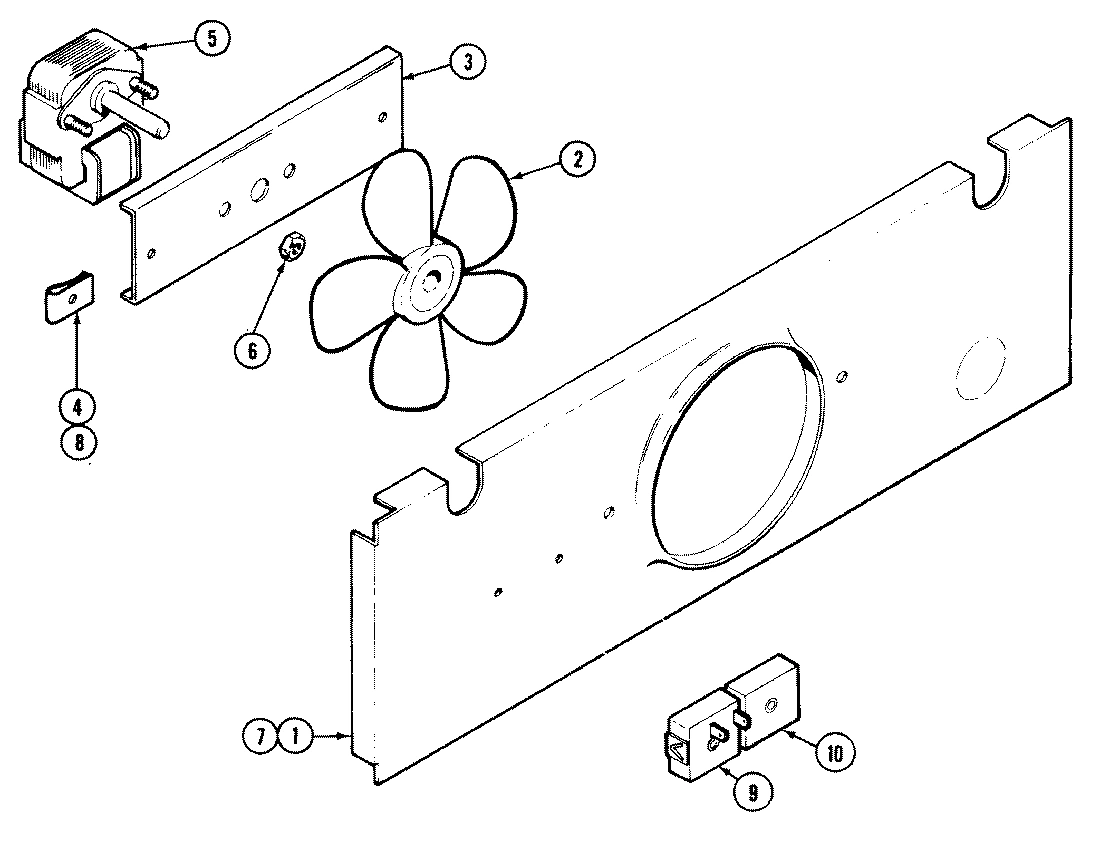

01 - BLOWER MOTOR (COOLING FAN-LOWER)

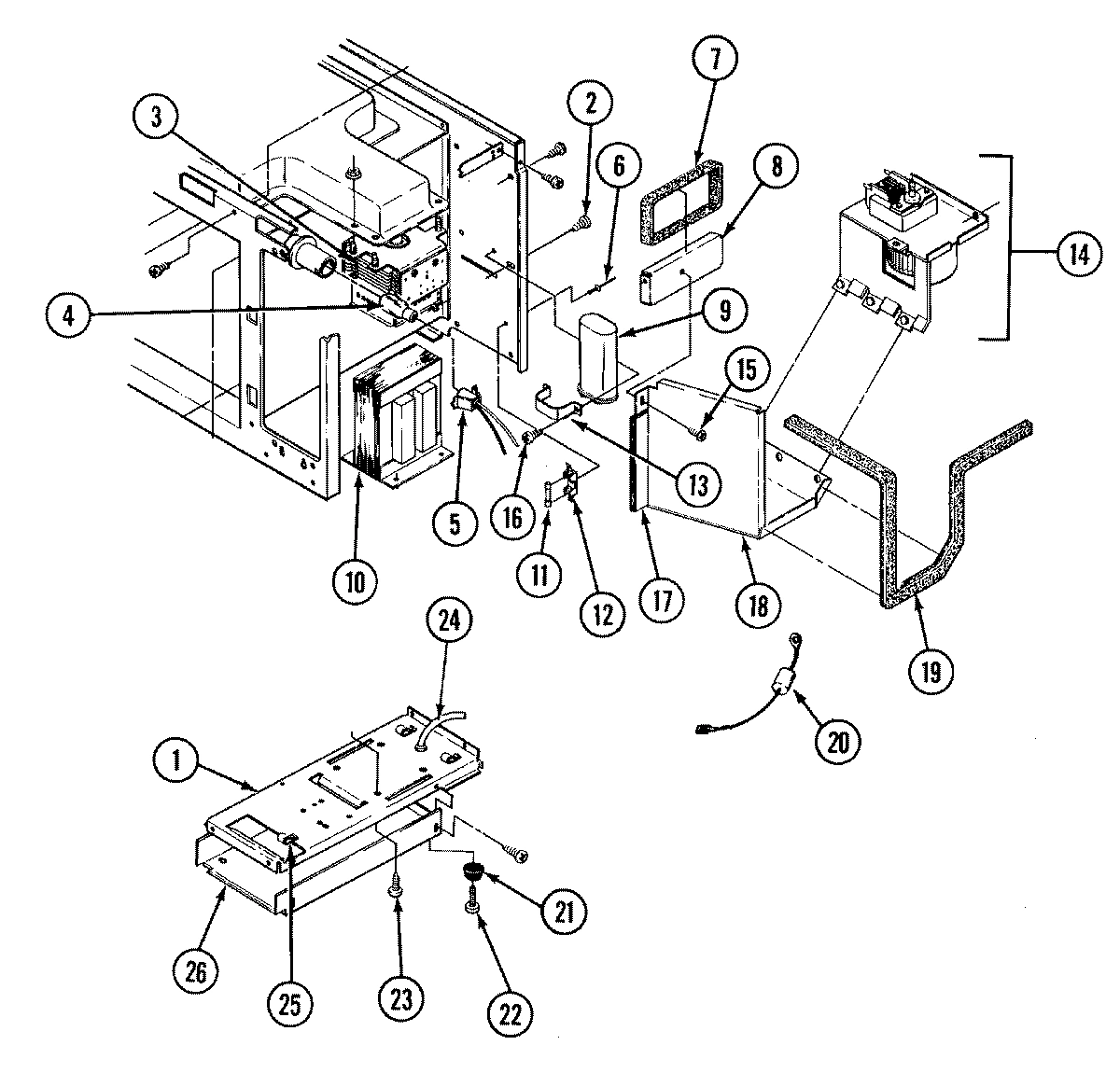

08 - INTERNAL CONTROLS-UPPER (M166)

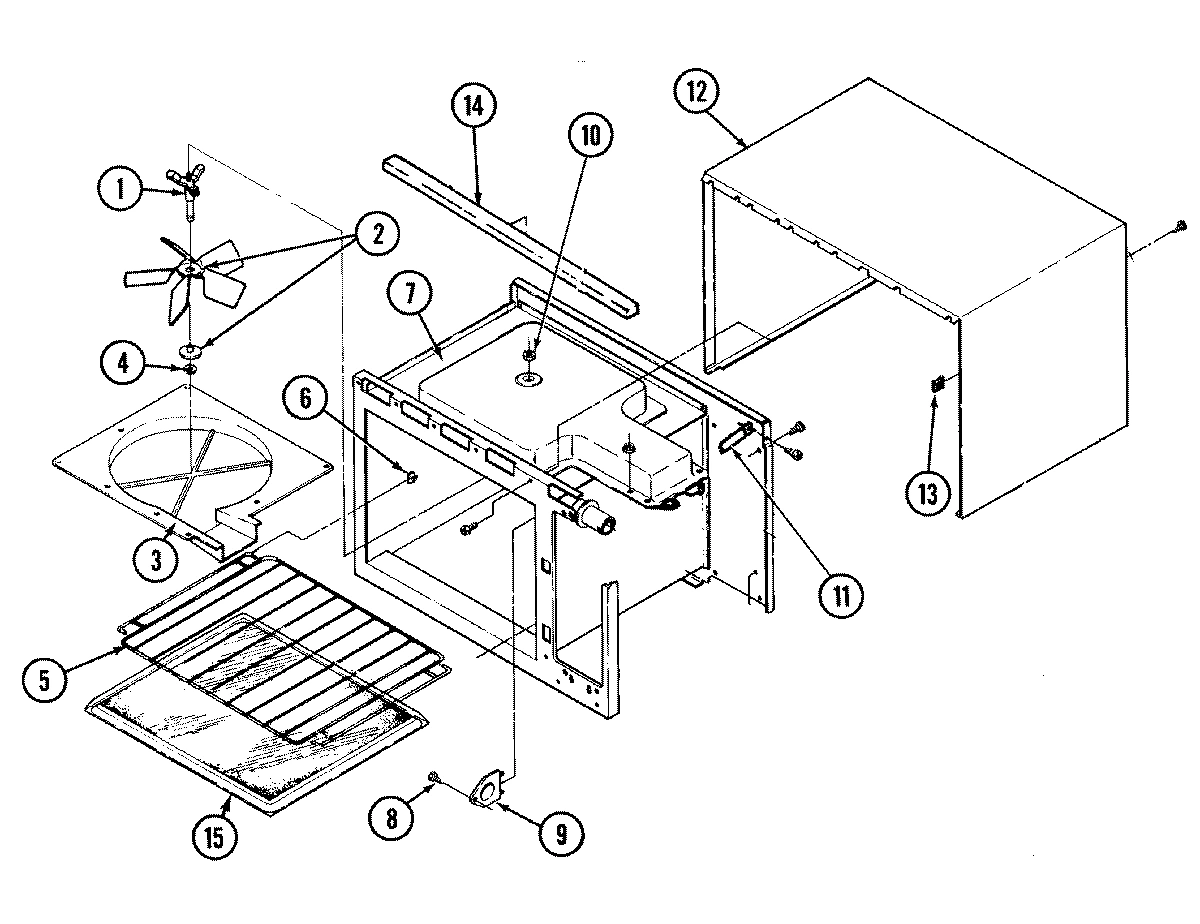

10 - OVEN LINER-UPPER (M166)

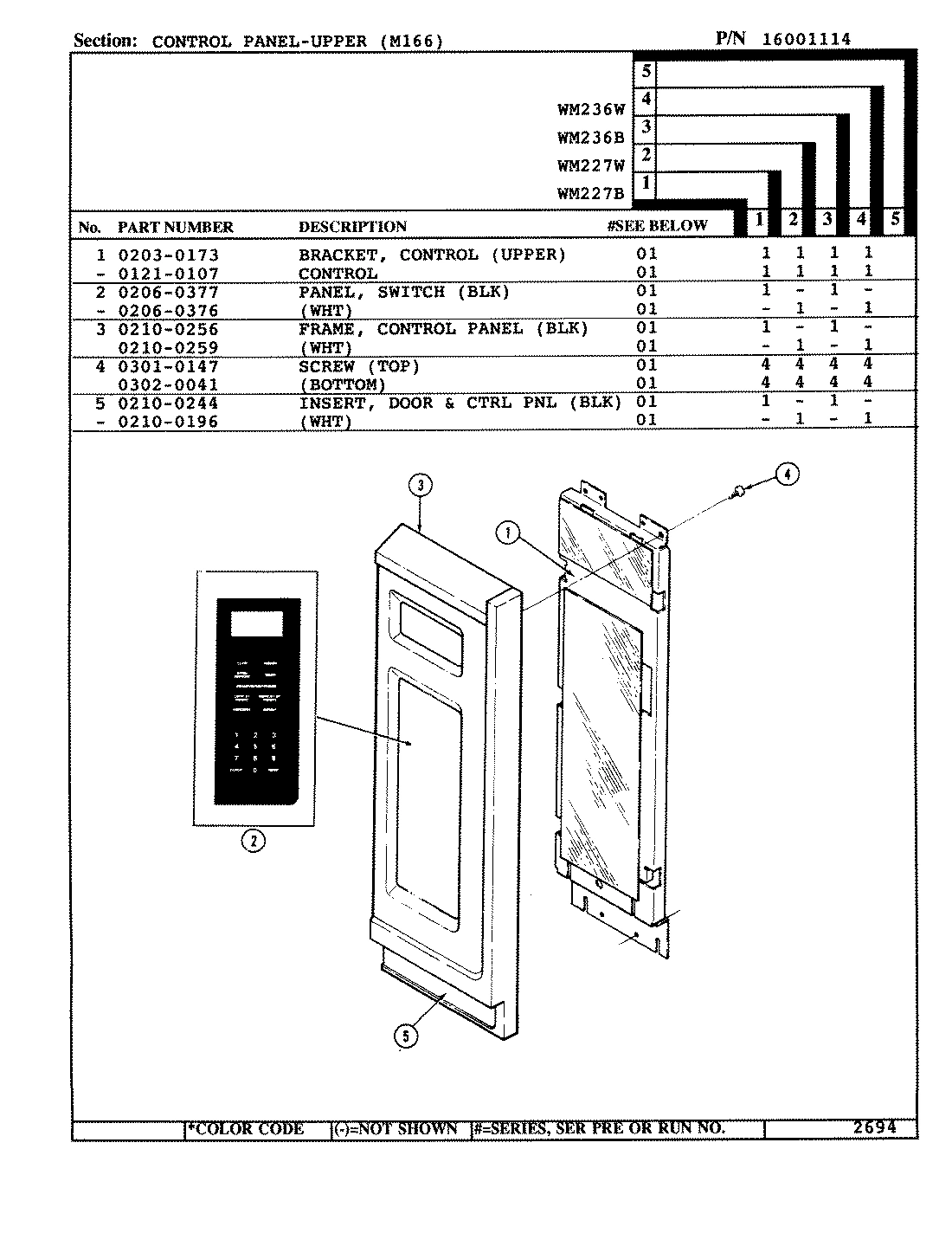

04 - CONTROL PANEL-UPPER (M166)
Common parts from model Whirlpool WM227W ELECTRIC WALL OVEN/MICROWAVE COMBO
1
PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability
1
TOP (OUTER) WPL 701681 Contact Us For Availability
1
ELEMENT, BAKE WPL Y704665 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
1
PANEL, TOP WPL 704684 Contact Us For Availability
1
PLATE, MOTOR WPL 704336 Contact Us For Availability
1
PLATE, COMPONENT MOUNTING WPL Y02040101 Contact Us For Availability
1
SHAFT, STIRRER WPL 02360058 Contact Us For Availability
1
BOARD, CONTROL WPL 01210107 Contact Us For Availability
1
BRACKET, CONTROL WPL Y02030173 Contact Us For Availability
2
RACK, OVEN WPL Y704661 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
2
LATCH ASSY. WPL Y703357 Contact Us For Availability
2
BLADE, FAN WPL 701718 Contact Us For Availability
2
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
2
SWITCH PANEL WPL 02060376 Contact Us For Availability
3
SUPPORT, TOP WPL 703095 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
BUMPER WPL Y02100135 Contact Us For Availability
3
PIN, COTTER WPL Y701686 Contact Us For Availability
3
MOUNT, MOTOR WPL Y704732 Contact Us For Availability
3
MAGNETRON WPL 01040004 Contact Us For Availability
3
CLIP WPL Y03110050 Contact Us For Availability
3
COVER, STIRRER WPL Y02300045 Contact Us For Availability
3
INSERT, WHITE WPL 02100259 Contact Us For Availability
4
WHEEL, CONVECTION WPL 701711 Contact Us For Availability
4
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
4
LEVER, INTERLOCK SWITCH WPL Y02180016 Contact Us For Availability
4
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
4
WIRE, GRAY WPL 703767 Contact Us For Availability
4
SOLENOID WPL Y702526 Contact Us For Availability
4
INSTR SHEET WPL 700056 Contact Us For Availability
4
LIGHT, OVEN WPL 01060029 Contact Us For Availability
4
CLIP, STIRRER WPL 03110066 Contact Us For Availability
4
SCREW WPL 03020041 Contact Us For Availability
4
SCREW (TOP) WPL Y03010147 Contact Us For Availability
5
COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
5
FRAME, DOOR(W) WPL 04021590 Contact Us For Availability
5
INSERT, CONTROL/DOOR WPL Y02100196 Contact Us For Availability
5
MOTOR, FAN WPL Y701721 Contact Us For Availability
5
RECEPTACLE, LIGHT WPL 01100045 Contact Us For Availability
5
RACK, OVEN WPL Y02410004 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
6
EXTRUSION, HANDLE (WHT) WPL 02120166 Contact Us For Availability
6
GLASS, DOOR (W) WPL 02220116 Contact Us For Availability
6
SUPPORT, RACK WPL 02010031 Contact Us For Availability
7
COVER, MOTOR FRONT WPL 701713 Contact Us For Availability
7
PANEL, OUTER (RT) WPL 701672 Contact Us For Availability
7
OVEN WELD ASSY. WPL Y712577 Contact Us For Availability
7
PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability
7
HINGE, DOOR WPL Y02200017 Contact Us For Availability
7
THERMOSTAT WPL 701687 Contact Us For Availability
7
TAPE, FOAM WPL 02310109 Contact Us For Availability
7
CAVITY WPL 04021553 Contact Us For Availability
8
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
8
PANEL, SIDE (RT) WPL 701676 Contact Us For Availability
8
STANDOFF WPL 703007 Contact Us For Availability
8
COVER, MEAT PROBE WPL 712088 Contact Us For Availability
8
SCREW WPL 03010117 Contact Us For Availability
8
SHIELD, SWITCH WPL 701706 Contact Us For Availability
8
SUPPORT, DUCT MAGNETRON WPL Y02170111 Contact Us For Availability
8
SCREW WPL 03010098 Contact Us For Availability
9
MOTOR, CONVECT WPL Y703035 Contact Us For Availability
9
SPACER, SIDE WPL 703253 Contact Us For Availability
9
CLOSURE, FRONT WPL 703609 Contact Us For Availability
9
SCREW WPL 03010114 Contact Us For Availability
9
SWITCH, INTERLOCK ASSY. WPL 04021546 Contact Us For Availability
9
LATCH, DOOR WPL 02190056 Contact Us For Availability
9
LEVER, LATCH (WHT) WPL Y712547 Contact Us For Availability
9
SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability
9
RESISTOR, BLEEDER WPL 01010008 Contact Us For Availability
9
CAPACITOR WPL Y01020023 Contact Us For Availability
9
LENS, BULB WPL Y02400007 Contact Us For Availability
10
COVER, MOTOR WPL 701716 Contact Us For Availability
10
TUBE, VENT WPL 701738 Contact Us For Availability
10
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
10
SCREW WPL 707407 Contact Us For Availability
10
WASHER WPL Y700862 Contact Us For Availability
10
SCREW WPL 704335 Contact Us For Availability
10
SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability
10
RELAY, TRANSFORMER ASSY. WPL Y04100260 Contact Us For Availability
10
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
10
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
11
PANEL, BOTTOM WPL 701669 Contact Us For Availability
11
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
11
PANEL, INNER DOOR WPL 04021461 Contact Us For Availability
11
SPRING, KNOB WPL 701671 Contact Us For Availability
11
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
11
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
12
WASHER, LOCK WPL 715910 Contact Us For Availability
12
HINGE WPL Y703419 Contact Us For Availability
12
NUT, TEE WPL 715294 Contact Us For Availability
12
SWITCH, PRIMARY INTERLOCK WPL 01140068 Contact Us For Availability
12
SCREW, 6-32 X 3/8 PH BLACK WPL Y03010157 Contact Us For Availability
12
KNOB (WHT) WPL 704460 Contact Us For Availability
12
CABINET (WHITE) WPL 02140065 Contact Us For Availability
13
SPACER, OVEN WPL 701741 Contact Us For Availability
13
SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability
13
SCREW WPL Y03010118 Contact Us For Availability
13
SWITCH, SOLENOID WPL Y702360 Contact Us For Availability
13
BRACKET WPL 02030123 Contact Us For Availability
13
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
13
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
14
SWITCH, DOOR WPL 701666 Contact Us For Availability
14
PLATE, GROUNDING WPL 701742 Contact Us For Availability
14
SWITCH, DOOR WPL 702806 Contact Us For Availability
14
MOTOR, BLOWER WPL 01110029 Contact Us For Availability
14
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
14
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
14
BRACKET, BLOWER SUPPORT WPL Y02030144 Contact Us For Availability
14
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
14
TRIM, WHITE WPL 02100261 Contact Us For Availability
15
TRIM, OVEN (LOWER) WPL 701848 Contact Us For Availability
15
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
15
SWITCH, DOOR WPL 702805 Contact Us For Availability
15
SHELF, BOTTOM (PLASTIC) WPL Y02280041 Contact Us For Availability
16
PANEL, SIDE (LT) WPL 701697 Contact Us For Availability
16
INSULATION, WRAP WPL 701702 Contact Us For Availability
16
INSULATION, REAR WPL 701703 Contact Us For Availability
16
SCREW WPL 701744 Contact Us For Availability
16
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
16
SWITCH, LATCH WPL Y703732 Contact Us For Availability
16
SCREW WPL Y03020076 Contact Us For Availability
17
RAIL, BOTTOM WPL 700596 Contact Us For Availability
17
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
17
INSULATOR WPL Y702350 Contact Us For Availability
17
TAPE, FOAM WPL 02310071 Contact Us For Availability
18
PANEL, BOTTOM (OUTER) WPL 701668 Contact Us For Availability
18
SEAL, TOP WPL 02120153 Contact Us For Availability
18
SHIM WPL Y03120064 Contact Us For Availability
18
INSULATOR WPL 703264 Contact Us For Availability
18
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
19
PANEL, OUTER (LT) WPL 701695 Contact Us For Availability
19
CLIP, OVEN WPL Y702618 Contact Us For Availability
19
SPACER, DOOR WINDOW WPL Y03120069 Contact Us For Availability
19
SCREW WPL 702807 Contact Us For Availability
19
TAPE, FOAM WPL 02310070 Contact Us For Availability
20
SUPPORT, BOTTOM WPL 701667 Contact Us For Availability
20
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
20
TUBE, VENT WPL 704473 Contact Us For Availability
20
DIODE WPL Y04010206 Contact Us For Availability
21
PANEL, REAR WPL 704808 Contact Us For Availability
21
CLIP, BULB WPL Y701541 Contact Us For Availability
21
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
21
SCREW WPL Y03010113 Contact Us For Availability
21
FOOT, BASE WPL Y02230008 Contact Us For Availability
22
BRACKET, VENT TUBE WPL 701680 Contact Us For Availability
22
CLIP, J WPL Y700556 Contact Us For Availability
23
CABLE ASSY WPL 705039 Contact Us For Availability
23
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
23
LIMIT, FAN WPL Y702750 Contact Us For Availability
23
SCREW WPL 03010094 Contact Us For Availability
24
CLAMP, CONDUIT WPL 701692 Contact Us For Availability
24
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
24
CORD, POWER (WHT) WPL 01080055 Contact Us For Availability
25
LENS, LIGHT WPL Y704143 Contact Us For Availability
25
CLIP, WIRE HARNESS WPL 03110022 Contact Us For Availability
26
BRACKET, HAT (REAR) WPL 701683 Contact Us For Availability
26
PANEL, REAR (OUTER) WPL 701691 Contact Us For Availability
26
ANGLE, OVEN SUPPORT WPL 701701 Contact Us For Availability
26
GROMMET, FLEXIBLE WPL Y703352 Contact Us For Availability
26
RETAINER, LENS WPL Y704144 Contact Us For Availability
26
COVER, COMP MNTG WPL 02300020 Contact Us For Availability
27
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
27
OUTLET, APPLIANCE WPL 701704 Contact Us For Availability
27
PLATE, NON-CONVECT WPL 705343 Contact Us For Availability
29
RACK, OVEN (OFFSET) WPL Y704663 Contact Us For Availability
NI
COVER, MOTOR OPENING WPL 703551 Contact Us For Availability
NI
JACK, PROBE WPL Y700883 Contact Us For Availability
NI
SWITCH, TEMP LIMIT WPL 01180010 Contact Us For Availability
NI
WIRE HARNESS WPL 04010271 Contact Us For Availability
NI
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
NI
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
NI
TRAY WPL Y02280047 Contact Us For Availability
NI
LABEL, COOK CODE (W) WPL 02240827 Contact Us For Availability
NI
MANUAL, USE & CARE WPL Y06010320 Contact Us For Availability
× ![]()
Login and Registration Form
