LG WM1815CS Drum(DD) WM Parts List

*003

3W20018B LG Washer Leg Bolt Wrench In Stock LGE 3W20018B $10.54

View on Model

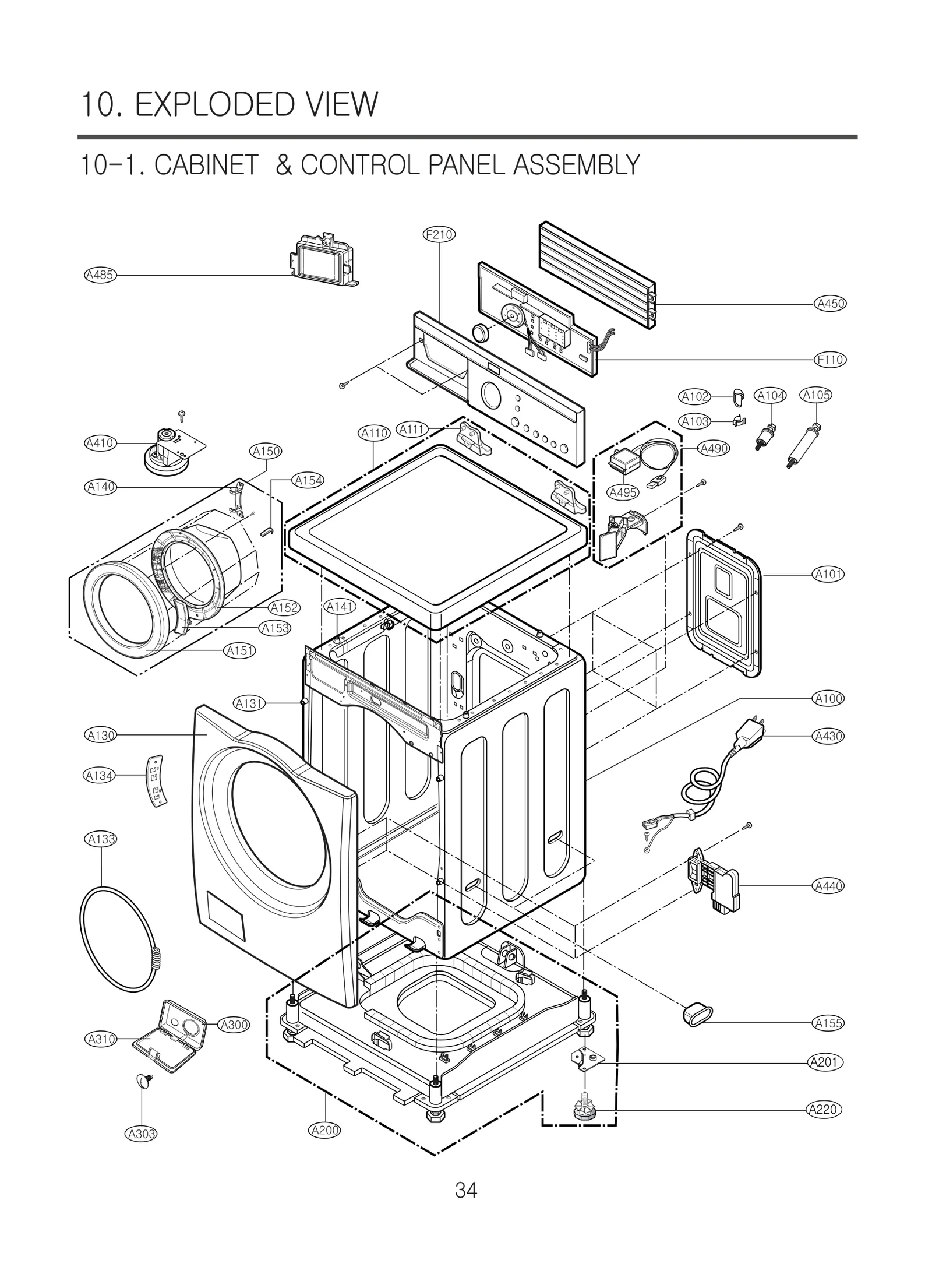

A101

3550ER1028A LG Back Cover Backorder LGE 3550ER1028A $35.99

View on Model

A104

SHIPPING BOLT ASSEMBLY LGE 4011FR3159E Contact Us For Availability

View on Model

A105

SHIPPING BOLT ASSEMBLY LGE 4011FR3159D Contact Us For Availability

View on Model

A111

4810ER3021C LG Washer Hinge Bracket Backorder LGE 4810ER3021C $98.57

View on Model

A133

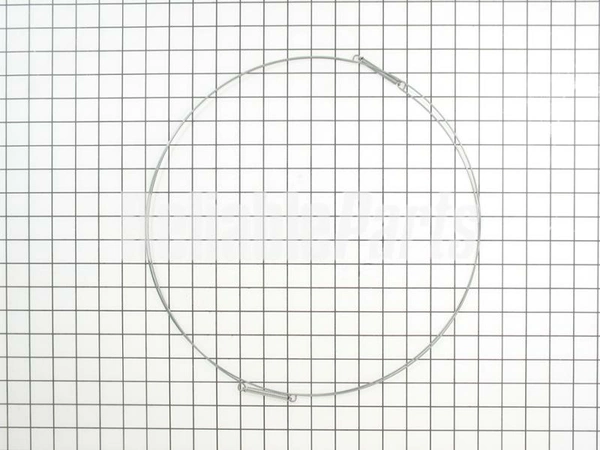

2W20017F LG Washer Front Boot Seal Clamp Asse Backorder LGE 2W20017F $10.54

View on Model

A140

HINGE LGE 4774ER2008A Contact Us For Availability

View on Model

A141

4930ER4018A LG Holder Backorder LGE 4930ER4018A $6.61

View on Model

A150

DOOR ASSEMBLY LGE 3581ER1010A Contact Us For Availability

View on Model

A152

DOOR FRAME,INNER LGE 3212ER0008A Contact Us For Availability

View on Model

A155

3650FA3489A LG Handle Backorder LGE 3650FA3489A $6.61

View on Model

A303

5006EN3015A LG Washer Drain Hose Cap In Stock LGE 5006EN3015A $5.81

View on Model

A410

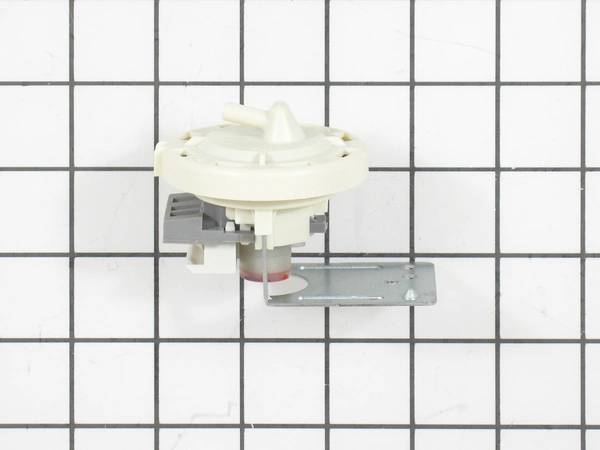

6601ER1006A LG Pressure Switch Assembly Backorder LGE 6601ER1006A $52.55

View on Model

A430

6411ER1006V LG Power Cord Assembly Backorder LGE 6411ER1006V $57.28

View on Model

A440

EBF49827801 LG Washer Door Lock and Switch As In Stock LGE EBF49827801 $62.84

View on Model

A490

BRACKET ASSEMBLY LGE 4811ER3001A Contact Us For Availability

View on Model

F140

Drawing,Assembly LGE 6877ER1016D Contact Us For Availability

View on Model

F145

6877ER3003C LG Harness Assembly Backorder LGE 6877ER3003C $21.74

View on Model

F160

5221ER1003A LG Washer Water Inlet Fill Valve In Stock LGE 5221ER1003A $121.77

View on Model

F170

5220FR2006H LG Washer Hot Water Inlet Valve In Stock LGE 5220FR2006H $20.88

View on Model

F226

5006ER3022A LG Siphon Cap Backorder LGE 5006ER3022A $15.80

View on Model

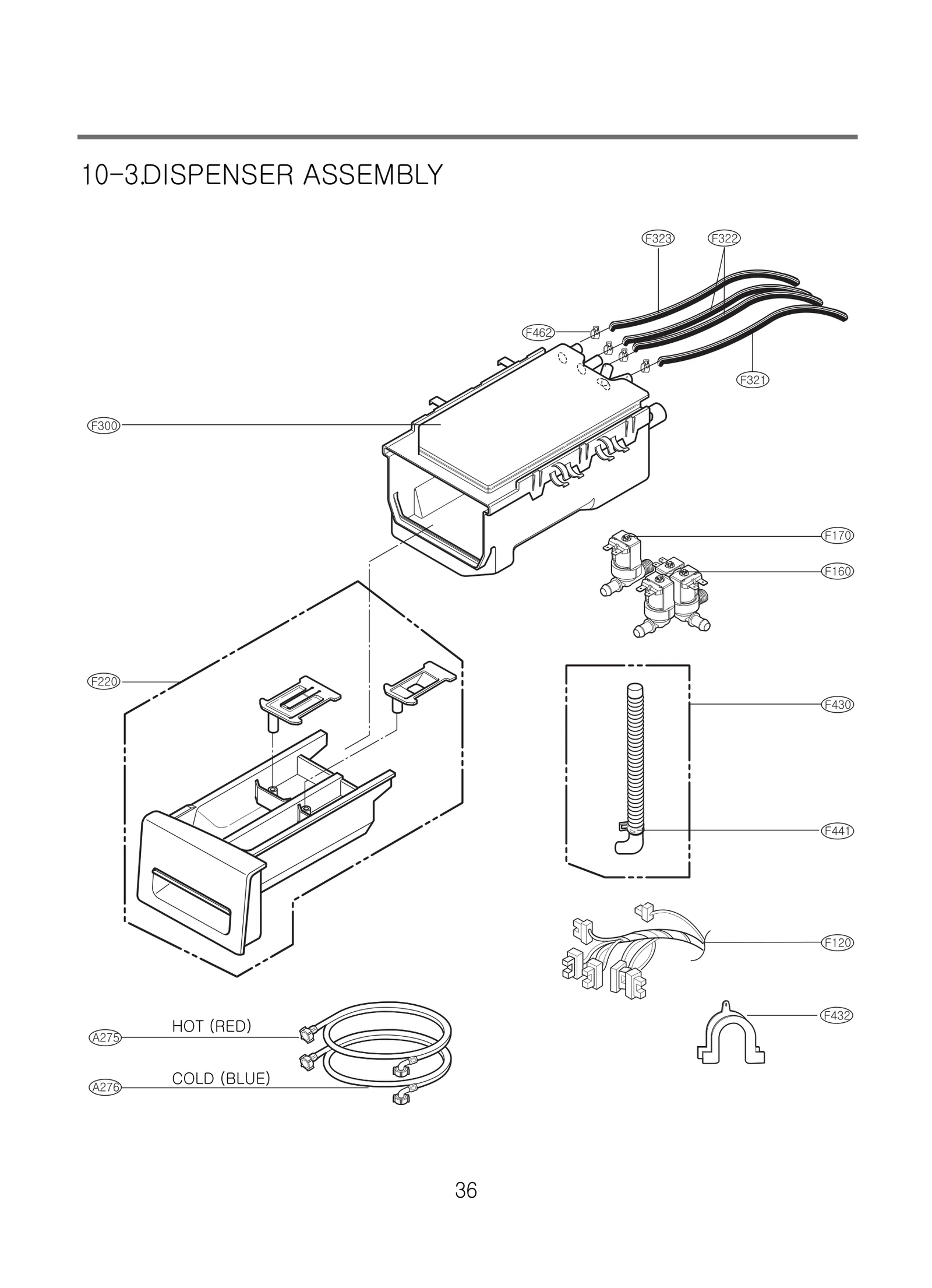

F300

4925ER1015B LG Washer Detergent Dispenser Ass In Stock LGE 4925ER1015B $41.33

View on Model

F310

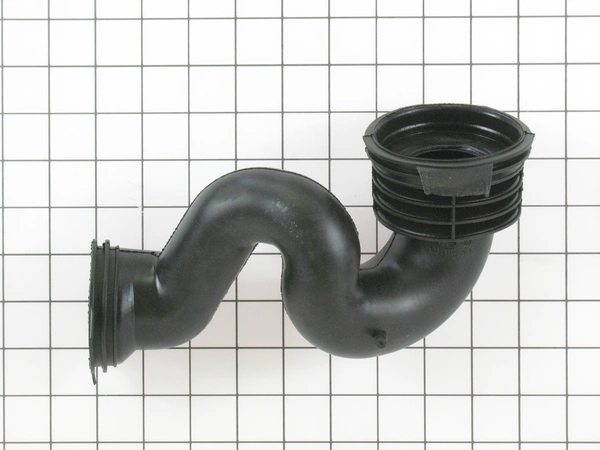

4738ER1004A LG Washer Bellows Drain Hose Backorder LGE 4738ER1004A $44.05

View on Model

F315

4738ER2002A LG Washer Drain Bellows In Stock LGE 4738ER2002A $30.86

View on Model

F322

5214ER4001B LG Washer Inlet Hose Dispenser In Stock LGE 5214ER4001B $17.38

View on Model

F323

5214ER4001J LG Washer Inlet Dispenser Hose In Stock LGE 5214ER4001J $21.74

View on Model

F432

3W50712A LG Washer Pivot Hanger Assembly Backorder LGE 3W50712A $6.61

View on Model

F461

4861FR3068C LG Clamp Backorder LGE 4861FR3068C $6.61

View on Model

F462

4861FR3068A LG Washer Hose Clamp In Stock LGE 4861FR3068A $6.61

View on Model

F464

4860FR3092C LG Clamp Backorder LGE 4860FR3092C $10.54

View on Model

F468

4861FR3068E LG Clamp Assembly Backorder LGE 4861FR3068E $10.54

View on Model

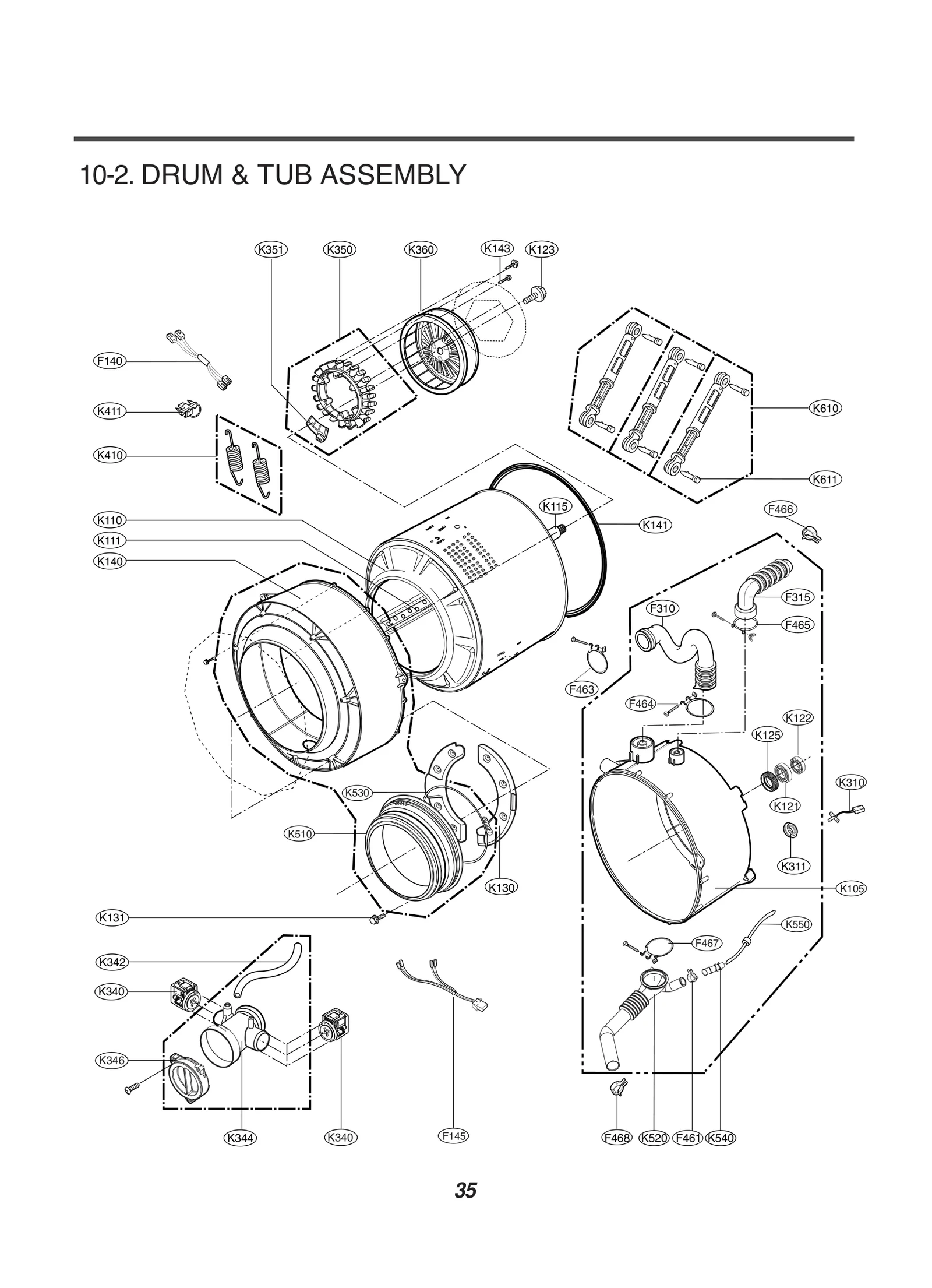

K105

TUB ASSEMBLY,OUTER[SUB4] LGE 3045ER0023A Contact Us For Availability

View on Model

K121

4280EN4001A LG Ball Bearing Backorder LGE 4280EN4001A $57.28

View on Model

K122

4280EN4001B LG Bearing Ball Backorder LGE 4280EN4001B $44.05

View on Model

K125

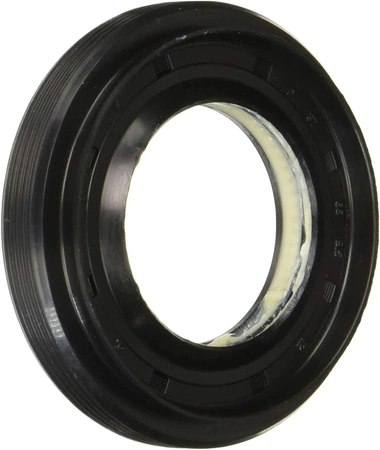

4036ER2003A LG Washer Tub Seal In Stock LGE 4036ER2003A $21.74

View on Model

K131

1SZZER4002A LG Customized Screw In Stock LGE 1SZZER4002A $7.03

View on Model

K141

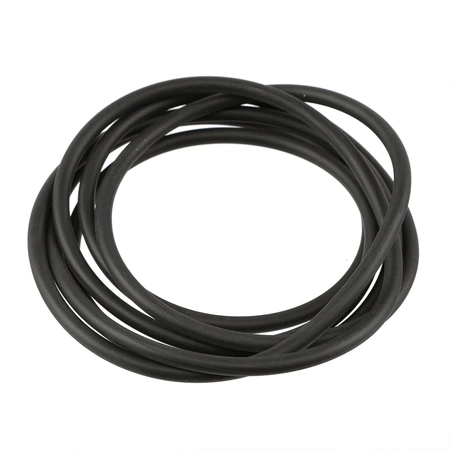

4036ER4001C LG Washer Outer Tub Seal Gasket Backorder LGE 4036ER4001C $21.74

View on Model

K143

4011FA4353B LG Washer Bolt In Stock LGE 4011FA4353B $7.27

View on Model

K310

6322FR2046C LG Washer Dryer Thermistor In Stock LGE 6322FR2046C $13.53

View on Model

K311

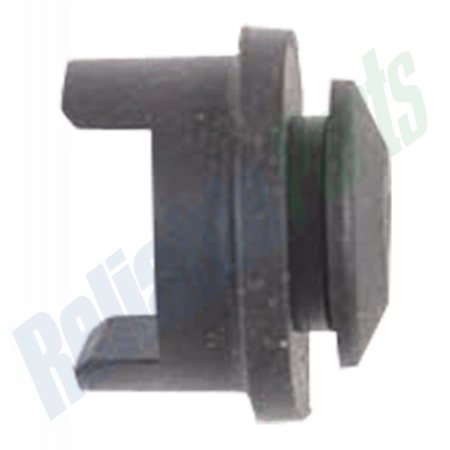

4036FR4050A LG Washer Gasket Seal Backorder LGE 4036FR4050A $6.61

View on Model

K342

5214FR4006G LG Washer Water Clean Out Drain H In Stock LGE 5214FR4006G $7.27

View on Model

K344

3108ER1001B LG Washer Pump Housing In Stock LGE 3108ER1001B $23.91

View on Model

K346

383EER2001A LG Washer Drain Filter and Cap As In Stock LGE 383EER2001A $13.53

View on Model

K351

6501KW2001B LG Sensor Assembly In Stock LGE 6501KW2001B $28.17

View on Model

K410

SPRING,HINGE LGE 4970FR2084S Contact Us For Availability

View on Model

K411

4930FR3040A LG Washer Hinge Spring Holder In Stock LGE 4930FR3040A $7.27

View on Model

K510

GASKET LGE 4986ER0006B Contact Us For Availability

View on Model

K520

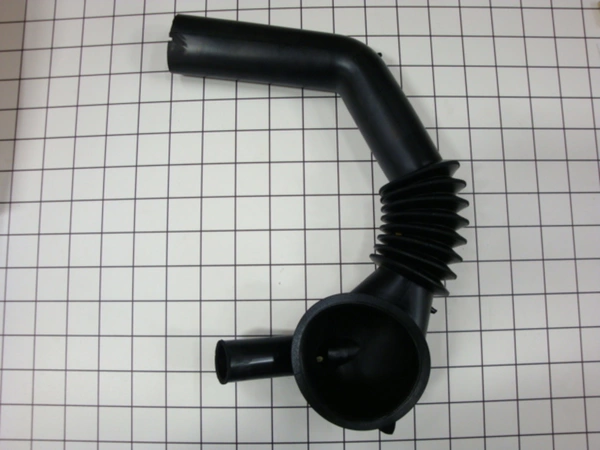

4738ER1006A LG Washer Water Pump Hose with Be Backorder LGE 4738ER1006A $52.55

View on Model

K530

CLAMP ASSEMBLY LGE 4861ER2001E Contact Us For Availability

View on Model

K611

4774FR3118B LG Washer Shock Absorber Locking Backorder LGE 4774FR3118B $10.54

View on Model
