Model Electrolux WGF353BADB RANGE – Common Parts &amp; Diagrams

*95843

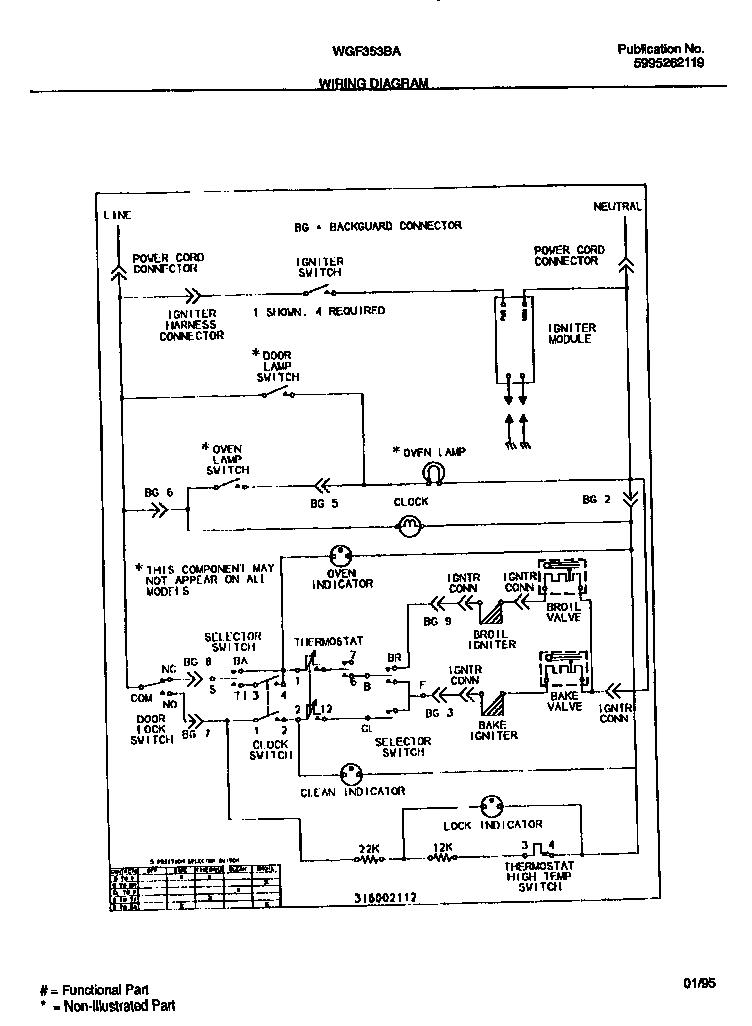

HARNESS-WIRING, MAIN WCI 5303292880 Contact Us For Availability

*95844

WCI 3200846 WCI 3200846 Contact Us For Availability

*95845

WCI 08067961 WCI 08067961 Contact Us For Availability

*95847

WCI 5303305325 WCI 5303305325 Contact Us For Availability

*95848

WCI 5303281584 WCI 5303281584 Contact Us For Availability

*95849

WCI 316065300 WCI 316065300 Contact Us For Availability

*95850

RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability

*95851

WCI 5303212671 WCI 5303212671 Contact Us For Availability

*95852

WCI 5303280311 WCI 5303280311 Contact Us For Availability

*95853

5303285179 Frigidaire Oven Door Screw Backorder WCI 5303285179 $10.53

*95854

WCI 5303269859 WCI 5303269859 Contact Us For Availability

1

WCI 316029405 WCI 316029405 Contact Us For Availability

1

DRAWER-UTILITY WCI 316011501 Contact Us For Availability

2

316137003 Frigidaire Range End Cap Backorder WCI 316137003 $35.50

2

WCI 3131314 WCI 3131314 Contact Us For Availability

2

WCI 3131975 WCI 3131975 Contact Us For Availability

3

WCI 316032001 WCI 316032001 Contact Us For Availability

3

SHIELD-INSULATION, GALV STEEL (NON-ILLUSTRATE WCI 08067992 Contact Us For Availability

3

PANEL, BODYSIDE, ALMOND, RH (NON-ILLUSTRATED WCI 316081006 Contact Us For Availability

3

PANEL, BODYSIDE, ALMOND, LH (NON-ILLUSTRATED WCI 316081007 Contact Us For Availability

3

SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability

3

Trim,oven door ,black WCI 316067802 Contact Us For Availability

4

SCREW, HEX WSHER HEAD, 8, 18(AB) X 1/2 (NON- WCI 08067785 Contact Us For Availability

4

WCI 3011597 WCI 3011597 Contact Us For Availability

4

WCI 316056206 WCI 316056206 Contact Us For Availability

4

GLASS-OVEN DOOR, BLACK, OUTER WCI 3051152 Contact Us For Availability

5

316116000 Frigidaire Screw Backorder WCI 316116000 $9.40

5

ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934058 Contact Us For Availability

5

SCREW-LEVELING WCI 5303203397 Contact Us For Availability

5

WCI 5303288460 WCI 5303288460 Contact Us For Availability

5

FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability

5

GLASS-OVEN DOOR, INNER WCI 5303209513 Contact Us For Availability

6

316067902 Frigidaire Oven Rack Backorder WCI 316067902 $80.39

6

SHIELD-INSULATION WCI 5303211084 Contact Us For Availability

7

3051163 Frigidaire Oven Range Rear Broiler Dr In Stock WCI 3051163 $2.90

7

WCI 316007002 No Longer Available

7

INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability

8

316064600 Frigidaire Oven Support Backorder WCI 316064600 $13.86

8

PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability

9

PAN-BROILER WCI 5303013568 Contact Us For Availability

9

WCI 316066603 WCI 316066603 Contact Us For Availability

10

WCI 316057100 WCI 316057100 Contact Us For Availability

10

SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability

10

WCI 5303131356 WCI 5303131356 Contact Us For Availability

12

3016993 Frigidaire Oven Retainer Backorder WCI 3016993 $64.37

12

5303131601 Frigidaire Oven Seal Backorder WCI 5303131601 $273.99

12

WCI 316027702 WCI 316027702 Contact Us For Availability

13

WCI 316065005 WCI 316065005 Contact Us For Availability

13

WCI 316026800 WCI 316026800 Contact Us For Availability

316021104 Frigidaire Oven Screw Assembly Backorder WCI 316021104 $6.09

316022500 Frigidaire Oven Warmer Drawer Zone In Stock WCI 316022500 $42.23

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $46.03

REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability

14A

5303208655 Frigidaire Reflector Assembly Backorder WCI 5303208655 $45.46

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $14.94

15

BRACKET-GLASS MTG WCI 5303209510 Contact Us For Availability

16

5304524341 Frigidaire Lens In Stock WCI 5304524341 $9.98

16

GLASS-OVEN DOOR, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability

16

MAIN TOP, ALMOND WCI 3131455 Contact Us For Availability

5303208499 Frigidaire Gas Safety Valve Backorder WCI 5303208499 $484.52

WCI 316066900 WCI 316066900 Contact Us For Availability

RETAINER-GLASS WCI 3204585 Contact Us For Availability

WCI 5303209517 WCI 5303209517 Contact Us For Availability

WCI 5303015453 WCI 5303015453 Contact Us For Availability

WCI 3131290 WCI 3131290 Contact Us For Availability

SHIELD-LATCH, TOP (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability

BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability

SEAL, ROP, 0.25 DIA WCI 5303211085 Contact Us For Availability

18A

BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability

19

5303935066 Frigidaire Oven Flat Igniter 17-In In Stock WCI 5303935066 $43.50

19

WCI 5303131357 WCI 5303131357 Contact Us For Availability

19

WCI 316067600 WCI 316067600 Contact Us For Availability

WCI 5303272852 WCI 5303272852 Contact Us For Availability

BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability

WCI 08013188 WCI 08013188 Contact Us For Availability

WCI 3203218 WCI 3203218 Contact Us For Availability

21

5303013272 Frigidaire Oven Nut Backorder WCI 5303013272 $13.83

21

SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability

22

WCI 316065002 WCI 316065002 Contact Us For Availability

22

SWITCH-LATCH WCI 5303269499 Contact Us For Availability

22

WCI 08067978 WCI 08067978 Contact Us For Availability

23

WCI 08067935 WCI 08067935 Contact Us For Availability

23

WCI 08067776 WCI 08067776 Contact Us For Availability

24

WCI 5303208640 WCI 5303208640 Contact Us For Availability

24

SHIELD-LATCH WCI 3051413 Contact Us For Availability

25

BAFFLE-BROILER WCI 5303210379 Contact Us For Availability

25

WCI 3131313 WCI 3131313 Contact Us For Availability

26

5303935068 Frigidaire Flat Igniter In Stock WCI 5303935068 $130.32

26

WCI 08067757 WCI 08067757 Contact Us For Availability

27

5303284616 Frigidaire Range Bulb Clip Thermos In Stock WCI 5303284616 $7.20

28

CLIP-WIRE WCI 3011813 Contact Us For Availability

29

3051162 Frigidaire Oven Range Front Broiler D In Stock WCI 3051162 $2.15

33

BRACKET BURNER MTG WCI 3200277 Contact Us For Availability

33

SHIELD, REAR WALL WCI 316014401 Contact Us For Availability

35

316542102 Frigidaire Flue Gasket Backorder WCI 316542102 $8.85

36

KNOB-TOP VALVE, (4) WCI 316009008 No Longer Available

36

WCI 3131931 WCI 3131931 Contact Us For Availability

38

WCI 316014301 WCI 316014301 Contact Us For Availability

39

5304515659 Frigidaire Oven Power Cord In Stock WCI 5304515659 $31.61

39

HANDLE-DRAWER, ALMOND WCI 316019502 Contact Us For Availability

39

HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability

40

WCI 3200836 WCI 3200836 Contact Us For Availability

40

WCI 5303288570 WCI 5303288570 Contact Us For Availability

41

WCI 3131570 WCI 3131570 Contact Us For Availability

42

WCI 5303270104 WCI 5303270104 Contact Us For Availability

43

316282700 Frigidaire Oven Screw Backorder WCI 316282700 $7.74

44

3131903 Frigidaire Door/Drawer Bumper Backorder WCI 3131903 $40.48

45

SHIELD-WIRE WCI 08068018 Contact Us For Availability

53

08067973 Frigidaire 0 Insulation Backorder WCI 08067973 $40.48

53

WCI 5303271047 WCI 5303271047 Contact Us For Availability

58A

INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability

58B

WCI 316054200 WCI 316054200 Contact Us For Availability

58C

INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability

60

SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability

72

COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
