  • Whirlpool W30400B Parts List

Model Whirlpool W30400B ELECTRIC WALL OVEN – Common Parts & Diagrams

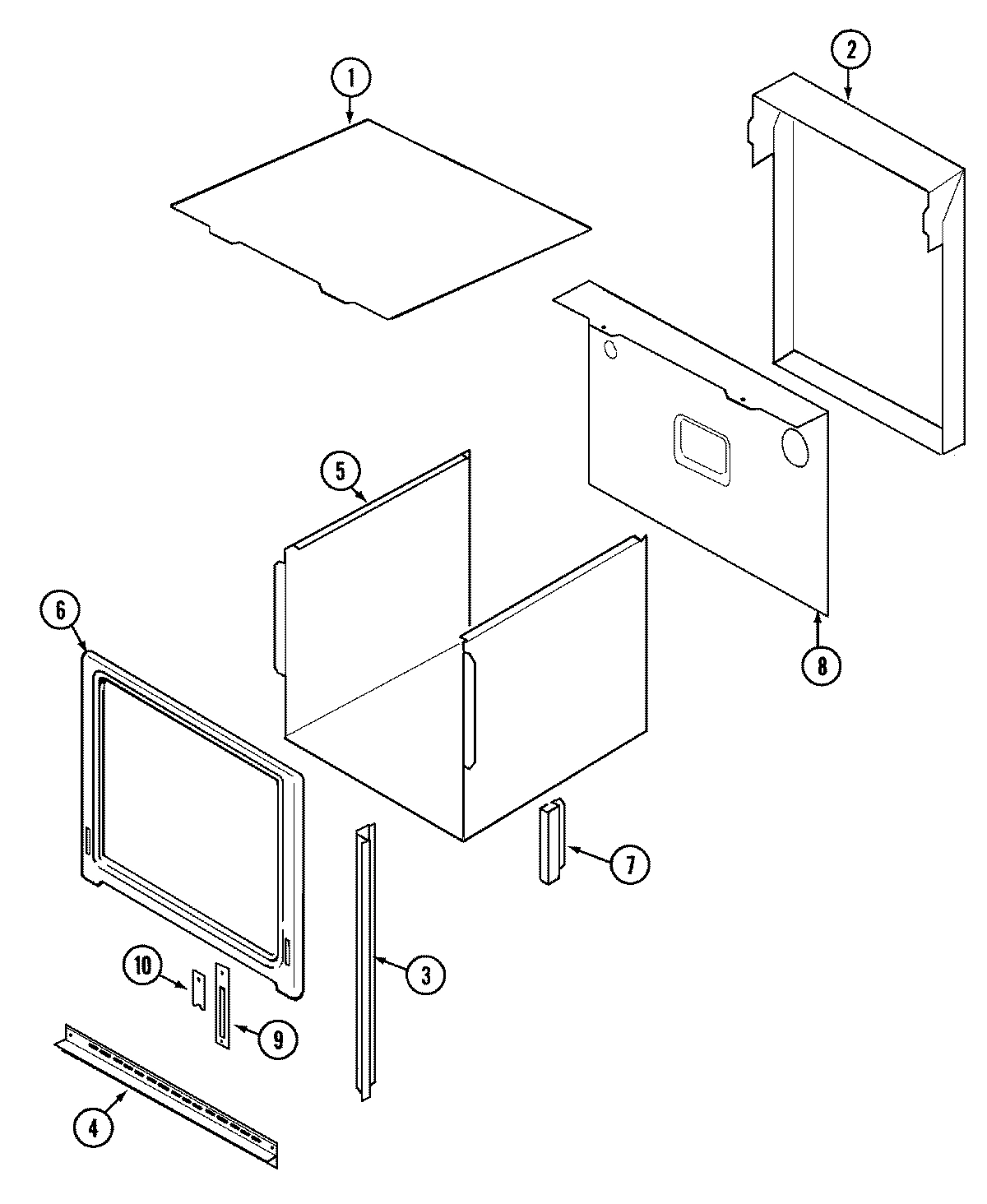

1

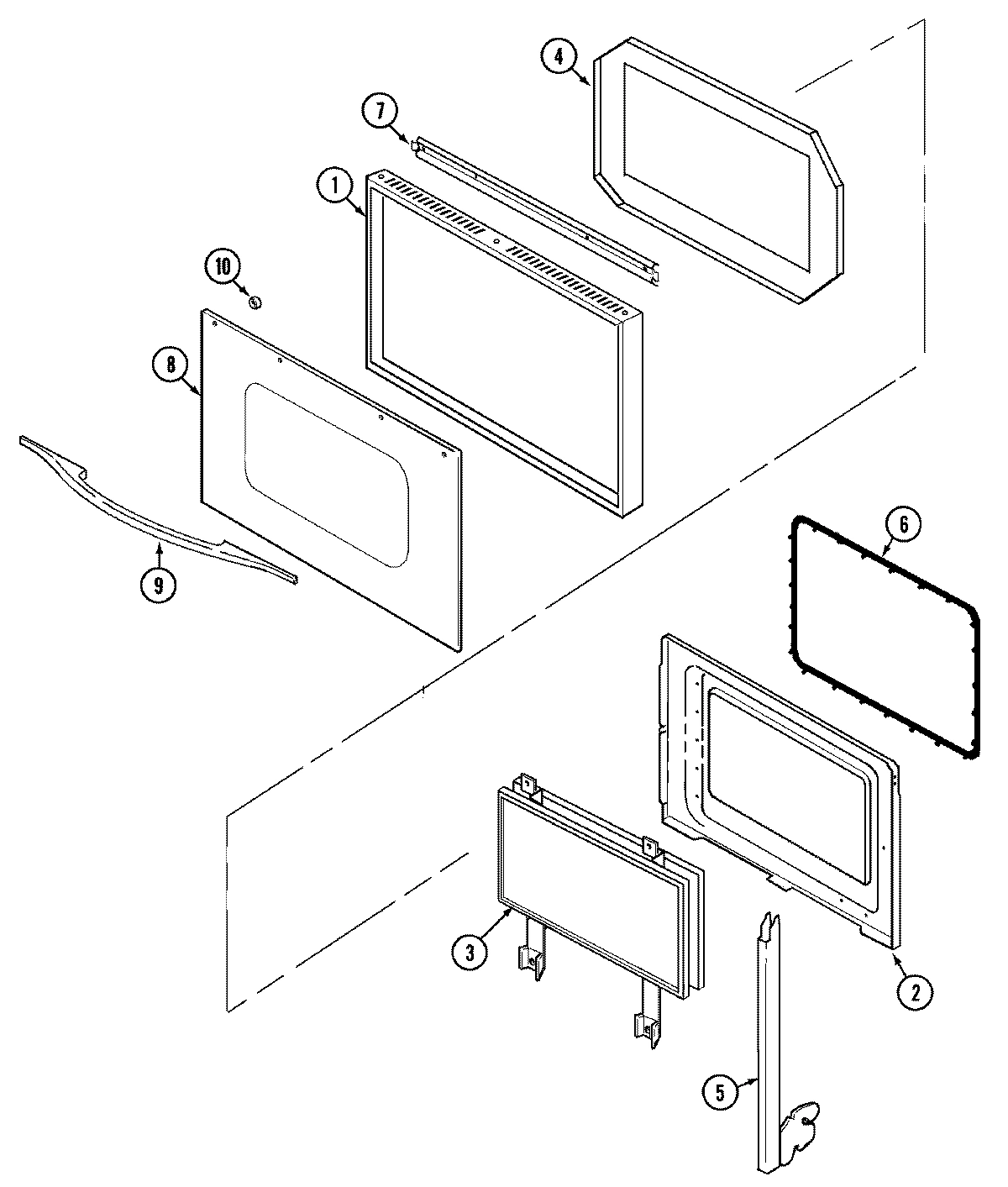

FRAME, DOOR (BLK)
FRAME, DOOR (BLK) WPL 71001829 Contact Us For Availability
View on Model
1
END CAP, PANEL (BLK)
END CAP, PANEL (BLK) WPL 71001794 Contact Us For Availability
View on Model
1
PANEL, INNER TOP
PANEL, INNER TOP WPL 71001842 Contact Us For Availability
View on Model
1
TOP, OVEN (OUTER)
TOP, OVEN (OUTER) WPL 71001811 Contact Us For Availability
View on Model
2
LINER, OVEN DOOR (30`` W.O.)
LINER, OVEN DOOR (30`` W.O.) WPL 71001190 Contact Us For Availability
View on Model
2
PLATE, LATCH
PLATE, LATCH WPL 71001831 Contact Us For Availability
View on Model
2
LINER, OVEN DOOR
LINER, OVEN DOOR WPL 71002967 Contact Us For Availability
View on Model
2

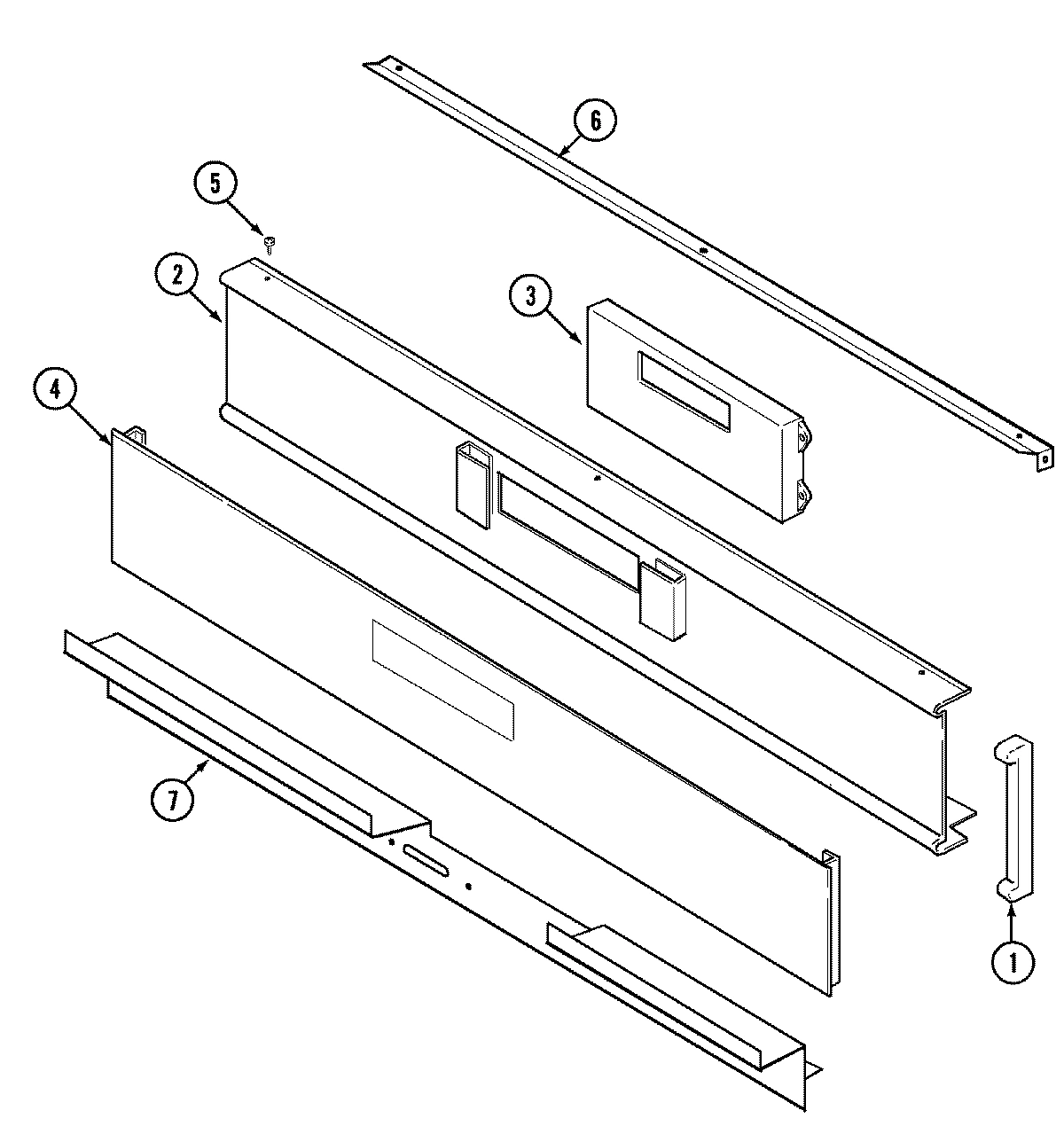

PANEL, CONTROL (BLK)
PANEL, CONTROL (BLK) WPL 71001796 Contact Us For Availability
View on Model
2
EXTENSION, VENT
EXTENSION, VENT WPL 71001843 Contact Us For Availability
View on Model
2
COVER, MAIN BACK
COVER, MAIN BACK WPL 71001813 Contact Us For Availability
View on Model
3
SWITCH, DOOR LOCK
SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability
View on Model
3
TRIM, SIDE (LT-BLK)
TRIM, SIDE (LT-BLK) WPL 71001823 Contact Us For Availability
View on Model
3
TRIM, SIDE (RT-BLK)
TRIM, SIDE (RT-BLK) WPL 71001824 Contact Us For Availability
View on Model
4
INSULATION, DOOR (BTM)
INSULATION, DOOR (BTM) WPL 71001838 Contact Us For Availability
View on Model
4
INSULATION, DOOR (SIDE)
INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability
View on Model
4
RETAINER, INSULATION
RETAINER, INSULATION WPL 71001840 Contact Us For Availability
View on Model
4
SWITCH, MEMBRANE ASSY. (CP)
SWITCH, MEMBRANE ASSY. (CP) WPL 71001800 Contact Us For Availability
View on Model
4
TRIM, OVEN (LWR-BLK)
TRIM, OVEN (LWR-BLK) WPL 71001822 Contact Us For Availability
View on Model
5
SCREW (BLACK)
SCREW (BLACK) WPL Y704488 Contact Us For Availability
View on Model
5
LATCH, DOOR ASSY.
LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability
View on Model
5
PANEL, OVEN (SIDE/BTM/SIDE)
PANEL, OVEN (SIDE/BTM/SIDE) WPL 71001814 Contact Us For Availability
View on Model
6
COVER, CONTROL
COVER, CONTROL WPL 71001802 Contact Us For Availability
View on Model
6
SUPPORT, CONTROL PANEL
SUPPORT, CONTROL PANEL WPL 71001803 Contact Us For Availability
View on Model
6
VENT (BTM)
VENT (BTM) WPL 71001846 Contact Us For Availability
View on Model
6
FRAME, OVEN
FRAME, OVEN WPL 71001189 Contact Us For Availability
View on Model
6
FRAME, OVEN
FRAME, OVEN WPL 71003180 Contact Us For Availability
View on Model
7
GUSSET
GUSSET WPL 71001837 Contact Us For Availability
View on Model
7
TRIM, CONTROL PANEL
TRIM, CONTROL PANEL WPL 71001804 Contact Us For Availability
View on Model
7
VENT (TOP)
VENT (TOP) WPL 71001847 Contact Us For Availability
View on Model
7

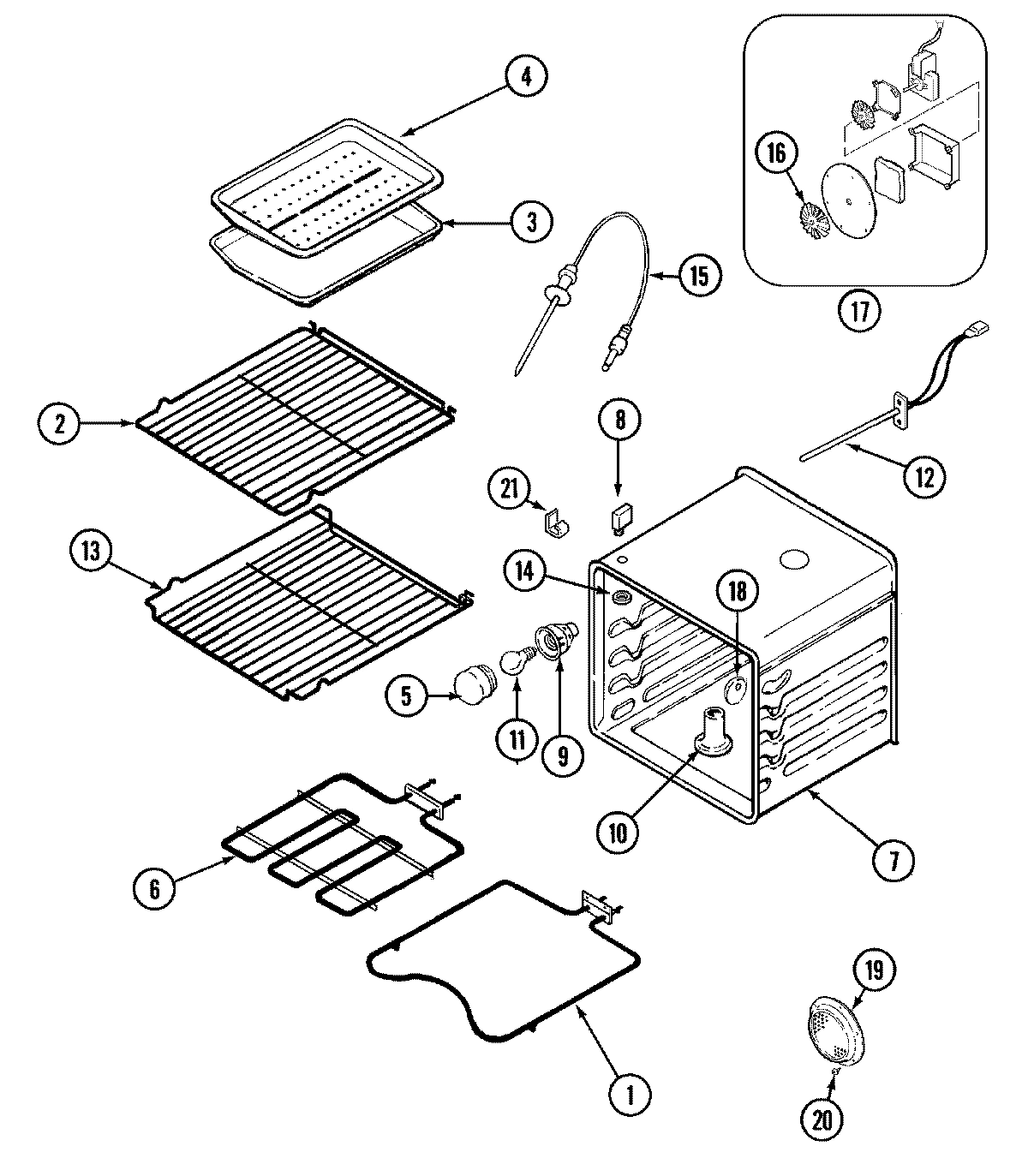

OVEN WELD ASSY.
OVEN WELD ASSY. WPL 71001165 Contact Us For Availability
View on Model
7
WASHER, ALUM
WASHER, ALUM WPL 71001403 Contact Us For Availability
View on Model
7
OVEN WELD ASSY.
OVEN WELD ASSY. WPL 71003005 Contact Us For Availability
View on Model
8
GLASS, DOOR (BLK)
GLASS, DOOR (BLK) WPL 71001833 Contact Us For Availability
View on Model
8
HARNESS, WIRE CONTROL (J2)
HARNESS, WIRE CONTROL (J2) WPL 71001798 Contact Us For Availability
View on Model
8
HARNESS, CONTROL (J10-UPR)
HARNESS, CONTROL (J10-UPR) WPL 71001806 Contact Us For Availability
View on Model
8
HARNESS, SUPPLY (J1)
HARNESS, SUPPLY (J1) WPL 71001807 Contact Us For Availability
View on Model
8
HARNESS, DOOR SWITCH (UPR)
HARNESS, DOOR SWITCH (UPR) WPL 71001808 Contact Us For Availability
View on Model
8
HARNESS, DOOR LOCK (UPR)
HARNESS, DOOR LOCK (UPR) WPL 71001809 Contact Us For Availability
View on Model
8
CLAMP, CONDUIT
CLAMP, CONDUIT WPL 701692 Contact Us For Availability
View on Model
8
RECEPTACLE, PROBE
RECEPTACLE, PROBE WPL 71001863 Contact Us For Availability
View on Model
8
PLATE, PROBE RECEPTACLE
PLATE, PROBE RECEPTACLE WPL Y04100596 Contact Us For Availability
View on Model
8
BACK, OVEN (INNER)
BACK, OVEN (INNER) WPL 71001816 Contact Us For Availability
View on Model
8
INSULATION (WRAP)
INSULATION (WRAP) WPL 71001817 Contact Us For Availability
View on Model
8
INSULATION (TOP)
INSULATION (TOP) WPL 71001818 Contact Us For Availability
View on Model
8
INSULATION (BCK)
INSULATION (BCK) WPL 71001819 Contact Us For Availability
View on Model
8
INSULATION (TOP-BTM)
INSULATION (TOP-BTM) WPL 71001820 Contact Us For Availability
View on Model
9
HANDLE, DOOR (BLK)
HANDLE, DOOR (BLK) WPL 71001835 Contact Us For Availability
View on Model
9
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 71002481 Contact Us For Availability
View on Model
9
WIRE CABLE ASSY.
WIRE CABLE ASSY. WPL 71001848 Contact Us For Availability
View on Model
9
RECEPTACLE, BULB
RECEPTACLE, BULB WPL 71001866 Contact Us For Availability
View on Model
9
PLATE, HINGE COVER
PLATE, HINGE COVER WPL 71001815 Contact Us For Availability
View on Model
10
NUT, PUSH IN
NUT, PUSH IN WPL 701643 Contact Us For Availability
View on Model
10
GUIDE, QUICK REF - JENN-AIR
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
View on Model
10
SWITCH, DOOR LIGHT
SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability
View on Model
10
TUBE, VENT
TUBE, VENT WPL 71001864 Contact Us For Availability
View on Model
10
PLATE, HINGE TRAP
PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability
View on Model
11

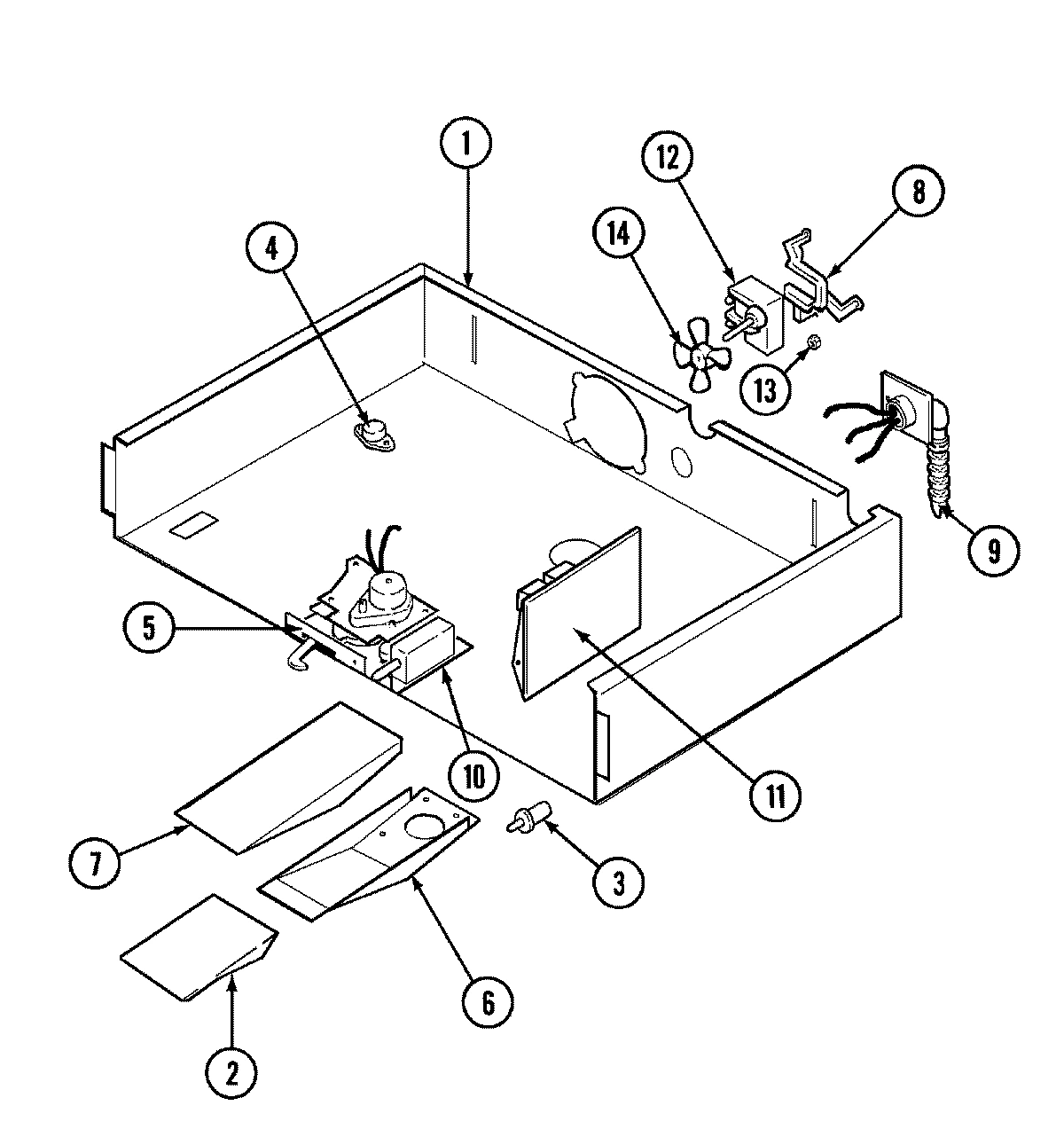

BOARD, RELAY
BOARD, RELAY WPL 71001850 Contact Us For Availability
View on Model
12
FAN MOTOR ASSY.
FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability
View on Model
14
BLADE, FAN
BLADE, FAN WPL 71001852 Contact Us For Availability
View on Model
14
NUT, HEX 3/8``
NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability
View on Model
15
BRACKET, FAN
BRACKET, FAN WPL 71001853 Contact Us For Availability
View on Model
16
WHEEL, CONVECT ASSY.
WHEEL, CONVECT ASSY. WPL 71001855 Contact Us For Availability
View on Model
17
CONVECTION MTR ASSY
CONVECTION MTR ASSY WPL 71001858 Contact Us For Availability
View on Model
18
BUTTON, PLUG
BUTTON, PLUG WPL 702929 Contact Us For Availability
View on Model
19
PLATE, CONVECTION (FRT)
PLATE, CONVECTION (FRT) WPL 71001854 Contact Us For Availability
View on Model
21
CLIP, OVEN
CLIP, OVEN WPL 71001170 Contact Us For Availability
View on Model
22
HARNESS, MEAT PROBE
HARNESS, MEAT PROBE WPL 71001868 Contact Us For Availability
View on Model
22
WIRE, GROUND
WIRE, GROUND WPL 71001869 Contact Us For Availability
View on Model
NI

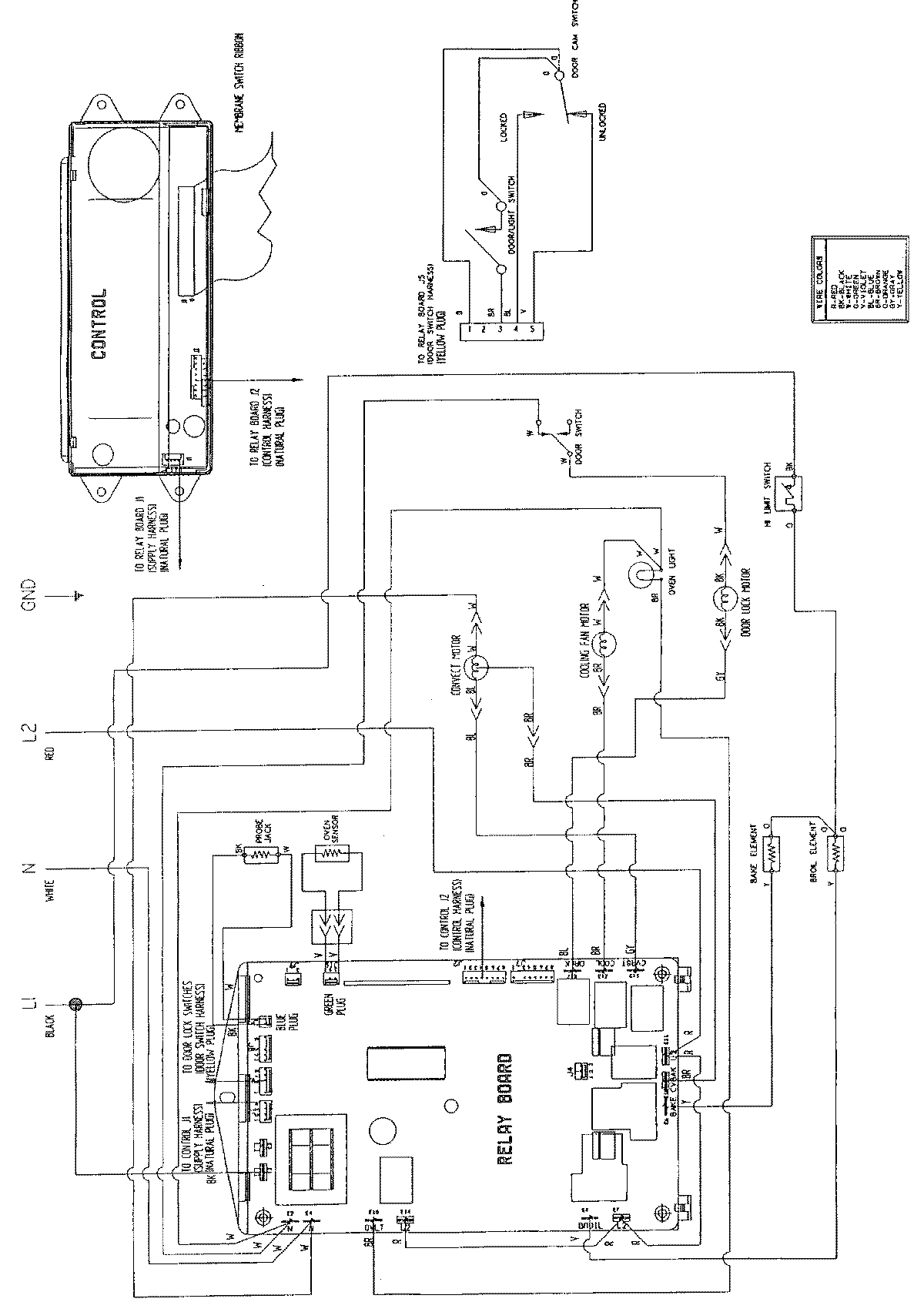

WIRING INFORMATION
WIRING INFORMATION WPL 15001534 Contact Us For Availability
View on Model
