Model Whirlpool W2750W-C ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BLOWER MOTOR (CONVECTION)

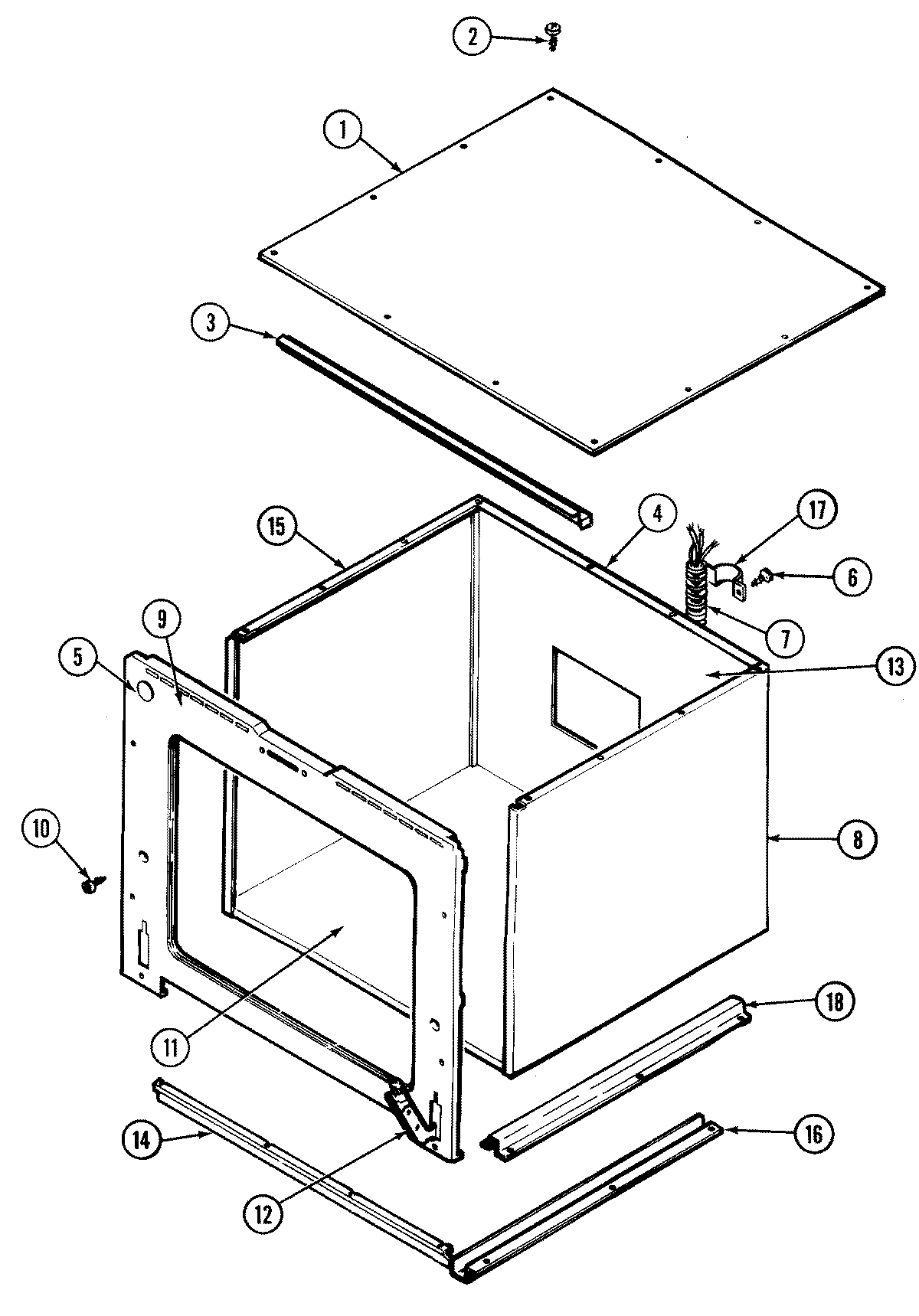

03 - BODY

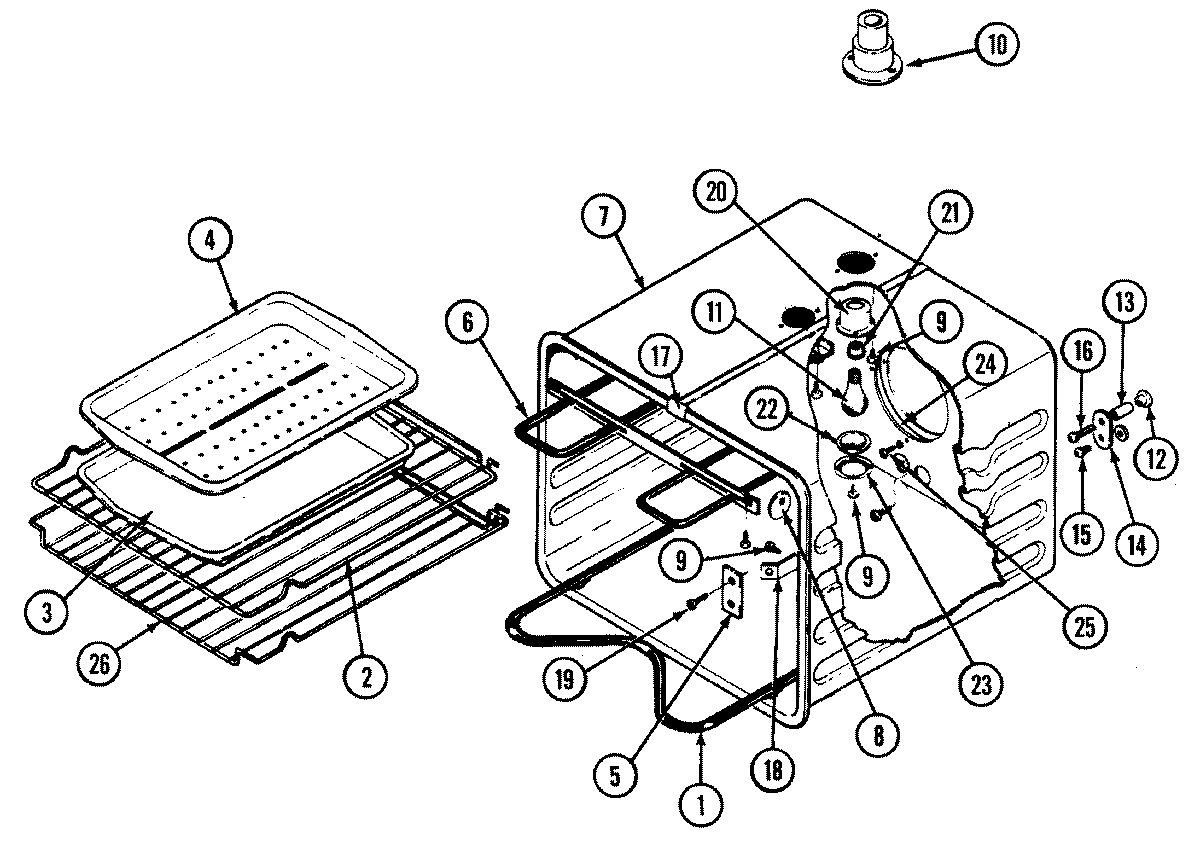

05 - OVEN

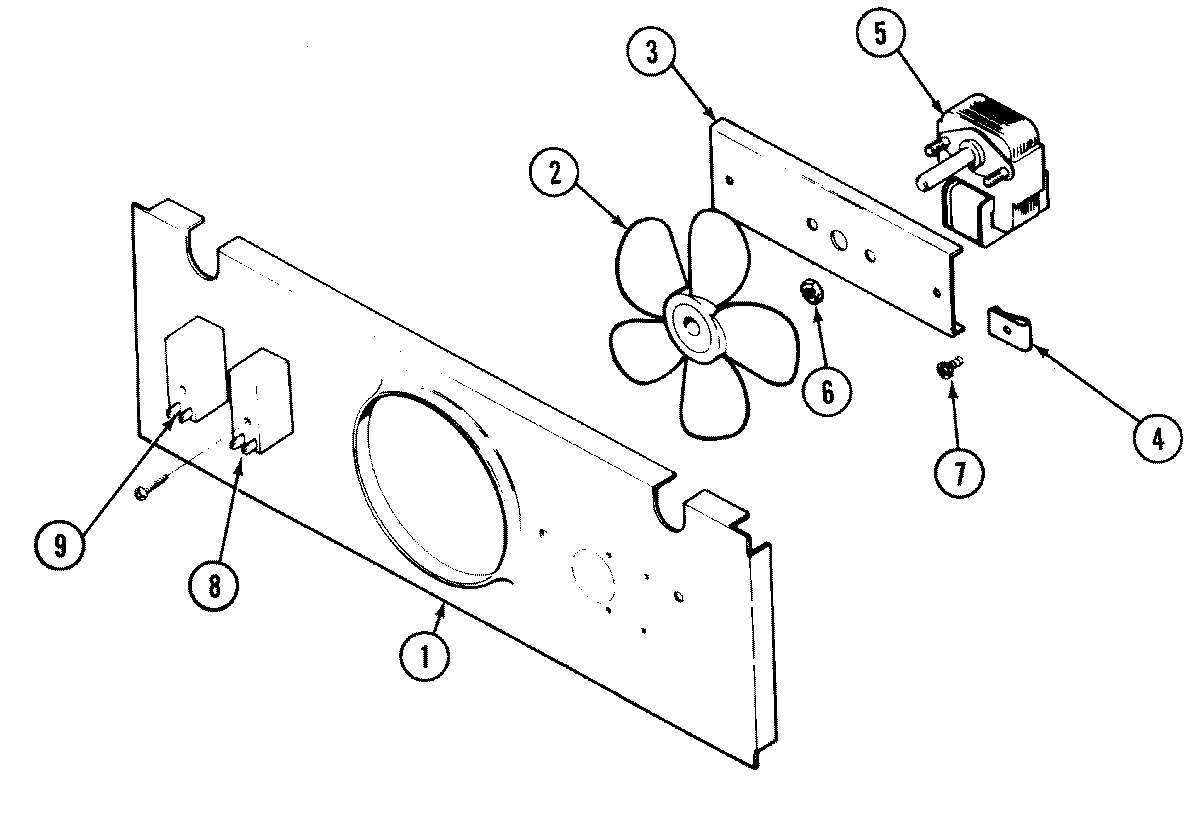

02 - BLOWER MOTOR (COOLING)

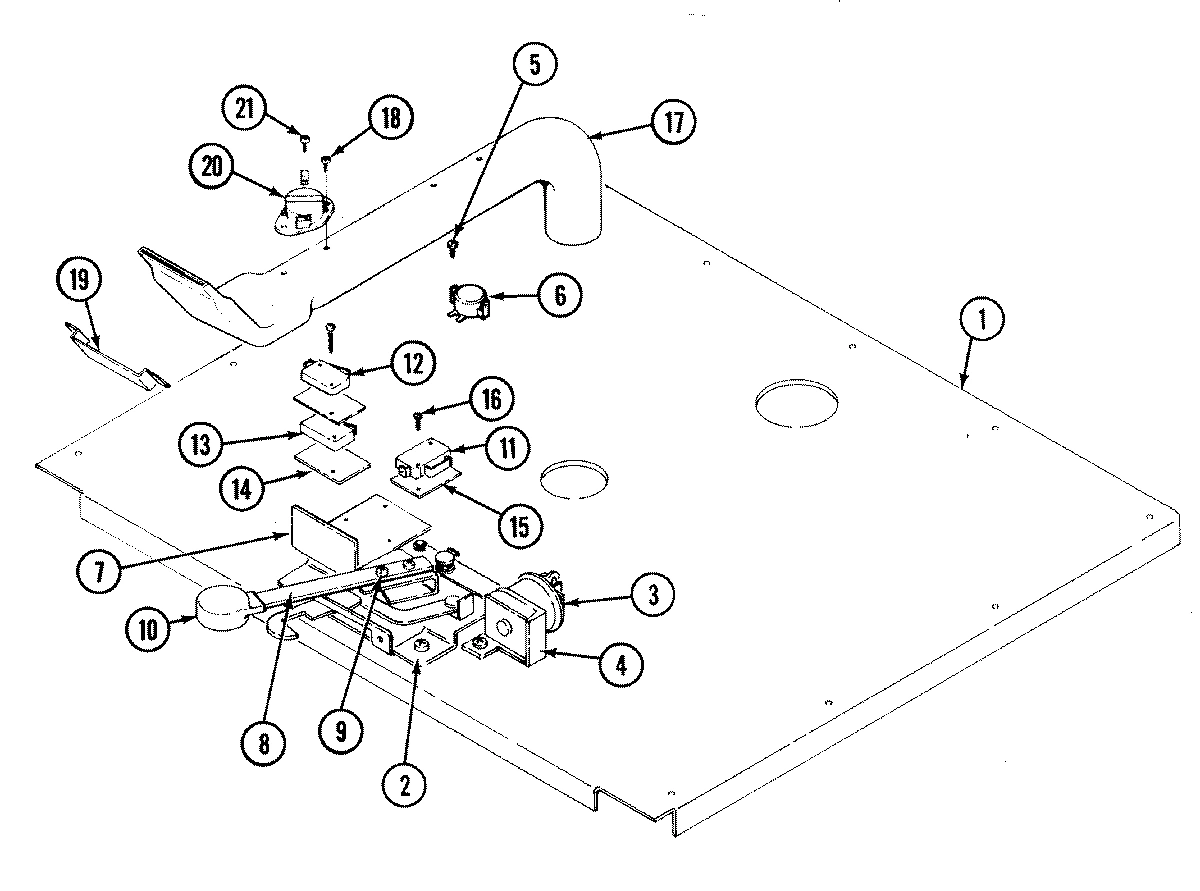

04 - INTERNAL CONTROLS
Common parts from model Whirlpool W2750W-C ELECTRIC WALL OVEN
1
TOP, UNIT (OUTER) WPL 04100567 Contact Us For Availability
1
ELEMENT, BAKE WPL Y04100387 Contact Us For Availability
1
SHROUD, FAN WPL 04100560 Contact Us For Availability
1
PANEL, INNER TOP WPL 04100559 Contact Us For Availability
2
RACK, OVEN WPL Y704660 Contact Us For Availability
2
BLADE, FAN WPL 702944 Contact Us For Availability
2
LATCH ASSY. WPL Y703357 Contact Us For Availability
3
WHEEL, CONVECTION WPL 701711 Contact Us For Availability
3
SUPPORT, TOP WPL 703095 Contact Us For Availability
3
MOUNT, MOTOR WPL Y704732 Contact Us For Availability
3
PIN, COTTER WPL Y701686 Contact Us For Availability
4
BACK, OUTER WPL 04100564 Contact Us For Availability
4
CLIP, J WPL Y700556 Contact Us For Availability
4
WIRE, GRAY WPL 703767 Contact Us For Availability
4
SOLENOID WPL Y702526 Contact Us For Availability
5
COVER, MOTOR FRONT WPL 701713 Contact Us For Availability
5
SWITCH, DOOR WPL 701666 Contact Us For Availability
5
COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability
5
MOTOR, FAN WPL Y701721 Contact Us For Availability
6
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
6
THERMOSTAT WPL 701687 Contact Us For Availability
7
MOTOR, CONVECT WPL Y703035 Contact Us For Availability
7
WIRE CABLE ASSY. WPL 71001792 Contact Us For Availability
7
OVEN WELD ASSEMBLY WPL 04100572 Contact Us For Availability
7
WASHER, ALUM WPL 71001403 Contact Us For Availability
7
OVEN WELD ASSY. WPL 71001490 Contact Us For Availability
7
SHIELD, SWITCH WPL 701706 Contact Us For Availability
8
COVER, MOTOR WPL 701716 Contact Us For Availability
8
PANEL, SIDE (RH) WPL 04100558 Contact Us For Availability
8
STANDOFF WPL 703007 Contact Us For Availability
8
COVER, MEAT PROBE WPL 712088 Contact Us For Availability
8
SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability
8
LEVER, LATCH (WHT) WPL Y712547 Contact Us For Availability
9
BRACKET WPL 04100566 Contact Us For Availability
9
CLOSURE, FRONT WPL 04100571 Contact Us For Availability
9
CLOSURE, FRONT WPL 71001487 Contact Us For Availability
9
SCREW WPL 704335 Contact Us For Availability
9
SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability
9
SCREW WPL 707407 Contact Us For Availability
9
WASHER WPL Y700862 Contact Us For Availability
10
WASHER, LOCK WPL 715910 Contact Us For Availability
10
TUBE, VENT WPL 701738 Contact Us For Availability
10
SPRING, KNOB WPL 701671 Contact Us For Availability
10
KNOB (WHT) WPL 704460 Contact Us For Availability
11
PANEL, BOTTOM WPL 04100562 Contact Us For Availability
11
SWITCH, SOLENOID WPL Y702360 Contact Us For Availability
11
SWITCH, LATCH WPL Y703732 Contact Us For Availability
12
BACKPLATE, HINGE WPL 04100577 Contact Us For Availability
12
HINGE WPL Y703419 Contact Us For Availability
12
NUT, TEE WPL 715294 Contact Us For Availability
12
SWITCH, DOOR WPL 702806 Contact Us For Availability
13
BACK, INNER WPL 04100561 Contact Us For Availability
13
INSULATION WRAP WPL 04100565 Contact Us For Availability
13
SPACER, OVEN WPL 701741 Contact Us For Availability
13
SWITCH, DOOR WPL 702805 Contact Us For Availability
14
TRIM, OVEN (LWR-WHT) WPL 04100551 Contact Us For Availability
14
TRIM, OVEN (LT/WHT) WPL 71001456 Contact Us For Availability
14
TRIM, OVEN (RT/WHT) WPL 71001457 Contact Us For Availability
14
SCREW WPL 712066 Contact Us For Availability
14
PLATE, GROUNDING WPL 701742 Contact Us For Availability
14
INSULATOR WPL Y702350 Contact Us For Availability
15
PANEL, SIDE (LH) WPL 04100557 Contact Us For Availability
15
INSULATOR WPL 703264 Contact Us For Availability
16
RAIL, BOTTOM WPL 700596 Contact Us For Availability
16
INSULATION, WRAP WPL 701702 Contact Us For Availability
16
INSULATION, REAR WPL 701703 Contact Us For Availability
16
SCREW WPL 701744 Contact Us For Availability
16
SCREW WPL 702807 Contact Us For Availability
17
CLAMP, CONDUIT WPL 701692 Contact Us For Availability
17
ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability
17
CLIP, OVEN WPL Y702618 Contact Us For Availability
17
TUBE, VENT (UPR OVEN) WPL 04100539 Contact Us For Availability
18
RAIL, SUPPORT WPL 04100563 Contact Us For Availability
18
WIRE HARNESS WPL 04100612 Contact Us For Availability
18
BREAKER (15 AMP) WPL 702007 Contact Us For Availability
18
BREAKER (30 AMP) WPL 702008 Contact Us For Availability
18
BOX, BREAKER WPL 704165 Contact Us For Availability
18
CLIP, BULB WPL Y701541 Contact Us For Availability
19
BRACKET, VENT TUBE WPL 701680 Contact Us For Availability
20
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
20
LIMIT, FAN WPL Y702750 Contact Us For Availability
21
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
21
WIRE, YELLOW WPL 703386 Contact Us For Availability
21
LIMIT, OVEN WPL Y702107 Contact Us For Availability
21
TERMINAL WPL Y702711 Contact Us For Availability
22
LENS, LIGHT WPL Y704143 Contact Us For Availability
23
RETAINER, LENS WPL Y704144 Contact Us For Availability
24
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
24
PLATE, NON-CONVECT WPL 705343 Contact Us For Availability
26
RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability
× ![]()
