Model Whirlpool W256W-C ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

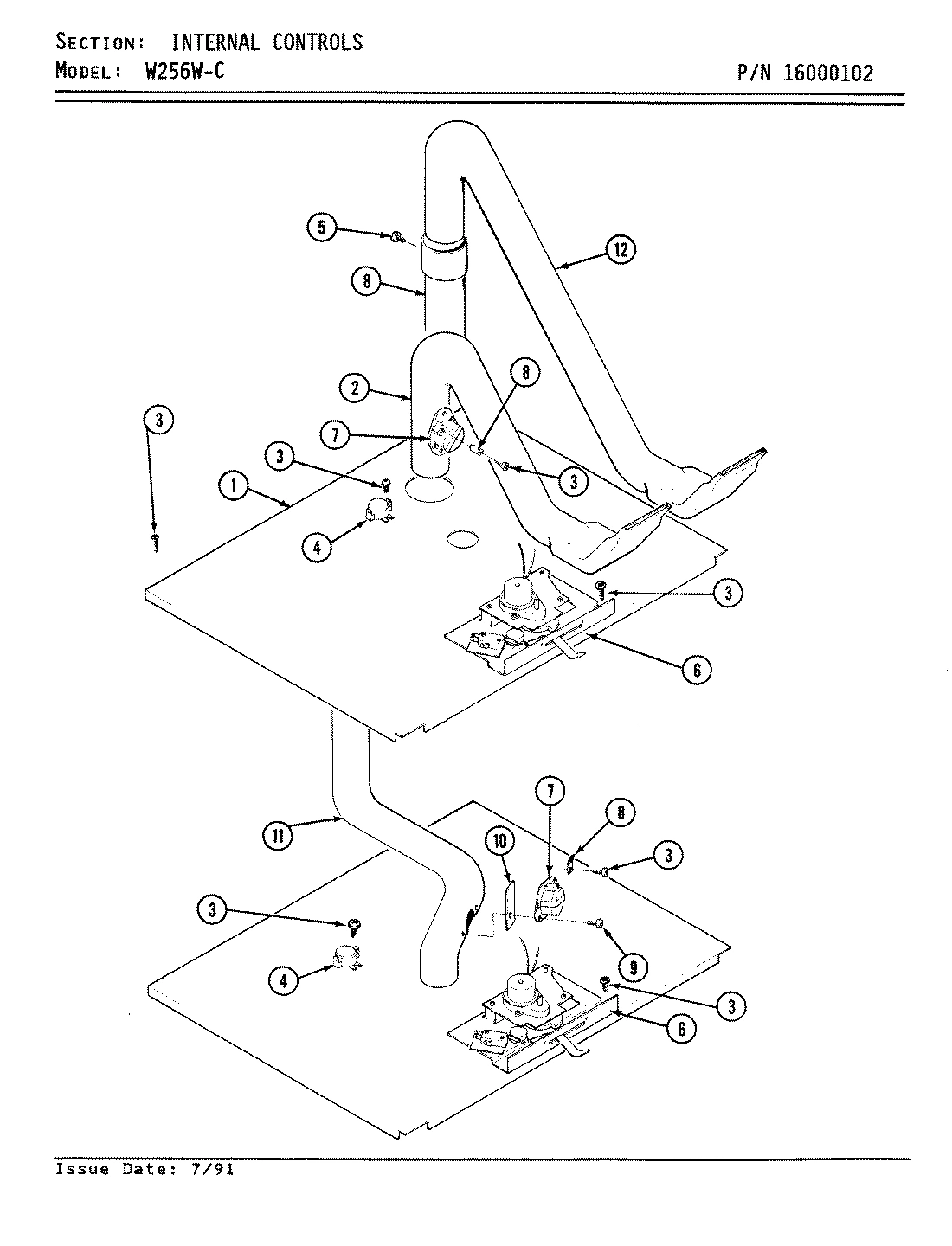

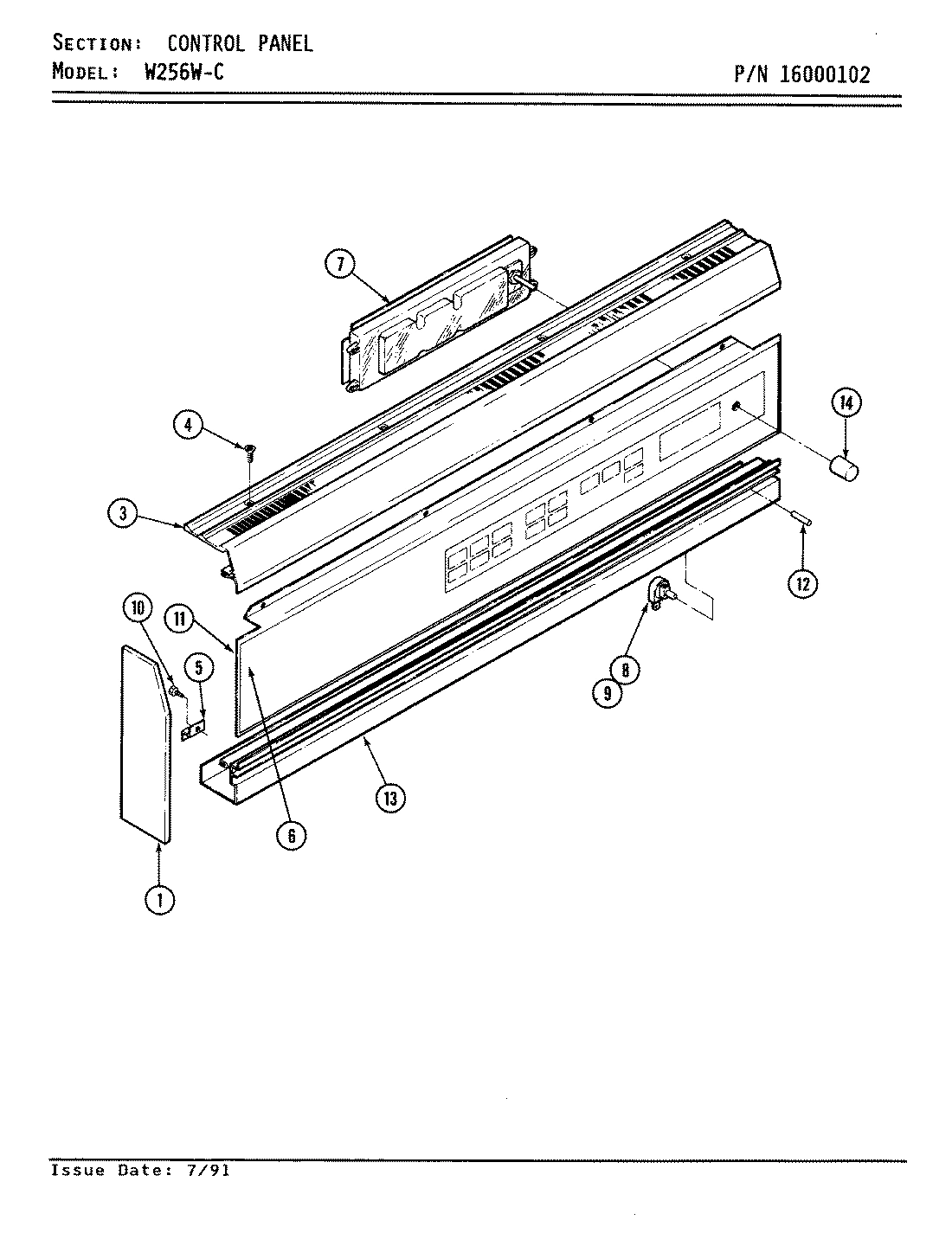

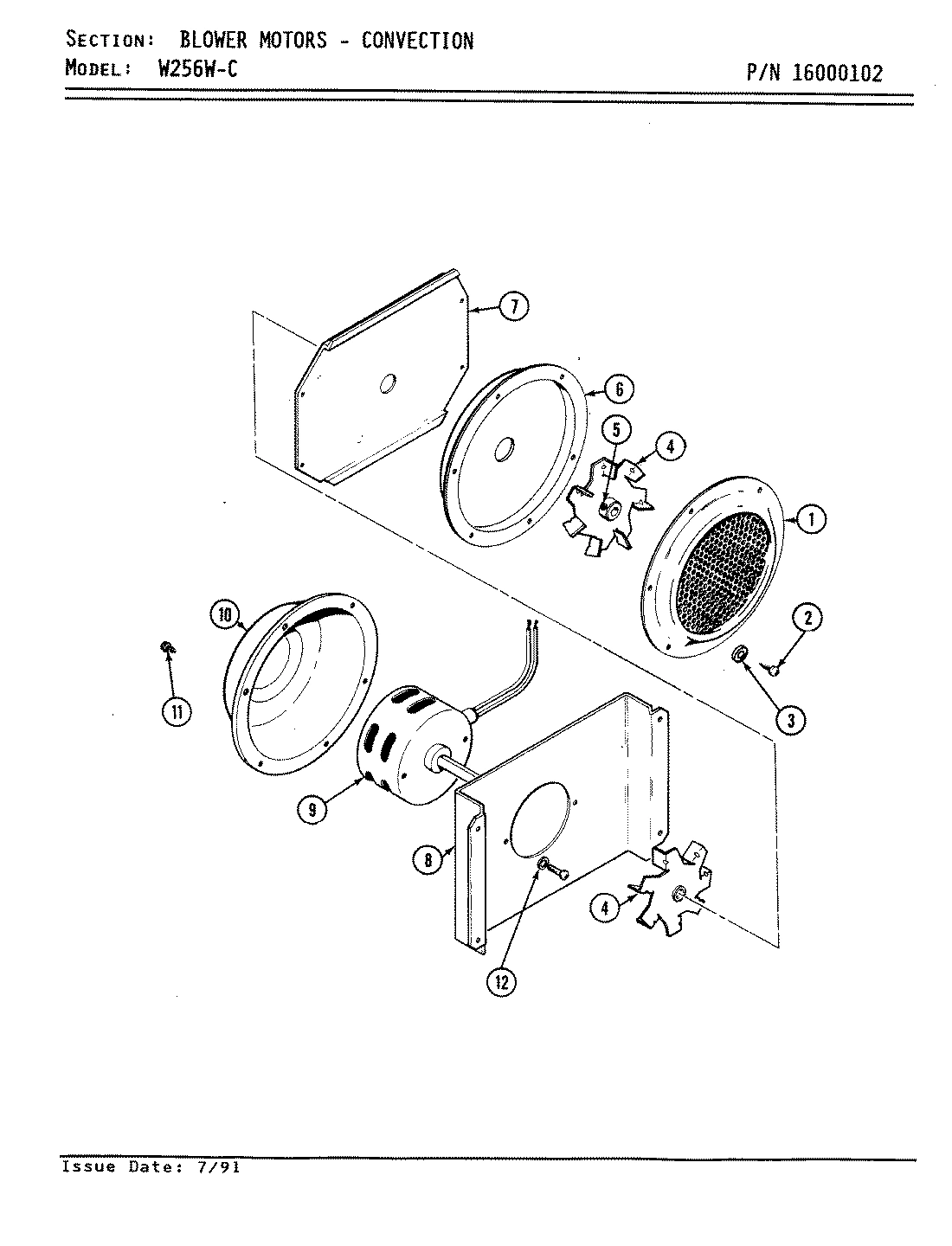

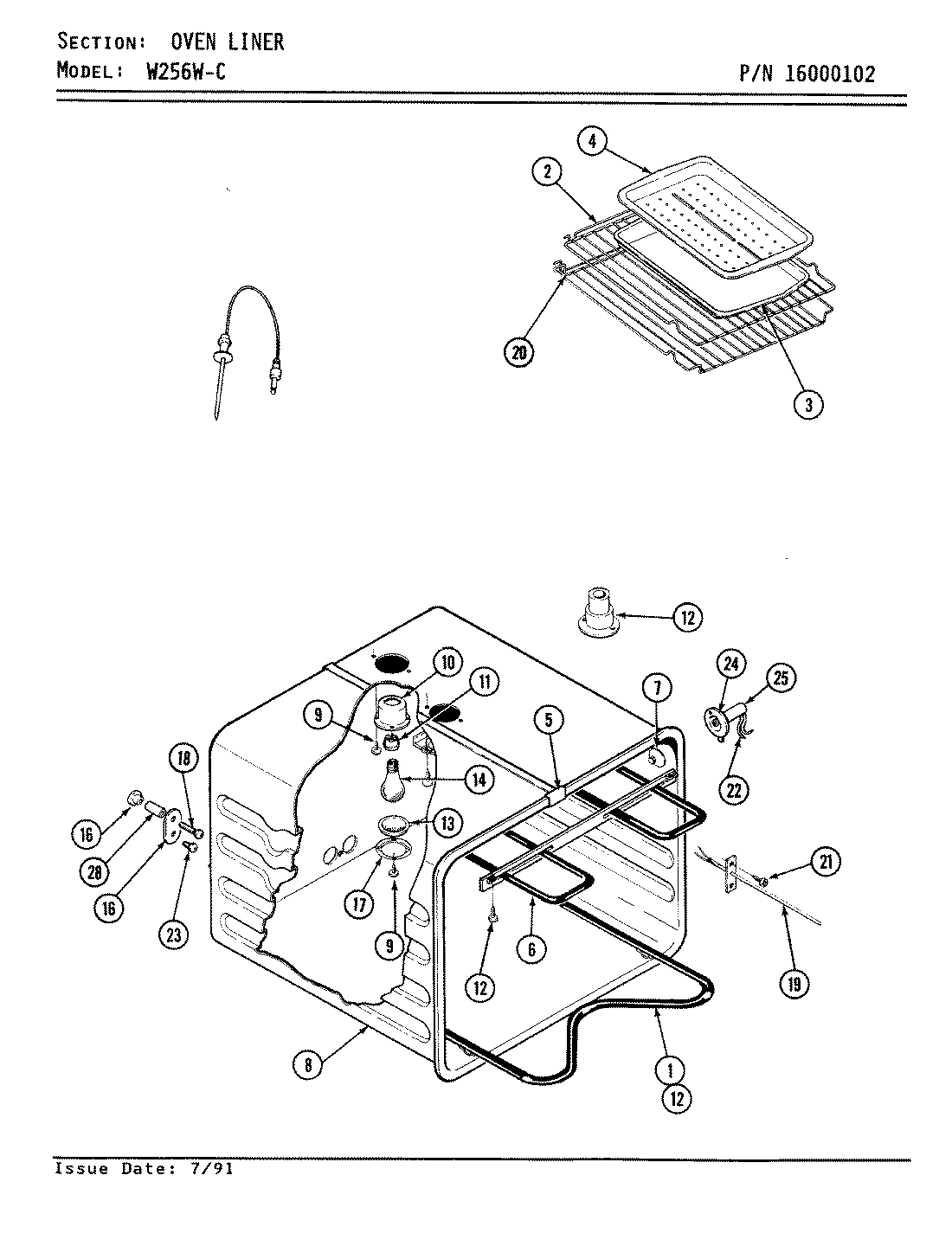

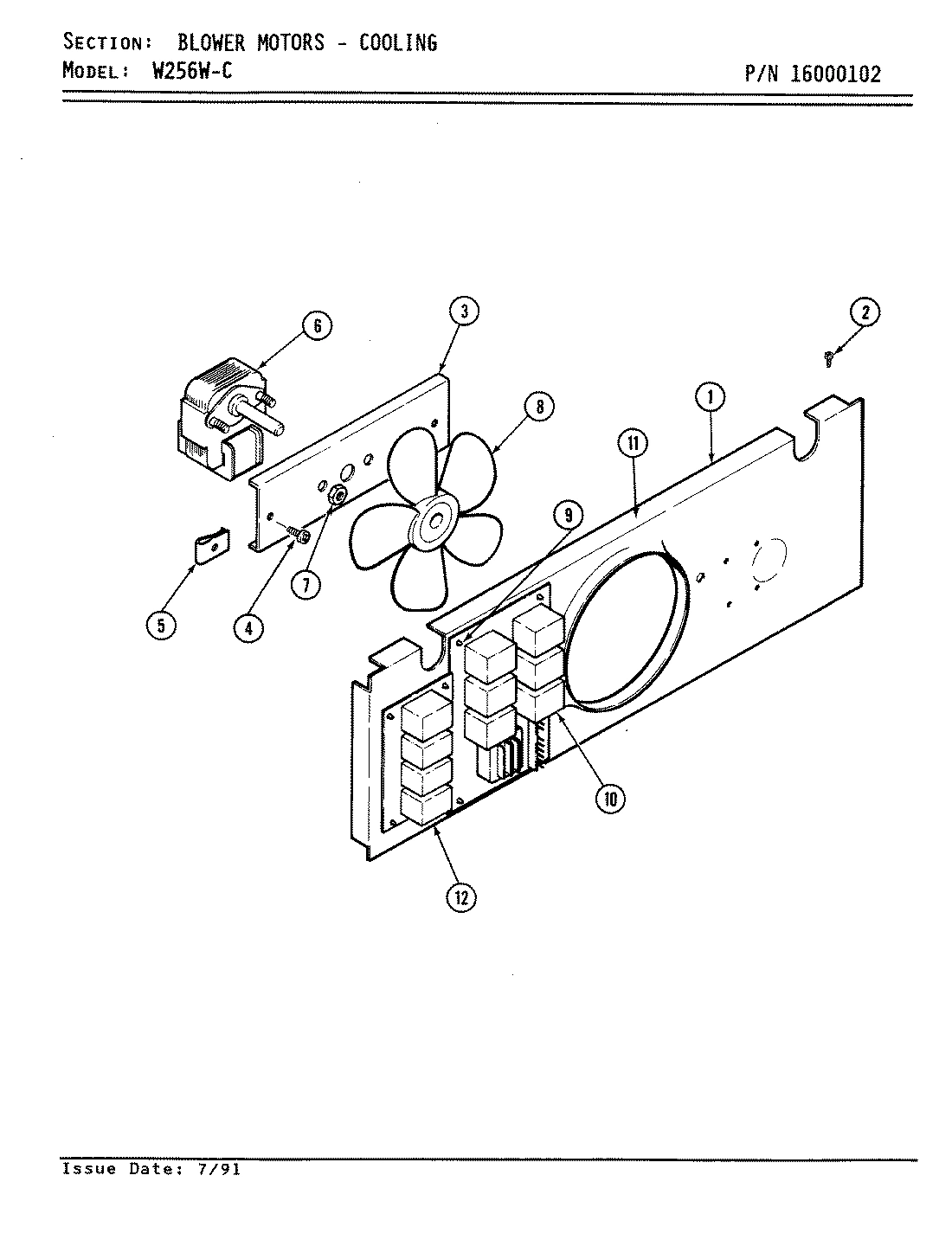

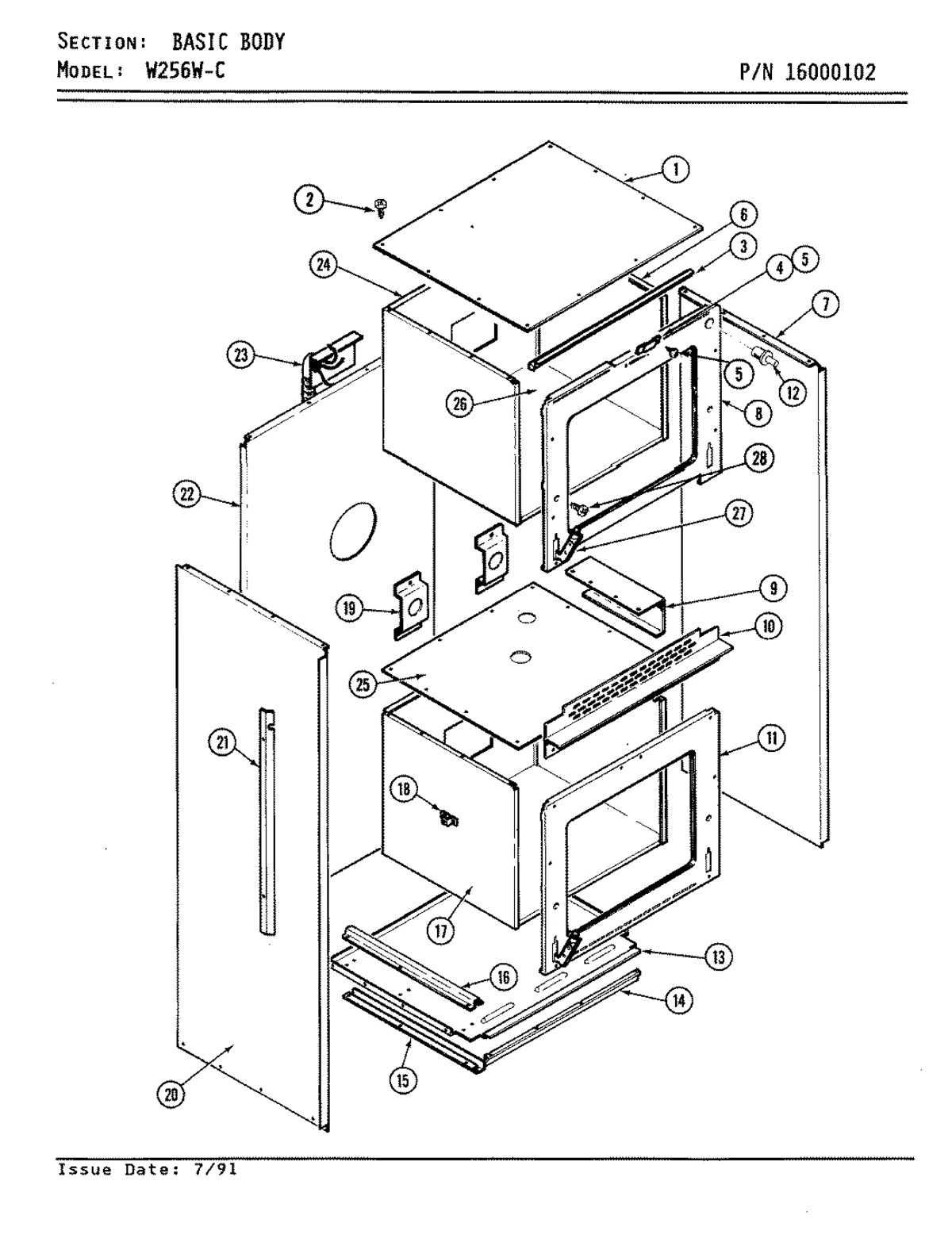

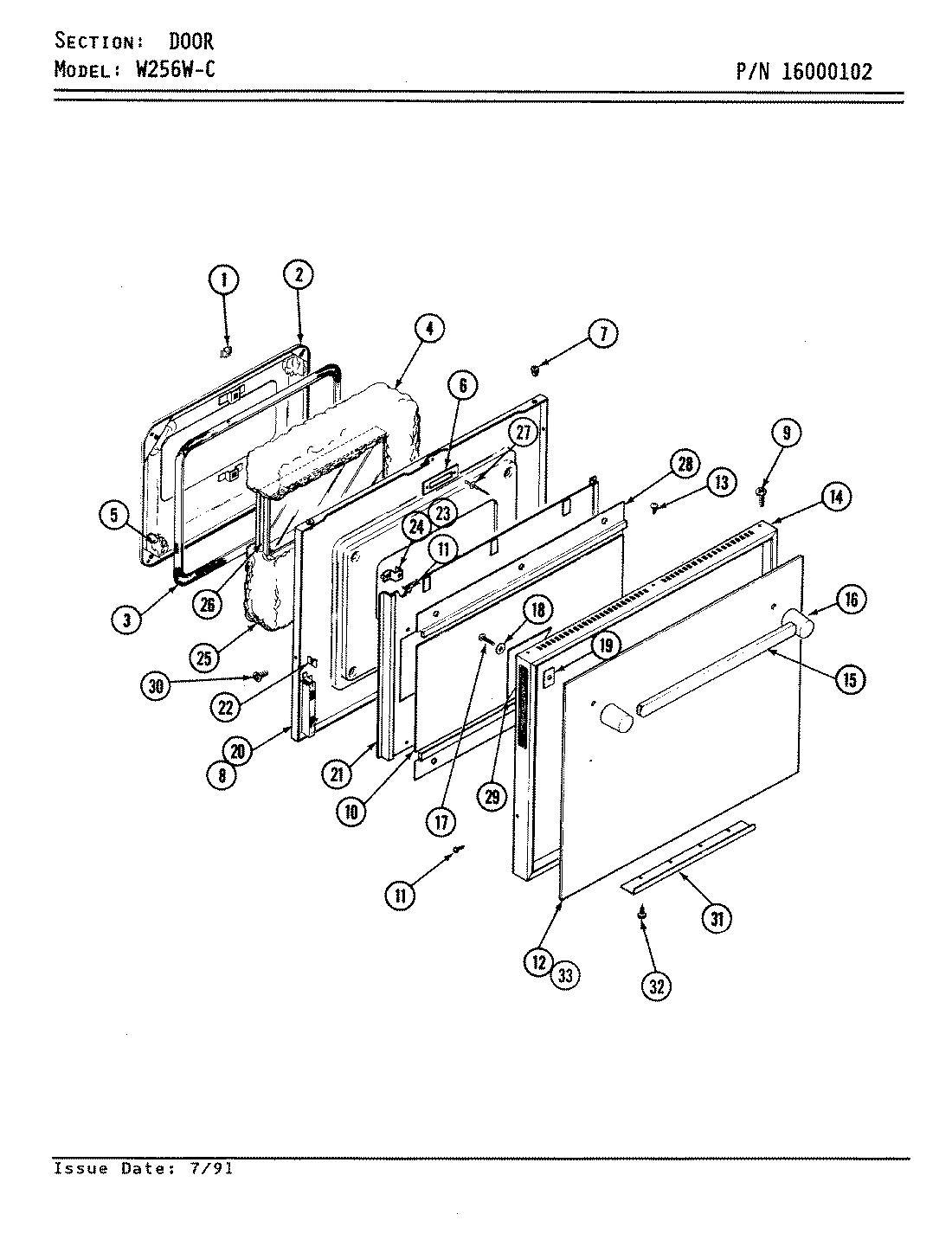

1

TOP (OUTER) WPL 701681 Contact Us For Availability

1

PANEL, TOP WPL 704684 Contact Us For Availability

1

PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability

1

SHROUD, FAN WPL 704725 Contact Us For Availability

1

CAP, END (RT/WHT) WPL 705015 Contact Us For Availability

1

CLIP WPL 705404 Contact Us For Availability

2

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

2

RACK, OVEN WPL Y704661 Contact Us For Availability

2

CAP, END (LT/WHT) WPL 705014 Contact Us For Availability

2

PLUG, UPPER WPL 712209 Contact Us For Availability

2

TUBE, VENT-TOP OFFSET WPL 703381 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

3

WP701650 Whirlpool Oven Seal Backorder WPL WP701650 $172.91

3

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

3

SUPPORT, TOP WPL 703095 Contact Us For Availability

3

MOUNT, MOTOR WPL Y704732 Contact Us For Availability

3

EXTRUSION, TOP WPL 705016 Contact Us For Availability

4

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

4

BRACKET, VENT TUBE WPL 701680 Contact Us For Availability

4

WHEEL, CONVECTION WPL 701711 Contact Us For Availability

4

SCREW, TRIM WPL 704714 Contact Us For Availability

4

INSULATION, SIDE WPL 701659 Contact Us For Availability

4

THERMOSTAT WPL 701687 Contact Us For Availability

4

LIMIT, THERMOSTAT WPL 703259 Contact Us For Availability

5

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

5

CLIP, OVEN WPL Y702618 Contact Us For Availability

5

CLIP, J WPL Y700556 Contact Us For Availability

5

ANGLE, ATTACHMENT WPL 701609 Contact Us For Availability

5

INSULATION, TOP WPL 701660 Contact Us For Availability

6

WPY04100514 Whirlpool Bake Element Backorder WPL WPY04100514 $114.02

6

PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability

6

PANEL, SIDE (RT) WPL 701676 Contact Us For Availability

6

MOTOR, FAN WPL Y701721 Contact Us For Availability

6

CONTROL PANEL & BACK ASSY WPL Y712598 Contact Us For Availability

6

PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability

6

LATCH, AUTOMATIC WPL 705360 Contact Us For Availability

6

LATCH, AUTOMATIC (LWR) WPL Y705359 Contact Us For Availability

7

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

7

COVER (UPPER) WPL 701732 Contact Us For Availability

7

COVER, MEAT PROBE WPL 712088 Contact Us For Availability

7

PANEL, OUTER (RT) WPL 703098 Contact Us For Availability

7

COVER, MOTOR FRONT WPL 701713 Contact Us For Availability

7

TIMER WPL Y704729 Contact Us For Availability

7

NUT, PUSH IN WPL 701643 Contact Us For Availability

7

LIMIT, OVEN WPL 702993 Contact Us For Availability

7

LIMIT, OVEN WPL Y702107 Contact Us For Availability

8

LINER, OVEN, (LOWER) WPL Y712588 Contact Us For Availability

8

CLOSURE, FRONT (UPPER) WPL 703254 Contact Us For Availability

8

PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability

8

BLADE, FAN WPL 701718 Contact Us For Availability

8

SWITCH, PUSH (ALUM) WPL Y705011 Contact Us For Availability

8

RIVET, ACCORDION WPL 701641 Contact Us For Availability

8

TERMINAL WPL Y702711 Contact Us For Availability

9

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.41

9

SPACER, SIDE WPL 703253 Contact Us For Availability

9

MOTOR, CONVECT WPL Y704972 Contact Us For Availability

9

SUPPORT, CIRCUIT BOARD WPL Y704706 Contact Us For Availability

9

BRACKET, SWITCH WPL 704730 Contact Us For Availability

9

TAPE, FOAM WPL 704491 Contact Us For Availability

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $3.49

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

EXTRUSION, CENTER WPL 705251 Contact Us For Availability

COVER, MOTOR WPL 701716 Contact Us For Availability

RELAY, TRANSFORMER ASSY. WPL Y704710 Contact Us For Availability

GLASS, BAFFLE WPL Y704820 Contact Us For Availability

BRACKET, ANTI SHORT WPL 704922 Contact Us For Availability

WIRE, ORANGE (UPR) WPL 705354 Contact Us For Availability

WIRE, ORANGE (LWR) WPL 705362 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

CLOSURE, FRONT (LOWER) WPL 703255 Contact Us For Availability

HARNESS, WIRE (J2) WPL 704704 Contact Us For Availability

TUBE, VENT (LWR) WPL 705097 Contact Us For Availability

TUBE, VENT WPL 701738 Contact Us For Availability

SWITCH, DOOR WPL 701666 Contact Us For Availability

RELAY ASSY WPL 704711 Contact Us For Availability

EXTENSION, SWITCH (WHT) WPL 705010 Contact Us For Availability

GLASS (UPPER) WPL 704919 Contact Us For Availability

GLASS (LWR) WPL 705013 Contact Us For Availability

WP74004005 Whirlpool Screw Backorder WPL WP74004005 $4.82

LENS, LIGHT WPL Y704143 Contact Us For Availability

PANEL, BOTTOM (OUTER) WPL 701668 Contact Us For Availability

EXTRUSION, BOTTOM (WHT) WPL 705017 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

WP7711P492-60 Whirlpool Clock Knob In Stock WPL WP7711P492-60 $9.04

TRIM, OVEN (LOWER) WPL 701848 Contact Us For Availability

HARNESS, WIRE LOWER WPL 704709 Contact Us For Availability

WIRE, HARNESS (LWR) WPL 705358 Contact Us For Availability

PLATE, END CAP (RT) WPL 705364 Contact Us For Availability

FRAME WPL 704920 Contact Us For Availability

15

NUT, TEE WPL 715294 Contact Us For Availability

15

RAIL, BOTTOM WPL 700596 Contact Us For Availability

15

HANDLE ----NA WPL 704453 Contact Us For Availability

16

PLATE, GROUNDING WPL 701742 Contact Us For Availability

16

SUPPORT, BOTTOM WPL 701667 Contact Us For Availability

16

END CAP (WHT) WPL Y704454 Contact Us For Availability

17

RETAINER, LENS WPL Y704144 Contact Us For Availability

17

PANEL, SIDE (LT) WPL 701697 Contact Us For Availability

17

SCREW WPL Y704231 Contact Us For Availability

18

SCREW WPL 705341 Contact Us For Availability

18

BRACKET, HAT (SIDE) WPL 712072 Contact Us For Availability

18

WASHER WPL 701736 Contact Us For Availability

19

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

19

SPACER, REAR (LOWER OVEN) WPL 703252 Contact Us For Availability

19

BUSHING WPL Y704489 Contact Us For Availability

20

RACK, OVEN (OFFSET) WPL Y704663 Contact Us For Availability

20

PANEL, OUTER (LT) WPL 703099 Contact Us For Availability

20

LINER, DOOR WPL 712188 Contact Us For Availability

21

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

21

GROMMET, FLEXIBLE WPL Y703352 Contact Us For Availability

21

BAFFLE WPL 712250 Contact Us For Availability

22

HARNESS, PROBE WPL 704822 Contact Us For Availability

22

PANEL, OUTER (REAR) WPL 703097 Contact Us For Availability

22

CLIP WPL 704487 Contact Us For Availability

23

STANDOFF WPL 703007 Contact Us For Availability

23

WIRE CABLE ASSY WPL 705365 Contact Us For Availability

24

MOUNT, MEAT PROBE WPL Y701731 Contact Us For Availability

24

PANEL, REAR WPL 704808 Contact Us For Availability

24

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

25

JACK, PROBE WPL Y703022 Contact Us For Availability

25

INSULATION, BOTTOM WPL 701658 Contact Us For Availability

INSULATION, WRAP WPL 701702 Contact Us For Availability

PANEL, BOTTOM WPL 701669 Contact Us For Availability

ANGLE, OVEN SUPPORT WPL 701701 Contact Us For Availability

PACK, WINDOW WPL 703804 Contact Us For Availability

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

WP71001870 Whirlpool Temperature Probe Sensor Backorder WPL WP71001870 $171.29

INSULATION, REAR WPL 701703 Contact Us For Availability

BUTTON, PLUG WPL 702929 Contact Us For Availability

PLATE, NON-CONVECT WPL 705343 Contact Us For Availability

HINGE WPL Y703419 Contact Us For Availability

WP3196183 Whirlpool Screw Backorder WPL WP3196183 $4.82

SPACER, OVEN WPL 701741 Contact Us For Availability

HARNESS, WIRE SENSOR WPL Y704801 Contact Us For Availability

BRACKET, HAT (REAR) WPL 701683 Contact Us For Availability

BREAKER (15 AMP) WPL 702007 Contact Us For Availability

BREAKER (30 AMP) WPL 702008 Contact Us For Availability

RETAINER, GLASS WPL Y704819 Contact Us For Availability

29

GUSSET----NA WPL 704805 Contact Us For Availability

31

RAIL, GLASS WPL 704744 Contact Us For Availability
