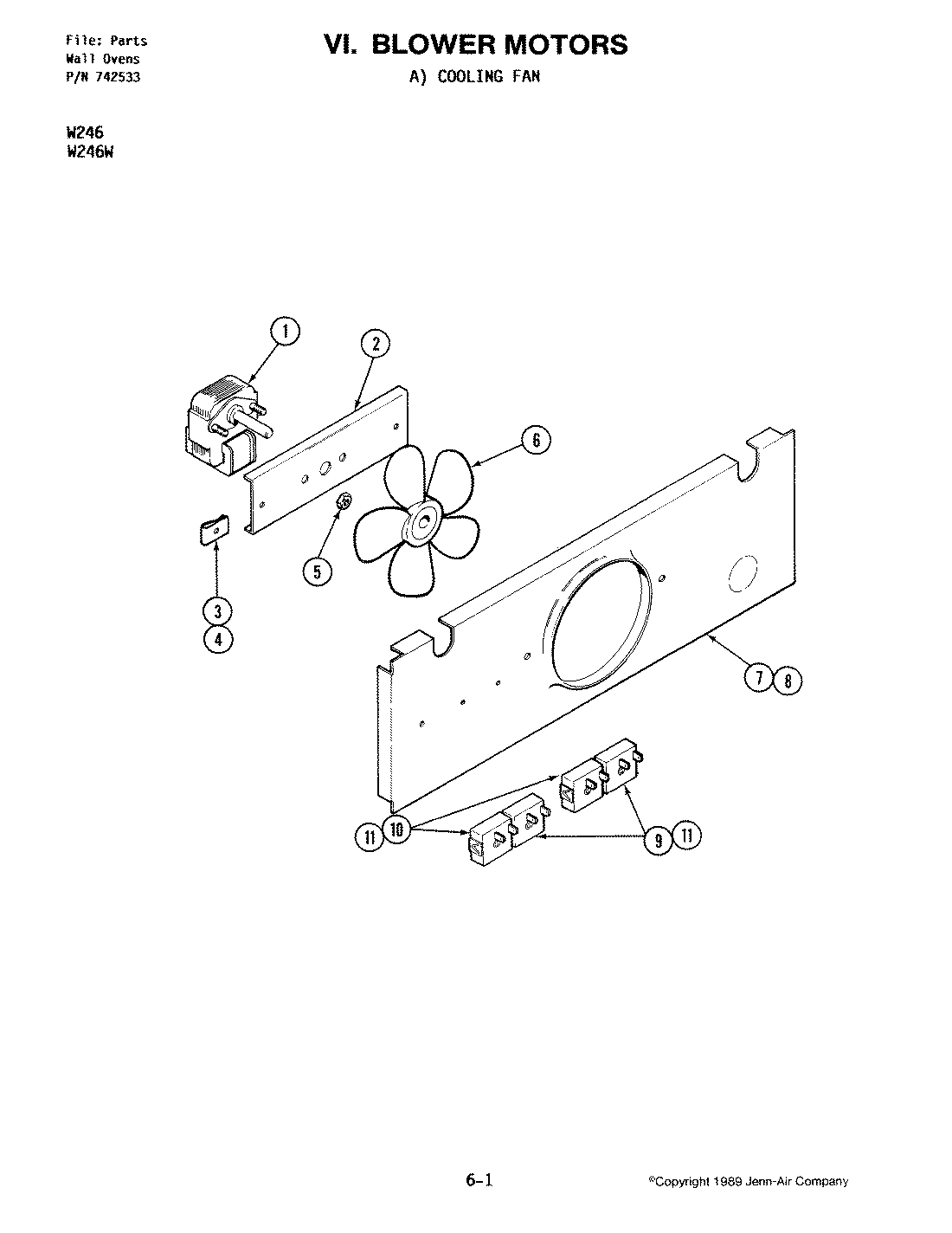

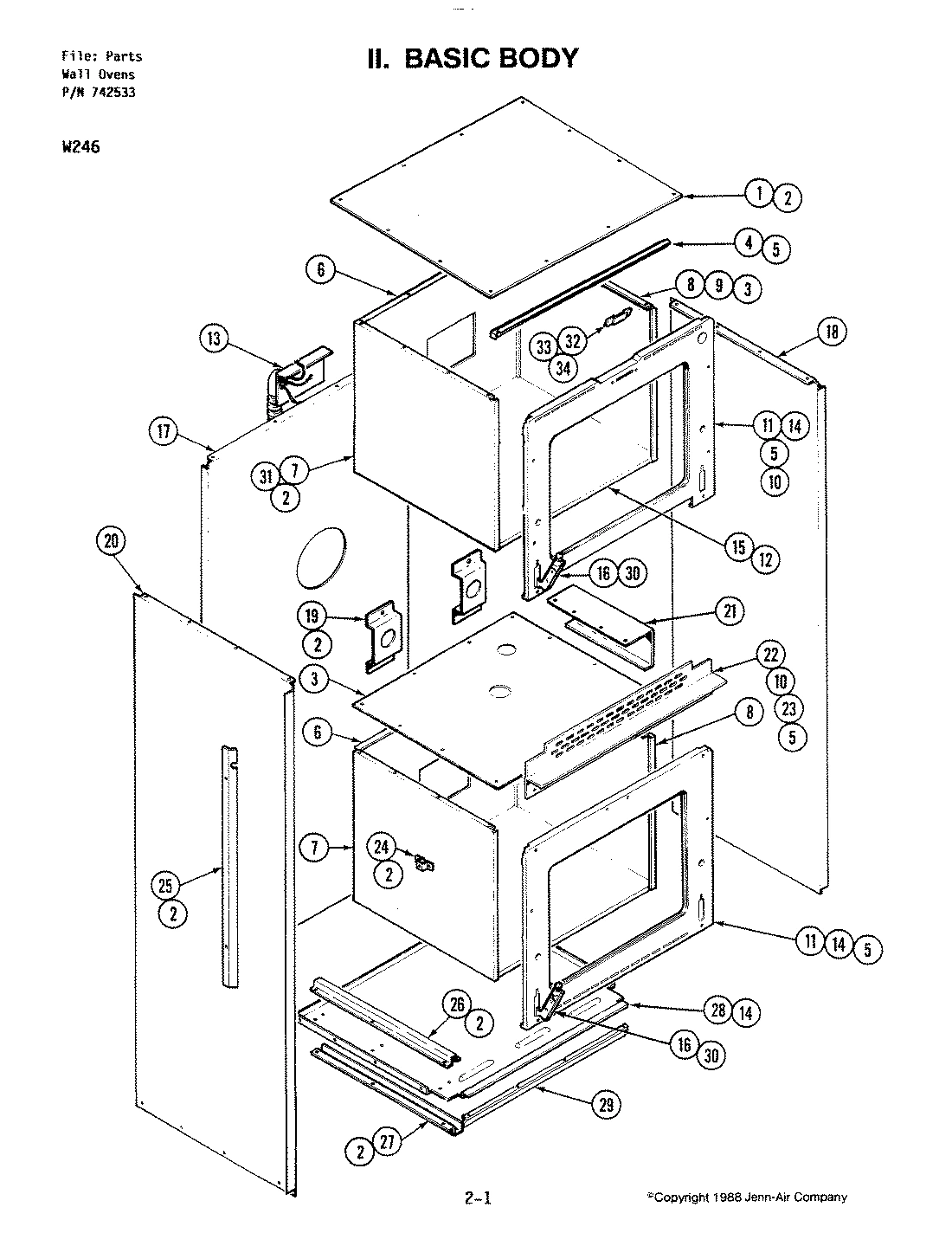

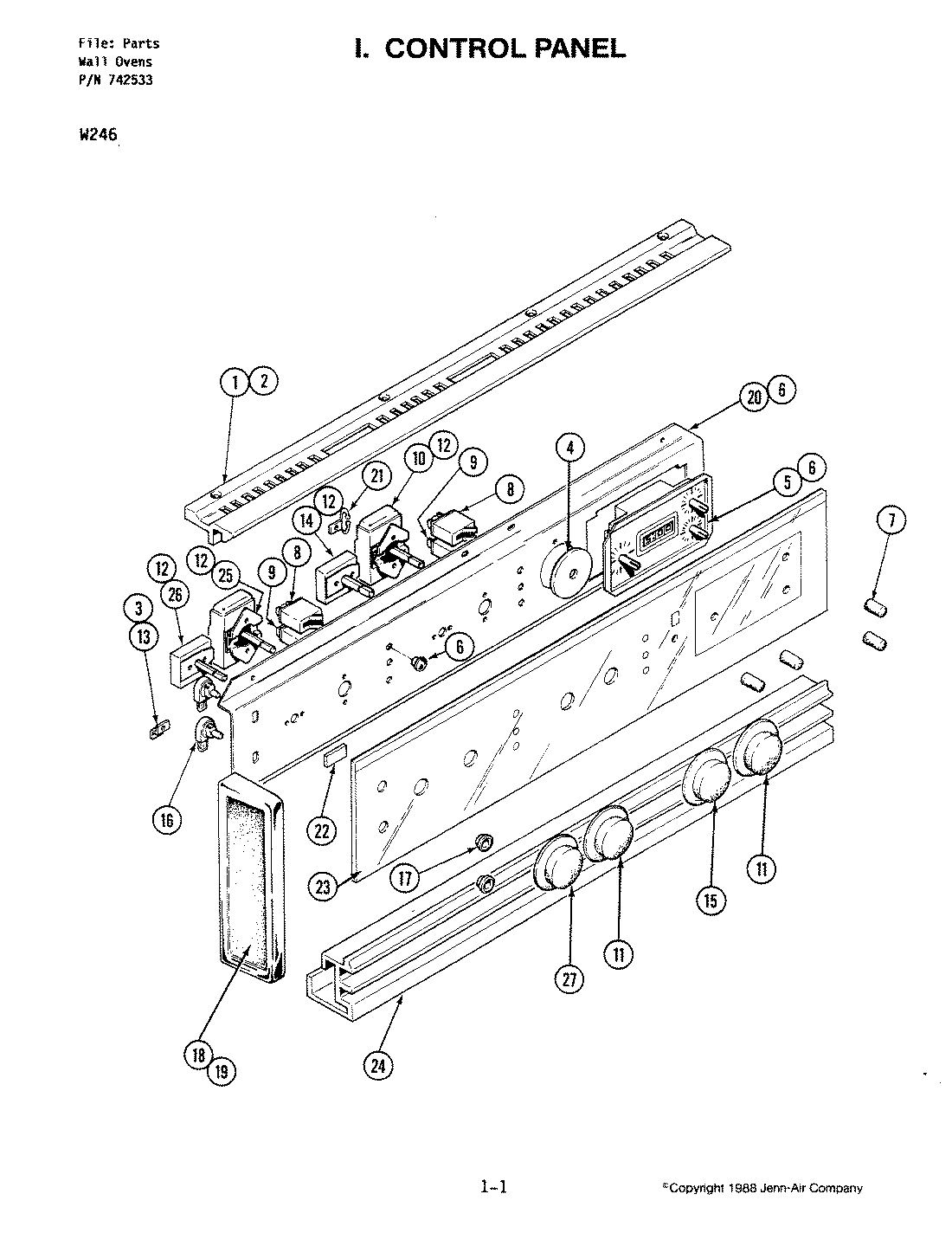

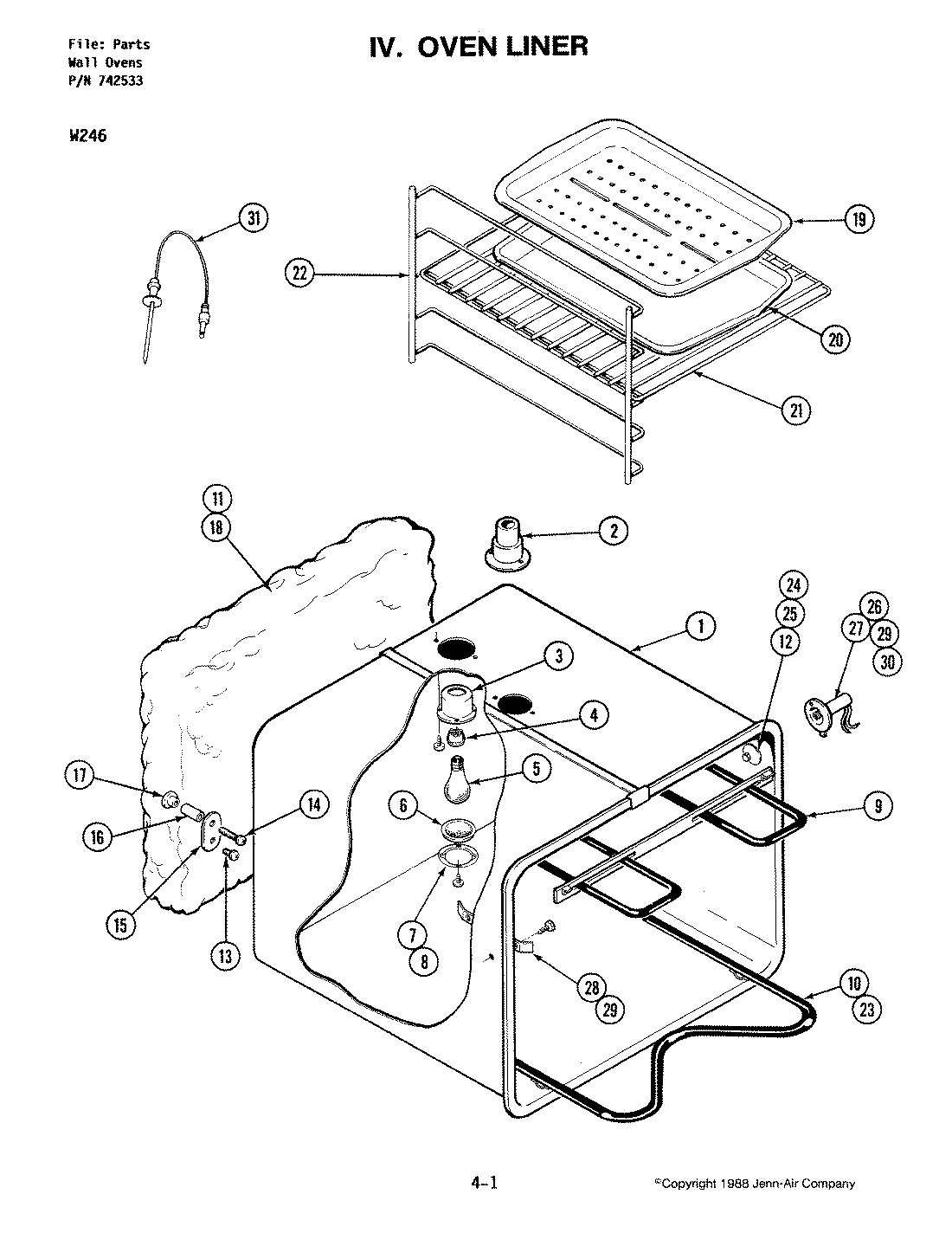

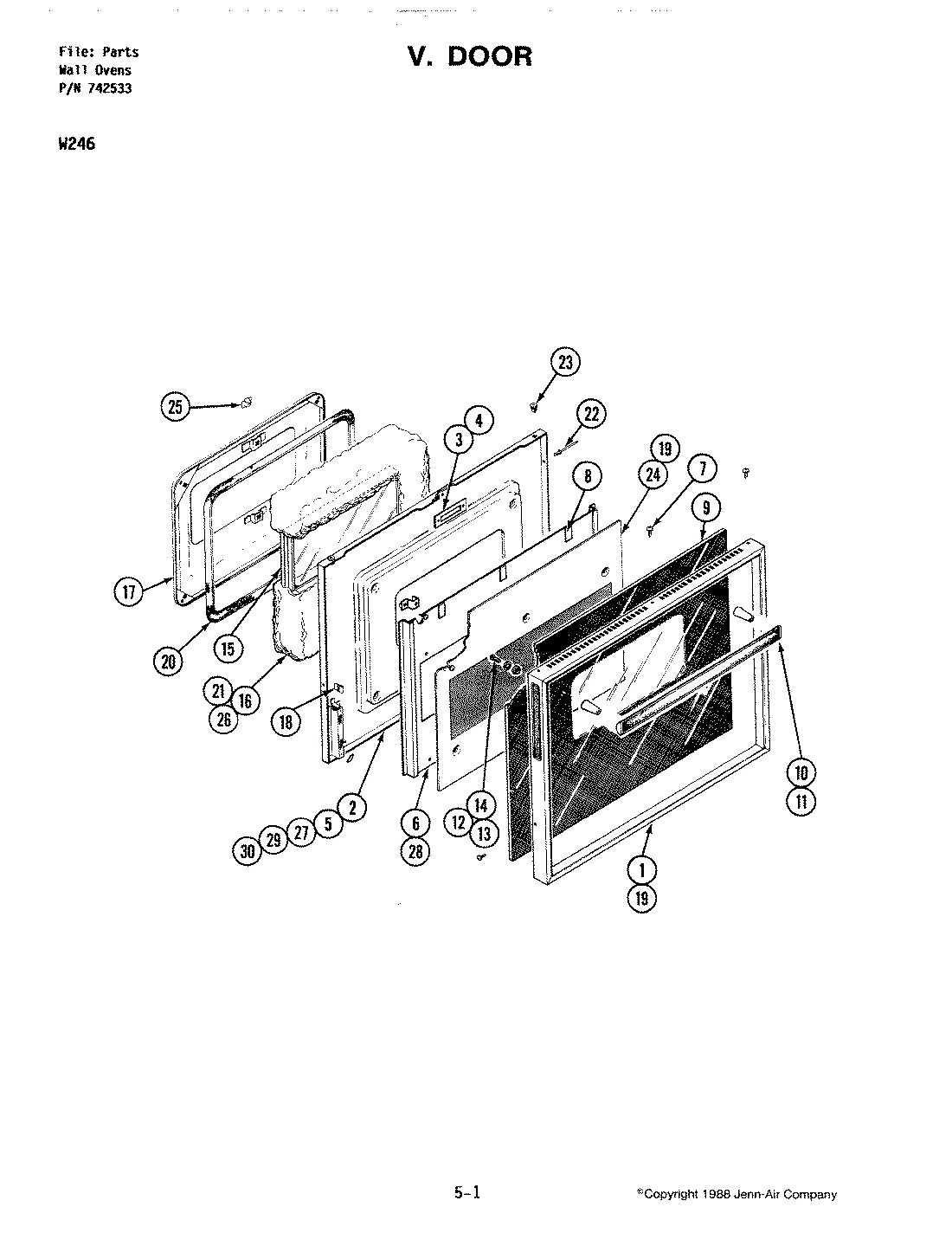

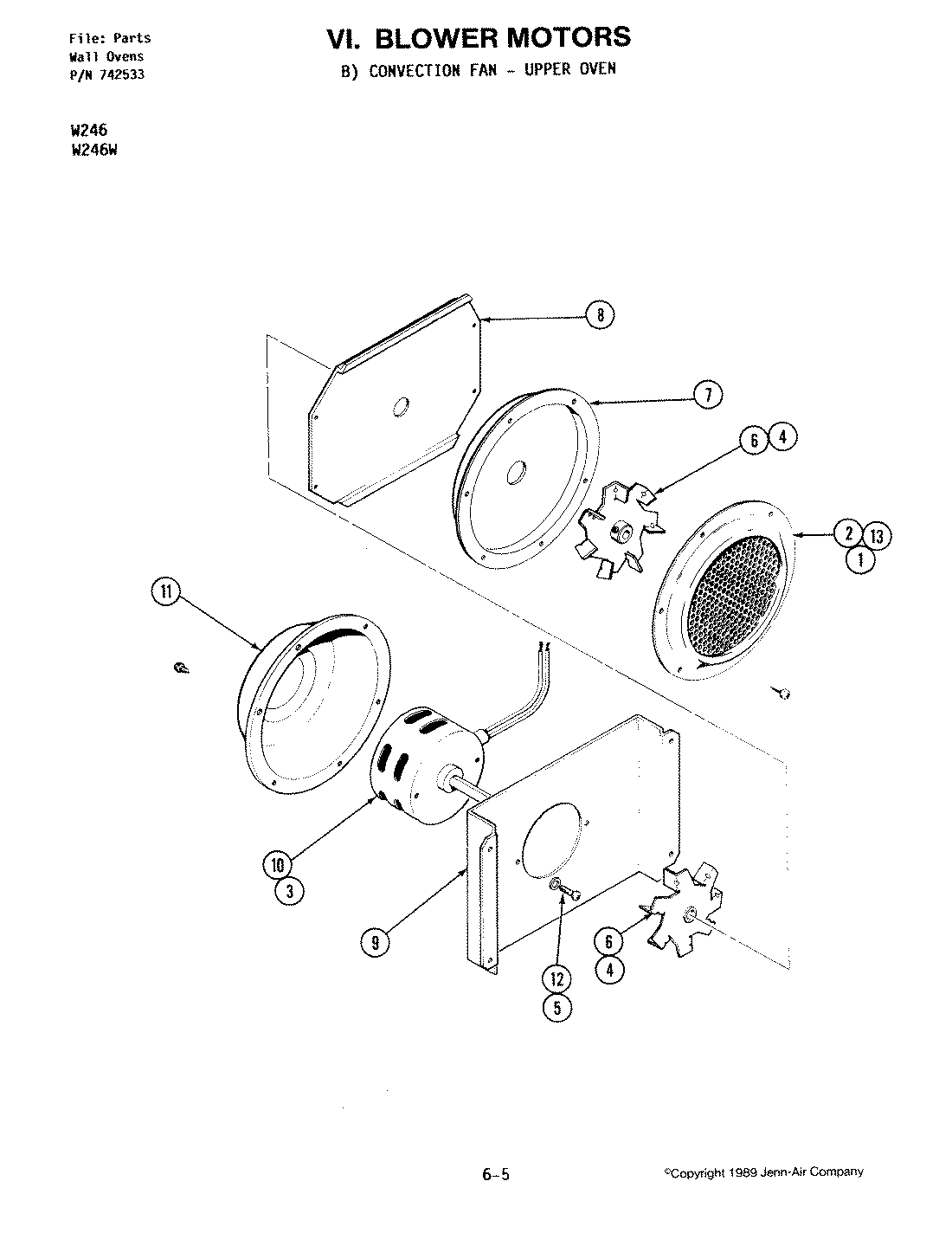

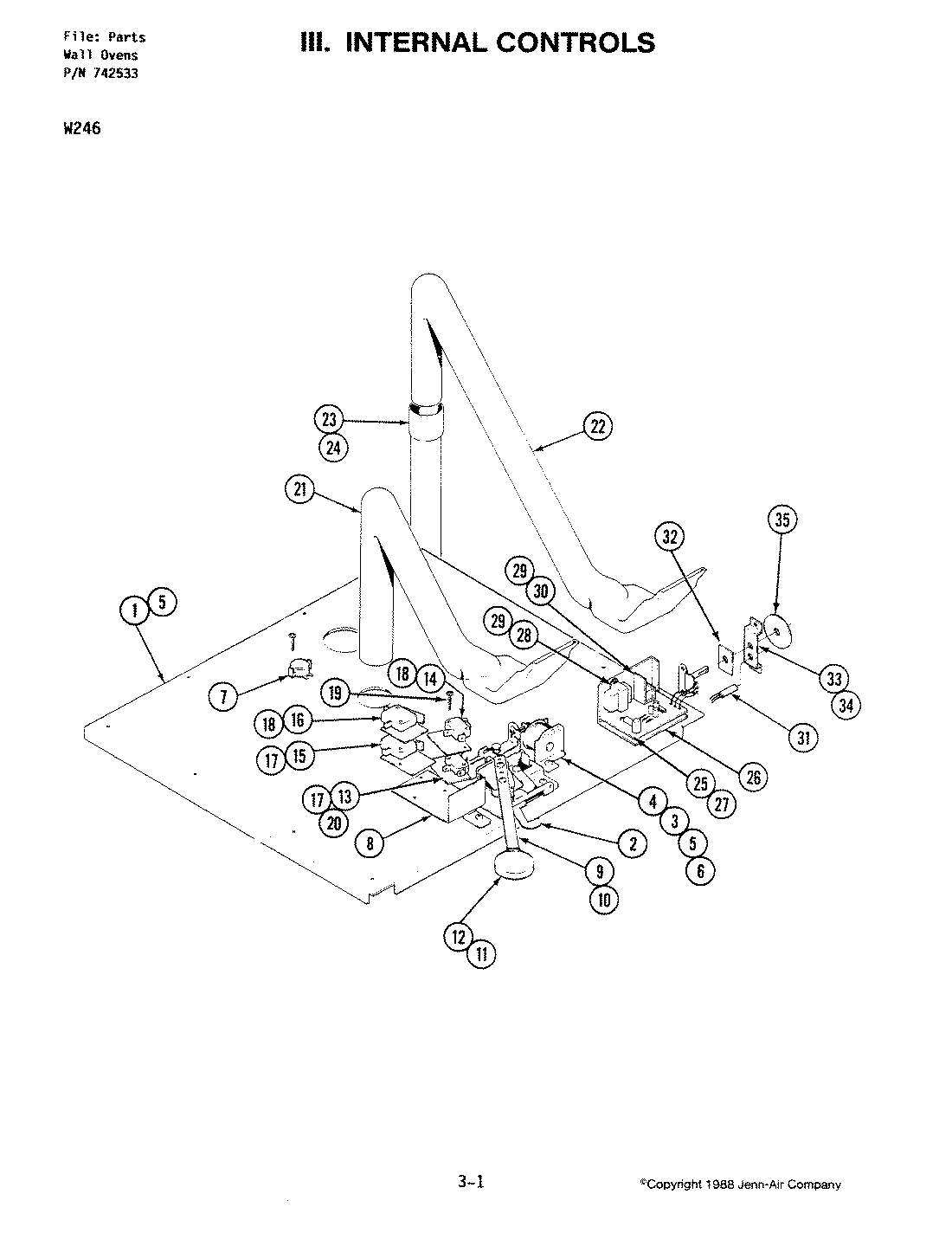

Model Whirlpool W246 ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

LINER, OVEN WPL Y712376 Contact Us For Availability

1

WELD, OVEN WPL Y712377 Contact Us For Availability

1

TOP (OUTER) WPL 701681 Contact Us For Availability

1

PANEL-TOP WPL 704155 Contact Us For Availability

1

MOTOR, FAN WPL Y701721 Contact Us For Availability

1

EXTRUSION, TOP WPL 704251 Contact Us For Availability

1

FRAME WPL 704318 Contact Us For Availability

2

TUBE, VENT WPL 701738 Contact Us For Availability

2

PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability

2

LATCH ASSY. WPL Y703357 Contact Us For Availability

2

MOUNT, MOTOR WPL Y703570 Contact Us For Availability

2

SCREW WPL 712066 Contact Us For Availability

2

LINER, DOOR WPL 712188 Contact Us For Availability

3

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $3.49

3

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

3

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

3

PANEL, TOP WPL 703768 Contact Us For Availability

3

CLIP, J WPL Y700556 Contact Us For Availability

3

PIN, COTTER WPL Y701686 Contact Us For Availability

3

PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability

4

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

4

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

4

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

4

SUPPORT, TOP WPL 703095 Contact Us For Availability

4

SCREW, SET WPL 701709 Contact Us For Availability

4

SOLENOID WPL Y702526 Contact Us For Availability

4

DIAL, TEMP CONTROL WPL 703094 Contact Us For Availability

5

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

5

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

5

WASHER, LOCK WPL 715910 Contact Us For Availability

5

CLOCK WPL 704246 Contact Us For Availability

5

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

6

LENS, LIGHT WPL Y704143 Contact Us For Availability

6

PANEL, BACK WPL 701700 Contact Us For Availability

6

WHEEL, CONVECTION WPL 701711 Contact Us For Availability

6

WIRE, GRAY WPL 703767 Contact Us For Availability

6

BLADE, FAN WPL 701718 Contact Us For Availability

6

LENS, INDICATOR LIGHTS WPL Y700630 Contact Us For Availability

6

BAFFLE WPL 712250 Contact Us For Availability

7

WP7711P492-60 Whirlpool Clock Knob In Stock WPL WP7711P492-60 $9.04

7

RETAINER, LENS WPL Y704144 Contact Us For Availability

7

PANEL, SIDE (LT) WPL 701697 Contact Us For Availability

7

PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability

7

THERMOSTAT WPL 701687 Contact Us For Availability

7

LIMIT, THERMOSTAT WPL 703259 Contact Us For Availability

7

PLATE, MOTOR WPL 703096 Contact Us For Availability

7

PLATE, MOTOR WPL 704336 Contact Us For Availability

8

W10840861 Whirlpool Spacer Backorder WPL W10840861 $6.49

8

PANEL, SIDE (RT) WPL 701676 Contact Us For Availability

8

COVER, MOTOR FRONT WPL 701713 Contact Us For Availability

8

GLASS, OUTER WPL Y703706 Contact Us For Availability

8

PLENUM, UPPER WPL 712025 Contact Us For Availability

8

LIGHT, INDICATOR 240V WPL Y702394 Contact Us For Availability

9

WPY04100016 Whirlpool Bake Element Backorder WPL WPY04100016 $112.56

9

GROMMET, FLEXIBLE WPL Y703352 Contact Us For Availability

9

PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability

9

LEVER, LATCH (BLK) WPL Y704240 Contact Us For Availability

9

SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability

9

GLASS, DOOR WPL 704241 Contact Us For Availability

9

GLASS, LOWER DOOR WPL Y704287 Contact Us For Availability

WPY04100020 Whirlpool Bake Element Backorder WPL WPY04100020 $120.37

SWITCH, DOOR WPL 701666 Contact Us For Availability

MOTOR, CONVECT WPL Y703035 Contact Us For Availability

SCREW WPL 707407 Contact Us For Availability

SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability

THERMOSTAT-UPPER WPL 703080 Contact Us For Availability

HANDLE WPL Y704225 Contact Us For Availability

INSULATION, WRAP WPL 701702 Contact Us For Availability

CLOSURE, FRONT (UPPER) WPL 703254 Contact Us For Availability

CLOSURE, FRONT (LOWER) WPL 703255 Contact Us For Availability

COVER, MOTOR WPL 701716 Contact Us For Availability

SPRING, KNOB WPL 701671 Contact Us For Availability

SCREW WPL 704335 Contact Us For Availability

KNOB, THERMOSTAT WPL 703917 Contact Us For Availability

END CAP (BLK) WPL Y704224 Contact Us For Availability

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.41

COVER (UPPER) WPL 701732 Contact Us For Availability

COVER, MEAT PROBE WPL 712088 Contact Us For Availability

ANGLE, OVEN SUPPORT WPL 701701 Contact Us For Availability

KNOB (BLK) WPL Y703932 Contact Us For Availability

WASHER WPL Y704230 Contact Us For Availability

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $4.82

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

ASSY., WIRE CABLE WPL 712185 Contact Us For Availability

SWITCH, SOLENOID WPL Y702360 Contact Us For Availability

ANGLE, ATTACHMENT WPL 701609 Contact Us For Availability

WASHER WPL Y700446 Contact Us For Availability

SCREW WPL 701744 Contact Us For Availability

SWITCH, LATCH-TOP FRONT WPL Y703351 Contact Us For Availability

SWITCH, SELECTOR UPPER WPL 703077 Contact Us For Availability

SCREW WPL Y704231 Contact Us For Availability

PLATE, GROUNDING WPL 701742 Contact Us For Availability

PANEL, BOTTOM WPL 701669 Contact Us For Availability

SWITCH, DOOR WPL 702805 Contact Us For Availability

KNOB, SELECTOR SWITCH (BLK) WPL 703901 Contact Us For Availability

SPACER, OVEN WPL 701741 Contact Us For Availability

HINGE WPL Y703419 Contact Us For Availability

SWITCH, DOOR WPL 702806 Contact Us For Availability

SWITCH, PUSH WPL 701621 Contact Us For Availability

INSULATION, BOTTOM WPL 701658 Contact Us For Availability

NUT, TEE WPL 715294 Contact Us For Availability

PANEL, OUTER (REAR) WPL 703097 Contact Us For Availability

INSULATOR WPL Y702350 Contact Us For Availability

BEZEL, SWITCH WPL 704323 Contact Us For Availability

PLUG, UPPER WPL 712209 Contact Us For Availability

INSULATION, REAR WPL 701703 Contact Us For Availability

PANEL, OUTER (RT) WPL 703098 Contact Us For Availability

INSULATOR WPL 703264 Contact Us For Availability

END CAP (LT-BLK) WPL 704257 Contact Us For Availability

CLIP, RETAINER WPL Y700503 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

SPACER, REAR (LOWER OVEN) WPL 703252 Contact Us For Availability

SCREW WPL 702807 Contact Us For Availability

END CAP (RT-BLK) WPL 704258 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

WP701650 Whirlpool Oven Seal Backorder WPL WP701650 $172.91

PANEL, OUTER (LT) WPL 703099 Contact Us For Availability

SCREW WPL 702380 Contact Us For Availability

PANEL, CONTROL WPL 703070 Contact Us For Availability

RACK, OVEN WPL Y701725 Contact Us For Availability

SPACER, SIDE WPL 703253 Contact Us For Availability

TUBE, VENT OFFSET (UPPER) WPL 703066 Contact Us For Availability

TIE, MOUNT CABLE WPL 702746 Contact Us For Availability

INSULATION, SIDE WPL 701659 Contact Us For Availability

SUPPORT, RACK WPL Y701728 Contact Us For Availability

EXTRUSION, CENTER WPL 704261 Contact Us For Availability

TUBE, VENT-TOP (UPPER) WPL 703067 Contact Us For Availability

PAD, SPACER WPL 705331 Contact Us For Availability

RIVET, ACCORDION WPL 701641 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

TUBE, VENT-REAR WPL 703068 Contact Us For Availability

GLASS, CONTROL PANEL WPL 704263 Contact Us For Availability

NUT, PUSH-IN WPL 702657 Contact Us For Availability

SCREW WPL 703773 Contact Us For Availability

BRACKET, HAT (SIDE) WPL 712072 Contact Us For Availability

TUBE, VENT (LOWER OVEN) WPL 703069 Contact Us For Availability

EXTRUSION, BOTTOM WPL 704250 Contact Us For Availability

PANEL, PERFORATED (UPR) WPL 703784 Contact Us For Availability

STANDOFF WPL 703007 Contact Us For Availability

SHIELD, CAPILLARY TUBE WPL 703251 Contact Us For Availability

HARNESS, P.C. BOARD WPL 703268 Contact Us For Availability

BOARD, CIRCUIT WPL 704242 Contact Us For Availability

THERMOSTAT, LOWER OVEN WPL 703082 Contact Us For Availability

CLIP WPL Y700834 Contact Us For Availability

HARNESS, PROBE WPL 703262 Contact Us For Availability

SUPPORT, BOTTOM WPL 701667 Contact Us For Availability

BRACKET, MOUNT WPL 701630 Contact Us For Availability

SWITCH, SELECTOR (UPPER) WPL 703078 Contact Us For Availability

INSULATION, TOP WPL 701660 Contact Us For Availability

JACK, PROBE WPL 703263 Contact Us For Availability

RAIL, BOTTOM WPL 700596 Contact Us For Availability

SUPPORT, P.C. BOARD WPL 700893 Contact Us For Availability

HARNESS, WIRE WPL 703086 Contact Us For Availability

HARNESS, WIRE WPL 703084 Contact Us For Availability

WIRE, TAN WPL 703089 Contact Us For Availability

WIRE, PINK WPL 703090 Contact Us For Availability

WIRE, RESISTOR WPL 703267 Contact Us For Availability

WIRE, WIRE WPL 703370 Contact Us For Availability

KNOB, SELECTOR (BLK) WPL Y703911 Contact Us For Availability

SCREW WPL 703958 Contact Us For Availability

CLIP, BULB WPL Y701541 Contact Us For Availability

PANEL, BOTTOM (OUTER) WPL 701668 Contact Us For Availability

TRANSFORMER WPL 701629 Contact Us For Availability

BUMPER, BUTTON WPL Y704223 Contact Us For Availability

29

TRIM, OVEN (LWR-BLK) WPL 704642 Contact Us For Availability

29

SCREW WPL Y700584 Contact Us For Availability

29

SCREW WPL 715870 Contact Us For Availability

WP3196183 Whirlpool Screw Backorder WPL WP3196183 $4.82

MOUNT, MEAT PROBE WPL Y701731 Contact Us For Availability

RELAY WPL Y703274 Contact Us For Availability

WASHER WPL Y703449 Contact Us For Availability

31

WP71001870 Whirlpool Temperature Probe Sensor Backorder WPL WP71001870 $171.29

31

BRACKET, HAT (REAR) WPL 701683 Contact Us For Availability

31

LIGHT, INDICATOR WPL 703075 Contact Us For Availability

32

BRACKET, VENT TUBE WPL 701680 Contact Us For Availability

32

INSULATOR, CONTROL WPL 703093 Contact Us For Availability

33

SHIELD, VENT WPL 703353 Contact Us For Availability

33

BRACKET, CONTROL WPL 703092 Contact Us For Availability

34

WP74004005 Whirlpool Screw Backorder WPL WP74004005 $4.82

35

NUT-PUSH ON WPL 703076 Contact Us For Availability
