Model Whirlpool W2450W ELECTRIC WALL OVEN – Common Parts & Diagrams
03 - BODY

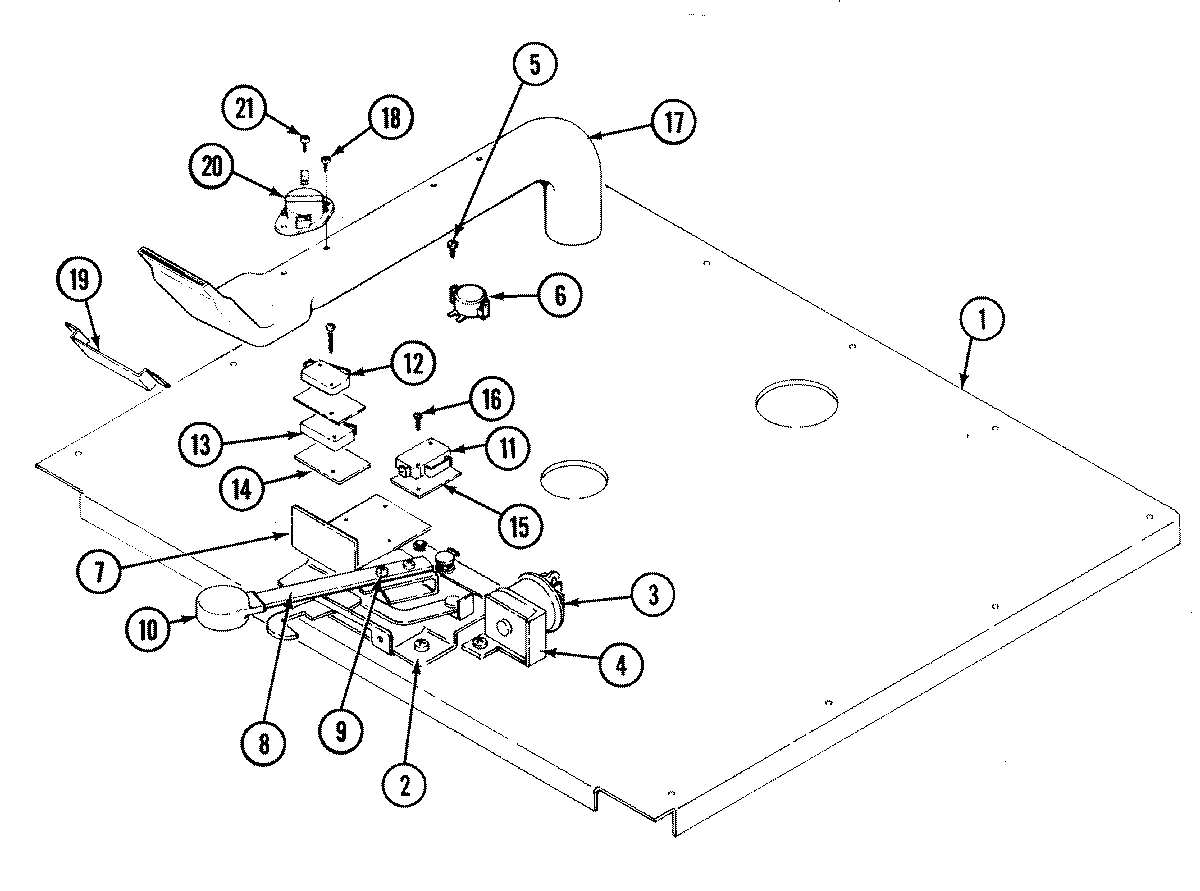

05 - INTERNAL CONTROLS

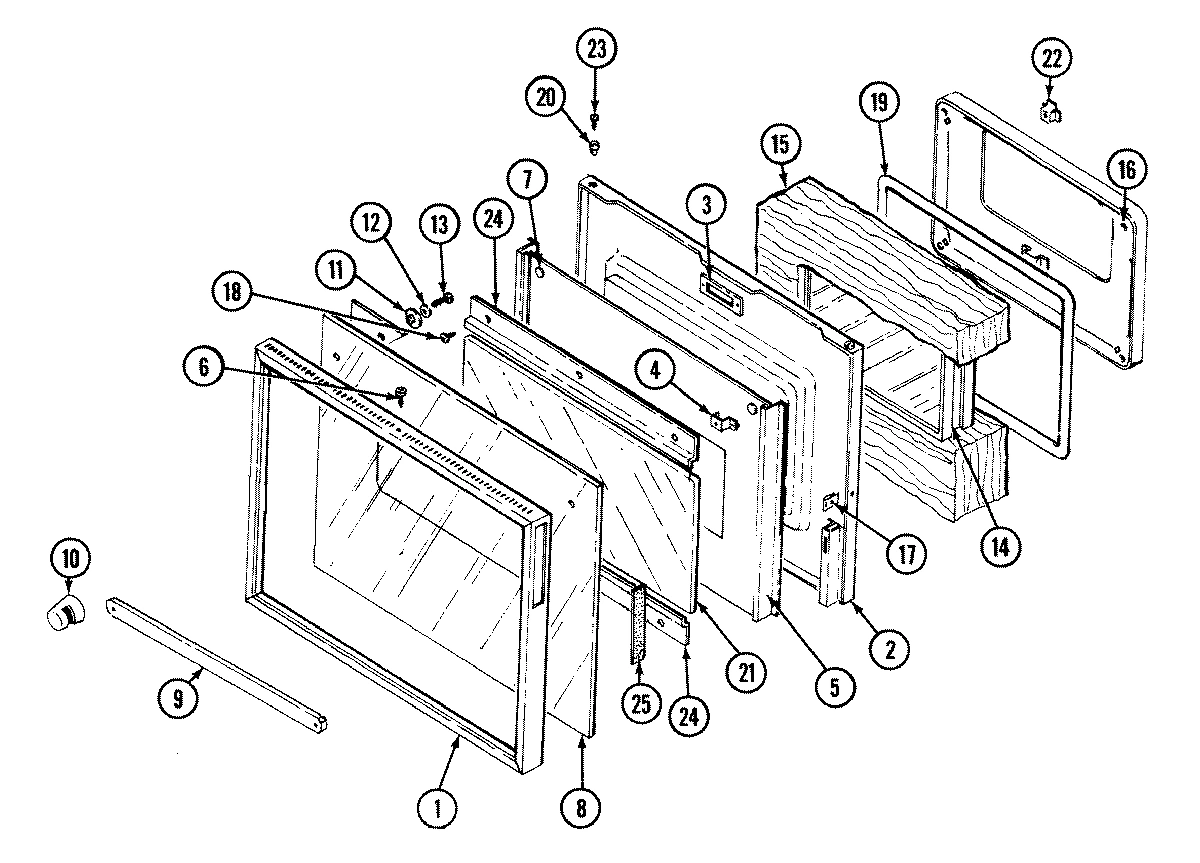

04 - DOOR

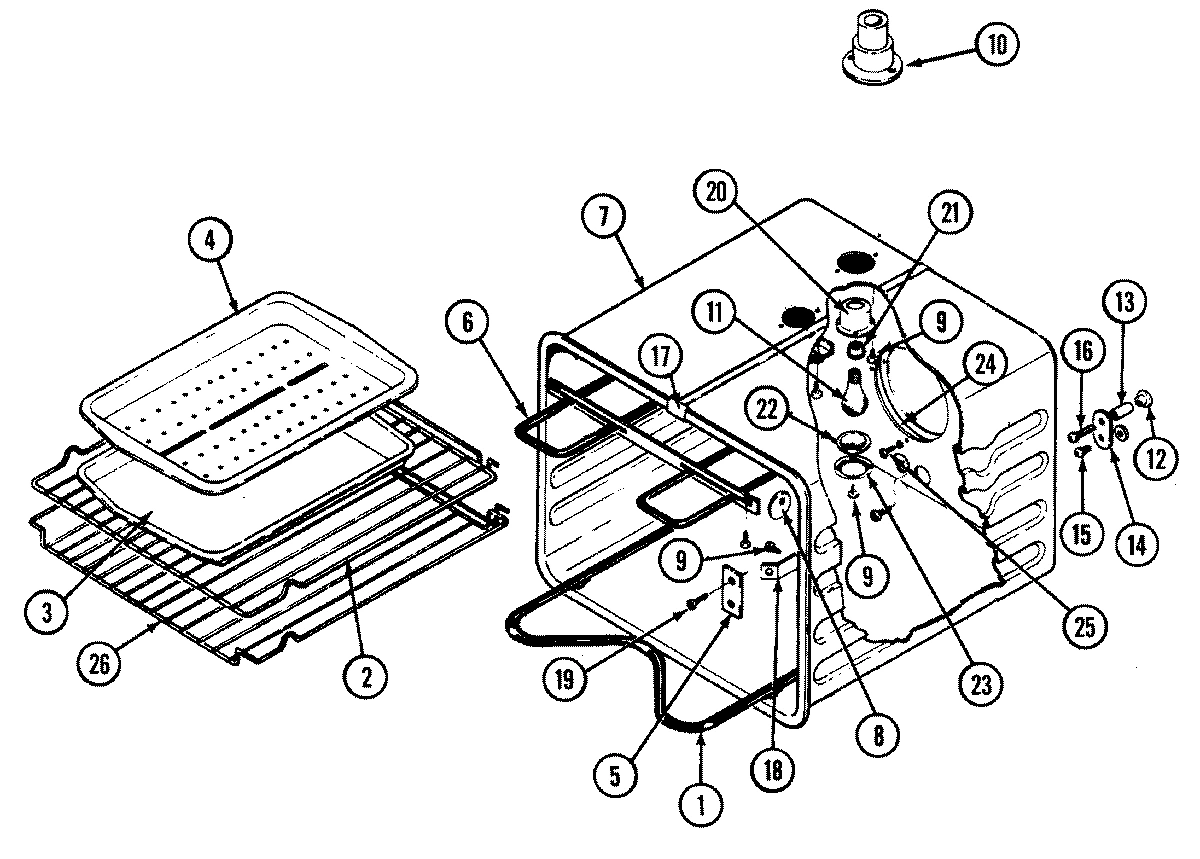

06 - OVEN LINER

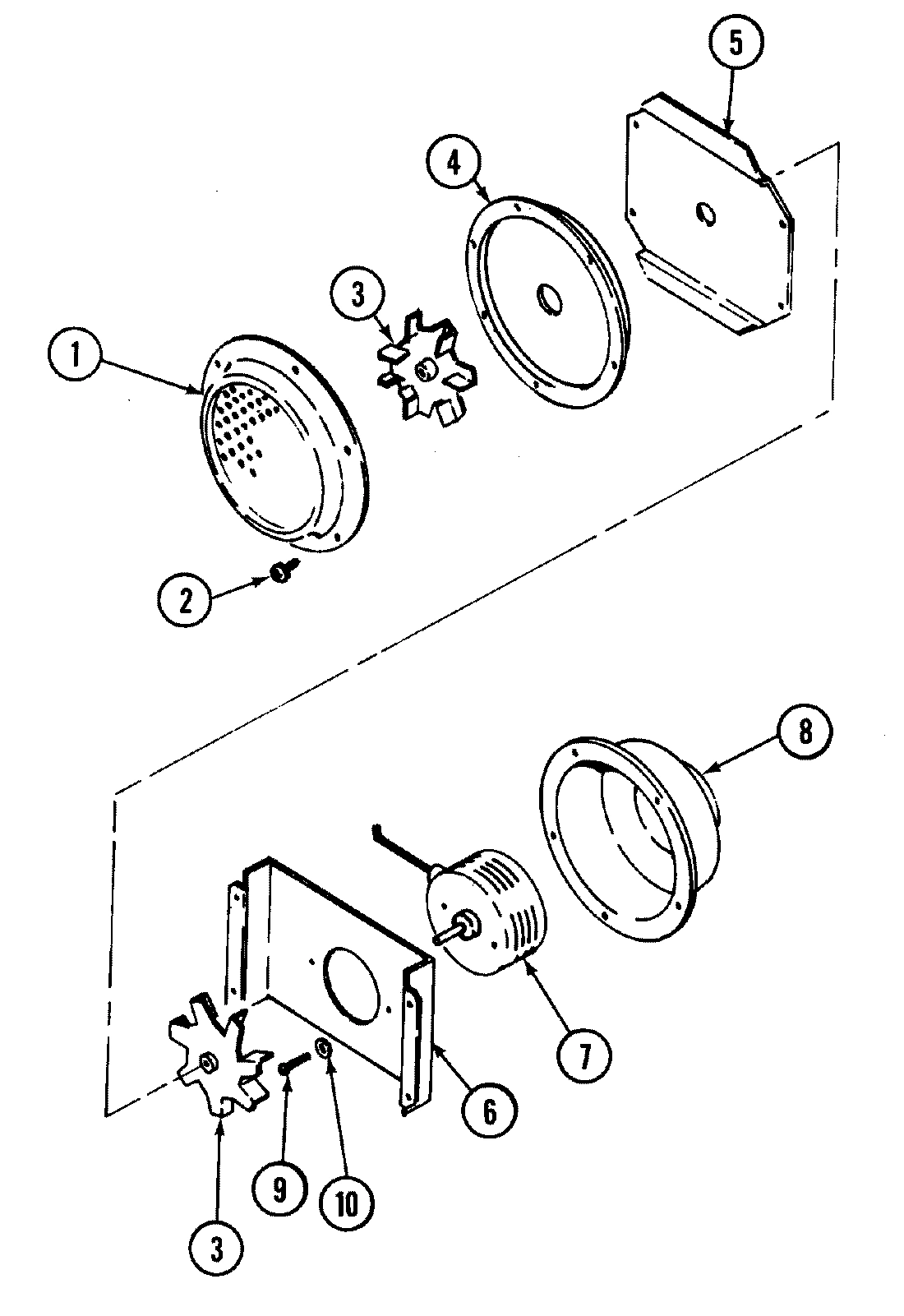

01 - BLOWER MOTOR (CONVECTION)

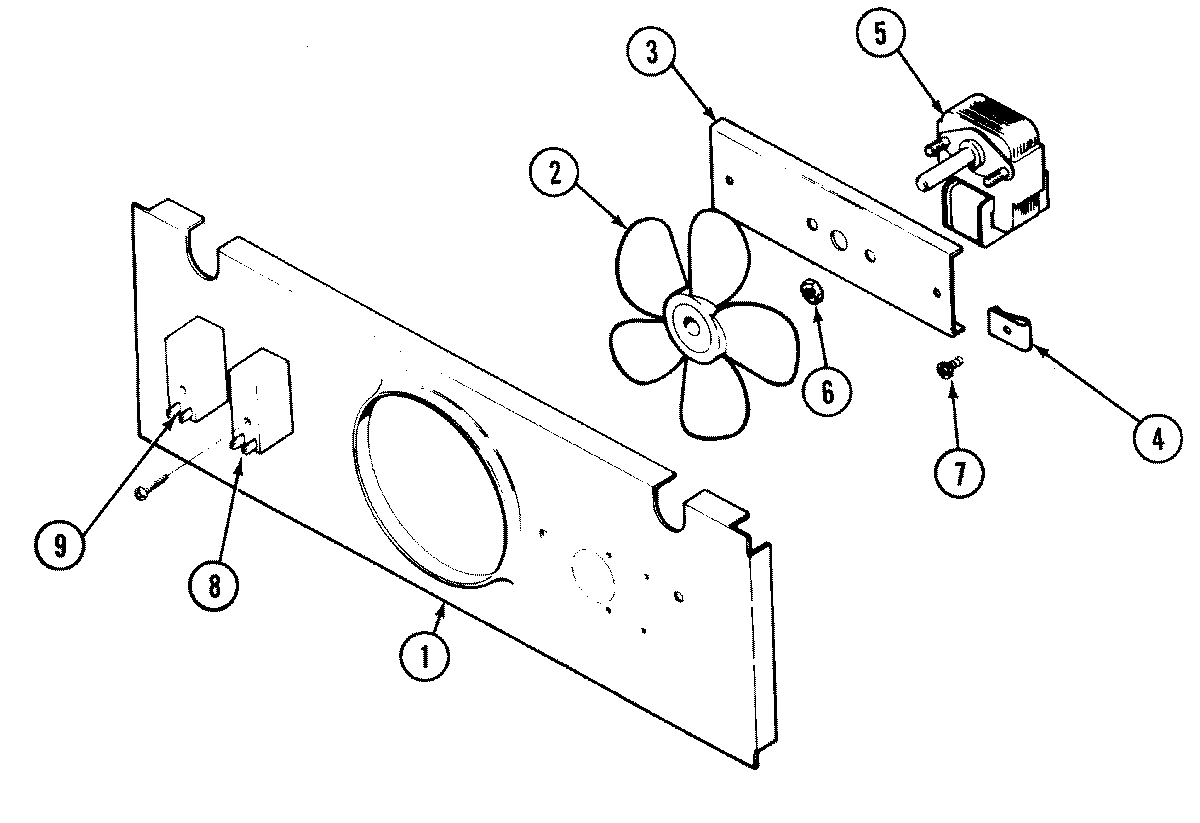

02 - BLOWER MOTOR (COOLING)
Common parts from model Whirlpool W2450W ELECTRIC WALL OVEN
1
PANEL, OUTER TOP WPL 04100616 Contact Us For Availability
1
PANEL, INNER TOP WPL 04100617 Contact Us For Availability
1
FRAME, DOOR WPL 04100637 Contact Us For Availability
1
ELEMENT, BAKE WPL Y04100387 Contact Us For Availability
1
PLATE, CONVECTION FRONT WPL 71001378 Contact Us For Availability
1
SHROUD, FAN WPL 04100619 Contact Us For Availability
2
LATCH ASSY. WPL Y703357 Contact Us For Availability
2
RIVET, ACCORDION WPL 701641 Contact Us For Availability
2
LINER, 24`` WPL Y04100636 Contact Us For Availability
2
RACK, OVEN WPL Y704661 Contact Us For Availability
2
BLADE, FAN WPL 702944 Contact Us For Availability
3
BRACKET, TOP SUPPORT WPL 04100618 Contact Us For Availability
3
PIN, COTTER WPL Y701686 Contact Us For Availability
3
PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability
3
WHEEL, CONVECTION WPL 701711 Contact Us For Availability
3
MOUNT, MOTOR WPL Y704732 Contact Us For Availability
4
BACK, OUTER WPL 04100564 Contact Us For Availability
4
CLIP, J WPL Y700556 Contact Us For Availability
4
WIRE, GRAY WPL 703767 Contact Us For Availability
4
SOLENOID WPL Y702526 Contact Us For Availability
4
BRACKET, STAND-OFF WPL 701652 Contact Us For Availability
4
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
5
SWITCH, DOOR WPL 701666 Contact Us For Availability
5
BAFFLE, DOOR WPL 04100632 Contact Us For Availability
5
COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability
5
COVER, MOTOR FRONT WPL 701713 Contact Us For Availability
5
MOTOR, FAN WPL Y701721 Contact Us For Availability
6
THERMOSTAT WPL 701687 Contact Us For Availability
6
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
7
WIRE CABLE ASSY. WPL 04100590 Contact Us For Availability
7
SHIELD, SWITCH WPL 701706 Contact Us For Availability
7
BUMPER, BUTTON WPL Y704223 Contact Us For Availability
7
OVEN WELD ASSY. WPL Y04100817 Contact Us For Availability
7
MOTOR, CONVECT WPL Y703035 Contact Us For Availability
8
PANEL, SIDE (RH) WPL 04100558 Contact Us For Availability
8
LEVER, LATCH (WHT) WPL Y703848 Contact Us For Availability
8
GLASS, SCREENED WPL 04100638 Contact Us For Availability
8
STANDOFF WPL 703007 Contact Us For Availability
8
COVER, MEAT PROBE WPL 712088 Contact Us For Availability
8
COVER, MOTOR WPL 701716 Contact Us For Availability
8
SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability
9
BRACKET WPL 04100566 Contact Us For Availability
9
CLOSURE, FRONT WPL 71001111 Contact Us For Availability
9
SCREW WPL 707407 Contact Us For Availability
9
WASHER WPL Y700862 Contact Us For Availability
9
HANDLE----NA WPL 04100640 Contact Us For Availability
9
SPACER WPL 04100569 Contact Us For Availability
9
SCREW WPL 704335 Contact Us For Availability
9
SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability
10
SPRING, KNOB WPL 701671 Contact Us For Availability
10
KNOB (WHT) WPL 704460 Contact Us For Availability
10
END CAP (WHT) WPL Y704454 Contact Us For Availability
10
TUBE, VENT WPL 701738 Contact Us For Availability
10
WASHER, LOCK WPL 715910 Contact Us For Availability
11
PANEL, BOTTOM WPL 04100621 Contact Us For Availability
11
SWITCH, SOLENOID WPL Y702360 Contact Us For Availability
11
SWITCH, LATCH WPL Y703732 Contact Us For Availability
11
BUSHING WPL Y704489 Contact Us For Availability
12
BACKPLATE, HINGE WPL 04100577 Contact Us For Availability
12
HINGE WPL Y703419 Contact Us For Availability
12
SWITCH, DOOR WPL 702806 Contact Us For Availability
12
GUSSET----NA WPL 704805 Contact Us For Availability
12
WASHER WPL Y703449 Contact Us For Availability
12
NUT, TEE WPL 715294 Contact Us For Availability
13
INSULATION WRAP WPL 04100565 Contact Us For Availability
13
BACK, INNER WPL 04100620 Contact Us For Availability
13
SWITCH, DOOR WPL 702805 Contact Us For Availability
13
SCREW WPL 704963 Contact Us For Availability
13
SPACER, OVEN WPL 701741 Contact Us For Availability
14
TRIM (WHT) WPL 04100625 Contact Us For Availability
14
INSULATOR WPL Y702350 Contact Us For Availability
14
PLATE, GROUNDING WPL 701742 Contact Us For Availability
15
PANEL, SIDE (LH) WPL 04100557 Contact Us For Availability
15
INSULATOR WPL 703264 Contact Us For Availability
15
INSULATION, BOTTOM WPL 701658 Contact Us For Availability
15
INSULATION, TOP WPL 701660 Contact Us For Availability
15
INSULATION WPL 702293 Contact Us For Availability
16
RAIL, BOTTOM WPL 700596 Contact Us For Availability
16
SCREW WPL 702807 Contact Us For Availability
16
PLUG (LOWER) WPL Y712208 Contact Us For Availability
16
INSULATION, REAR WPL 701703 Contact Us For Availability
16
SCREW WPL 701744 Contact Us For Availability
17
CLAMP, CONDUIT WPL 701692 Contact Us For Availability
17
ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability
17
TUBE, VENT (UPR OVEN) WPL 04100539 Contact Us For Availability
17
CLIP WPL 704487 Contact Us For Availability
17
CLIP, OVEN WPL Y702618 Contact Us For Availability
18
RAIL, SUPPORT WPL 04100563 Contact Us For Availability
18
SCREW (No.8 AB) WPL 04100574 Contact Us For Availability
18
CLIP, BULB WPL Y701541 Contact Us For Availability
19
BRACKET, VENT TUBE WPL 701680 Contact Us For Availability
20
LIMIT, FAN WPL Y702750 Contact Us For Availability
20
NUT, PUSH IN WPL 701643 Contact Us For Availability
20
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
21
GLASS, BAFFLE WPL Y704820 Contact Us For Availability
21
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
22
CLIP WPL 705404 Contact Us For Availability
22
LENS, LIGHT WPL Y704143 Contact Us For Availability
23
SCREW WPL 703958 Contact Us For Availability
23
SCREW WPL 715870 Contact Us For Availability
23
RETAINER, LENS WPL Y704144 Contact Us For Availability
24
RETAINER, GLASS WPL Y704819 Contact Us For Availability
24
PLATE, NON-CONVECT WPL 705343 Contact Us For Availability
25
INSERT, DOOR (WHT) WPL Y04100639 Contact Us For Availability
26
RACK, OVEN (OFFSET) WPL Y704663 Contact Us For Availability
× ![]()
