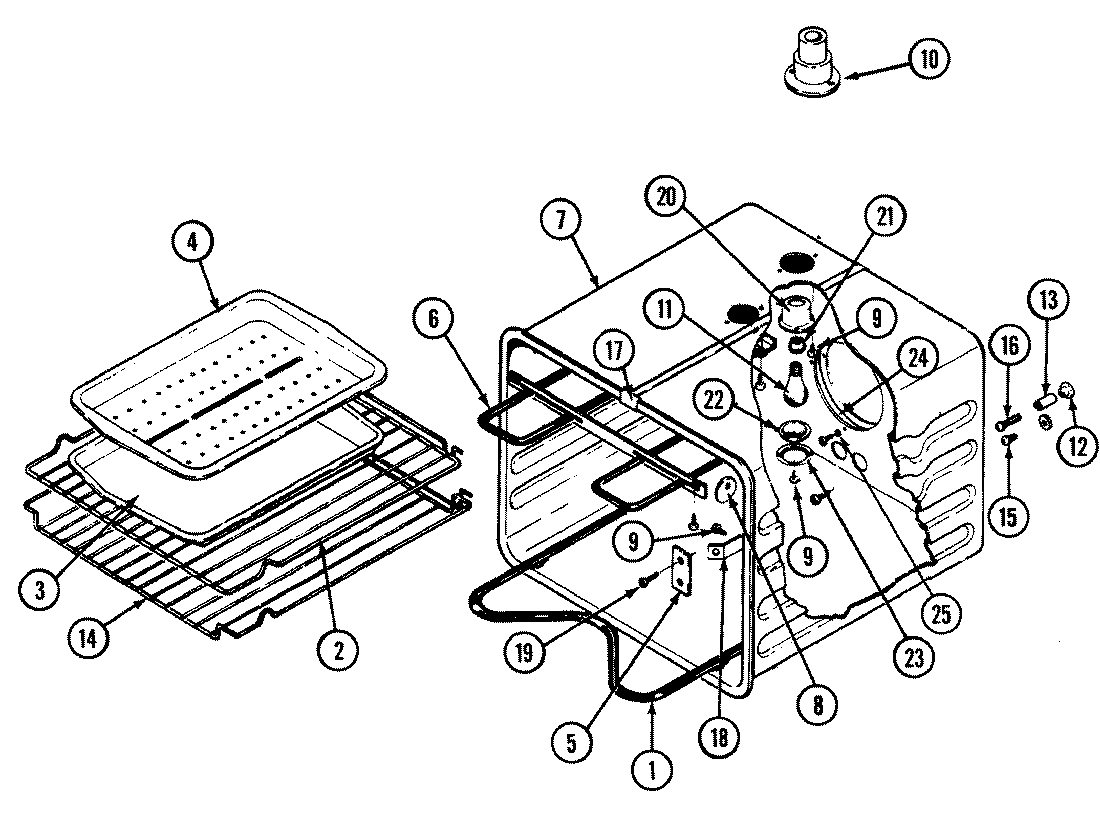

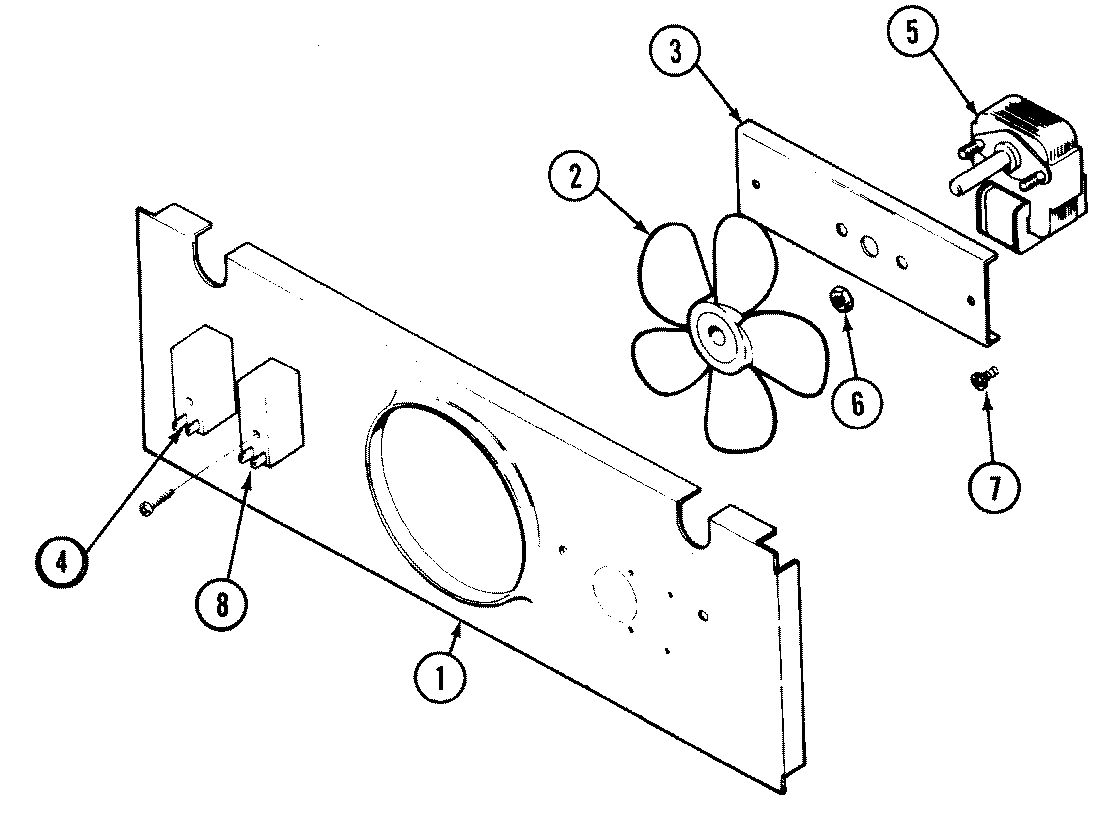

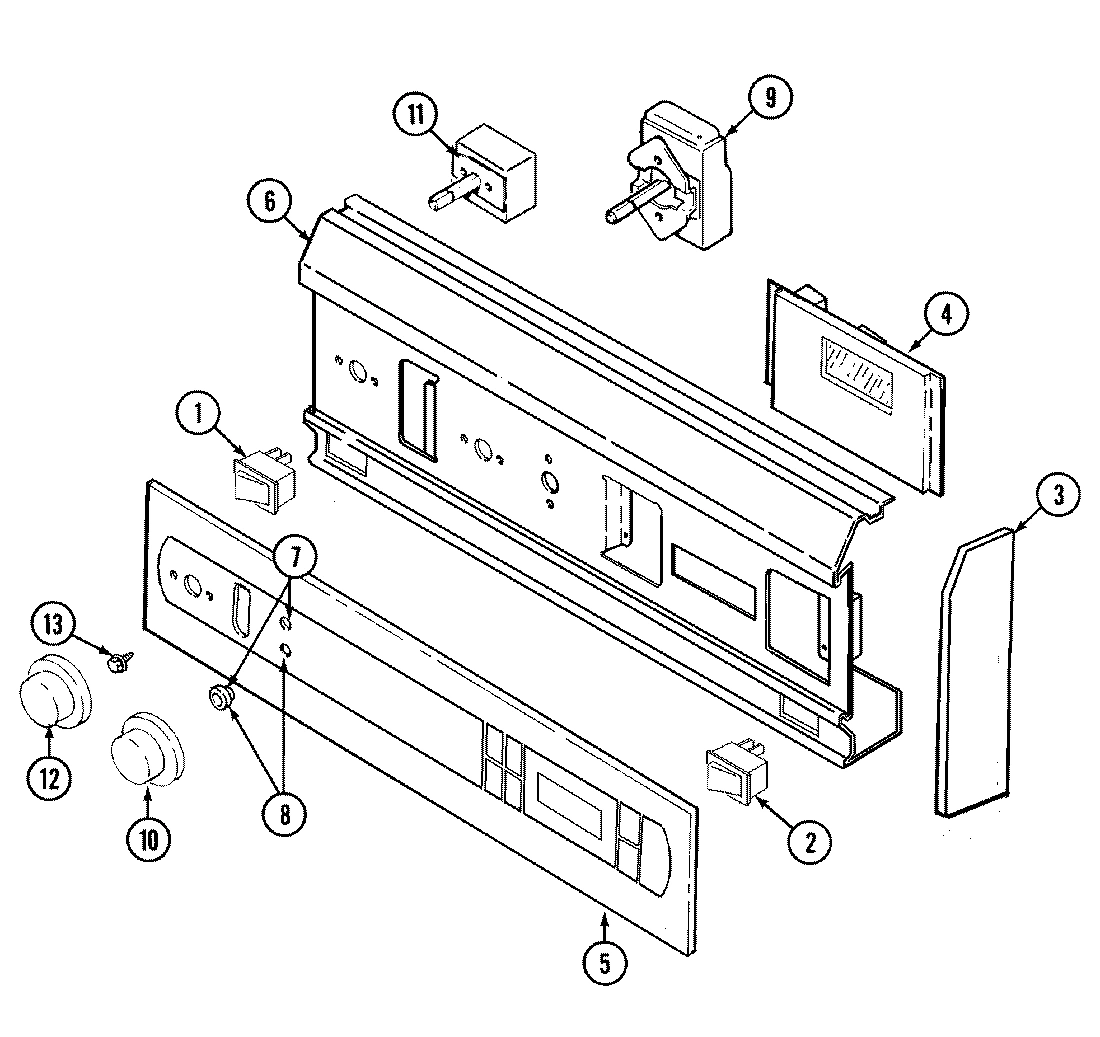

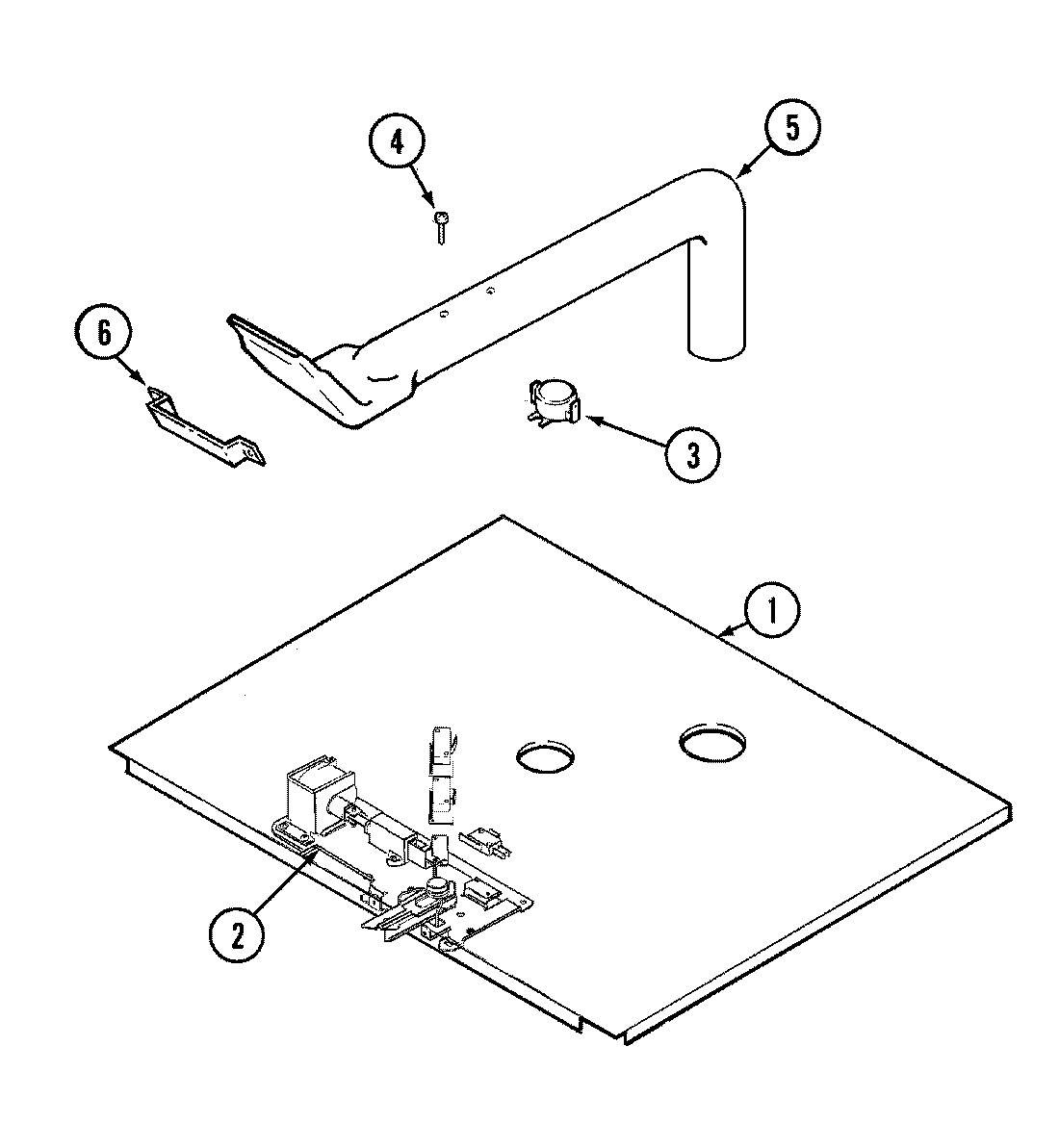

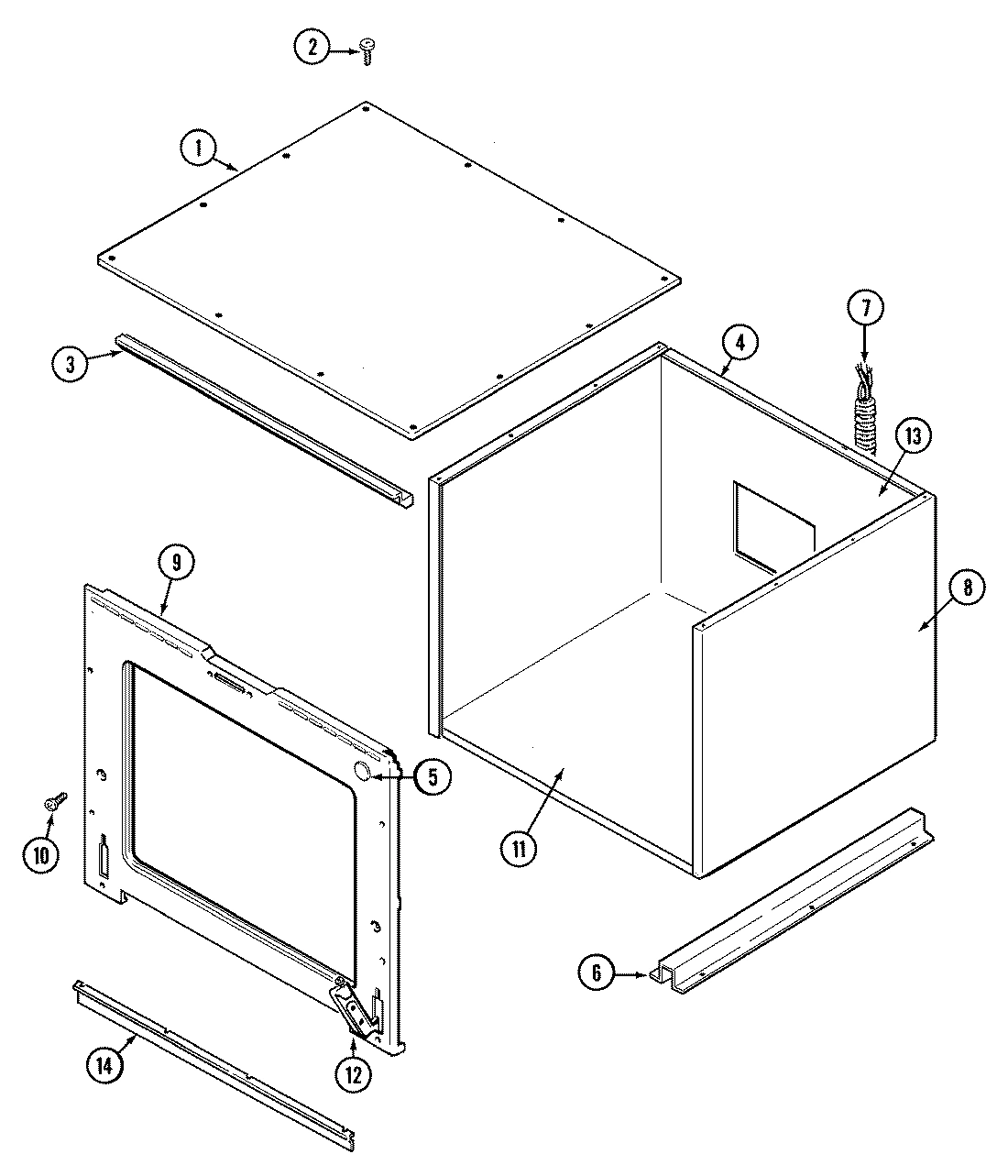

Model Whirlpool W2410W ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

WPY04100388 Whirlpool Bake Element Backorder WPL WPY04100388 $113.84

1

SWITCH, MOMENTARY (WHT) WPL 71001131 Contact Us For Availability

1

PANEL, TOP (INNER) WPL 71001132 Contact Us For Availability

1

SHROUD, FAN WPL 04100619 Contact Us For Availability

1

PANEL, OUTER TOP WPL 04100616 Contact Us For Availability

2

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $3.49

2

SWITCH, OVEN LIGHT (WHT) WPL 71001130 Contact Us For Availability

2

LATCH ASSY. WPL 71001098 Contact Us For Availability

2

BLADE, FAN WPL 702944 Contact Us For Availability

2

RACK, OVEN WPL Y704661 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

3

CAP, END (LT/WHT) WPL 705014 Contact Us For Availability

3

CAP, END (RT/WHT) WPL 705015 Contact Us For Availability

3

THERMOSTAT WPL 701687 Contact Us For Availability

3

MOUNT, MOTOR WPL Y704732 Contact Us For Availability

3

BRACKET, TOP SUPPORT WPL 04100618 Contact Us For Availability

4

CLOCK WPL 71001097 Contact Us For Availability

4

SCREW WPL 707407 Contact Us For Availability

4

SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability

4

BACK, OUTER WPL 04100564 Contact Us For Availability

5

INSERT, PANEL ASSY. (WHT) WPL 71001221 Contact Us For Availability

5

TUBE, VENT WPL 71001150 Contact Us For Availability

5

MOTOR, FAN WPL Y701721 Contact Us For Availability

5

BUTTON, PLUG WPL 703688 Contact Us For Availability

5

COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability

6

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

6

WPY04100514 Whirlpool Bake Element Backorder WPL WPY04100514 $114.02

6

PANEL, CONTROL ASSY. (WHT) WPL 71001222 Contact Us For Availability

6

BRACKET, VENT TUBE WPL 701680 Contact Us For Availability

6

RAIL, SUPPORT WPL 04100563 Contact Us For Availability

7

LIGHT, INDICATOR WPL 71001140 Contact Us For Availability

7

SCREW WPL 704335 Contact Us For Availability

7

WIRE CABLE ASSY. (UPR) WPL 71001146 Contact Us For Availability

7

OVEN LINER ASSY. WPL 71003059 Contact Us For Availability

7

OVEN WELD ASSY. WPL Y04100817 Contact Us For Availability

8

LIGHT, LOCK WPL 71001301 Contact Us For Availability

8

COVER, MOTOR OPENING WPL 703551 Contact Us For Availability

8

SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability

8

PANEL, SIDE (RH) WPL 04100558 Contact Us For Availability

8

PANEL, SIDE (LT) WPL 71001128 Contact Us For Availability

8

BUTTON, PLUG WPL 702929 Contact Us For Availability

9

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

9

THERMOSTAT WPL 71001138 Contact Us For Availability

9

BRACKET WPL 04100566 Contact Us For Availability

9

CLOSURE, FRONT WPL 71001220 Contact Us For Availability

10

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

10

KNOB, THERMOSTAT (WHT) WPL Y704482 Contact Us For Availability

10

TUBE, VENT WPL 701738 Contact Us For Availability

11

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

11

SWITCH, SELECTOR (LWR) WPL 71001139 Contact Us For Availability

11

PANEL, BOTTOM WPL 04100621 Contact Us For Availability

WPY704841 Whirlpool Selector Knob Backorder WPL WPY704841 $33.13

BACKPLATE, HINGE WPL 04100577 Contact Us For Availability

HINGE, OVEN DOOR WPL Y04100337 Contact Us For Availability

WASHER WPL Y703449 Contact Us For Availability

NUT, TEE WPL 715294 Contact Us For Availability

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.41

SWITCH, AUXILIARY WPL 71001124 Contact Us For Availability

HARNESS, CONTROL (UPR) WPL 71001141 Contact Us For Availability

INSULATION WRAP WPL 04100565 Contact Us For Availability

INSULATION, BOTTOM WPL 04100568 Contact Us For Availability

BACK, INNER WPL 04100620 Contact Us For Availability

INSULATION WPL 04100819 Contact Us For Availability

SPACER WPL 04100569 Contact Us For Availability

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

MANUAL, USE & CARE WPL 71001408 Contact Us For Availability

TRIM (WHT) WPL 04100625 Contact Us For Availability

ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability

RACK, OVEN (OFFSET) WPL Y704663 Contact Us For Availability

15

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $4.82

16

WASHER WPL 701736 Contact Us For Availability

16

SCREW WPL 705170 Contact Us For Availability

17

CLIP, OVEN WPL 71001170 Contact Us For Availability

18

CLIP, BULB WPL Y701541 Contact Us For Availability

19

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

20

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

21

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

22

LENS, LIGHT WPL Y704143 Contact Us For Availability

23

RETAINER, LENS WPL Y704144 Contact Us For Availability

24

PLATE, NON-CONVECT WPL 705343 Contact Us For Availability

24

PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability

25

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

NI

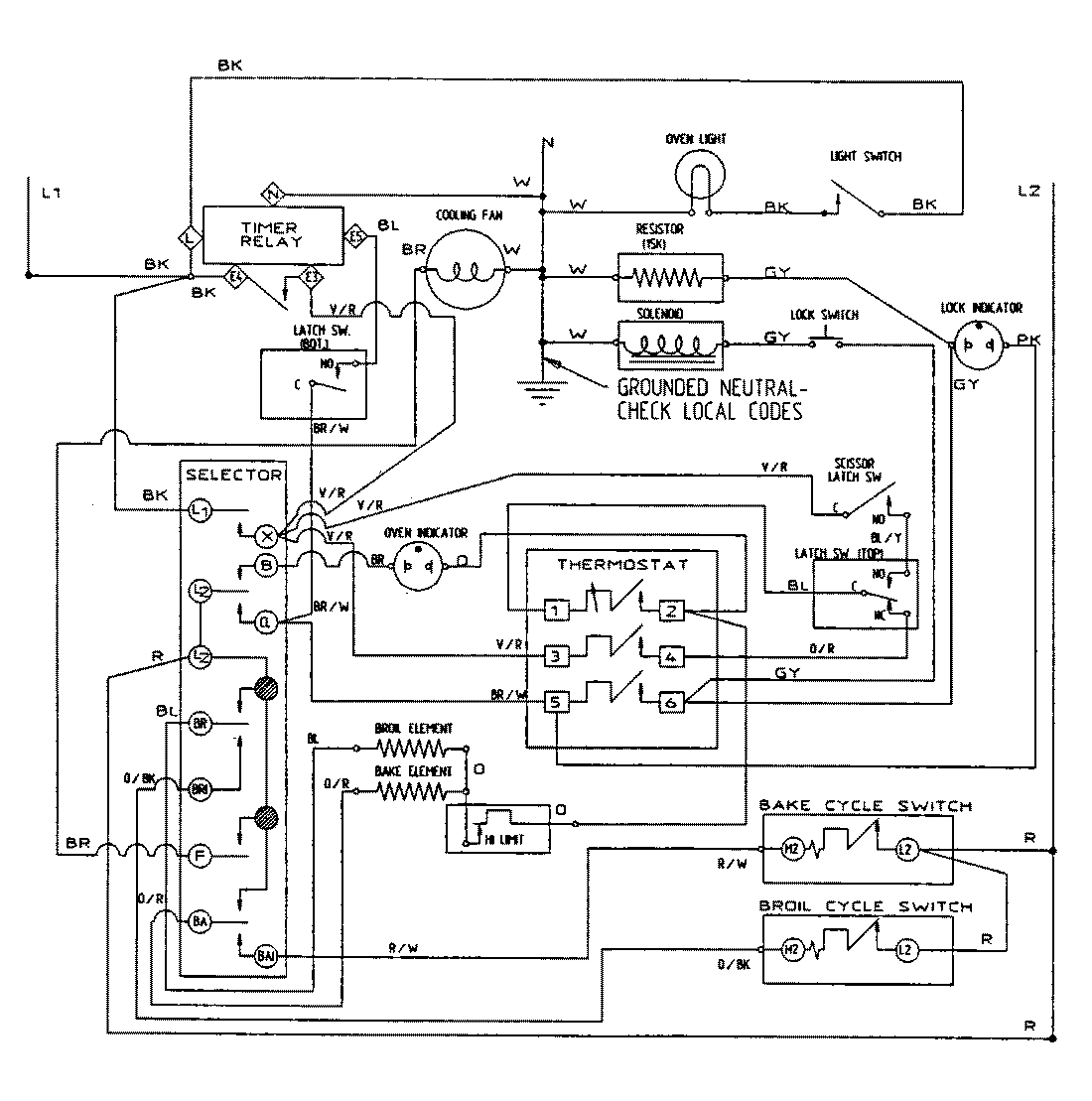

WIRING INFORMATION WPL 15001165 Contact Us For Availability
