Model Whirlpool W227W ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams
02 - BODY (LOWER)

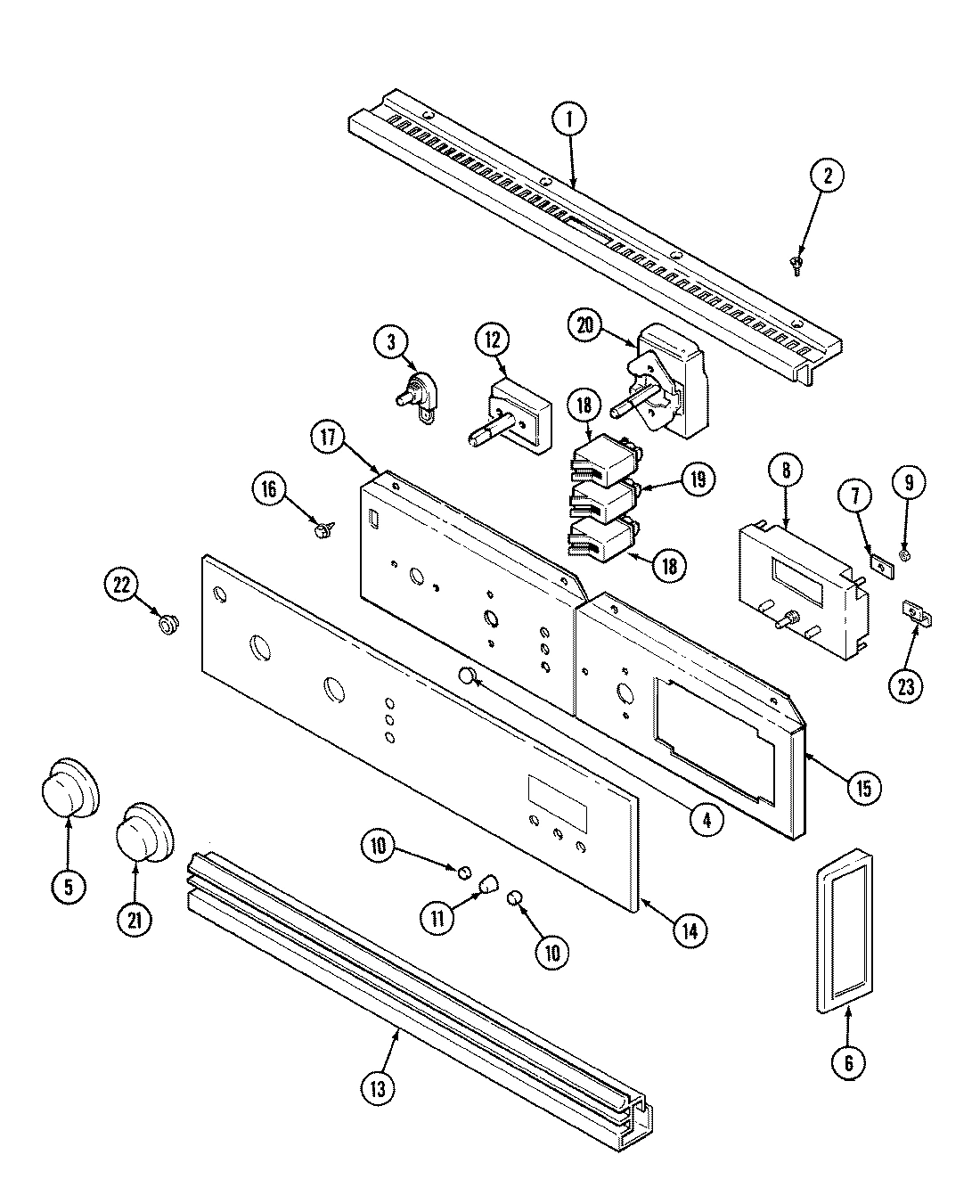

03 - CONTROL PANEL (LOWER)

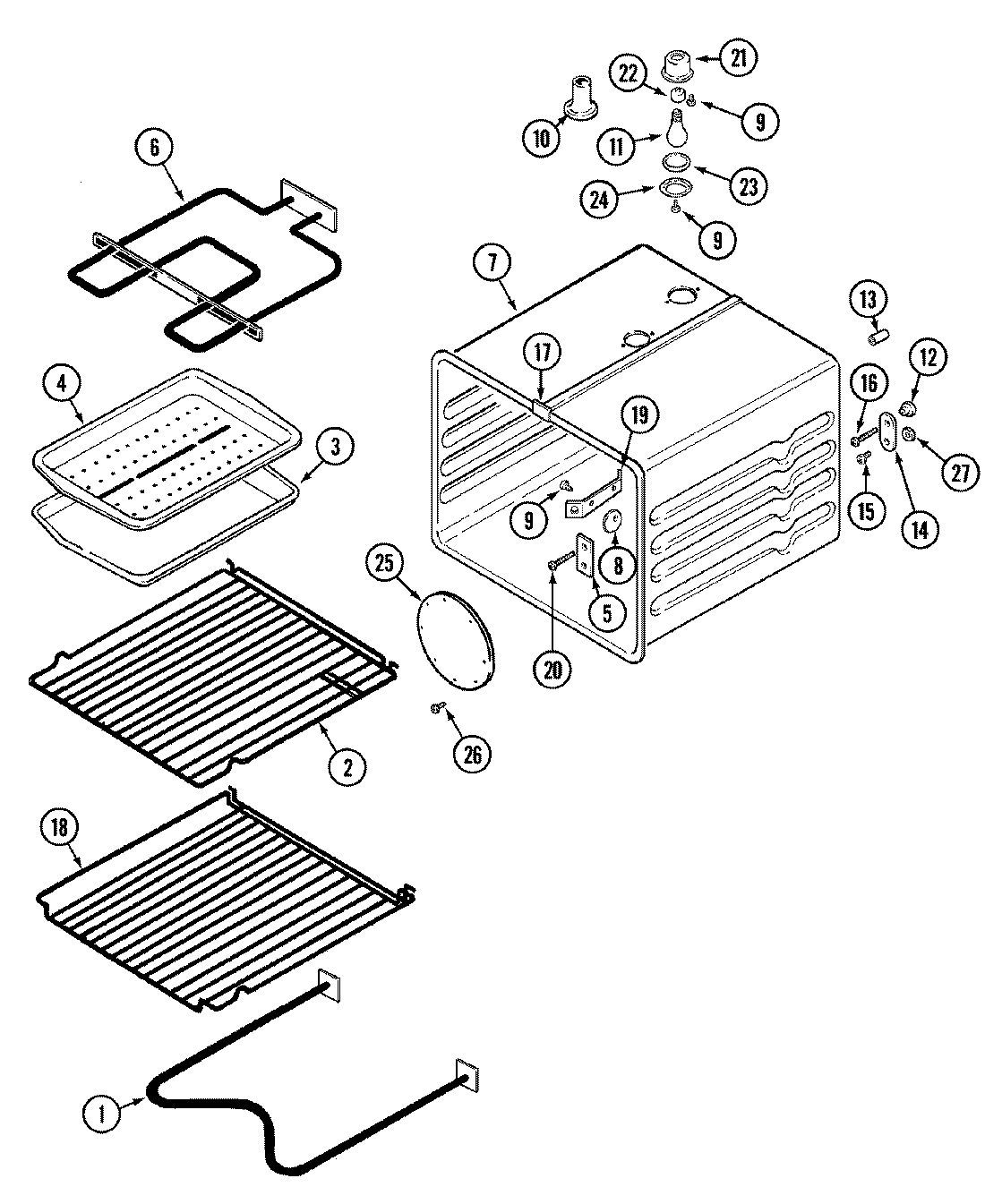

06 - OVEN (LOWER)

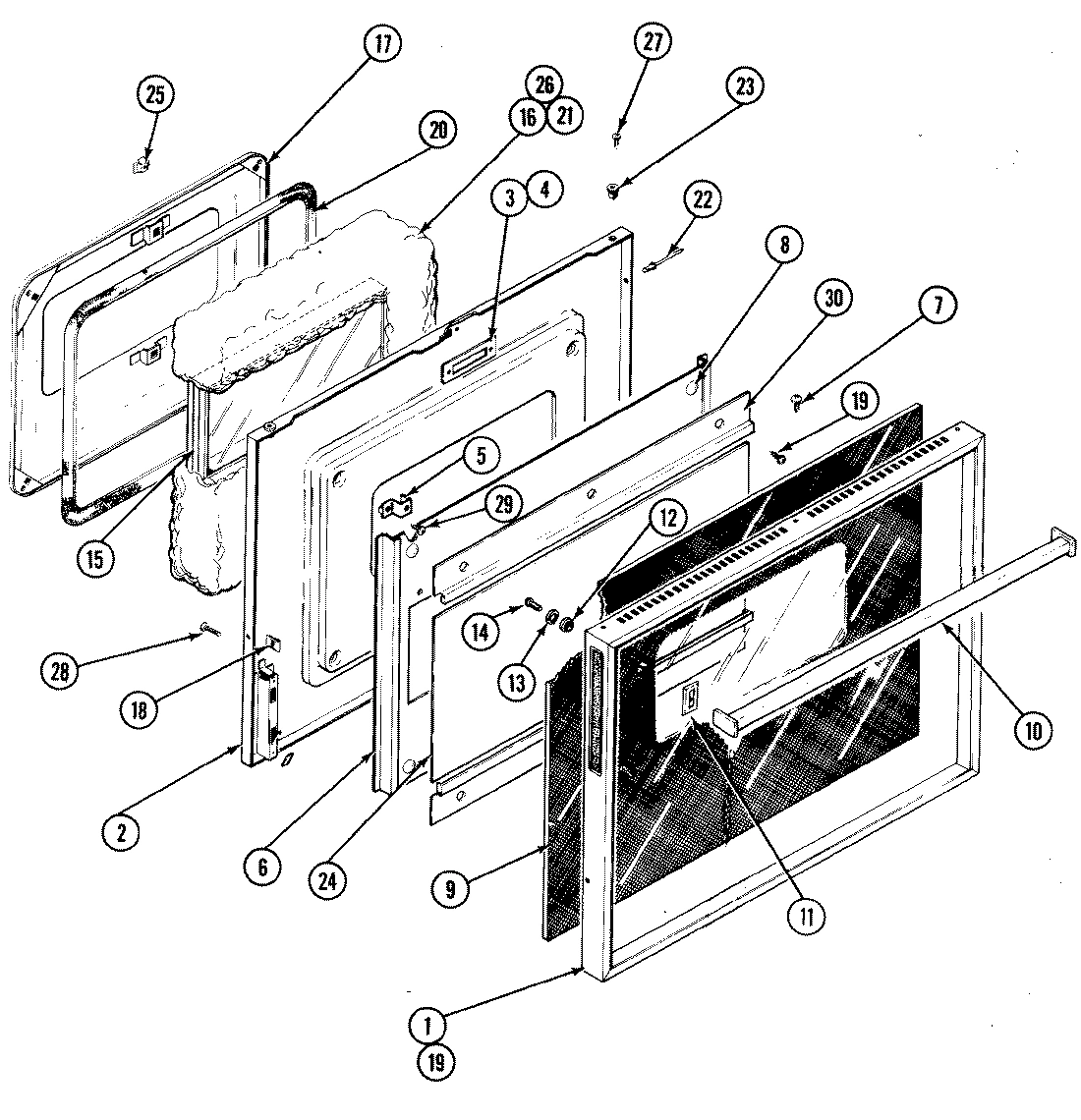

04 - DOOR (LOWER)

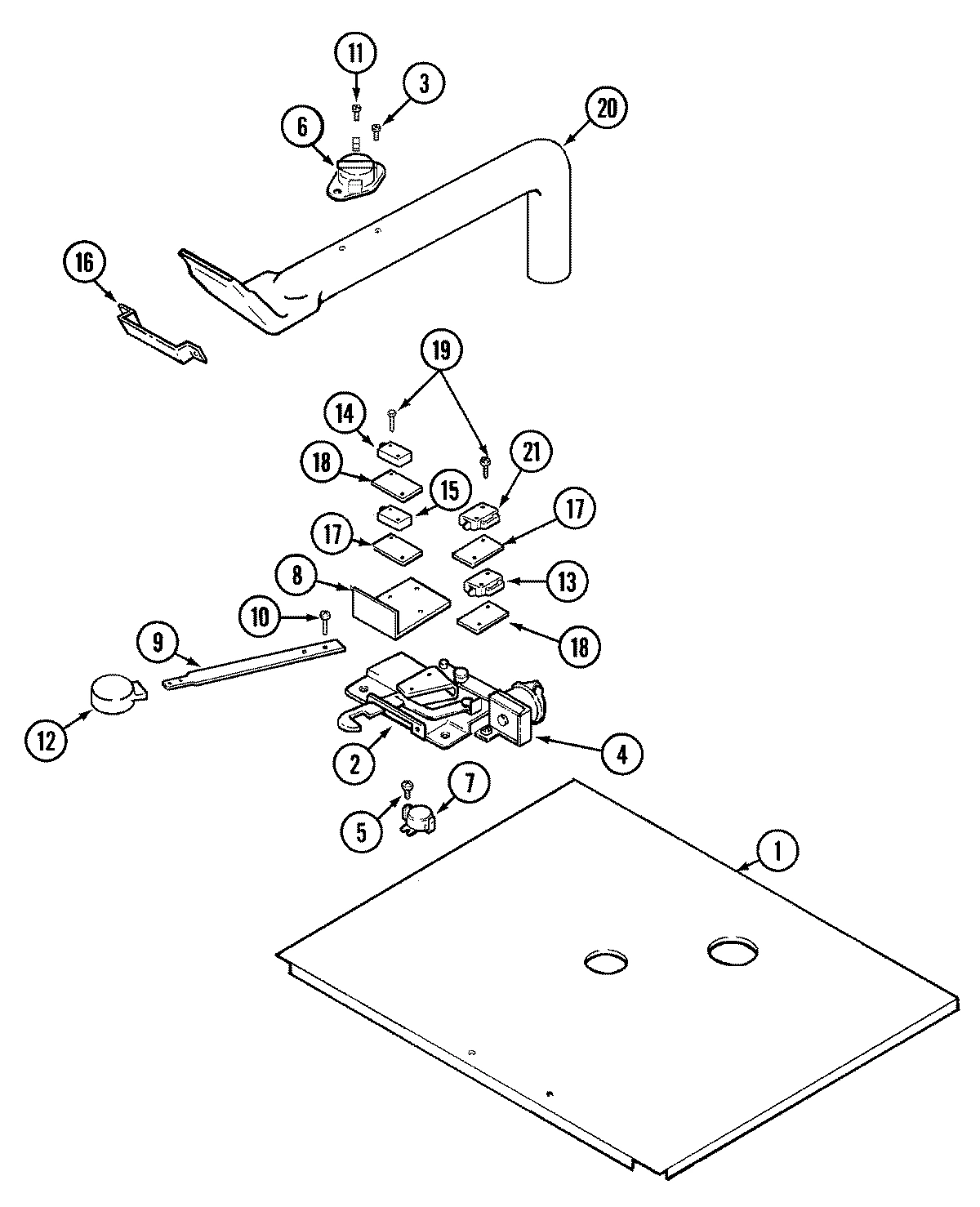

05 - INTERNAL CONTROLS (LOWER)

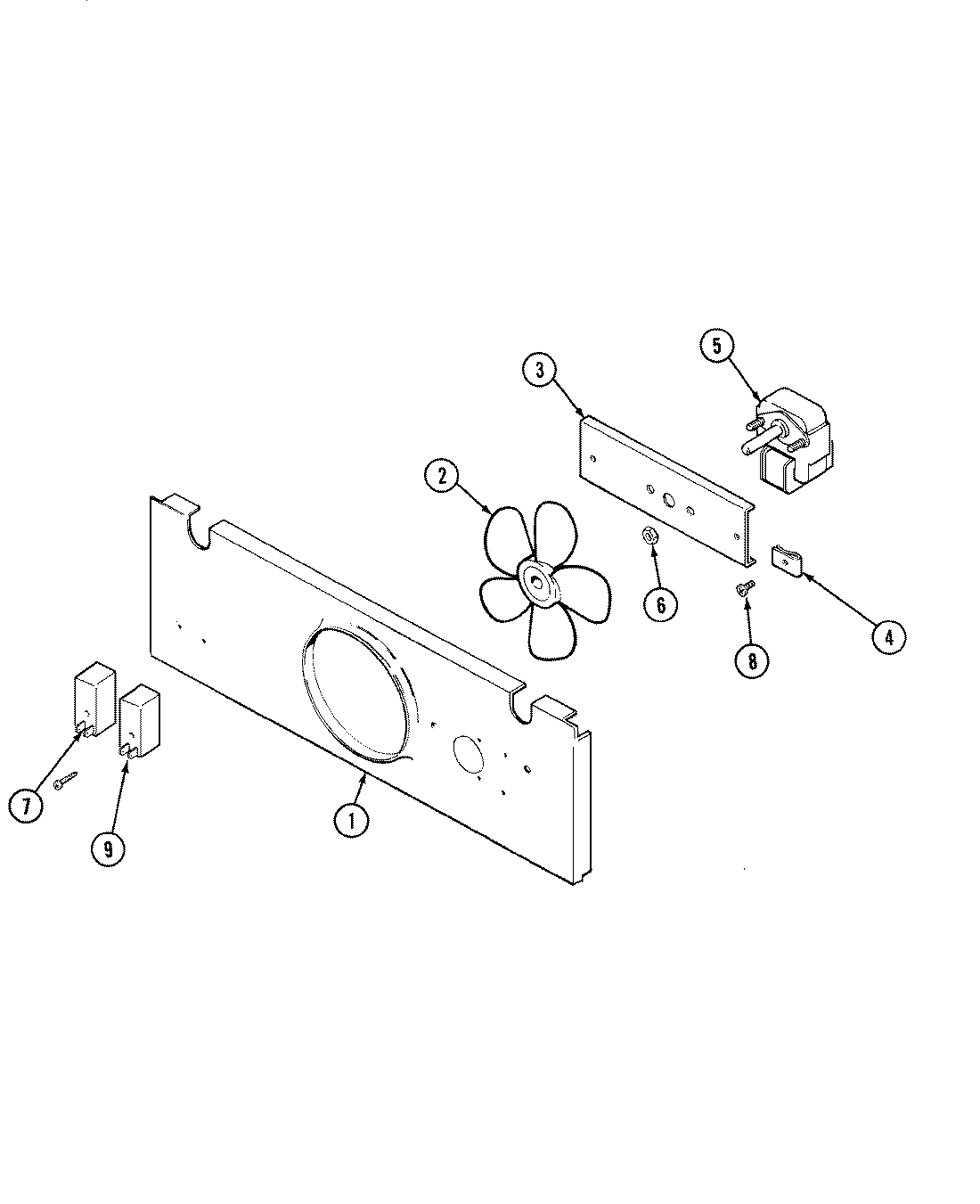

01 - BLOWER MOTOR (COOLING)
Common parts from model Whirlpool W227W ELECTRIC WALL OVEN/MICROWAVE COMBO
1
TOP (OUTER) WPL 701681 Contact Us For Availability
1
EXTRUSION, TOP WPL 701634 Contact Us For Availability
1
ELEMENT, BAKE WPL Y704665 Contact Us For Availability
1
FRAME, OVEN DOOR WPL 705174 Contact Us For Availability
1
PANEL, TOP WPL 704684 Contact Us For Availability
1
PLATE, MOTOR WPL 704336 Contact Us For Availability
2
SCREW WPL 712066 Contact Us For Availability
2
RACK, OVEN WPL Y701725 Contact Us For Availability
2
LINER, DOOR WPL 712188 Contact Us For Availability
2
PIN, COTTER WPL Y701686 Contact Us For Availability
2
LATCH ASSY. WPL Y703357 Contact Us For Availability
2
BLADE, FAN WPL 701718 Contact Us For Availability
3
SUPPORT, TOP WPL 703095 Contact Us For Availability
3
SWITCH, PUSH WPL 704878 Contact Us For Availability
3
PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability
3
MOUNT, MOTOR WPL Y704732 Contact Us For Availability
4
CLIP, J WPL Y700556 Contact Us For Availability
4
LENS, INDICATOR LIGHTS WPL Y700630 Contact Us For Availability
4
WIRE, GRAY WPL 703767 Contact Us For Availability
4
SOLENOID WPL Y702526 Contact Us For Availability
5
COVER, MOTOR OPENING WPL 703551 Contact Us For Availability
5
COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability
5
BRACKET, STAND-OFF WPL 701652 Contact Us For Availability
5
MOTOR, FAN WPL Y701721 Contact Us For Availability
6
END CAP (RT-CHR) WPL 703136 Contact Us For Availability
6
END CAP (LT-CHR) WPL 703137 Contact Us For Availability
6
BAFFLE WPL 712250 Contact Us For Availability
6
LIMIT, FAN WPL Y702750 Contact Us For Availability
7
PANEL, OUTER (RT) WPL 701672 Contact Us For Availability
7
BRACKET, TIMER WPL 703676 Contact Us For Availability
7
INSULATION, WRAP WPL 701702 Contact Us For Availability
7
INSULATION, REAR WPL 701703 Contact Us For Availability
7
OVEN WELD ASSY. WPL Y712577 Contact Us For Availability
7
THERMOSTAT WPL 701687 Contact Us For Availability
7
SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability
8
PANEL, SIDE (RT) WPL 701676 Contact Us For Availability
8
CLOCK WPL Y703708 Contact Us For Availability
8
COVER, MEAT PROBE WPL 712088 Contact Us For Availability
8
BUMPER, BUTTON WPL Y704223 Contact Us For Availability
8
SHIELD, SWITCH WPL 701706 Contact Us For Availability
9
SPACER, SIDE WPL 703253 Contact Us For Availability
9
CLOSURE, FRONT WPL 703609 Contact Us For Availability
9
PALNUT WPL 703679 Contact Us For Availability
9
GUSSET----NA WPL 704805 Contact Us For Availability
9
GLASS, SCREENED WPL 705079 Contact Us For Availability
9
LEVER, LATCH (WHT) WPL Y712547 Contact Us For Availability
9
SCREW WPL 704335 Contact Us For Availability
9
SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability
10
TUBE, VENT WPL 701738 Contact Us For Availability
10
HANDLE ----NA WPL 704453 Contact Us For Availability
10
SCREW WPL 707407 Contact Us For Availability
10
WASHER WPL Y700862 Contact Us For Availability
11
PANEL, BOTTOM WPL 701669 Contact Us For Availability
11
END CAP (WHT) WPL Y704454 Contact Us For Availability
12
HINGE WPL Y703419 Contact Us For Availability
12
SWITCH, SELECTOR (UPPER) WPL 703078 Contact Us For Availability
12
NUT, TEE WPL 715294 Contact Us For Availability
12
BUSHING WPL Y703433 Contact Us For Availability
12
WASHER WPL Y704230 Contact Us For Availability
12
SPRING, KNOB WPL 701671 Contact Us For Availability
12
KNOB (WHT) WPL 704460 Contact Us For Availability
13
EXTRUSION, BOTTOM (CHR) WPL 704874 Contact Us For Availability
13
SPACER, OVEN WPL 701741 Contact Us For Availability
13
WASHER WPL Y700446 Contact Us For Availability
13
SWITCH, SOLENOID WPL Y702360 Contact Us For Availability
14
SWITCH, DOOR WPL 701666 Contact Us For Availability
14
PLUG, UPPER WPL 712209 Contact Us For Availability
14
GLASS, CONTROL PANEL WPL 705129 Contact Us For Availability
14
PLATE, GROUNDING WPL 701742 Contact Us For Availability
14
SCREW WPL Y704231 Contact Us For Availability
14
SWITCH, DOOR WPL 702806 Contact Us For Availability
15
TRIM, OVEN (LOWER) WPL 701848 Contact Us For Availability
15
PANEL, CONTROL (RT) WPL 705336 Contact Us For Availability
15
SWITCH, DOOR WPL 702805 Contact Us For Availability
16
BRACKET, VENT TUBE WPL 701680 Contact Us For Availability
16
PANEL, SIDE (LT) WPL 701697 Contact Us For Availability
16
PAD, SPACER WPL 705331 Contact Us For Availability
16
SCREW WPL 701744 Contact Us For Availability
16
INSULATION, BOTTOM WPL 701658 Contact Us For Availability
17
RAIL, BOTTOM WPL 700596 Contact Us For Availability
17
PANEL, CONTROL (LT) WPL 705337 Contact Us For Availability
17
CLIP, OVEN WPL Y702618 Contact Us For Availability
17
PLUG (LOWER) WPL Y712208 Contact Us For Availability
17
INSULATOR WPL Y702350 Contact Us For Availability
18
PANEL, BOTTOM (OUTER) WPL 701668 Contact Us For Availability
18
LIGHT, INDICATOR 240V WPL Y702394 Contact Us For Availability
18
RACK, OVEN (OFFSET) WPL Y704663 Contact Us For Availability
18
CLIP WPL 704487 Contact Us For Availability
18
INSULATOR WPL 703264 Contact Us For Availability
19
PANEL, OUTER (LT) WPL 701695 Contact Us For Availability
19
CLIP, BULB WPL Y701541 Contact Us For Availability
19
SCREW, FLAT WPL 704745 Contact Us For Availability
19
SCREW WPL 702807 Contact Us For Availability
20
SUPPORT, BOTTOM WPL 701667 Contact Us For Availability
20
THERMOSTAT-UPPER WPL 703080 Contact Us For Availability
20
TUBE, VENT WPL 704473 Contact Us For Availability
21
PANEL, REAR WPL 704808 Contact Us For Availability
21
KNOB, THERMOSTAT (WHT) WPL Y704482 Contact Us For Availability
21
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
21
INSULATION, SIDE WPL 701659 Contact Us For Availability
21
SWITCH, LATCH WPL Y703732 Contact Us For Availability
22
BEZEL, SWITCH WPL 704897 Contact Us For Availability
22
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
22
RIVET, ACCORDION WPL 701641 Contact Us For Availability
23
CABLE ASSY WPL 705039 Contact Us For Availability
23
ANGLE, ATTACHMENT WPL 701609 Contact Us For Availability
23
LENS, LIGHT WPL Y704143 Contact Us For Availability
23
NUT, PUSH IN WPL 701643 Contact Us For Availability
24
CLAMP, CONDUIT WPL 701692 Contact Us For Availability
24
RESISTOR, LEAD WPL 705040 Contact Us For Availability
24
RETAINER, LENS WPL Y704144 Contact Us For Availability
24
GLASS, BAFFLE WPL Y704820 Contact Us For Availability
25
TIE, MOUNT CABLE WPL 702746 Contact Us For Availability
25
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
25
CLIP WPL 705404 Contact Us For Availability
26
BRACKET, HAT (REAR) WPL 701683 Contact Us For Availability
26
PANEL, REAR (OUTER) WPL 701691 Contact Us For Availability
26
ANGLE, OVEN SUPPORT WPL 701701 Contact Us For Availability
26
GROMMET, FLEXIBLE WPL Y703352 Contact Us For Availability
26
HARNESS, WIRE WPL 704903 Contact Us For Availability
26
INSULATION, TOP WPL 701660 Contact Us For Availability
27
OUTLET, APPLIANCE WPL 701704 Contact Us For Availability
27
WIRE, TAN WPL 703089 Contact Us For Availability
27
WIRE, PINK WPL 703090 Contact Us For Availability
27
WIRE, WIRE WPL 703370 Contact Us For Availability
27
WASHER WPL 701736 Contact Us For Availability
28
MANUAL, USE & CARE WPL MU130UA Contact Us For Availability
28
MANUAL, USE & CARE WPL OU106UA Contact Us For Availability
28
SCREW WPL 715870 Contact Us For Availability
30
RETAINER, GLASS WPL Y704819 Contact Us For Availability
× ![]()
