Model Whirlpool W214 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BODY

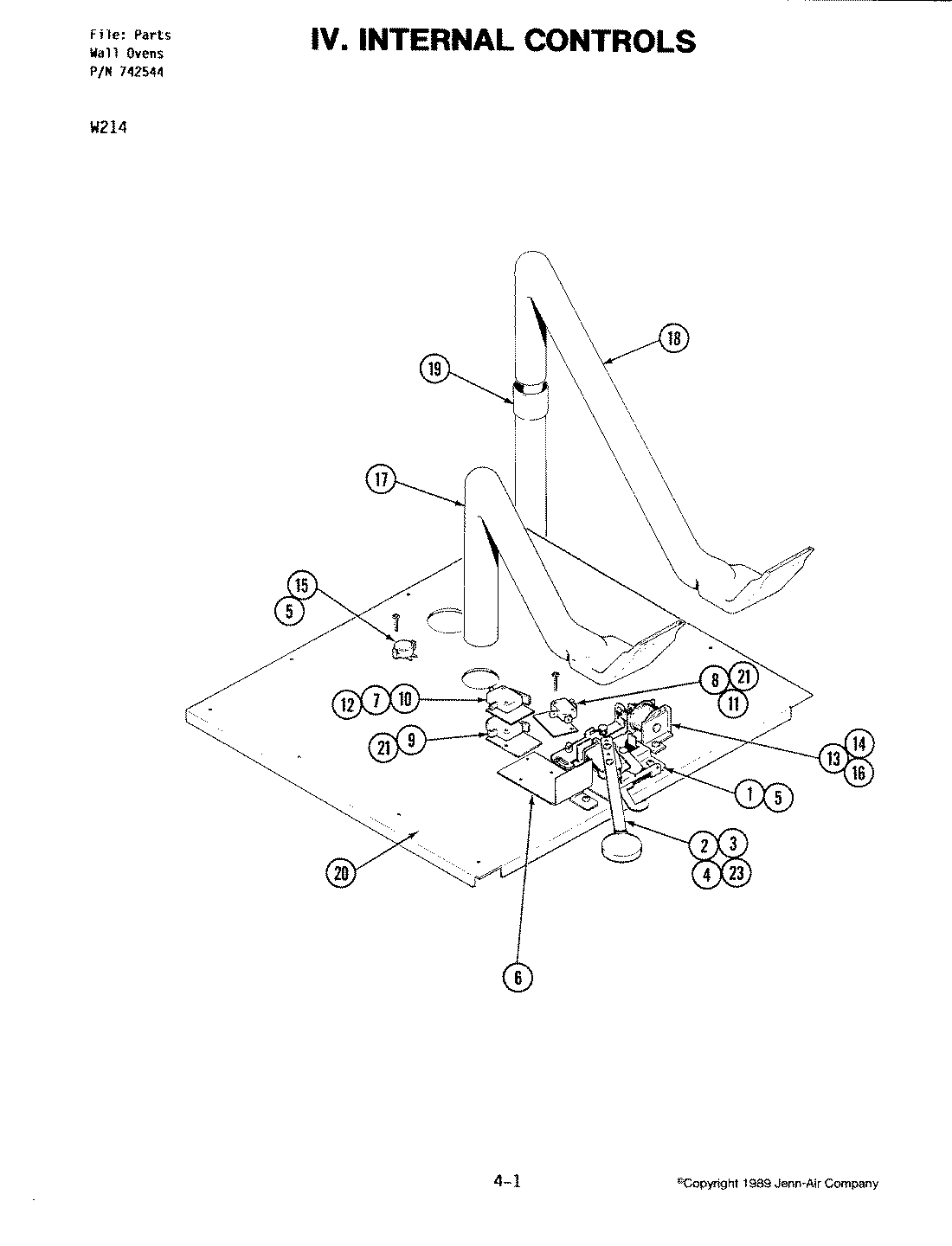

06 - INTERNAL CONTROLS

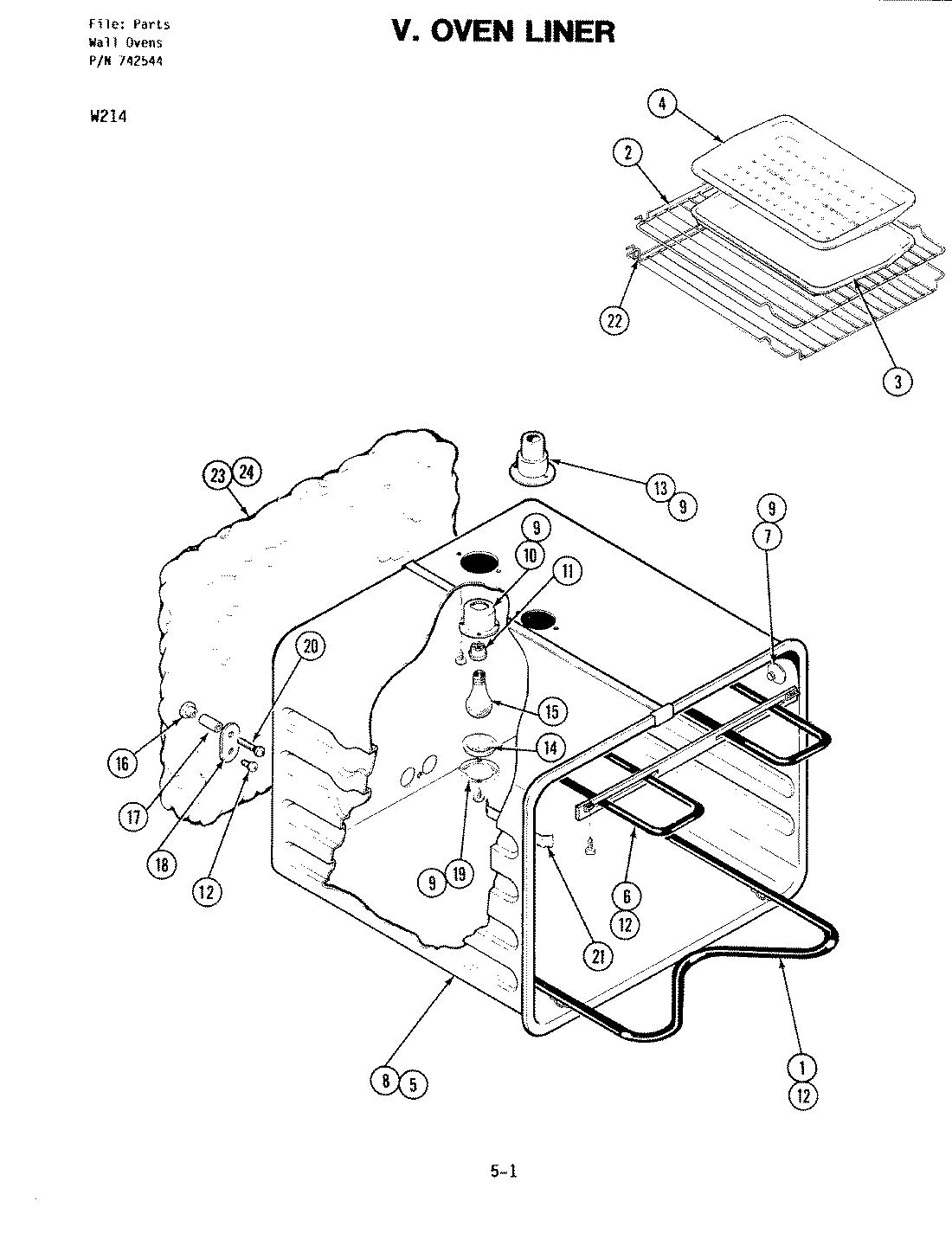

07 - OVEN

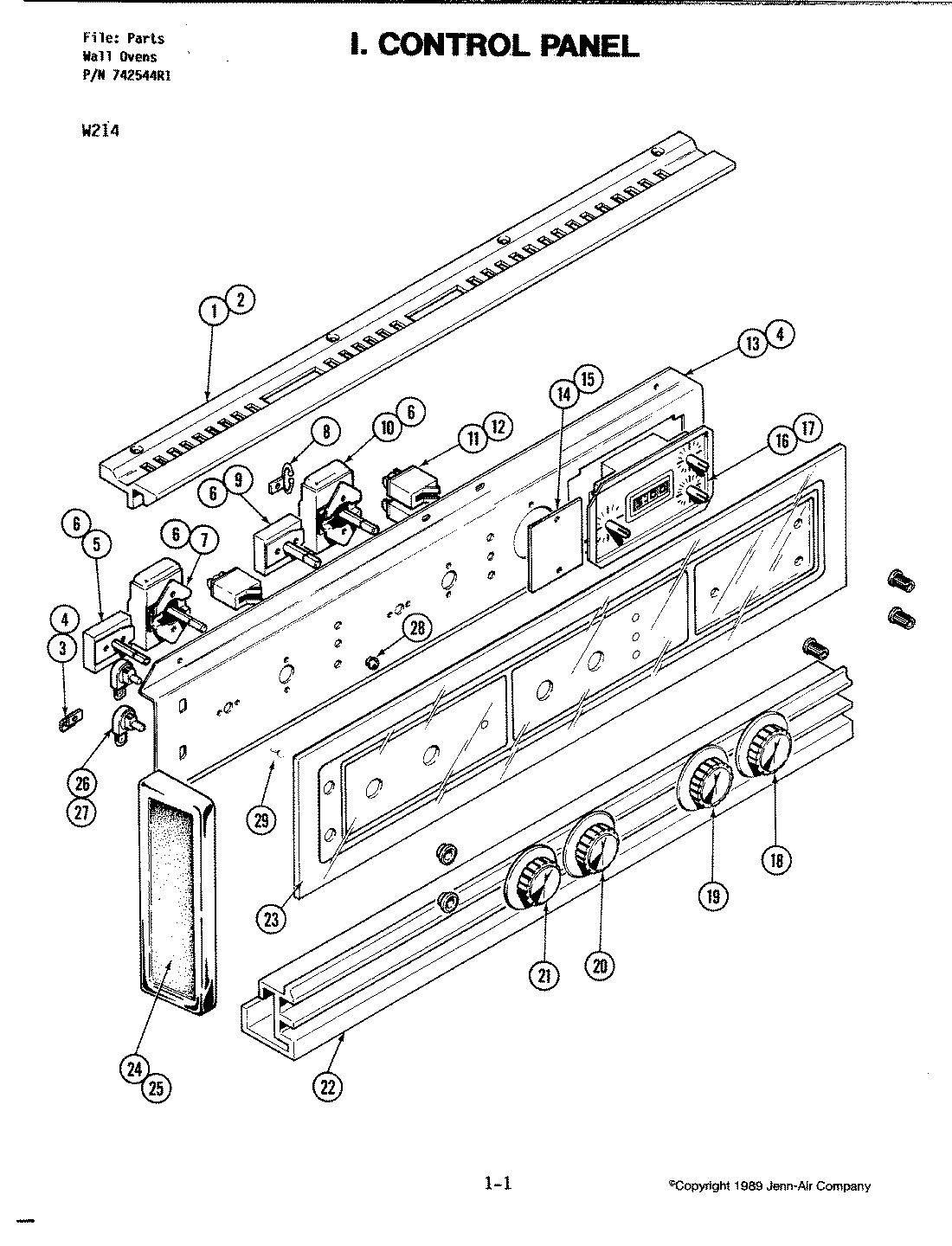

02 - CONTROL PANEL

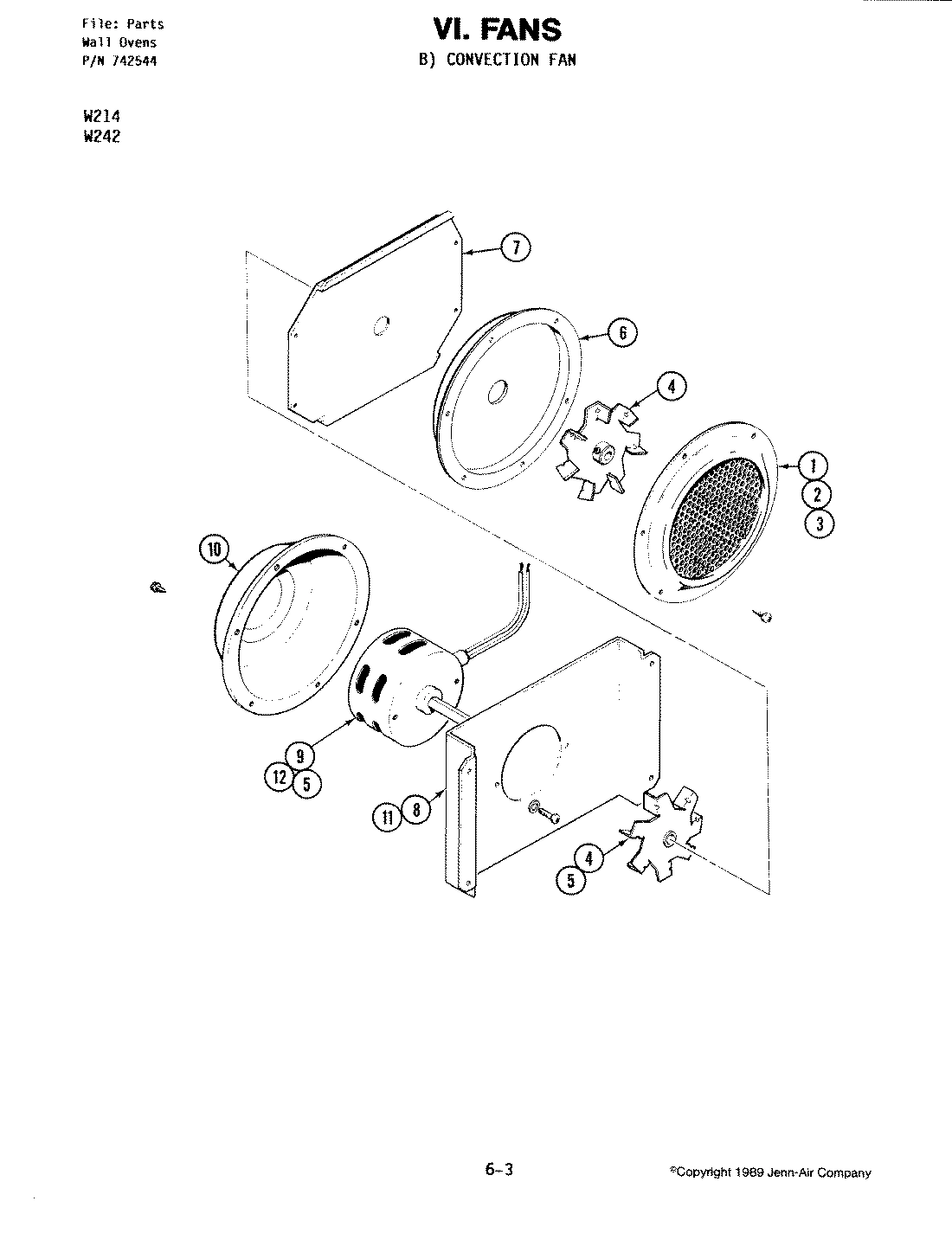

04 - FANS (CONVECTION)

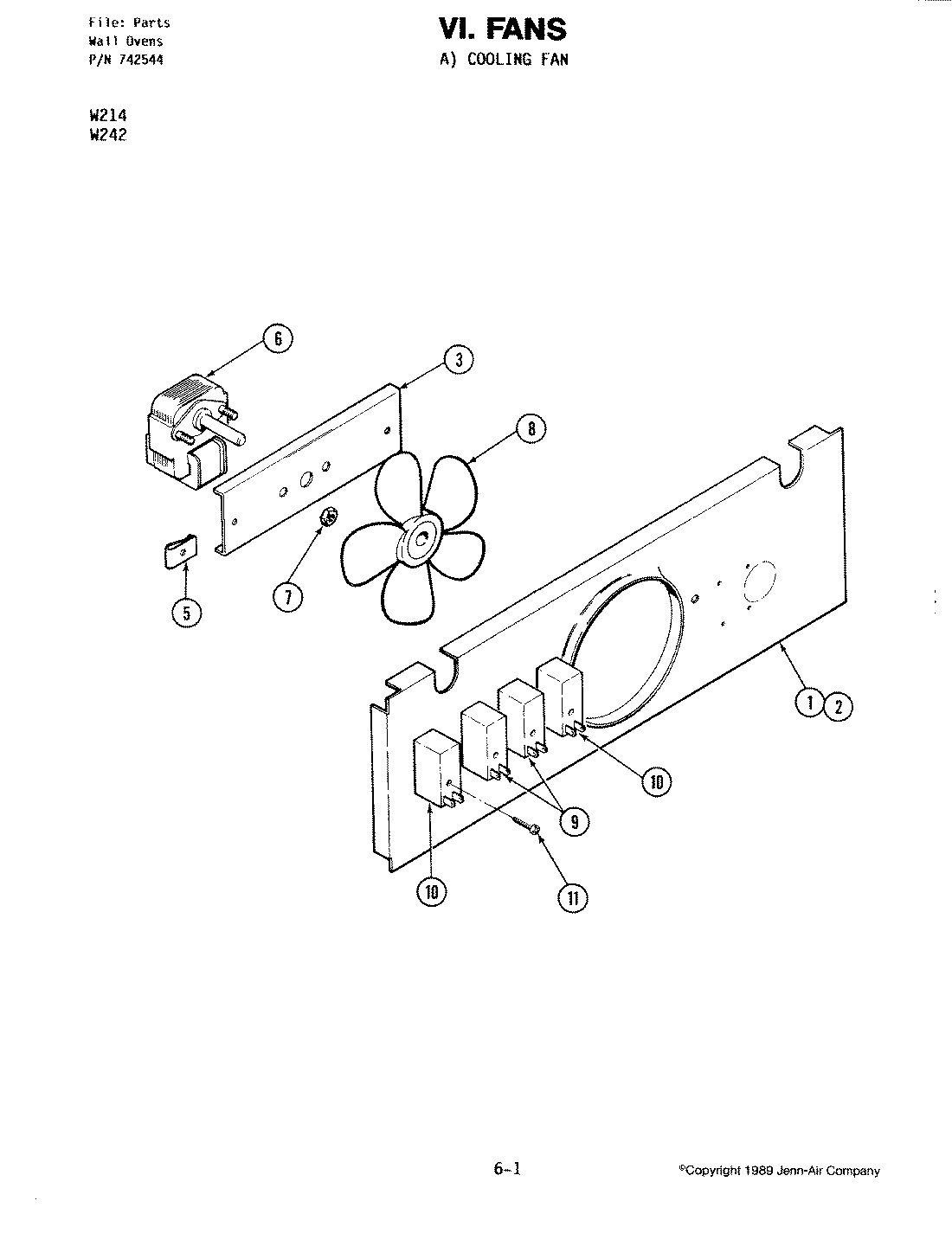

05 - FANS (COOLING)

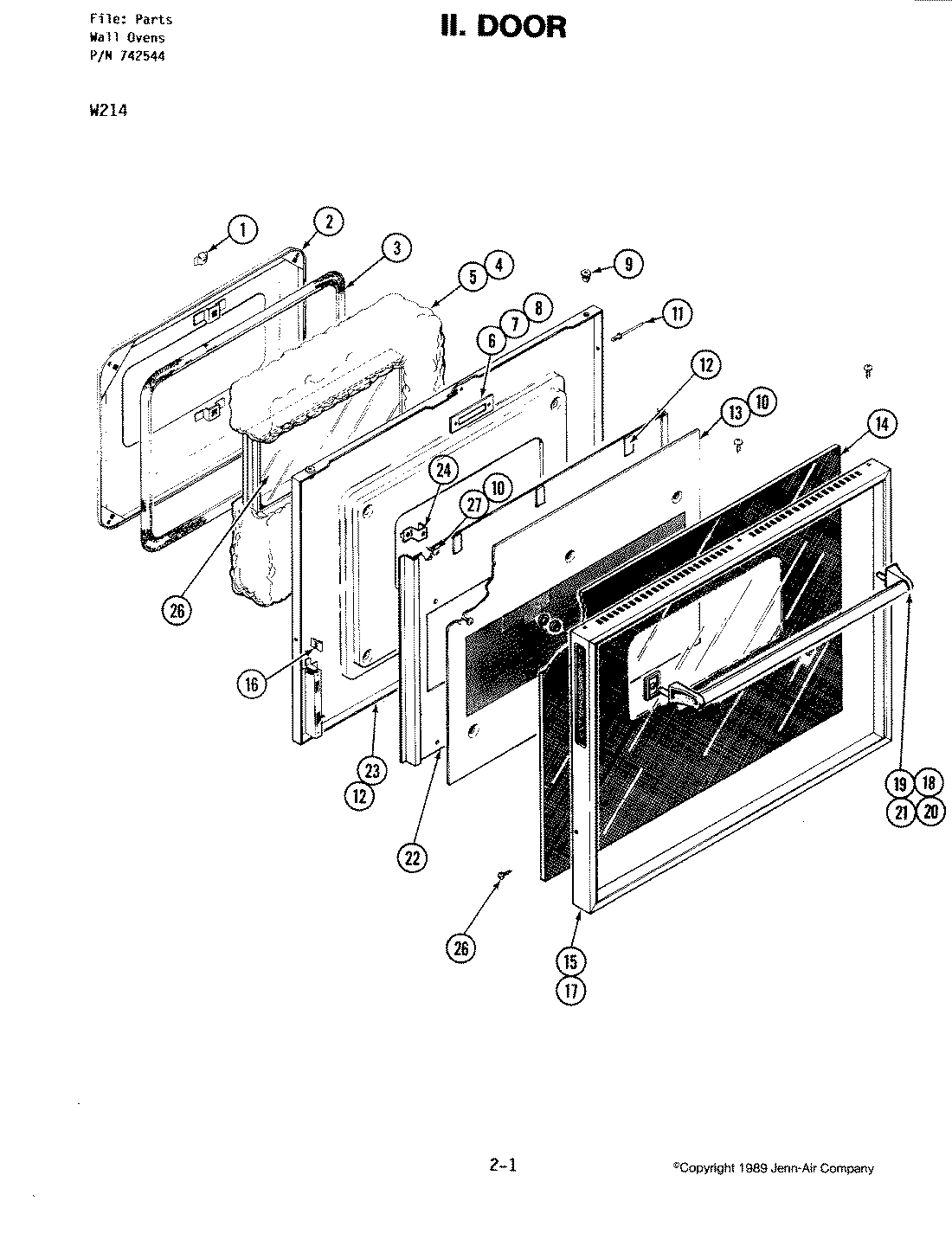

03 - DOOR
Common parts from model Whirlpool W214 ELECTRIC WALL OVEN
1
TOP (OUTER) WPL 701681 Contact Us For Availability
1
LATCH ASSY. WPL Y703357 Contact Us For Availability
1
ELEMENT, BAKE WPL Y704665 Contact Us For Availability
1
EXTRUSION, TOP WPL 703072 Contact Us For Availability
1
PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability
1
PLATE, MOTOR WPL 704336 Contact Us For Availability
1
CLIP, RETAINER WPL Y700503 Contact Us For Availability
2
LEVER, LATCH (BLK) WPL Y704240 Contact Us For Availability
2
RACK, OVEN WPL Y704661 Contact Us For Availability
2
SCREW WPL 712066 Contact Us For Availability
2
PLUG, UPPER WPL 712209 Contact Us For Availability
2
PLUG (LOWER) WPL Y712208 Contact Us For Availability
3
SUPPORT, TOP WPL 703095 Contact Us For Availability
3
KNOB, LEVER WPL 701670 Contact Us For Availability
3
ANGLE, ATTACHMENT WPL 701609 Contact Us For Availability
3
MOUNT, MOTOR WPL Y704732 Contact Us For Availability
4
BRACKET, VENT TUBE WPL 701680 Contact Us For Availability
4
SPRING, KNOB WPL 701671 Contact Us For Availability
4
HARNESS-WIRE WPL 703280 Contact Us For Availability
4
WHEEL, CONVECTION WPL 701711 Contact Us For Availability
4
INSULATION, SIDE WPL 701659 Contact Us For Availability
5
CLIP, J WPL Y700556 Contact Us For Availability
5
CLIP, OVEN WPL Y702618 Contact Us For Availability
5
SELECTOR-LOWER WPL 703079 Contact Us For Availability
5
INSULATION, TOP WPL 701660 Contact Us For Availability
6
PANEL, SIDE (RT) WPL 701676 Contact Us For Availability
6
SHIELD, SWITCH WPL 701706 Contact Us For Availability
6
HARNESS, OVEN (UPR) WPL 703728 Contact Us For Availability
6
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
6
MOTOR, FAN WPL Y701721 Contact Us For Availability
6
INSULATION, BOTTOM WPL 701658 Contact Us For Availability
7
PANEL, OUTER (RT) WPL 703098 Contact Us For Availability
7
INSULATOR WPL 703264 Contact Us For Availability
7
COVER, MEAT PROBE WPL 712088 Contact Us For Availability
7
THERMOSTAT-LOWER WPL 703081 Contact Us For Availability
7
COVER, MOTOR FRONT WPL 701713 Contact Us For Availability
7
PLATE, LATCH (LOWER) WPL 703275 Contact Us For Availability
7
PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability
8
CLOSURE, FRONT (UPPER) WPL 703254 Contact Us For Availability
8
SWITCH, SOLENOID WPL Y702360 Contact Us For Availability
8
LINER, OVEN, (LOWER) WPL Y712588 Contact Us For Availability
8
LINER, OVEN, (UPPER) WPL Y712589 Contact Us For Availability
8
TIE, MOUNT CABLE WPL 702746 Contact Us For Availability
8
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
8
BLADE, FAN WPL 701718 Contact Us For Availability
9
SPACER, SIDE WPL 703253 Contact Us For Availability
9
SWITCH, DOOR WPL 702805 Contact Us For Availability
9
SWITCH, SELECTOR UPPER WPL 703077 Contact Us For Availability
9
MOTOR, CONVECT WPL Y703035 Contact Us For Availability
9
SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability
9
NUT, PUSH IN WPL 701643 Contact Us For Availability
10
EXTRUSION, CENTER WPL 703778 Contact Us For Availability
10
SWITCH, DOOR WPL 702806 Contact Us For Availability
10
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
10
THERMOSTAT-UPPER WPL 703080 Contact Us For Availability
10
COVER, MOTOR WPL 701716 Contact Us For Availability
10
SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability
11
CLOSURE, FRONT (LOWER) WPL 703255 Contact Us For Availability
11
SCREW WPL 702380 Contact Us For Availability
11
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
11
LIGHT, INDICATOR 240V WPL Y702394 Contact Us For Availability
11
SCREW WPL 704335 Contact Us For Availability
11
RIVET, ACCORDION WPL 701641 Contact Us For Availability
12
BUTTON, PLUG WPL 703688 Contact Us For Availability
12
SCREW WPL 702807 Contact Us For Availability
12
WASHER, LOCK WPL 715910 Contact Us For Availability
12
SPACER, CORNER (LWR) WPL 703613 Contact Us For Availability
13
PANEL, BOTTOM (OUTER) WPL 701668 Contact Us For Availability
13
SOLENOID WPL Y702526 Contact Us For Availability
13
TUBE, VENT WPL 701738 Contact Us For Availability
13
ELIMINATOR, HOUSING WPL 704259 Contact Us For Availability
13
PANEL, CONTROL WPL 705334 Contact Us For Availability
13
PANEL, PERFORATED (UPR) WPL 703784 Contact Us For Availability
14
TRIM, OVEN (LOWER) WPL 701848 Contact Us For Availability
14
PIN, COTTER WPL Y701686 Contact Us For Availability
14
LENS, LIGHT WPL Y704143 Contact Us For Availability
14
PLATE, COVER WPL 703277 Contact Us For Availability
14
GLASS (LWR) WPL 703709 Contact Us For Availability
14
GLASS, OUTER WPL Y703706 Contact Us For Availability
15
RAIL, BOTTOM WPL 700596 Contact Us For Availability
15
THERMOSTAT WPL 701687 Contact Us For Availability
15
FRAME (STNLS) WPL 704999 Contact Us For Availability
16
SUPPORT, BOTTOM WPL 701667 Contact Us For Availability
16
WIRE, GRAY WPL 703767 Contact Us For Availability
16
NUT, TEE WPL 715294 Contact Us For Availability
16
CLOCK WPL 701633 Contact Us For Availability
16
CLIP WPL 704487 Contact Us For Availability
17
PANEL, SIDE (LT) WPL 701697 Contact Us For Availability
17
TUBE, VENT OFFSET (UPPER) WPL 703066 Contact Us For Availability
17
SPACER, OVEN WPL 701741 Contact Us For Availability
17
KNOB, CLOCK WPL Y702547 Contact Us For Availability
18
BRACKET, HAT (SIDE) WPL 712072 Contact Us For Availability
18
TUBE, VENT-TOP (UPPER) WPL 703067 Contact Us For Availability
18
PLATE, GROUNDING WPL 701742 Contact Us For Availability
18
HANDLE WPL Y703707 Contact Us For Availability
19
SPACER, REAR (LOWER OVEN) WPL 703252 Contact Us For Availability
19
TUBE, VENT BOTTOM WPL 705096 Contact Us For Availability
19
RETAINER, LENS WPL Y704144 Contact Us For Availability
19
KNOB, SELECTOR-UPPER WPL 703502 Contact Us For Availability
19
PAD, MOUNTING WPL Y703430 Contact Us For Availability
20
PANEL, OUTER (LT) WPL 703099 Contact Us For Availability
20
PANEL, TOP WPL 704684 Contact Us For Availability
20
SCREW WPL 705170 Contact Us For Availability
20
KNOB, THERMOSTAT WPL 703498 Contact Us For Availability
20
BUSHING WPL Y703433 Contact Us For Availability
21
SHIELD, CAPILLARY TUBE WPL 703251 Contact Us For Availability
21
INSULATOR WPL Y702350 Contact Us For Availability
21
CLIP, BULB WPL Y701541 Contact Us For Availability
21
KNOB, SELECTOR WPL 703500 Contact Us For Availability
21
PALNUT WPL Y703431 Contact Us For Availability
22
PANEL, OUTER (REAR) WPL 703097 Contact Us For Availability
22
BRACKET, EXTRUSION (LOWER) WPL 703269 Contact Us For Availability
22
RACK, OVEN (OFFSET) WPL Y704663 Contact Us For Availability
22
EXTRUSION, BOTTOM WPL 703073 Contact Us For Availability
22
BAFFLE WPL 712250 Contact Us For Availability
23
WIRE ASSY., CABLE WPL 712238 Contact Us For Availability
23
SCREW WPL 707407 Contact Us For Availability
23
INSULATION, REAR WPL 701703 Contact Us For Availability
23
GLASS WPL 703276 Contact Us For Availability
23
LINER, DOOR WPL 712188 Contact Us For Availability
24
PANEL, REAR WPL 704808 Contact Us For Availability
24
INSULATION, WRAP WPL 701702 Contact Us For Availability
24
END CAP (RT-CHR) WPL 703136 Contact Us For Availability
24
BRACKET, STAND-OFF WPL 701652 Contact Us For Availability
24
STAND-OFF BRACKET (LOWER) WPL 703289 Contact Us For Availability
25
END CAP (LT-CHR) WPL 703137 Contact Us For Availability
25
WINDOW PACK (LOWER) WPL 703258 Contact Us For Availability
26
PANEL, BOTTOM WPL 701669 Contact Us For Availability
26
ANGLE, OVEN SUPPORT WPL 701701 Contact Us For Availability
26
SWITCH, LIGHT (PUSH) WPL 700558 Contact Us For Availability
26
SCREW, FLAT WPL 704745 Contact Us For Availability
27
HINGE WPL Y703419 Contact Us For Availability
27
BEZEL, SWITCH WPL 701610 Contact Us For Availability
28
BRACKET, HAT (REAR) WPL 701683 Contact Us For Availability
28
LENS, INDICATOR LIGHTS WPL Y700630 Contact Us For Availability
29
WIRE, TAN WPL 703089 Contact Us For Availability
29
WIRE, PINK WPL 703090 Contact Us For Availability
29
WIRE, RESISTOR WPL 703290 Contact Us For Availability
29
WIRE, WIRE WPL 703370 Contact Us For Availability
29
WIRE, BROWN WPL 703779 Contact Us For Availability
29
PAD, SPACER WPL 705331 Contact Us For Availability
× ![]()
