Model Whirlpool W205 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams
11 - FAN (LOWER COOLING)

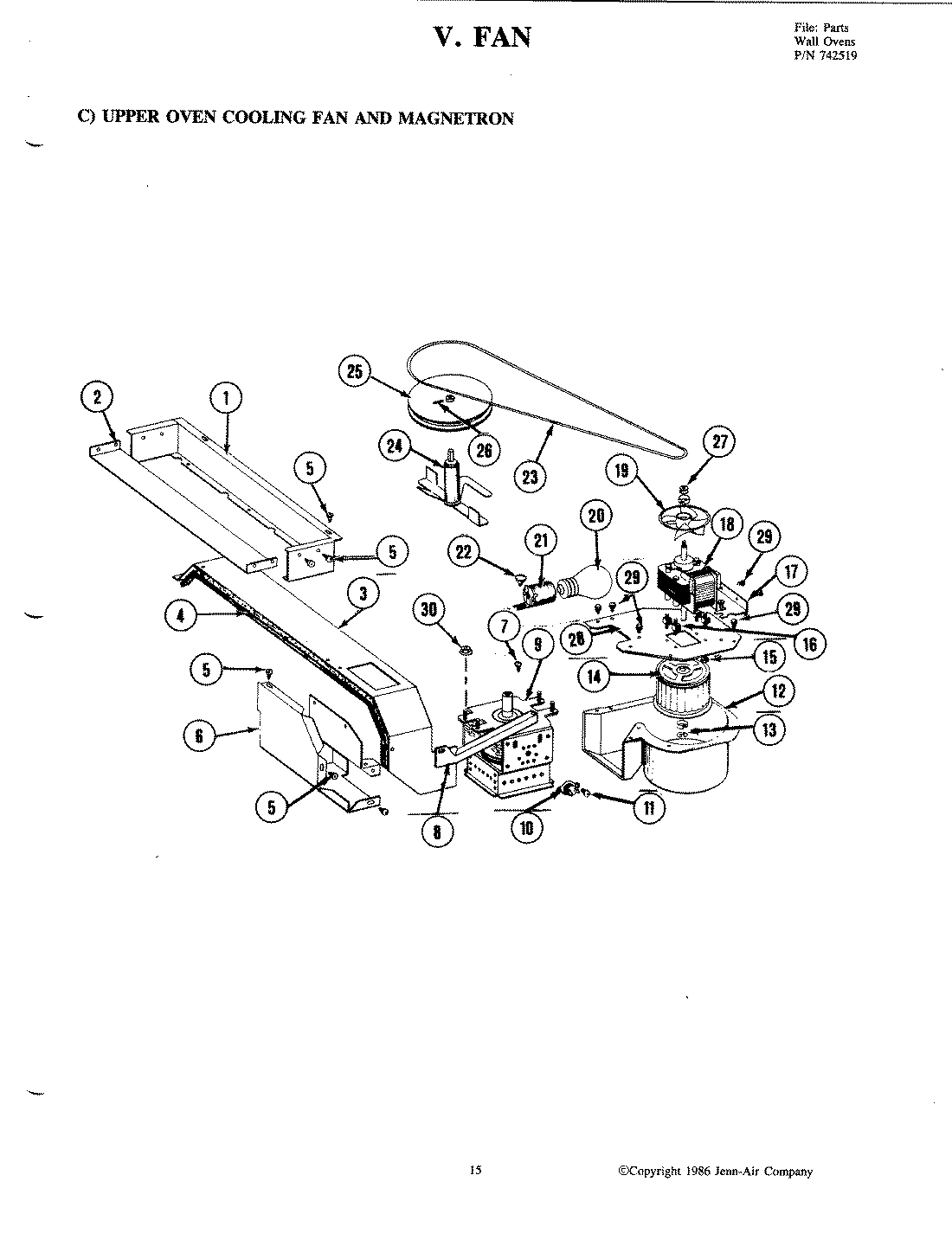

12 - FAN (UPPER COOLING & MAGNETRON)

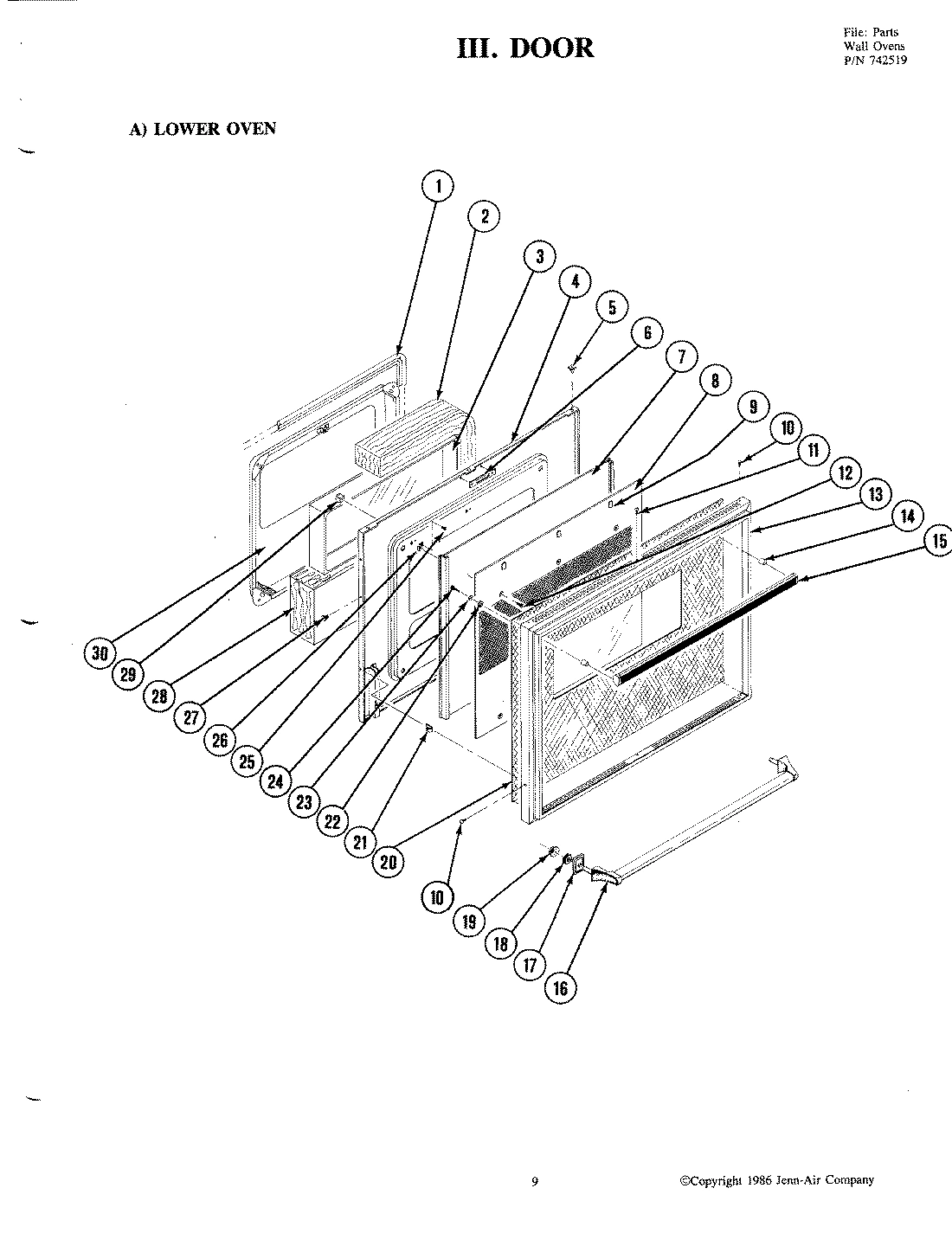

09 - DOOR (LOWER W205)

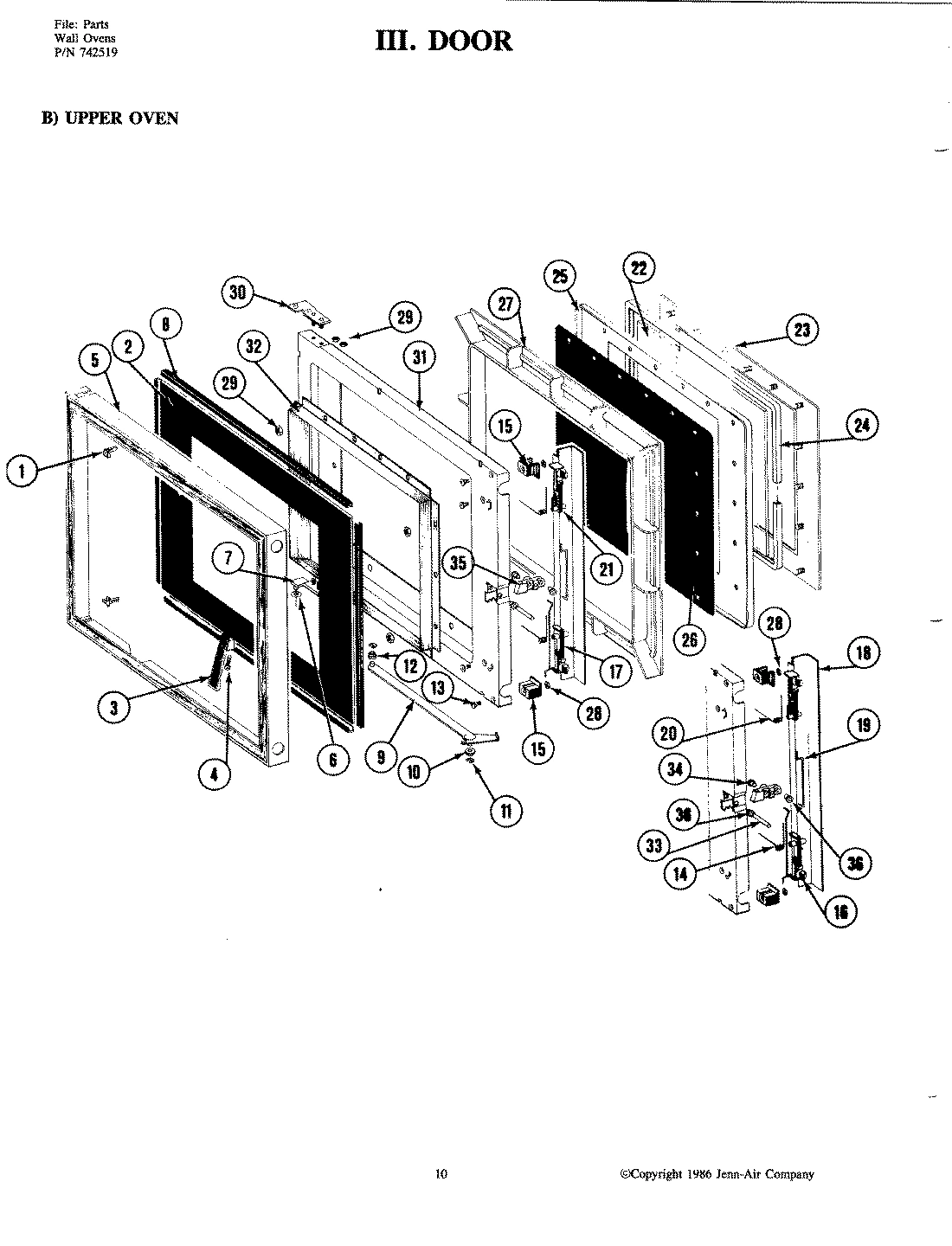

10 - DOOR (UPPER)

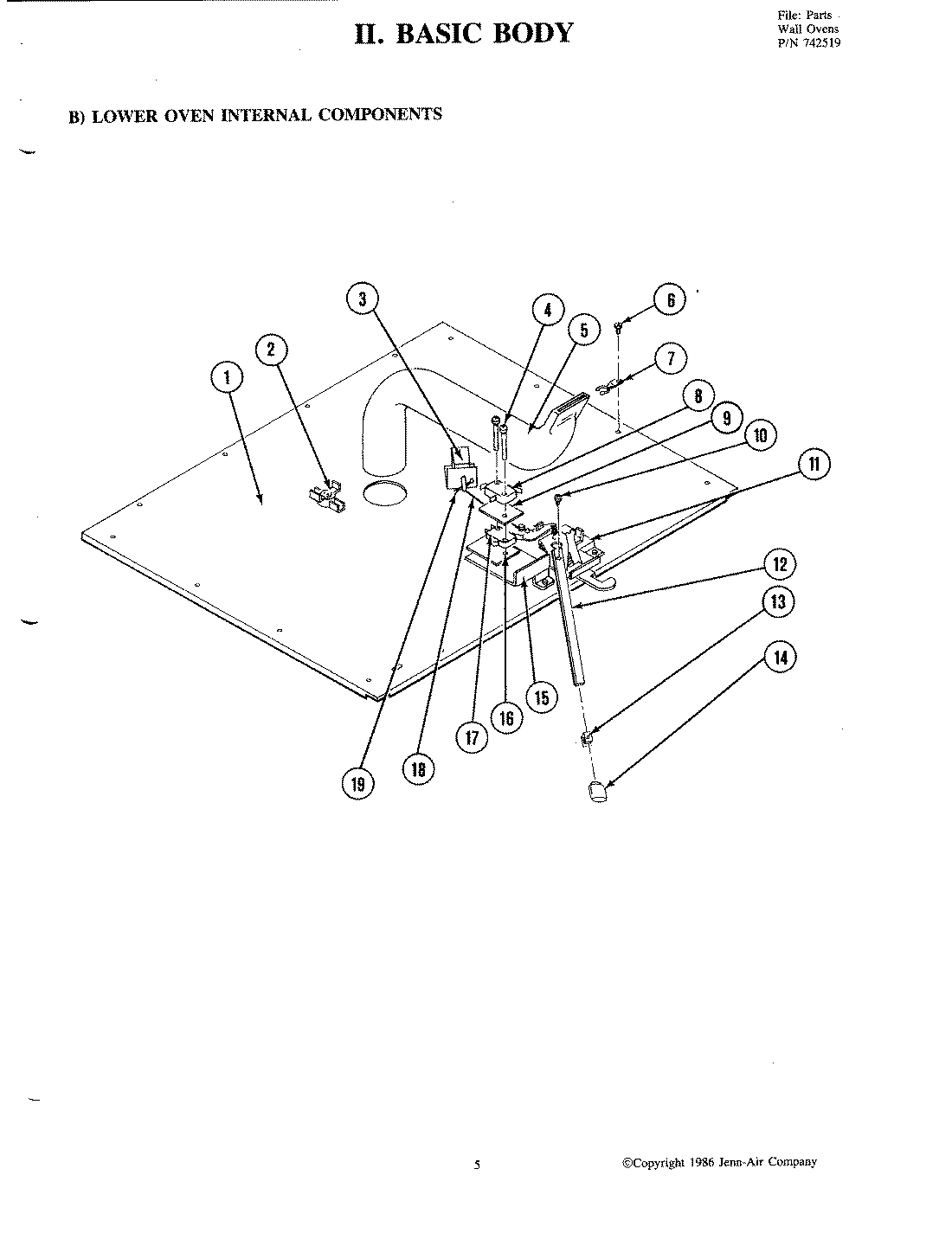

02 - BASIC BODY-LOWER OVEN/INTERNAL (W205)

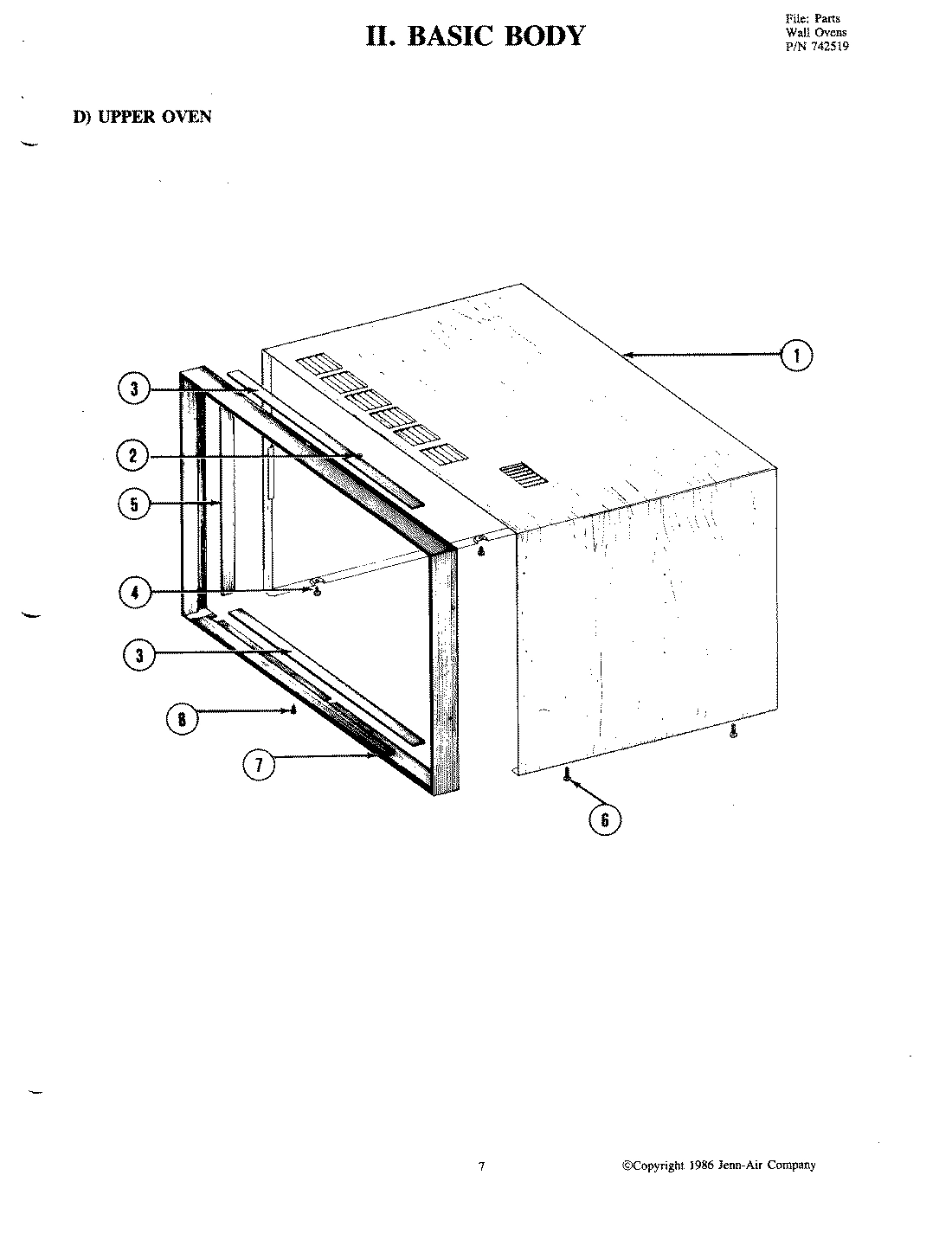

04 - BODY (UPPER)

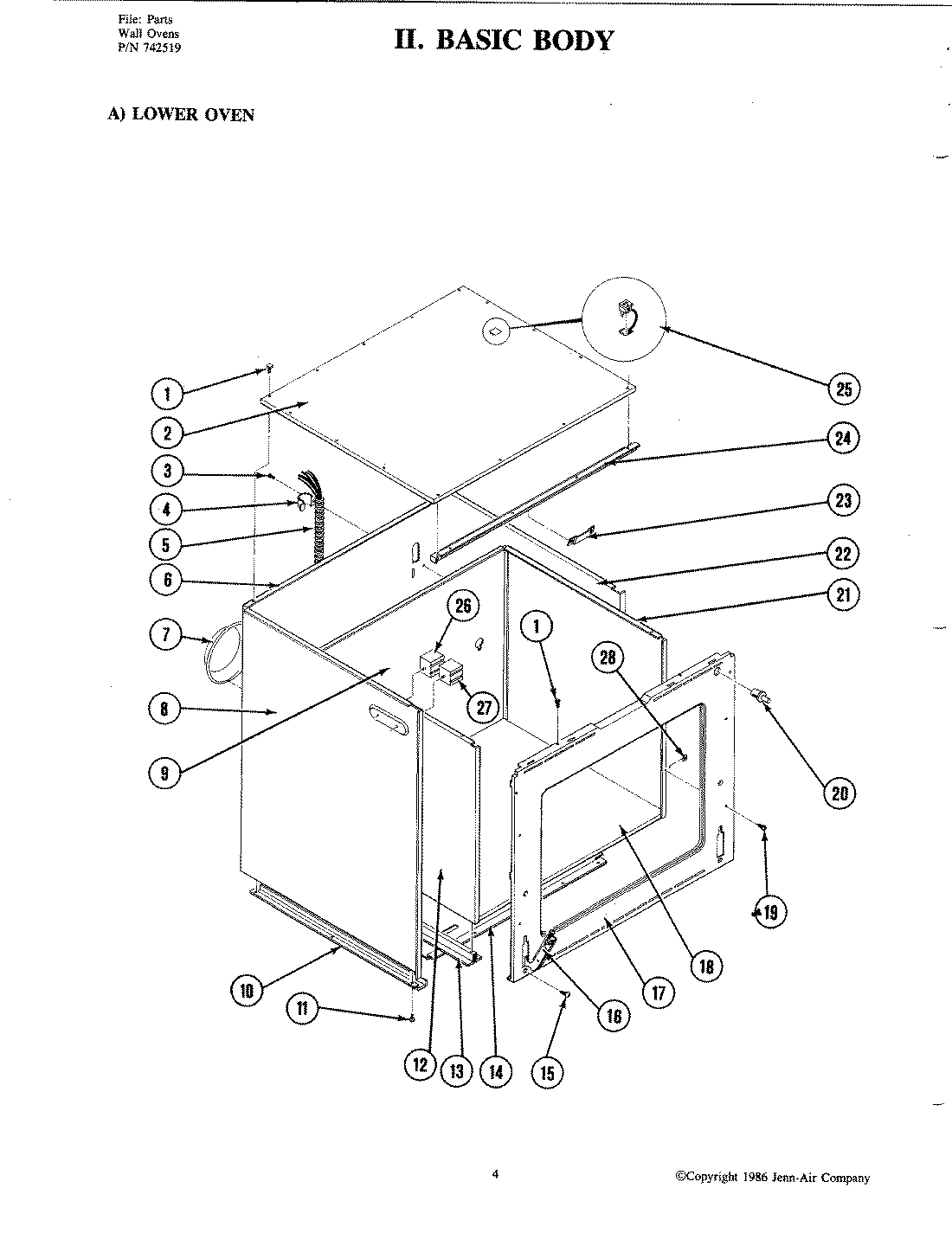

01 - BASIC BODY-LOWER OVEN (W205)

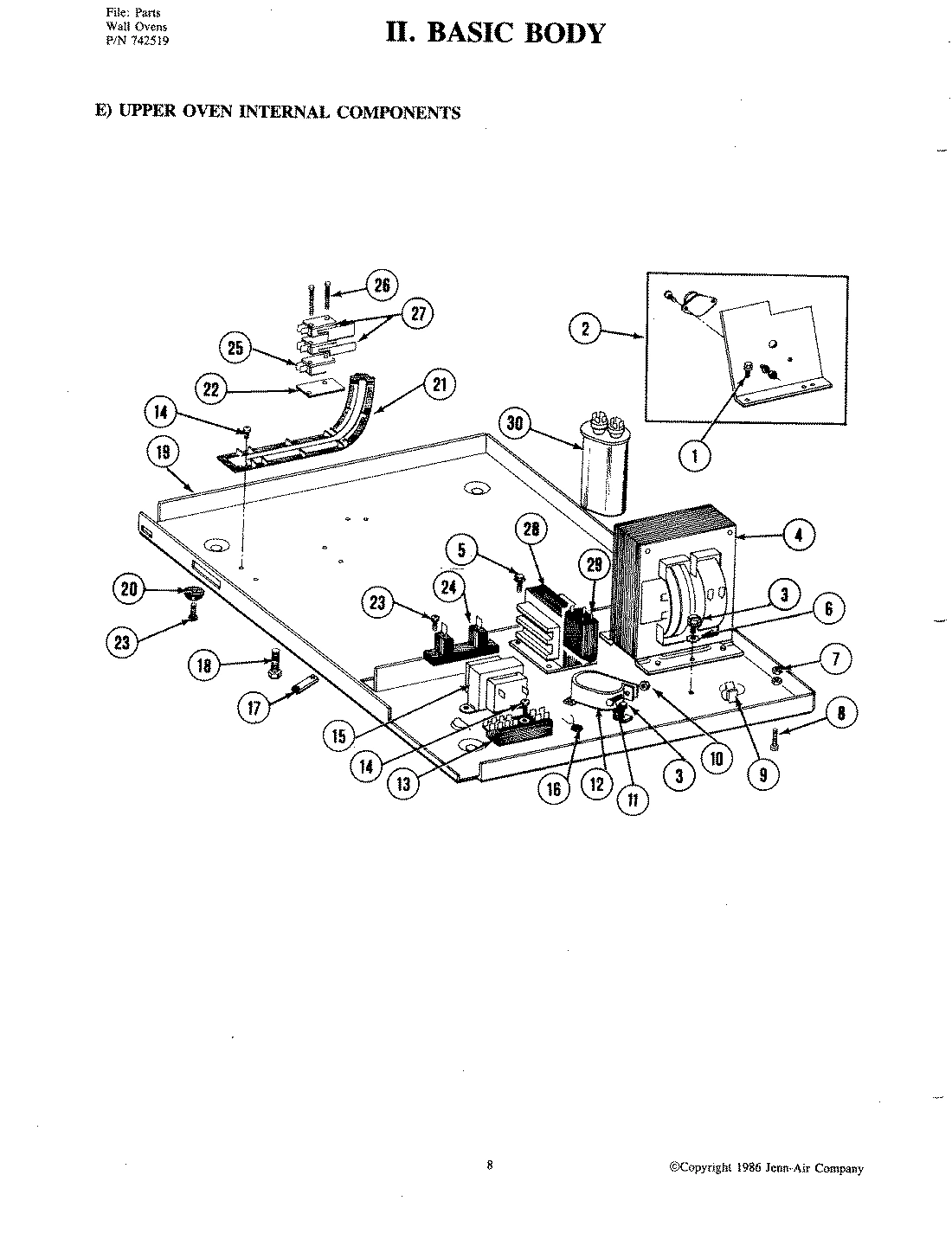

05 - BODY (UPPER)

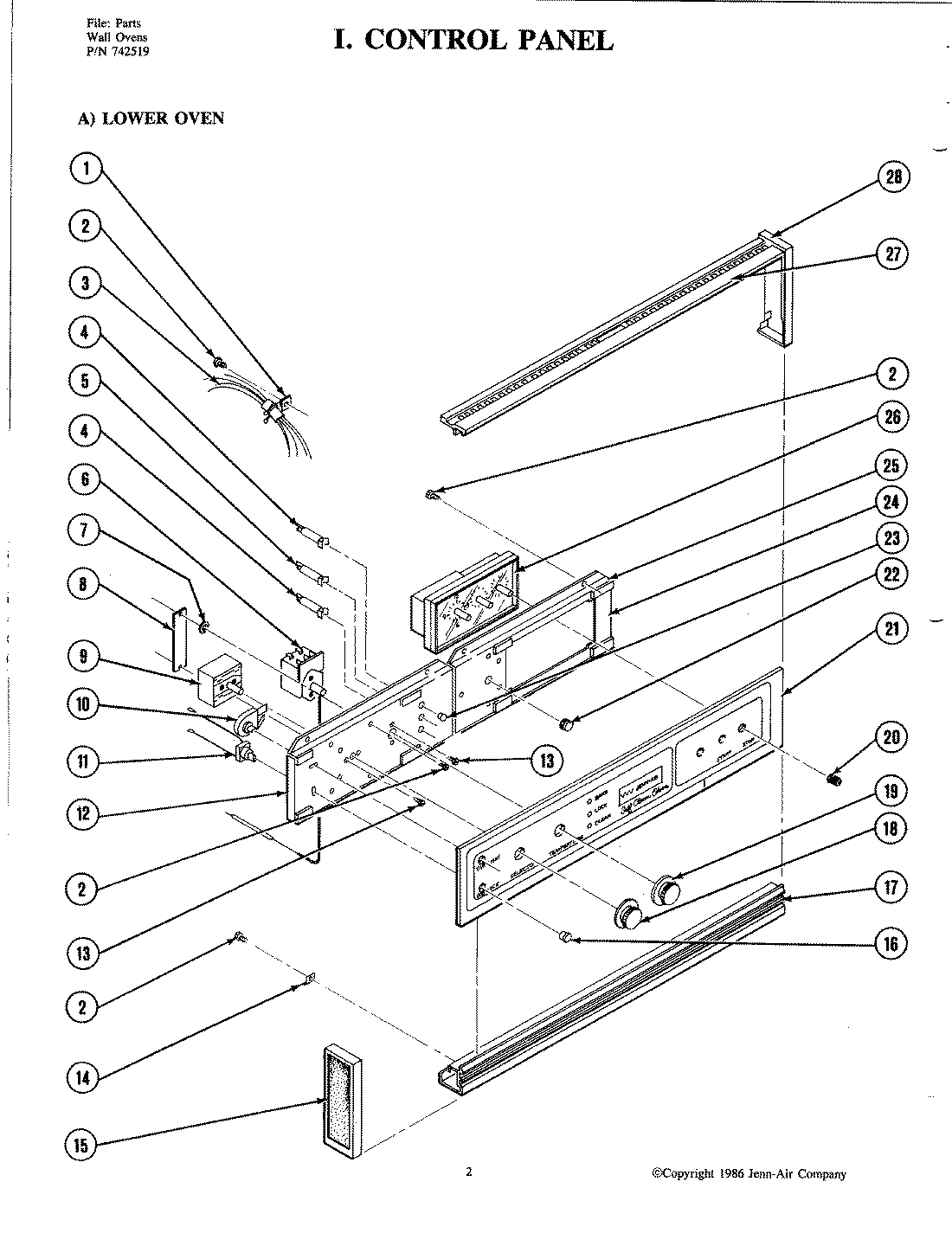

07 - CONTROL PANEL (LOWER W205)

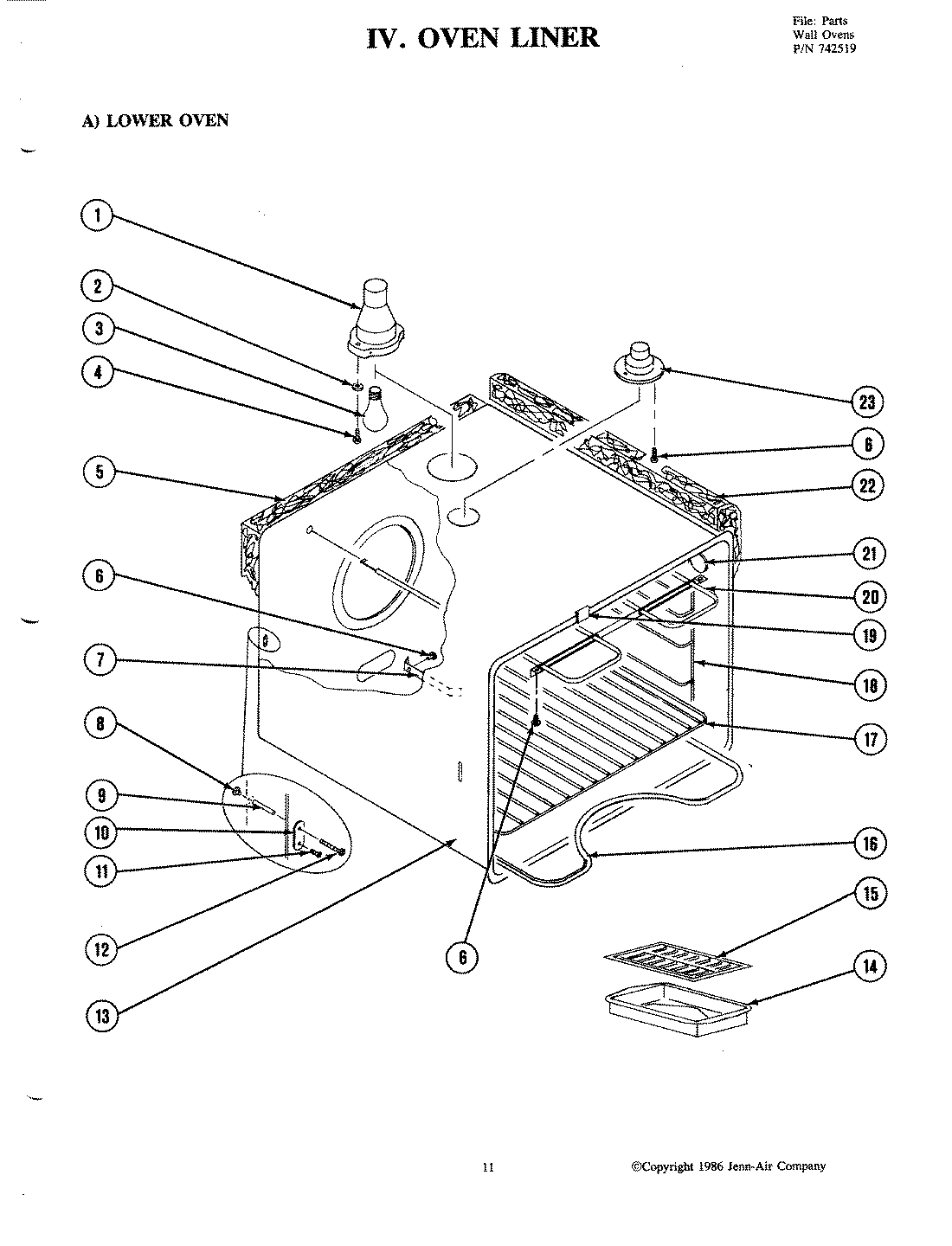

14 - OVEN LINER-LOWER (W205)

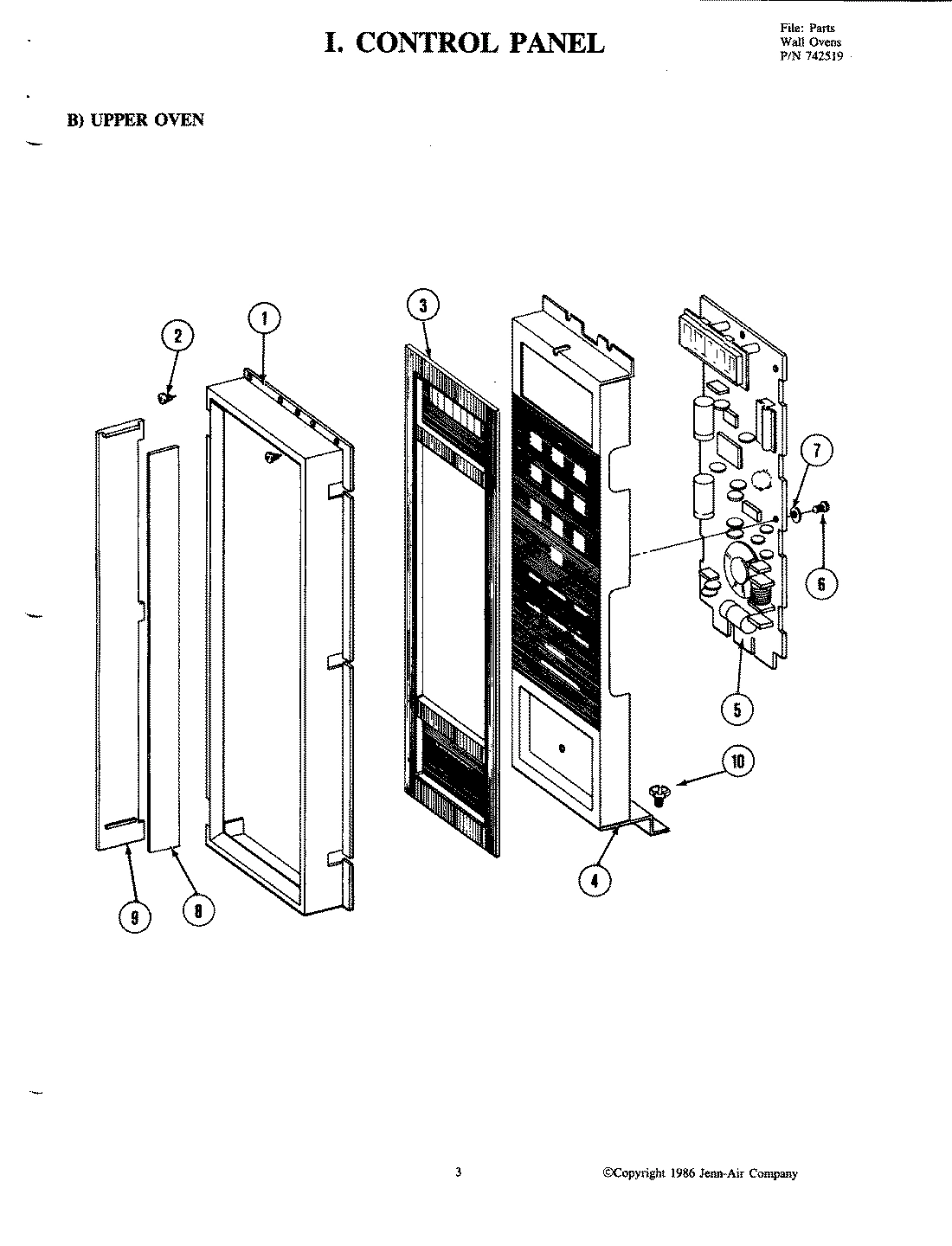

08 - CONTROL PANEL (UPPER)

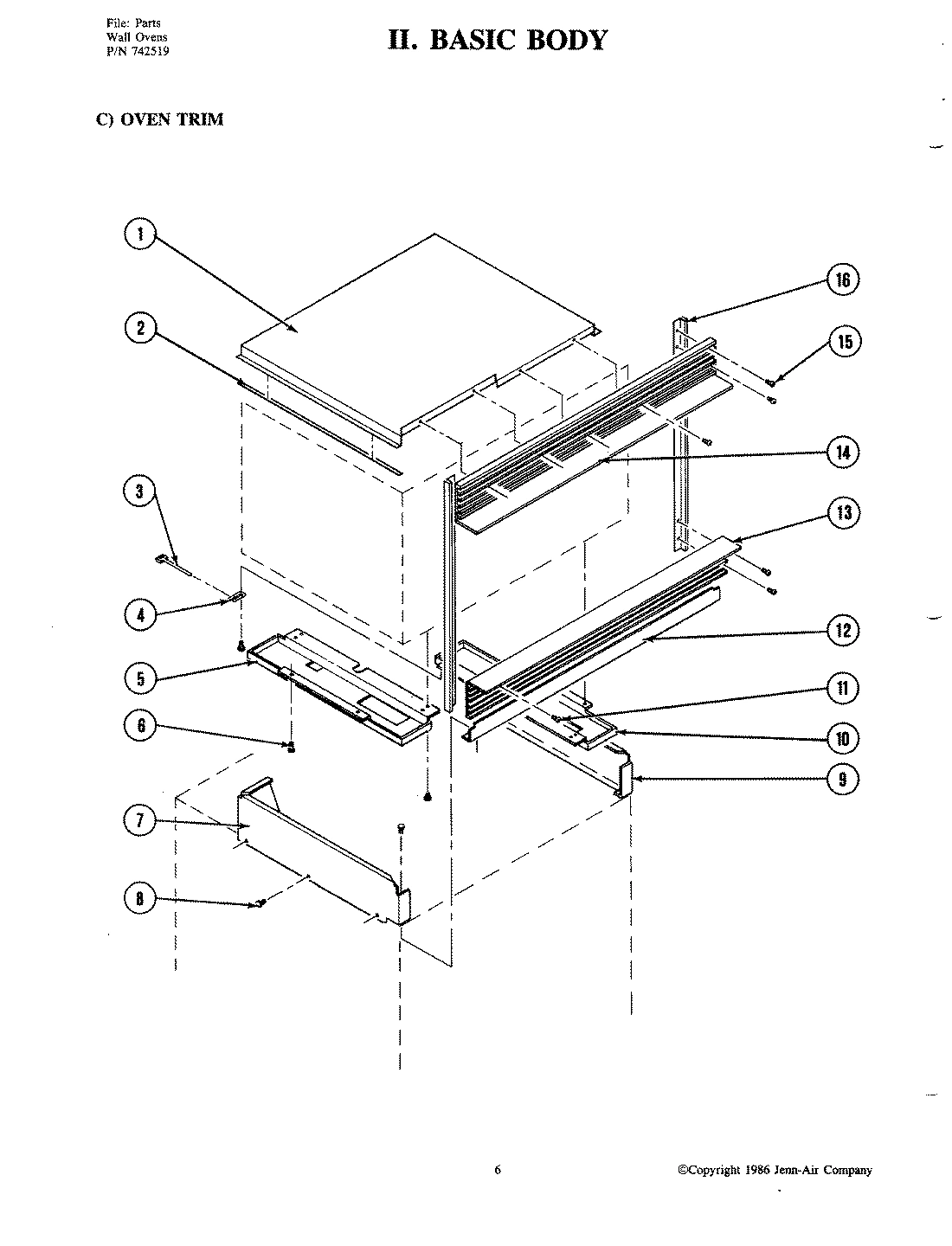

03 - BODY

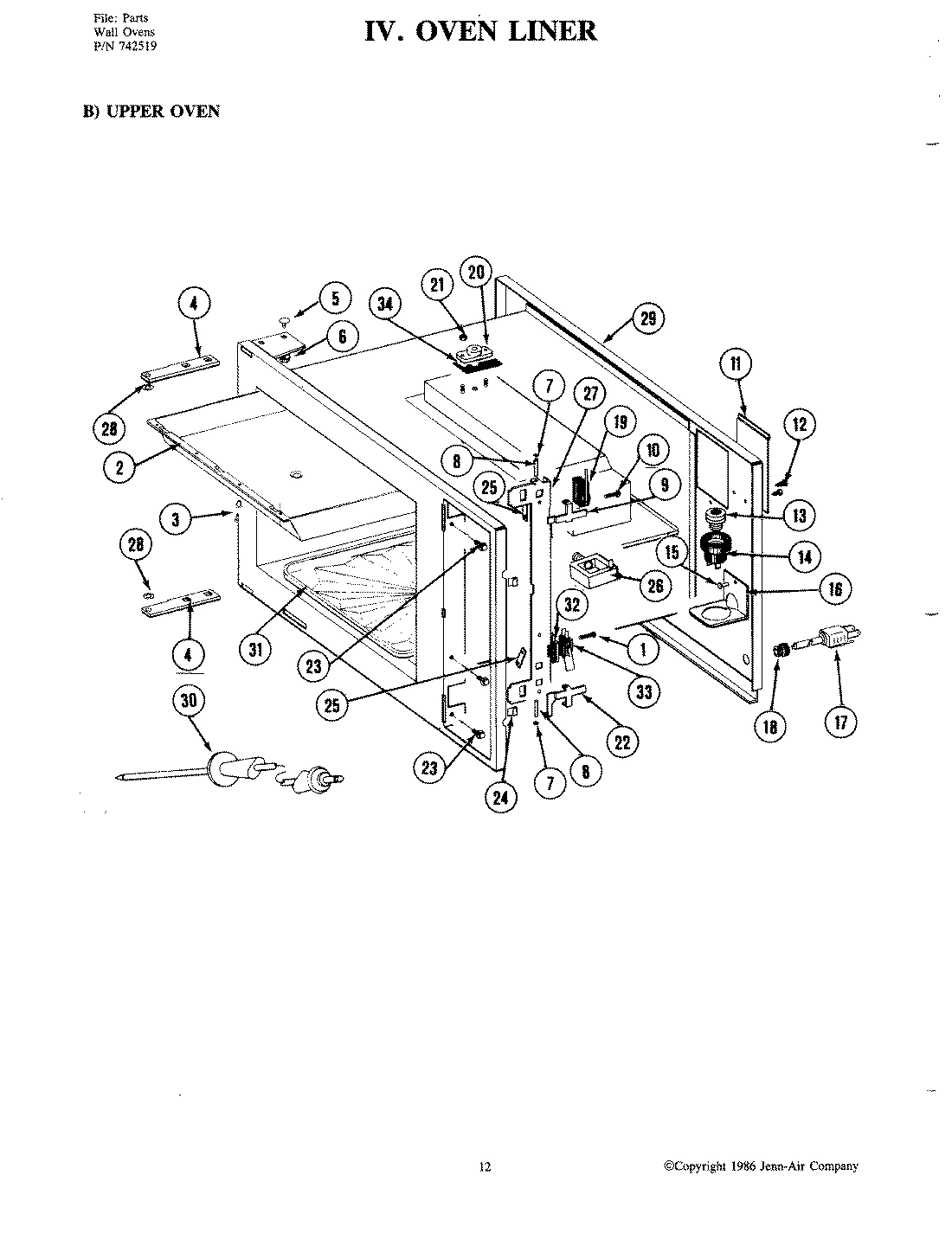

06 - BODY (UPPER)

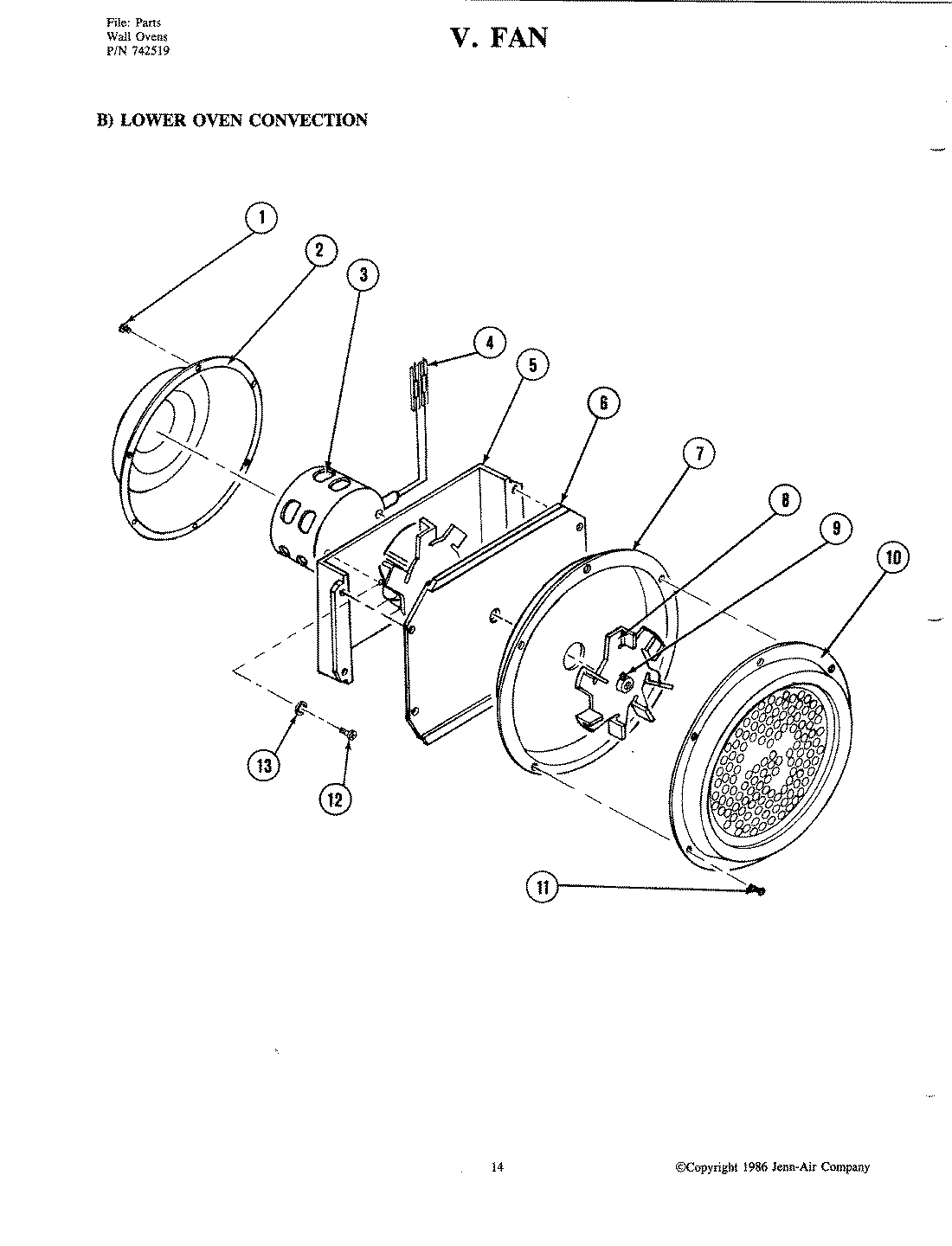

13 - FAN-LOWER OVEN CONVECTION (W225)
Common parts from model Whirlpool W205 ELECTRIC WALL OVEN/MICROWAVE COMBO
1
EXHAUST BAFFLE WPL 766017 Contact Us For Availability
1
CLIP WPL 766052 Contact Us For Availability
1
PANEL, INNER WPL 701674 Contact Us For Availability
1
TIE, MOUNT CABLE WPL 702746 Contact Us For Availability
1
WRAP, CABINET WPL 766008 Contact Us For Availability
1
SCREW WPL 766123 Contact Us For Availability
1
SCREW WPL 766149 Contact Us For Availability
1
RECEPTACLE, LIGHT WPL 715281 Contact Us For Availability
1
TRIM WPL 766000 Contact Us For Availability
1
DUCT AIR WPL 702958 Contact Us For Availability
2
PLATE, MOTOR WPL 702044 Contact Us For Availability
2
PLATE, MOTOR WPL 703096 Contact Us For Availability
2
FOAM, URETHANE WPL Y715957 Contact Us For Availability
2
BRACKET, BAFFLE WPL 766144 Contact Us For Availability
2
SCREW WPL 766014 Contact Us For Availability
2
INSULATION, BOTTOM WPL 701658 Contact Us For Availability
2
OUTER GLASS WPL 766049 Contact Us For Availability
2
SCREW WPL 766010 Contact Us For Availability
2
TOP (OUTER) WPL 701681 Contact Us For Availability
2
COVER, MOTOR WPL 701716 Contact Us For Availability
2
TRIAC ASSEMBLY WPL 766035 Contact Us For Availability
2
WASHER WPL 701736 Contact Us For Availability
2
FOAM TAPE WPL 712085 Contact Us For Availability
2
COVER WPL 766086 Contact Us For Availability
3
BLADE, FAN WPL 701718 Contact Us For Availability
3
EXHAUST DUCT-UPPER WPL 766018 Contact Us For Availability
3
HANDLE, LATCH WPL 766046 Contact Us For Availability
3
SOLENOID WPL 701685 Contact Us For Availability
3
SOLENOID WPL Y702526 Contact Us For Availability
3
GASKET WPL 766011 Contact Us For Availability
3
HARNESS, WIRE WPL 702886 Contact Us For Availability
3
HARNESS, MAIN WPL 703717 Contact Us For Availability
3
PANEL, CONTROL WPL 766192 Contact Us For Availability
3
RIVET WPL 766132 Contact Us For Availability
3
MOTOR, CONVECTION WPL 701715 Contact Us For Availability
4
FOAM WPL 766146 Contact Us For Availability
4
LINER, DOOR WPL 712188 Contact Us For Availability
4
SCREW WPL 702807 Contact Us For Availability
4
CLAMP, CONDUIT WPL 701692 Contact Us For Availability
4
TRANSFORMER, POWER HV WPL 766034 Contact Us For Availability
4
LIGHT, INDICATOR WPL Y700557 Contact Us For Availability
4
PAD, TOUCH WPL 766174 Contact Us For Availability
4
TIE, MOUNT CABLE WPL 701679 Contact Us For Availability
4
HINGE WPL 766088 Contact Us For Availability
4
CONNECTOR, 1/4`` IN-LINE WPL Y715563 Contact Us For Availability
5
MOUNT, MOTOR WPL 701720 Contact Us For Availability
5
MOUNT, MOTOR WPL Y703570 Contact Us For Availability
5
DOOR FRAME WPL 766048 Contact Us For Availability
5
TUBE, VENT WPL 701684 Contact Us For Availability
5
GASKET WPL 766012 Contact Us For Availability
5
CABLE, WIRE WPL 712180 Contact Us For Availability
5
SCREW WPL 766029 Contact Us For Availability
5
INSULATION, REAR WPL 701703 Contact Us For Availability
5
MICROPROCESSOR WPL 766173 Contact Us For Availability
5
RAIL, MOUNT (LT) WPL 702957 Contact Us For Availability
5
SCREW WPL 766263 Contact Us For Availability
5
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
6
LUG, MOUNTING WPL 701722 Contact Us For Availability
6
MOTOR, FAN WPL Y701721 Contact Us For Availability
6
EXHAUST DUCT WPL 766015 Contact Us For Availability
6
SCREW WPL 766140 Contact Us For Availability
6
NUT SUPPORT ROD WPL 766089 Contact Us For Availability
6
PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability
6
PANEL, REAR (OUTER) WPL 701691 Contact Us For Availability
6
WASHER WPL 766028 Contact Us For Availability
6
THERMOSTAT WPL Y703148 Contact Us For Availability
6
SCREW WPL 715485 Contact Us For Availability
6
COVER, MOTOR FRONT WPL 701713 Contact Us For Availability
7
BAFFLE, DOOR WPL 701645 Contact Us For Availability
7
BAFFLE WPL 712250 Contact Us For Availability
7
BRACKET, DOOR HINGE WPL 766055 Contact Us For Availability
7
TRIM CABINET WPL 766193 Contact Us For Availability
7
COVER, MOTOR OPENING WPL 703551 Contact Us For Availability
7
NUT WPL 766120 Contact Us For Availability
7
WASHER WPL Y707664 Contact Us For Availability
7
CLIP, BULB WPL Y701745 Contact Us For Availability
7
WASHER WPL 766005 Contact Us For Availability
7
RAIL, SUPPORT (LT) WPL 702951 Contact Us For Availability
7
E RING WPL 766127 Contact Us For Availability
7
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
8
BRACE WPL 766111 Contact Us For Availability
8
PANEL, PERFORATED WPL 701644 Contact Us For Availability
8
PANEL, PERFORATED (UPR) WPL 703784 Contact Us For Availability
8
TAPE, FOAM WPL 766145 Contact Us For Availability
8
SWITCH, DOOR LATCH WPL 701689 Contact Us For Availability
8
SWITCH, DOOR WPL 702806 Contact Us For Availability
8
PANEL, OUTER (LT) WPL 701695 Contact Us For Availability
8
SCREW WPL 766121 Contact Us For Availability
8
BLOCK, TERMINAL WPL Y701623 Contact Us For Availability
8
NUT, TEE WPL 715294 Contact Us For Availability
8
GASKET WPL 766006 Contact Us For Availability
8
PIN WPL 766129 Contact Us For Availability
8
WHEEL, CONVECTION WPL 701711 Contact Us For Availability
9
MAGNETRON WPL 766181 Contact Us For Availability
9
DOOR ARM LINK WPL 766080 Contact Us For Availability
9
INSULATOR WPL 703264 Contact Us For Availability
9
INSULATOR, SWITCH WPL 712086 Contact Us For Availability
9
PANEL, BACK WPL 701700 Contact Us For Availability
9
CLAMP WPL 766099 Contact Us For Availability
9
SWITCH, SELECTOR WPL Y703149 Contact Us For Availability
9
SPACER, OVEN WPL 701741 Contact Us For Availability
9
INSERT WPL 766241 Contact Us For Availability
9
RAIL, SUPPORT (RT) WPL 702955 Contact Us For Availability
9
ACTUATOR LEVER WPL 766125 Contact Us For Availability
9
SCREW, SET WPL 701709 Contact Us For Availability
10
THERMOSTAT WPL 766139 Contact Us For Availability
10
BUSHING WPL 766081 Contact Us For Availability
10
SCREW WPL 707407 Contact Us For Availability
10
RAIL, BOTTOM WPL 700596 Contact Us For Availability
10
NUT WPL 766031 Contact Us For Availability
10
SWITCH, PUSH WPL 701621 Contact Us For Availability
10
PLATE, GROUNDING WPL 701742 Contact Us For Availability
10
TRIM, CLOSURE WPL 702956 Contact Us For Availability
10
SCREW WPL 766095 Contact Us For Availability
10
PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability
11
SCREW WPL 766036 Contact Us For Availability
11
E RING WPL 766082 Contact Us For Availability
11
LATCH WPL 701673 Contact Us For Availability
11
LATCH ASSY. WPL Y703357 Contact Us For Availability
11
SCREW WPL 701638 Contact Us For Availability
11
SWITCH, MOMENTARY WPL Y701620 Contact Us For Availability
11
COVER WPL 766142 Contact Us For Availability
11
SCREW WPL 701526 Contact Us For Availability
12
BLOWER HOUSING WPL 766109 Contact Us For Availability
12
SCREW WPL 766019 Contact Us For Availability
12
SCREW WPL 703958 Contact Us For Availability
12
BUSHING WPL 766083 Contact Us For Availability
12
LEVER, LATCH WPL Y701690 Contact Us For Availability
12
PANEL, SIDE (LT) WPL 701697 Contact Us For Availability
12
BRACKET WPL 766030 Contact Us For Availability
12
PANEL (LT) WPL 701615 Contact Us For Availability
12
SCREW WPL 701744 Contact Us For Availability
12
TRIM, CLOSURE WPL 702950 Contact Us For Availability
13
E RING WPL 766108 Contact Us For Availability
13
FRAME WPL 702774 Contact Us For Availability
13
FRAME WPL 703705 Contact Us For Availability
13
SCREW 8-32 WPL 766079 Contact Us For Availability
13
SPRING, KNOB WPL 701671 Contact Us For Availability
13
SUPPORT, BOTTOM WPL 701667 Contact Us For Availability
13
BLOCK, TERMINAL WPL 766039 Contact Us For Availability
13
WELD, OVEN WPL 701733 Contact Us For Availability
13
LINER,OVEN WPL 712237 Contact Us For Availability
13
TRIM, LOWER WPL 702952 Contact Us For Availability
13
FUSE WPL 766026 Contact Us For Availability
13
WASHER, LOCK WPL 715910 Contact Us For Availability
14
BLOWER WHEEL WPL 766107 Contact Us For Availability
14
SPRING, UPPER WPL 766069 Contact Us For Availability
14
KNOB, LEVER WPL 701670 Contact Us For Availability
14
PANEL, BOTTOM (OUTER) WPL 701668 Contact Us For Availability
14
TRIM, OVEN (LOWER) WPL 701848 Contact Us For Availability
14
SCREW WPL 766022 Contact Us For Availability
14
ANGLE, ATTACHMENT WPL 701609 Contact Us For Availability
14
TRIM, UPPER WPL 703044 Contact Us For Availability
14
FUSE HOLDER WPL 766115 Contact Us For Availability
15
HANDLE----NA WPL 702930 Contact Us For Availability
15
DOOR LATCH GUIDE WPL 766078 Contact Us For Availability
15
SHIELD, SWITCH WPL 701706 Contact Us For Availability
15
TRANSFORMER, CONTROLLER WPL 766025 Contact Us For Availability
15
CAP, END (LT) WPL 701635 Contact Us For Availability
15
END CAP (LT-CHR) WPL 703137 Contact Us For Availability
15
SCREW WPL 703534 Contact Us For Availability
15
RIVET WPL 766116 Contact Us For Availability
16
BUSHING WPL 766104 Contact Us For Availability
16
HANDLE WPL Y703707 Contact Us For Availability
16
LINK, LOWER WPL 766074 Contact Us For Availability
16
INSULATOR WPL Y702350 Contact Us For Availability
16
HINGE, DOOR WPL 702112 Contact Us For Availability
16
HINGE WPL Y703419 Contact Us For Availability
16
VARISTOR WPL 766176 Contact Us For Availability
16
BEZEL, SWITCH WPL 701610 Contact Us For Availability
16
TRIM, SIDE WPL 702954 Contact Us For Availability
16
SUPPORT WPL 766100 Contact Us For Availability
17
BLOWER HOUSING BRACKET WPL 766110 Contact Us For Availability
17
PAD, MOUNTING WPL Y703430 Contact Us For Availability
17
DOOR LATCH WPL 766075 Contact Us For Availability
17
SWITCH, DOOR WPL 702805 Contact Us For Availability
17
CLOSURE, FRONT WPL 701663 Contact Us For Availability
17
CLOSURE, FRONT WPL 703609 Contact Us For Availability
17
PLATE SWITCH NUT WPL 766131 Contact Us For Availability
17
EXTRUSION, BOTTOM WPL 701608 Contact Us For Availability
17
RACK, OVEN WPL Y701725 Contact Us For Availability
17
CORD, POWER WPL 766066 Contact Us For Availability
18
MOTOR BLOWER WPL 766180 Contact Us For Availability
18
BUSHING WPL Y703433 Contact Us For Availability
18
DOOR LATCH COVER WPL 766077 Contact Us For Availability
18
CABLE, SOLENOID WPL 701688 Contact Us For Availability
18
CABLE, WIRE WPL 703301 Contact Us For Availability
18
PANEL, BOTTOM WPL 701669 Contact Us For Availability
18
SCREW WPL 766150 Contact Us For Availability
18
SUPPORT, RACK WPL Y701728 Contact Us For Availability
18
STRAIN RELIEF WPL 766130 Contact Us For Availability
19
BLADE-MOTOR WPL 766236 Contact Us For Availability
19
PALNUT WPL Y703431 Contact Us For Availability
19
LINK, UPPER WPL 766067 Contact Us For Availability
19
PIN, COTTER WPL Y701686 Contact Us For Availability
19
BASE ASSEMBLY WPL 766247 Contact Us For Availability
19
CLIP, OVEN WPL Y702618 Contact Us For Availability
19
SECONDARY DOOR SWITCH WPL 766124 Contact Us For Availability
20
BEARING, ANTENNA WPL 766186 Contact Us For Availability
20
GLASS, SCREENED WPL 701642 Contact Us For Availability
20
GLASS, OUTER WPL Y703706 Contact Us For Availability
20
SPRING, LOWER WPL 766068 Contact Us For Availability
20
BUTTON, PLUG WPL 703688 Contact Us For Availability
20
BUMPER CUSHION WPL 766045 Contact Us For Availability
20
KNOB, CLOCK WPL Y702547 Contact Us For Availability
21
RECEPTACLE, LIGHT WPL 766094 Contact Us For Availability
21
CLIP WPL Y700834 Contact Us For Availability
21
DOOR LATCH, UPPER WPL 766065 Contact Us For Availability
21
PANEL, SIDE (RT) WPL 701676 Contact Us For Availability
21
DOOR ARM GUIDE WPL 766021 Contact Us For Availability
21
PANEL, CONTROL WPL 702931 Contact Us For Availability
21
COVER, MEAT PROBE WPL 712088 Contact Us For Availability
21
NUT 4-40 WPL 766091 Contact Us For Availability
22
BUSHING WPL 715939 Contact Us For Availability
22
GLASS, INNER WPL 766062 Contact Us For Availability
22
PANEL, OUTER (RT) WPL 701672 Contact Us For Availability
22
INSULATOR WPL 766151 Contact Us For Availability
22
PLUG, HOLE WPL 702286 Contact Us For Availability
22
INSULATION, WRAP WPL 701702 Contact Us For Availability
22
ACTUATOR LEVER WPL 766126 Contact Us For Availability
23
BELT, ANTENNA WPL 766177 Contact Us For Availability
23
WASHER WPL Y700446 Contact Us For Availability
23
RETAINER WPL 766064 Contact Us For Availability
23
BRACKET, VENT TUBE WPL 701680 Contact Us For Availability
23
SCREW WPL 766003 Contact Us For Availability
23
LENS, INDICATOR LIGHTS WPL Y700630 Contact Us For Availability
23
TUBE, VENT WPL 701738 Contact Us For Availability
24
ANTENNA ASSEMBLY WPL 766185 Contact Us For Availability
24
SCREW WPL Y703533 Contact Us For Availability
24
GASKET WPL 766063 Contact Us For Availability
24
SUPPORT, TOP WPL 703095 Contact Us For Availability
24
RECTIFIER WPL 766042 Contact Us For Availability
24
PANEL (RT) WPL 701617 Contact Us For Availability
24
PANEL (RT) WPL 703675 Contact Us For Availability
24
BRACKET WPL 766112 Contact Us For Availability
25
PULLEY, ANTENNA WPL 766187 Contact Us For Availability
25
DOOR SEAL PLATE WPL 766061 Contact Us For Availability
25
OUTLET, APPLIANCE WPL 701704 Contact Us For Availability
25
PAD, SPACER WPL 701618 Contact Us For Availability
25
PLATE SWITCH NUT WPL 766044 Contact Us For Availability
26
COTTER KEY WPL 766257 Contact Us For Availability
26
BRACKET, STAND-OFF WPL 701652 Contact Us For Availability
26
DOOR SCREEN WPL 766060 Contact Us For Availability
26
SWITCH, BROIL CYCLE WPL 701698 Contact Us For Availability
26
SCREW WPL 766143 Contact Us For Availability
26
CLOCK WPL 703420 Contact Us For Availability
26
NUT WPL 766156 Contact Us For Availability
26
RECEPTACLE, PROBE WPL 766172 Contact Us For Availability
27
PULLEY-MOTOR WPL 766188 Contact Us For Availability
27
RIVET, ACCORDION WPL 701641 Contact Us For Availability
27
DOOR CHOKE FRAME WPL 766059 Contact Us For Availability
27
SWITCH, BAKE CYCLE WPL 701699 Contact Us For Availability
27
EXTRUSION, TOP WPL 701634 Contact Us For Availability
27
BRACKET, PLATE SWITCH WPL 766128 Contact Us For Availability
28
CLIP, J WPL Y700556 Contact Us For Availability
28
NUT 8-32 WPL 766076 Contact Us For Availability
28
COVER, HOUSING WPL 766105 Contact Us For Availability
28
INSULATION, SIDE WPL 701659 Contact Us For Availability
28
WASHER WPL 766054 Contact Us For Availability
28
TRANSFORMER, FILAMENT WPL 766182 Contact Us For Availability
28
CAP, END (RT) WPL 701619 Contact Us For Availability
28
END CAP (RT-CHR) WPL 703136 Contact Us For Availability
29
SCREW WPL 766101 Contact Us For Availability
29
CLIP, RETAINER WPL Y700503 Contact Us For Availability
29
NUT 10-32 WPL 766058 Contact Us For Availability
29
RELAY-POWER WPL 766244 Contact Us For Availability
30
DOOR PLUG WPL 712065 Contact Us For Availability
30
PLUG, OVEN WPL Y701649 Contact Us For Availability
30
HINGE BRACKET, UPPER WPL 766057 Contact Us For Availability
30
CAPACITOR WPL 766178 Contact Us For Availability
30
PROBE, TEMPERATURE WPL 766154 Contact Us For Availability
31
DOOR, INNER WPL 766056 Contact Us For Availability
31
COOKING TRAY WPL 766085 Contact Us For Availability
32
RETAINER WPL 766053 Contact Us For Availability
32
DOOR LIGHT SWITCH WPL 766023 Contact Us For Availability
33
PIVOT PIN WPL 766073 Contact Us For Availability
33
SAFETY SWITCH WPL 766024 Contact Us For Availability
34
PIVOT BUSHING WPL 766070 Contact Us For Availability
34
GASKET WPL 766179 Contact Us For Availability
34
HARNESS-WIRE WPL 766251 Contact Us For Availability
34
HARNESS-WIRE WPL 766252 Contact Us For Availability
35
LINK PIVOT WPL 766072 Contact Us For Availability
36
BEARING WPL 766071 Contact Us For Availability
× ![]()
Login and Registration Form
