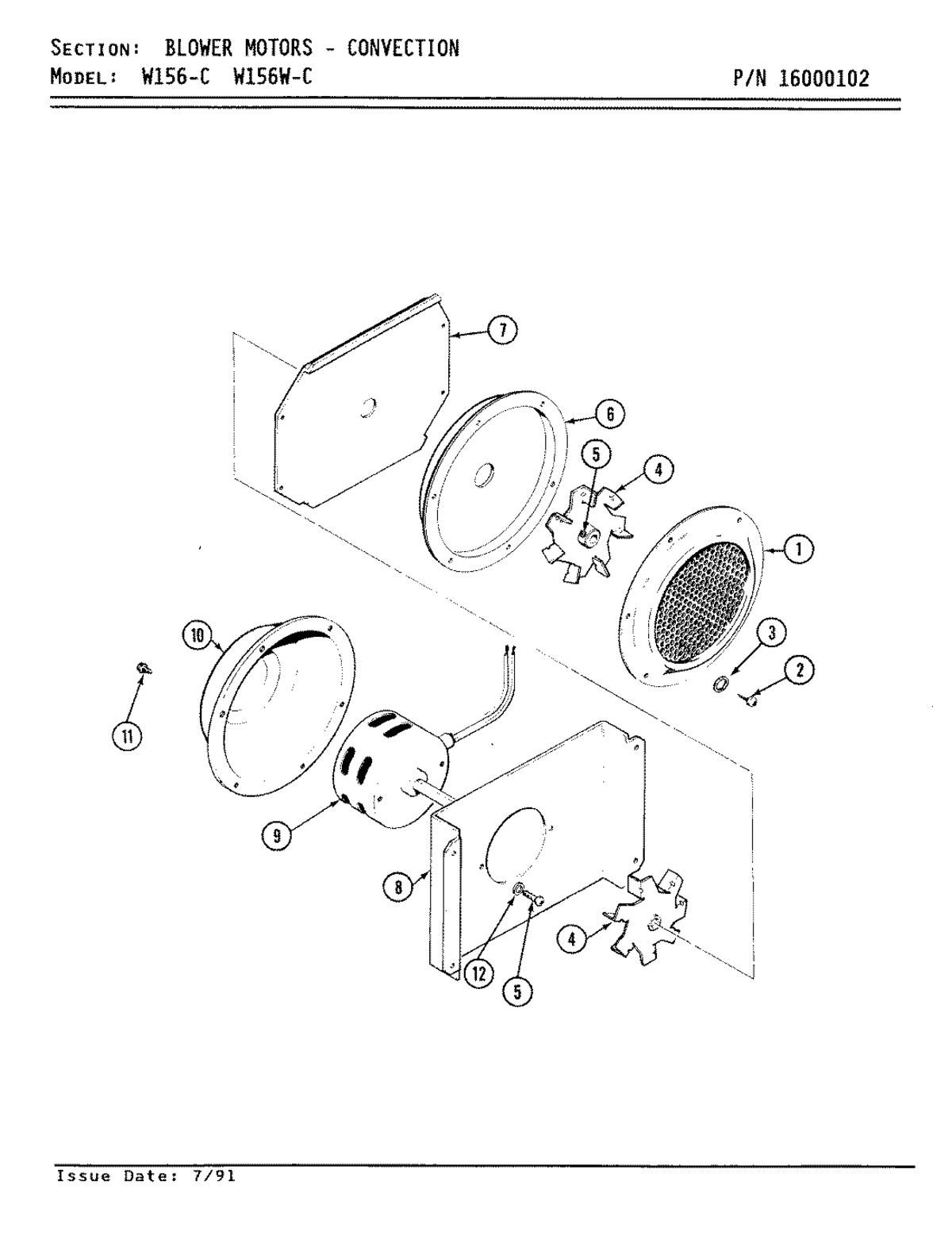

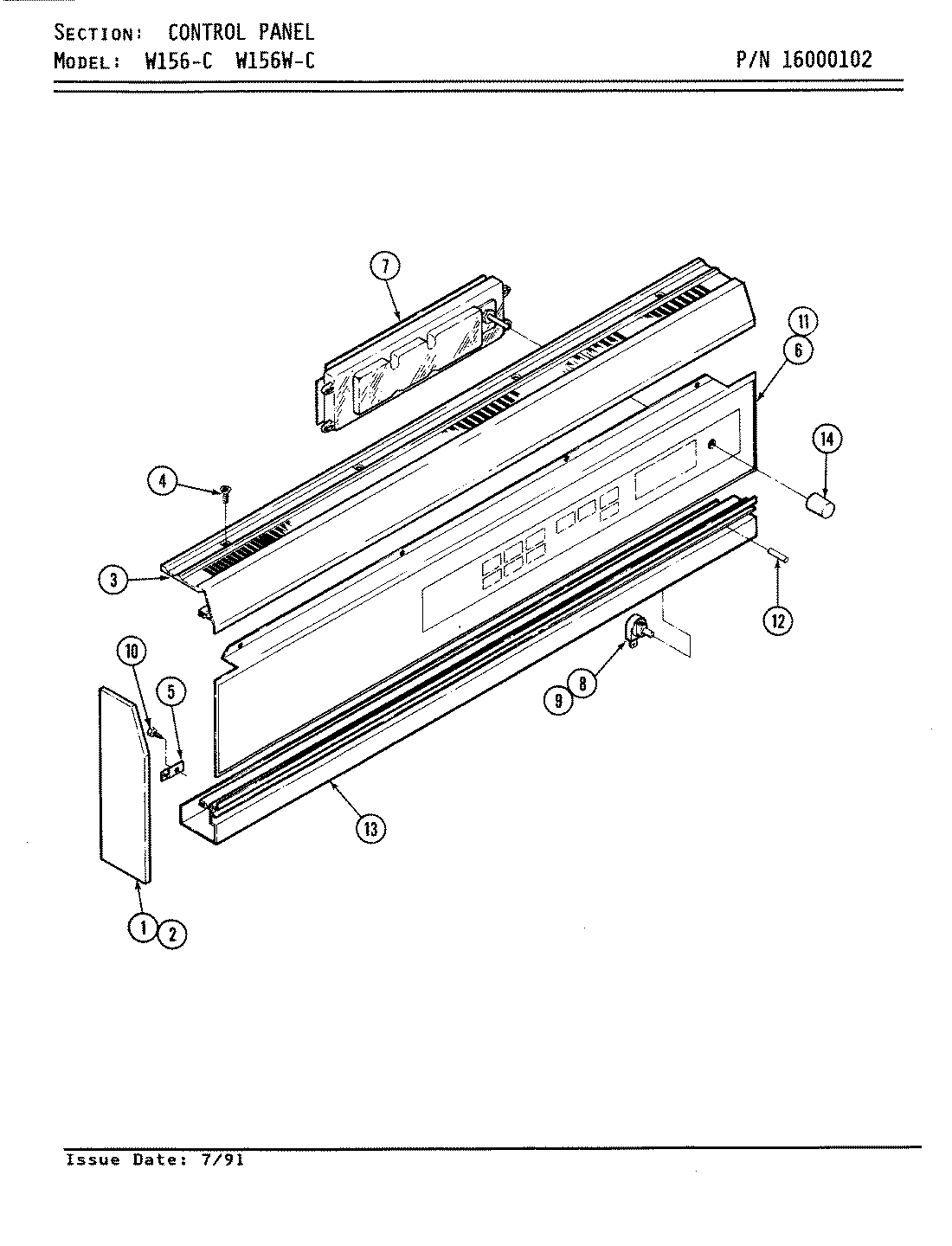

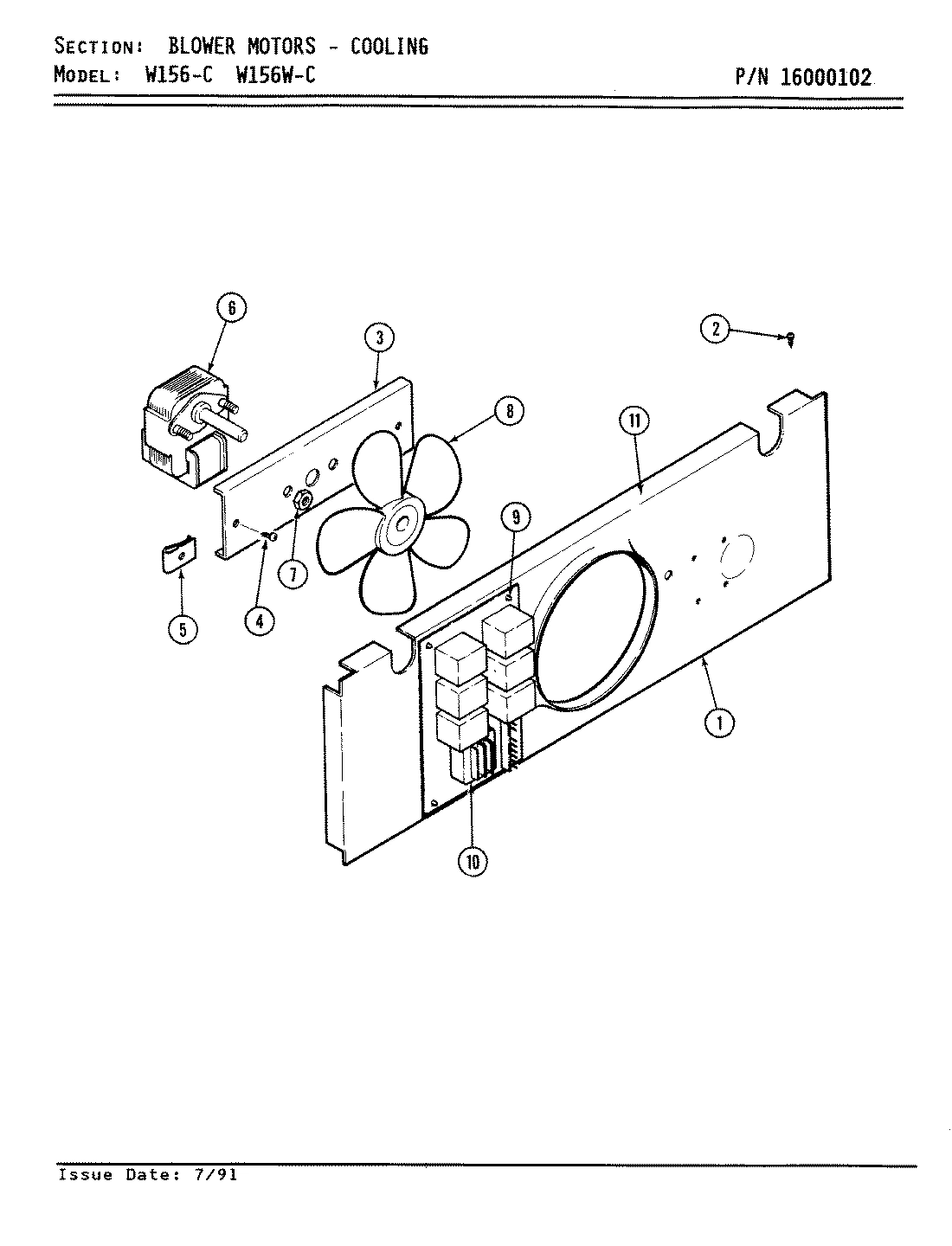

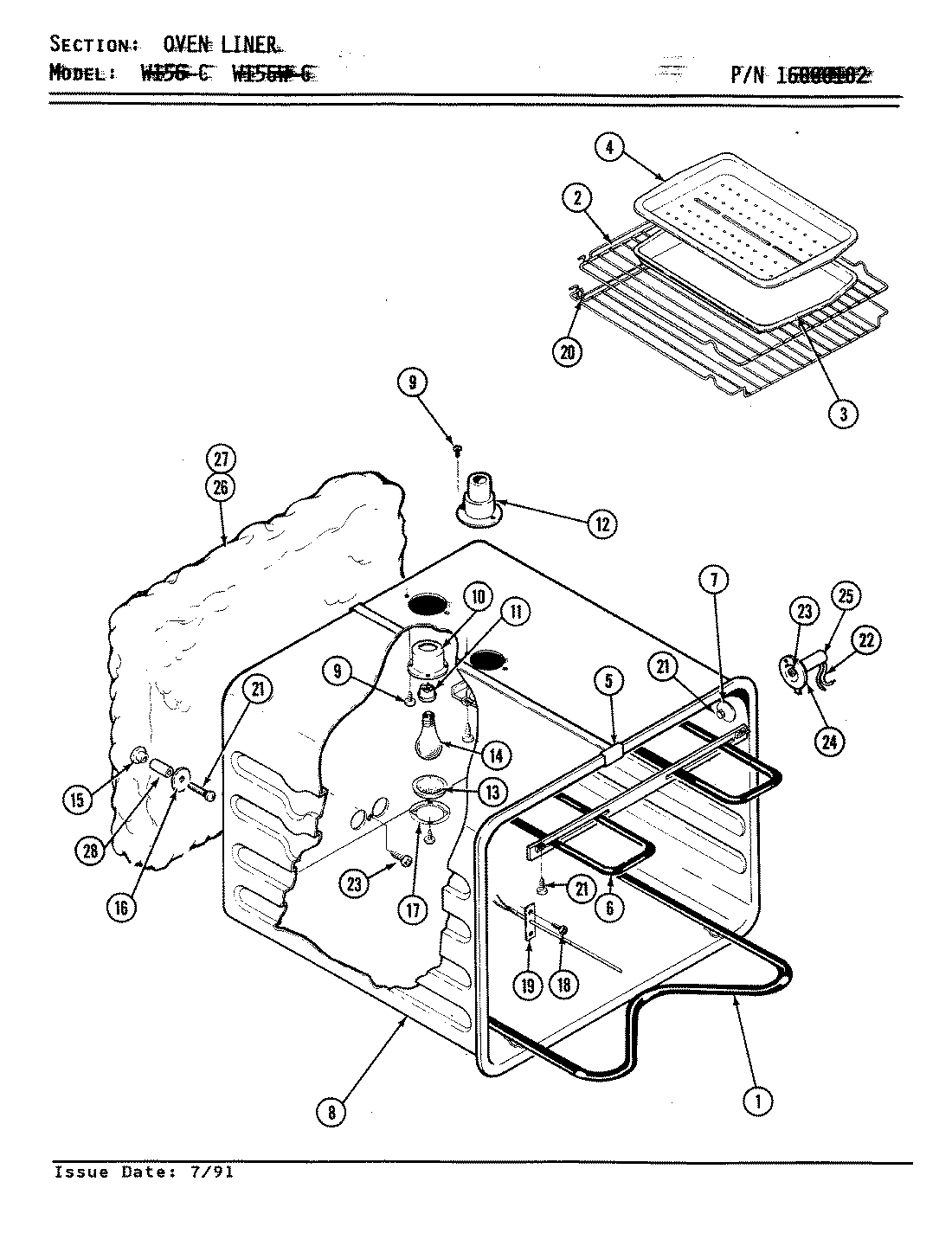

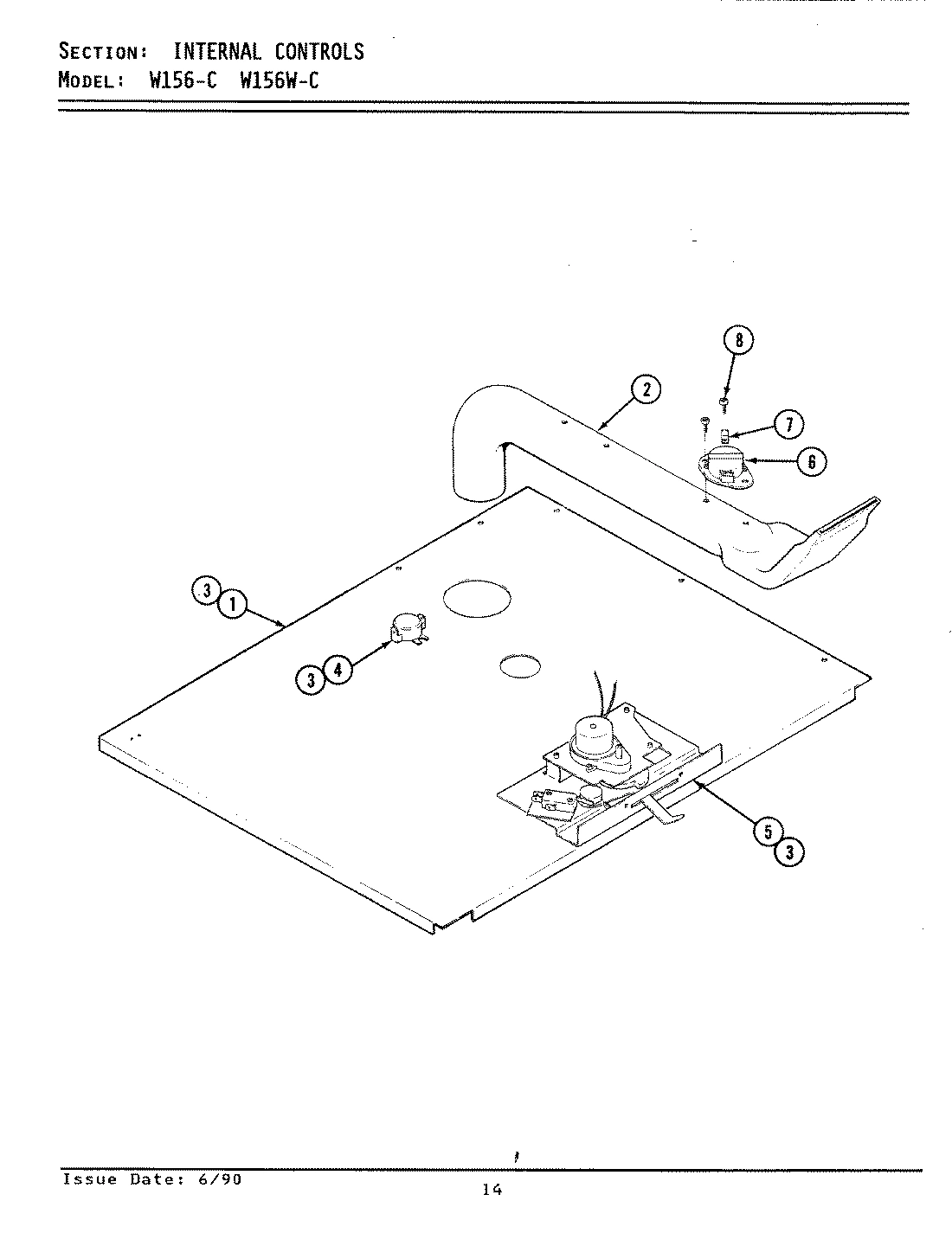

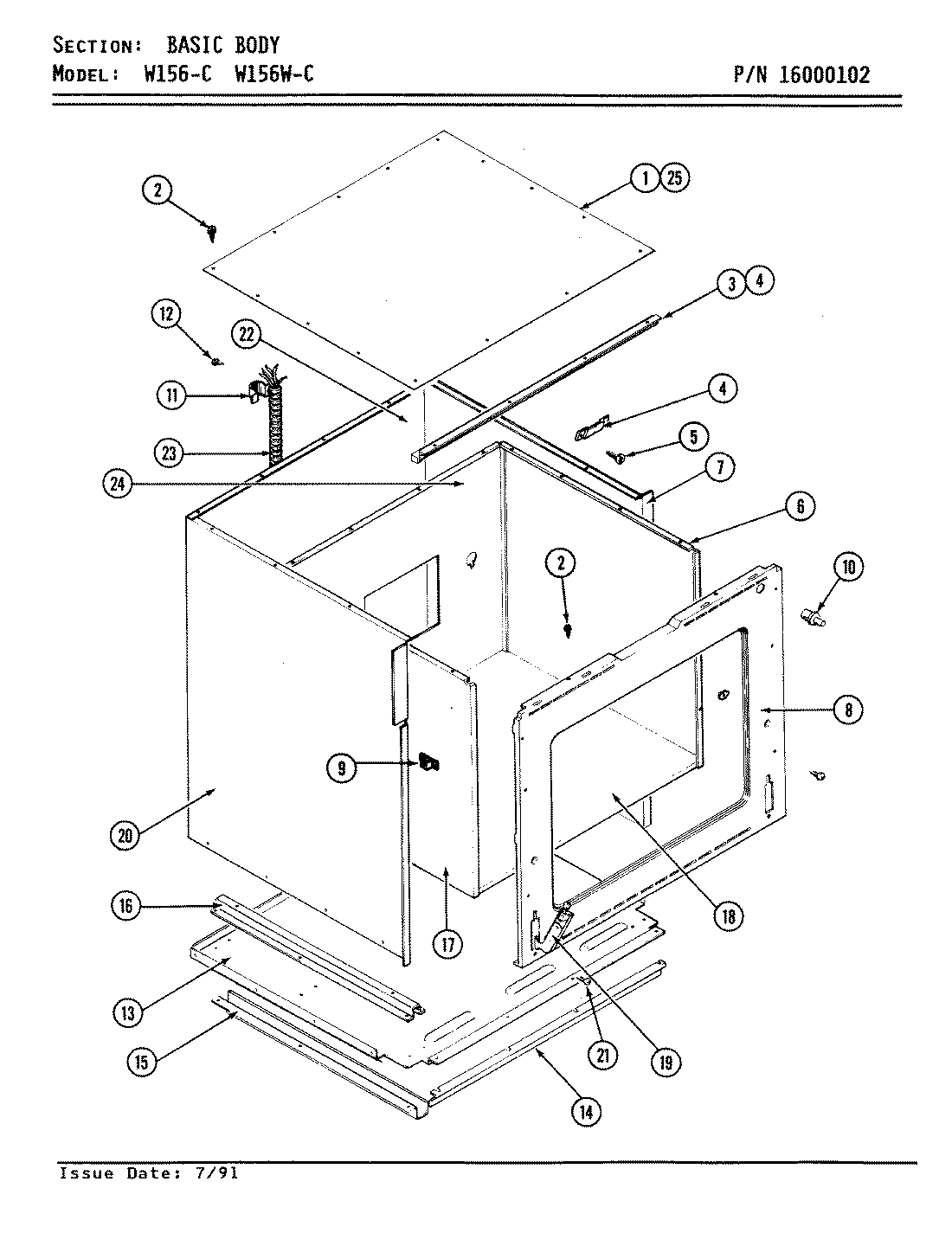

Model Whirlpool W156-C ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

CLIP WPL 705404 Contact Us For Availability

1

PANEL, TOP WPL 704684 Contact Us For Availability

1

TOP (OUTER) WPL 701681 Contact Us For Availability

1

CAP, END (RT/BLK) WPL Y704692 Contact Us For Availability

1

PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability

1

SHROUD, FAN WPL 704725 Contact Us For Availability

2

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $3.49

2

PLUG, UPPER WPL 712209 Contact Us For Availability

2

TUBE, VENT WPL 702795 Contact Us For Availability

2

CAP, END (LT/BLK) WPL Y704691 Contact Us For Availability

2

RACK, OVEN WPL Y704661 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

3

WP701650 Whirlpool Oven Seal Backorder WPL WP701650 $172.91

3

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

3

SUPPORT, TOP WPL 703095 Contact Us For Availability

3

MOUNT, MOTOR WPL Y704732 Contact Us For Availability

4

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

4

INSULATION, SIDE WPL 701659 Contact Us For Availability

4

THERMOSTAT WPL 701687 Contact Us For Availability

4

BRACKET, VENT TUBE WPL 701680 Contact Us For Availability

4

SCREW, TRIM WPL 704714 Contact Us For Availability

4

WHEEL, CONVECTION WPL 701711 Contact Us For Availability

5

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

5

INSULATION, TOP WPL 701660 Contact Us For Availability

5

LATCH, AUTOMATIC WPL 705360 Contact Us For Availability

5

CLIP, J WPL Y700556 Contact Us For Availability

5

ANGLE, ATTACHMENT WPL 701609 Contact Us For Availability

5

CLIP, OVEN WPL Y702618 Contact Us For Availability

6

WPY04100514 Whirlpool Bake Element Backorder WPL WPY04100514 $114.02

6

PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability

6

LIMIT, OVEN WPL Y702727 Contact Us For Availability

6

PANEL, SIDE (RT) WPL 701676 Contact Us For Availability

6

PANEL, BACK (BLK) WPL Y712593 Contact Us For Availability

6

MOTOR, FAN WPL Y701721 Contact Us For Availability

7

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

7

NUT, PUSH IN WPL 701643 Contact Us For Availability

7

TERMINAL WPL Y702711 Contact Us For Availability

7

PANEL, OUTER (RT) WPL 701672 Contact Us For Availability

7

CLOCK WPL Y704728 Contact Us For Availability

7

COVER, MOTOR FRONT WPL 701713 Contact Us For Availability

7

COVER (UPPER) WPL 701732 Contact Us For Availability

8

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.41

8

RIVET, ACCORDION WPL 701641 Contact Us For Availability

8

CLOSURE, FRONT WPL 703609 Contact Us For Availability

8

SWITCH, PUSH (BLK) WPL 704797 Contact Us For Availability

8

PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability

8

OVEN WELD ASSY. WPL Y04100817 Contact Us For Availability

8

BLADE, FAN WPL 701718 Contact Us For Availability

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

9

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

9

SPACER, SIDE WPL 703253 Contact Us For Availability

9

BRACKET, SWITCH WPL 704730 Contact Us For Availability

9

MOTOR, CONVECT WPL Y704972 Contact Us For Availability

9

SUPPORT, CIRCUIT BOARD WPL Y704706 Contact Us For Availability

GLASS, BAFFLE WPL Y704820 Contact Us For Availability

SWITCH, DOOR WPL 701666 Contact Us For Availability

COVER, MOTOR WPL 701716 Contact Us For Availability

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

RELAY, TRANSFORMER ASSY. WPL Y704710 Contact Us For Availability

CLAMP, CONDUIT WPL 701692 Contact Us For Availability

HARNESS, WIRE (J2) WPL 704704 Contact Us For Availability

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

FOAM, URETHANE WPL Y715957 Contact Us For Availability

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

GLASS WPL 704495 Contact Us For Availability

EXTENSION, SWITCH (BLK) WPL 704798 Contact Us For Availability

WASHER, LOCK WPL 715910 Contact Us For Availability

TUBE, VENT WPL 701738 Contact Us For Availability

RELAY ASSY WPL 704711 Contact Us For Availability

13

PANEL, BOTTOM (OUTER) WPL 701668 Contact Us For Availability

13

EXTRUSION, TOP (BLK) WPL 704690 Contact Us For Availability

13

LENS, LIGHT WPL Y704143 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

WP7711P492-60 Whirlpool Clock Knob In Stock WPL WP7711P492-60 $9.04

FRAME WPL 704492 Contact Us For Availability

TRIM, OVEN (LOWER) WPL 701848 Contact Us For Availability

PLATE, END CAP WPL 04100038 Contact Us For Availability

15

HANDLE WPL Y704225 Contact Us For Availability

15

RAIL, BOTTOM WPL 700596 Contact Us For Availability

15

NUT, TEE WPL 715294 Contact Us For Availability

16

END CAP (BLK) WPL Y704224 Contact Us For Availability

16

SUPPORT, BOTTOM WPL 701667 Contact Us For Availability

16

PLATE, GROUNDING WPL 701742 Contact Us For Availability

17

SCREW WPL 704963 Contact Us For Availability

17

PANEL, SIDE (LT) WPL 701697 Contact Us For Availability

17

RETAINER, LENS WPL Y704144 Contact Us For Availability

WASHER WPL 701736 Contact Us For Availability

PANEL, BOTTOM WPL 701669 Contact Us For Availability

ANGLE, OVEN SUPPORT WPL 701701 Contact Us For Availability

SCREW WPL 705341 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

BUSHING WPL Y704489 Contact Us For Availability

HINGE WPL Y703419 Contact Us For Availability

HARNESS, WIRE WPL 704823 Contact Us For Availability

20

LINER, DOOR WPL 712188 Contact Us For Availability

20

PANEL, OUTER (LT) WPL 701695 Contact Us For Availability

20

RACK, OVEN (OFFSET) WPL Y704663 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

WP3196183 Whirlpool Screw Backorder WPL WP3196183 $4.82

BAFFLE WPL 712250 Contact Us For Availability

BRACKET, HAT (REAR) WPL 701683 Contact Us For Availability

22

CLIP WPL 704487 Contact Us For Availability

22

PANEL, REAR (OUTER) WPL 701691 Contact Us For Availability

22

HARNESS, PROBE WPL 704822 Contact Us For Availability

23

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

23

CABLE, WIRE WPL 705357 Contact Us For Availability

23

STANDOFF WPL 703007 Contact Us For Availability

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

BREAKER (15 AMP) WPL 702007 Contact Us For Availability

BREAKER (30 AMP) WPL 702008 Contact Us For Availability

BOX, BREAKER WPL 704165 Contact Us For Availability

PANEL, REAR WPL 704808 Contact Us For Availability

MOUNT, MEAT PROBE WPL Y701731 Contact Us For Availability

25

INSULATION, BOTTOM WPL 701658 Contact Us For Availability

25

JACK, PROBE WPL Y703022 Contact Us For Availability

26

PACK, WINDOW WPL 703804 Contact Us For Availability

26

INSULATION, WRAP WPL 701702 Contact Us For Availability

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

WP71001870 Whirlpool Temperature Probe Sensor Backorder WPL WP71001870 $171.29

PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability

INSULATION, REAR WPL 701703 Contact Us For Availability

BUTTON, PLUG WPL 702929 Contact Us For Availability

28

RETAINER, GLASS WPL Y704819 Contact Us For Availability

28

SPACER, OVEN WPL 701741 Contact Us For Availability

29

GUSSET----NA WPL 704805 Contact Us For Availability

30

SCREW (BLACK) WPL Y704488 Contact Us For Availability

31

RAIL, GLASS WPL Y704498 Contact Us For Availability

32

SCREW WPL Y700584 Contact Us For Availability

33

TAPE, FOAM WPL 704491 Contact Us For Availability
