Model Whirlpool W130 ELECTRIC WALL OVEN – Common Parts & Diagrams

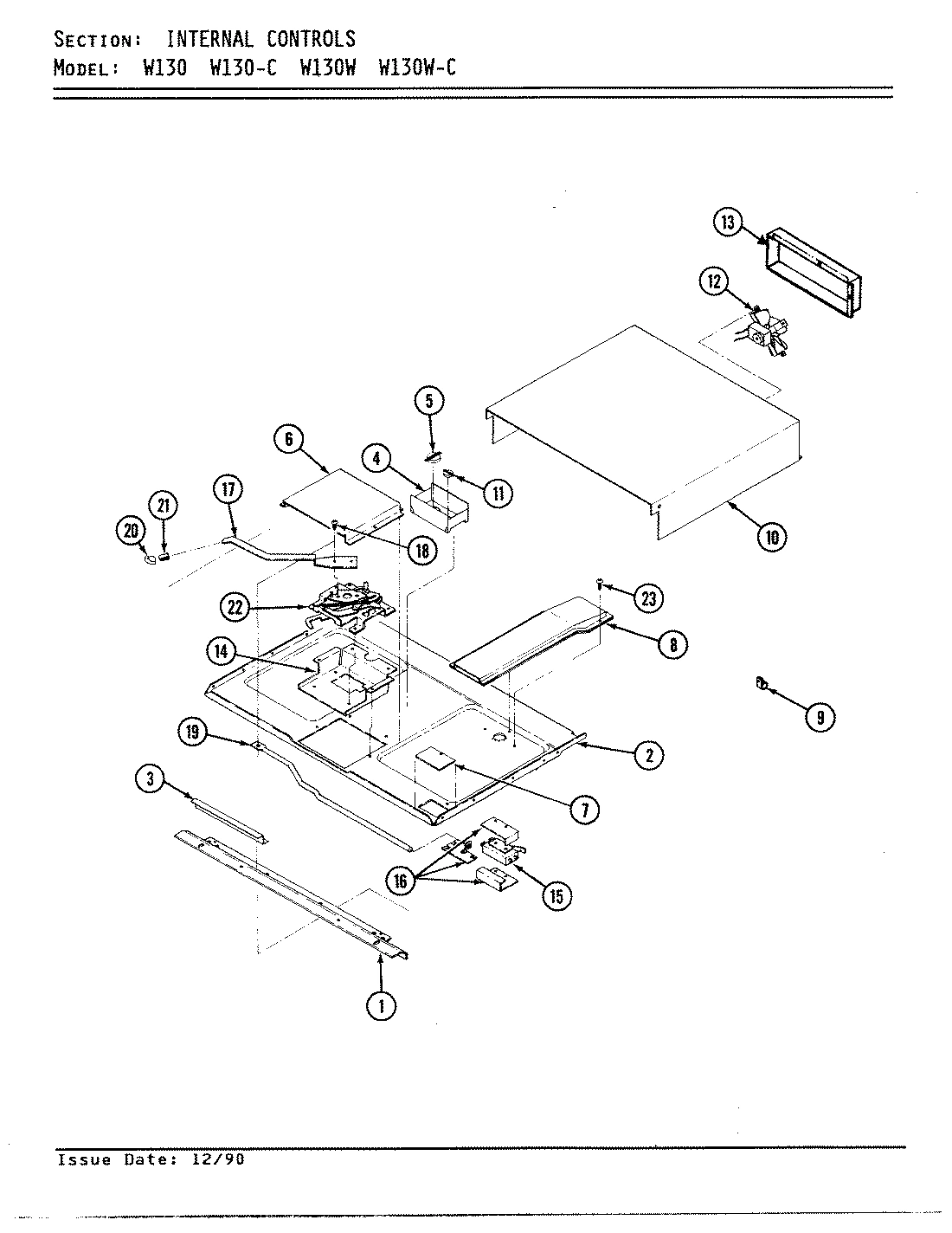

04 - INTERNAL CONTROLS

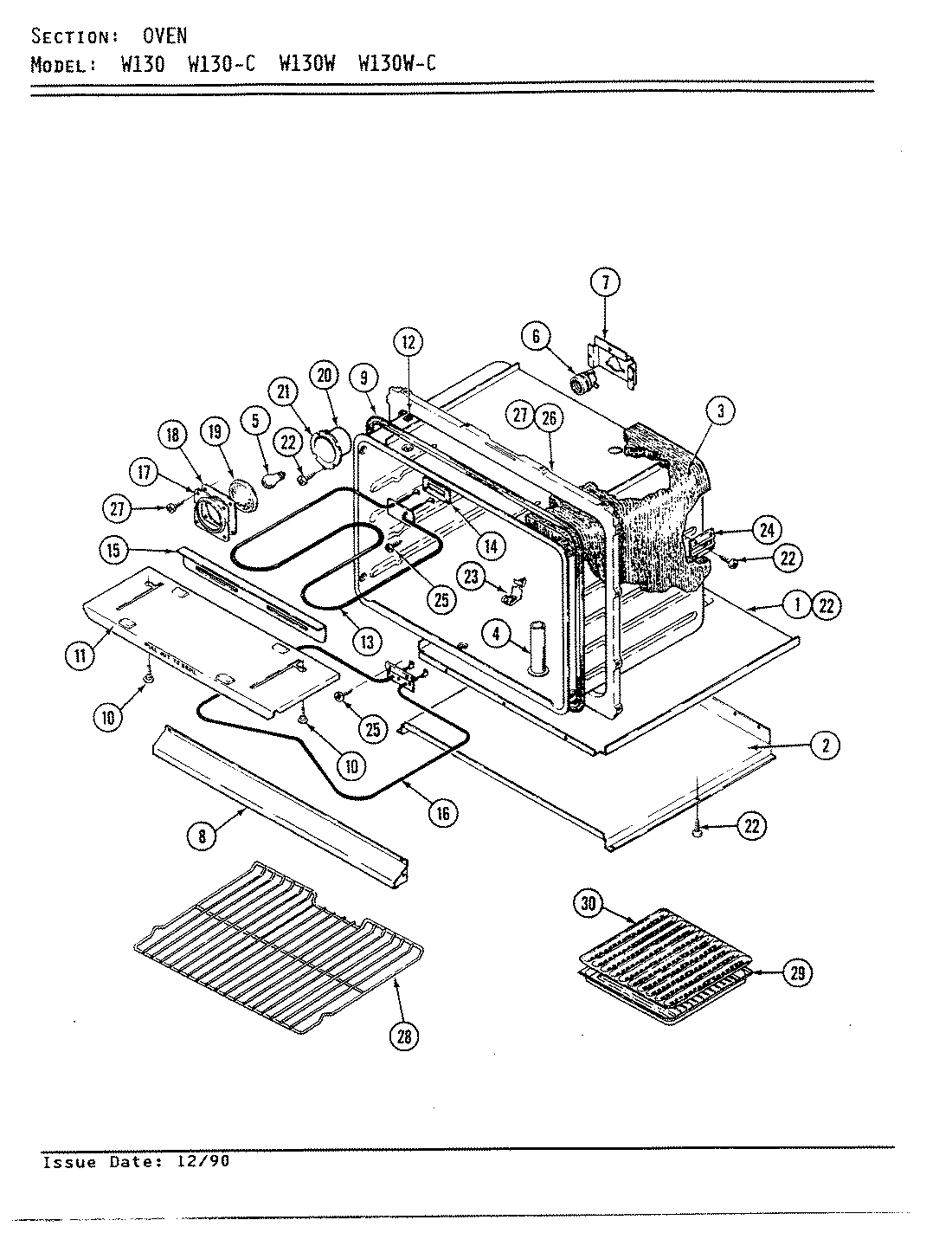

05 - OVEN

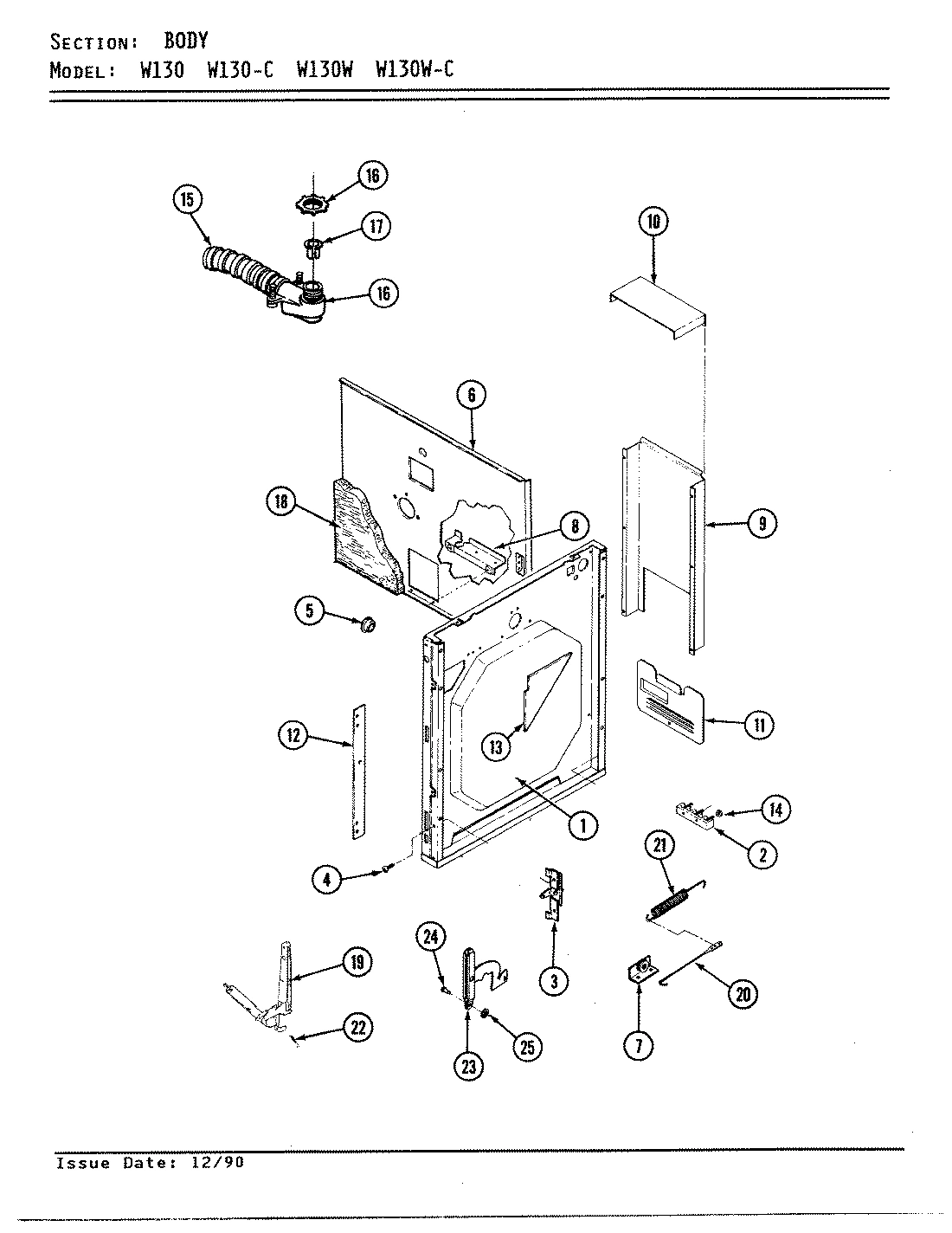

01 - BODY

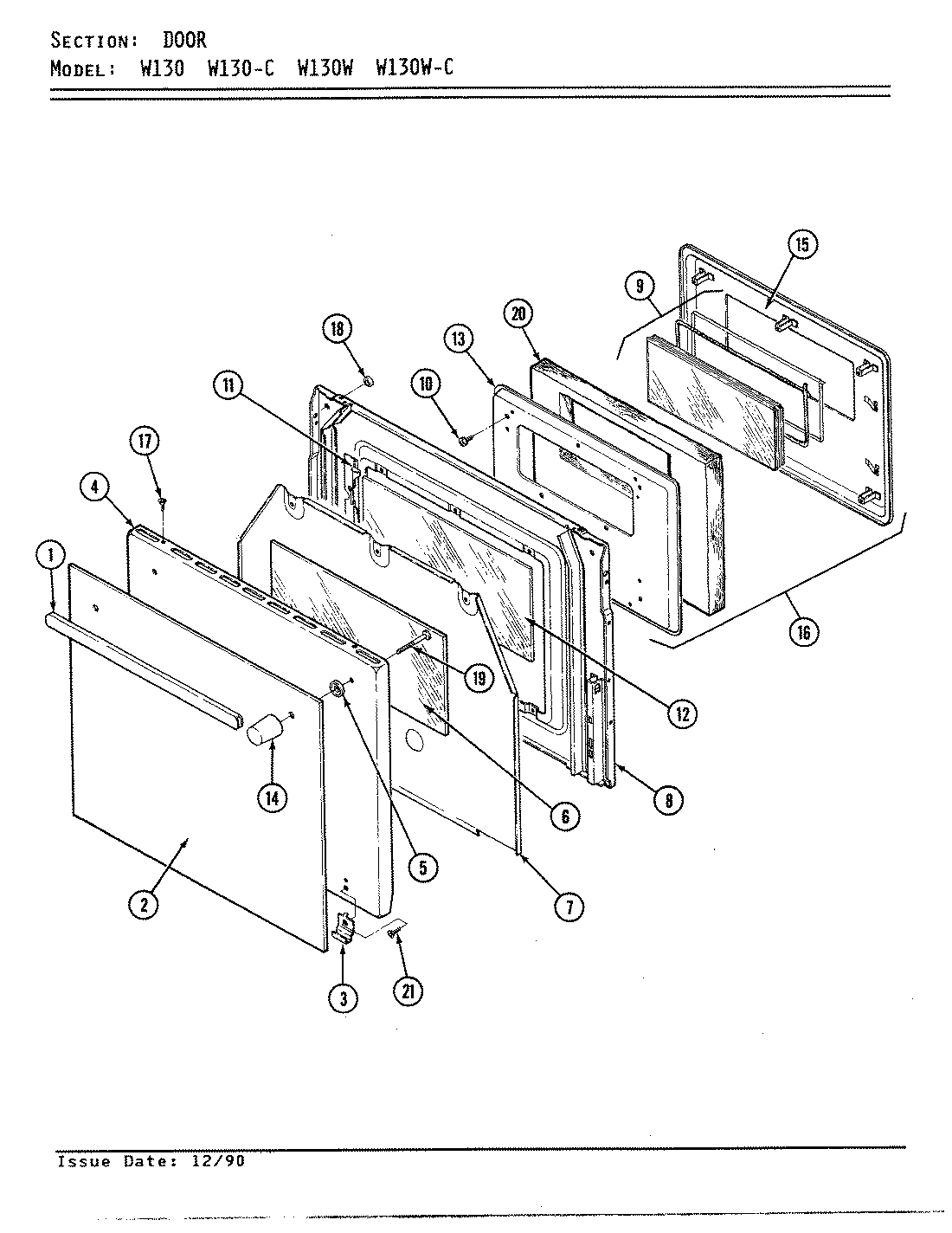

03 - DOOR

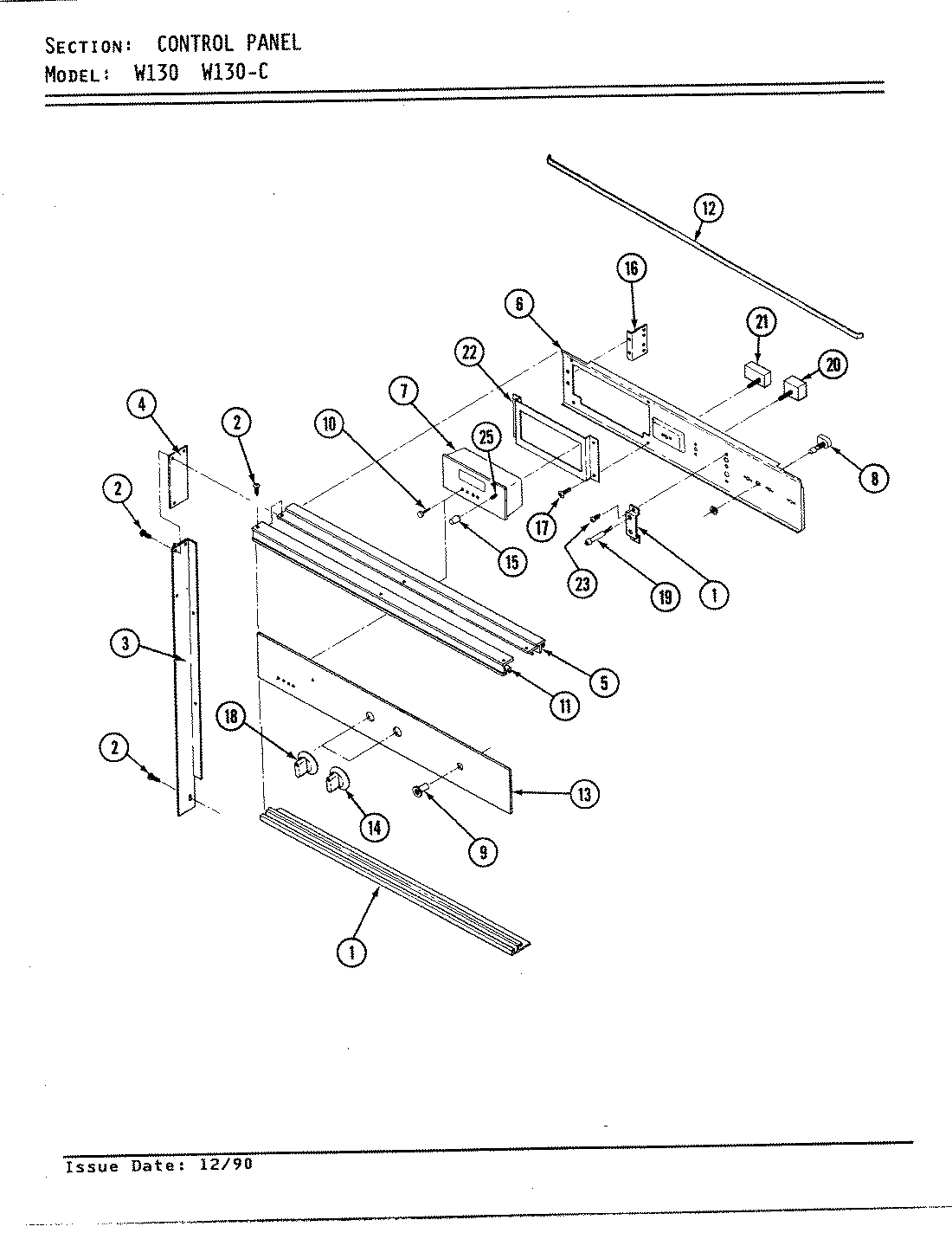

02 - CONTROL PANEL (BLK)
Common parts from model Whirlpool W130 ELECTRIC WALL OVEN
1
FRONT, BURNER BOX BOTTOM WPL 790350 Contact Us For Availability
1
RETAINER, INSULATION BOTTOM WPL 790362 Contact Us For Availability
1
LINING,INNER SIDE(L) WPL 4009W06680 Contact Us For Availability
1
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
1
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
1
NUT, NYLON WPL 7103P04560 Contact Us For Availability
1
LINING, INNER SIDE WPL 790356 Contact Us For Availability
1
HANDLE, DOOR (BLK) WPL 790297 Contact Us For Availability
1
TRIM, CONTROL (BTM) WPL 790282 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 4011F18080 Contact Us For Availability
2
SCREW WPL 7101P10460 Contact Us For Availability
2
LATCH ASSY. WPL Y703357 Contact Us For Availability
2
SHIELD, BOTTOM WPL 790365 Contact Us For Availability
2
GLASS, DOOR (BLK) WPL 790293 Contact Us For Availability
3
SHIELD, TERMINAL WPL 790369 Contact Us For Availability
3
INSULATION TOP WPL 4804F00160 Contact Us For Availability
3
INSULATION, WRAPPER WPL 7002P04660 Contact Us For Availability
3
HINGE, L.H. WPL 790352 Contact Us For Availability
3
HINGE, R.H. WPL 790353 Contact Us For Availability
3
CLIP,GLASS RETAINER (WHT) WPL 3819F01071 Contact Us For Availability
3
CLIP, GLASS RETAINER (BLACK) WPL 790197 Contact Us For Availability
3
TAPE, RETAINER CLIP WPL 8270P01060 Contact Us For Availability
3
TRIM, SIDE (RT) WPL 790284 Contact Us For Availability
3
TRIM, SIDE (LT) WPL 790285 Contact Us For Availability
4
SUPPORT, THERMAL DISC WPL 790376 Contact Us For Availability
4
CATALYST BURNER WPL 7505P04160 Contact Us For Availability
4
TUBE, OVEN VENT WPL 790464 Contact Us For Availability
4
SCREW WPL 7101P11260 Contact Us For Availability
4
PANEL (BLACK) WPL 790360 Contact Us For Availability
4
TRIM END CAP WPL 790333 Contact Us For Availability
5
SWITCH, HI LIMIT WPL 7403P19960 Contact Us For Availability
5
GROMMET WPL 8008P01960 Contact Us For Availability
5
TRIM, TOP WPL 790286 Contact Us For Availability
6
COVER, CATCH ASSY. WPL 790346 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 790312 Contact Us For Availability
6
GLASS, CLEAR WPL 790295 Contact Us For Availability
6
PLATE, SWITCH MTG WPL 790361 Contact Us For Availability
7
COVER, LOCK SWITCH WPL 790347 Contact Us For Availability
7
BRACKET, LAMP RECEPTACLE WPL 790342 Contact Us For Availability
7
BRACKET, CABLE ROLLER WPL 12400018 Contact Us For Availability
7
BAFFLE DOOR WPL 790336 Contact Us For Availability
7
CLOCK WPL 7601P12360 Contact Us For Availability
7
CLOCK WPL 7601P19760 Contact Us For Availability
7
CLOCK WPL 790279 Contact Us For Availability
8
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
8
BOX VENT ASSY WPL 4006W08745 Contact Us For Availability
8
SHIELD, LOWER VENT (BLK) WPL 3604W15570 Contact Us For Availability
8
SHIELD ASSY., LOWER (BLACK) WPL 790367 Contact Us For Availability
8
PLATE, CONDUIT WPL 3605F14880 Contact Us For Availability
8
LINING, OVEN DOOR WPL 2402W14915 Contact Us For Availability
8
LINING DOOR WPL 2402W16415 Contact Us For Availability
8
LINING DOOR WPL 2402W18619 Contact Us For Availability
8
RIVET WPL 7107P01760 Contact Us For Availability
8
LINING, OVEN DOOR WPL 790357 Contact Us For Availability
8
LABEL (CLEANING INST.) WPL 8114P27460 Contact Us For Availability
8
SWITCH, OVEN LAMP WPL 7403P10460 Contact Us For Availability
8
KNOB, LIGHT SWITCH WPL 790299 Contact Us For Availability
8
SWITCH, OVEN LAMP WPL 790328 Contact Us For Availability
9
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
9
GASKET, OVEN WPL 790290 Contact Us For Availability
9
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
9
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
9
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
9
WINDOW PAK WPL 7902S30360 Contact Us For Availability
9
SLEEVE, LAMP SWITCH WPL 790321 Contact Us For Availability
9
SLEEVE, LAMP SWITCH WPL 790437 Contact Us For Availability
10
HOUSING, FAN WPL 790354 Contact Us For Availability
10
SCREW, BROIL SHIELD WPL 790314 Contact Us For Availability
10
COVER HOUSING WPL 790349 Contact Us For Availability
10
BUTTON, CLOCK WPL 790300 Contact Us For Availability
11
SWITCH, THERMAL DISC WPL 790327 Contact Us For Availability
11
SHIELD, BROIL WPL 790366 Contact Us For Availability
11
COVER ACCESS WPL 4005F30251 Contact Us For Availability
11
RETAINER, GLASS WPL 790247 Contact Us For Availability
11
TRIM, TOP (FRT) WPL 790287 Contact Us For Availability
12
BLOCK, TERMINAL WPL 7401P01660 Contact Us For Availability
12
CONNECTOR, PIN WPL 7417P00260 Contact Us For Availability
12
FAN ASSY. WPL 790288 Contact Us For Availability
12
RESISTOR ASSY. WPL 790381 Contact Us For Availability
12
GROMMET, NYLON WPL 8008P01460 Contact Us For Availability
12
NUT, KEPS BLACK WPL 7103P06260 Contact Us For Availability
12
BAFFLE SIDE WPL 790335 Contact Us For Availability
12
GLASS WPL 790223 Contact Us For Availability
12
EXTRUSION, FILLER TRIM WPL 790463 Contact Us For Availability
13
COVER FAN WPL 790203 Contact Us For Availability
13
CLIP, BROIL ELEMENT SUPPORT WPL 8004P01360 Contact Us For Availability
13
COVER, SWITCH WPL 4005F16351 Contact Us For Availability
13
PAD INNER OVEN DOOR WPL 790398 Contact Us For Availability
13
GLASS, CONTROL PANEL WPL 790292 Contact Us For Availability
13
GLASS CONTROL PANEL WPL 7912P04860 Contact Us For Availability
14
SUPPORT, LATCH ASSY. WPL 790373 Contact Us For Availability
14
GASKET WPL 790214 Contact Us For Availability
14
NUT, LEVEL WPL 7103P00760 Contact Us For Availability
14
END CAP, HANDLE (WHT) WPL 7744P04260 Contact Us For Availability
14
CAP, END (BLK) WPL 790210 Contact Us For Availability
14
KNOB, SELECTOR WPL 7739P02460 Contact Us For Availability
15
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
15
INSULATION, SWITCH WPL 7003P03960 Contact Us For Availability
15
SWITCH, DOOR LOCK WPL 7403P04560 Contact Us For Availability
15
SUPPORT, BROIL ELEMENT WPL Y790262 Contact Us For Availability
15
TUBING, CONDUIT WPL 3414F06651 Contact Us For Availability
15
WASHER WPL 7109P00260 Contact Us For Availability
15
PAD, DOOR WPL 2410W04115 Contact Us For Availability
15
PAD, DOOR WPL 2410W04119 Contact Us For Availability
15
KNOB, CLOCK WPL 790301 Contact Us For Availability
16
SCREW WPL 7101P03160 Contact Us For Availability
16
SUPPORT, LOCK SWITCH WPL 790374 Contact Us For Availability
16
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
16
PAD, ASSY. WPL 2410A04115 Contact Us For Availability
16
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
16
BRACKET, SWITCH PLATE WPL 790343 Contact Us For Availability
17
SCREW WPL 7101P01860 Contact Us For Availability
17
LEVER, LOCK WPL 790304 Contact Us For Availability
17
SCREW WPL 7101P06160 Contact Us For Availability
17
RETAINER, LAMP GUARD WPL 790364 Contact Us For Availability
17
SLEEVE, TUBE WPL 8018P00260 Contact Us For Availability
17
NUT, SNAP WPL 7103P11460 Contact Us For Availability
18
BOLT WPL 790274 Contact Us For Availability
18
GASKET, LAMP RETAINER WPL 790216 Contact Us For Availability
18
INSULATION, REAR WPL 4804F00260 Contact Us For Availability
18
BUMPER, DOOR WPL 790087 Contact Us For Availability
18
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
18
KNOB, THERMOSTAT WPL 7735P02960 Contact Us For Availability
19
LINK, LOCK SWITCH WPL 790305 Contact Us For Availability
19
GLASS, LAMPGUARD WPL 790224 Contact Us For Availability
19
HINGE (INCL. SPRING) WPL 7106P02460 Contact Us For Availability
19
SCREW WPL 7101P01260 Contact Us For Availability
19
SCREW, DOOR HANDLE WPL 790409 Contact Us For Availability
19
LIGHT, INDICATOR WPL 790235 Contact Us For Availability
20
KNOB, DOOR LOCK WPL 790298 Contact Us For Availability
20
HOUSING, LAMP WPL 790355 Contact Us For Availability
20
STRAP, CABLE WPL 790324 Contact Us For Availability
20
INSULATION, DOOR PAD WPL 7002P11760 Contact Us For Availability
20
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
20
SWITCH, SELECTOR WPL 790330 Contact Us For Availability
21
CLIP, LATCH HANDLE WPL 790277 Contact Us For Availability
21
GASKET,LAMPGUARD WPL 790215 Contact Us For Availability
21
SPRING WPL 790323 Contact Us For Availability
21
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
21
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
21
THERMOSTAT WPL 790332 Contact Us For Availability
22
CATCH ASSY. WPL 790275 Contact Us For Availability
22
SPRING, MINI-STANLEY WPL 04000040 Contact Us For Availability
22
BRACKET CLOCK WPL 790380 Contact Us For Availability
23
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
23
LIMIT, FAN WPL Y702750 Contact Us For Availability
23
STOP ASSY., HINGE WPL 3420A03434 Contact Us For Availability
24
SUPPORT OVEN REAR WPL 790375 Contact Us For Availability
24
PIN, HINGE WPL 7113P00260 Contact Us For Availability
24
BRACKET, LIGHT SIGNAL WPL 790341 Contact Us For Availability
25
SCREW WPL 7101P06460 Contact Us For Availability
25
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
25
SHAFT, CLOCK WPL 8312P01760 Contact Us For Availability
26
SCREW WPL 7101P00560 Contact Us For Availability
26
FRONT, OVEN UPPER WPL 790351 Contact Us For Availability
27
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
28
RACK, OVEN WPL 790311 Contact Us For Availability
29
PAN, BROILER WPL 790359 Contact Us For Availability
× ![]()
