Model Whirlpool VA6013 WASHER – Common Parts & Diagrams
05 - GRAPHICS PANEL, CTRL HOOD AND CTRLS

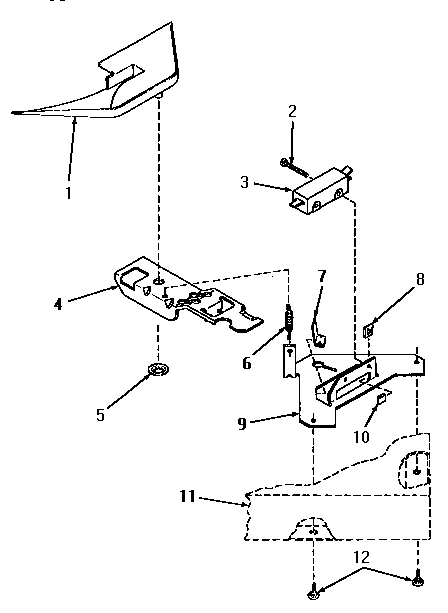

13 - SWITCH AND BRACKET ASSY

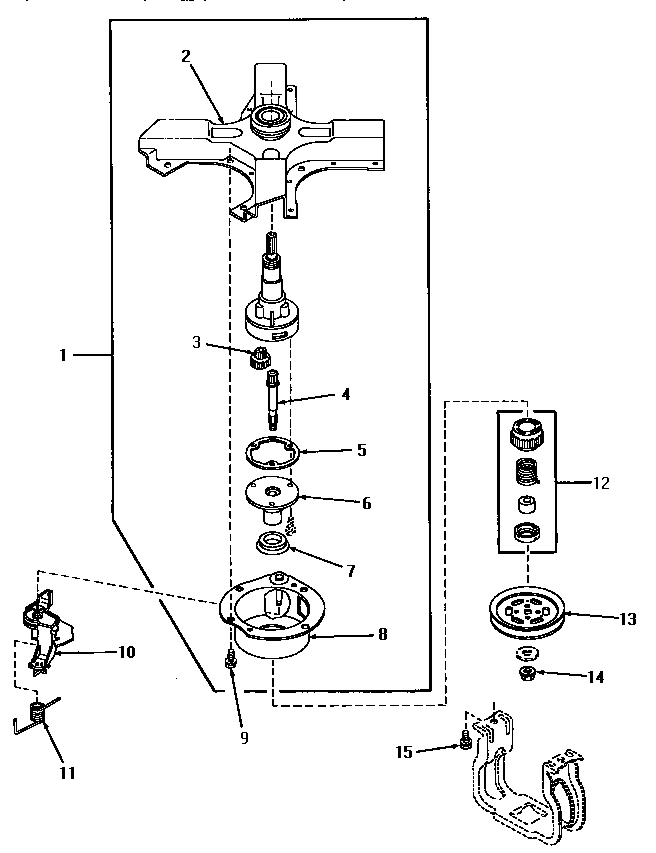

03 - CLUTCH BASE AND CLUTCH ASSY

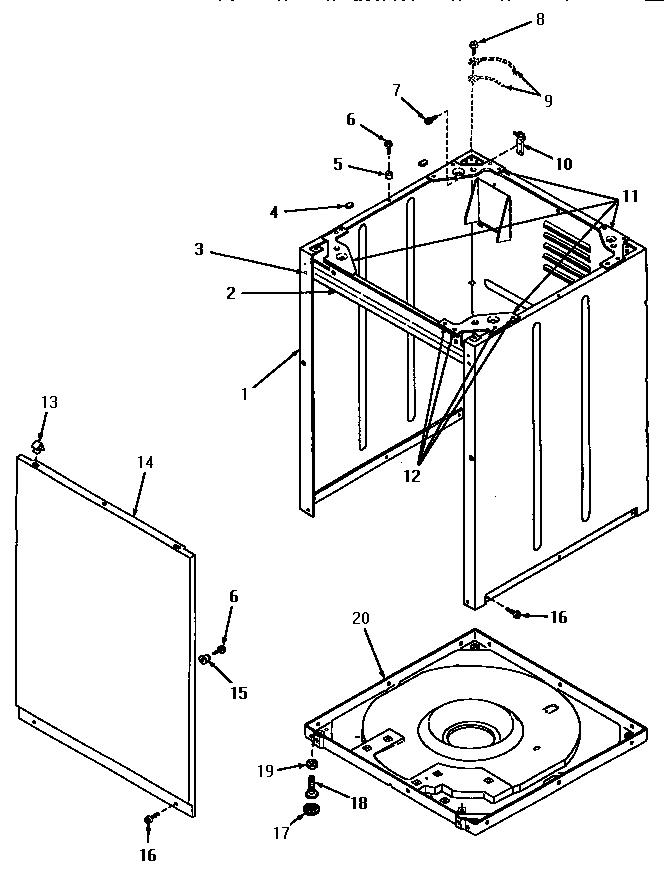

04 - FRONT PANEL, CABINET AND BASE

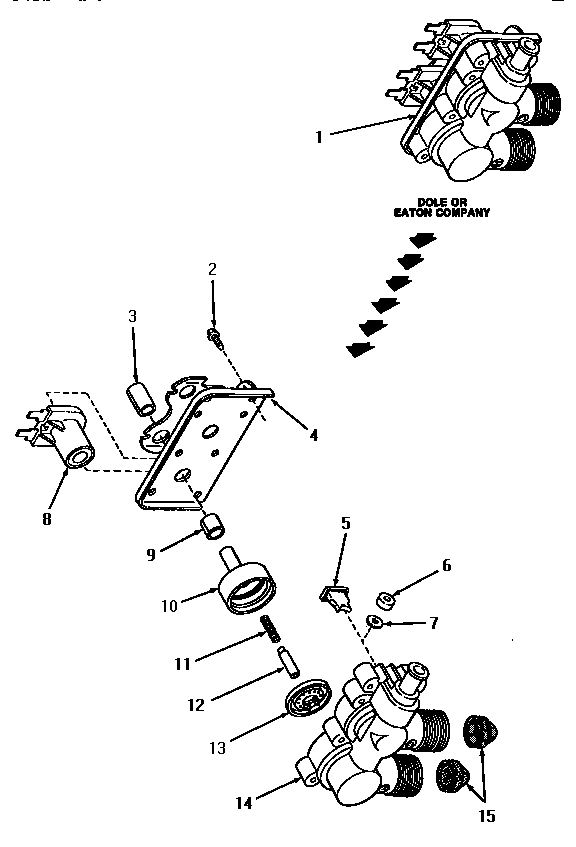

07 - MIXING VALVE ASSY

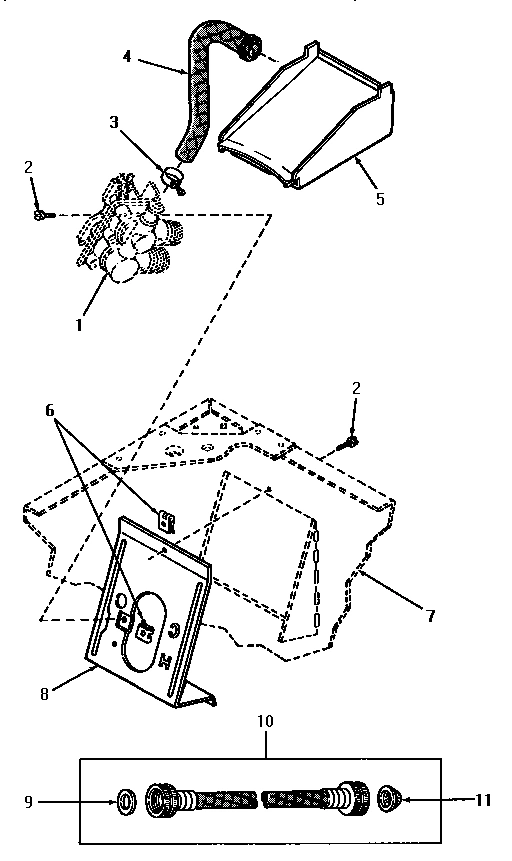

06 - INLET/FILLER HOSE & MIXING VLV MTG BRKT

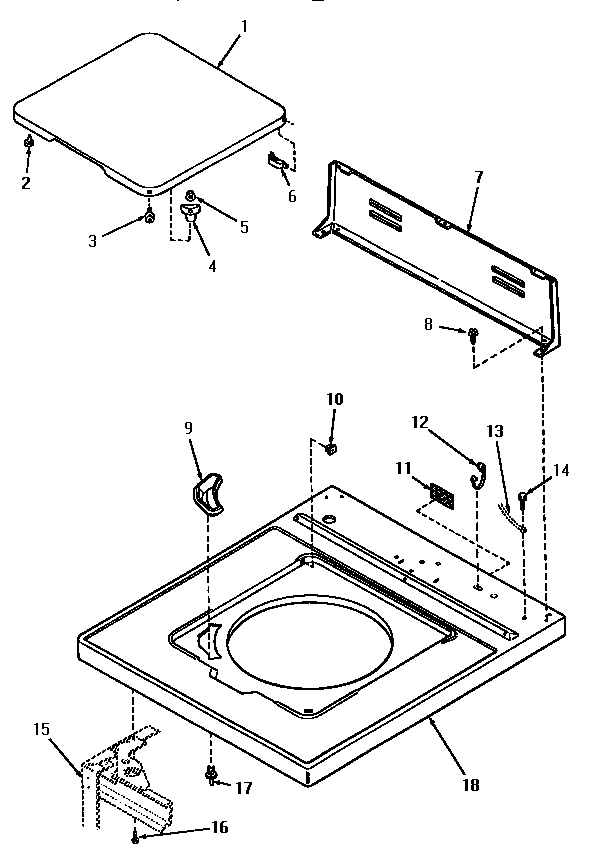

02 - CAB TOP/LOADING DOOR & CTRL HOOD PAN

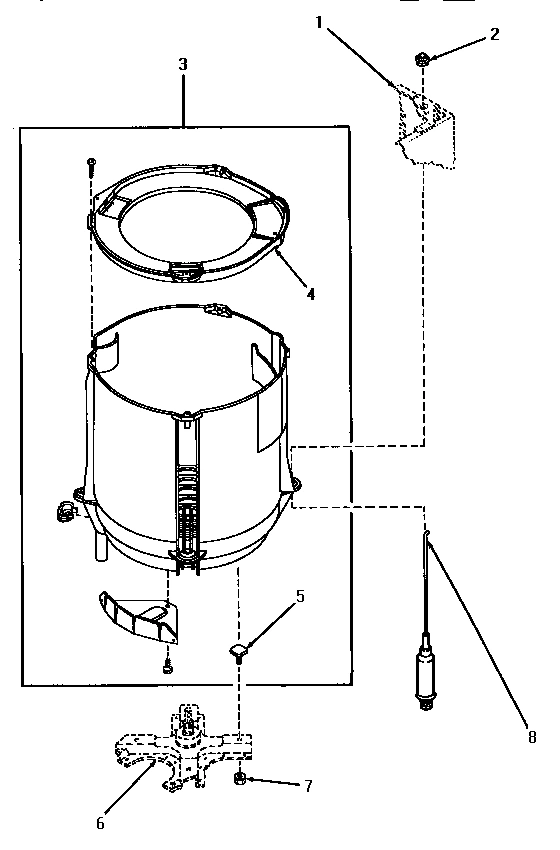

09 - OUTER TUB AND SNUBBER ASSY

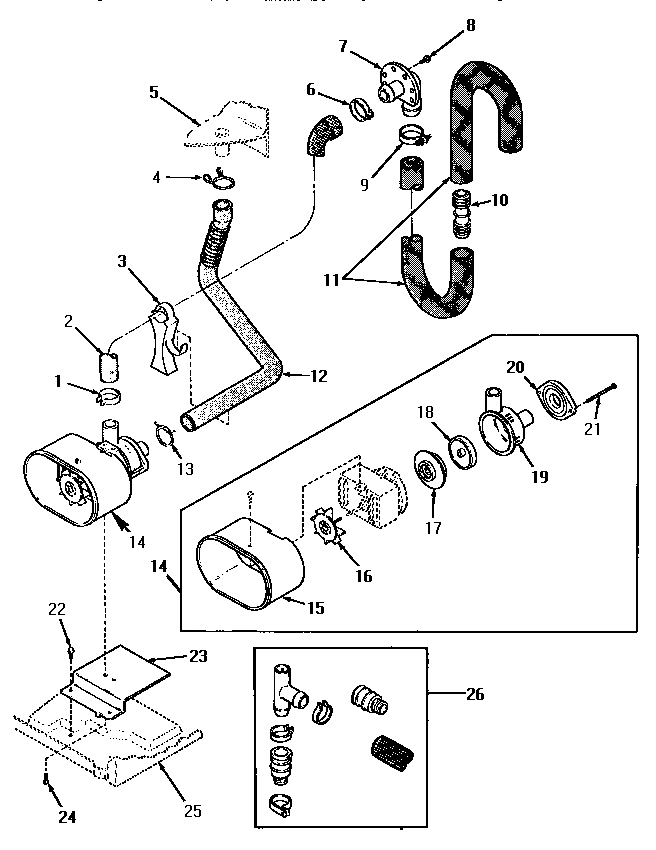

12 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT

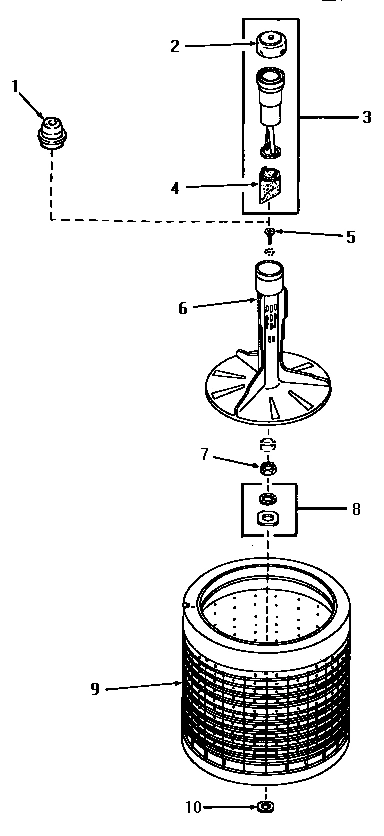

01 - AGITATOR AND WASHTUB

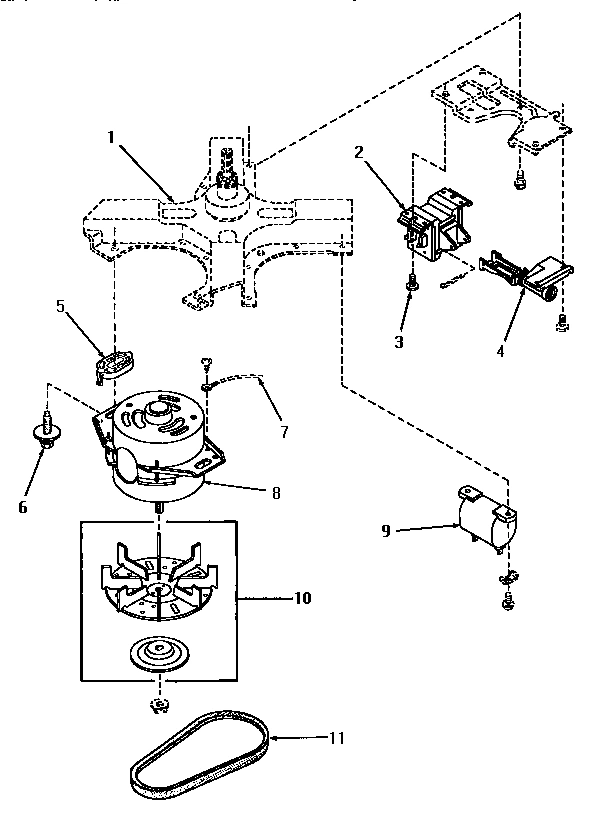

08 - MOTOR, BELT, SOLENOID AND CAPACITOR

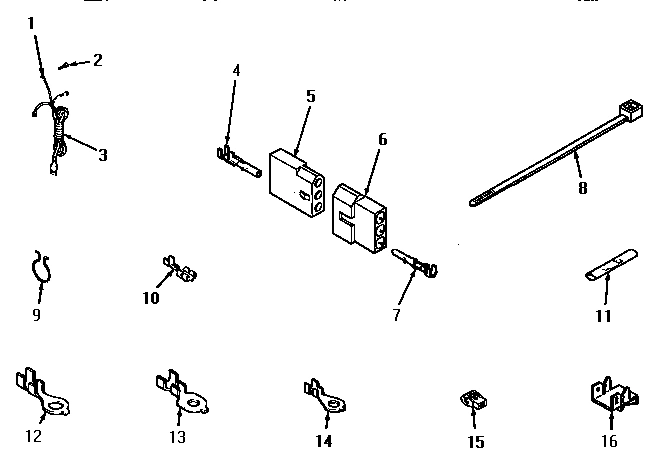

10 - POWER CORD, WIRE HARNESSES, WIRE & TERM

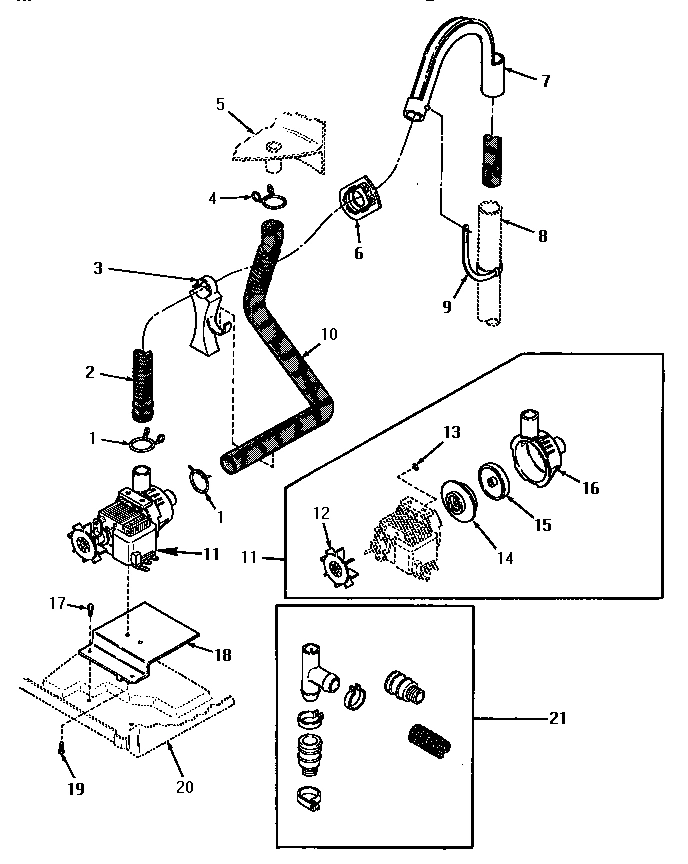

11 - PUMP ASSY, HOSES AND SIPHON BREAK KIT
Common parts from model Whirlpool VA6013 WASHER
NOTE 3: INVIDUAL WIRES NOT SERVICED SEPERATLE WPL NOTE Contact Us For Availability
1
KNOB WPL 32253 Contact Us For Availability
1
SHIELD,LID SWITCH WPL 29042 Contact Us For Availability
1
ASSY,CLUTCH WPL 13648 Contact Us For Availability
1
CABINET (HARVEST GOLD) WPL 32024H Contact Us For Availability
1
CABINET (ALM) WPL 32024L Contact Us For Availability
1
CABINET (WHT) WPL 32024W Contact Us For Availability
1
VALVE,MIXING WPL 32255 Contact Us For Availability
1
LOADING DOOR, HARVEST GOLD WPL 31315H Contact Us For Availability
1
LOADING DOOR, ALMOND WPL 31315L Contact Us For Availability
1
LOADING DOOR, WHITE WPL 31315W Contact Us For Availability
1
CLAMP,HOSE WPL 29172 Contact Us For Availability
1
NO LONGER AVAILABLE WPL 13541 Contact Us For Availability
2
INDICATOR,DIAL WPL 32254 Contact Us For Availability
2
SCREW,6-32 X 1 ROUND H WPL Q6516 Contact Us For Availability
2
ASSY,CLUTCH BASE WPL 13809 Contact Us For Availability
2
TOP BRACE WPL 32022 Contact Us For Availability
2
SCREW,8-18 X 3/8 TAPPI WPL 56392 Contact Us For Availability
2
SCREW WPL 25817C Contact Us For Availability
2
BUMPER WPL 21685 Contact Us For Availability
2
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
2
PIVOT WPL 14036 Contact Us For Availability
2
HOSE,PUMP TO DRAIN WPL 30148 Contact Us For Availability
2
COVER,SOFTENER WPL 13652 Contact Us For Availability
2
SOLENOID WPL 13533 Contact Us For Availability
2
MOTOR WPL 32137 Contact Us For Availability
3
ASSY,KNOB-ROTARY-BROWN WPL 32310 Contact Us For Availability
3
SWITCH WPL 27249 Contact Us For Availability
3
GEAR WPL 13810 Contact Us For Availability
3
SLEEVE,LONG WPL 24128 Contact Us For Availability
3
ASSY,SCREW & WASHER WPL 27203 Contact Us For Availability
3
TUB WPL 13647 Contact Us For Availability
3
STAND,HOSE WPL 29284 Contact Us For Availability
3
ASSY,SOFTENER CASE WPL 13651 Contact Us For Availability
3
BOLT WPL 13532 Contact Us For Availability
3
POWER CORD AND PLUG WPL 22660 Contact Us For Availability
4
RETAINER WPL 10519 Contact Us For Availability
4
LEVER,OUT-OF-BAL SWITC WPL 32394 Contact Us For Availability
4
SHAFT WPL 13811 Contact Us For Availability
4
PAD, BUMPER WPL Y56128 Contact Us For Availability
4
MOUNTING BRACKET WPL Y24127 Contact Us For Availability
4
HOSE, INLET WPL 32136 Contact Us For Availability
4
CATCH WPL 27419 Contact Us For Availability
4
COVER,TUB WPL 13653 Contact Us For Availability
4
CLAMP,HOSE WPL 13582 Contact Us For Availability
4
FILTER,LINT WPL 13654 Contact Us For Availability
4
ASSY,LEVER WPL 13531 Contact Us For Availability
4
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
5
NUT WPL 57584 Contact Us For Availability
5
NUT,PUSH WPL 29043 Contact Us For Availability
5
PACKING WPL 13514 Contact Us For Availability
5
LOCATER, PANEL WPL 56079 Contact Us For Availability
5
PLUG,FLOW REGULATOR WPL Y24135 Contact Us For Availability
5
INLET, WATER WPL 32028 Contact Us For Availability
5
NUT,8-32 HEX BRILOCK WPL 21752 Contact Us For Availability
5
BOLT WPL 13529 Contact Us For Availability
5
NO LONGER AVAILABLE WPL 13540 Contact Us For Availability
5
INSULATOR WPL 13523 Contact Us For Availability
5
RECEPTACLE,3 CIRCUIT WPL 23039 Contact Us For Availability
6
PANEL,GRAPHIC-VA6013 WPL 32448 Contact Us For Availability
6
SPRING,SWITCH LEVER WPL 27603 Contact Us For Availability
6
ASSY,GEAR BOX WPL 13812 Contact Us For Availability
6
REGULATOR,FLOW WPL 21438B Contact Us For Availability
6
NUT,SPEED U-TYPE WPL 54038 Contact Us For Availability
6
HINGE,HIDDEN WPL 27626 Contact Us For Availability
6
NO LONGER AVAILABLE WPL 13650 Contact Us For Availability
6
ASSY,BOLT WPL 13525 Contact Us For Availability
6
PLUG, 3 CIRCUIT WPL 23040 Contact Us For Availability
6
RELIEF, STRAIN WPL 32219 Contact Us For Availability
7
INSERT,L.H. WPL 32217 Contact Us For Availability
7
CLIP,SPEED-``U`` TYPE WPL Y27837 Contact Us For Availability
7
PULLEY,BOSS WPL 13522 Contact Us For Availability
7
NUT WPL 13519 Contact Us For Availability
7
REGULATOR,FLOW WPL 23224C Contact Us For Availability
7
PANEL,REAR WPL 31769 Contact Us For Availability
7
ELBOW,DRAIN HOSE-PLAST WPL 23553 Contact Us For Availability
7
NUT WPL 13537 Contact Us For Availability
7
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
7
DRAIN HOSE SLEEVE WPL 29144 Contact Us For Availability
8
SCREW,No.8ABX3/4 POZIDRI WPL 31752 Contact Us For Availability
8
NUT,SPEED U-TYPE WPL 27248 Contact Us For Availability
8
COVER,CLUTCH WPL 13508 Contact Us For Availability
8
SOLENOID WPL 24126 Contact Us For Availability
8
BRACKET, VALVE WPL 27126 Contact Us For Availability
8
ASSY,SNUBBER-FRONT WPL 32262 Contact Us For Availability
8
ASSY,SNUBBER-REAR WPL 32332 Contact Us For Availability
8
SCREW,10B-16 X 1/2 HEX WPL 51784 Contact Us For Availability
8
WASHER WPL 13538 Contact Us For Availability
8
MOTOR WPL 13646 Contact Us For Availability
8
WIRE TIE WPL 55881 Contact Us For Availability
9
NO LONGER AVAILABLE WPL 32445 Contact Us For Availability
9
BRACKET,OUT-OF-BAL SWI WPL 27250 Contact Us For Availability
9
SCREW WPL 13509 Contact Us For Availability
9
SLEEVE,SHORT WPL 24129 Contact Us For Availability
9
WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability
9
DISPENSER,BLEACH WPL 32311 Contact Us For Availability
9
TUB,WASH WPL 13813 Contact Us For Availability
9
CAPACITOR WPL 13655 Contact Us For Availability
9
CLIP,WIRE WPL 51291 Contact Us For Availability
9
STRAP, STANDPIPE-BEADED WPL 29999 Contact Us For Availability
10
INSERT,R.H. WPL 32218 Contact Us For Availability
10
CLIP,U WPL 27610 Contact Us For Availability
10
SUB 32643 WPL 31511 Contact Us For Availability
10
HINGE,HOLD-DOWN LUG WPL Y27103 Contact Us For Availability
10
GUIDE,ARMATURE WPL 24130 Contact Us For Availability
10
BUSHING WPL 27625 Contact Us For Availability
10
HOSE, PUMP WPL 32026 Contact Us For Availability
10
WASHER,FLANGED WPL 13535 Contact Us For Availability
10
PULLEY,MOTOR WPL 13521 Contact Us For Availability
10
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
10
SPADE TERMINAL(12 GAUGE) WPL Y00121 Contact Us For Availability
11
CLIP,GROUNDING WPL 14089 Contact Us For Availability
11
SPRING,BRAKE LEVER WPL 13510 Contact Us For Availability
11
GUSSET, TRANSPLANT WPL 32021 Contact Us For Availability
11
SPRING WPL 24131 Contact Us For Availability
11
STICKER,DISCONNECT POW WPL 24903 Contact Us For Availability
11
HOSE,DRAIN WPL 28293 Contact Us For Availability
11
BELT,V WPL 13520 Contact Us For Availability
11
CONNECTOR TWO 1/4 INCH MALE WPL 21091 Contact Us For Availability
11
PUMP ASSEMBLY WPL 32027 Contact Us For Availability
12
SCREW,8-1/2 TAPPING W/ WPL 28193 Contact Us For Availability
12
GEAR,RATCHET WPL 13517 Contact Us For Availability
12
SCREW,No.8B TAPPING-SPEC WPL 32249 Contact Us For Availability
12
ARMATURE WPL 24132 Contact Us For Availability
12
STRAIN RELIEF WPL 21903 Contact Us For Availability
12
TERMINAL,RING-1/4 STUD WPL Y00113 Contact Us For Availability
12
FAN WPL 32027D Contact Us For Availability
13
TIMER WPL 32041 Contact Us For Availability
13
PULLEY WPL 13518 Contact Us For Availability
13
DIAPHRAGM WPL 24134 Contact Us For Availability
13
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
14
SCREW WPL 21333 Contact Us For Availability
14
FRONT PANEL, HARVEST GOLD WPL 31844H Contact Us For Availability
14
FRONT PANEL, ALMOND WPL 31844L Contact Us For Availability
14
FRONT PANEL, WHITE WPL 31844W Contact Us For Availability
14
BODY,VALVE WPL 24125 Contact Us For Availability
14
PUMP ASSEMBLY WPL 29715 Contact Us For Availability
14
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
14
SEAL AND GASKET WPL 32027A Contact Us For Availability
15
NO LONGER AVAILABLE WPL 32256 Contact Us For Availability
15
NO LONGER AVAILABLE WPL 13546 Contact Us For Availability
15
LOCATOR,PANEL WPL 28102 Contact Us For Availability
15
COVER WPL 29715G Contact Us For Availability
15
INSULATOR,BLUE WPL 70210 Contact Us For Availability
15
IMPELLER WPL 32027B Contact Us For Availability
16
SWITCH,TEMPERATURE WPL 32139 Contact Us For Availability
16
FAN WPL 29715F Contact Us For Availability
16
GROUND CLIP WPL Y00161 Contact Us For Availability
16
PUMP BODY WPL 32027C Contact Us For Availability
17
SWITCH,PRESSURE WPL 32069 Contact Us For Availability
17
RUBBER PAD WPL 21749 Contact Us For Availability
17
BARREL,SUPPORT WPL 56534 Contact Us For Availability
17
SEAL GASKET WPL 29715A Contact Us For Availability
18
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
18
CABINET TOP, HARVEST GOLD WPL 32513H Contact Us For Availability
18
CABINET TOP, ALMOND WPL 32513L Contact Us For Availability
18
CABINET TOP, WHITE WPL 32513W Contact Us For Availability
18
IMPELLER WPL 29715B Contact Us For Availability
18
BRACKET,PUMP WPL 32216 Contact Us For Availability
19
BODY,PUMP WPL 29715C Contact Us For Availability
19
SCREW,METRIC 1.00 X 12 WPL 29706 Contact Us For Availability
20
SEE NOTE BASE -- (SEE PAGE 12, KEY 20) WPL Y00000000 Contact Us For Availability
20
BASE ASSEMBLY WPL 32509 Contact Us For Availability
20
FLANGE WPL 29715D Contact Us For Availability
21
SCREW WPL 29715E Contact Us For Availability
NI
OIL,CLUTCH WPL 13516 Contact Us For Availability
NI
SEALANT WPL 13526 Contact Us For Availability
NI
18 GAUGE WIRE WPL 20680 Contact Us For Availability
NI
ASSY,WIRING HARNESS-PU WPL 32221 Contact Us For Availability
NI
ASSY,WIRING HARNESS-LI WPL 32373 Contact Us For Availability
NI
ASSY,WIRING HARNESS WPL 32437 Contact Us For Availability
NI
MOTOR WIRE HARNESS WPL Y14480 Contact Us For Availability
× ![]()
