Model Unimac UU035N Dryer – Common Parts & Diagrams

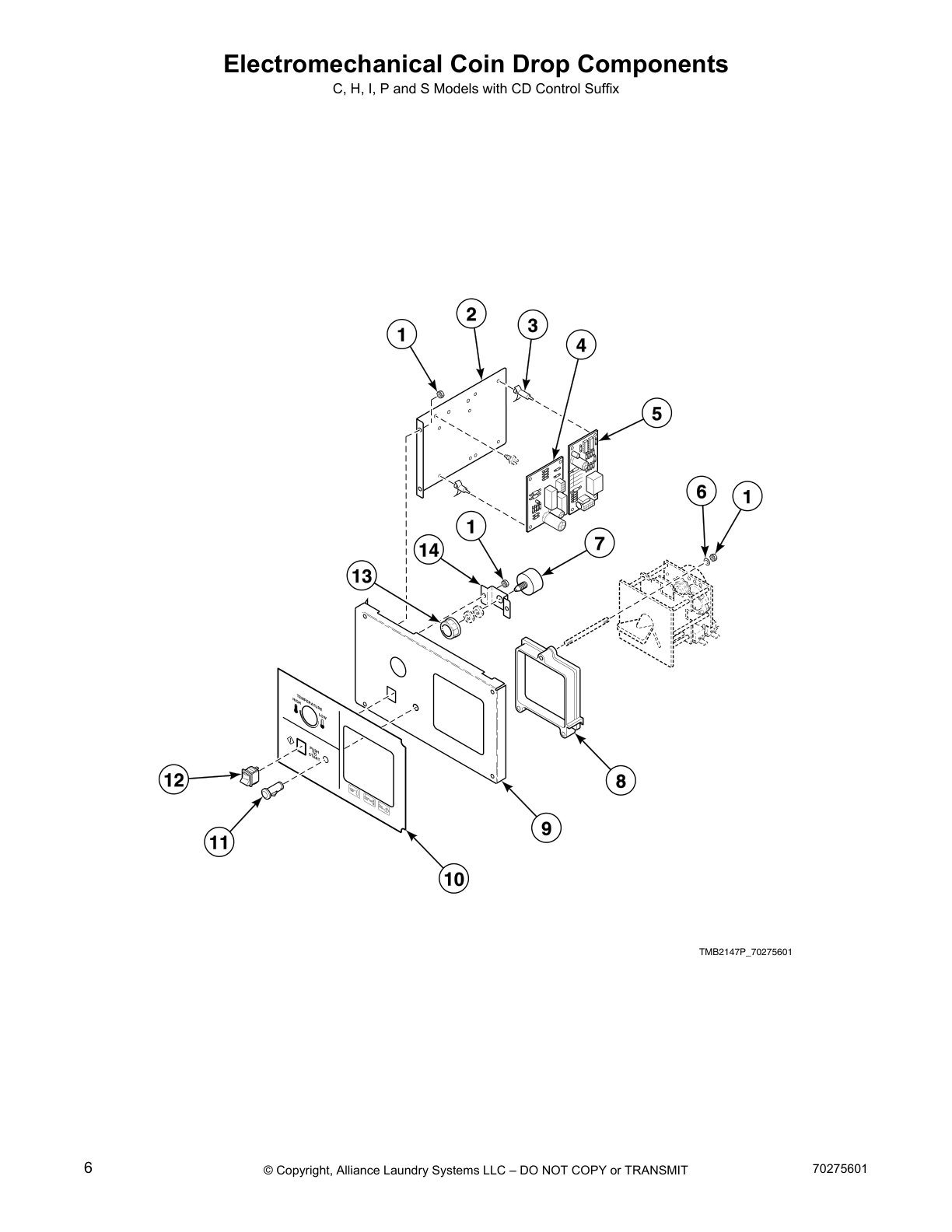

Electromechanical Coin Drop Components

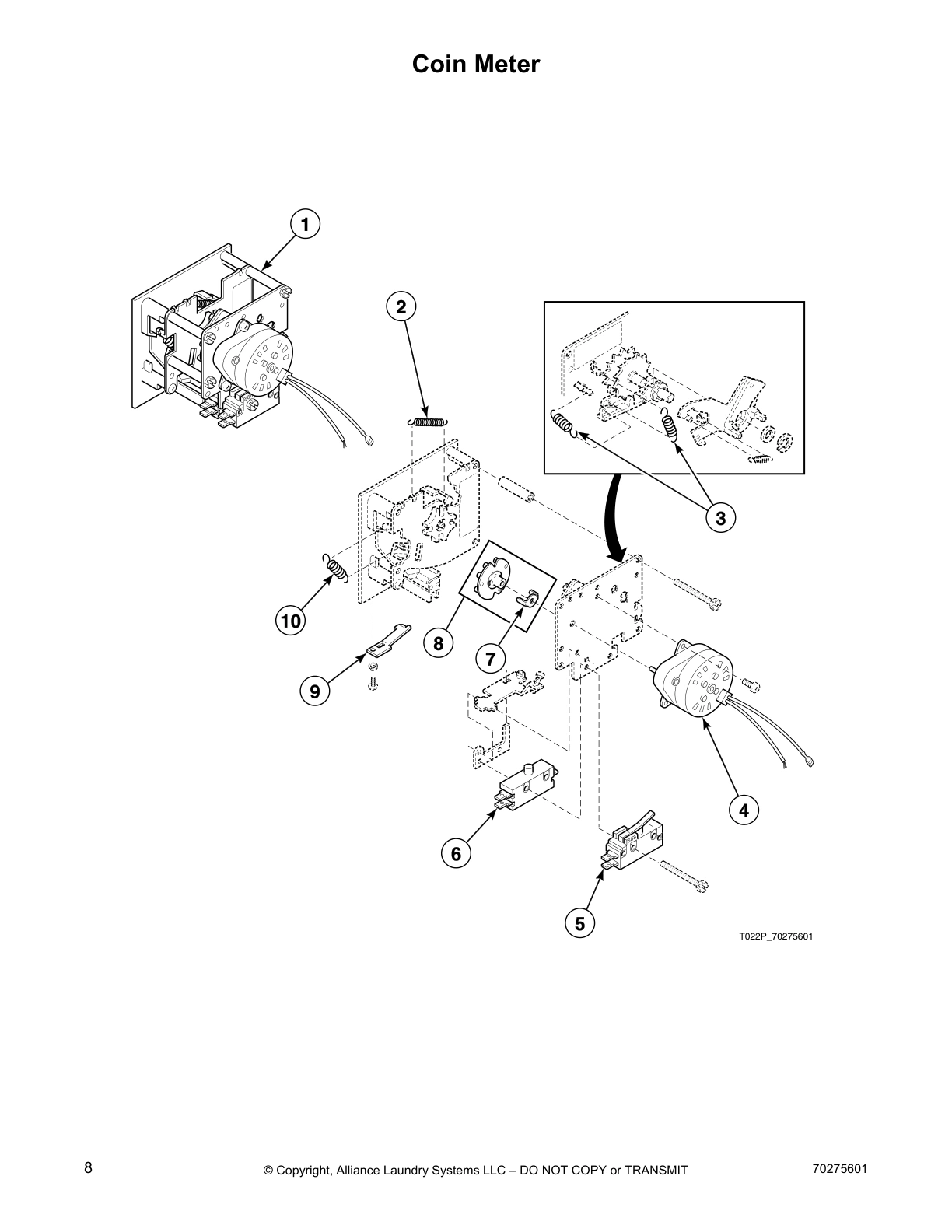

Coin Meter

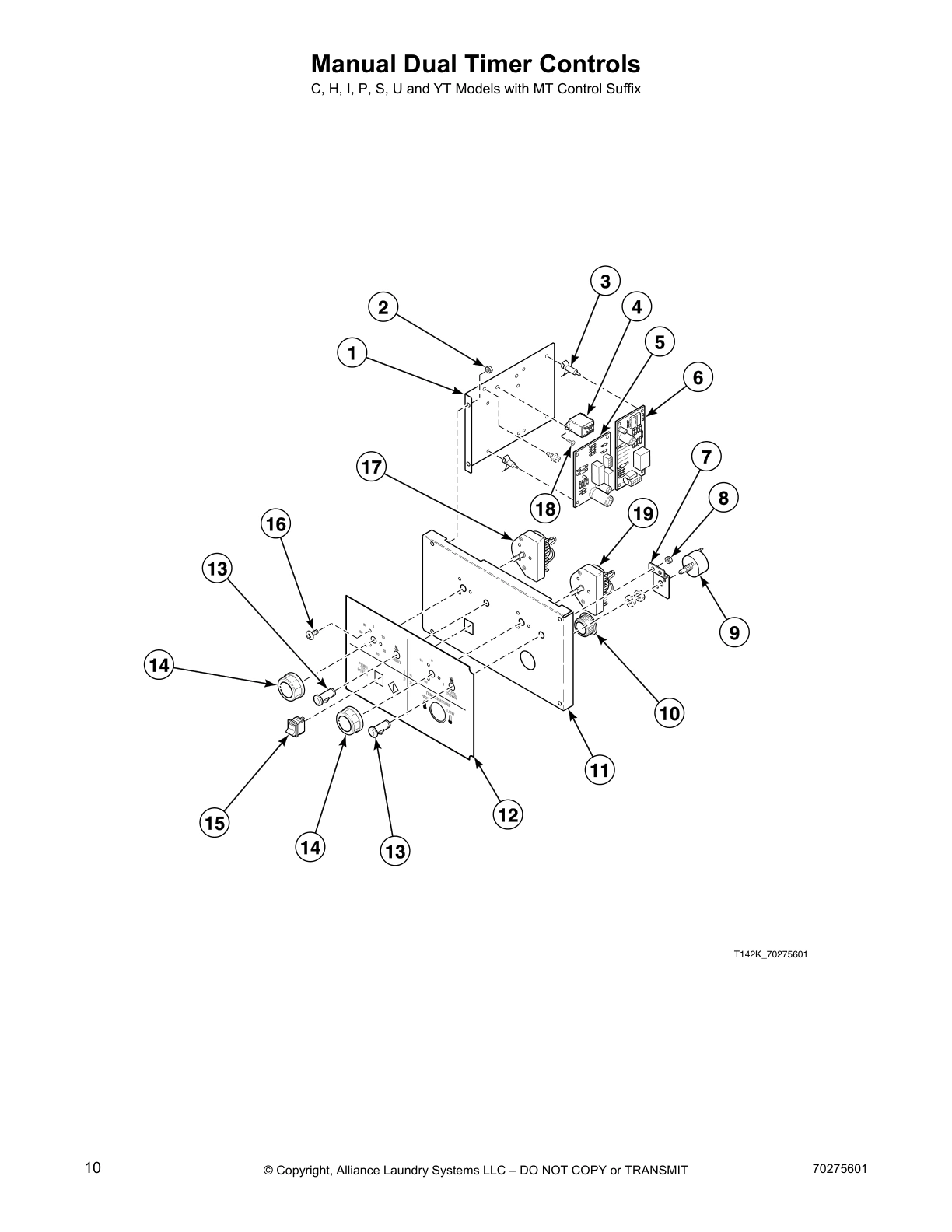

Manual Dual Timer Controls

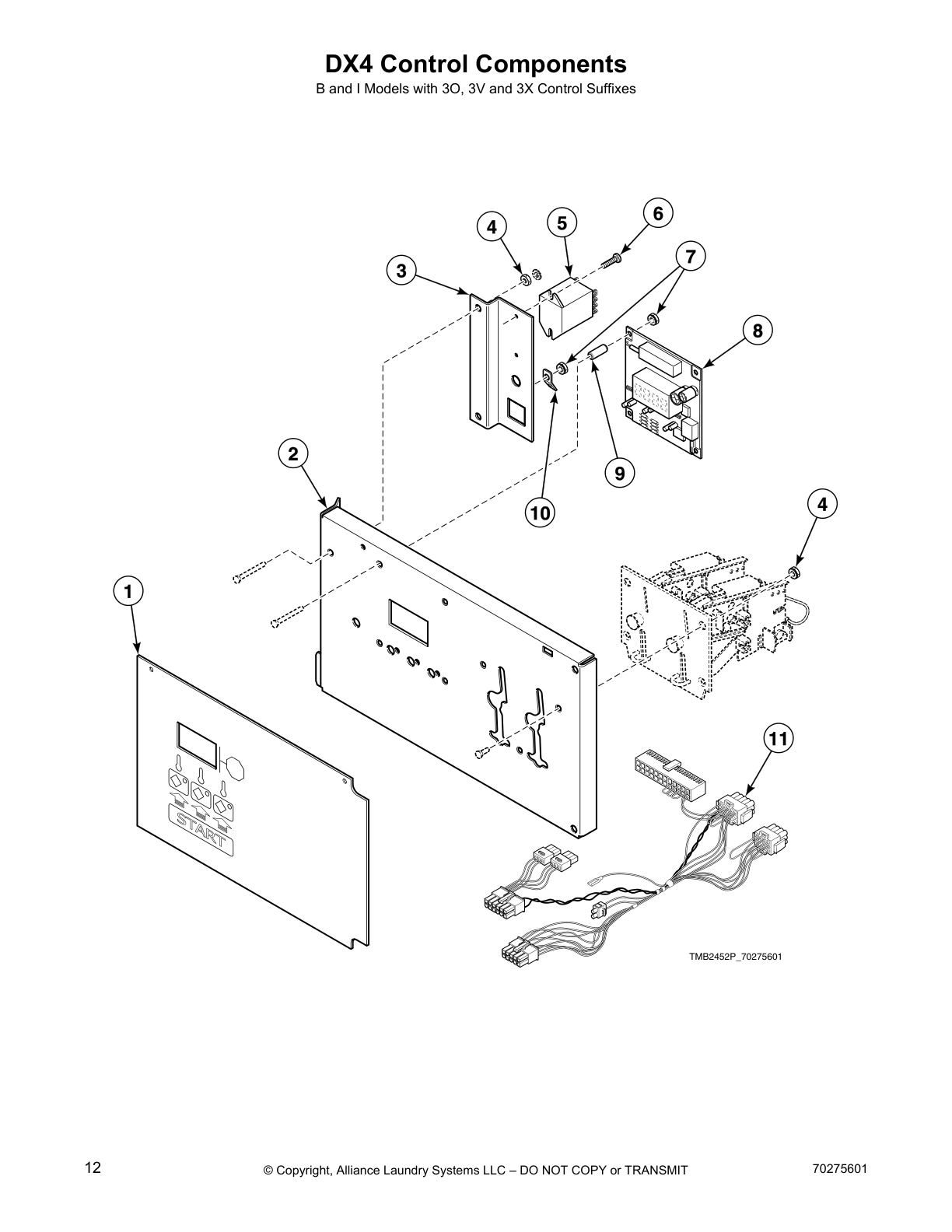

DX4 Control Components

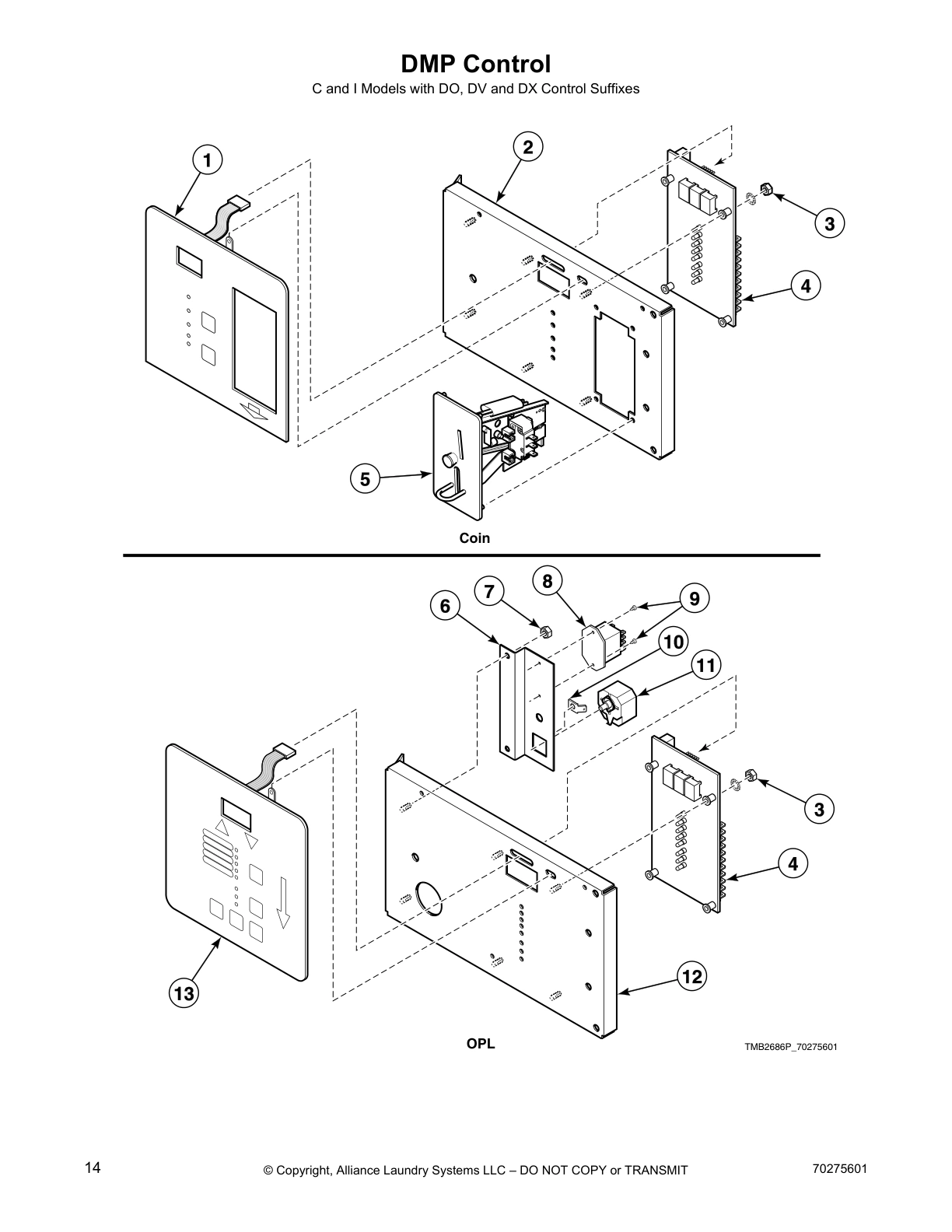

DMP Control

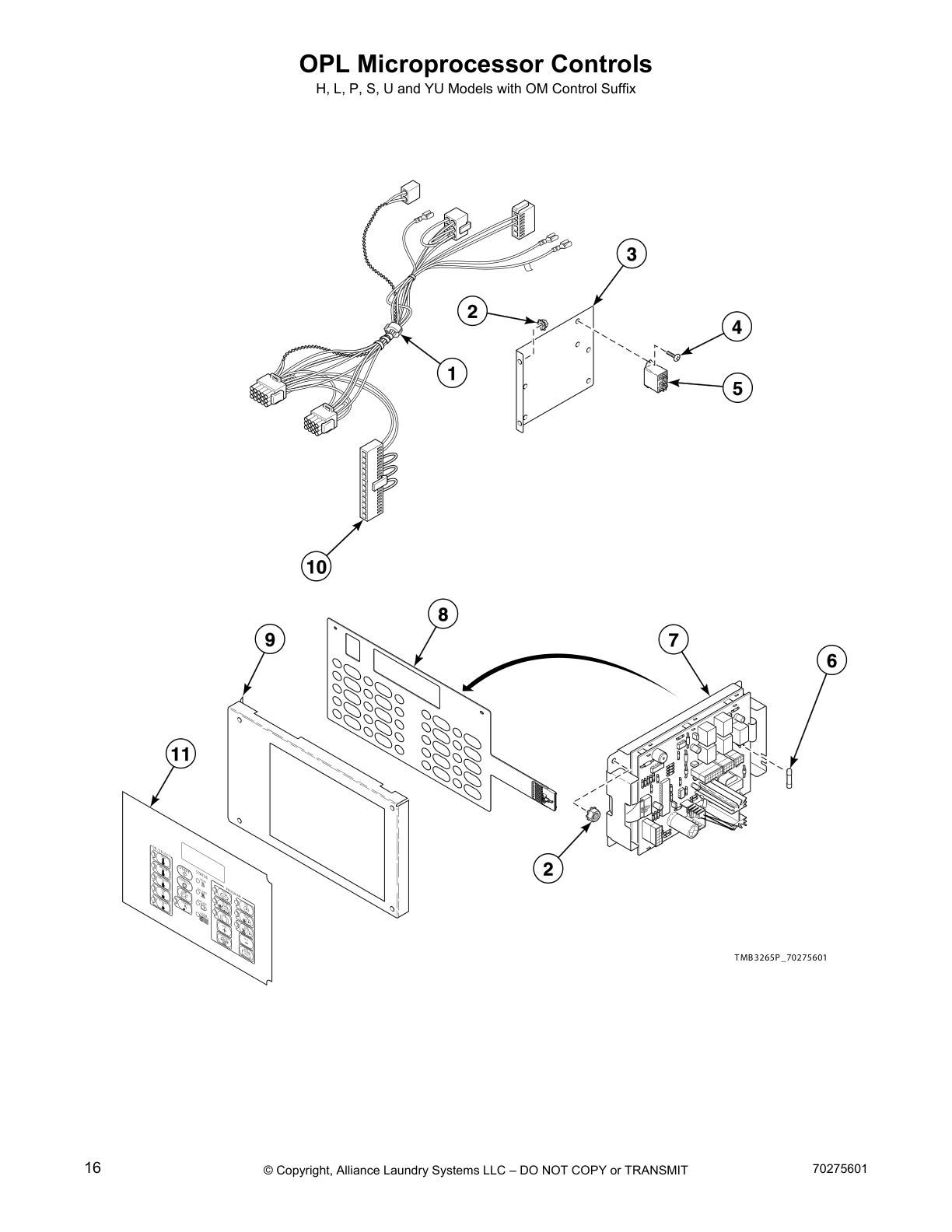

OPL Microprocessor Controls

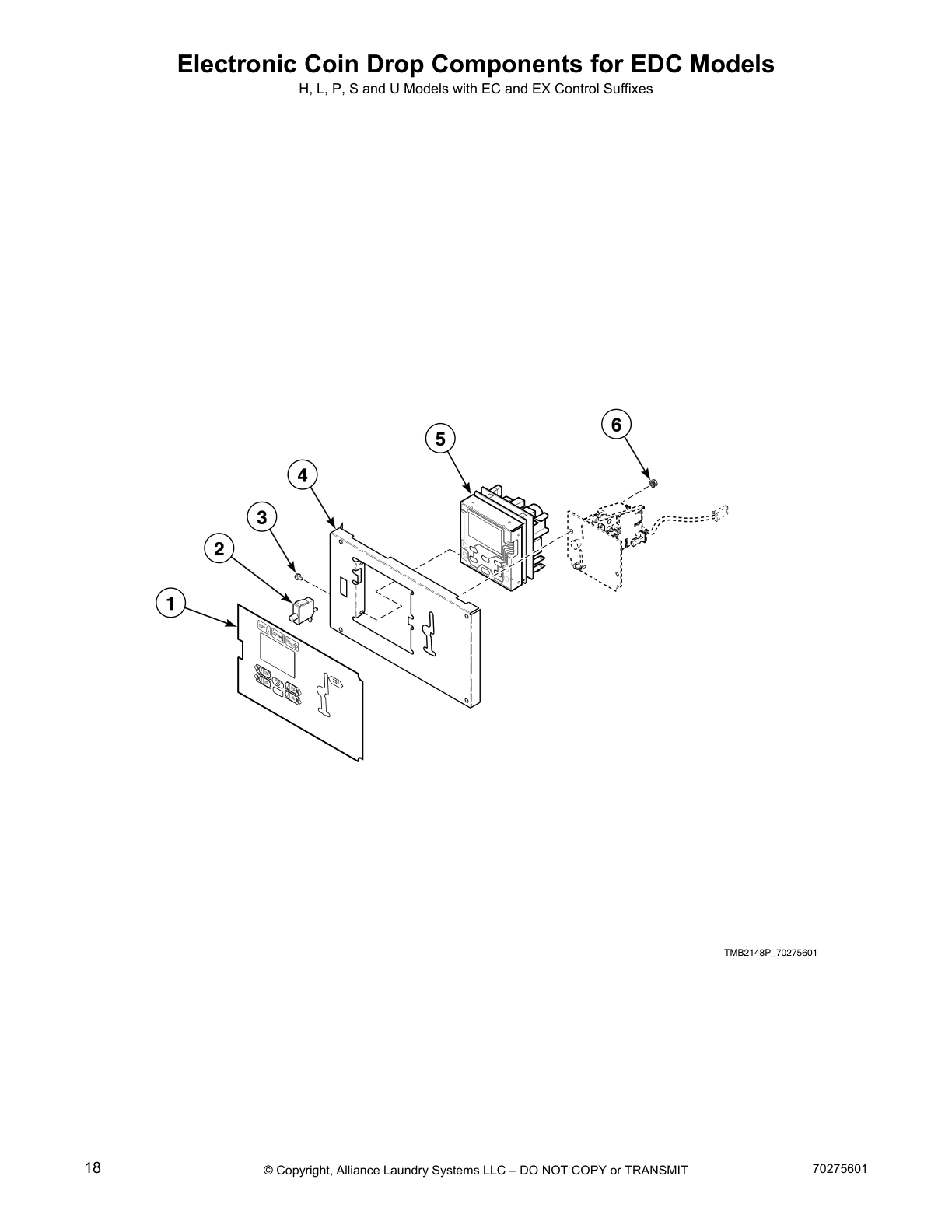

Electronic Coin Drop Components for EDC Models

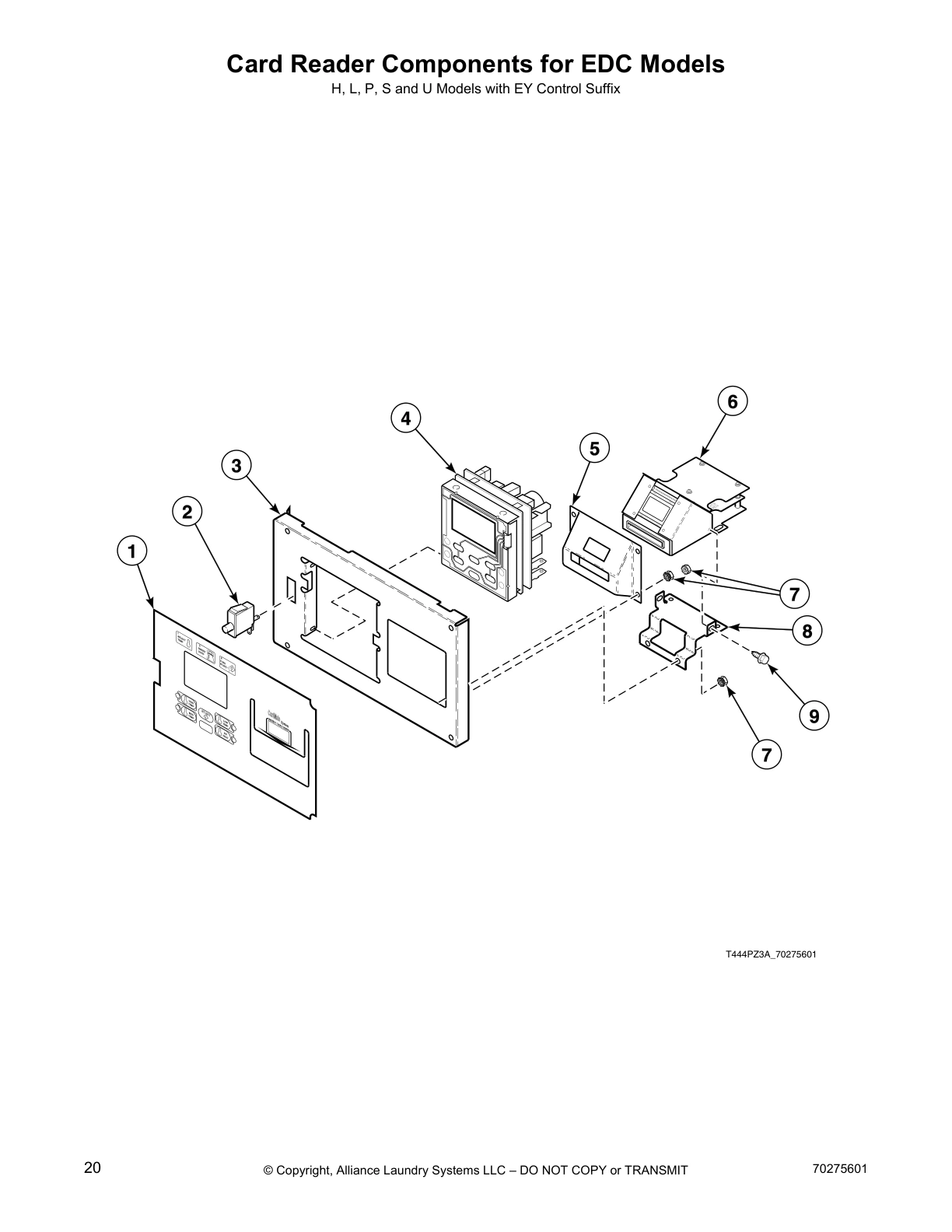

Card Reader Components for EDC Models

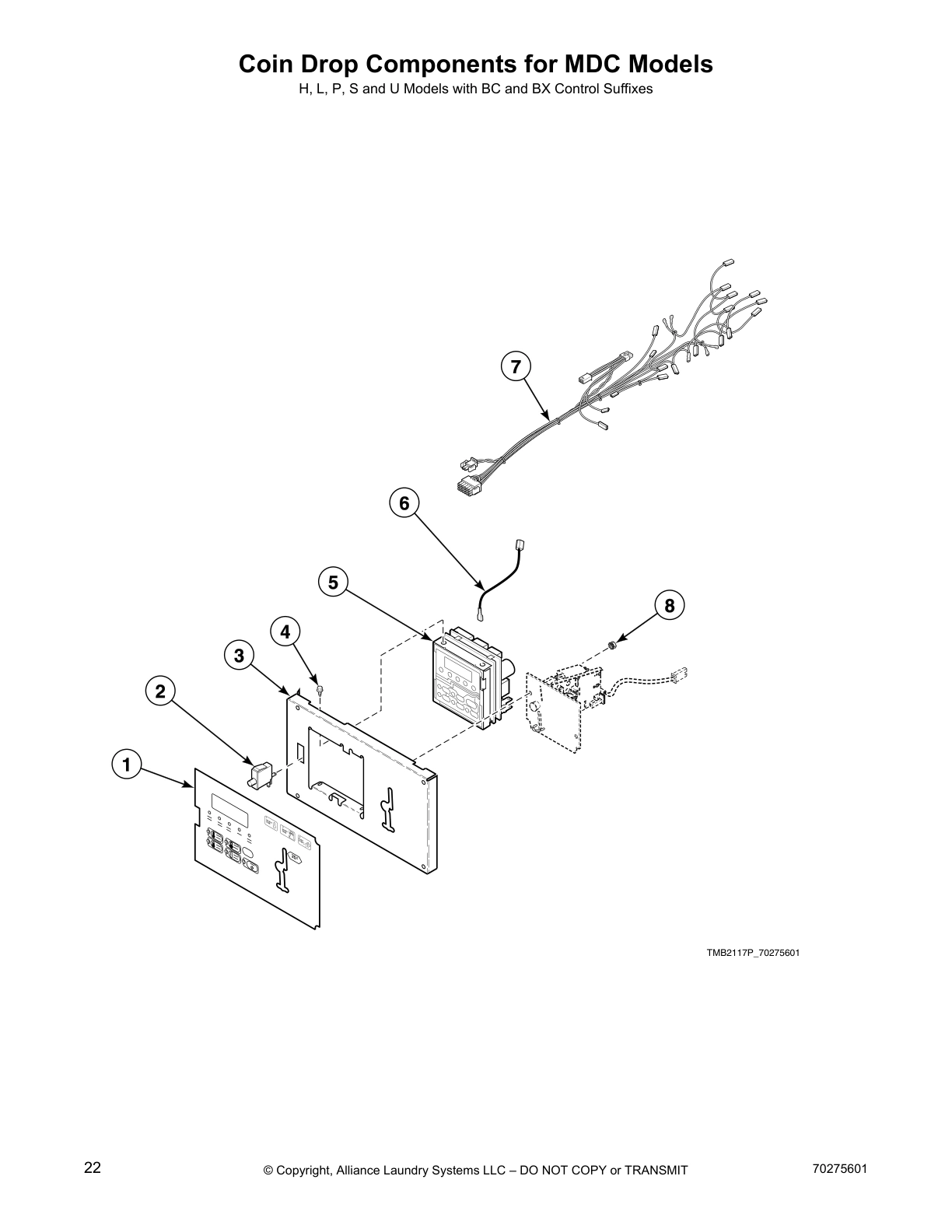

Coin Drop Components for MDC Models

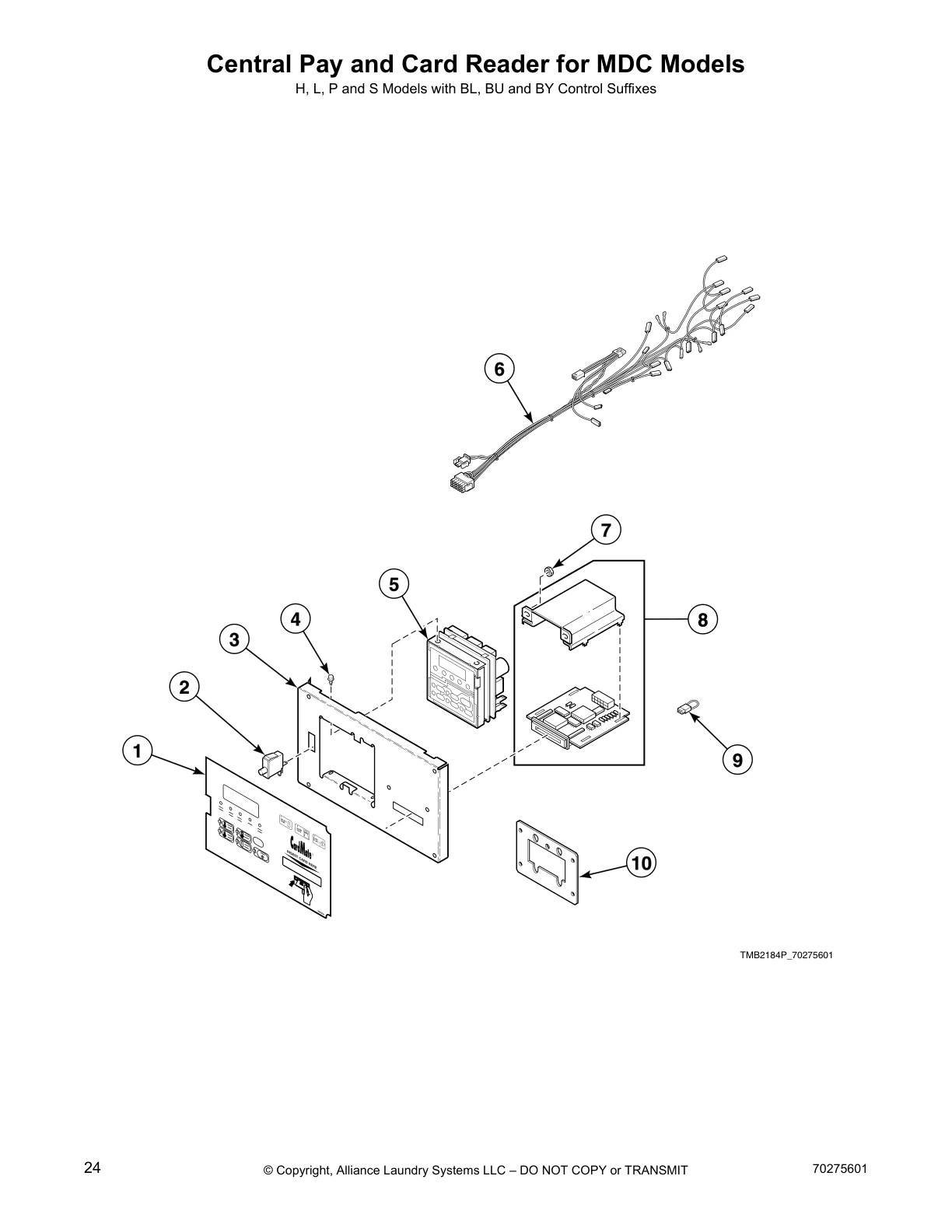

Central Pay and Card Reader for MDC Models

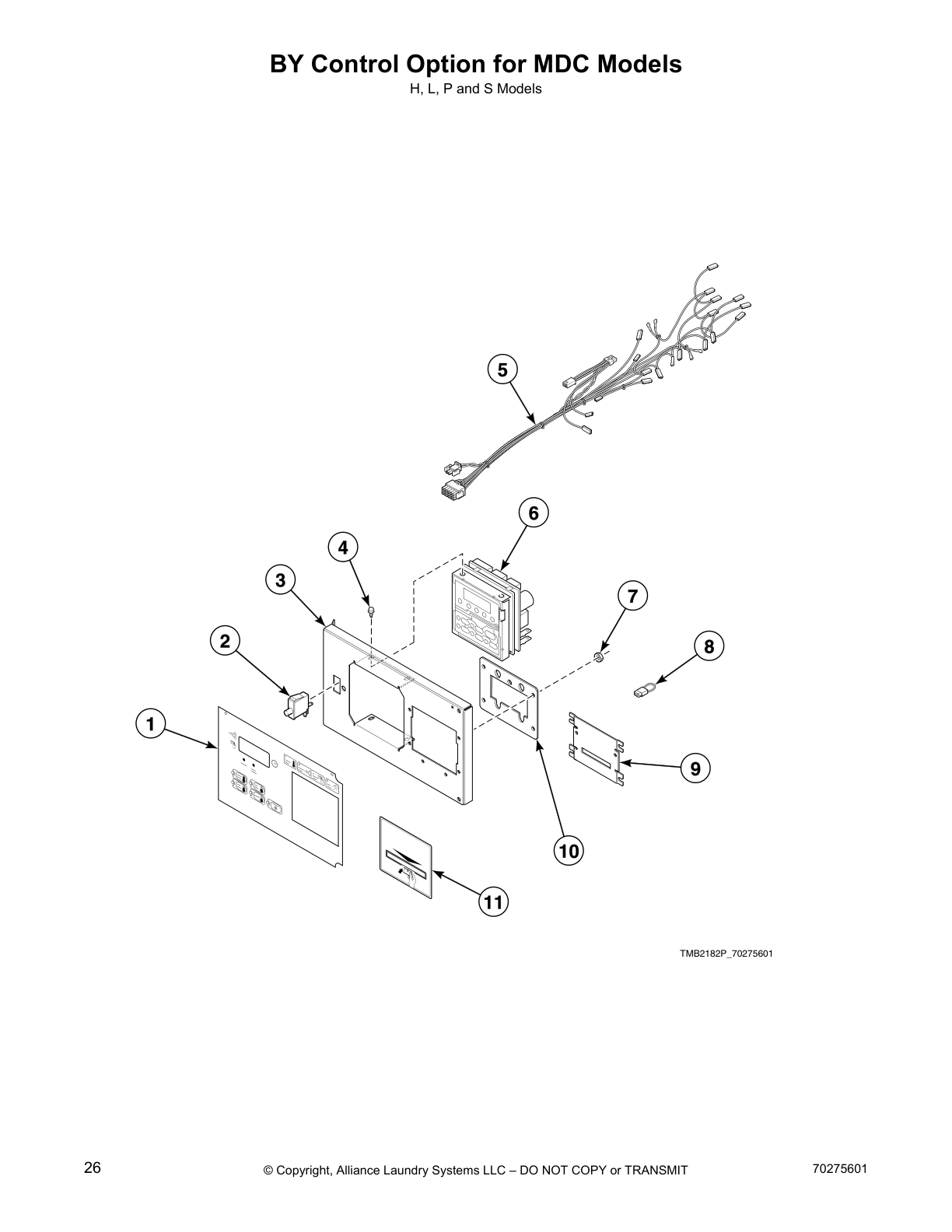

BY Control Option for MDC Models

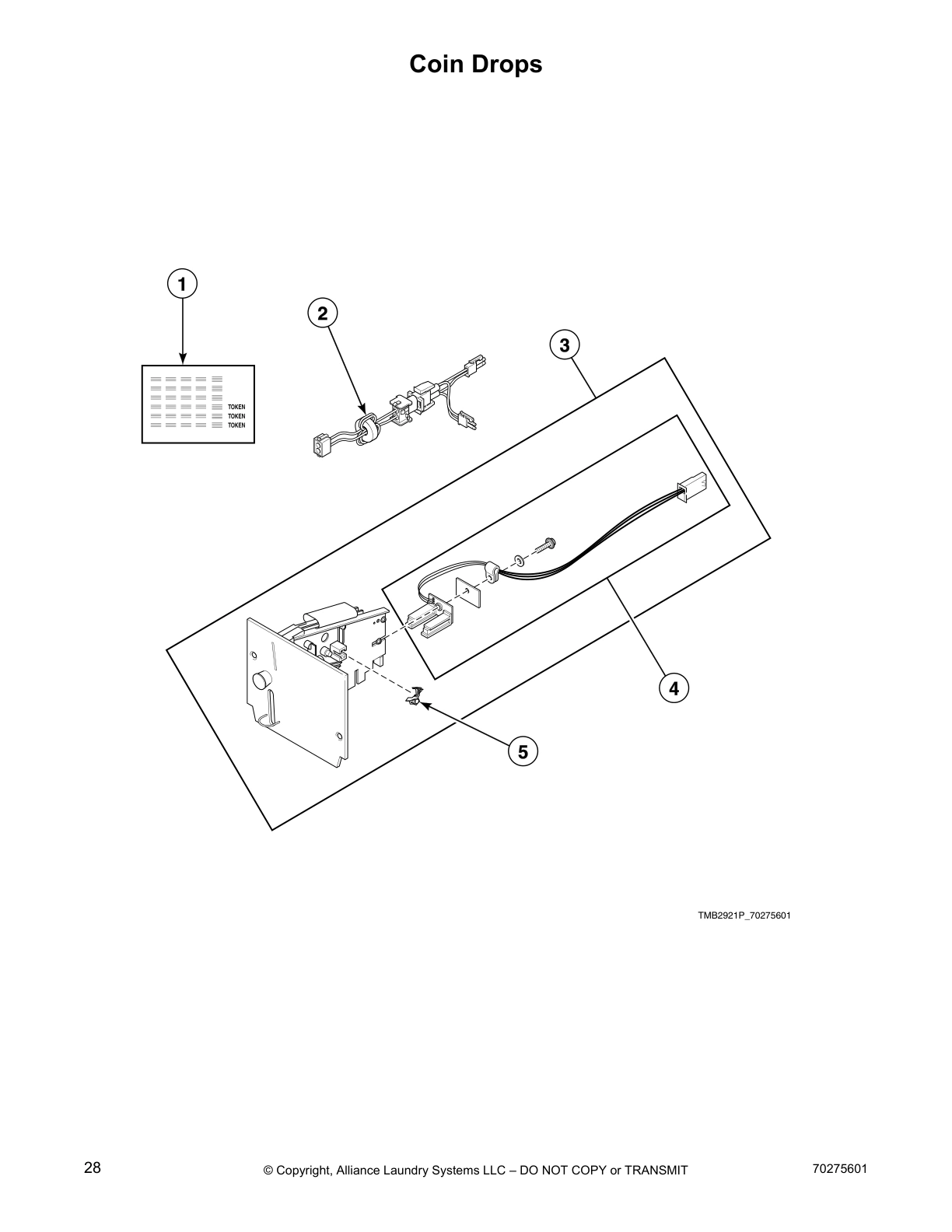

Coin Drops

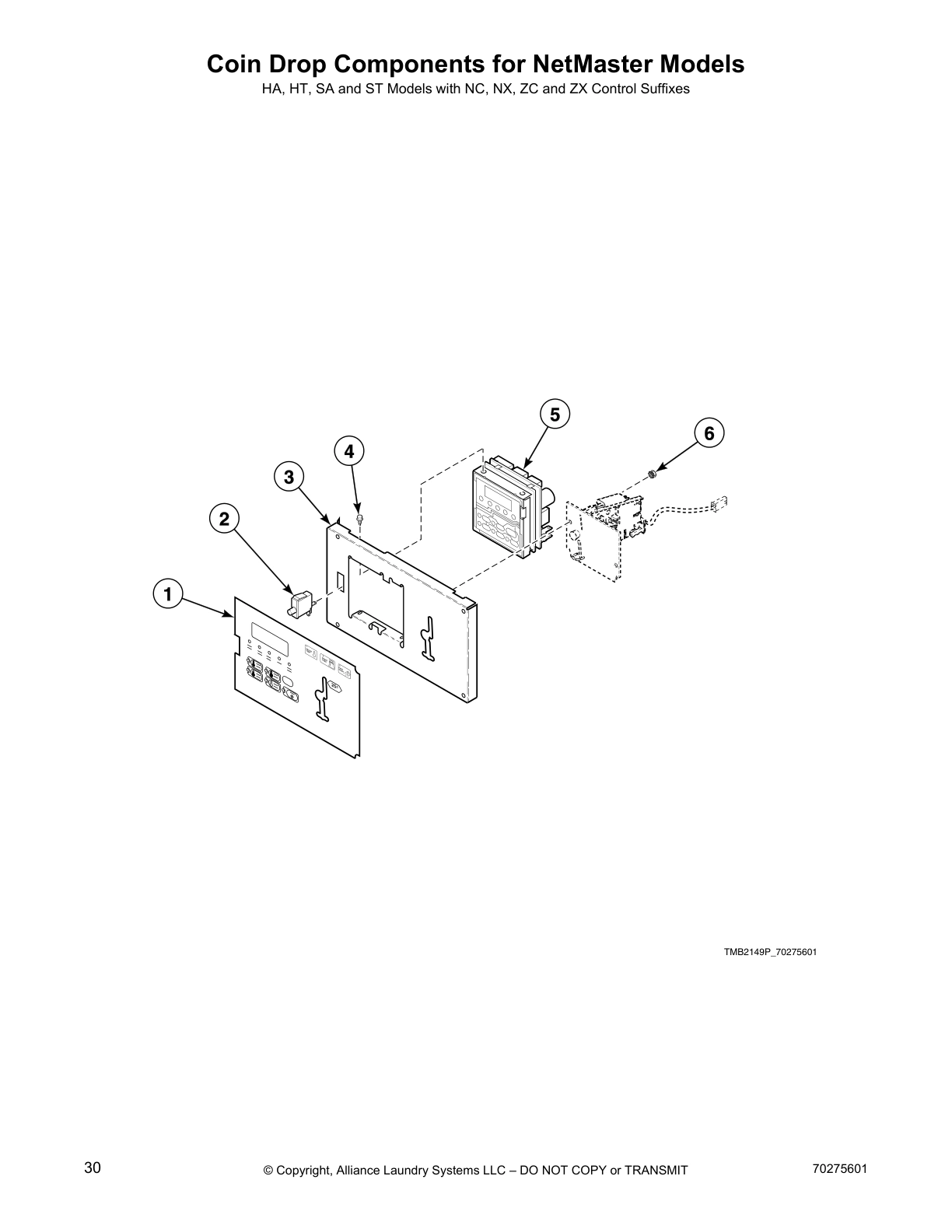

Coin Drop Components for NetMaster Models

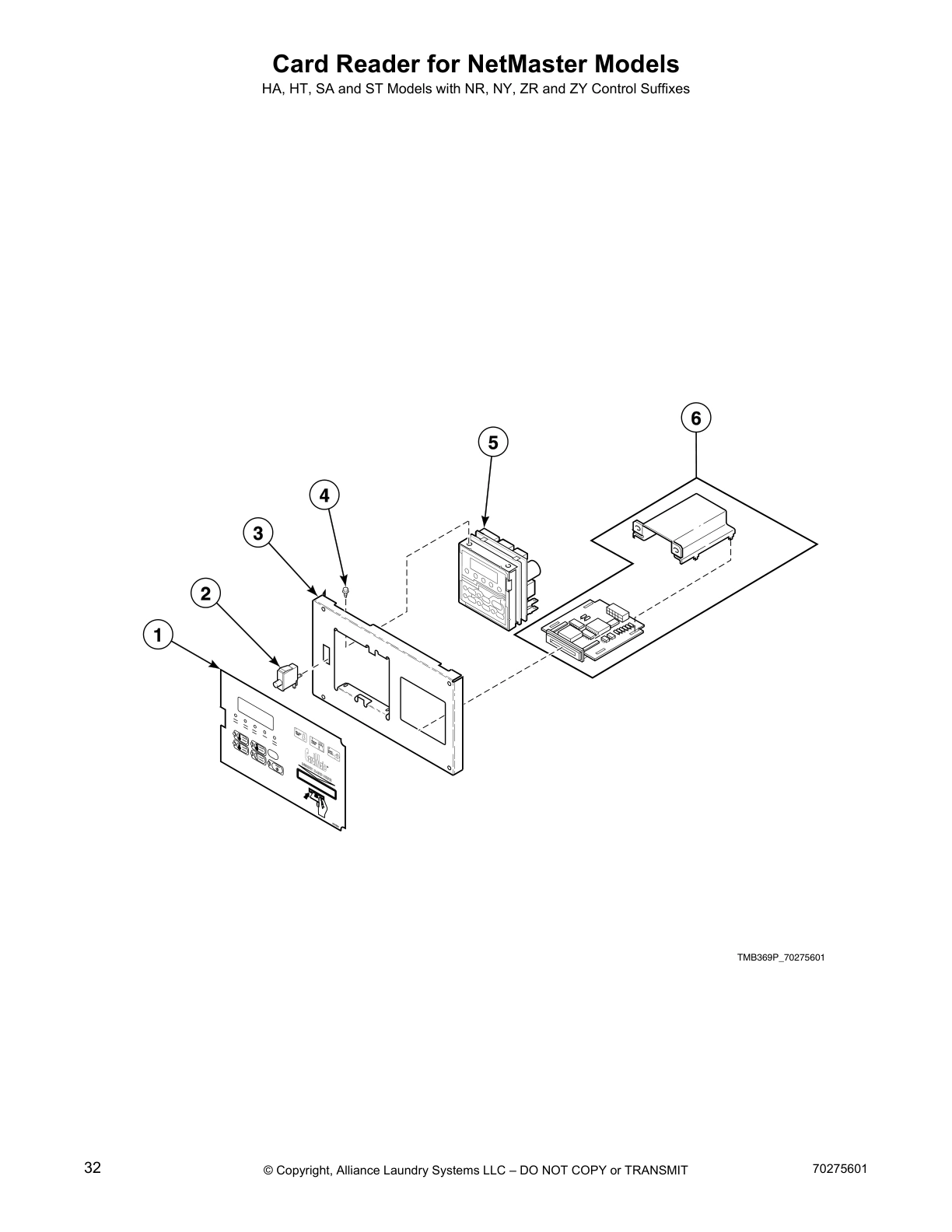

Card Reader for NetMaster Models

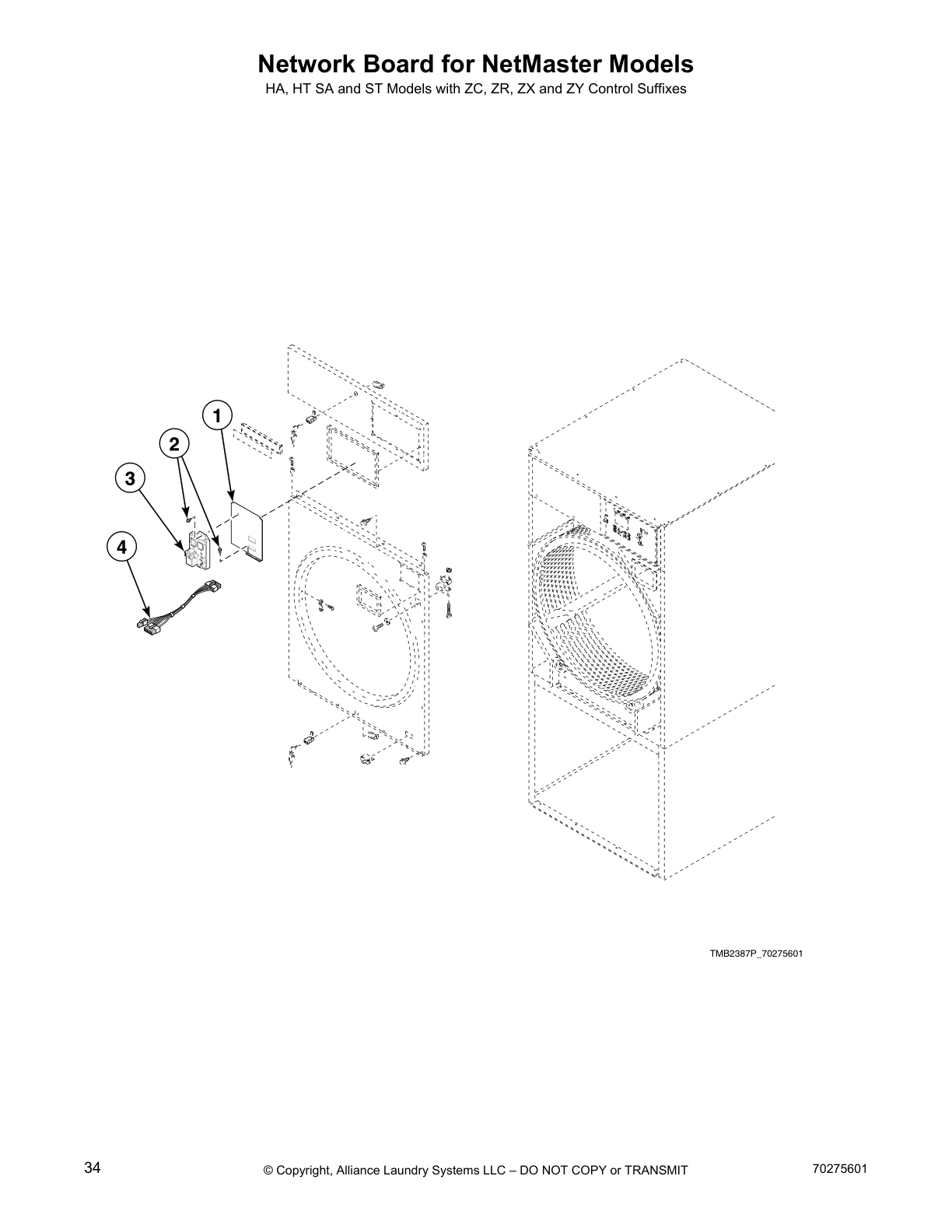

Network Board for NetMaster Models

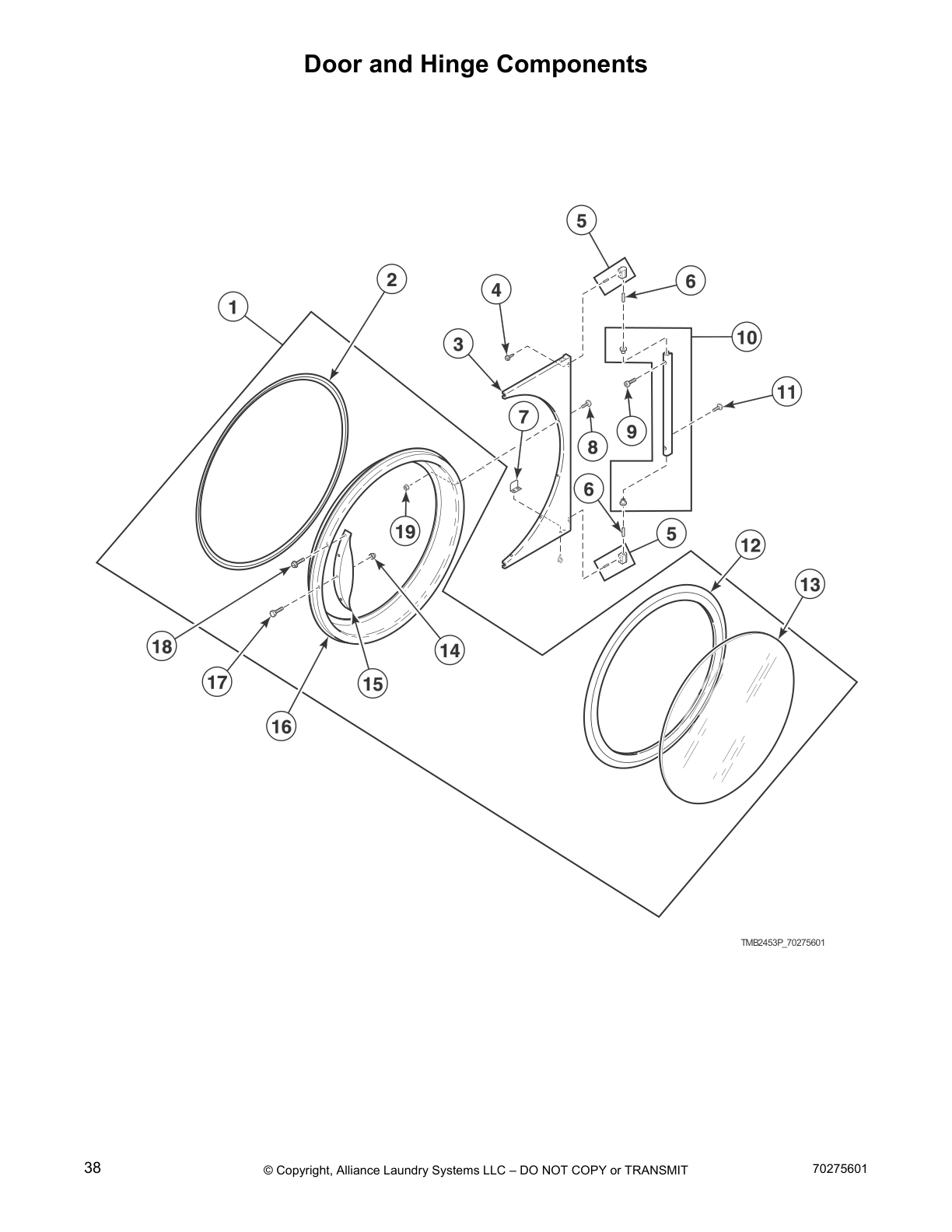

Door and Hinge Components

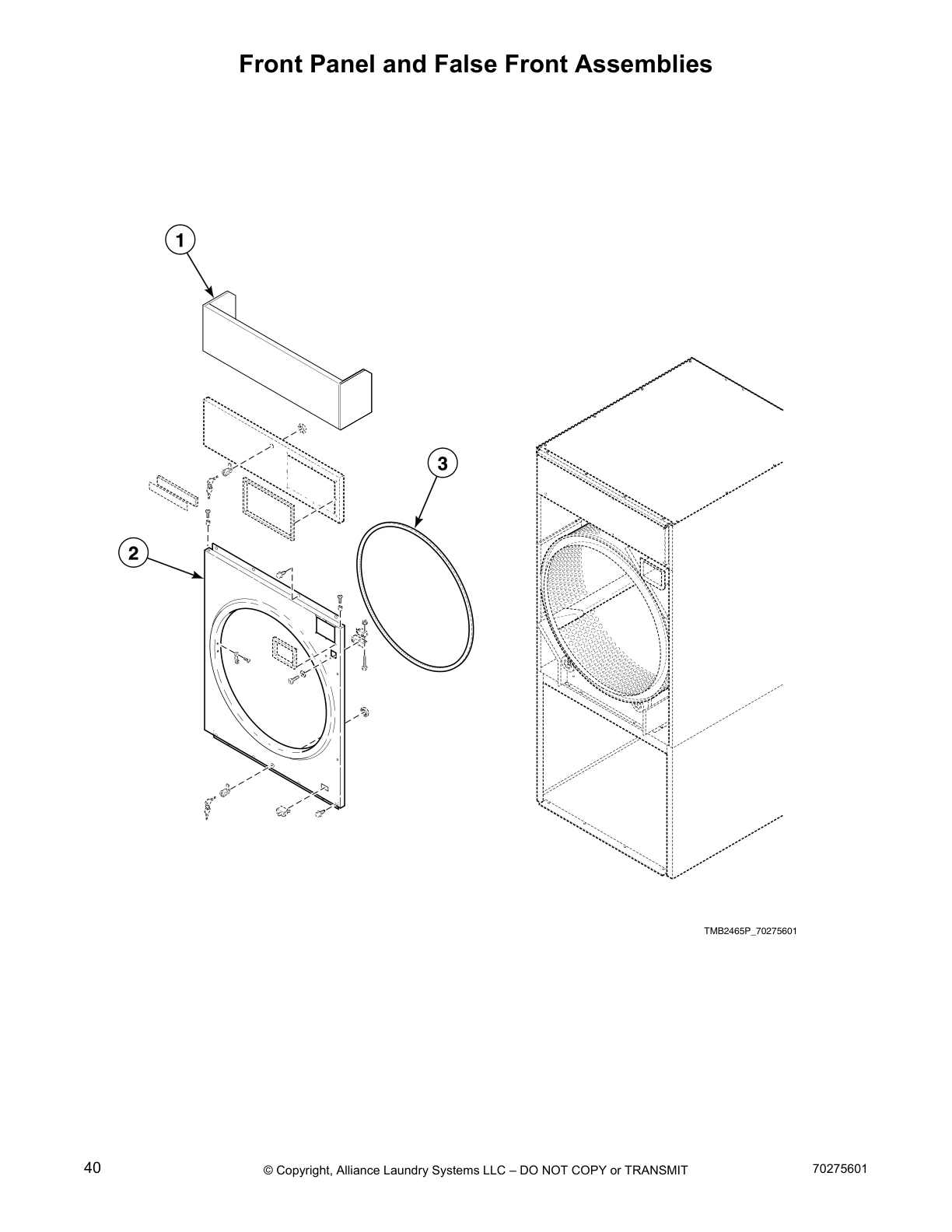

Front Panel and False Front Assemblies

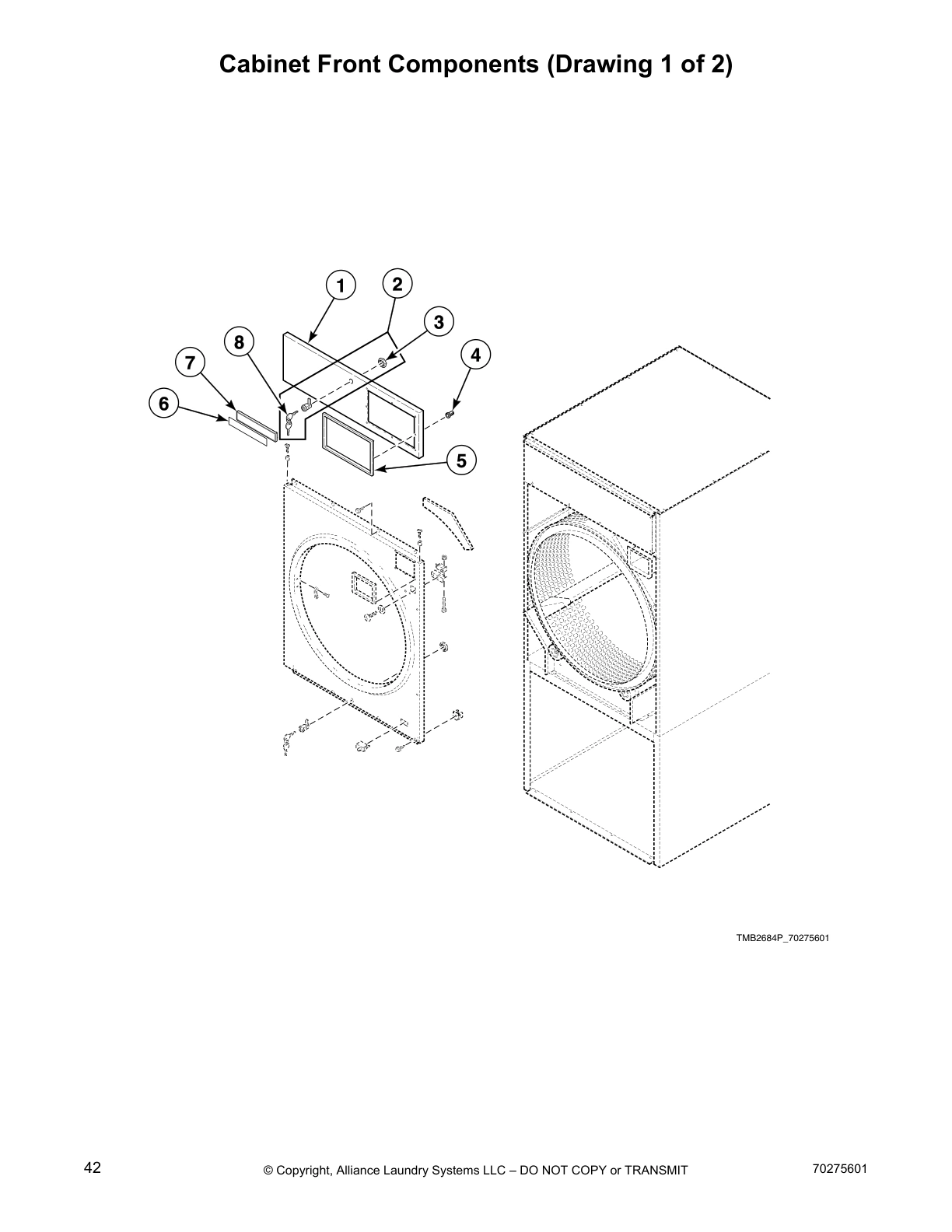

Cabinet Front Components (Drawing 1 of 2)

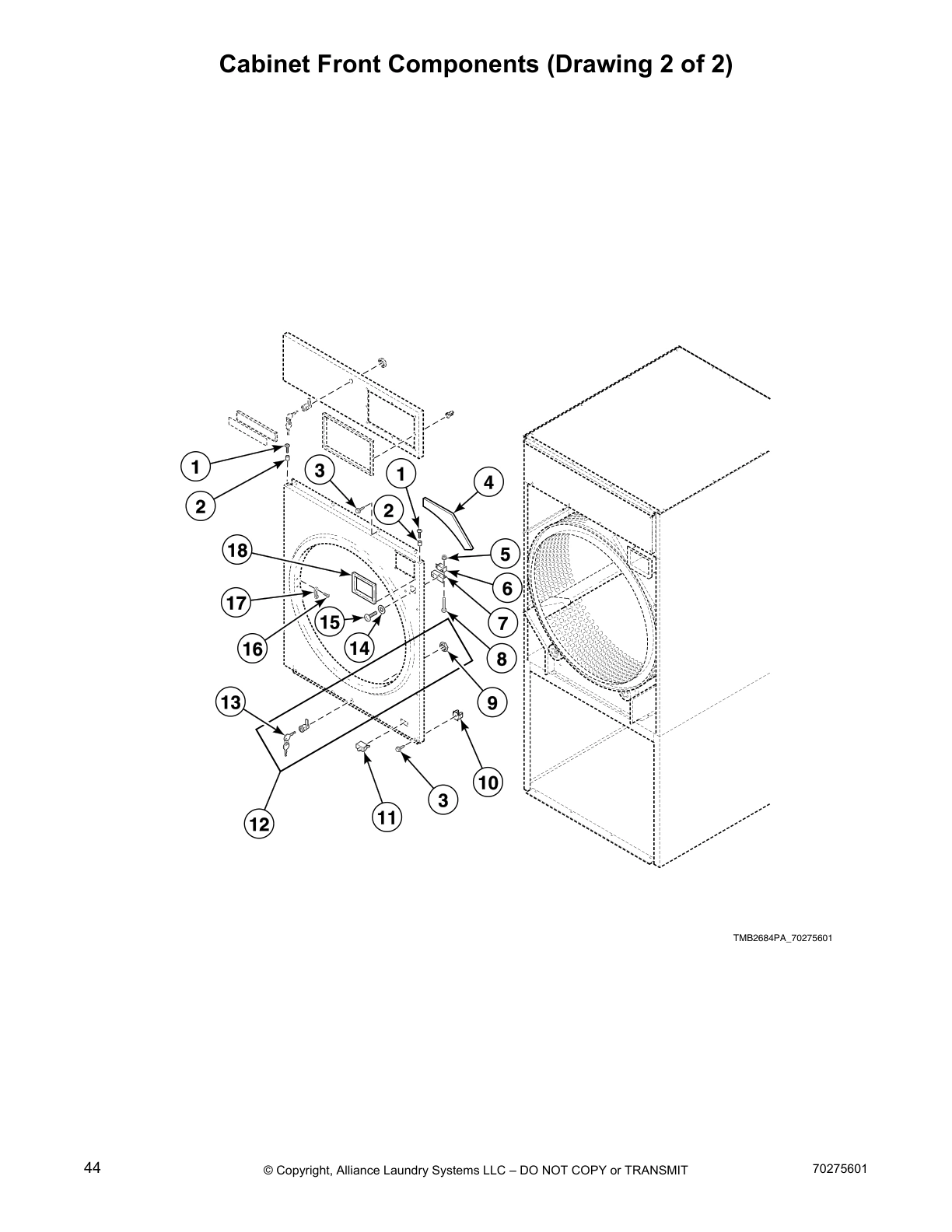

Cabinet Front Components (Drawing 2 of 2)

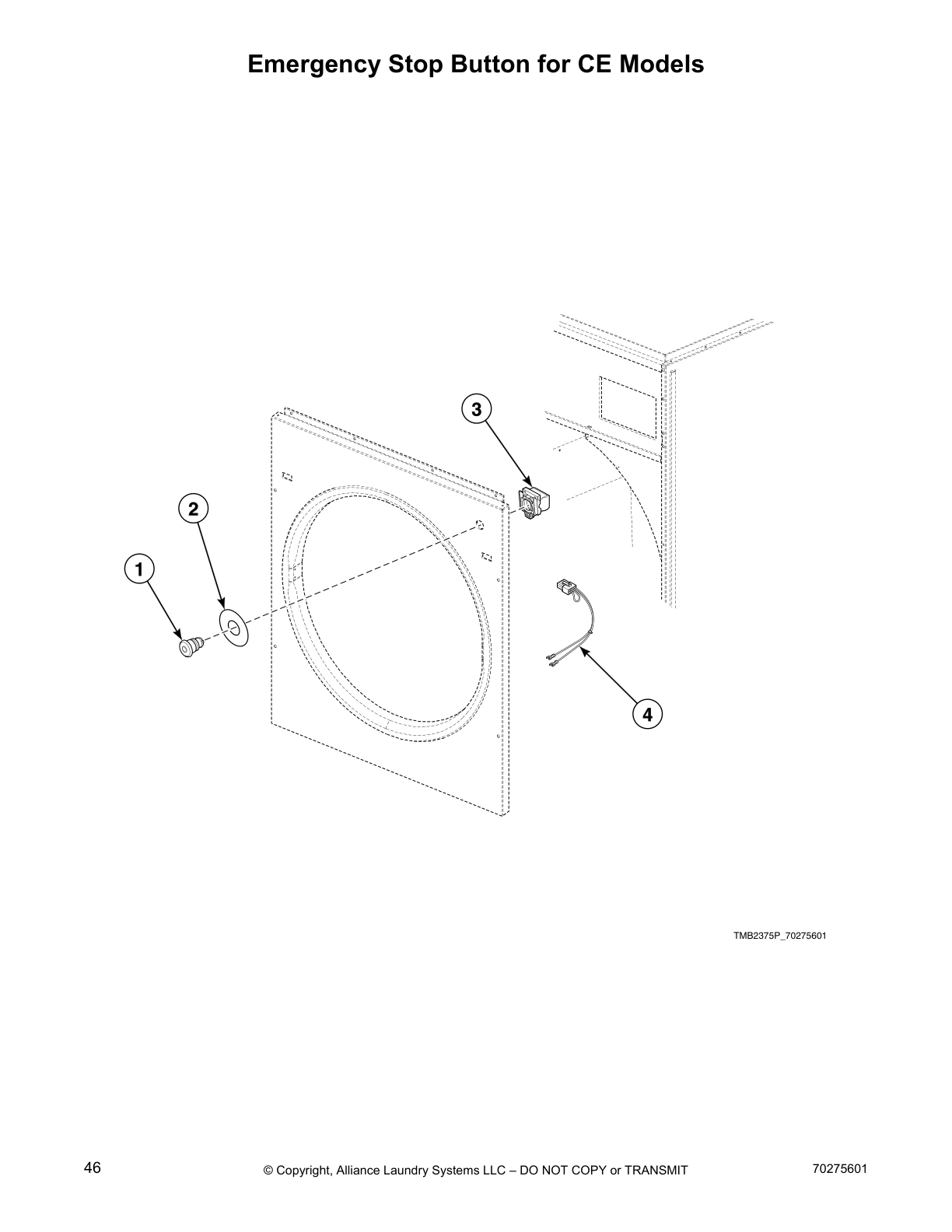

Emergency Stop Button for CE Models

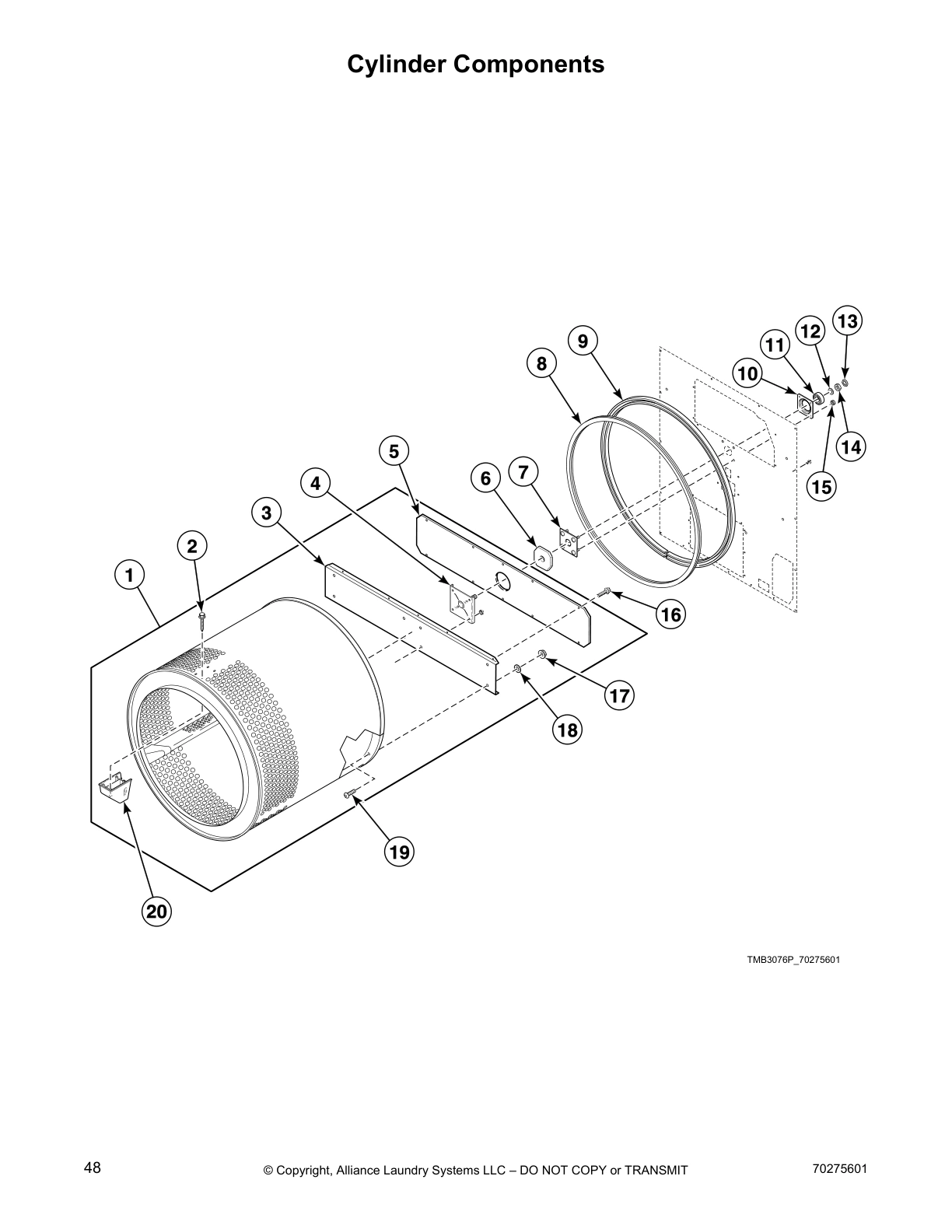

Cylinder Components

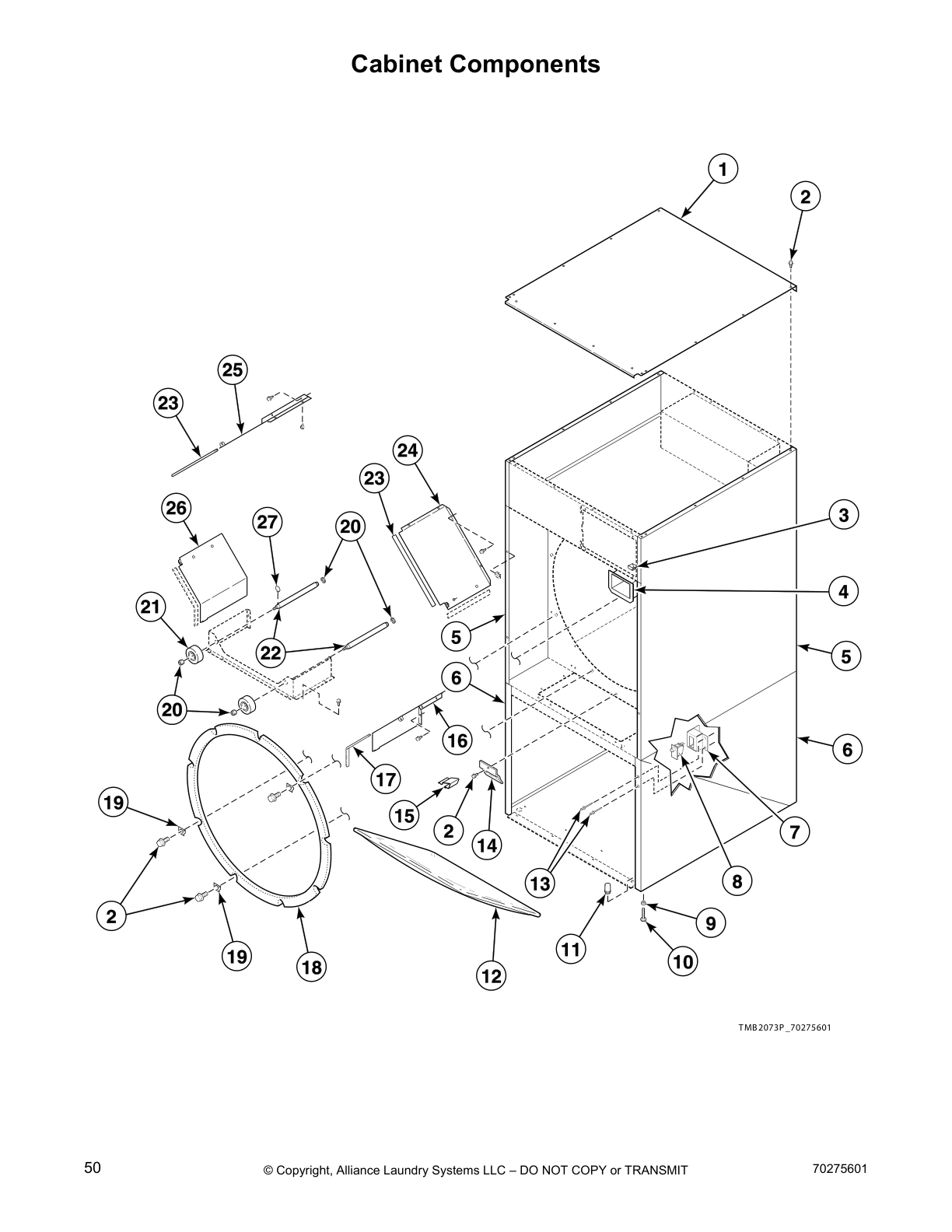

Cabinet Components

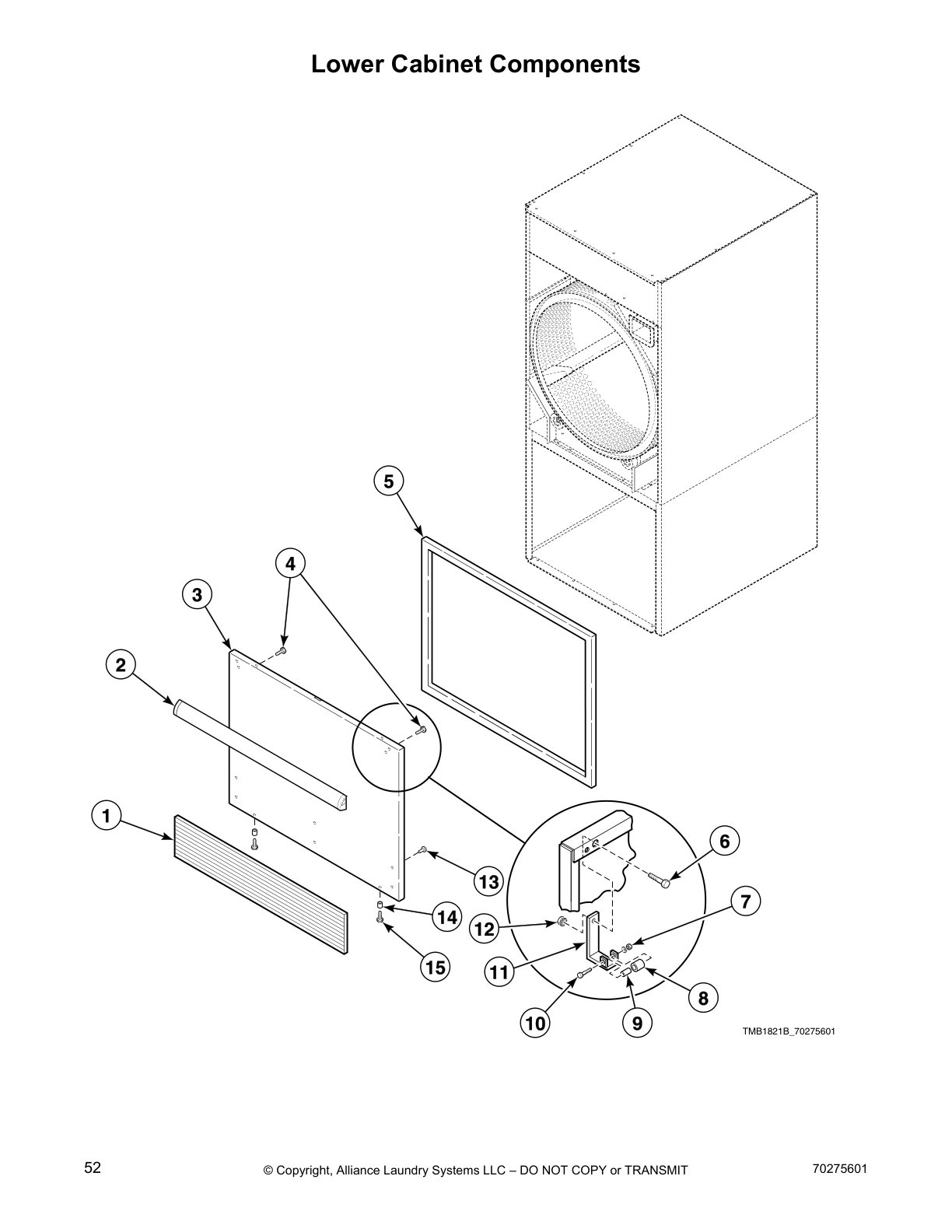

Lower Cabinet Components

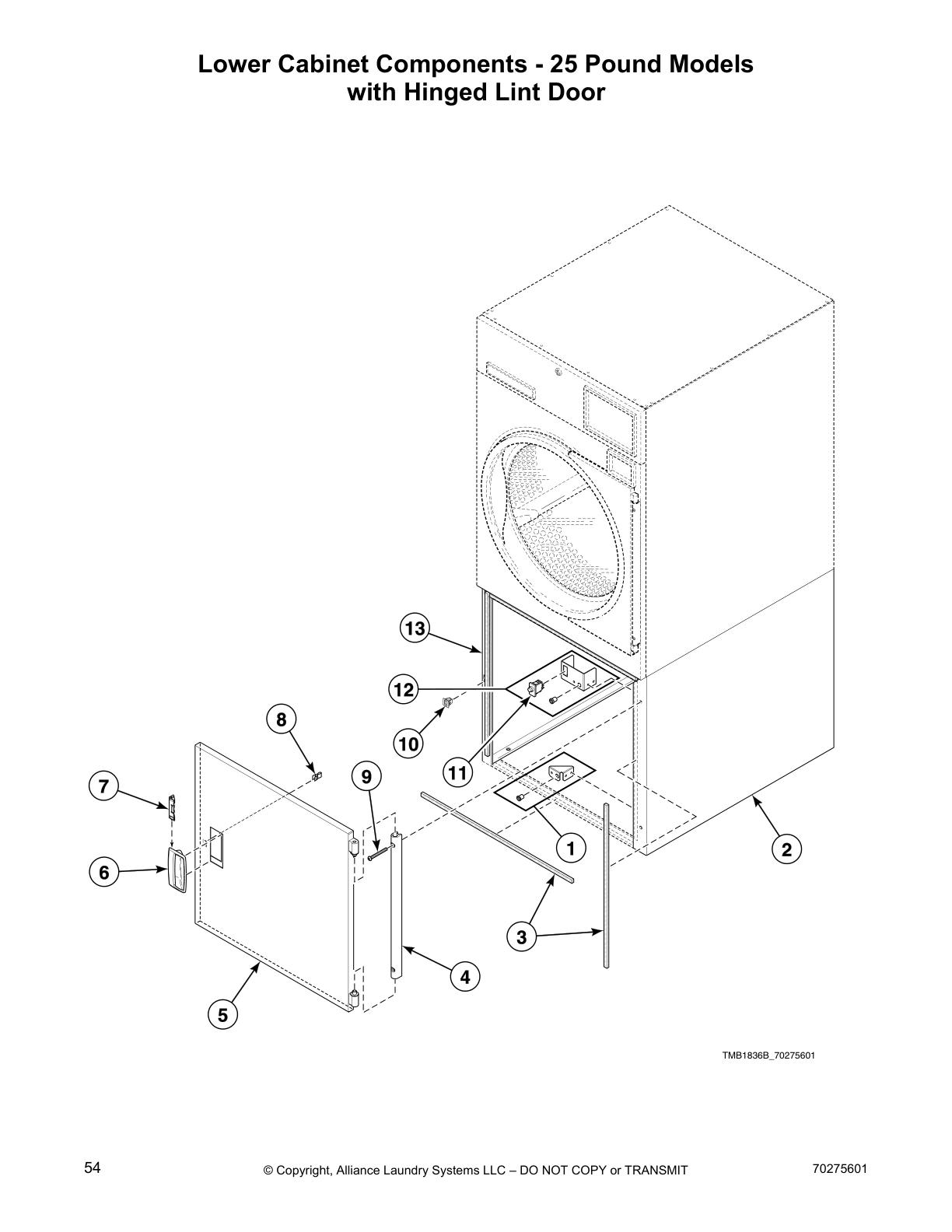

Lower Cabinet Components - 25 Pound Models
with Hinged Lint Door

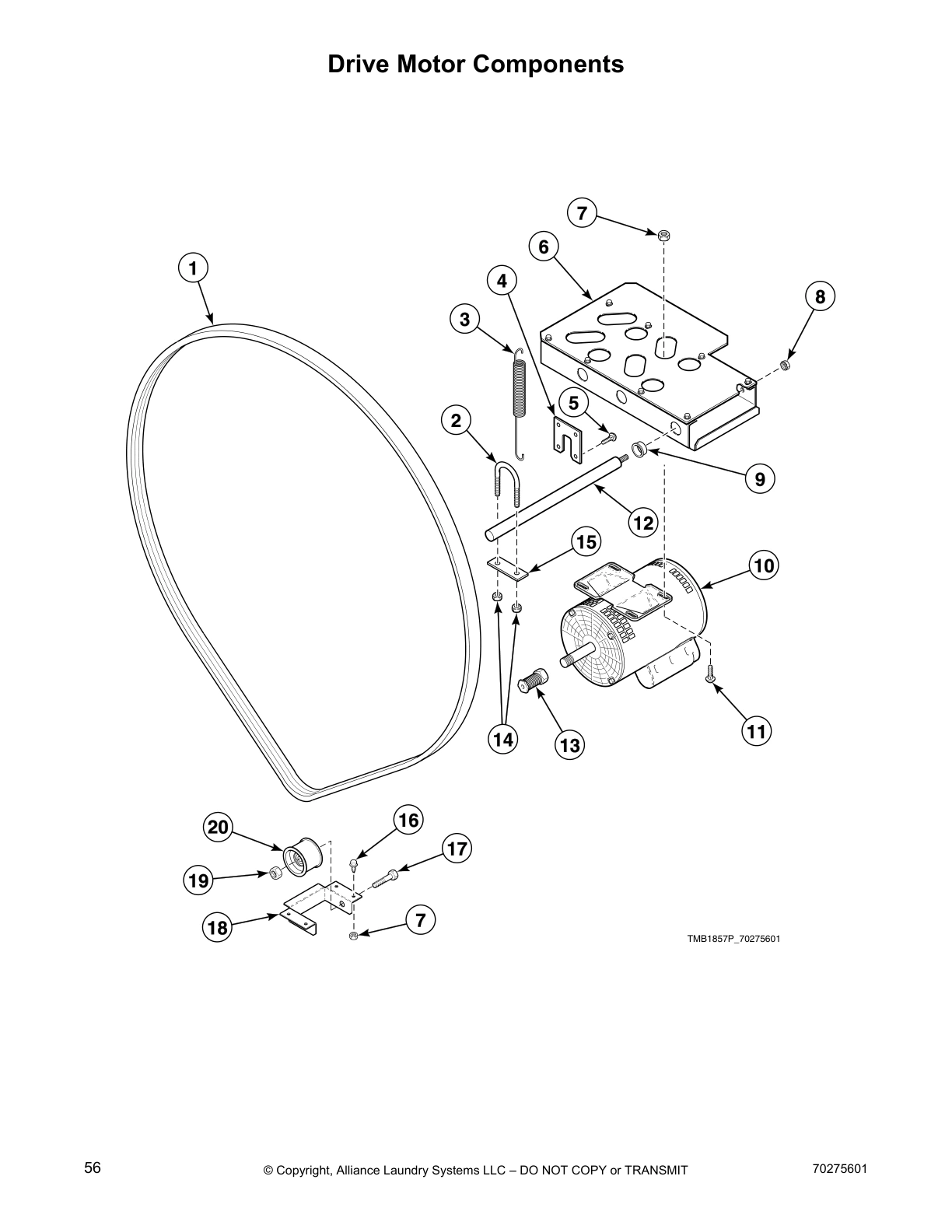

Drive Motor Components

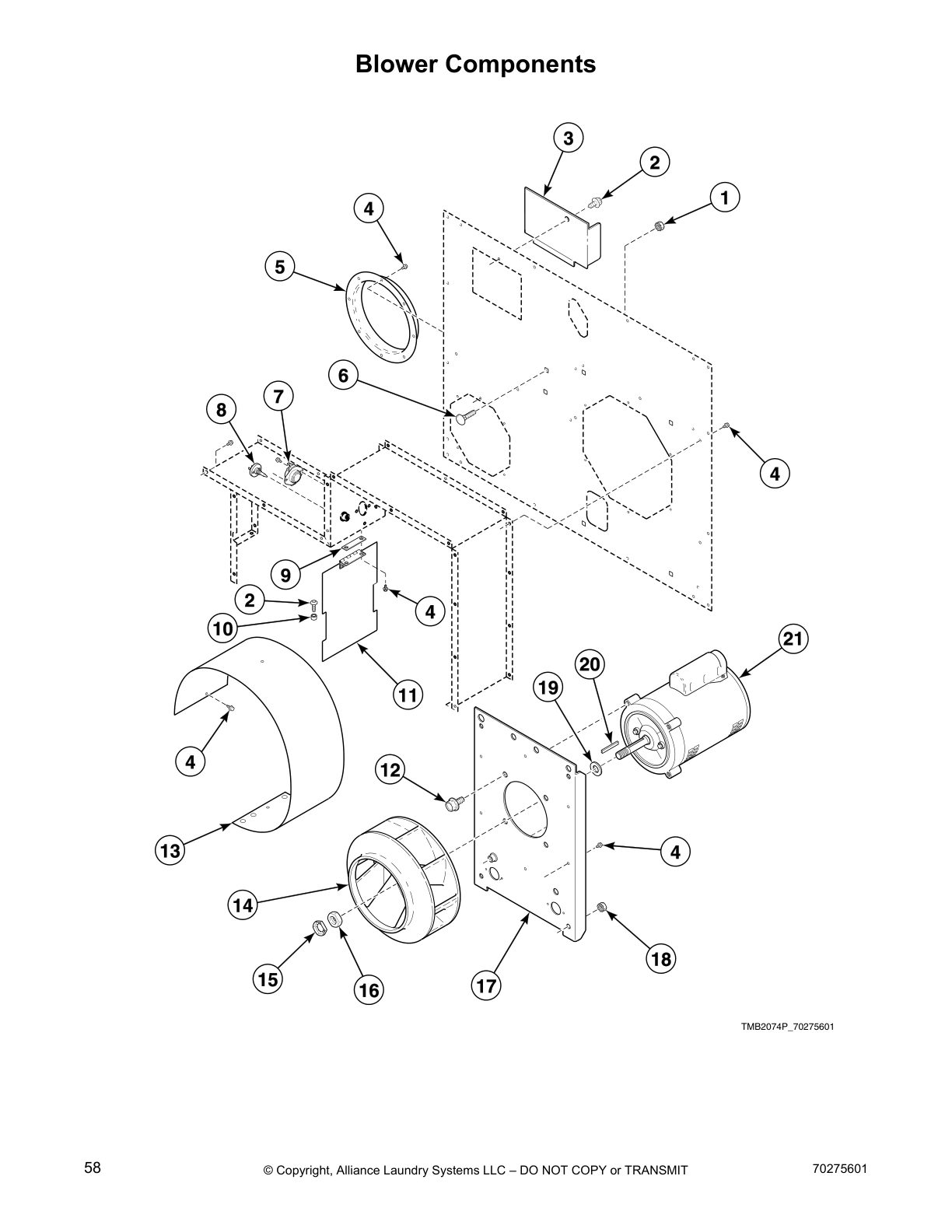

Blower Components

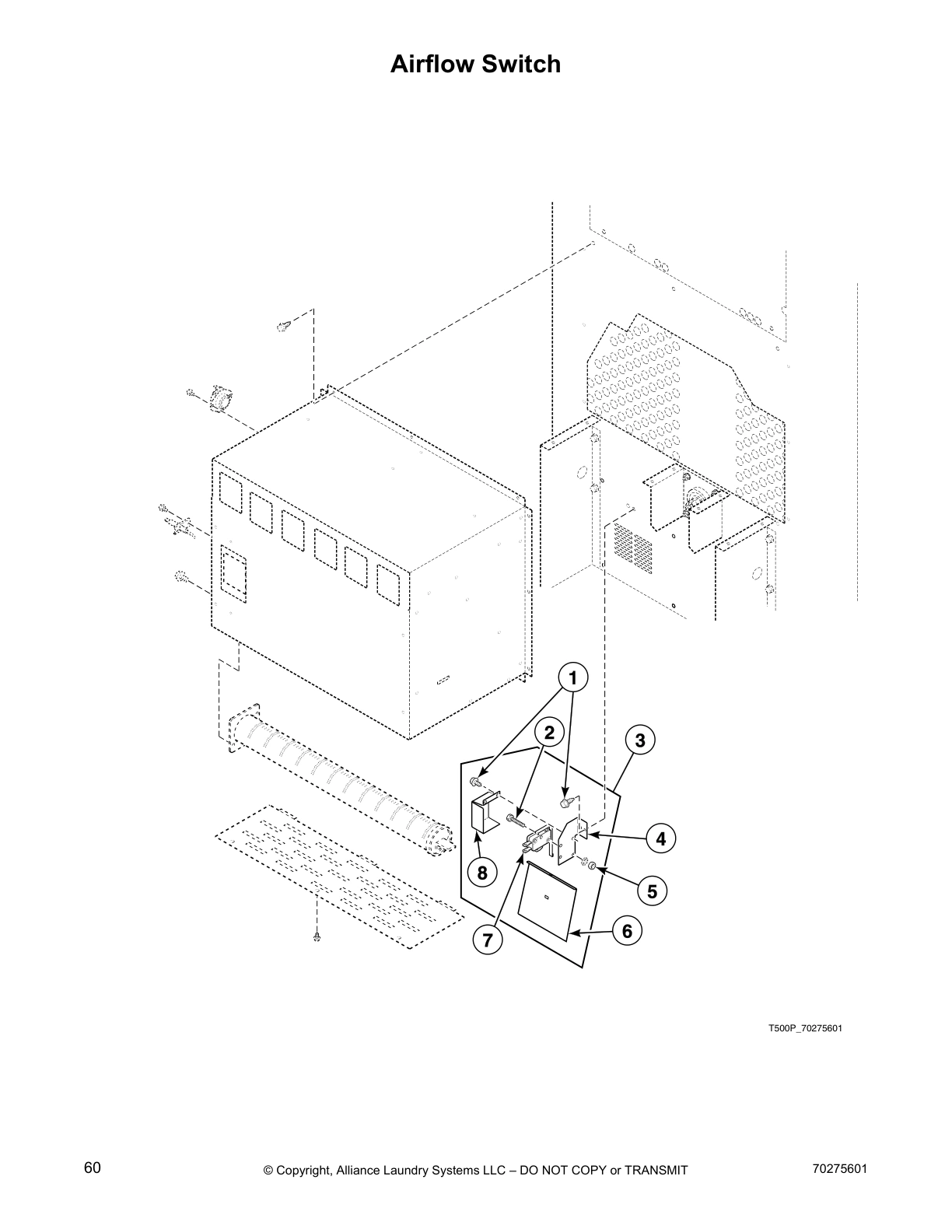

Airflow Switch

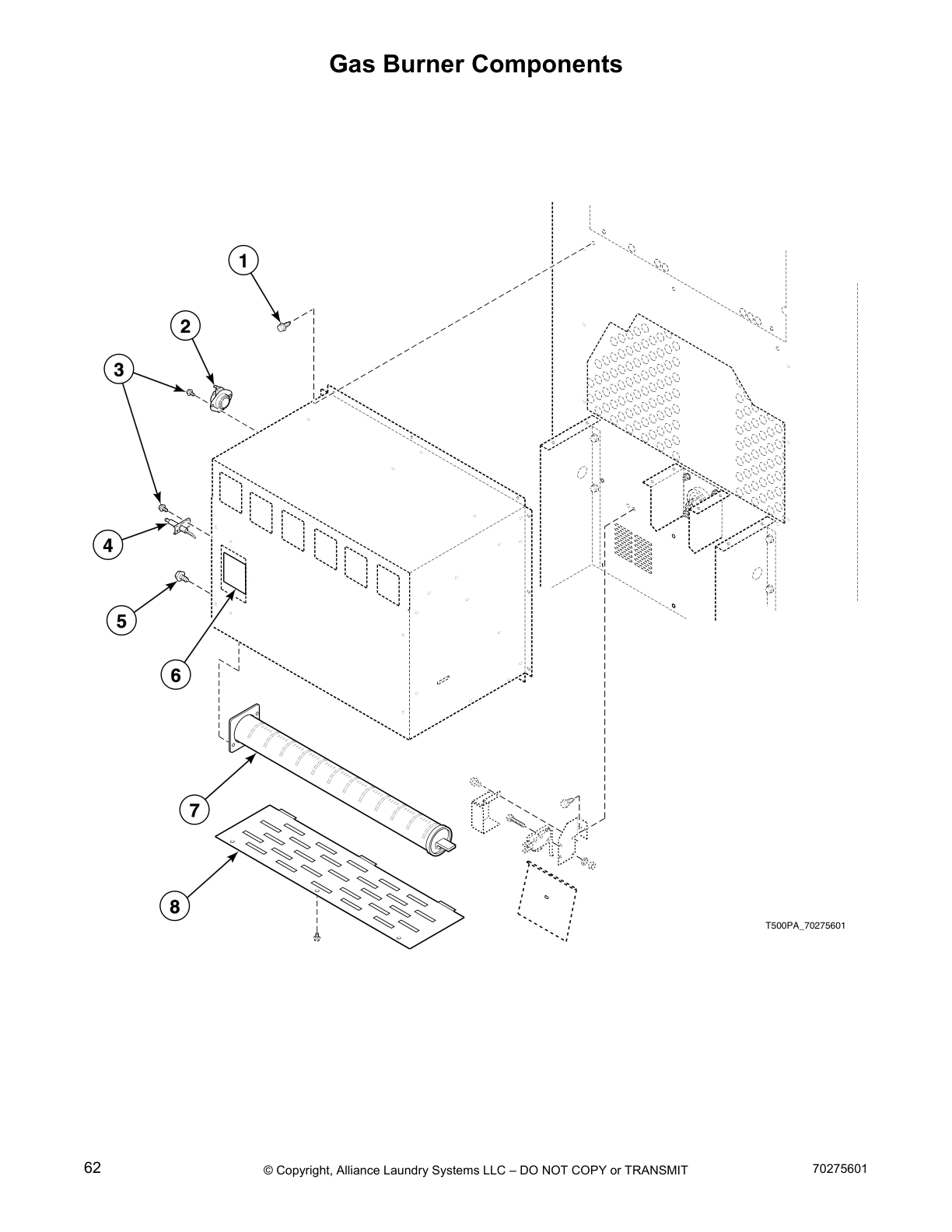

Gas Burner Components

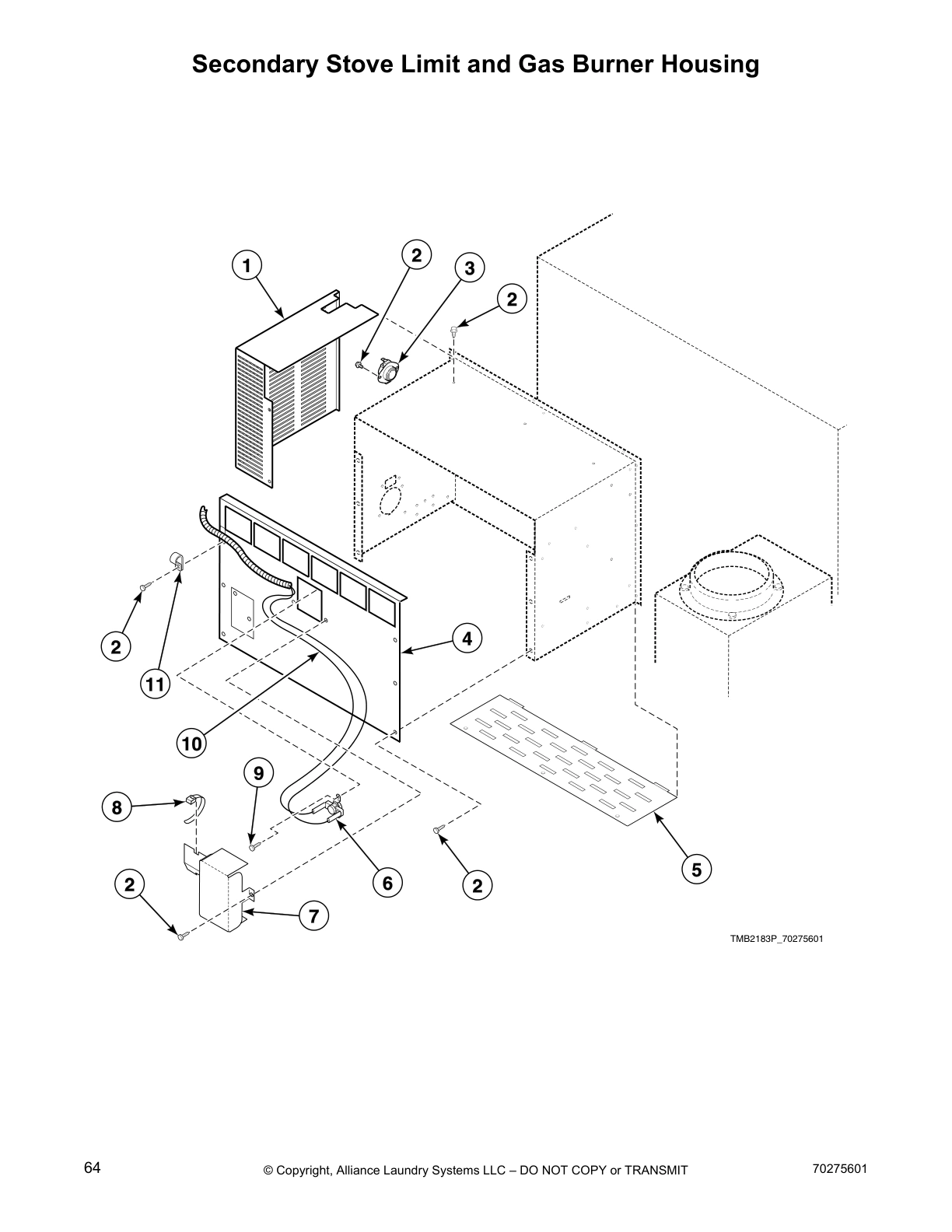

Secondary Stove Limit and Gas Burner Housing

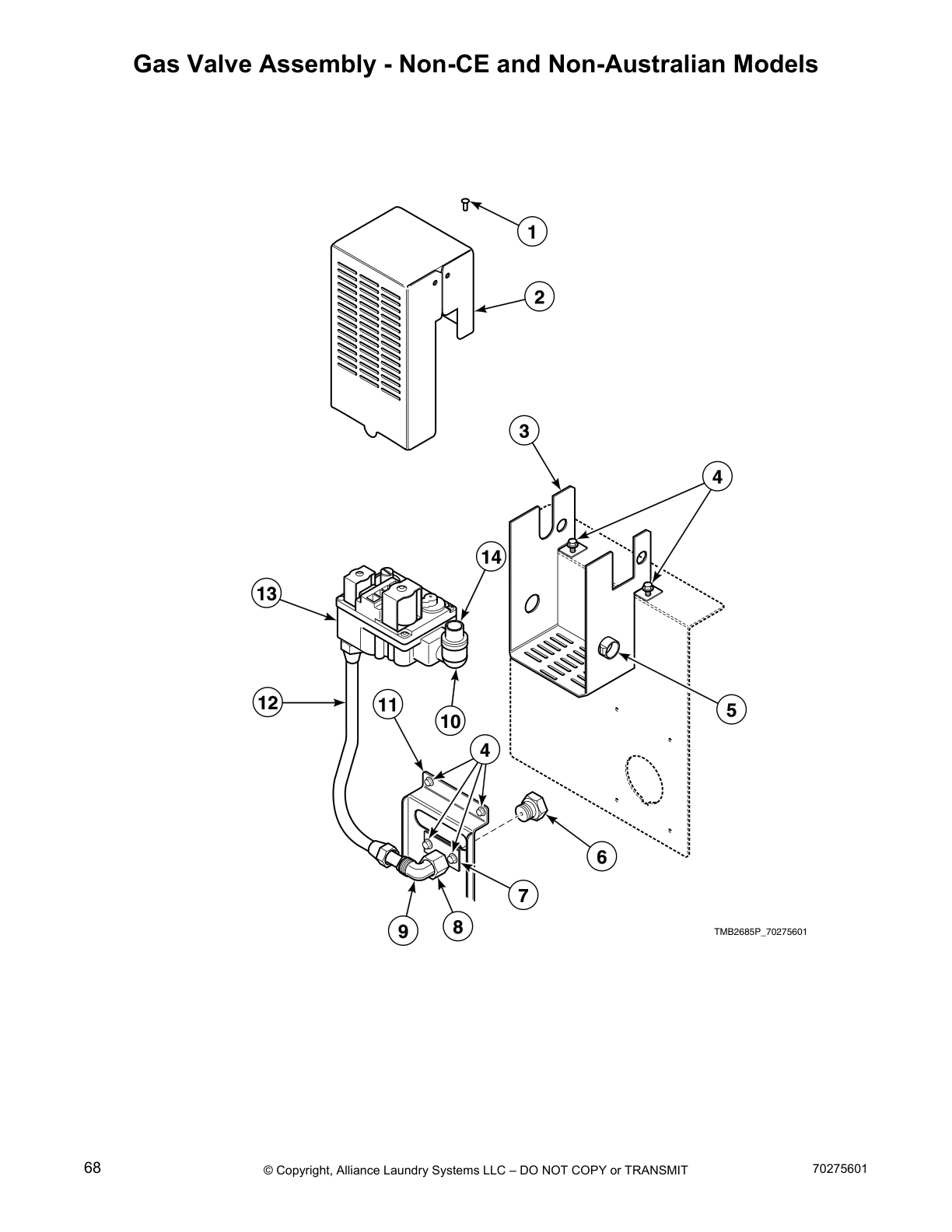

Gas Valve Assembly - Non-CE and Non-Australian Models

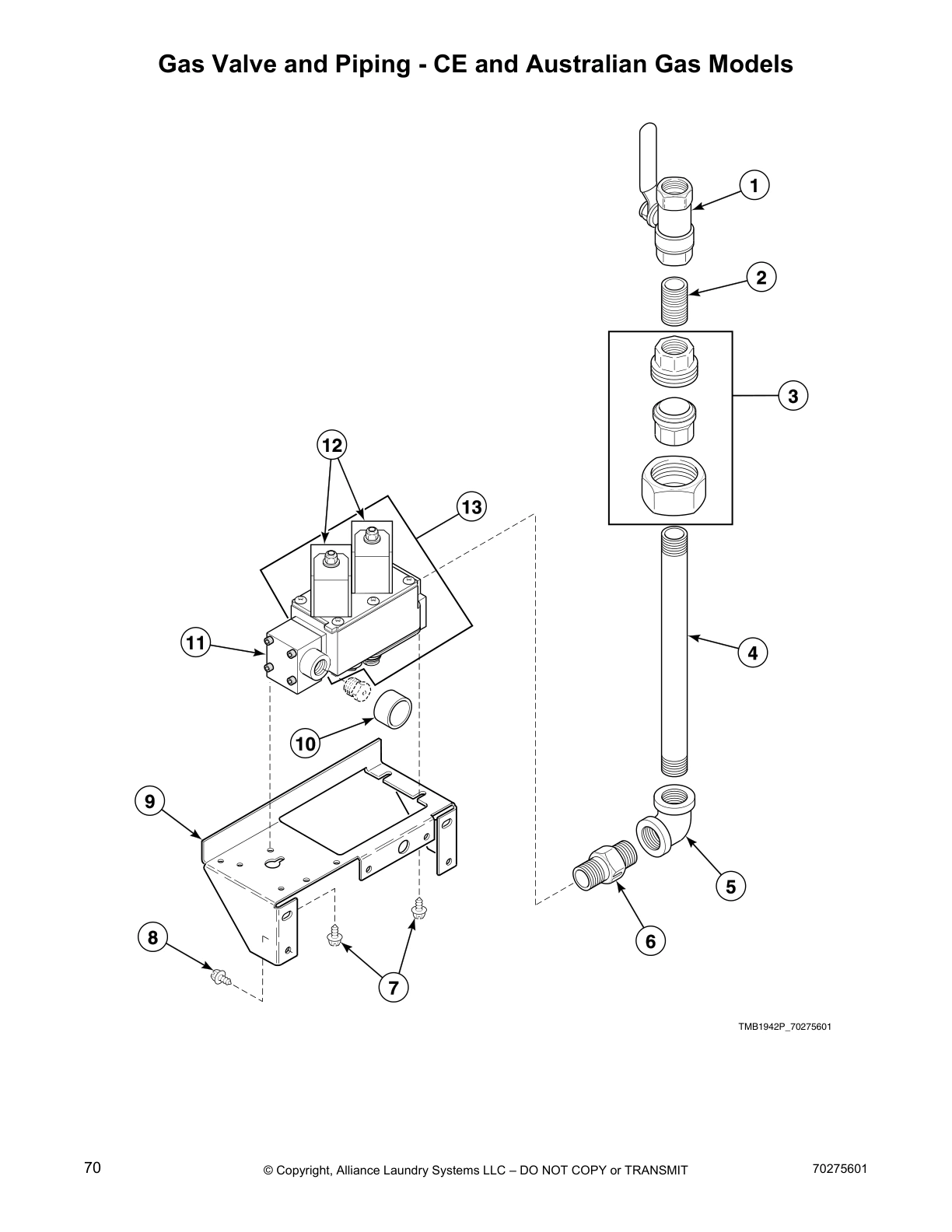

Gas Valve and Piping - CE and Australian Gas Models

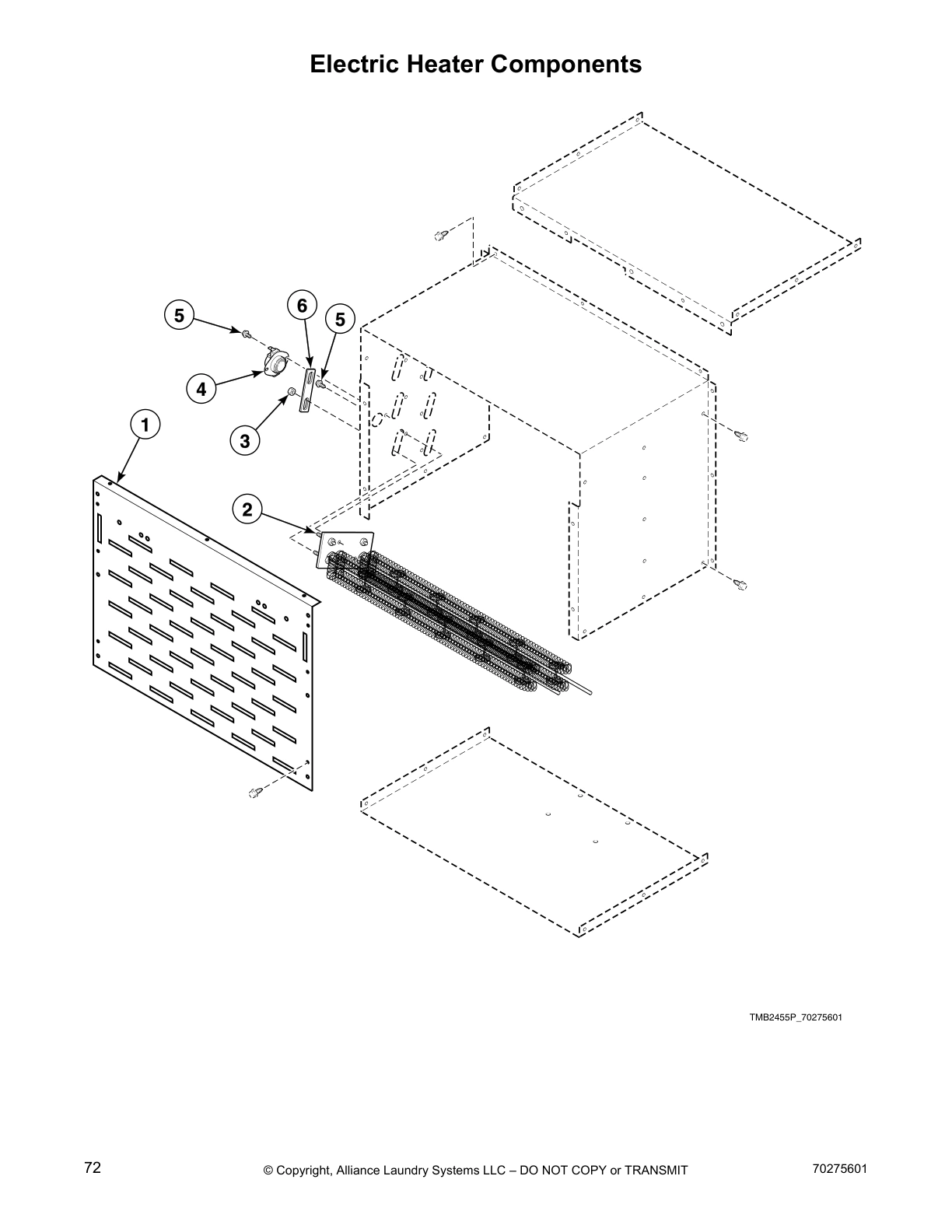

Electric Heater Components

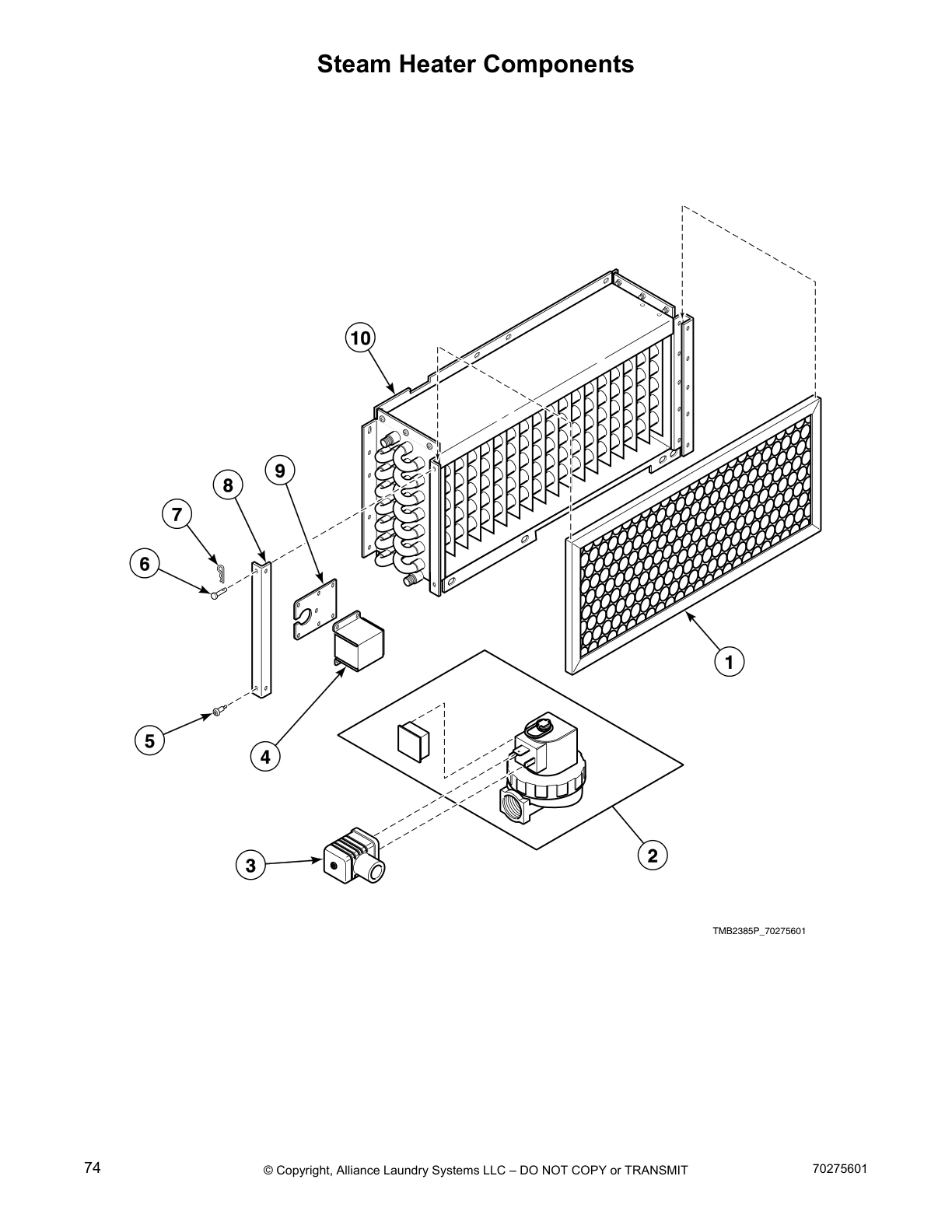

Steam Heater Components

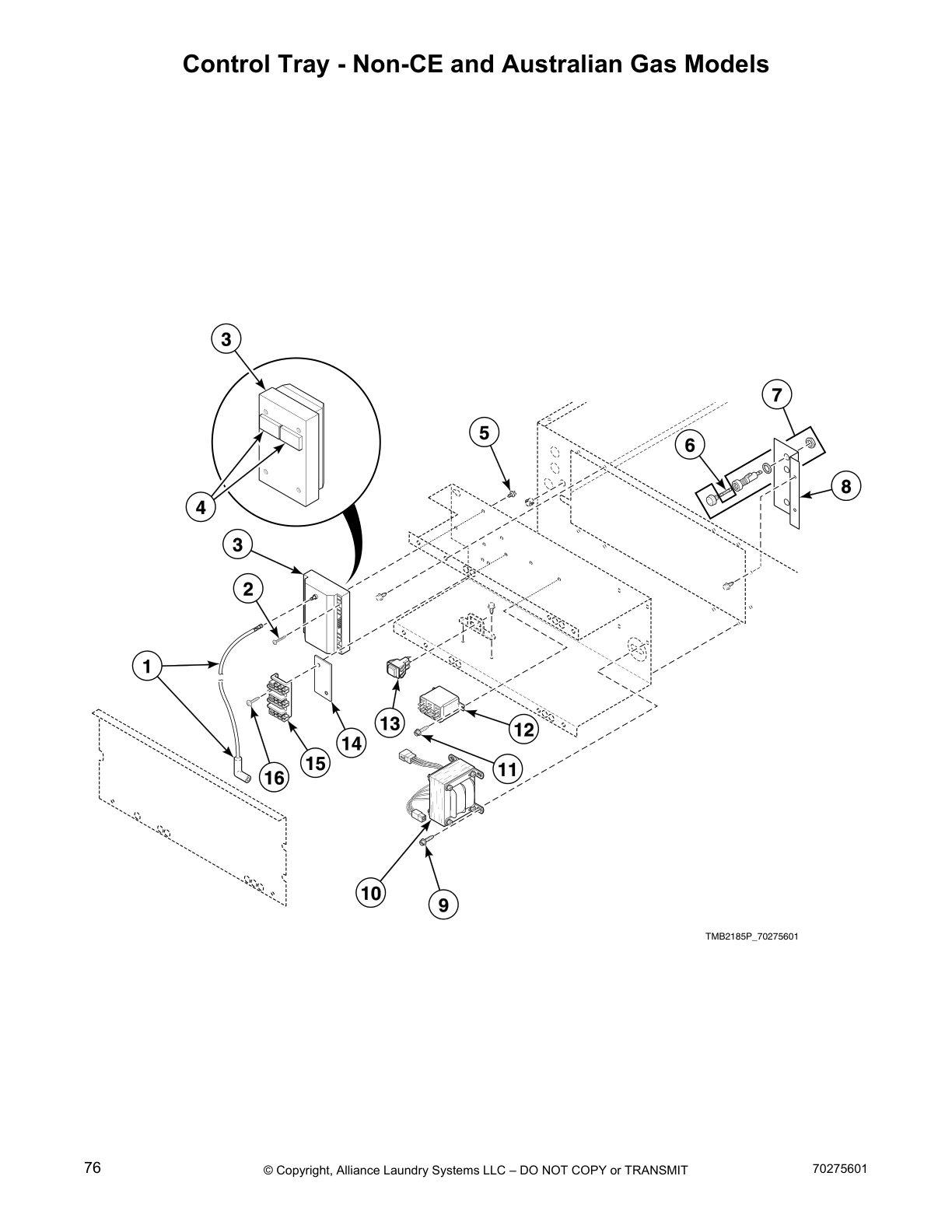

Control Tray - Non-CE and Australian Gas Models

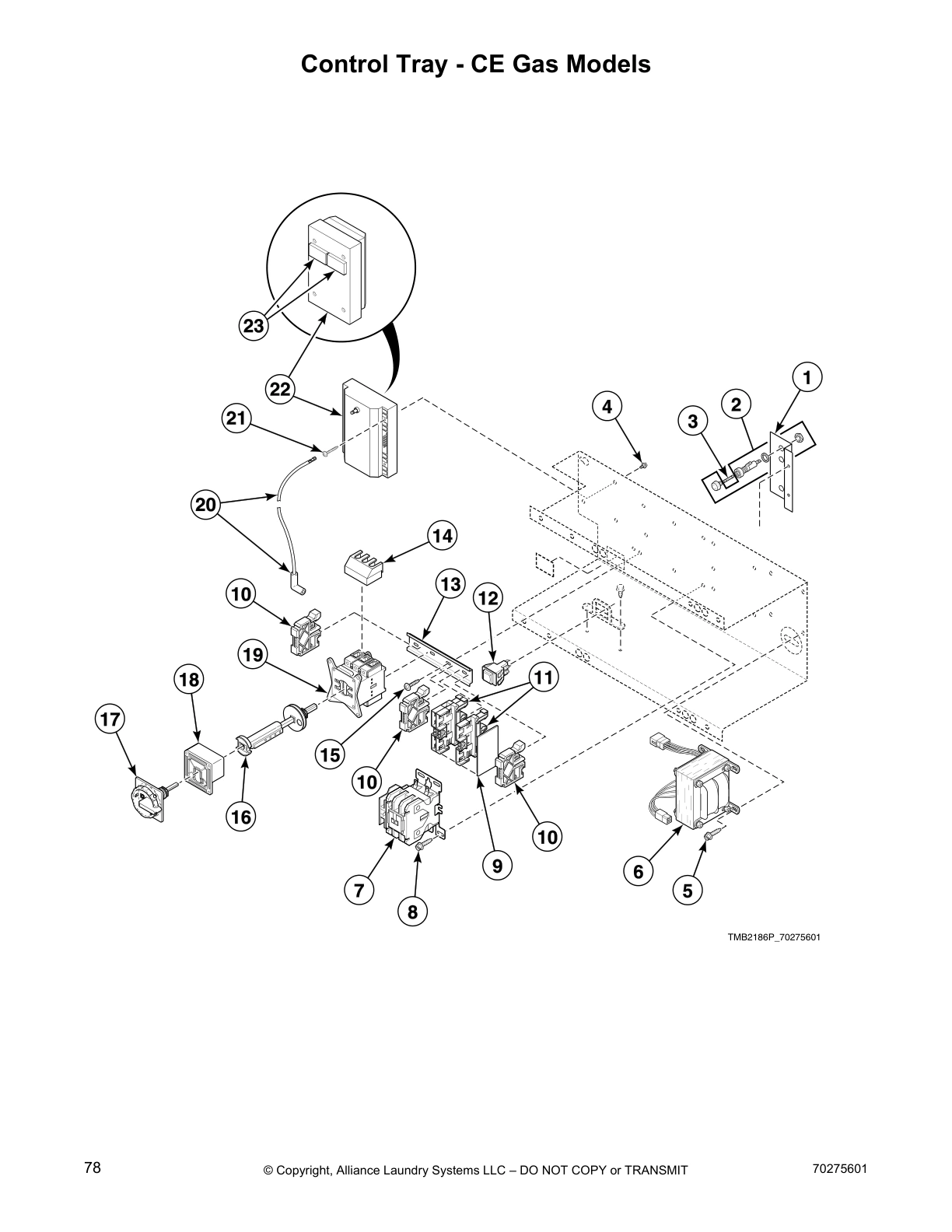

Control Tray - CE Gas Models

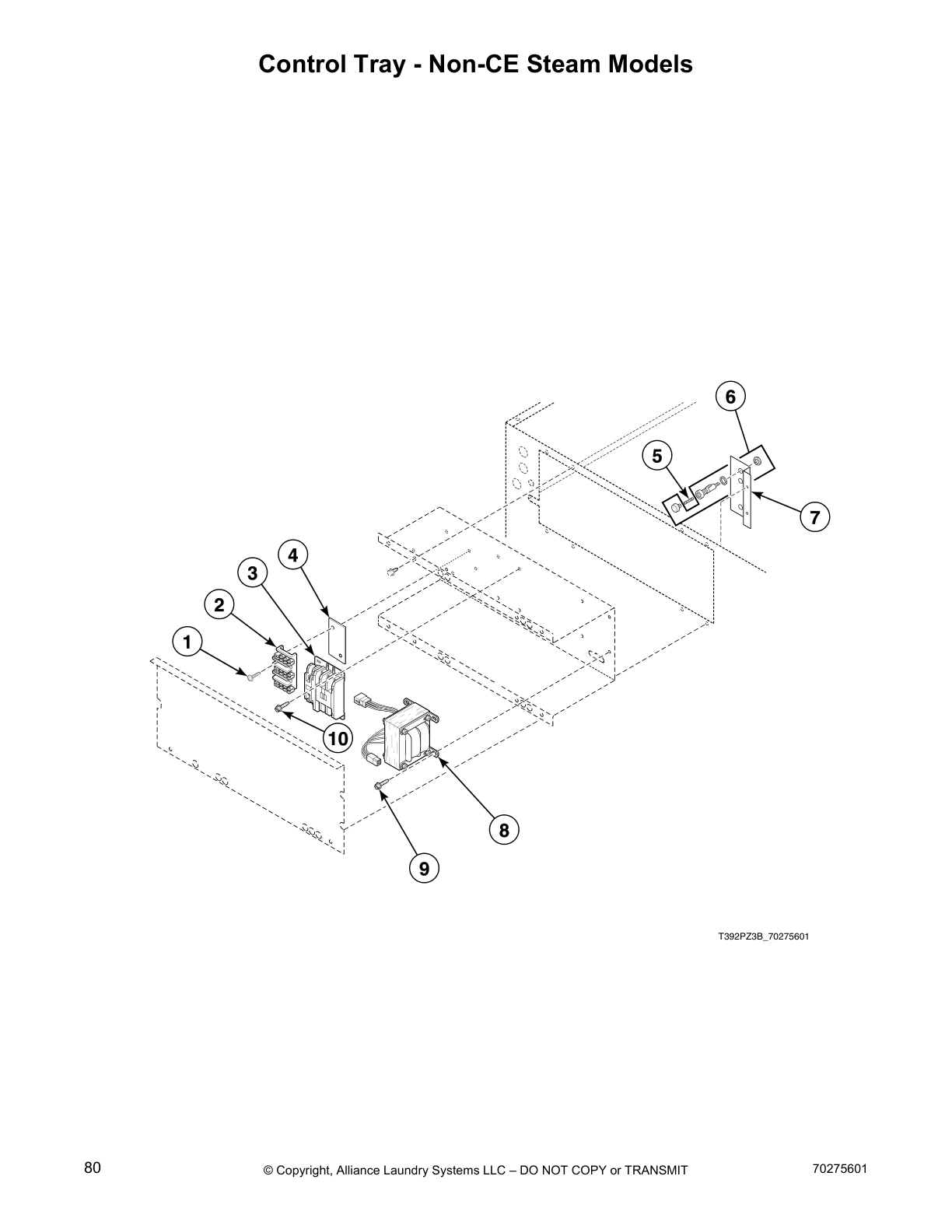

Control Tray - Non-CE Steam Models

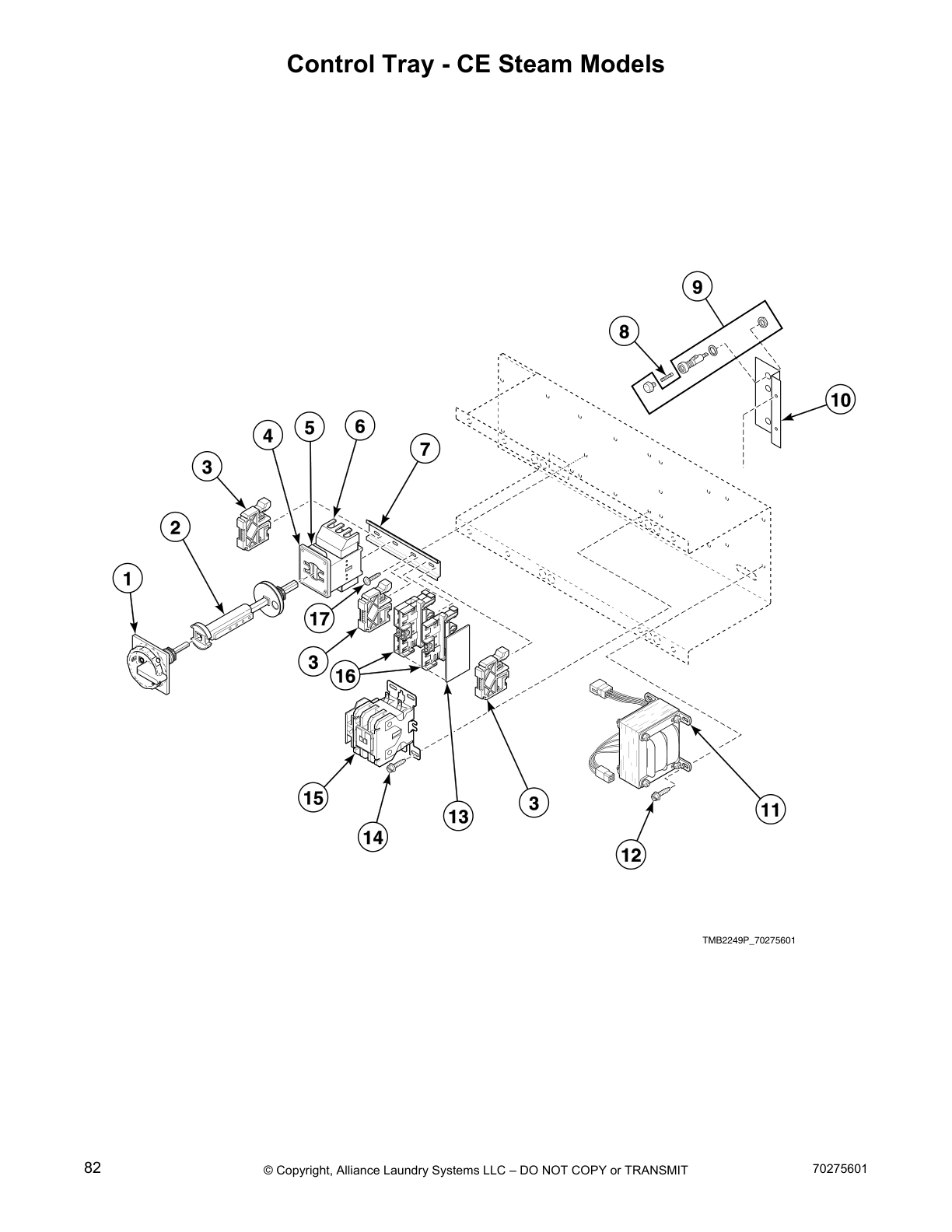

Control Tray - CE Steam Models

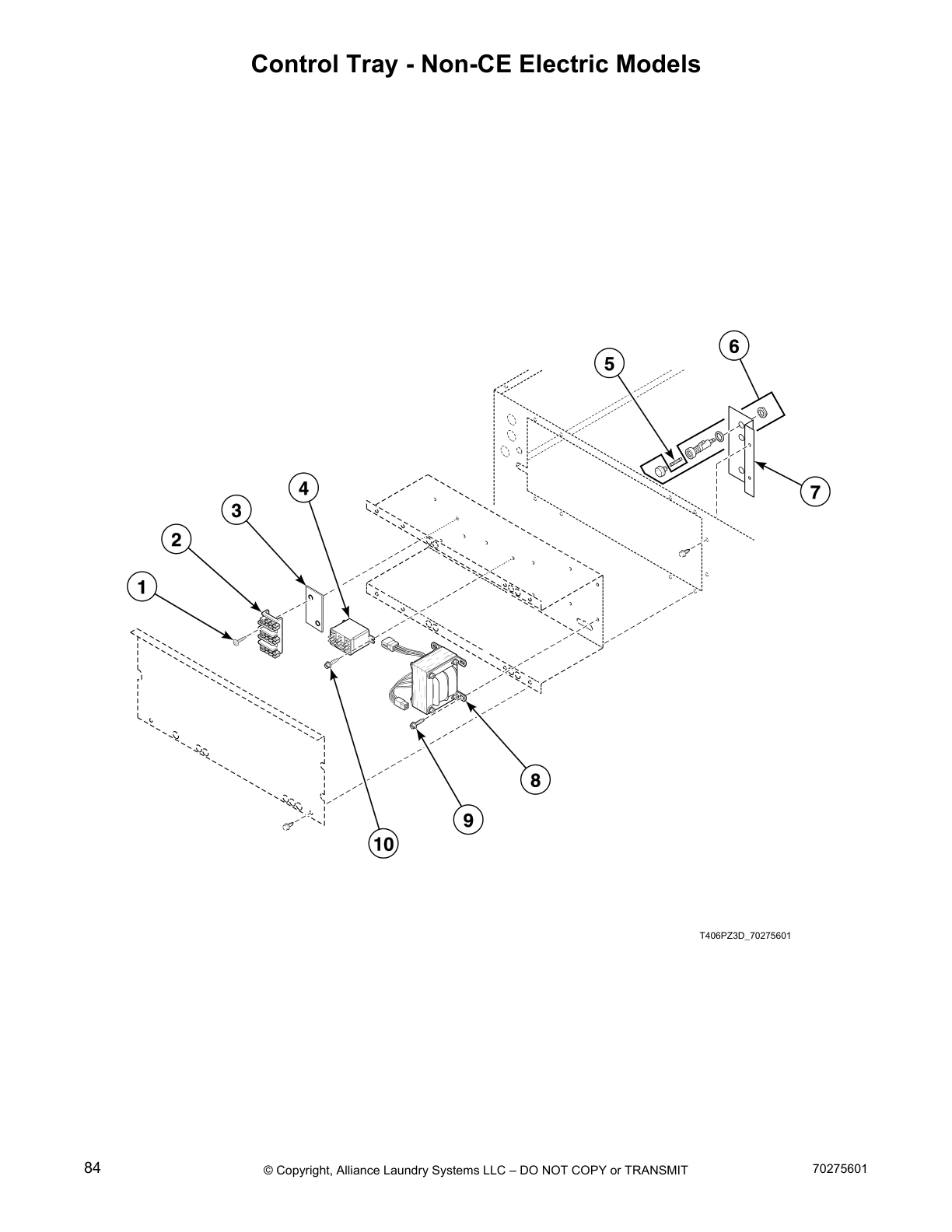

Control Tray - Non-CE Electric Models

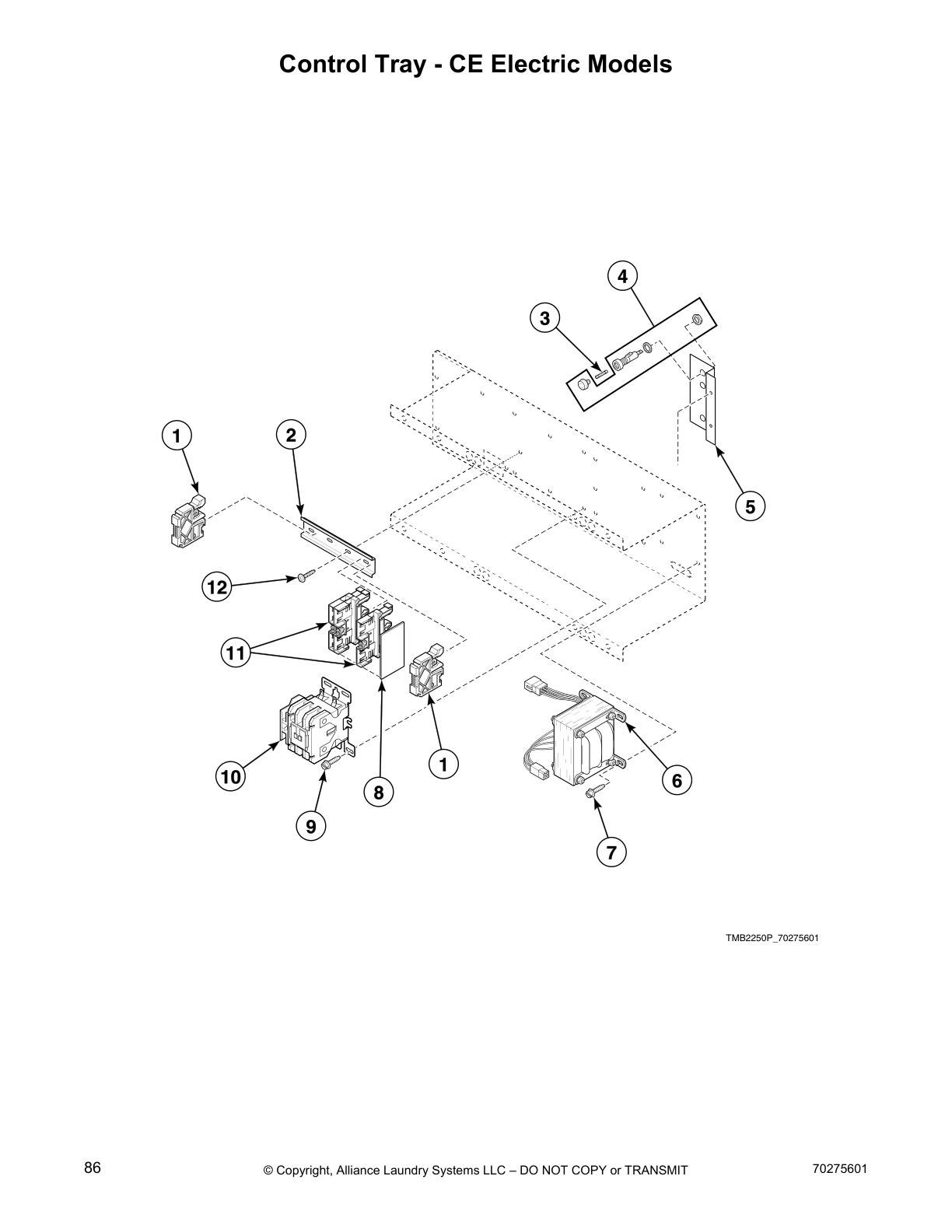

Control Tray - CE Electric Models

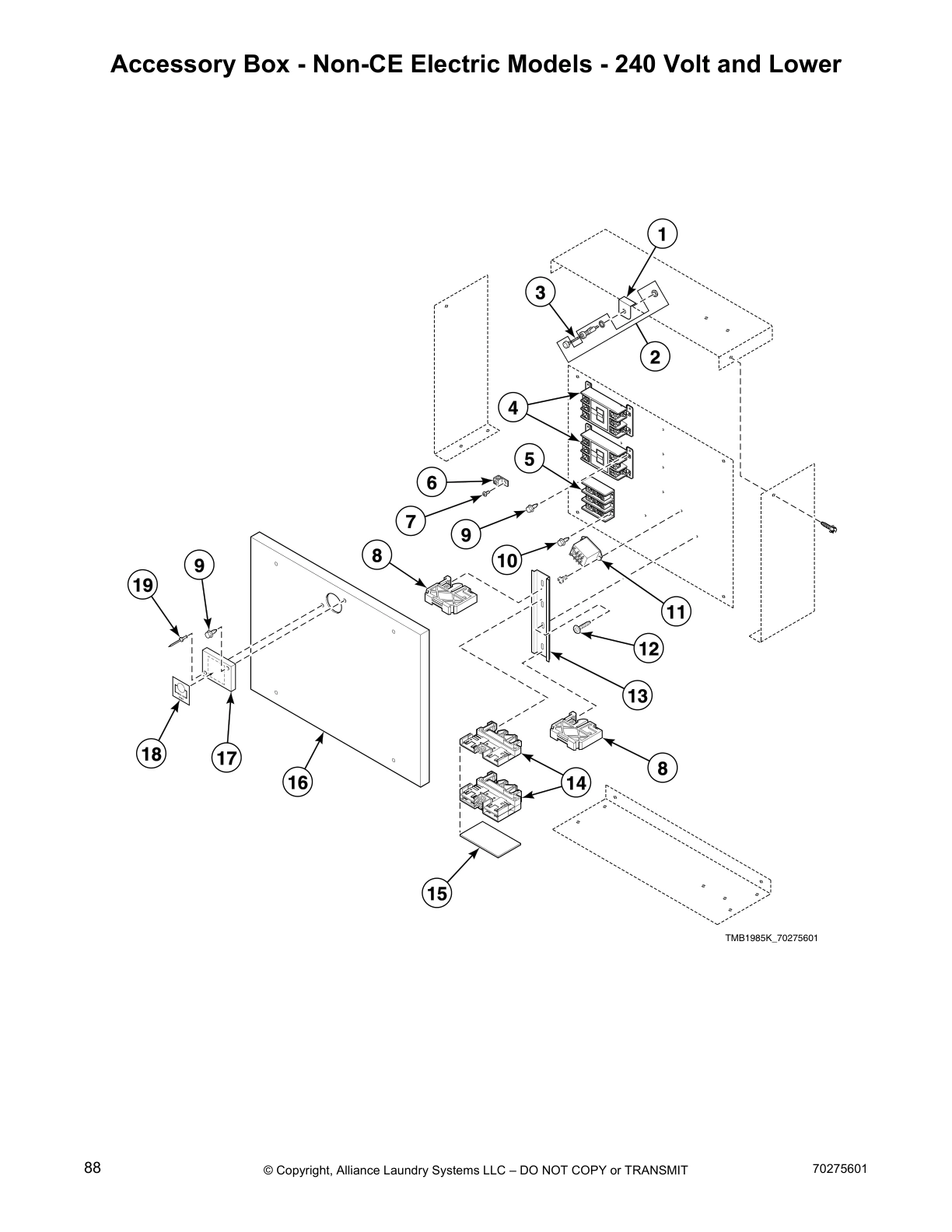

Accessory Box - Non-CE Electric Models - 240 Volt and Lower

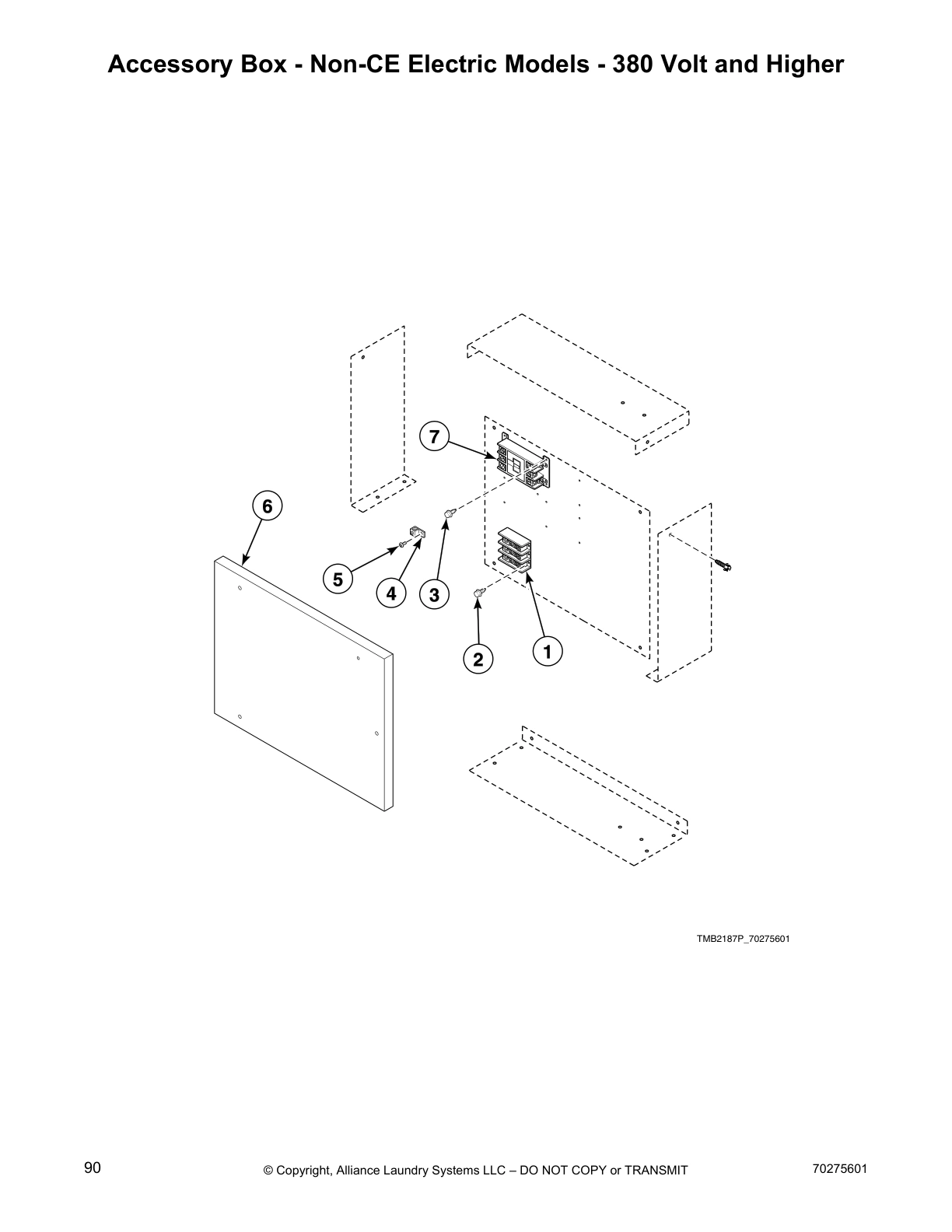

Accessory Box - Non-CE Electric Models - 380 Volt and Higher

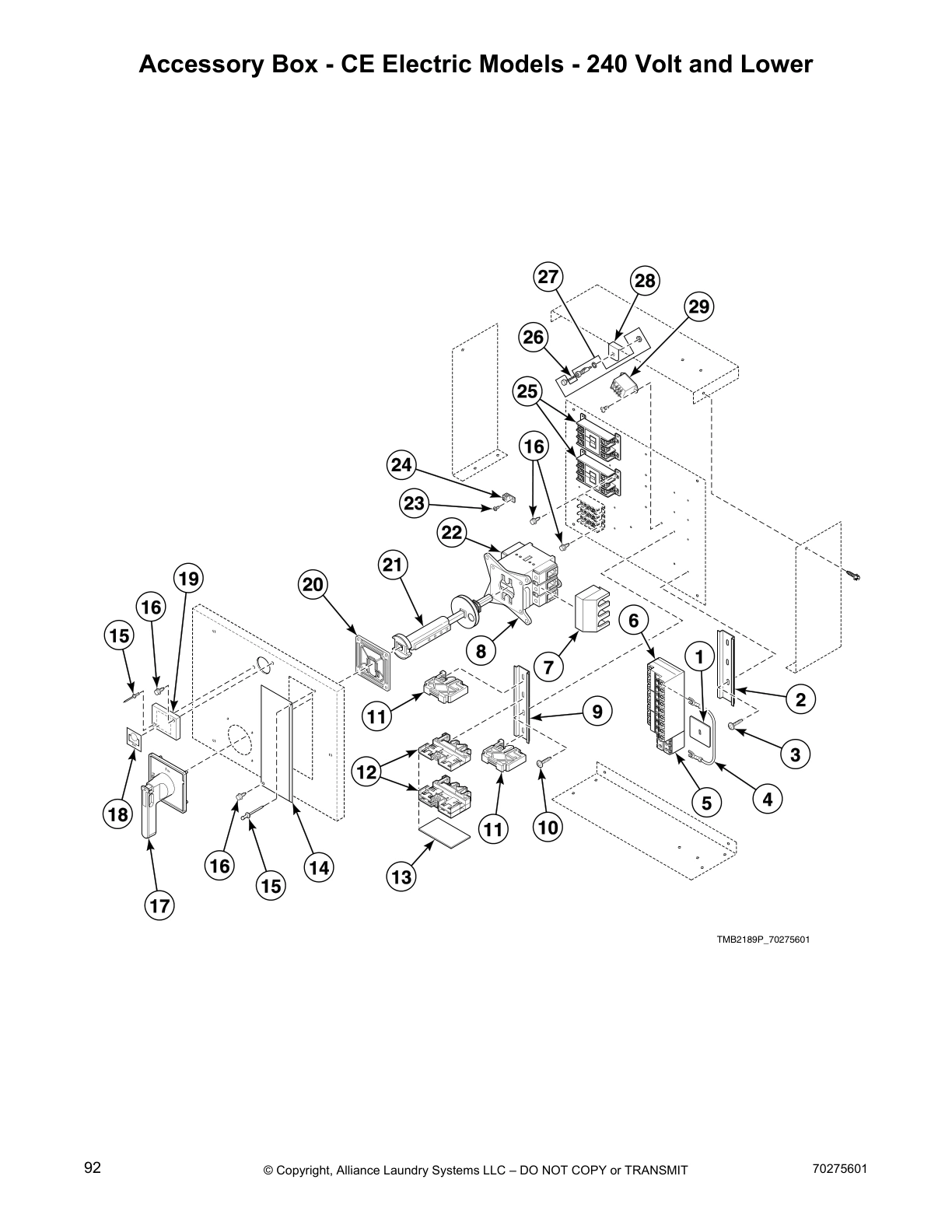

Accessory Box - CE Electric Models - 240 Volt and Lower

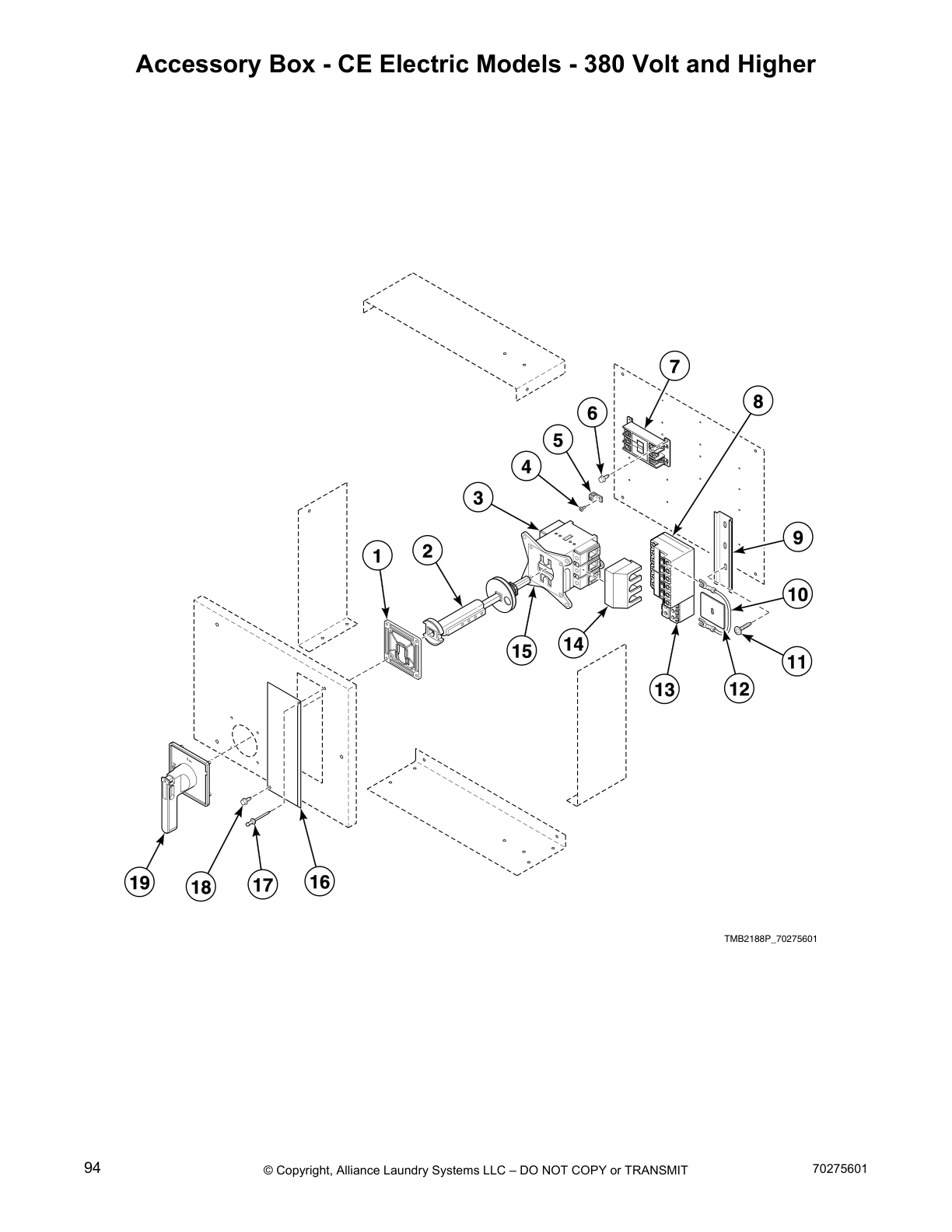

Accessory Box - CE Electric Models - 380 Volt and Higher
Common parts from model Unimac UU035N Dryer
Jumper Harness Assembly SPQ 70406501 Contact Us For Availability
SPQ 70084001 SPQ 70084001 Contact Us For Availability
Opto Coupler SPQ 70256402P Contact Us For Availability
Electronic Coin Drop Kit SPQ 39157 Contact Us For Availability
Electronic Coin Drop Kit SPQ 38519 Contact Us For Availability
SPQ 38467 SPQ 38467 Contact Us For Availability
SPQ 210196 SPQ 210196 Contact Us For Availability
SPQ 70513311 SPQ 70513311 Contact Us For Availability
SPQ 38521 SPQ 38521 Contact Us For Availability
SPQ CK109 SPQ CK109 Contact Us For Availability
SPQ CK101 SPQ CK101 Contact Us For Availability
SPQ CK099 SPQ CK099 Contact Us For Availability
SPQ CK117 SPQ CK117 Contact Us For Availability
SPQ CK502 SPQ CK502 Contact Us For Availability
SPQ 70176308 SPQ 70176308 Contact Us For Availability
SPQ 70030201 SPQ 70030201 Contact Us For Availability
SPQ 70142 SPQ 70142 Contact Us For Availability
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
SPQ 70083501 SPQ 70083501 Contact Us For Availability
Power Wire Harness Assembly SPQ M411072 Contact Us For Availability
SPQ M413863 SPQ M413863 Contact Us For Availability
Jumper Configuration Assembly SPQ 70118801 Contact Us For Availability
Power Wire Harness Assembly SPQ M413510 Contact Us For Availability
SPQ M413508 SPQ M413508 Contact Us For Availability
SPQ M413506 SPQ M413506 Contact Us For Availability
SPQ 70055901P SPQ 70055901P Contact Us For Availability
SPQ 70120901 SPQ 70120901 Contact Us For Availability
1
Belt SPQ 70276202P Contact Us For Availability
1
Door Assembly SPQ 70176503 Contact Us For Availability
1
False Front Assembly SPQ 70024002P Contact Us For Availability
1
Control Panel SPQ 70121302 Contact Us For Availability
1
Pushbutton SPQ 44018801 Contact Us For Availability
1
Cylinder, Trunnion and Seal Kit SPQ 70222102P Contact Us For Availability
1
Flat Top SPQ 70018601 Contact Us For Availability
1
Kickplate SPQ 70117603 Contact Us For Availability
1
Valve Bracket and Cover Kit SPQ M4747P3 Contact Us For Availability
1
Gas Shut-Off Valve SPQ M412562P Contact Us For Availability
1
Handle SPQ M412208 Contact Us For Availability
2
Insulator SPQ 430642 Contact Us For Availability
2
L.P. Valve SPQ 70457302P Contact Us For Availability
2
Electronic Coin Drop Harness SPQ 44065801 Contact Us For Availability
2
Door Hinge SPQ 70115902 Contact Us For Availability
2
Front Panel Assembly SPQ 70021102P Contact Us For Availability
2
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
2
Emergency Stop Label SPQ 44012901 Contact Us For Availability
2
Screw SPQ 70066003 Contact Us For Availability
2
Idler Pivot Bracket SPQ 70566401 Contact Us For Availability
3
Airflow Switch Bracket SPQ 70270901P Contact Us For Availability
3
Spark Electrode SPQ M409219 Contact Us For Availability
3
Control Plate Assembly SPQ 70175802 Contact Us For Availability
3
Control Plate Assembly SPQ 70175807 Contact Us For Availability
3
Coin Drop Kit SPQ CK077 Contact Us For Availability
3
Front Panel Seal SPQ 70176304 Contact Us For Availability
3
Contact Block SPQ 44018701 Contact Us For Availability
3
Rear Cylinder Seal Support SPQ 70257101 Contact Us For Availability
3
Pushbutton Switch SPQ 70023601 Contact Us For Availability
3
Gasket SPQ 70154403 Contact Us For Availability
3
Idler Wheel Assembly SPQ 70200901 Contact Us For Availability
3
Bolt SPQ 70337701P Contact Us For Availability
3
Pipe Nipple SPQ 431486 Contact Us For Availability
3
End Stop SPQ M414240 Contact Us For Availability
3
Fan Contactor SPQ M413862 Contact Us For Availability
3
Fuse SPQ M413889 Contact Us For Availability
4
Limit Thermostat SPQ 70337501P Contact Us For Availability
4
Limit Thermostat SPQ M410542 Contact Us For Availability
4
Pin SPQ M4772P3 Contact Us For Availability
4
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
4
Drywall Screw Magnet Kit SPQ 70564803 Contact Us For Availability
4
Electronic Coin Drop Assembly SPQ 70294110 Contact Us For Availability
4
Door Switch SPQ 70155301 Contact Us For Availability
4
Emergency Stop Harness SPQ 70364102 Contact Us For Availability
4
Main Interlock Harness SPQ 70296401 Contact Us For Availability
4
Roller Catch Wheel SPQ 70176704 Contact Us For Availability
4
Nut SPQ 70266301 Contact Us For Availability
4
Stove Back SPQ 70297401 Contact Us For Availability
4
Union SPQ H86000031 Contact Us For Availability
4
SPQ M402917 SPQ M402917 Contact Us For Availability
4
Fuse Holder SPQ M413867 Contact Us For Availability
4
Finger Guard SPQ M412370 Contact Us For Availability
5
Coin Drop Assembly SPQ 70294107 Contact Us For Availability
5
Door Switch Actuator Kit SPQ 70071401 Contact Us For Availability
5
Control Trim SPQ 44016401 Contact Us For Availability
5
Door Switch Bracket SPQ 70072901 Contact Us For Availability
5
Center Cylinder Seal SPQ 70257201 Contact Us For Availability
5
Roller Catch Spacer SPQ 70176701QP Contact Us For Availability
5
Thermistor SPQ 70144601 Contact Us For Availability
5
Gas Burner SPQ 70032801P Contact Us For Availability
5
Burner Grill SPQ 70188801 Contact Us For Availability
5
Elbow SPQ 70139601 Contact Us For Availability
5
Fuse Holder SPQ M414232 Contact Us For Availability
6
Airflow Switch SPQ 70266201 Contact Us For Availability
6
Jumper Wire Assembly SPQ M412645 Contact Us For Availability
6
Door Glass Installation Tool SPQ 70215001P Contact Us For Availability
6
Nameplate Overlay SPQ 70128301 Contact Us For Availability
6
SPQ 70125101 SPQ 70125101 Contact Us For Availability
6
Tumbler Dolly Kit SPQ 70176702P Contact Us For Availability
6
Burner Grill SPQ 05161 Contact Us For Availability
6
L.P. Conversion Kit SPQ M4711P3 Contact Us For Availability
6
Adapter SPQ 70079601 Contact Us For Availability
6
Fuse Bracket SPQ M413544P Contact Us For Availability
6
Fuse Holder SPQ M412368 Contact Us For Availability
7
Airflow Switch Cover SPQ 70267301 Contact Us For Availability
7
Nameplate Bezel SPQ 70117401 Contact Us For Availability
7
SPQ 70119301 SPQ 70119301 Contact Us For Availability
7
Jumper Bypass Assembly SPQ 70180101 Contact Us For Availability
7
Bushing SPQ 70186101 Contact Us For Availability
7
Fan Motor Harness Assembly SPQ 70015601 Contact Us For Availability
7
SPQ 70159601 SPQ 70159601 Contact Us For Availability
7
Harness Strap SPQ 70112801 Contact Us For Availability
7
Screw SPQ 70131901 Contact Us For Availability
8
Adhesive SPQ 70013701P Contact Us For Availability
8
Key SPQ 70155601 Contact Us For Availability
8
SPQ 70033502 SPQ 70033502 Contact Us For Availability
8
Coin Vault Harness Assembly SPQ 70277301 Contact Us For Availability
8
SPQ 70289101P SPQ 70289101P Contact Us For Availability
8
Belt Tension Tool Kit SPQ 70050401P Contact Us For Availability
8
Fan Motor Harness Assembly SPQ 70062401 Contact Us For Availability
8
SPQ 70281801 SPQ 70281801 Contact Us For Availability
8
SPQ 70229801P SPQ 70229801P Contact Us For Availability
8
Gas Valve Harness SPQ 23222 Contact Us For Availability
8
End Cover SPQ 70124001 Contact Us For Availability
8
Fuse Holder Kit SPQ M412187P Contact Us For Availability
9
Cylinder Motor Harness Assemb SPQ 70051401 Contact Us For Availability
9
Cylinder Guide Tool SPQ 70506402 Contact Us For Availability
9
SPQ 70413301 SPQ 70413301 Contact Us For Availability
9
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
9
SPQ 44088801 SPQ 44088801 Contact Us For Availability
9
SPQ 70132301 SPQ 70132301 Contact Us For Availability
9
Secondary Stove Limit Kit SPQ M411307 Contact Us For Availability
9
Ferrite Core Assembly SPQ 70123901 Contact Us For Availability
9
Ferrite Core Assembly SPQ M412366 Contact Us For Availability
10
Rear Cylinder Bearing Housing SPQ 70222101P Contact Us For Availability
10
Screw SPQ 70072801 Contact Us For Availability
10
Drive Motor SPQ 70338101P Contact Us For Availability
10
Rear Limit Harness SPQ 70297001 Contact Us For Availability
10
Primary Air Adjustment Sleeve SPQ 70239801 Contact Us For Availability
10
Fan Contactor SPQ M413614P Contact Us For Availability
11
Support Bearing SPQ 70013901 Contact Us For Availability
11
Hole Plug SPQ 70063201 Contact Us For Availability
11
Roller Catch Arm SPQ 70030301 Contact Us For Availability
11
Switch Assembly SPQ 70413401 Contact Us For Availability
11
Drive Motor Kit SPQ 70338001P Contact Us For Availability
11
Damper and Hinge Exhaust Assembly SPQ 70209501 Contact Us For Availability
11
Pipe Clip SPQ 70203701 Contact Us For Availability
11
Spud Adapter SPQ 70223501 Contact Us For Availability
11
End Stop SPQ 70121001 Contact Us For Availability
11
Terminal Block SPQ 70120001 Contact Us For Availability
12
Washer SPQ 70448701 Contact Us For Availability
12
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
12
Gas Valve Coil SPQ 70260101 Contact Us For Availability
12
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
12
Lint Screen SPQ 70290401 Contact Us For Availability
12
Drive Motor Kit SPQ 70337901P Contact Us For Availability
12
Screw SPQ 70126101 Contact Us For Availability
13
Drive Motor SPQ 70337801P Contact Us For Availability
13
Door Glass SPQ M400784P Contact Us For Availability
13
Key SPQ 70155602 Contact Us For Availability
13
Pop Rivet SPQ 70126401 Contact Us For Availability
13
Blower Housing Scroll SPQ 70016301 Contact Us For Availability
13
N.G. Valve SPQ 70457301P Contact Us For Availability
14
Nut SPQ M414215 Contact Us For Availability
14
Washer SPQ F430311 Contact Us For Availability
14
Lint Screen Clip SPQ 70054501 Contact Us For Availability
14
Panel Locator SPQ 70126301 Contact Us For Availability
15
Blower Motor Mounting Plate SPQ M400034 Contact Us For Availability
15
Door Handle SPQ 44007902P Contact Us For Availability
15
Motor Pivot Shaft SPQ 70187801 Contact Us For Availability
16
Screw SPQ 70108501 Contact Us For Availability
16
Door Latch SPQ M400003 Contact Us For Availability
16
Washer SPQ M400022 Contact Us For Availability
16
Motor Pulley SPQ 70284203 Contact Us For Availability
17
Screw SPQ M400661 Contact Us For Availability
17
Coin Vault Trim SPQ M401223 Contact Us For Availability
17
Baffle Gasket SPQ 70015702 Contact Us For Availability
17
Nut SPQ 70284201 Contact Us For Availability
17
Key SPQ 70012001 Contact Us For Availability
18
Panel Locator SPQ 70117502 Contact Us For Availability
18
Center Cylinder Seal SPQ 70015701 Contact Us For Availability
19
Door Ring Gasket SPQ 70296801 Contact Us For Availability
19
Blower Motor Kit SPQ M400991 Contact Us For Availability
19
Rear Cylinder Channel Plate SPQ 70392801 Contact Us For Availability
19
Clip SPQ 70015703 Contact Us For Availability
19
Screw SPQ 70186601 Contact Us For Availability
20
Drive Access Cover SPQ 70144101 Contact Us For Availability
20
Rear Cylinder Seal SPQ 70070101 Contact Us For Availability
20
Nut SPQ 70226701 Contact Us For Availability
20
U-Bolt SPQ 430648 Contact Us For Availability
21
Exhaust Thimble SPQ 70342601P Contact Us For Availability
23
Bumper Pad SPQ 70006201 Contact Us For Availability
23
Partition Baffle SPQ 70616701 Contact Us For Availability
24
Retaining Ring SPQ 70017701 Contact Us For Availability
25
Coin Chute Assembly SPQ 70022001 Contact Us For Availability
26
Coin Vault Assembly SPQ 70022101 Contact Us For Availability
27
Lint Panel Switch Bracket SPQ 70015201 Contact Us For Availability
29
SPQ M412534 SPQ M412534 Contact Us For Availability
NI
SPQ 70173401P SPQ 70173401P Contact Us For Availability
NI
Control Panel Harness Assembly SPQ 70082701P Contact Us For Availability
NI
Card Reader Harness Assembly SPQ 431613 Contact Us For Availability
NI
Control Panel Harness Assembly SPQ 70235801 Contact Us For Availability
NI
Jumper Calibration Assembly SPQ 70211702 Contact Us For Availability
NI
Coin Drop SPQ 70294104 Contact Us For Availability
NI
Coin Drop SPQ 70283102 Contact Us For Availability
NI
Wire Guard SPQ 39748 Contact Us For Availability
NI
SPQ 38475 SPQ 38475 Contact Us For Availability
NI
SPQ 38464P SPQ 38464P Contact Us For Availability
NI
SPQ 210195 SPQ 210195 Contact Us For Availability
NI
SPQ 70294103P SPQ 70294103P Contact Us For Availability
NI
SPQ 38472 SPQ 38472 Contact Us For Availability
NI
SPQ CK108 SPQ CK108 Contact Us For Availability
NI
SPQ CK100 SPQ CK100 Contact Us For Availability
NI
SPQ CK118 SPQ CK118 Contact Us For Availability
NI
SPQ CK116 SPQ CK116 Contact Us For Availability
NI
SPQ CK103 SPQ CK103 Contact Us For Availability
NI
SPQ 70176310P SPQ 70176310P Contact Us For Availability
NI
Emergency Stop Switch Harness Assembly SPQ 70083901 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 70277801 SPQ 70277801 Contact Us For Availability
NI
SPQ 70083801 SPQ 70083801 Contact Us For Availability
NI
SPQ 70297601 SPQ 70297601 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 70027701 SPQ 70027701 Contact Us For Availability
NI
SPQ 70083701 SPQ 70083701 Contact Us For Availability
NI
SPQ 70053601P SPQ 70053601P Contact Us For Availability
NI
SPQ 70220901 SPQ 70220901 Contact Us For Availability
NI
SPQ 70083401 SPQ 70083401 Contact Us For Availability
NI
SPQ 70299101 SPQ 70299101 Contact Us For Availability
NI
SPQ 70184001 SPQ 70184001 Contact Us For Availability
NI
SPQ 431482 SPQ 431482 Contact Us For Availability
NI
SPQ M413509 SPQ M413509 Contact Us For Availability
NI
SPQ 70083301P SPQ 70083301P Contact Us For Availability
NI
Network Capacitor Assembly SPQ M414229P Contact Us For Availability
NI
Jumper Harness Assembly SPQ M414228P Contact Us For Availability
NI
SPQ M413930P SPQ M413930P Contact Us For Availability
NI
SPQ M413504 SPQ M413504 Contact Us For Availability
NI
SPQ 70120201P SPQ 70120201P Contact Us For Availability
NI
SPQ 70083001P SPQ 70083001P Contact Us For Availability
NI
Power Harness Assembly SPQ 70121101 Contact Us For Availability
× ![]()
