Model U-Line U-3024FZRINT-07A Uline U3024FZRINT-07A – Common Parts & Diagrams

Common parts from model U-Line U-3024FZRINT-07A Uline U3024FZRINT-07A

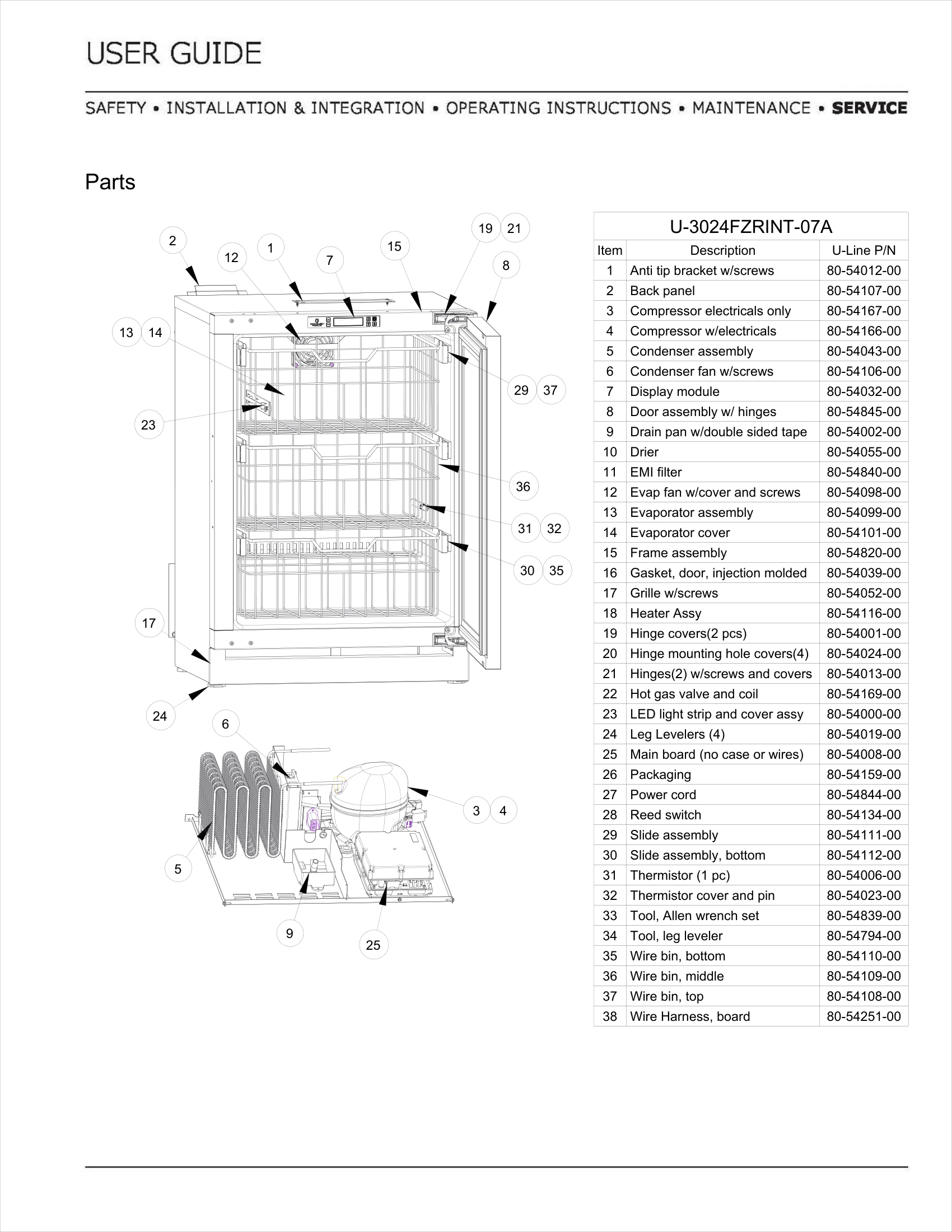

Exploded View

Print

• This Diagram
• All Diagrams

1

80-54012-00 U-Line Anti-Tip Bracket with Scre Backorder ULC 80-54012-00 View Details $37.94

View on Model

6

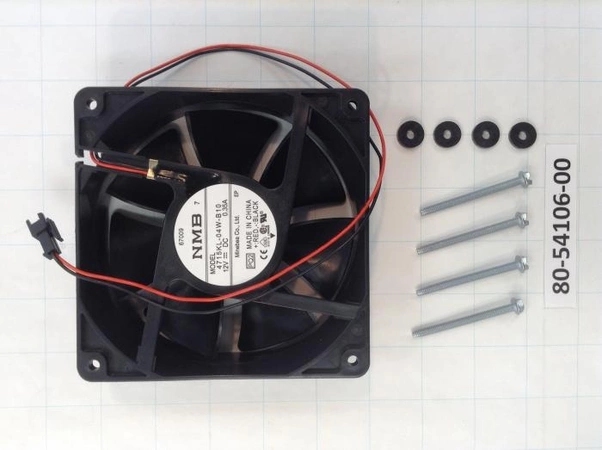

80-54106-00 U-Line Condenser Fan with Screws Backorder ULC 80-54106-00 View Details $132.07

View on Model

7

80-54032-00 U-Line Display Module Backorder ULC 80-54032-00 View Details $688.45

View on Model

10

80-54055-00 U-Line Dryer Backorder ULC 80-54055-00 View Details $15.46

View on Model

12

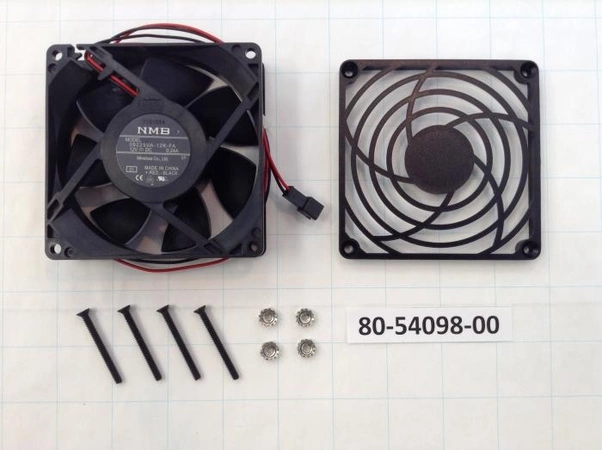

80-54098-00 U-Line Evaporator Fan with Cover Backorder ULC 80-54098-00 View Details $147.53

View on Model

16

80-54039-00 U-Line Door Gasket - Molded Backorder ULC 80-54039-00 View Details $75.25

View on Model

21

80-54013-00 U-Line Hinge Assembly with Screws Backorder ULC 80-54013-00 View Details $127.86

View on Model

22

80-54169-00 U-Line Reversing Valve Backorder ULC 80-54169-00 View Details $234.25

View on Model

23

80-54000-00 U-Line LED Light Strip and Cover Backorder ULC 80-54000-00 View Details $50.58

View on Model

24

80-54019-00 U-Line Leveling Legs 4 Pack Backorder ULC 80-54019-00 View Details $23.89

View on Model

25

80-54008-00 U-Line Main Board In Stock ULC 80-54008-00 View Details $339.69

View on Model

26

Packaging ULC 80-54159-00 Contact Us For Availability

View on Model

27

Power cord ULC 80-54844-00 Contact Us For Availability

View on Model

28

80-54134-00 U-Line Refrigerator Reed Switch Backorder ULC 80-54134-00 View Details $18.27

View on Model

29

Slide assembly ULC 80-54111-00 Contact Us For Availability

View on Model

30

Slide assembly, bottom ULC 80-54112-00 Contact Us For Availability

View on Model

31

80-54006-00 U-Line White Thermistor In Stock ULC 80-54006-00 View Details $46.34

View on Model

32

80-54023-00 U-Line Thermistor Cover and Pin In Stock ULC 80-54023-00 View Details $15.46

View on Model

33

Tool, Allen wrench set ULC 80-54839-00 Contact Us For Availability

View on Model

34

Tool, leg leveler ULC 80-54794-00 Contact Us For Availability

View on Model

35

Wire bin, bottom ULC 80-54110-00 Contact Us For Availability

View on Model

36

Wire bin, middle ULC 80-54109-00 Contact Us For Availability

View on Model

37

Wire bin, top ULC 80-54108-00 Contact Us For Availability

View on Model

38

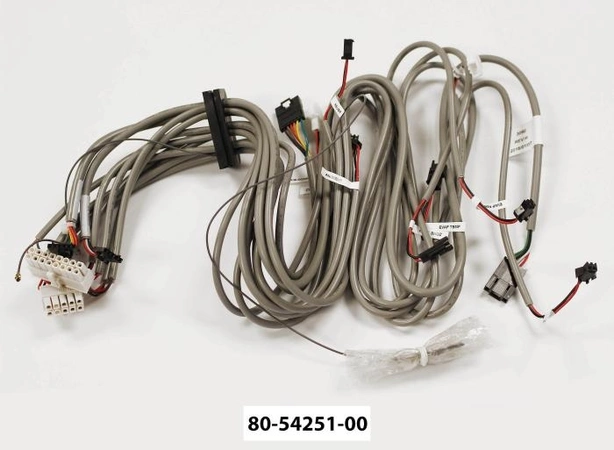

80-54251-00 U-Line Wire Harness for Board Backorder ULC 80-54251-00 View Details $127.86

View on Model

×
