Model Whirlpool TVF15FRXW00 VERTICAL FREEZER – Common Parts & Diagrams
01 - CABINET

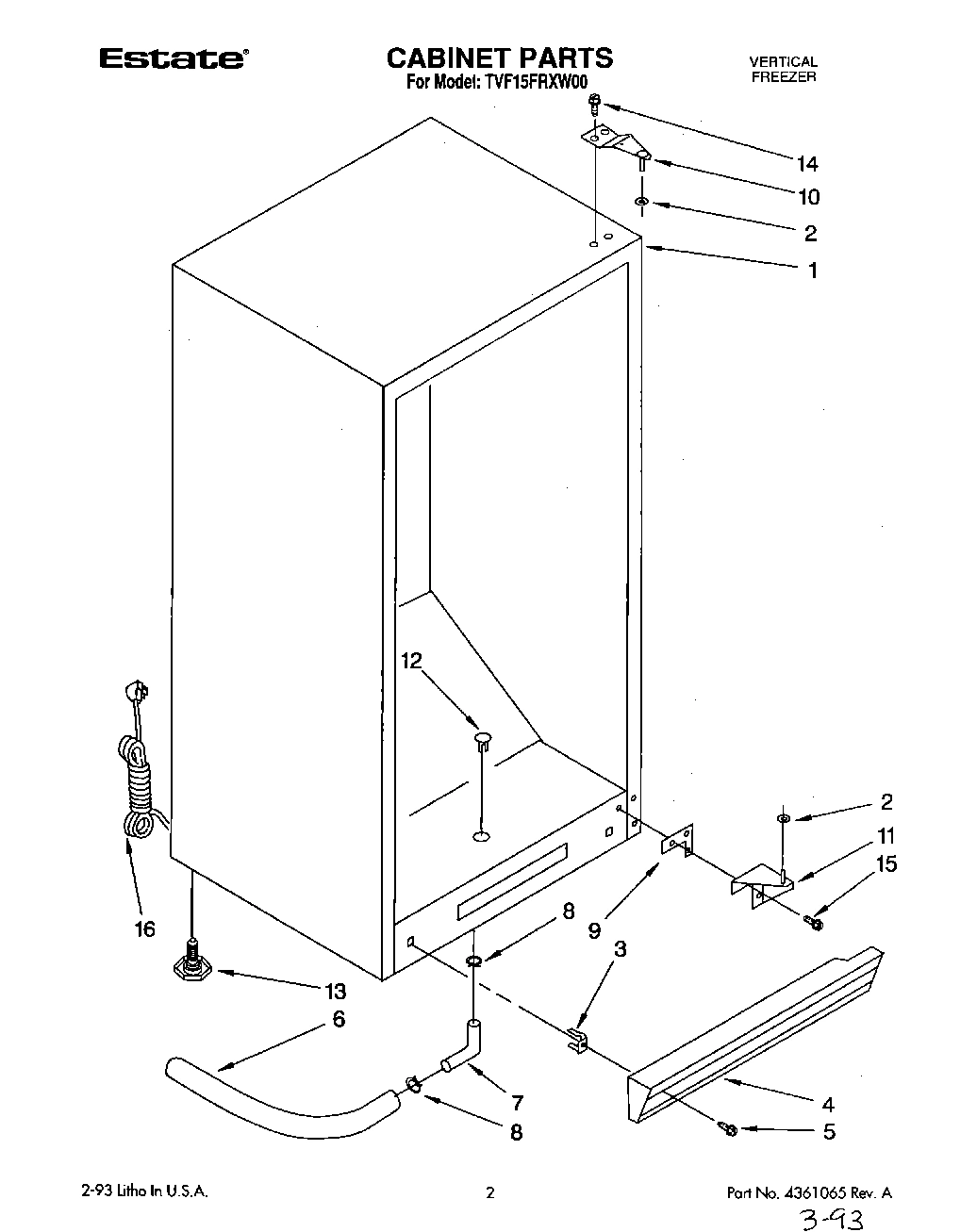

02 - LINER, LIT/OPTIONAL
04 - UNIT
03 - DOOR
Common parts from model Whirlpool TVF15FRXW00 VERTICAL FREEZER
Use & Care Guide WPL LIT4356910 Contact Us For Availability
Parts List WPL LIT4361065 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI134139A Contact Us For Availability
1
Compressor Mounting Pan WPL 4356837 Contact Us For Availability
2
Control Knob WPL 4356802 Contact Us For Availability
3
Anchor, Screw WPL 4356812 Contact Us For Availability
4
Thermostat WPL 4356808 Contact Us For Availability
4
Washer WPL 4356847 Contact Us For Availability
4
Door Shelf Trim (4) WPL 4356813 Contact Us For Availability
5
Screw WPL 4356809 Contact Us For Availability
5
Compressor Mounting Screw WPL 4356852 Contact Us For Availability
5
Foam Block WPL 4356893 Contact Us For Availability
6
Compressor Grommet WPL 4356855 Contact Us For Availability
7
Gate WPL 4356888 Contact Us For Availability
7
Compressor WPL 4356856 Contact Us For Availability
8
Support, Fence, (R.H.) WPL 4356889 Contact Us For Availability
8
Relay WPL 4356857 Contact Us For Availability
9
Shim, Bottom WPL 4356828 Contact Us For Availability
9
Overload WPL 4356858 Contact Us For Availability
9
Exterior Door (White) WPL 4356899 Contact Us For Availability
10
Top, Hinge WPL 4356833 Contact Us For Availability
10
Screw WPL 4356891 Contact Us For Availability
10
Evaporator Top WPL 4356859 Contact Us For Availability
10
Nameplate WPL 4356911 Contact Us For Availability
11
Bottom, Hinge WPL 4356834 Contact Us For Availability
11
Tube, Cover Bottom WPL 4356867 Contact Us For Availability
11
Evaporator Shelf (One) WPL 4356864 Contact Us For Availability
11
Handle, Chrome WPL 4356895 Contact Us For Availability
12
Drain Plug WPL 4356835 Contact Us For Availability
12
Tube, Cover Top WPL 4356868 Contact Us For Availability
12
Evaporator Shelf (Two) WPL 4356865 Contact Us For Availability
12
Handle, Insert (Cherry Hill) WPL 4356914 Contact Us For Availability
13
Rivet, Plastic WPL 4356892 Contact Us For Availability
13
Evaporator Shelf (Three) WPL 4356866 Contact Us For Availability
15
Lower, Hinge Screw WPL 4356822 Contact Us For Availability
15
Evaporator, Mounting Screw WPL 4356851 Contact Us For Availability
16
Power Cord WPL 4357012 Contact Us For Availability
16
Cover WPL 4356946 Contact Us For Availability
16
Spring, Clip Mounting WPL 4356842 Contact Us For Availability
17
Clip, Cover WPL 4356951 Contact Us For Availability
18
Control Bulb Screw WPL 4356853 Contact Us For Availability
18
Overload Spring WPL 4356945 Contact Us For Availability
19
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
19
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
19
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
19
Tube, Cover Center WPL 4356897 Contact Us For Availability
19
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
19
Screw, Handle WPL 302717 Contact Us For Availability
20
Screw Handle Lower WPL 488839 Contact Us For Availability
× ![]()
