Model LG TMH14XLB-1 MWO-OTR – Common Parts & Diagrams
Diagram 0

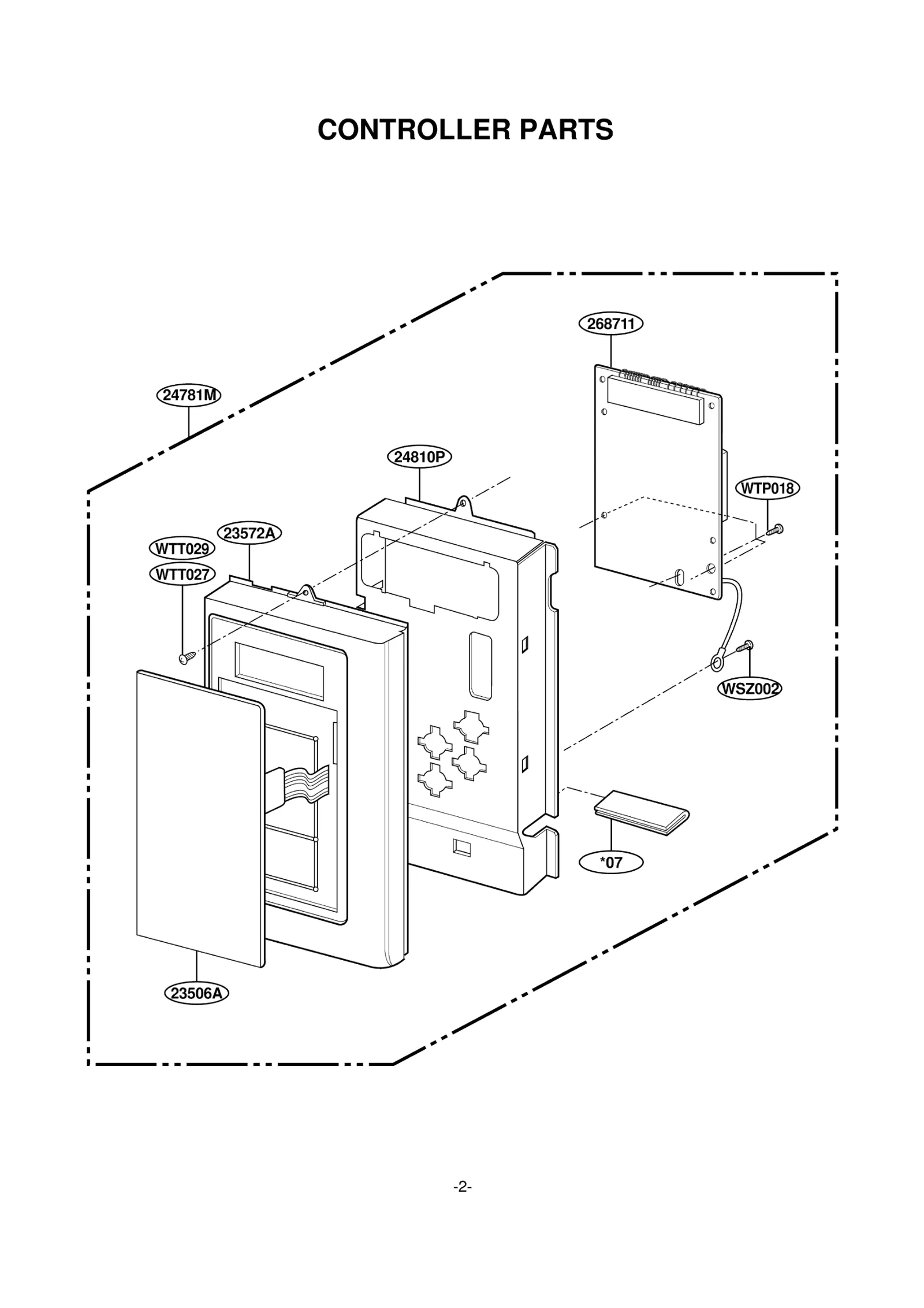

Diagram 1

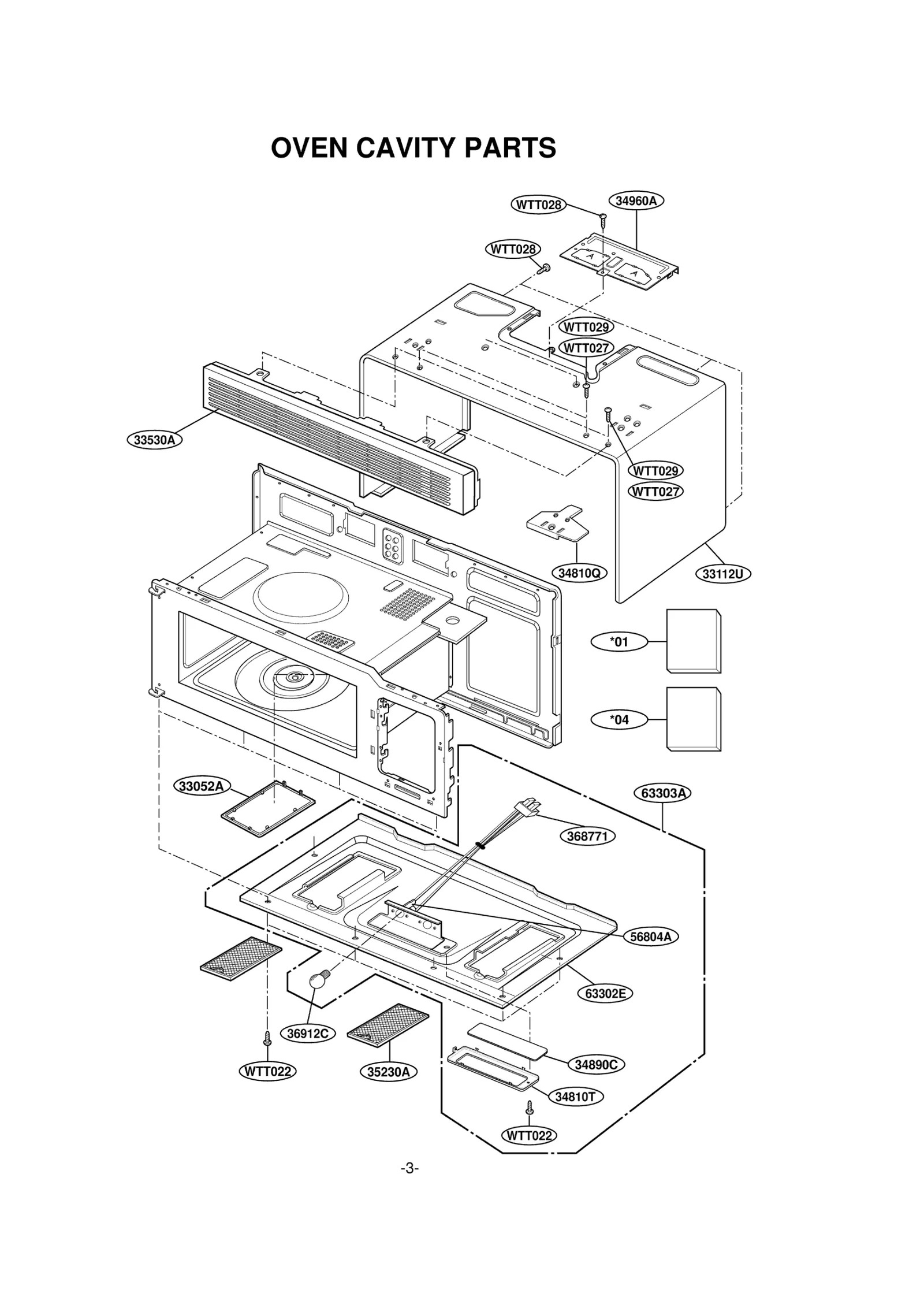

Diagram 2

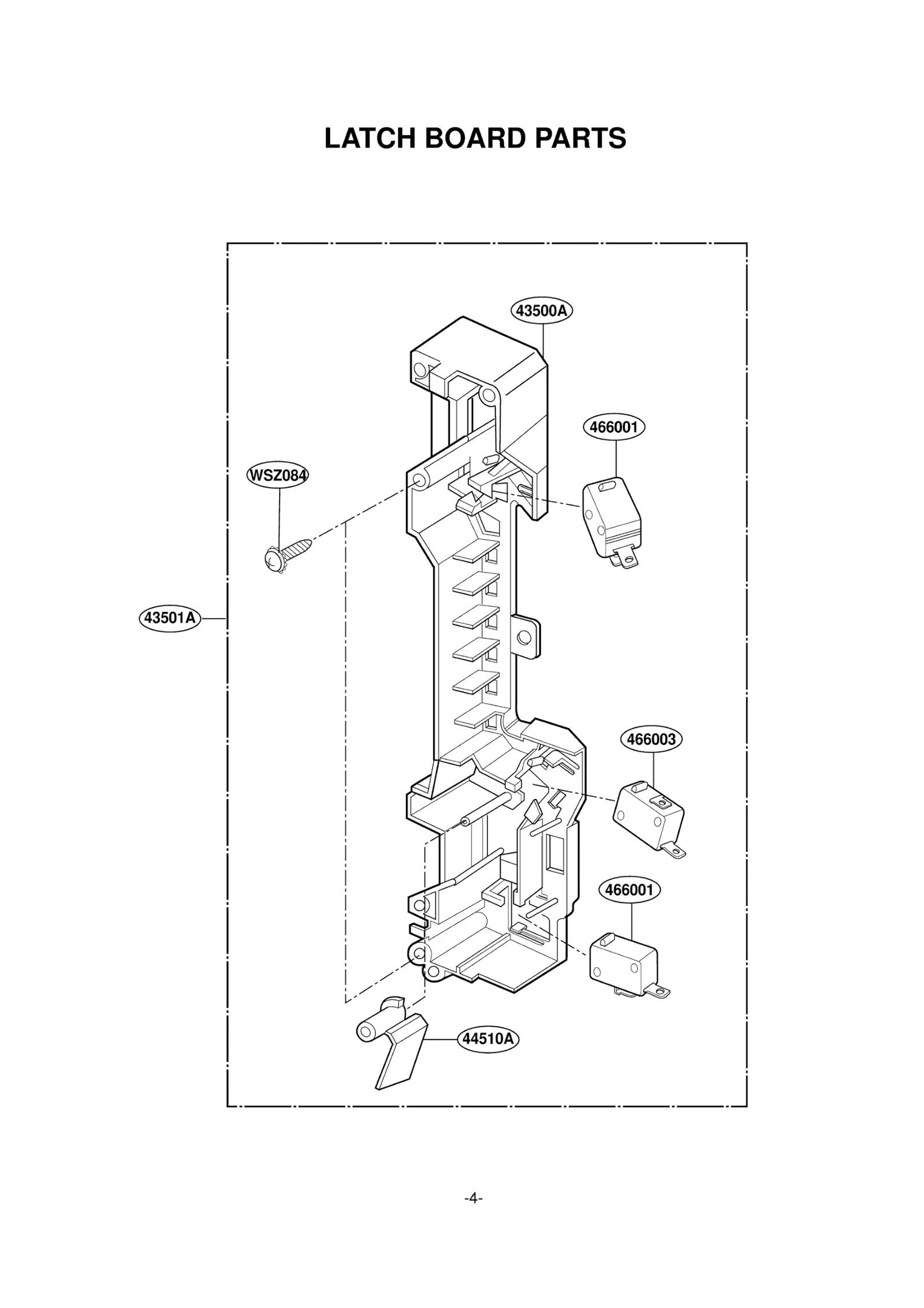

Diagram 3

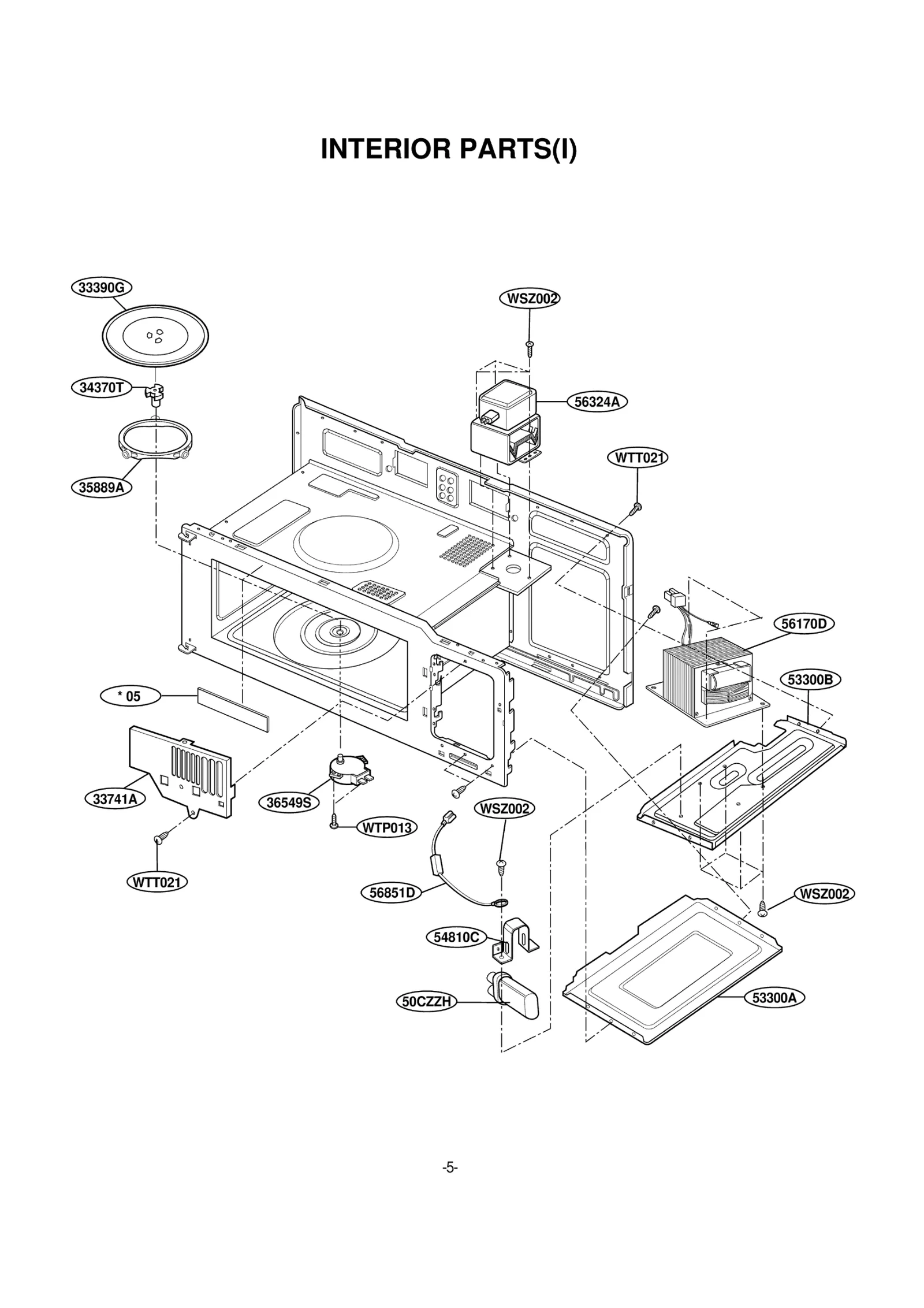

Diagram 4

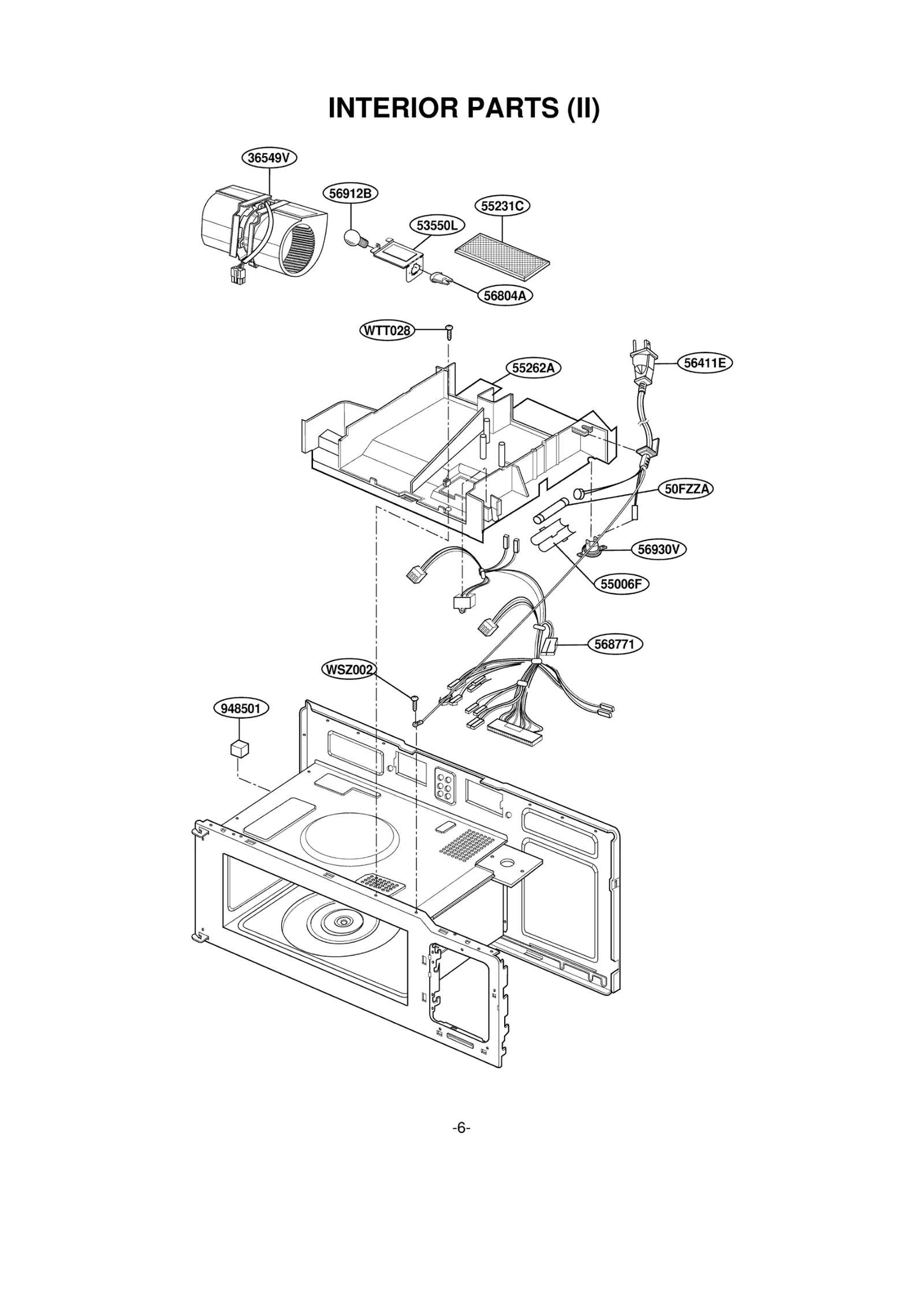

Diagram 5

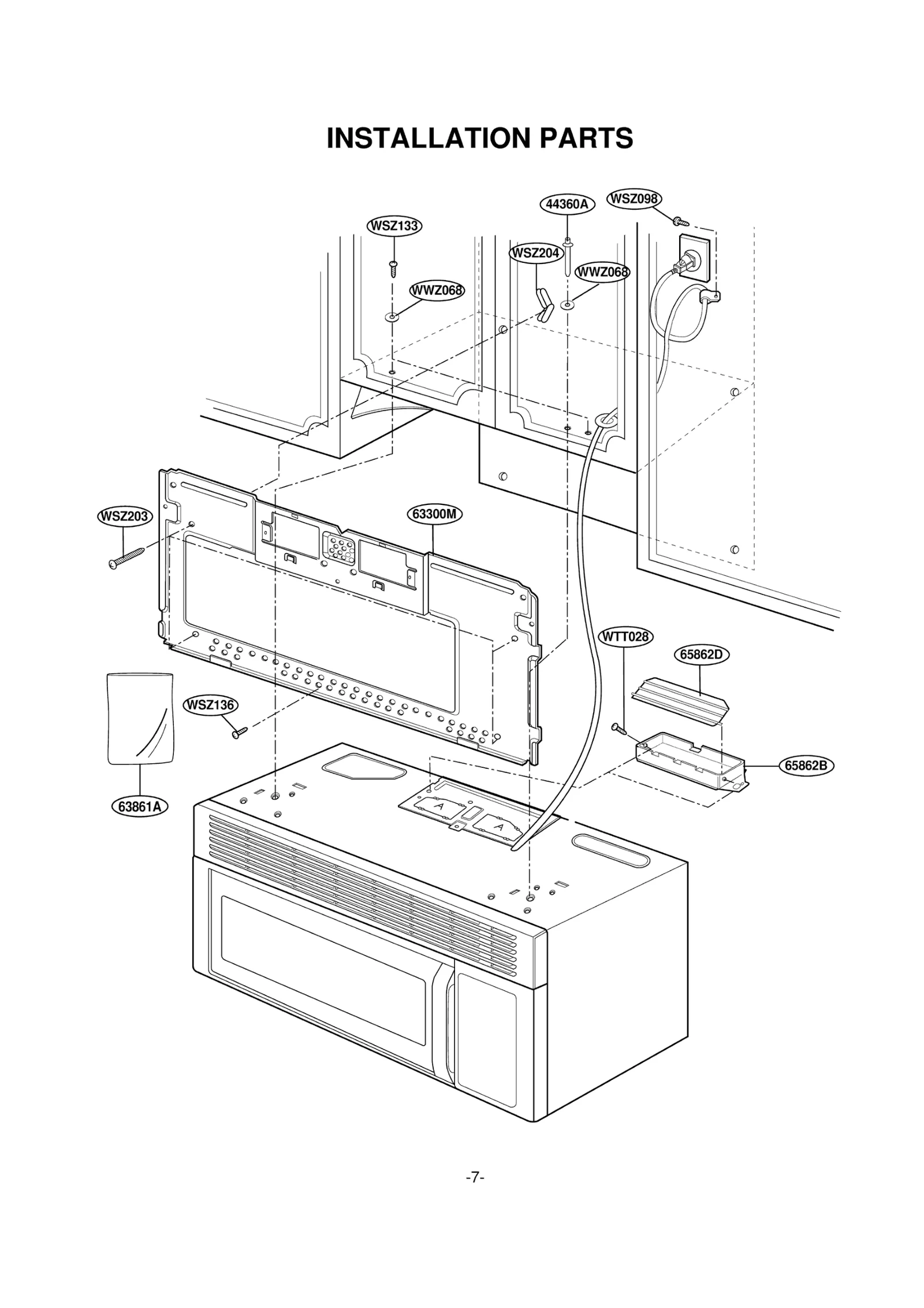

Diagram 6
Diagram 7
Common parts from model LG TMH14XLB-1 MWO-OTR
*01
MANUAL,OWNERS LGE 3828W5A2450 Contact Us For Availability
*04
MANUAL,[INSTALLATION] LGE 3828W5U0143 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W1D058A Contact Us For Availability
*06
TEMPLATE LGE 4922W5A025A Contact Us For Availability
*07
CARD,TECHNICAL LGE 3840W5T115A Contact Us For Availability
33741A
PROTECTOR ASSEMBLY (MECH) LGE 3741W1A001A Contact Us For Availability
34810Q
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
34890C
GLASS ALL MV-1320M MV-1325S W/ LGE 4890W4A001B Contact Us For Availability
34960A
MOUNT LGE 4960W1A004A Contact Us For Availability
35889A
ROTATING RING ASSEMBLY LGE 5889W2A012C Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V/60HZ LGE 2B72754E Contact Us For Availability
36549V
MOTOR(CIRC),VENTILATION LGE 6549W1V006C Contact Us For Availability
36912C
LAMP[OVEN/BASELESS] LGE 6912W3Q001D Contact Us For Availability
44360A
LOCKING PIN LGE 4360W4A001A Contact Us For Availability
44510A
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
53300A
PLATE,[BOTTOM PLATE] LGE 3300W1A003A Contact Us For Availability
53300B
LGE 3301W1A033C LGE 3301W1A033C Contact Us For Availability
53550L
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
54810C
BRACKET,CAPACITOR LGE 4810W1A064A Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55262A
DUCT,[AIR DUCT] LGE 5208W0A005A Contact Us For Availability
56324A
MAGNETRON LGE 6324W1A001A Contact Us For Availability
56411E
LGE 383EW5A127A LGE 383EW5A127A Contact Us For Availability
56804A
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
56912B
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A002K Contact Us For Availability
63300M
PLATE,[MOUNTING PLATE] LGE 3300W0M003A Contact Us For Availability
63302E
SVC PARTS BASE PLATE LGE 383EW0A016A Contact Us For Availability
63303A
Plate Assembly,Base LGE 3303W1A041T Contact Us For Availability
63861A
MOUNTING KIT (OTR) LGE 2B72771A Contact Us For Availability
65862D
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
368771
LEAD WIRE ASSY LGE 6877W1A340A Contact Us For Availability
568771
LEAD WIRE ASSY LGE 6877W1A327A Contact Us For Availability
C01
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
C02
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE6876H618 Contact Us For Availability
C03
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C04
CAPACITOR ELECTROLYTIC LGE 0CE1076D638 Contact Us For Availability
C11
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C20
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C91
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1020K518 Contact Us For Availability
CN1
CONNECTOR (CIRC),WAFER LGE 6630W5YA10K Contact Us For Availability
CN2
LGE 6630W5YA19E LGE 6630W5YA19E Contact Us For Availability
D01
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D39
DIODE 1N4004TA(06220071)MV-100 LGE 0DD400409AA Contact Us For Availability
D86
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
LW1
WIRE LGE 3B72342F Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q20
TRANSISTOR,BIPOLARS LGE 0TRFC90012A Contact Us For Availability
Q42
TRANSISTOR,BIPOLARS LGE 0TRFC90021A Contact Us For Availability
Q44
TRANSISTOR,BIPOLARS LGE 0TRFC80002A Contact Us For Availability
Q47
TRANSISTOR,BIPOLARS LGE 0TRFC90002A Contact Us For Availability
Q96
TRANSISTOR LGE 0TR107009AC Contact Us For Availability
R02
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R03
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R04
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R11
RESISTOR,FIXED CARBON FILM LGE 0RD0202G608 Contact Us For Availability
R13
LGE 0RD1003G608 LGE 0RD1003G608 Contact Us For Availability
R25
LGE 0RD3301G608 LGE 0RD3301G608 Contact Us For Availability
R49
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R50
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R90
LGE 0RN2202G408 LGE 0RN2202G408 Contact Us For Availability
R93
LGE 0RD1202G608 LGE 0RD1202G608 Contact Us For Availability
R95
Resistor,Carbon Film LGE 0RD1802F608 Contact Us For Availability
R96
Resistor,Carbon Film LGE 0RD8202F608 Contact Us For Availability
R110
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R130
RESISTOR,FIXED METAL FILM LGE 0RN1802G408 Contact Us For Availability
RY4
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
RY5
RELAY LGE 6920WRD014A Contact Us For Availability
U01
IC,DRAWING LGE 0IZZW5A119F Contact Us For Availability
WSZ098
SPECIAL SCREW LGE 4B70637B Contact Us For Availability
WSZ133
CABINET BOLT(UNIFIED-SCREW)MV- LGE 4B73234A Contact Us For Availability
WTT022
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
WWZ068
PLAIN WASHER 08X2 (4158396)MV LGE 4B73055A Contact Us For Availability
ZD10
DIODE,ZENERS LGE 0DZ510009AD Contact Us For Availability
× ![]()
