Model Electrolux TGF366CFTD RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

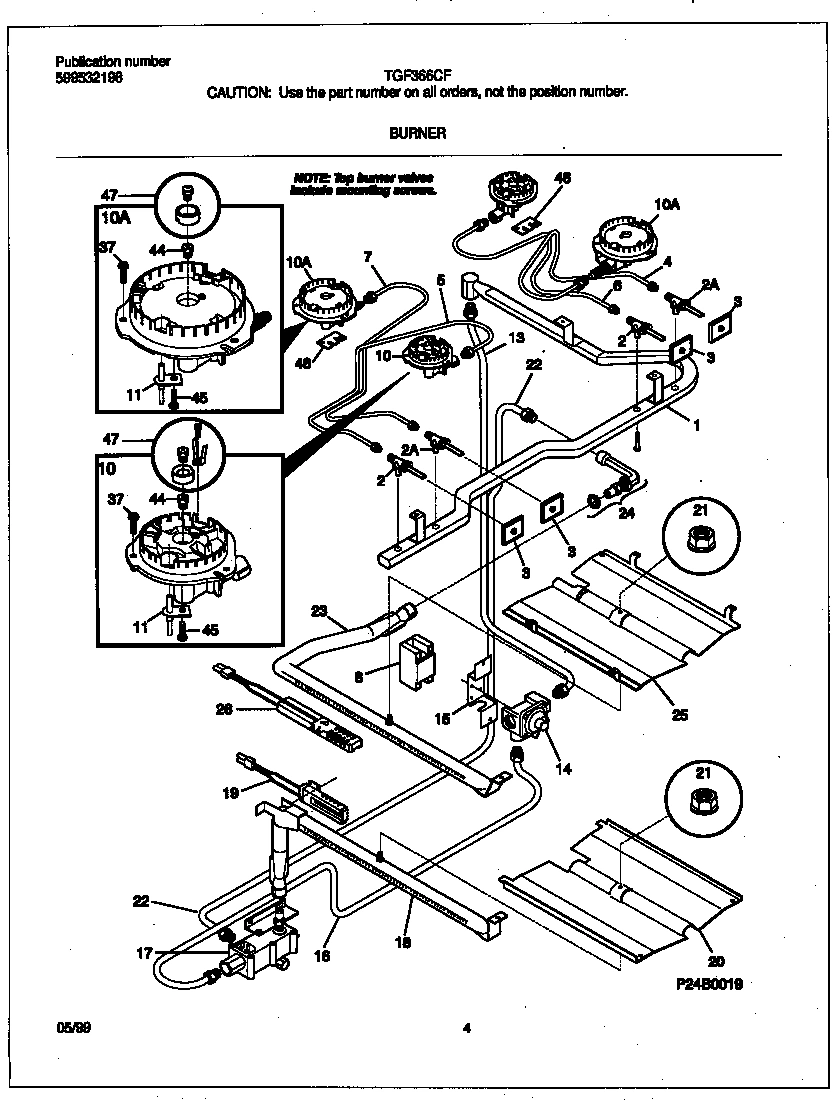

03 - BURNER

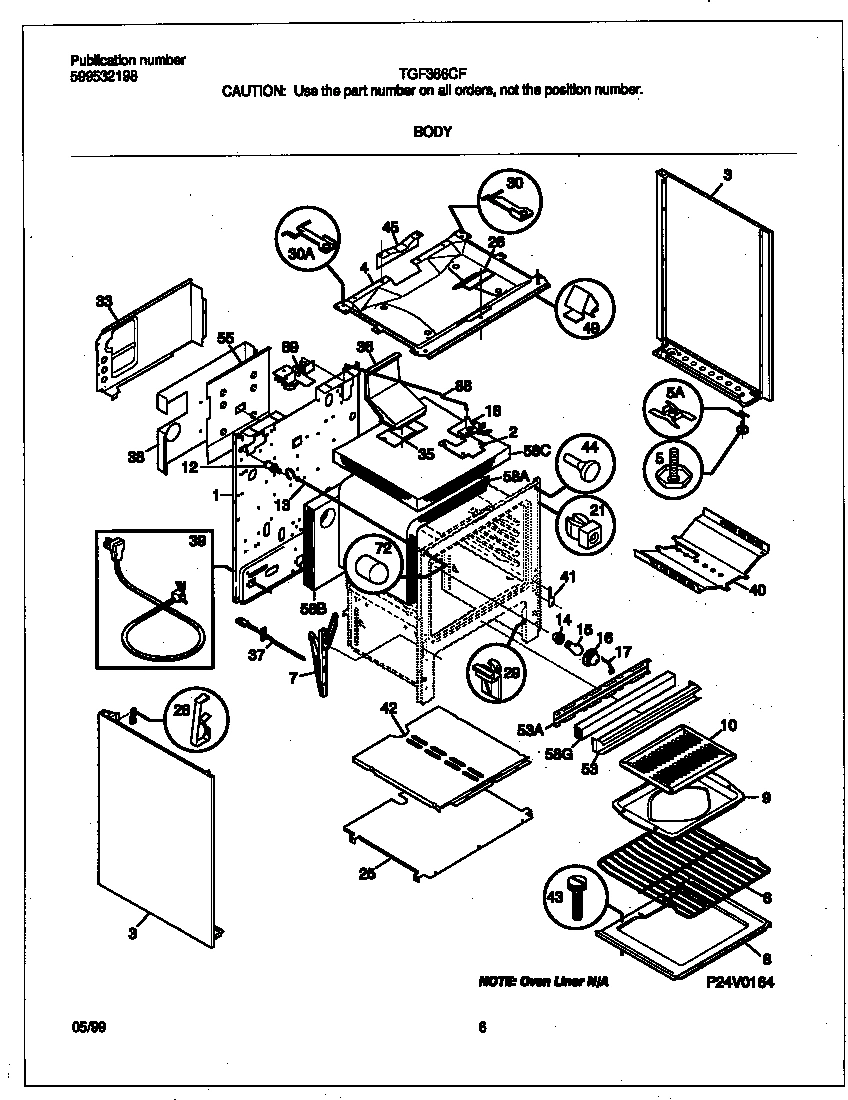

04 - BODY

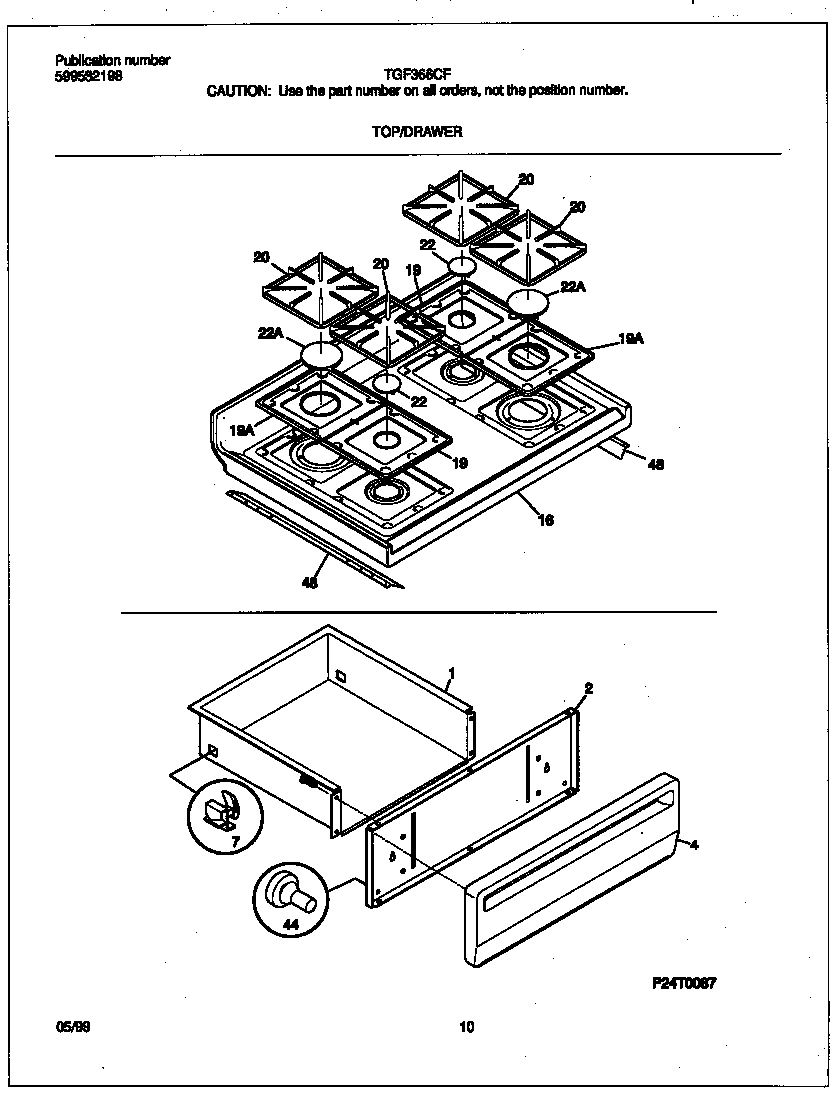

05 - TOP/DRAWER

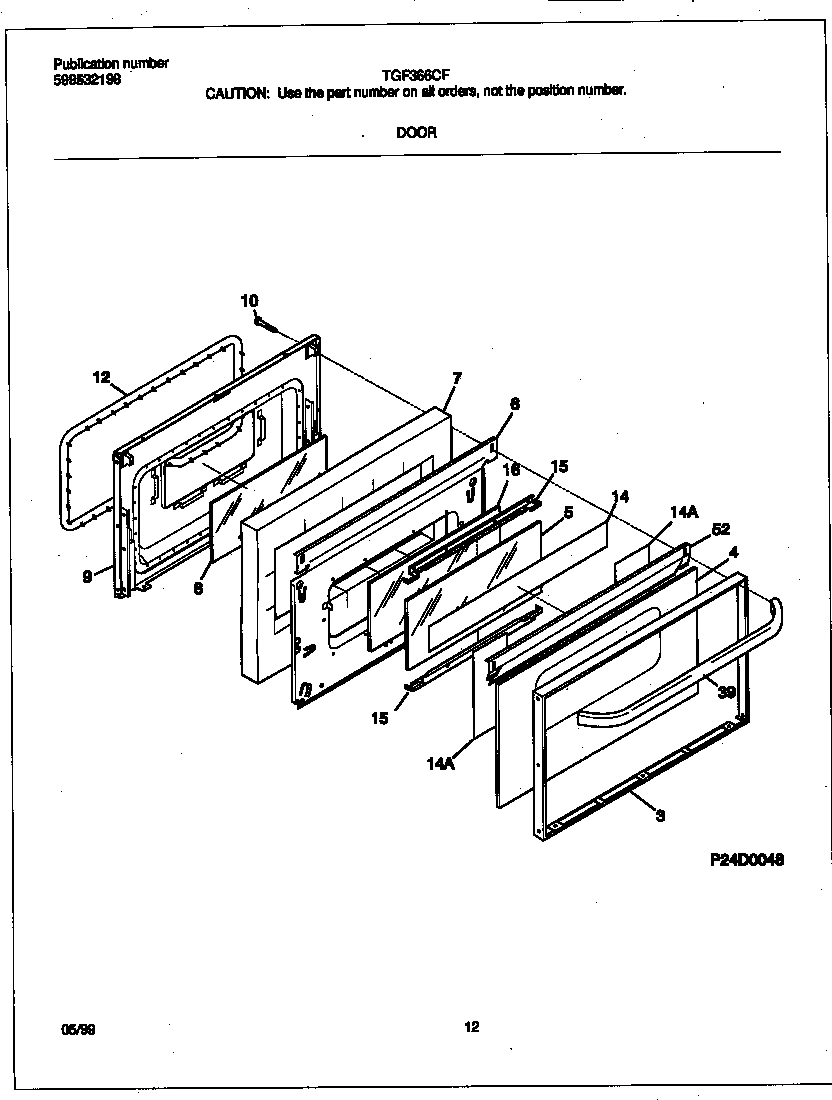

06 - DOOR

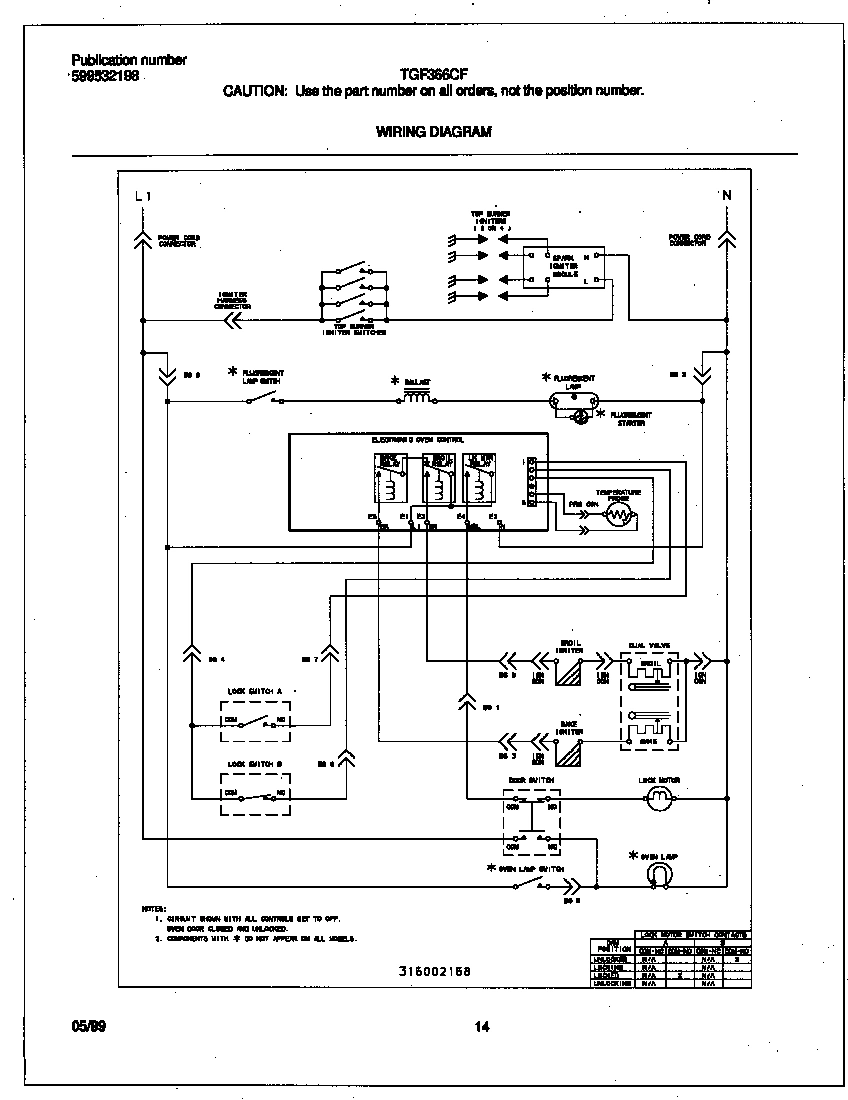

07 - WIRING DIAGRAM
Common parts from model Electrolux TGF366CFTD RANGE
*37080
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*37106
WCI 316089600 WCI 316089600 Contact Us For Availability
*37107
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
*37110
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*37112
WCI 316065301 WCI 316065301 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 5303935130 No Longer Available
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316067804 WCI 316067804 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
4
WCI 316089005 WCI 316089005 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
WCI 316059615 WCI 316059615 Contact Us For Availability
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 5303307709 WCI 5303307709 Contact Us For Availability
19
PAN-BURNER, GRAY, SMALL, (2) WCI 316011413 Contact Us For Availability
19
PAN-BURNER, GRAY, LARGE, (2) WCI 316011417 Contact Us For Availability
20
WCI 316085205 WCI 316085205 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
CAP-BURNER,LARGE ,GLOSS GRAY WCI 316098509 Contact Us For Availability
22
CAP-BURNER,SMALL ,GLOSS GRAY WCI 316098508 Contact Us For Availability
38
WCI 316051700 WCI 316051700 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303288578 No Longer Available
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 No Longer Available
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
48
SHIELD-MAINTOP,(2) WCI 316077401 Contact Us For Availability
52
WCI 316081301 WCI 316081301 Contact Us For Availability
53
SHIELD-INSULATION WCI 08067992 Contact Us For Availability
53
WCI 5303288579 WCI 5303288579 Contact Us For Availability
58
WCI 316047705 WCI 316047705 Contact Us For Availability
58
Insulation, 2`` ,oven back WCI 316054200 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
× ![]()
