Model Electrolux TGF365CHTF RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

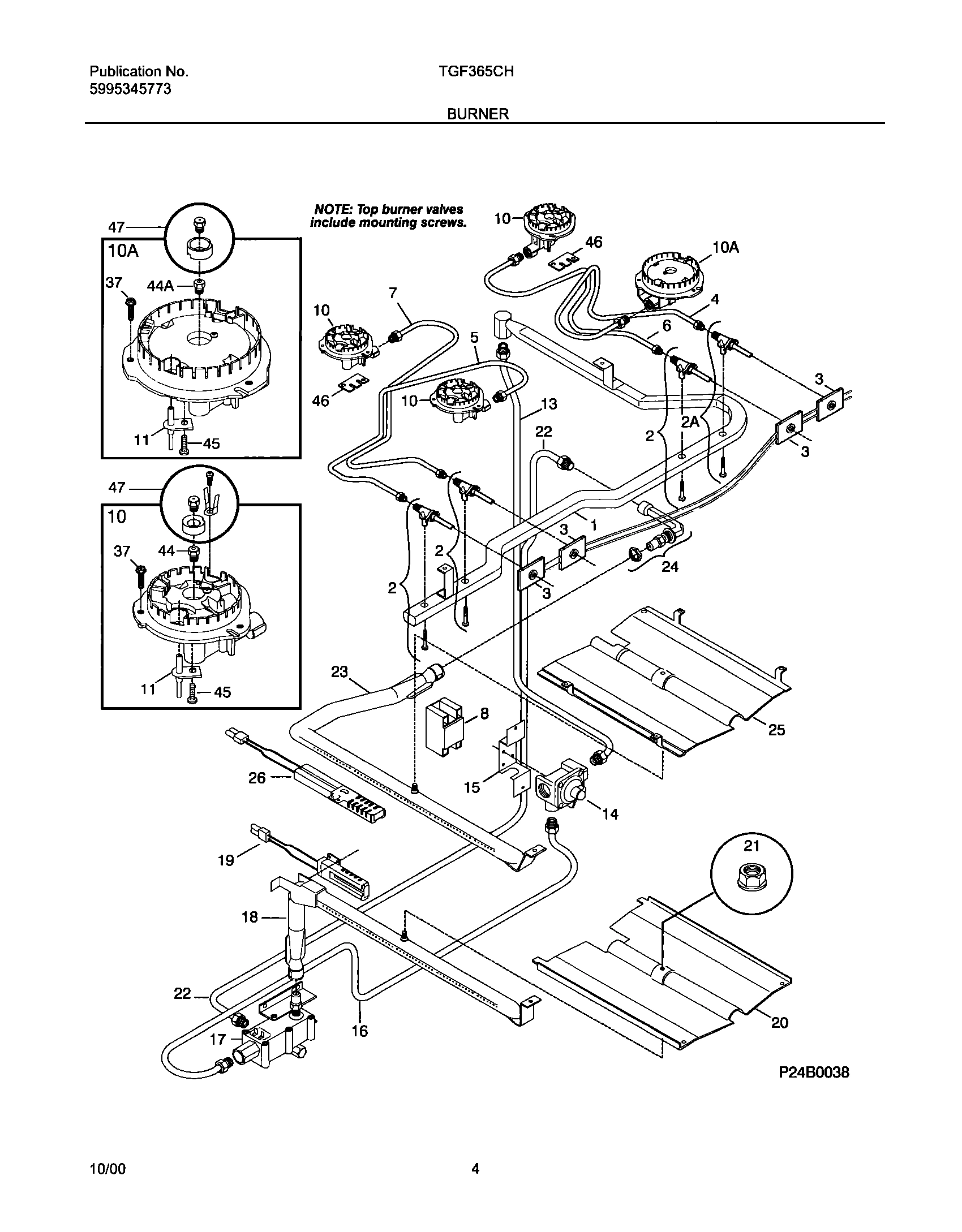

05 - BURNER

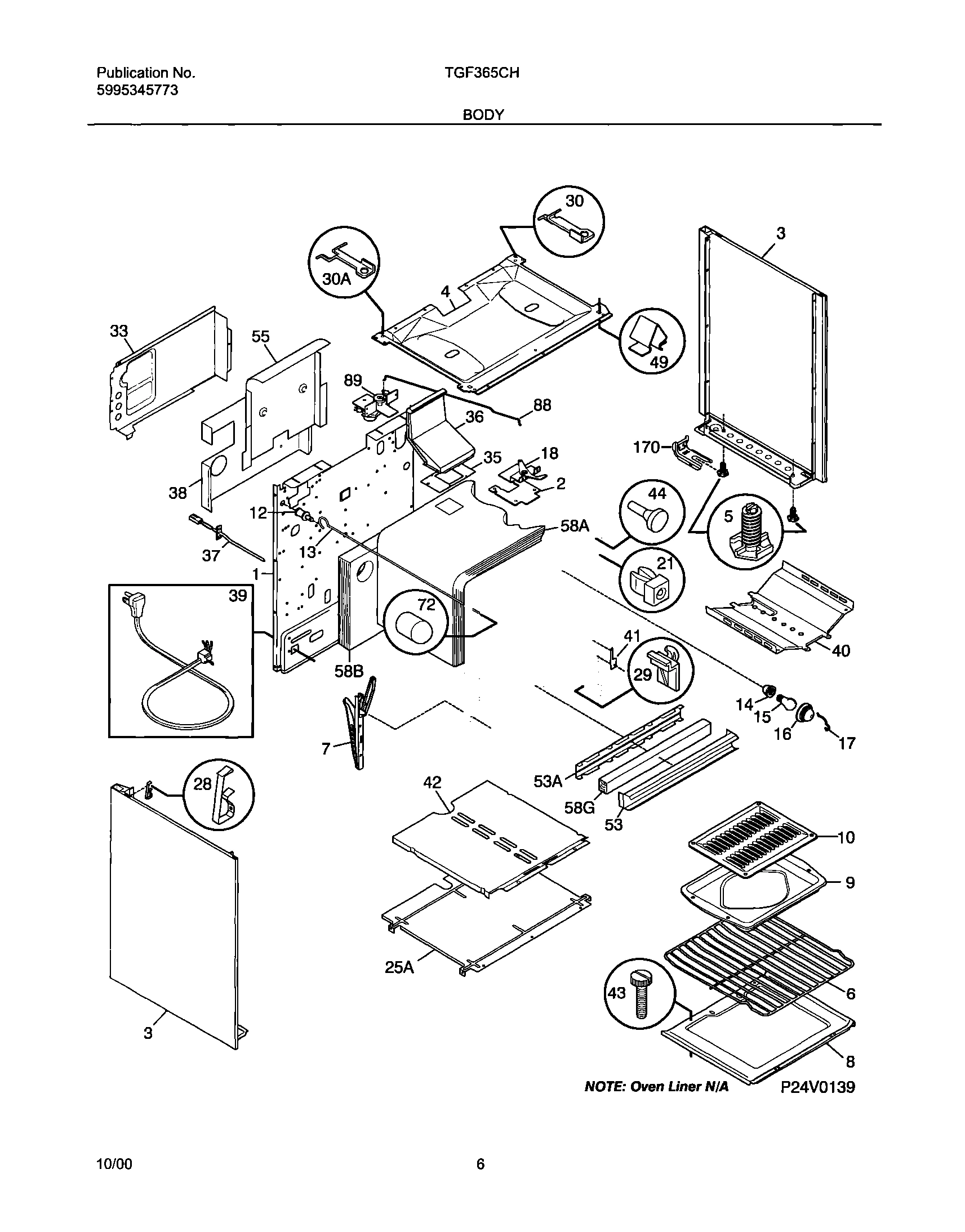

07 - BODY

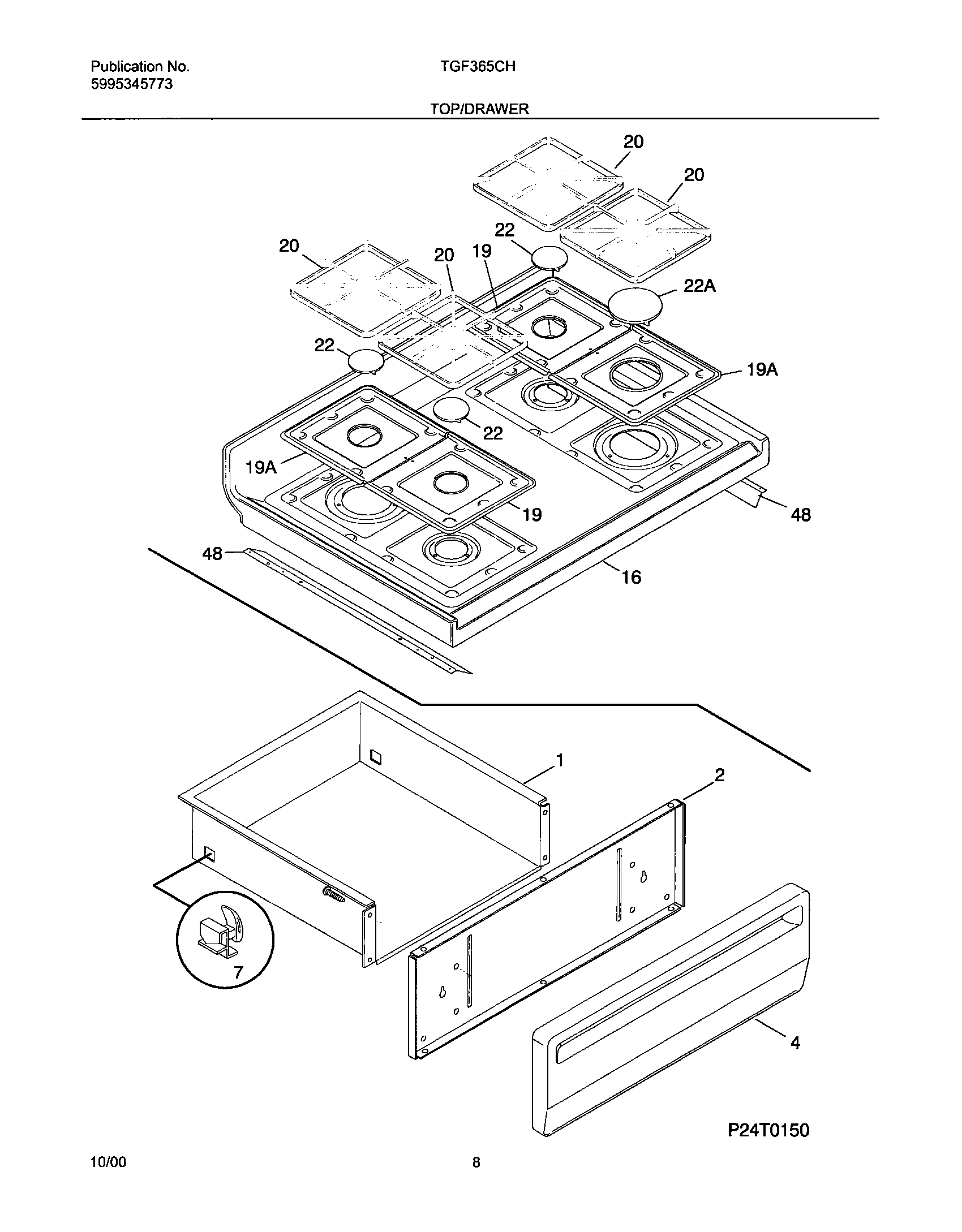

09 - TOP/DRAWER
11 - DOOR

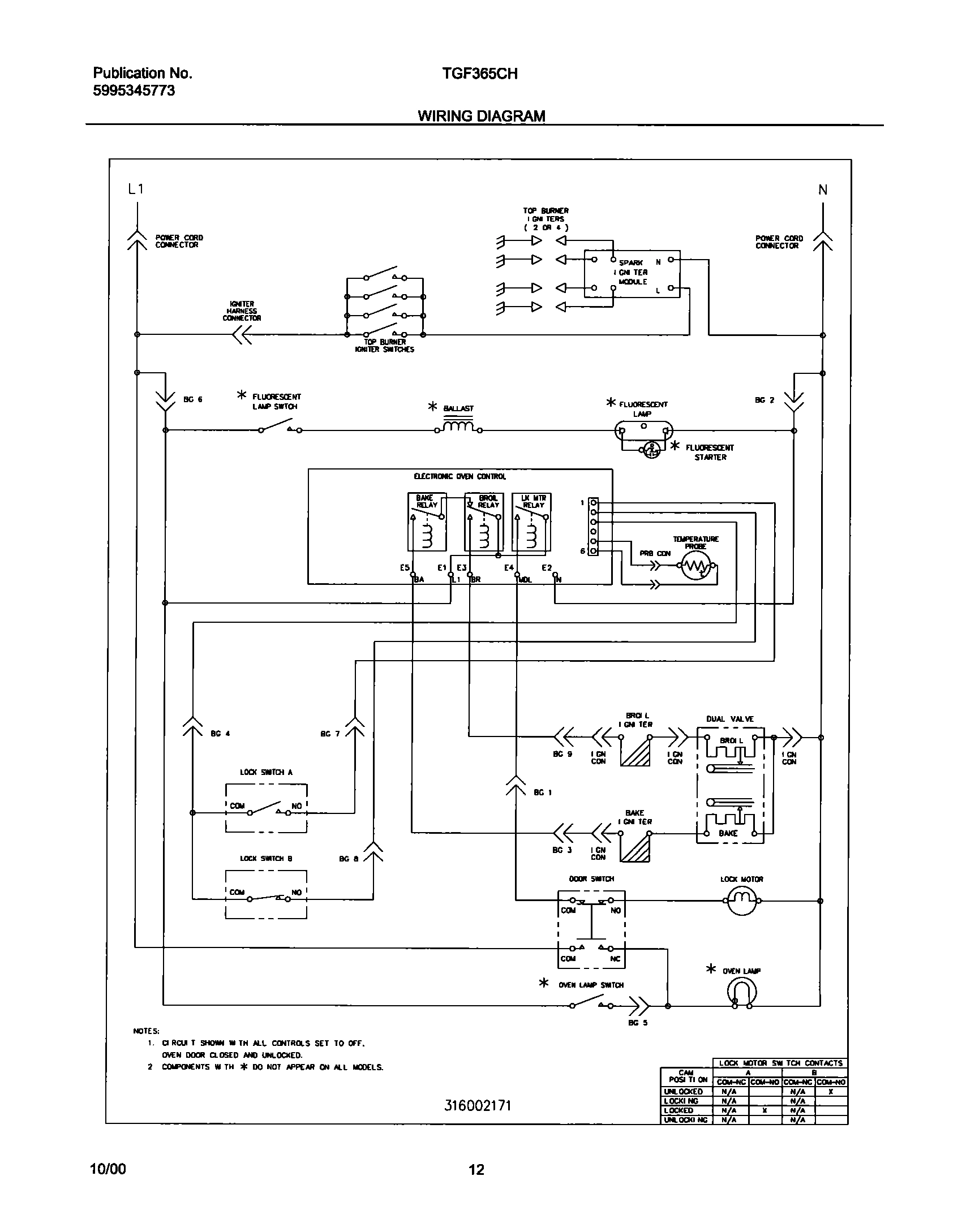

12 - WIRING DIAGRAM
Common parts from model Electrolux TGF365CHTF RANGE
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 316134100 WCI 316134100 Contact Us For Availability
2
Shield-drawer,liner ,aluminum ,front panel WCI 3131975 Contact Us For Availability
2A
WCI 316134102 WCI 316134102 Contact Us For Availability
3
WCI 316001826 WCI 316001826 Contact Us For Availability
3
WCI 316067803 WCI 316067803 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
Panel-drawer front,almond WCI 316084406 Contact Us For Availability
4
WCI 316089004 WCI 316089004 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
6
Tube,burner ,natural ,RR WCI 316059614 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
WCI 316059615 WCI 316059615 Contact Us For Availability
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
Screw-handle mtg,wafer hd sq dr ,10-24T x 2.0 WCI 5303280308 Contact Us For Availability
13
Tube,3/8 ,aluminum ,rgltr to manf ,with fitti WCI 316065005 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 316114802 WCI 316114802 Contact Us For Availability
19
Pan-burner,small ,almond WCI 316011410 Contact Us For Availability
19A
Pan-burner,large ,almond WCI 316011418 Contact Us For Availability
20
GRATE,BLACK ,(4) WCI 316085201 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22A
WCI 316111703 WCI 316111703 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
39
WCI 316091116 WCI 316091116 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 No Longer Available
48
Shield,deflector ,main top panel ,(2) WCI 316077401 Contact Us For Availability
52
WCI 316081302 WCI 316081302 Contact Us For Availability
58A
WCI 316047708 WCI 316047708 Contact Us For Availability
58B
Insulation, 2`` ,oven back WCI 316054200 Contact Us For Availability
72
Cover-rod end,lt switch rod WCI 5303285692 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
NI
WCI 316065306 WCI 316065306 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
NI
WCI 316001629 WCI 316001629 Contact Us For Availability
NI
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
NI
WCI 316089600 WCI 316089600 Contact Us For Availability
NI
WCI 316132100 WCI 316132100 Contact Us For Availability
NI
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
× ![]()
