Model Electrolux TEO356BHW1 RANGE – Common Parts & Diagrams
01 - COVER

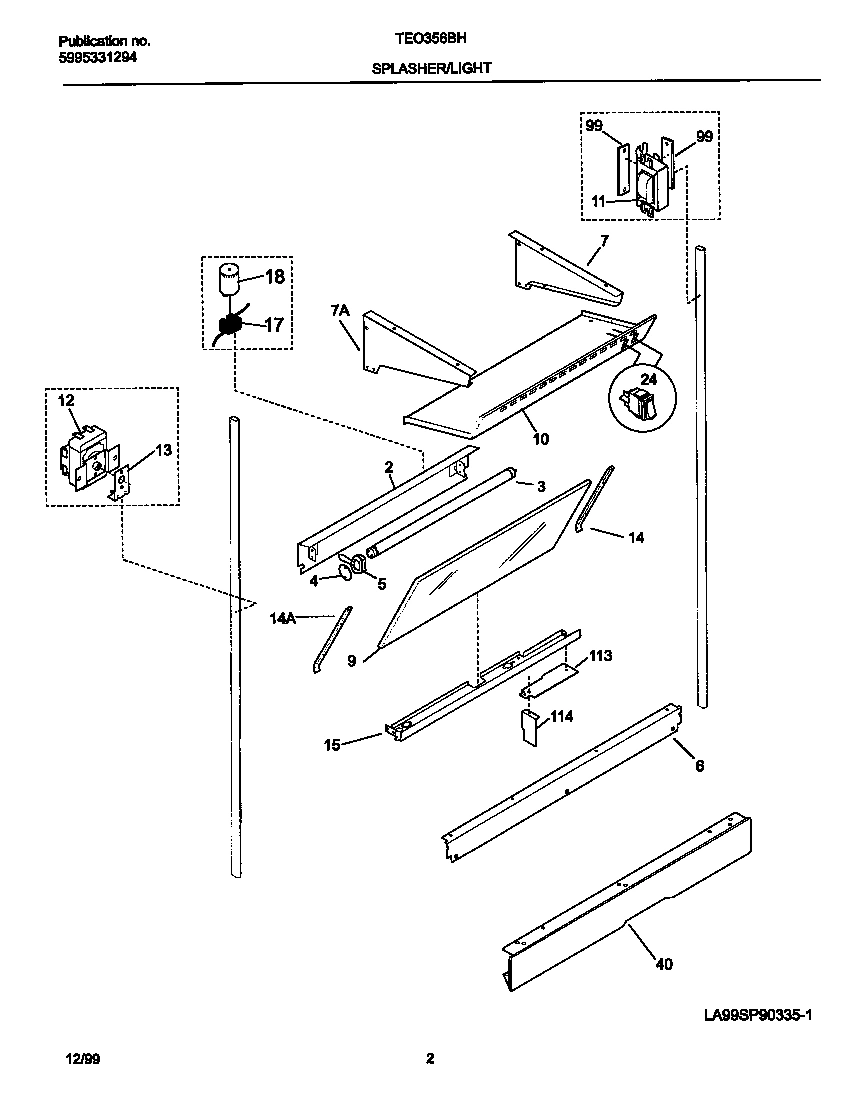

02 - SPLASHER

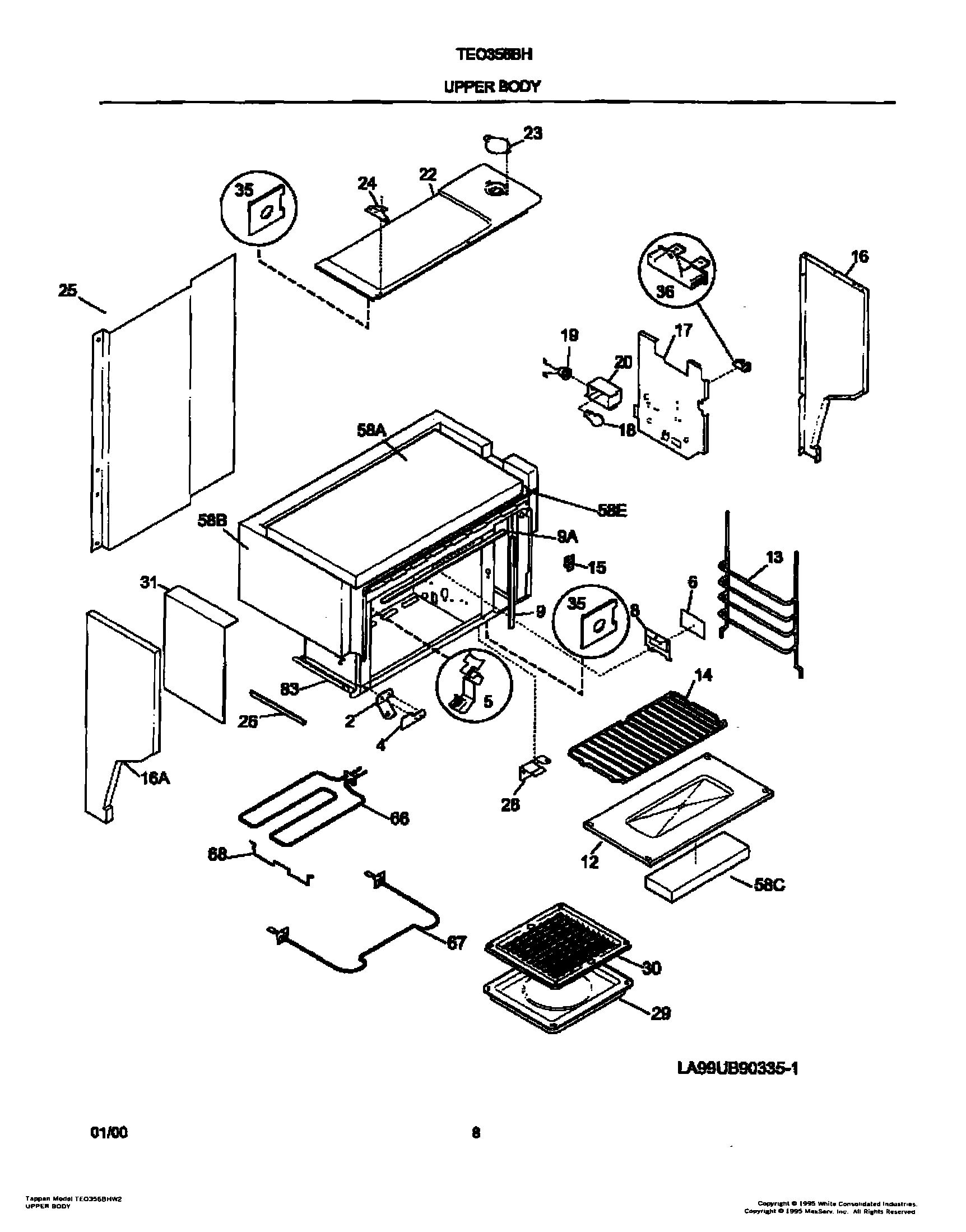

03 - UPPER BODY

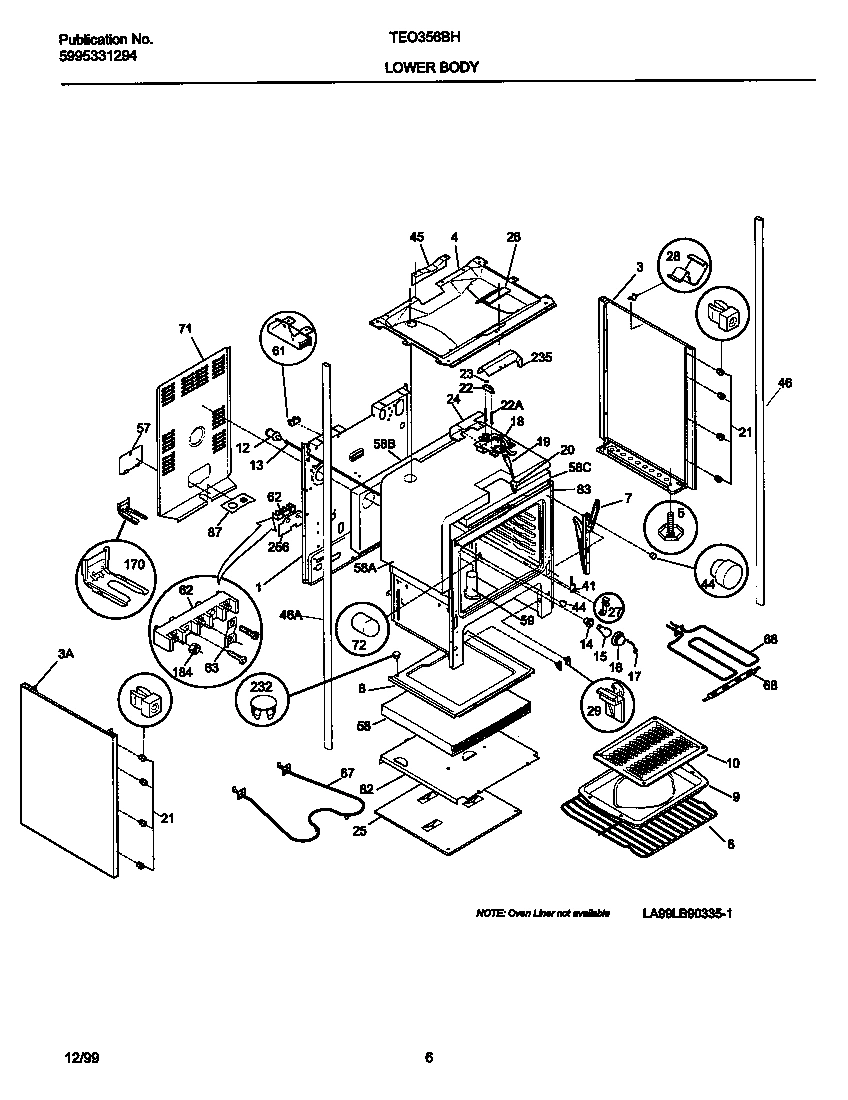

04 - LOWER BODY

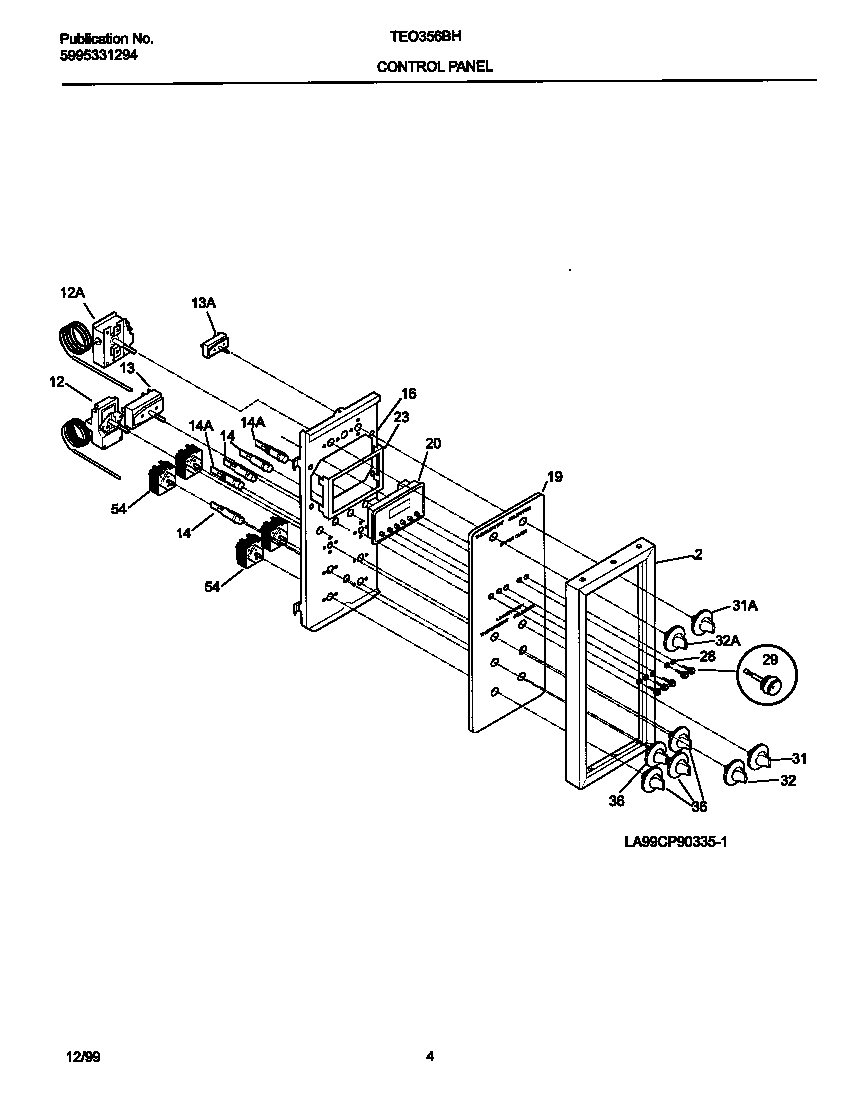

05 - CONTROL PANEL

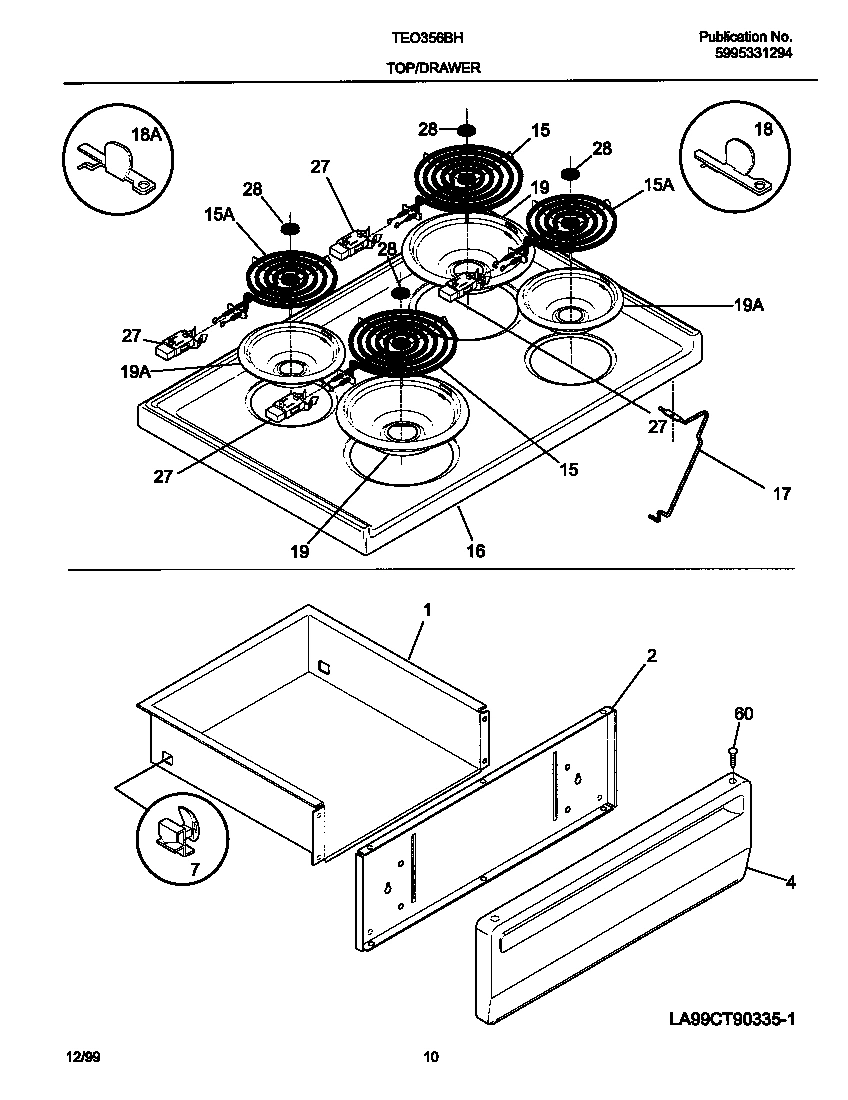

06 - TOP/DRAWER

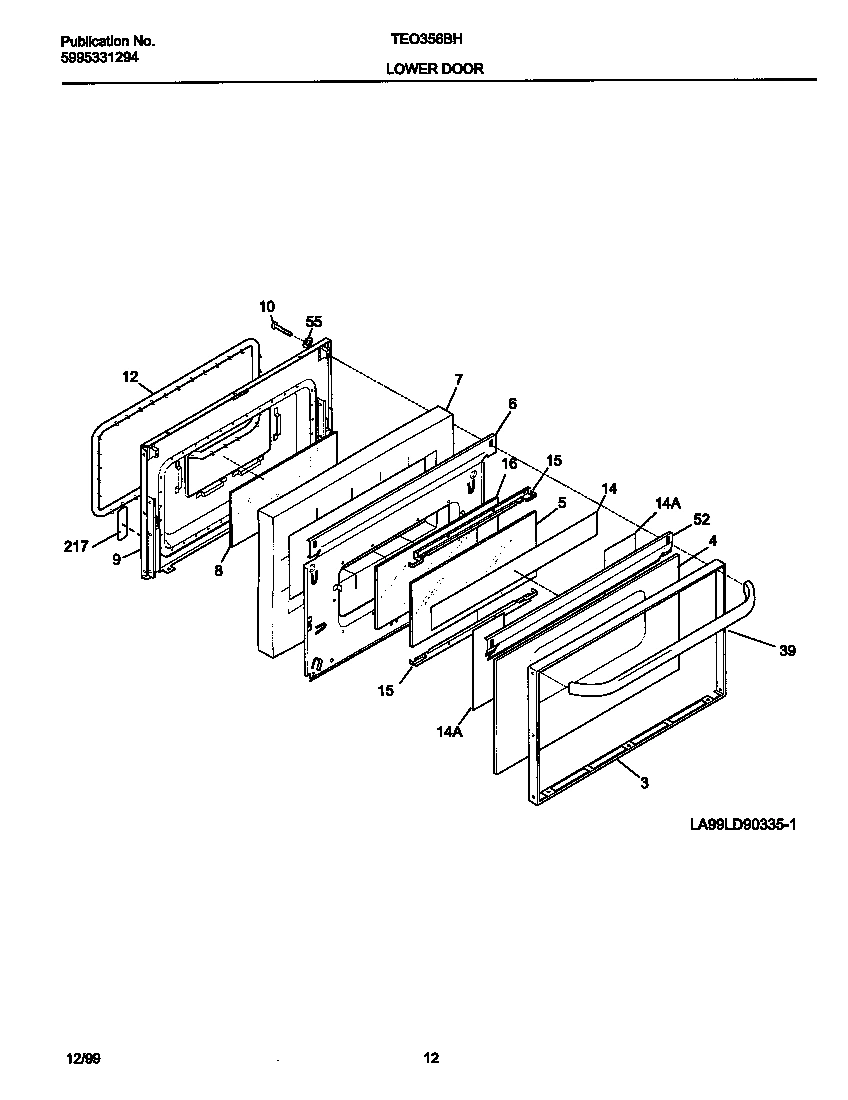

07 - LOWER DOOR

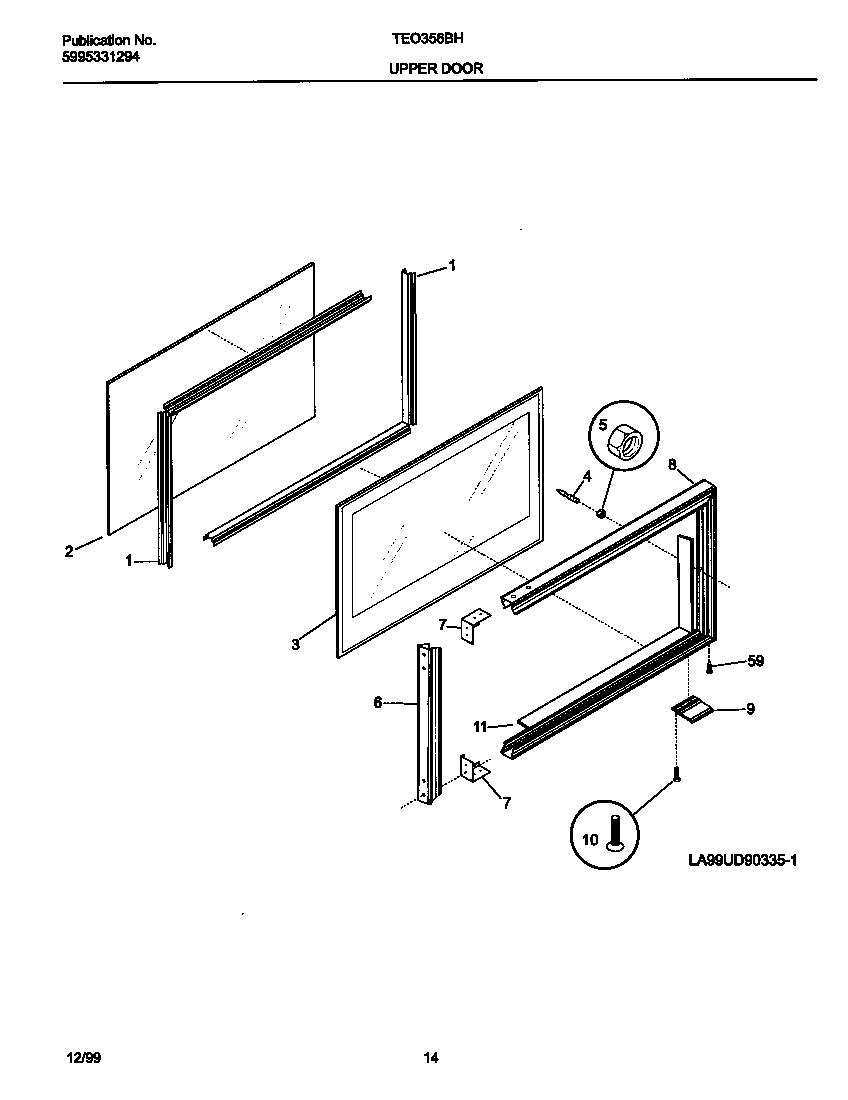

08 - UPPER DOOR

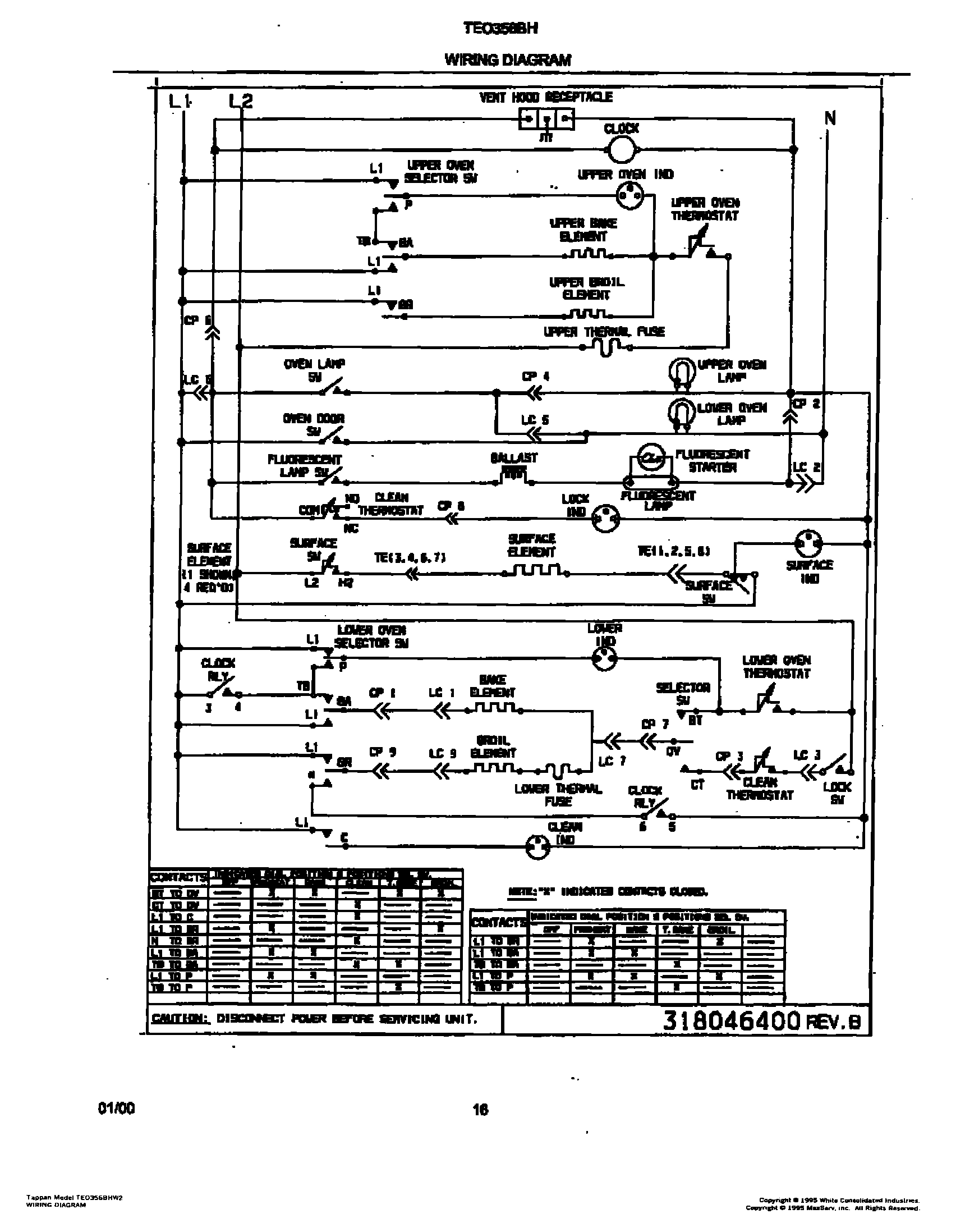

09 - WIRING DIAGRAM
Common parts from model Electrolux TEO356BHW1 RANGE
*67281
BODY SIDE PANEL,ALMOND ,LH WCI 316081037 Contact Us For Availability
*67282
PANEL-BODYSIDE BLACK,WHITE ,LH WCI 316081035 Contact Us For Availability
*67283
SHIELD-HEAT WCI 3131620 Contact Us For Availability
*67284
WCI 316088001 WCI 316088001 Contact Us For Availability
*67286
WCI 08013188 WCI 08013188 Contact Us For Availability
*67287
WCI 08067961 WCI 08067961 Contact Us For Availability
*67288
WASHER-HINGE,BLACK WCI 3131737 Contact Us For Availability
1
WCI 316029412 WCI 316029412 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
2
GLASS-OVEN DOOR, REAR WCI 08011722 Contact Us For Availability
2
TRIM-FRAME WCI 316013200 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
PANEL-BODYSIDE,BLACK ,RH WCI 316081034 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
3
WCI 316090100 WCI 316090100 Contact Us For Availability
4
WCI 5303271658 WCI 5303271658 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 316089000 Contact Us For Availability
4
WCI 318090230 WCI 318090230 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
5
SCREW-LEVELLING WCI 316107300 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
6
WCI 5303290112 WCI 5303290112 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
WCI 316076403 WCI 316076403 Contact Us For Availability
7
GUSSET-OVEN DOOR WCI 08011727 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
8
CHANNEL, FRAME WCI 316013100 Contact Us For Availability
9
WCI 08011729 WCI 08011729 Contact Us For Availability
9
WCI 318138800 WCI 318138800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10
WCI 318126400 WCI 318126400 Contact Us For Availability
10
WCI 5303284147 WCI 5303284147 Contact Us For Availability
11
WCI 316099800 WCI 316099800 Contact Us For Availability
11
SPACER-DOOR WCI 3051302 Contact Us For Availability
12
WCI 5303202782 WCI 5303202782 Contact Us For Availability
12
WCI 5303051320 WCI 5303051320 Contact Us For Availability
12
WCI 316027702 WCI 316027702 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
13
SWITCH-SELECTOR, 5 POS, UPPER WCI 3051316 Contact Us For Availability
13
SWITCH-SELECTOR, LOWER WCI 5303051315 Contact Us For Availability
14
LIGHT/LAMP,INDICATOR ,CLEAR ,250 V ,(2) WCI 5303091462 Contact Us For Availability
14
WCI 5308037896 WCI 5308037896 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 318005801 WCI 318005801 Contact Us For Availability
16
WCI 5303013511 WCI 5303013511 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
STARTER-LAMP WCI 3206218 Contact Us For Availability
18
LATCH-DOOR, BIMETAL WCI 5303015361 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
19
WCI 318001702 WCI 318001702 Contact Us For Availability
20
WCI 318004600 WCI 318004600 Contact Us For Availability
20
WCI 3203218 WCI 3203218 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
SWITCH-LATCH WCI 08067781 Contact Us For Availability
22
STUD SPACER WCI 08067978 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
23
WCI 318171801 WCI 318171801 Contact Us For Availability
25
WCI 5303289914 WCI 5303289914 Contact Us For Availability
26
WCI 5303290094 WCI 5303290094 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
27
CLIP-THERMO BULB WCI 08067754 Contact Us For Availability
28
STRIKE-DOOR WCI 316012800 Contact Us For Availability
28
WCI 3051367 WCI 3051367 Contact Us For Availability
28
WCI 318147300 WCI 318147300 Contact Us For Availability
28
MEDALLION, SURFACE ELEMENT WCI 5308067828 Contact Us For Availability
29
WCI 318138601 WCI 318138601 Contact Us For Availability
29
WCI 318036210 WCI 318036210 Contact Us For Availability
30
WCI 318038201 WCI 318038201 Contact Us For Availability
31
WCI 318165310 WCI 318165310 Contact Us For Availability
31
WCI 316019168 WCI 316019168 Contact Us For Availability
32
WCI 316019163 WCI 316019163 Contact Us For Availability
32
WCI 316019166 WCI 316019166 Contact Us For Availability
35
WCI 5303290119 WCI 5303290119 Contact Us For Availability
36
WCI 318017010 WCI 318017010 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
45
WCI 5303289854 WCI 5303289854 Contact Us For Availability
46
WCI 5303208642 WCI 5303208642 Contact Us For Availability
46
TUBE-POST RH WCI 5303208643 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
57
WCI 316081100 WCI 316081100 Contact Us For Availability
58
WCI 316047708 WCI 316047708 Contact Us For Availability
58
WCI 318132603 WCI 318132603 Contact Us For Availability
58
WCI 318132604 WCI 318132604 Contact Us For Availability
58
WCI 318132605 WCI 318132605 Contact Us For Availability
58
REFLECTOR, ALUMINUM FOIL WCI 3204440 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
Insulation, 2`` ,oven back WCI 316054200 Contact Us For Availability
59
WCI 316073600 WCI 316073600 Contact Us For Availability
59
BUTTON WCI 316013300 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
66
WCI 318050900 WCI 318050900 Contact Us For Availability
68
SUPPORT-ELEMENT, UPPER WCI 3015584 Contact Us For Availability
71
SHIELD-REAR WALL WCI 316015804 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
82
WCI 5303289913 WCI 5303289913 Contact Us For Availability
83
WCI 318109610 WCI 318109610 Contact Us For Availability
83
WCI 316054310 WCI 316054310 Contact Us For Availability
184
WCI 5303289902 WCI 5303289902 Contact Us For Availability
217
WCI 316065306 WCI 316065306 Contact Us For Availability
235
SHIELD-LATCH, TOP WCI 3131593 Contact Us For Availability
× ![]()
