Model Electrolux TEO356BFD1 RANGE – Common Parts & Diagrams

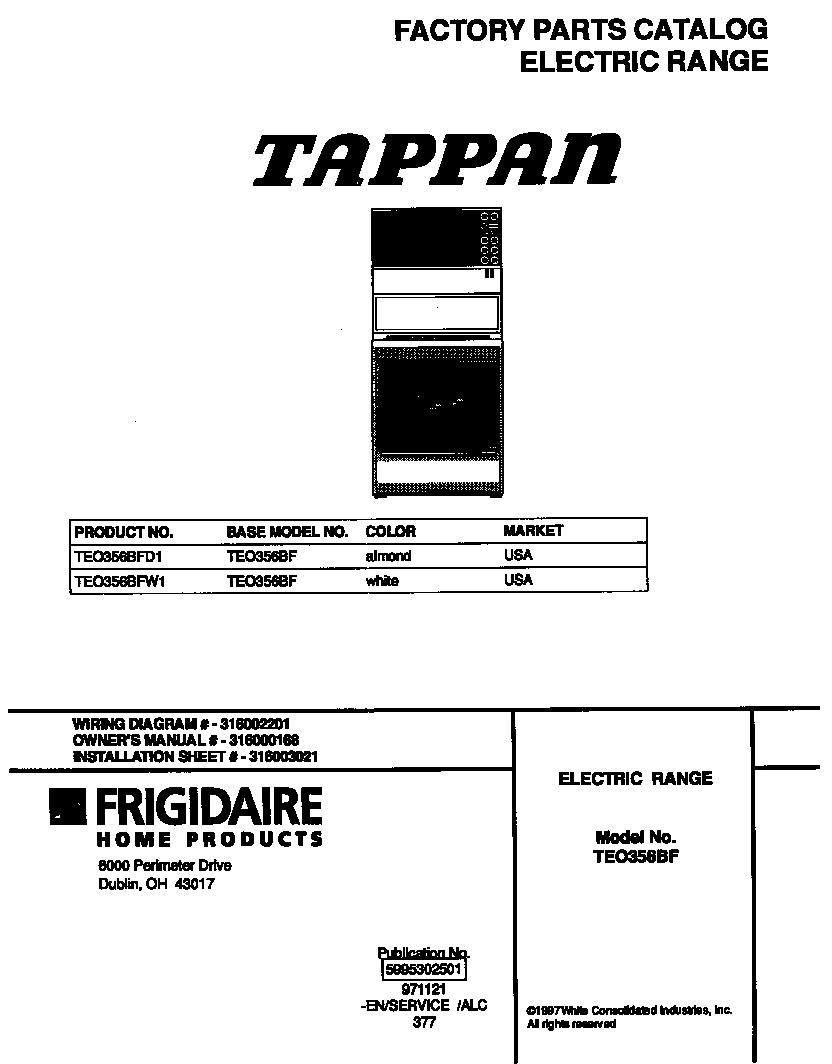

01 - COVER

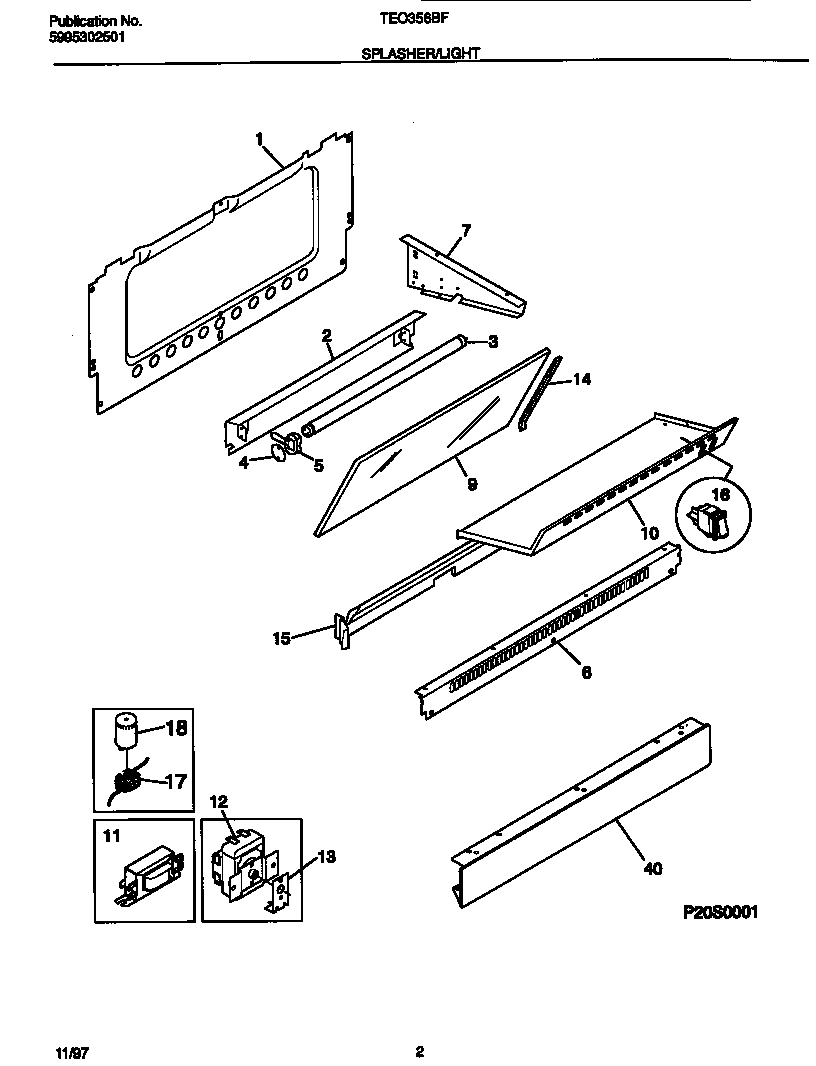

02 - SPLASHER-LIGHT

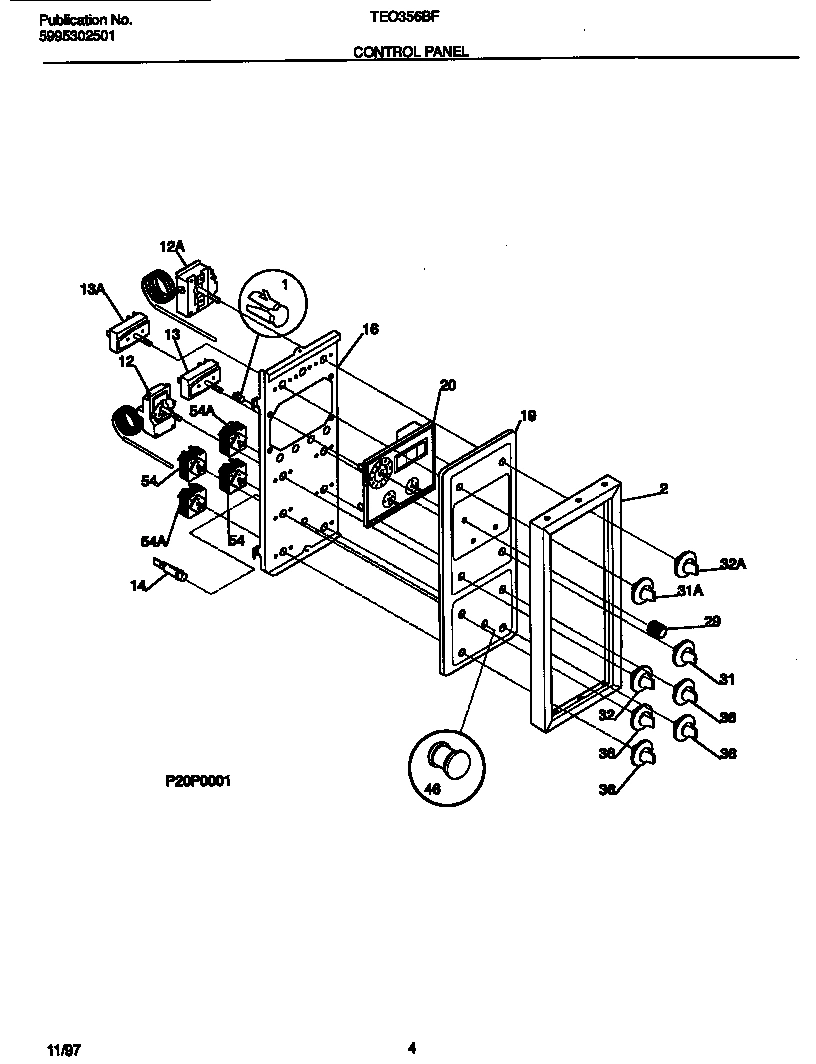

03 - CONTROL PANEL

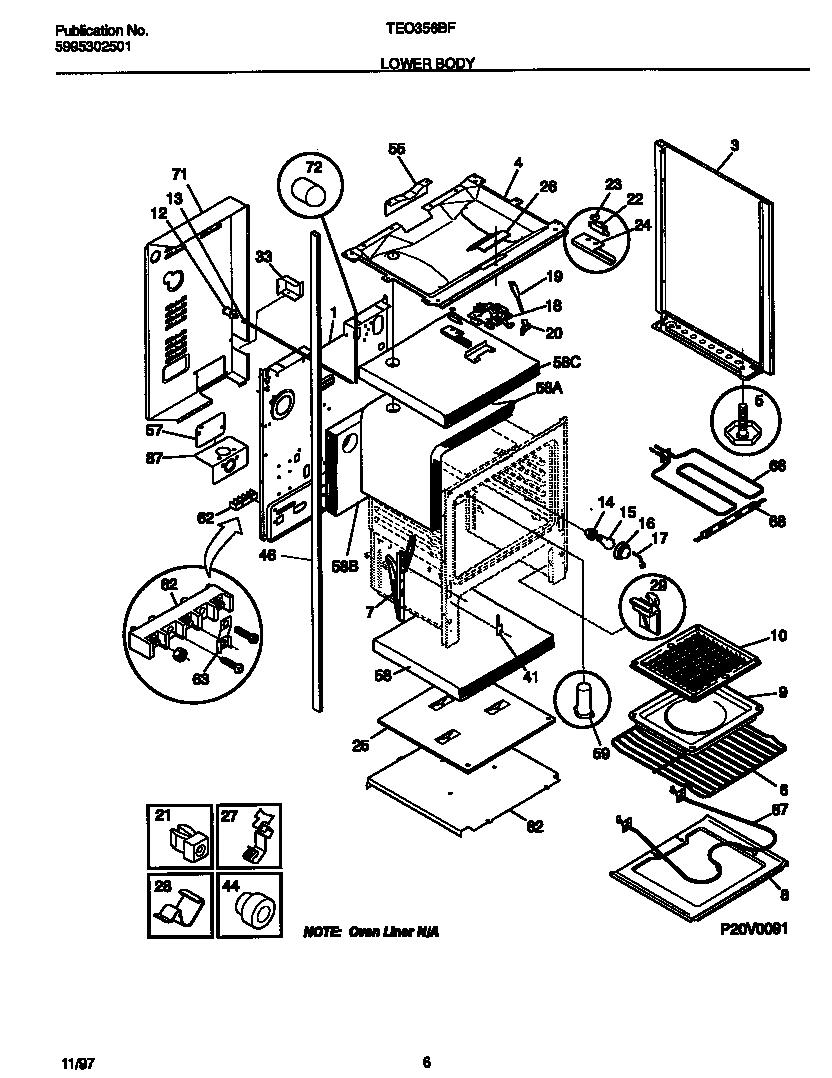

04 - LOWER BODY

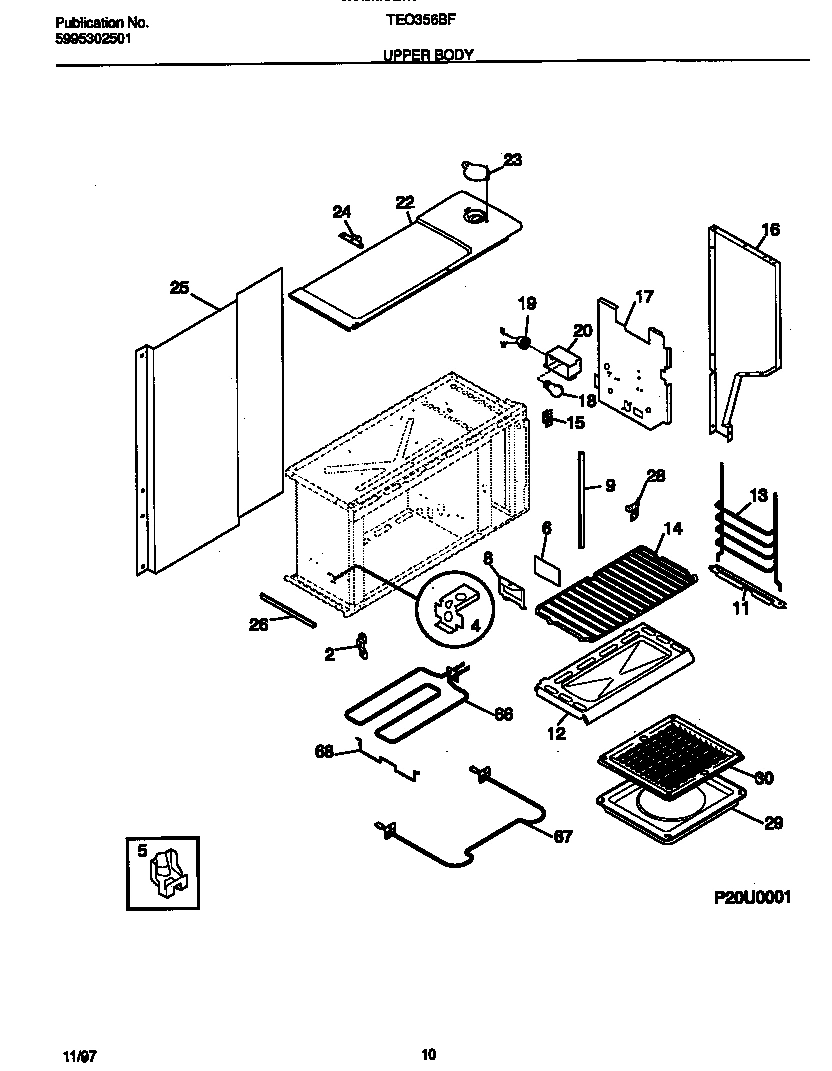

05 - UPPER BODY

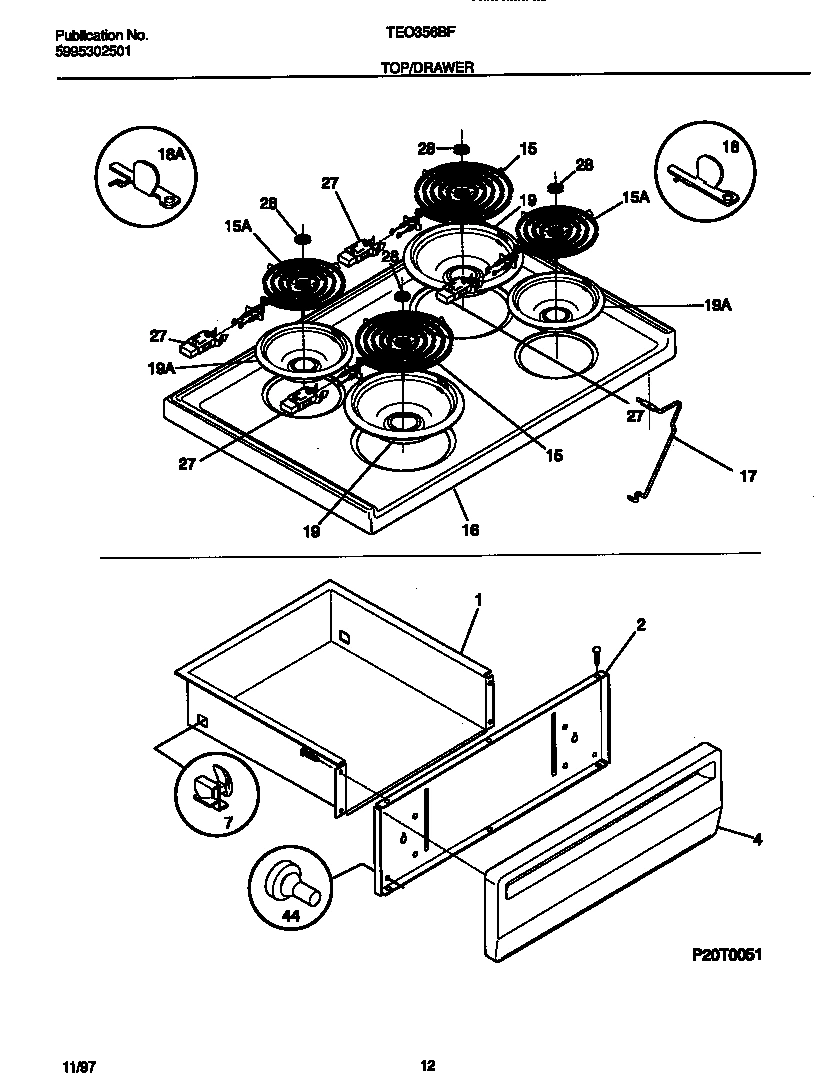

06 - TOP/DRAWER

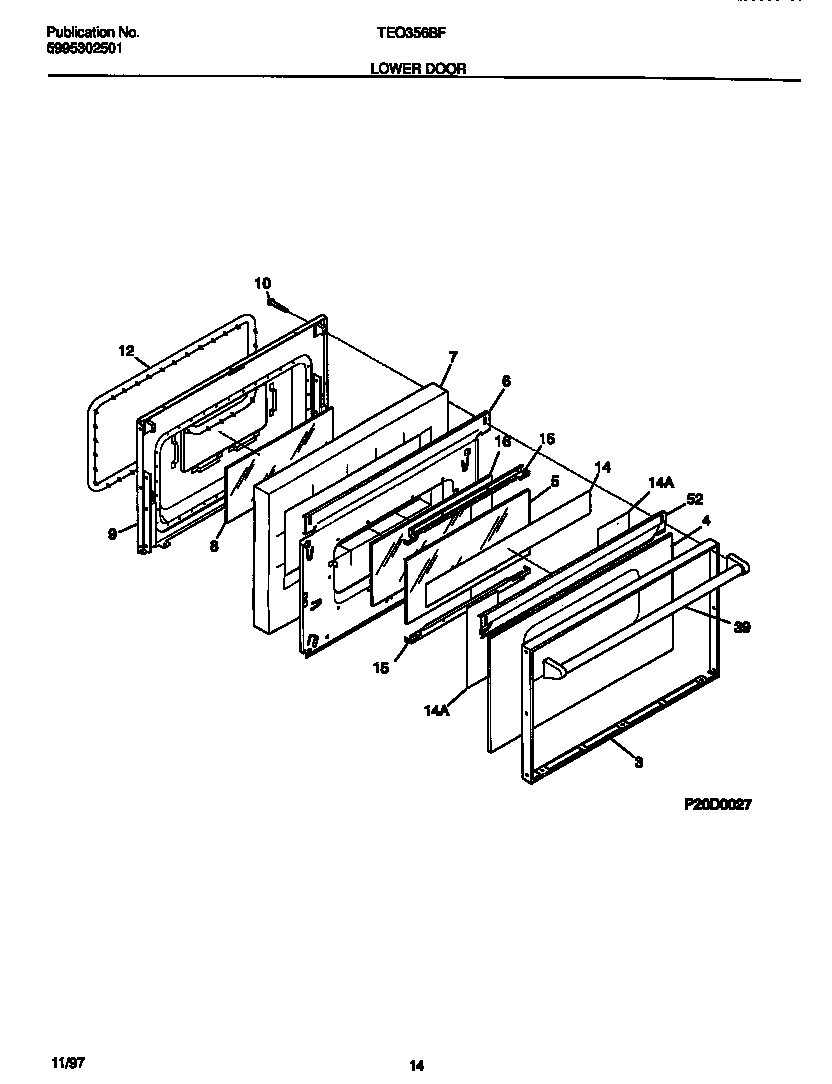

07 - LOWER DOOR

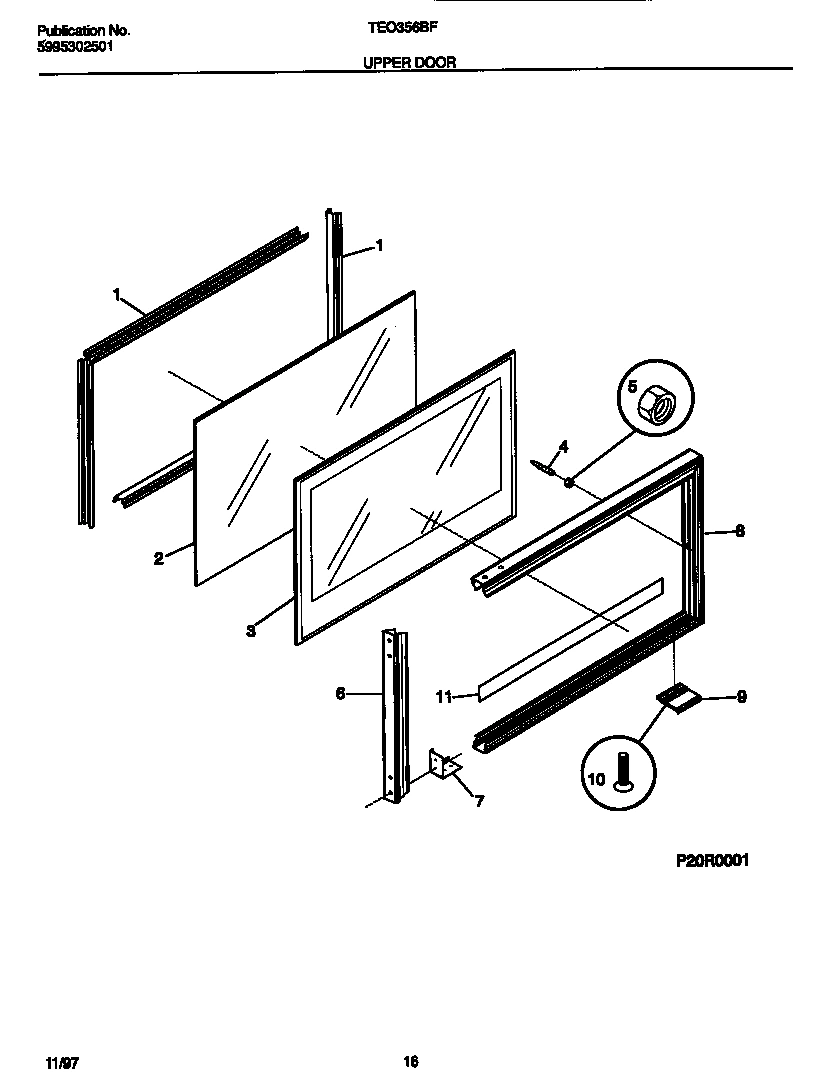

08 - UPPER DOOR
Common parts from model Electrolux TEO356BFD1 RANGE
*28642
SCREW,CUP PT,8-18X3/8,HINGE,IND LT BRKT,MANF WCI 316021108 Contact Us For Availability
*28654
INSULATION, OVEN TOP WCI 3015588 Contact Us For Availability
*28655
INSULATION, OVEN BOTTOM WCI 3015590 Contact Us For Availability
*28656
INSULATION, OVEN WRAPPER WCI 3015591 Contact Us For Availability
*28658
REFLECTOR, ALUMINUM FOIL WCI 3204440 Contact Us For Availability
*28660
WCI 3051467 WCI 3051467 Contact Us For Availability
*28661
WCI 316088000 WCI 316088000 Contact Us For Availability
*28662
WCI 3012765 WCI 3012765 Contact Us For Availability
*28663
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*28664
WCI 316065300 WCI 316065300 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
2
GLASS-OVEN DOOR, REAR WCI 08011722 Contact Us For Availability
2
HINGE-OVEN DOOR WCI 5303051166 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3
WCI 316090100 WCI 316090100 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
PLATE-BOTTOM HINGE WCI 08011665 Contact Us For Availability
4
WCI 316084406 WCI 316084406 Contact Us For Availability
4
WCI 316089000 WCI 316089000 Contact Us For Availability
4
STRIKE-DOOR WCI 5303935001 Contact Us For Availability
5
WCI 316088700 WCI 316088700 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
6
GLASS-OVEN LIGHT LENS WCI 08011668 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
6
CHANNEL, DOOR WCI 5303290772 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
WCI 316076403 WCI 316076403 Contact Us For Availability
7
GUSSET-OVEN DOOR WCI 08011727 Contact Us For Availability
8
GLASS-OVEN DOOR, AIRWASH WCI 316088600 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
8
COVER-LIGHT, UPPER WCI 08011669 Contact Us For Availability
8
CHANNEL, FRAME WCI 316013100 Contact Us For Availability
9
PAN-BROILER WCI 316082000 Contact Us For Availability
9
WCI 08011729 WCI 08011729 Contact Us For Availability
9
WCI 5303934092 WCI 5303934092 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
INSERT-BROILER PAN WCI 316081900 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375 WCI 316001001 Contact Us For Availability
10
WCI 5303284147 WCI 5303284147 Contact Us For Availability
11
WCI 316099800 WCI 316099800 Contact Us For Availability
11
SPACER-DOOR WCI 3051302 Contact Us For Availability
12
WCI 5303202782 WCI 5303202782 Contact Us For Availability
12
WCI 5303051320 WCI 5303051320 Contact Us For Availability
12
WCI 316027702 WCI 316027702 Contact Us For Availability
12
WCI 318109901 WCI 318109901 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
13
GLIDE-OVEN RACK WCI 5303934091 Contact Us For Availability
14
RACK-OVEN, FLAT WCI 08011675 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
16
WCI 318025902 WCI 318025902 Contact Us For Availability
16
WCI 318025912 WCI 318025912 Contact Us For Availability
16
WCI 3013512 WCI 3013512 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
17
SHIELD-WOOL WCI 5303208706 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
STARTER-LAMP WCI 3206218 Contact Us For Availability
18A
LATCH-DOOR, BIMETAL WCI 5303015361 Contact Us For Availability
18B
SHIELD, LATCH TOP (NOT ILLUSTRATED) WCI 3131593 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
19B
SCREW-SOCKET, STARTER (NOT ILLUSTRATED) WCI 5303286753 Contact Us For Availability
20
BOX-LIGHT WCI 5303290773 Contact Us For Availability
20A
WCI 3203218 WCI 3203218 Contact Us For Availability
20B
WCI 08013188 WCI 08013188 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 5303290177 WCI 5303290177 Contact Us For Availability
22A
SWITCH-LATCH WCI 08067781 Contact Us For Availability
22B
STUD, SPACER (NOT ILLUSTRATED) WCI 08067978 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
23
WCI 318036701 WCI 318036701 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
24
WCI 5303290130 WCI 5303290130 Contact Us For Availability
25
WCI 5304403169 WCI 5304403169 Contact Us For Availability
25
WCI 5303290095 WCI 5303290095 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
26
WCI 5303293168 WCI 5303293168 Contact Us For Availability
28
WCI 3051367 WCI 3051367 Contact Us For Availability
28
STRIKE-DOOR WCI 316012800 Contact Us For Availability
28
MEDALLION, SURFACE ELEMENT WCI 5308067828 Contact Us For Availability
29
WCI 316029008 WCI 316029008 Contact Us For Availability
29
WCI 318138601 WCI 318138601 Contact Us For Availability
30
WCI 318038201 WCI 318038201 Contact Us For Availability
31
WCI 316019168 WCI 316019168 Contact Us For Availability
32
WCI 316019163 WCI 316019163 Contact Us For Availability
32
WCI 316019166 WCI 316019166 Contact Us For Availability
33
WCI 3203582 WCI 3203582 Contact Us For Availability
39A
HANDLE-DOOR, BLACK, OVEN, END CAPS INCL WCI 316008300 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
46A
WCI 5303208642 WCI 5303208642 Contact Us For Availability
46B
TUBE-POST, RH (NOT ILLUSTRATED) WCI 5303208643 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
55
WCI 3051368 WCI 3051368 Contact Us For Availability
57
WCI 316081100 WCI 316081100 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 316047708 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
WCI 316054200 WCI 316054200 Contact Us For Availability
59
WCI 316073600 WCI 316073600 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
66
ELEMENT-BROIL, UPPER WCI 3015187 Contact Us For Availability
68
SUPPORT-ELEMENT, UPPER WCI 3015584 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
82
WCI 5303314229 WCI 5303314229 Contact Us For Availability
× ![]()
