Model Whirlpool TAA300 WASHER – Common Parts & Diagrams

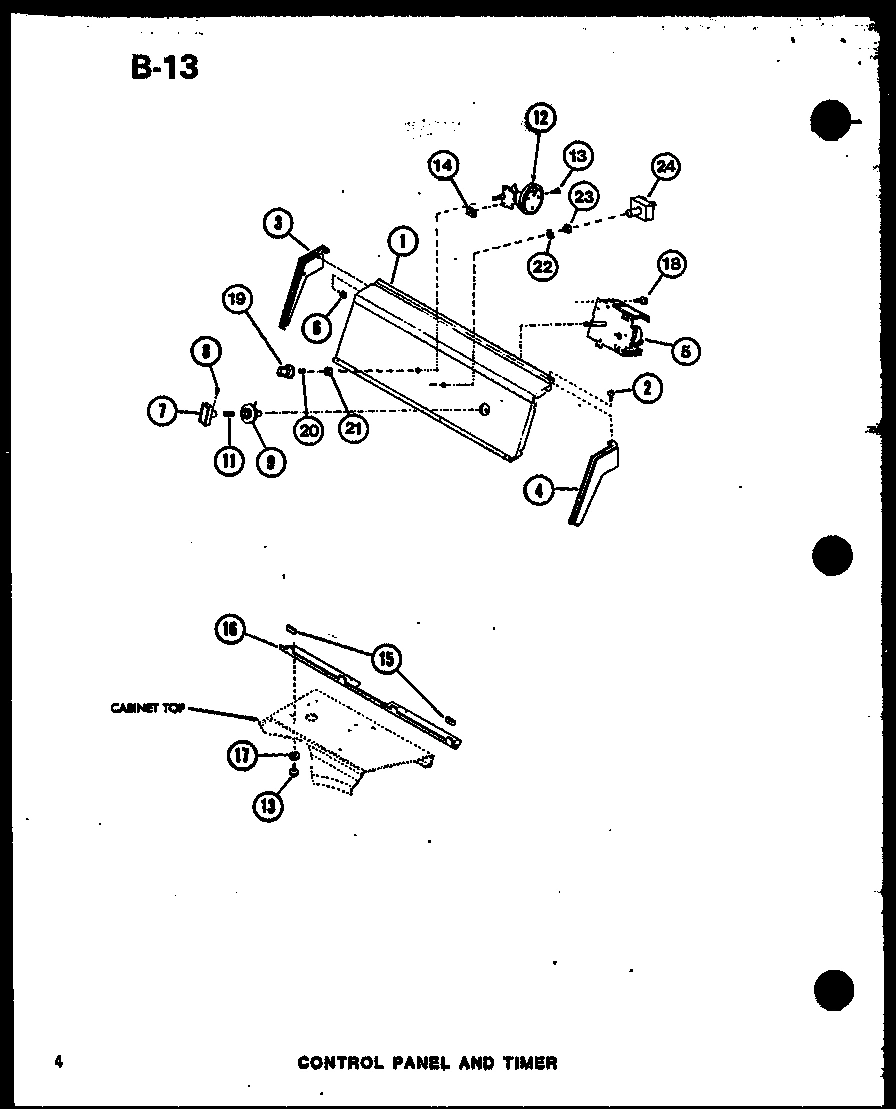

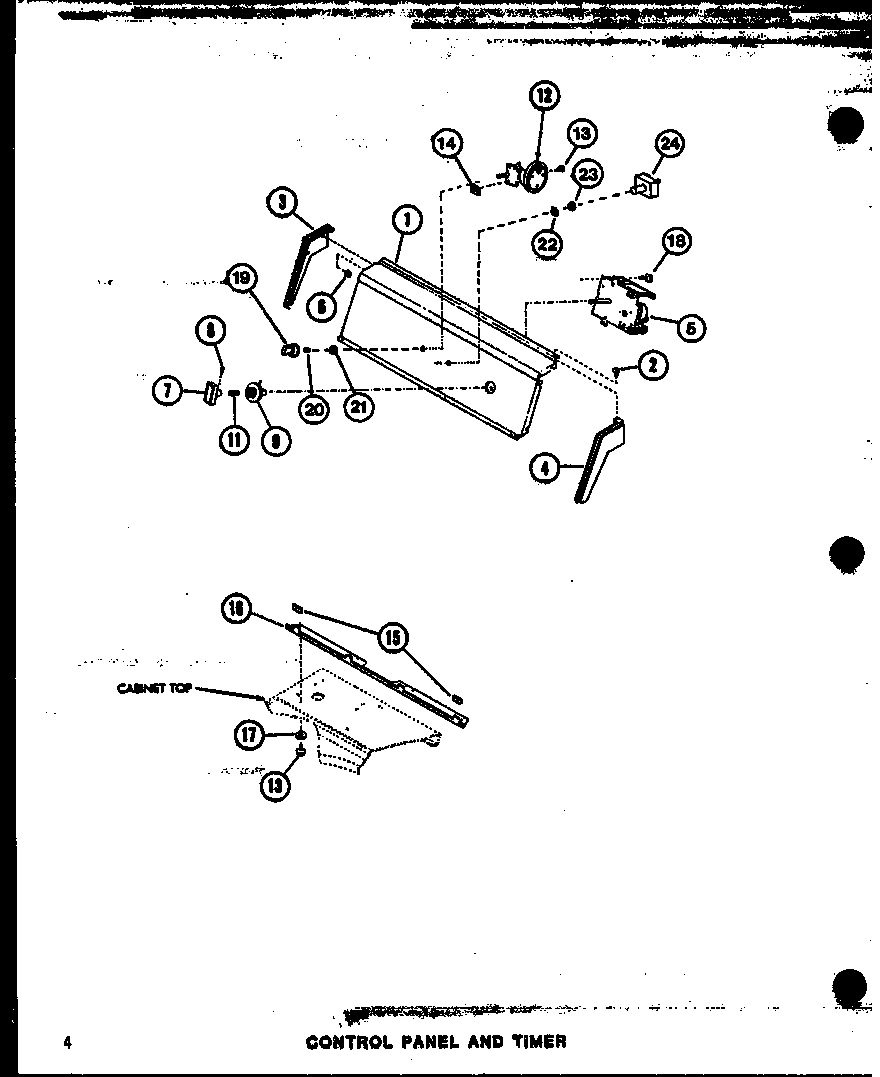

04 - CONTROL PANEL AND TIMER

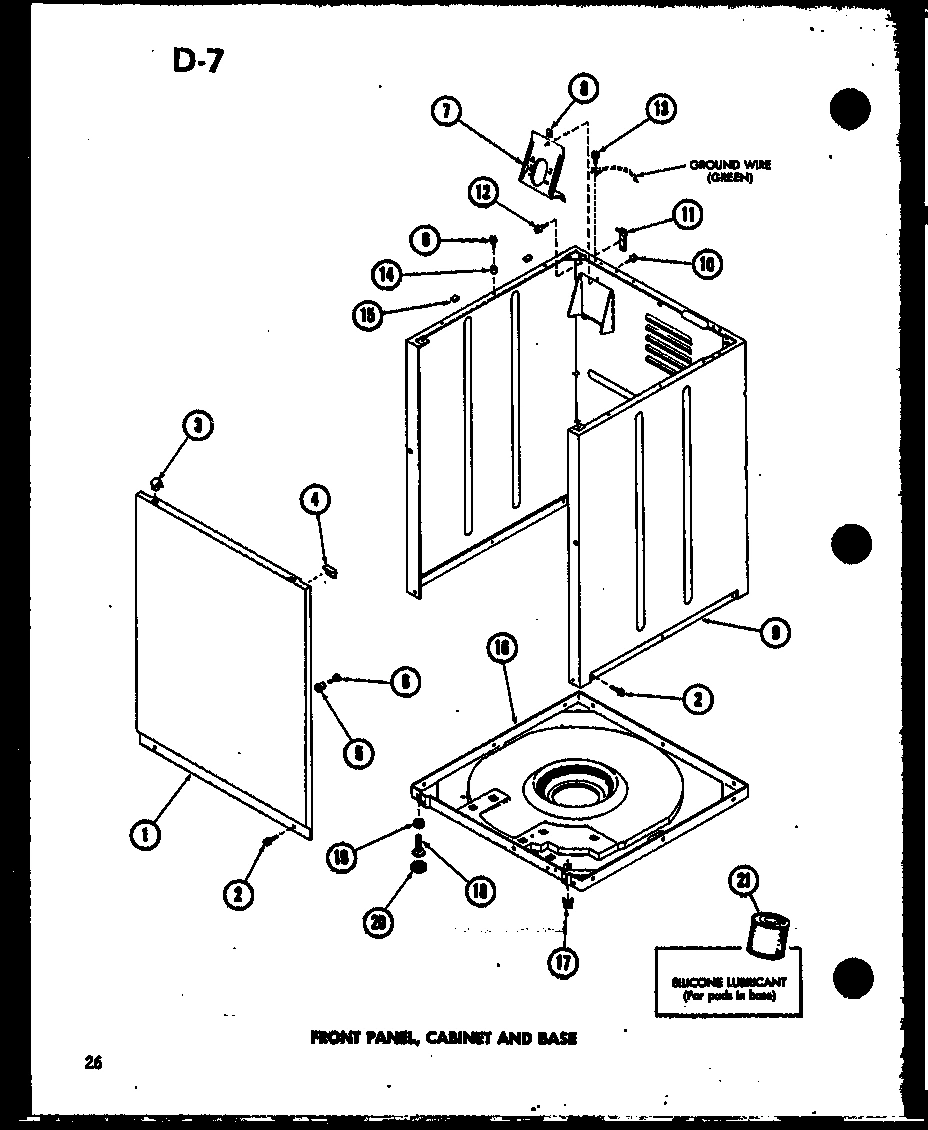

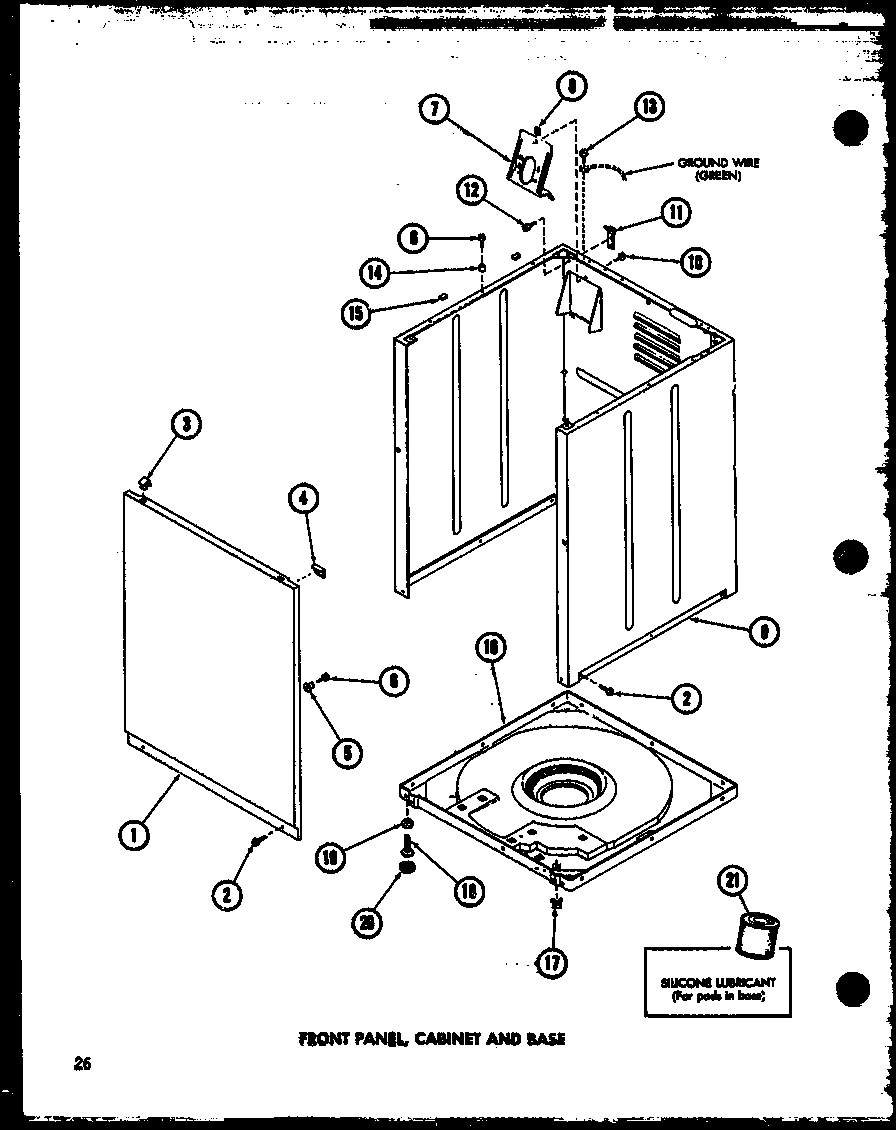

05 - FRONT PANEL

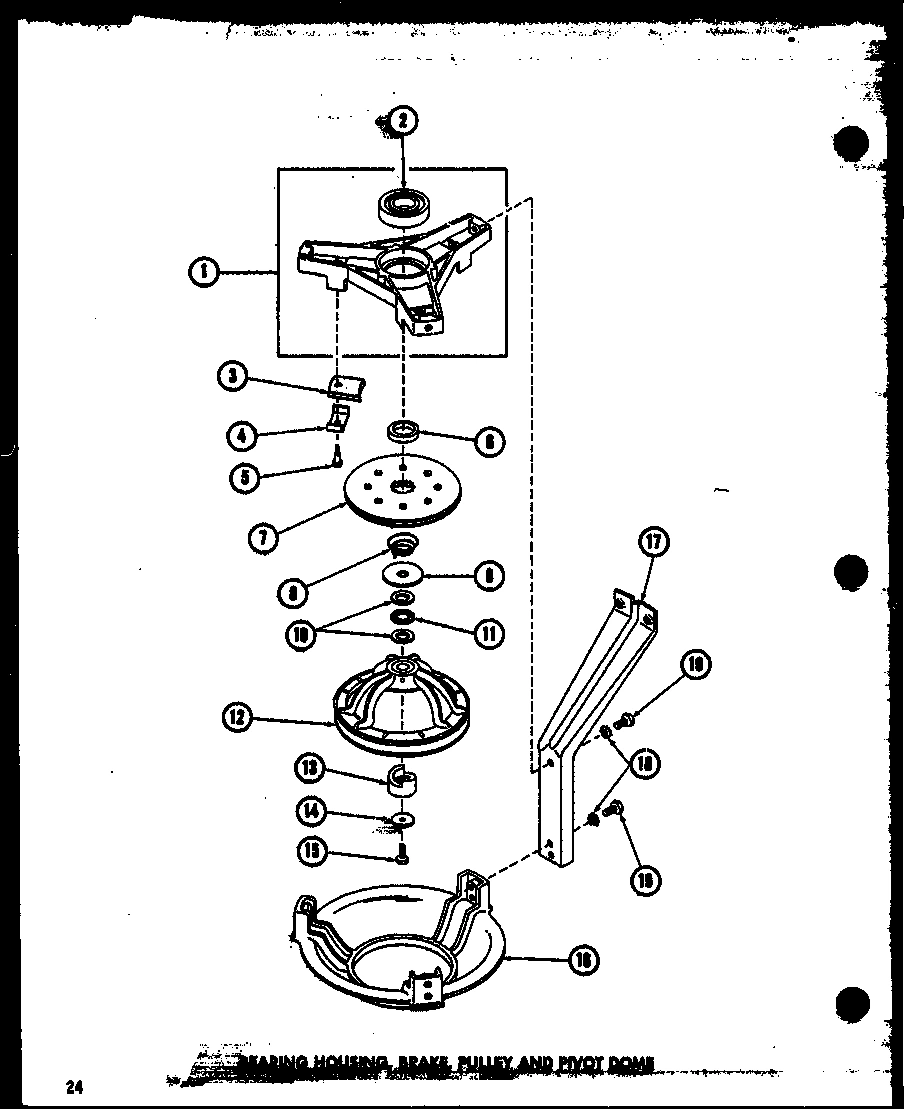

02 - BEARING HOUSING

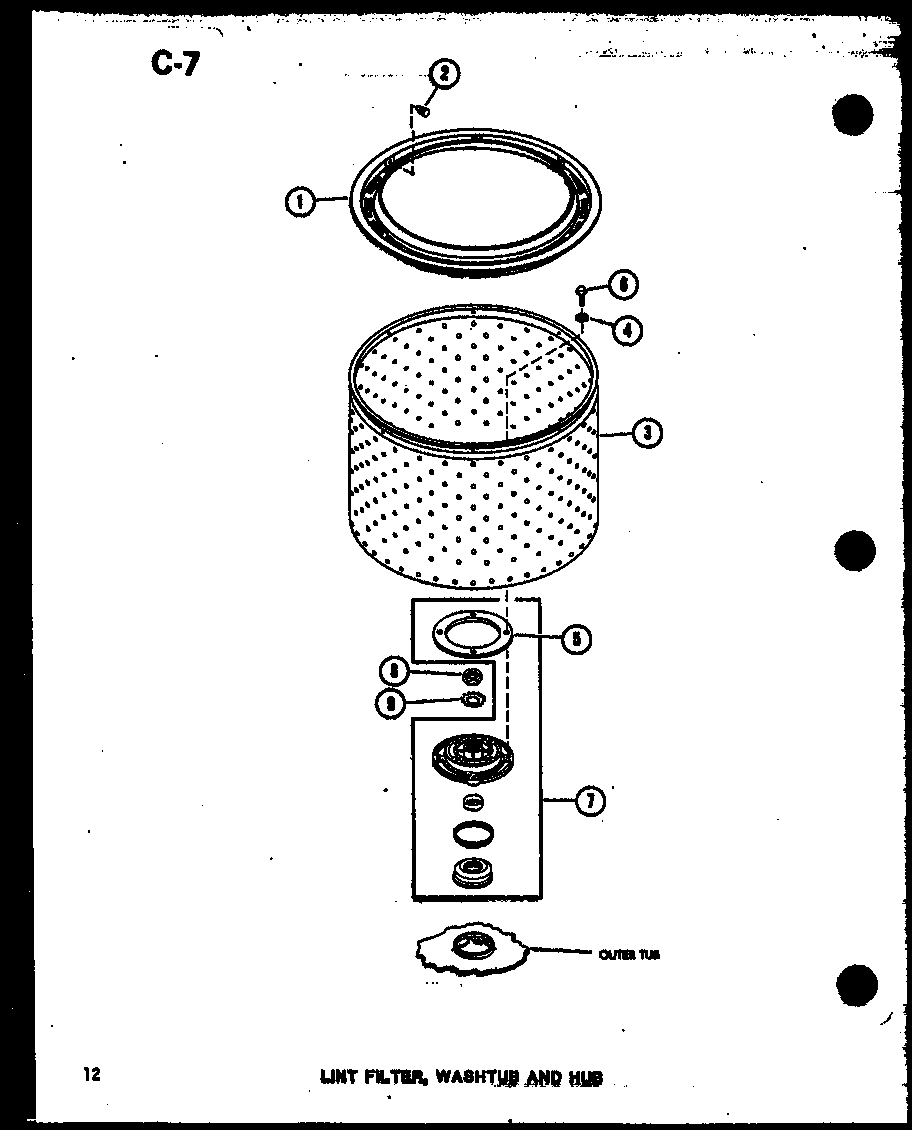

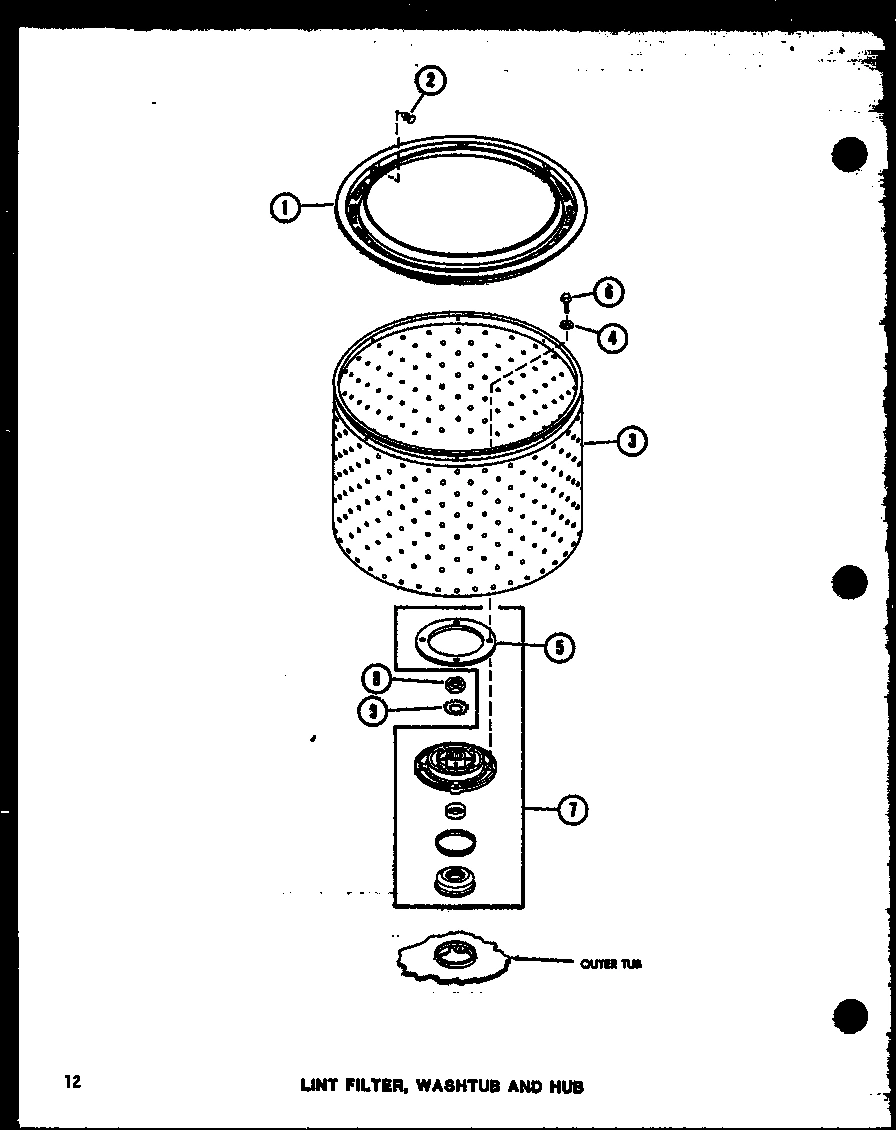

07 - LINT FILTER

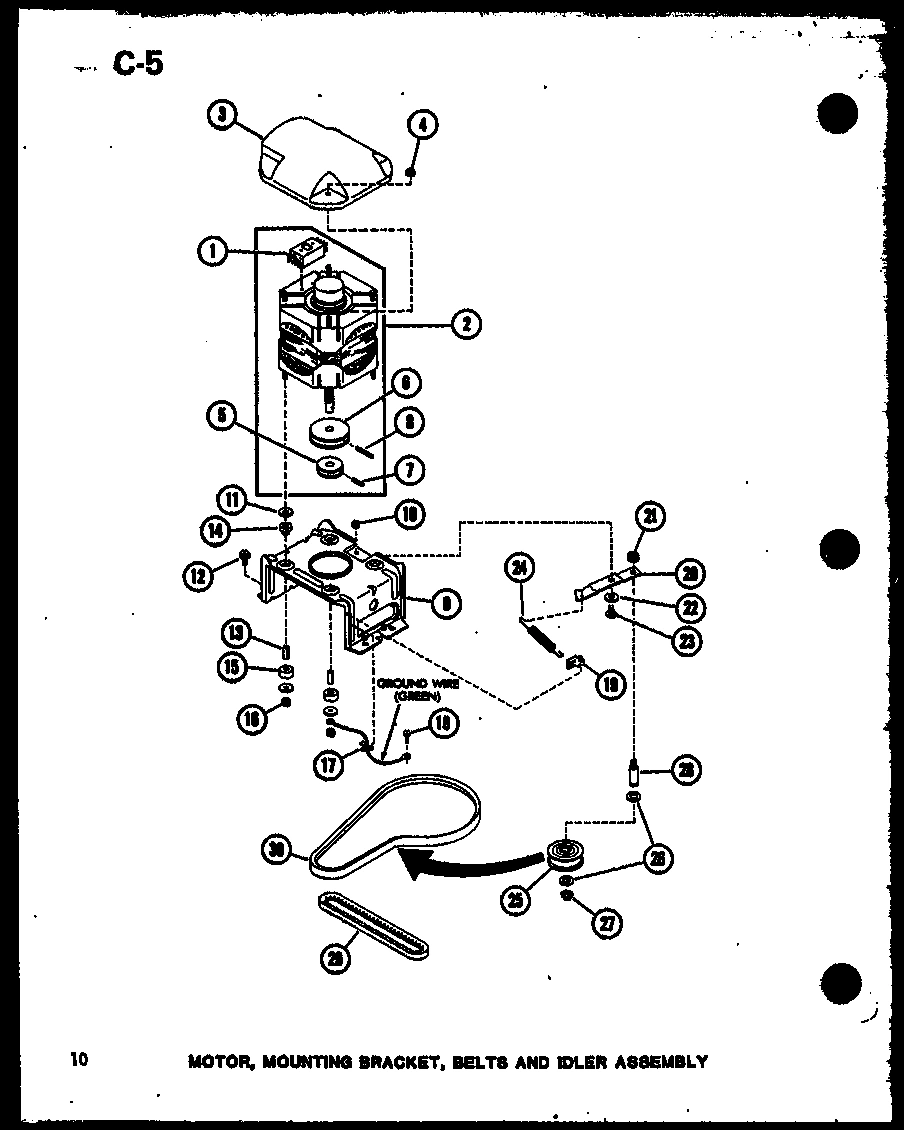

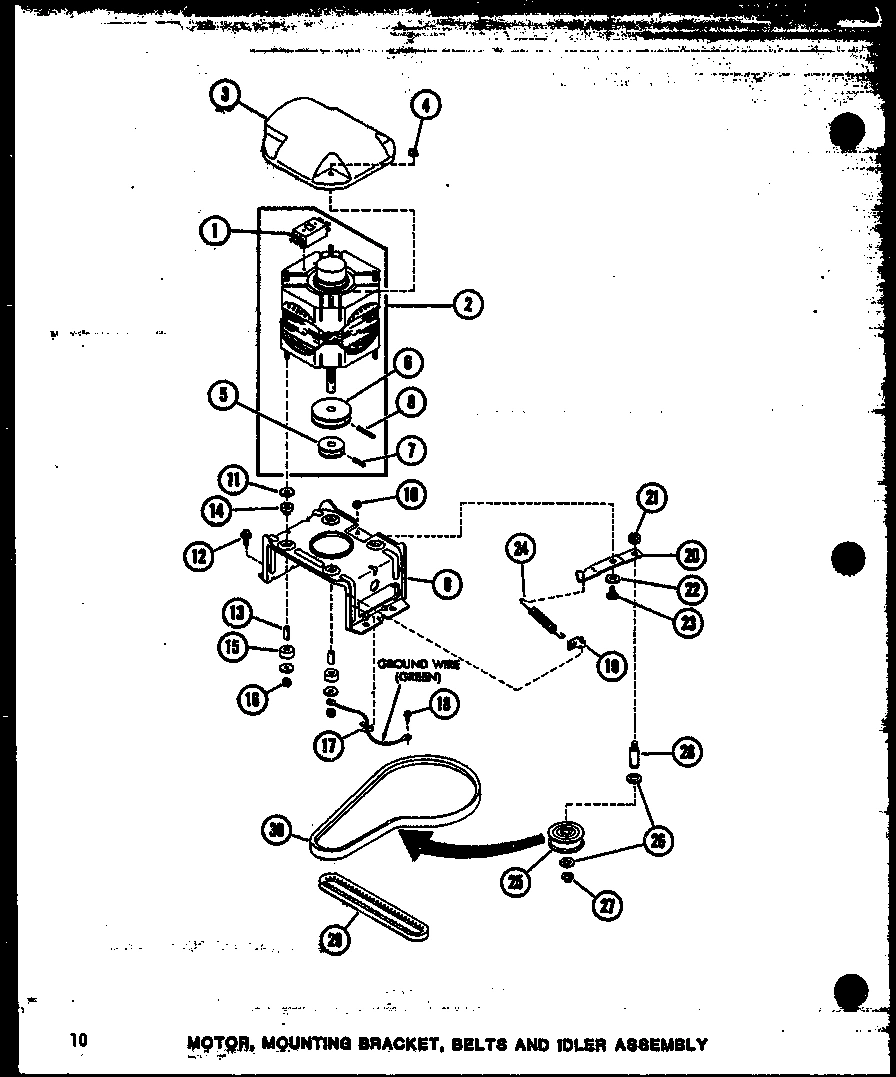

09 - MOTOR

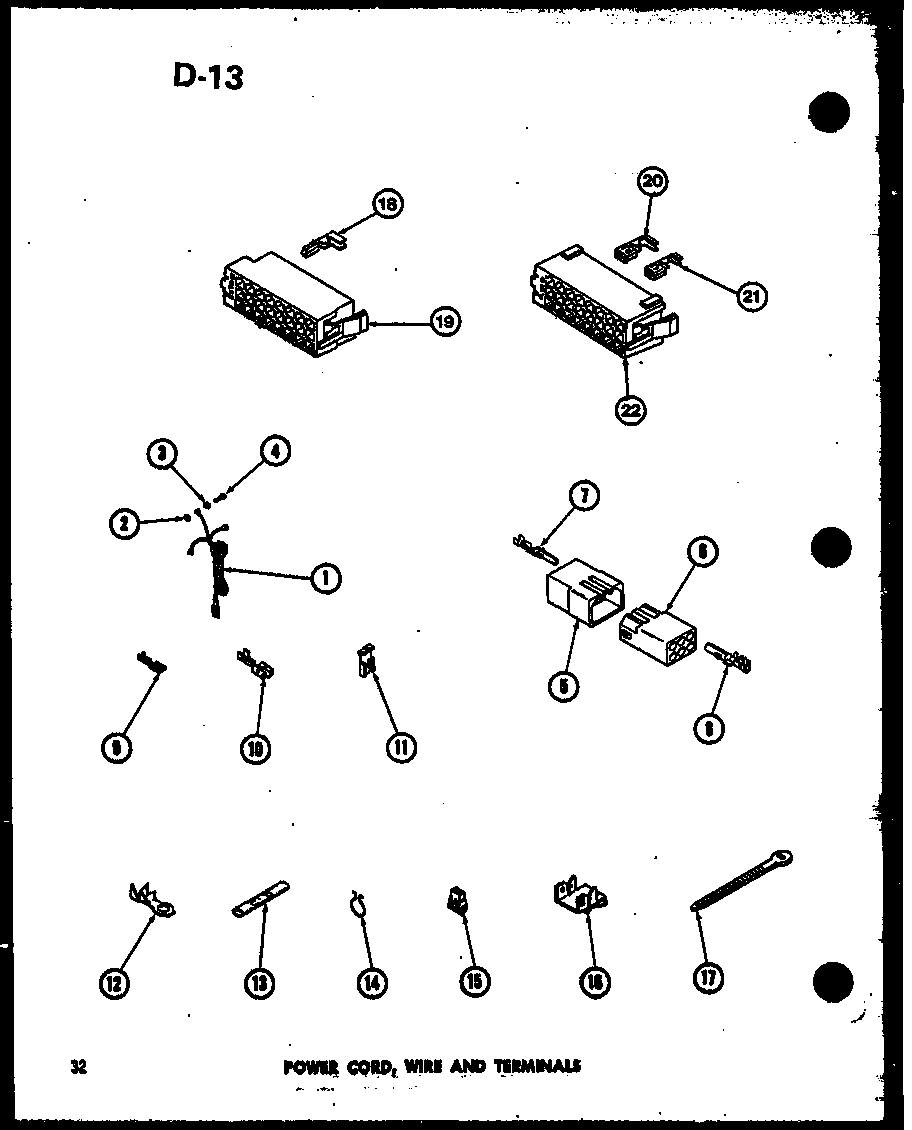

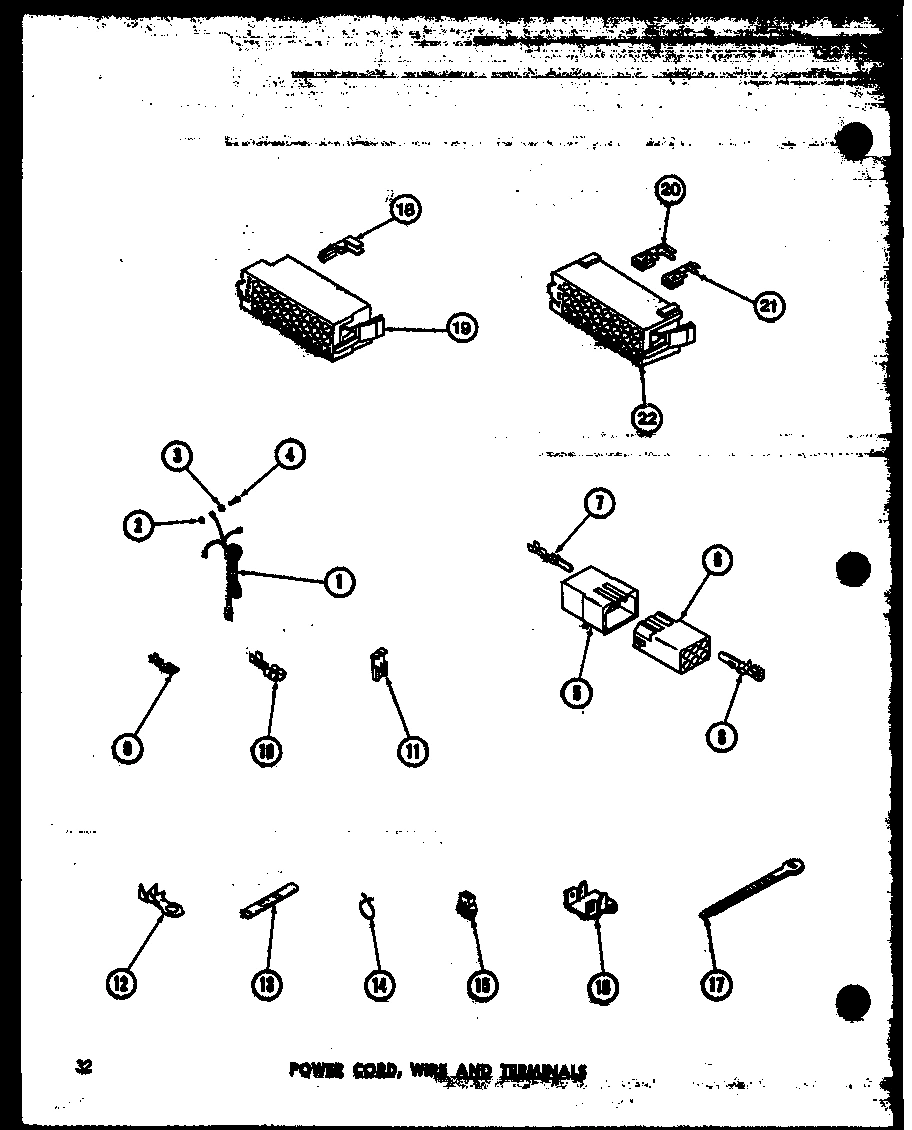

11 - POWER CORD

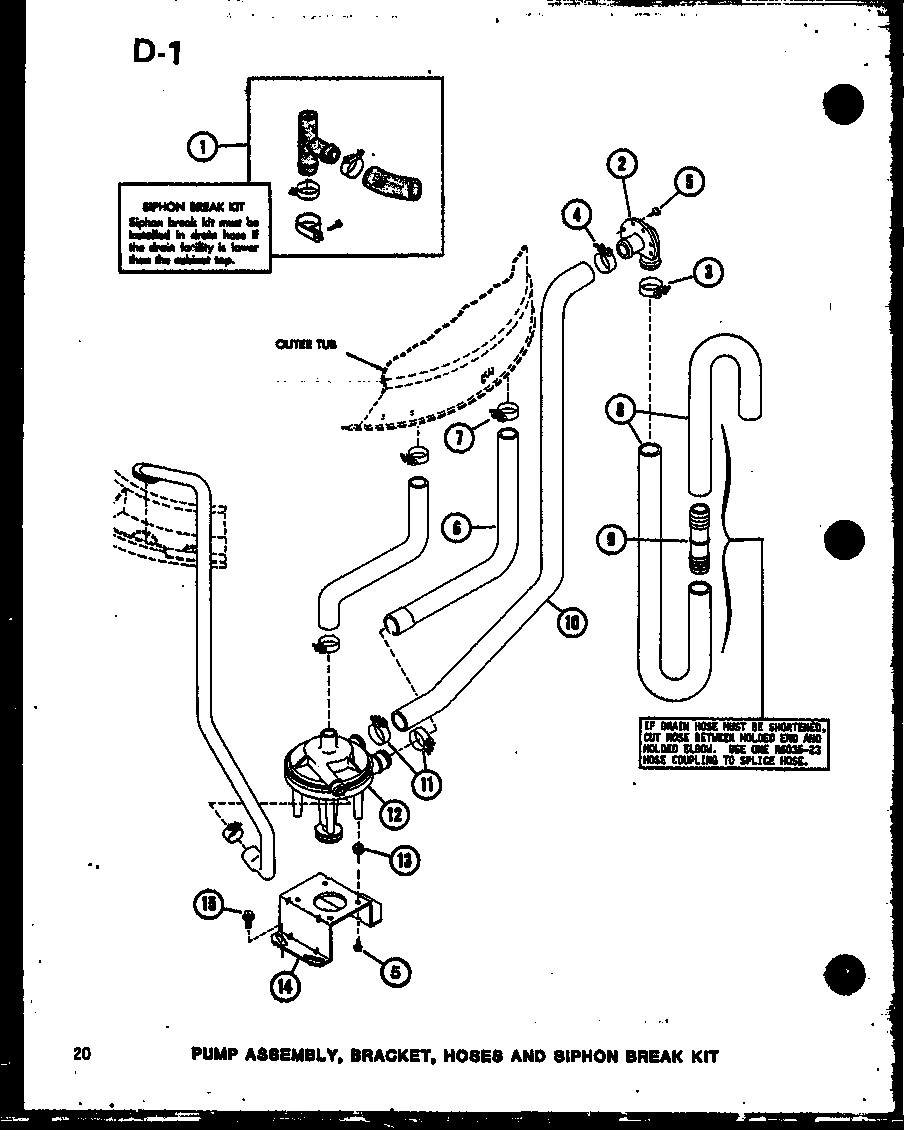

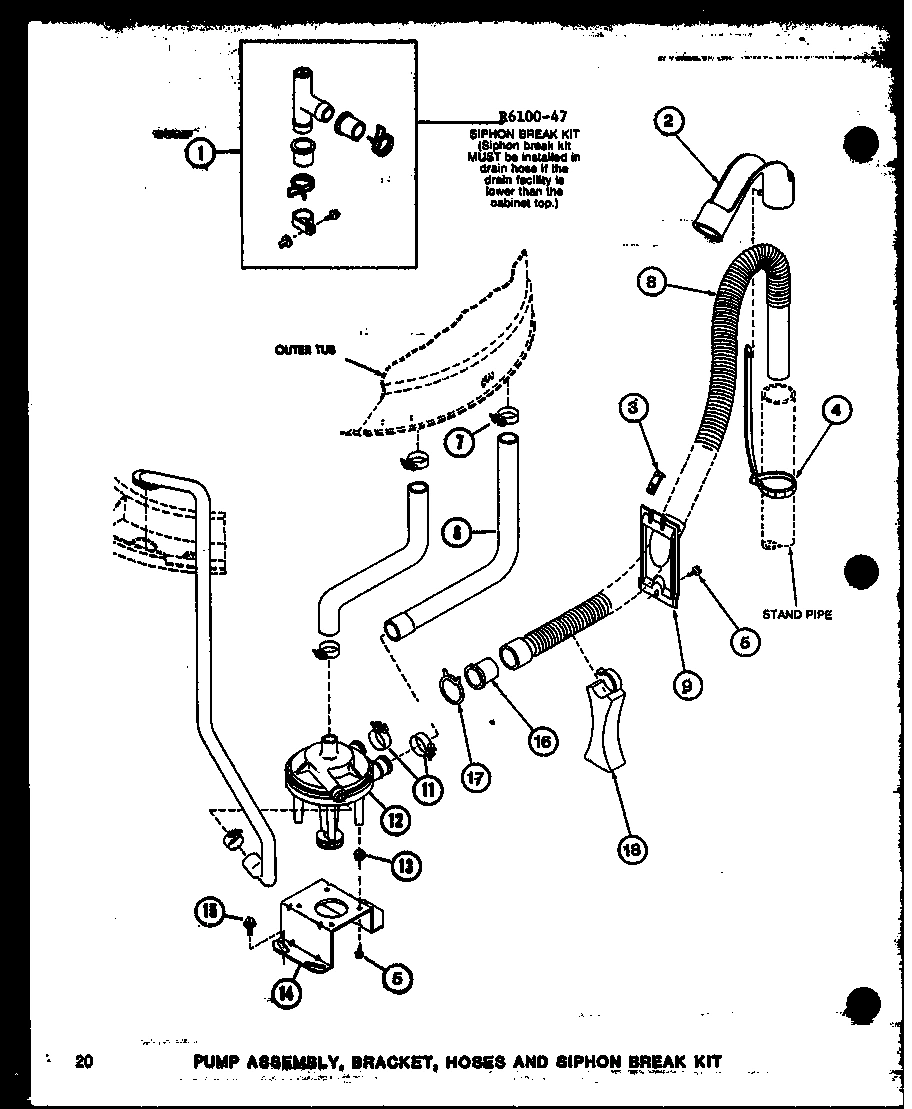

12 - PUMP ASSY

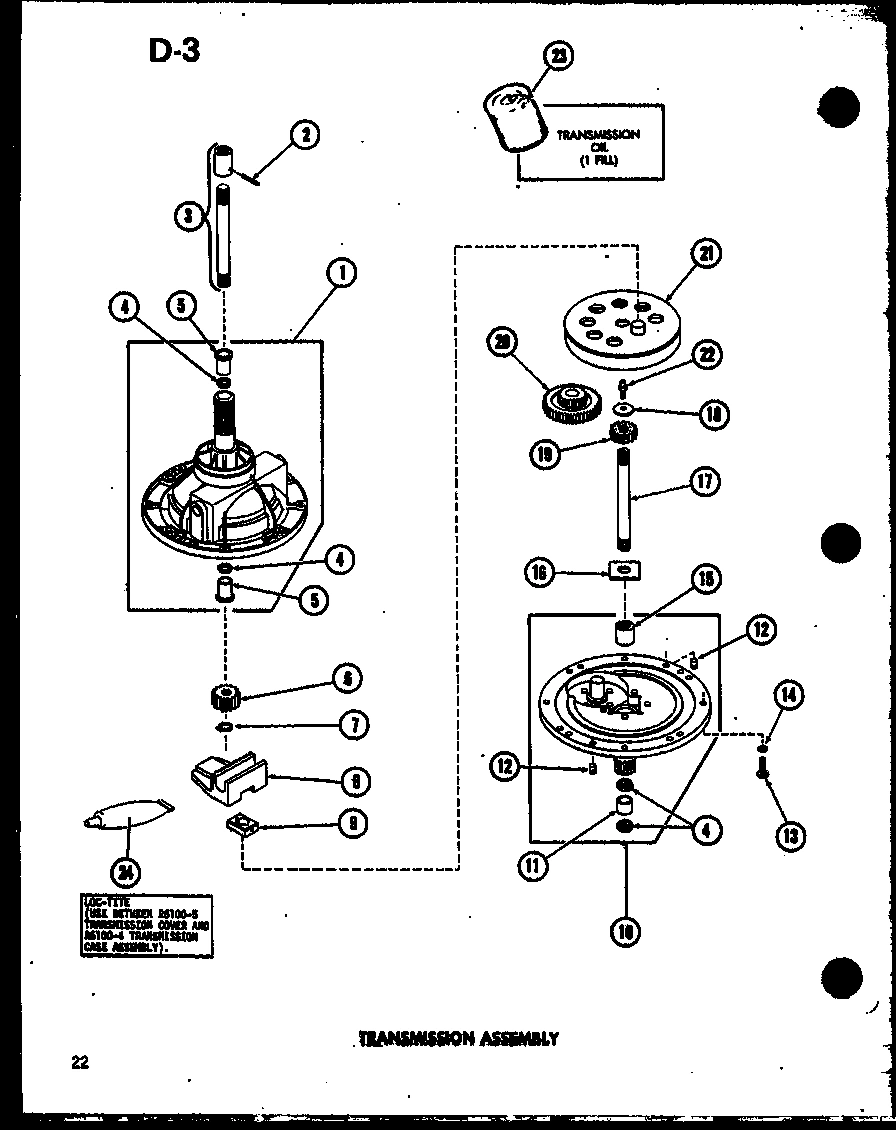

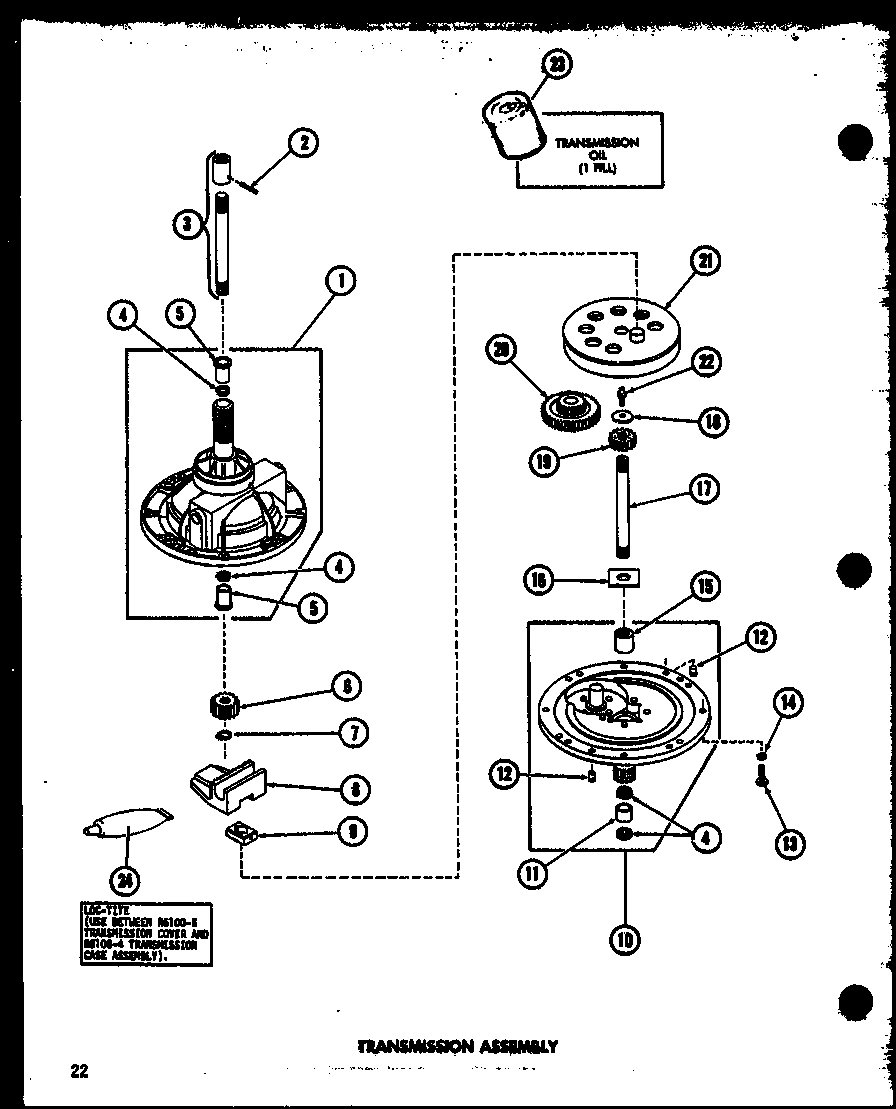

14 - TRANSMISSION ASSY

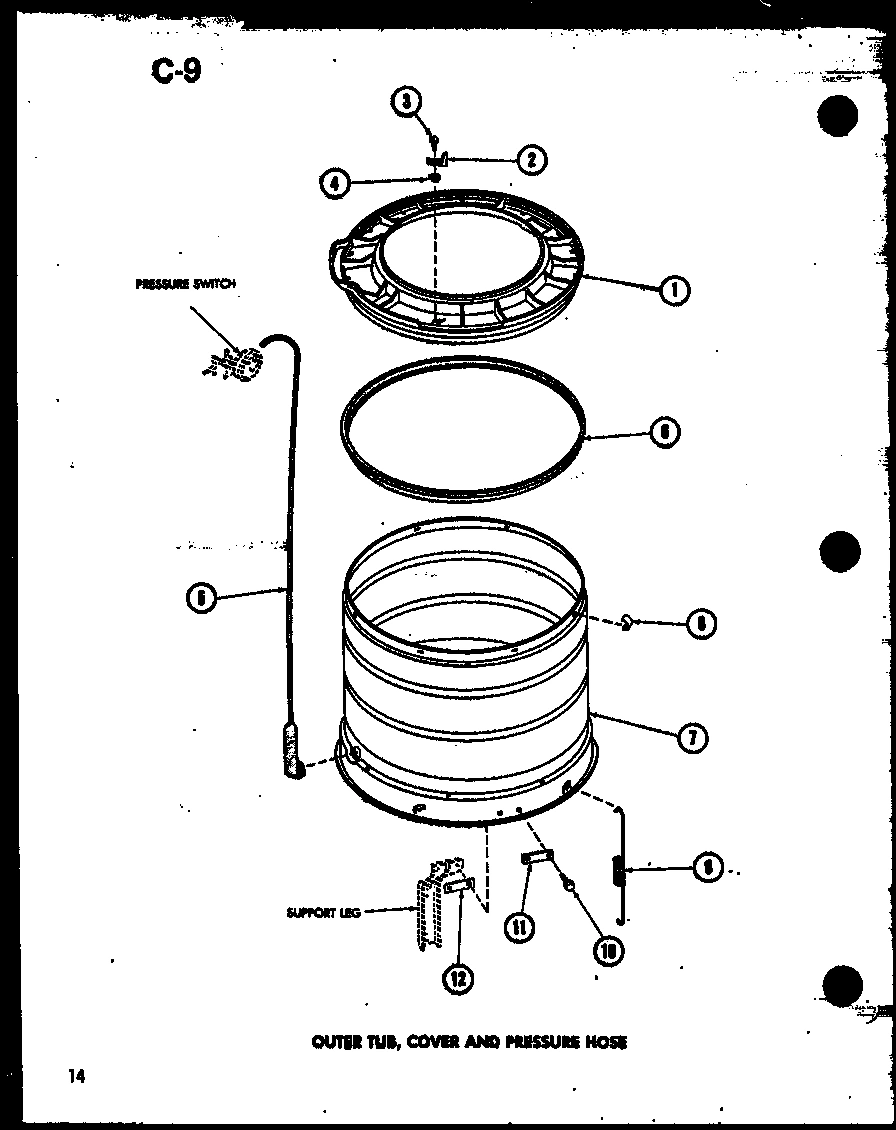

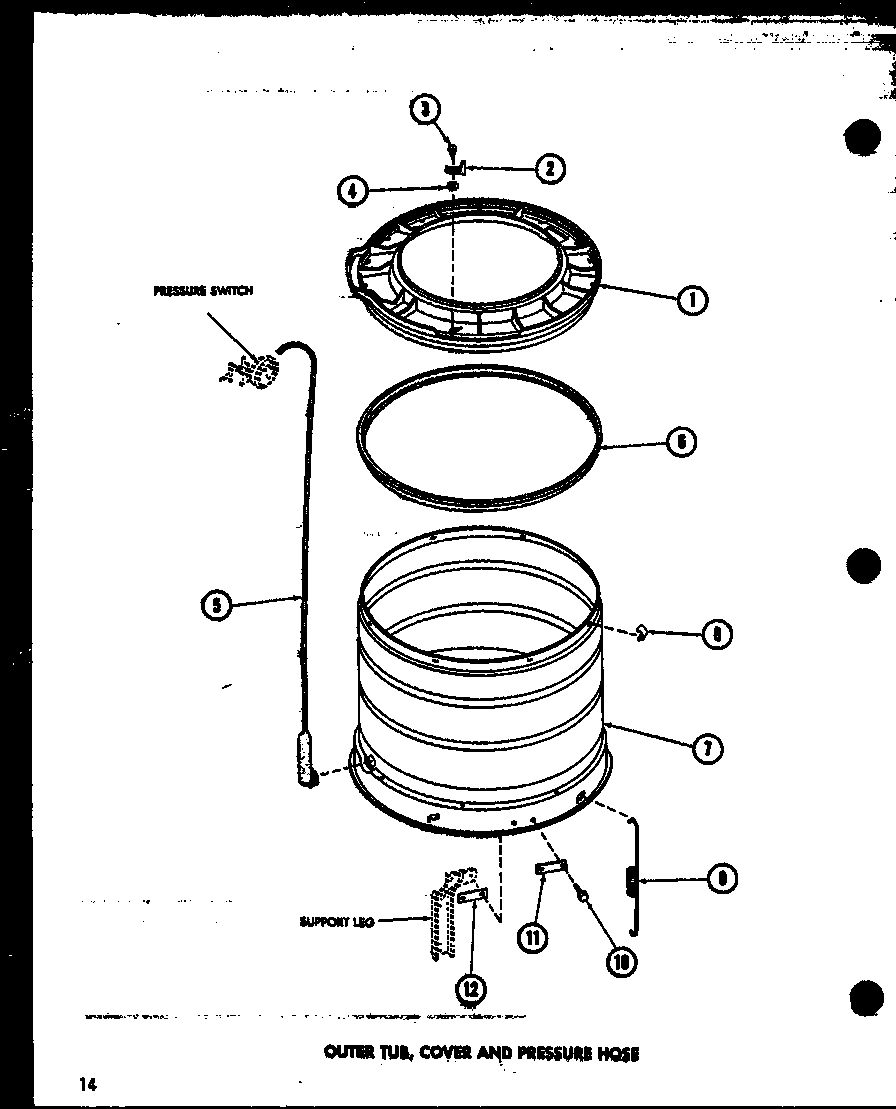

10 - OUTER TUB

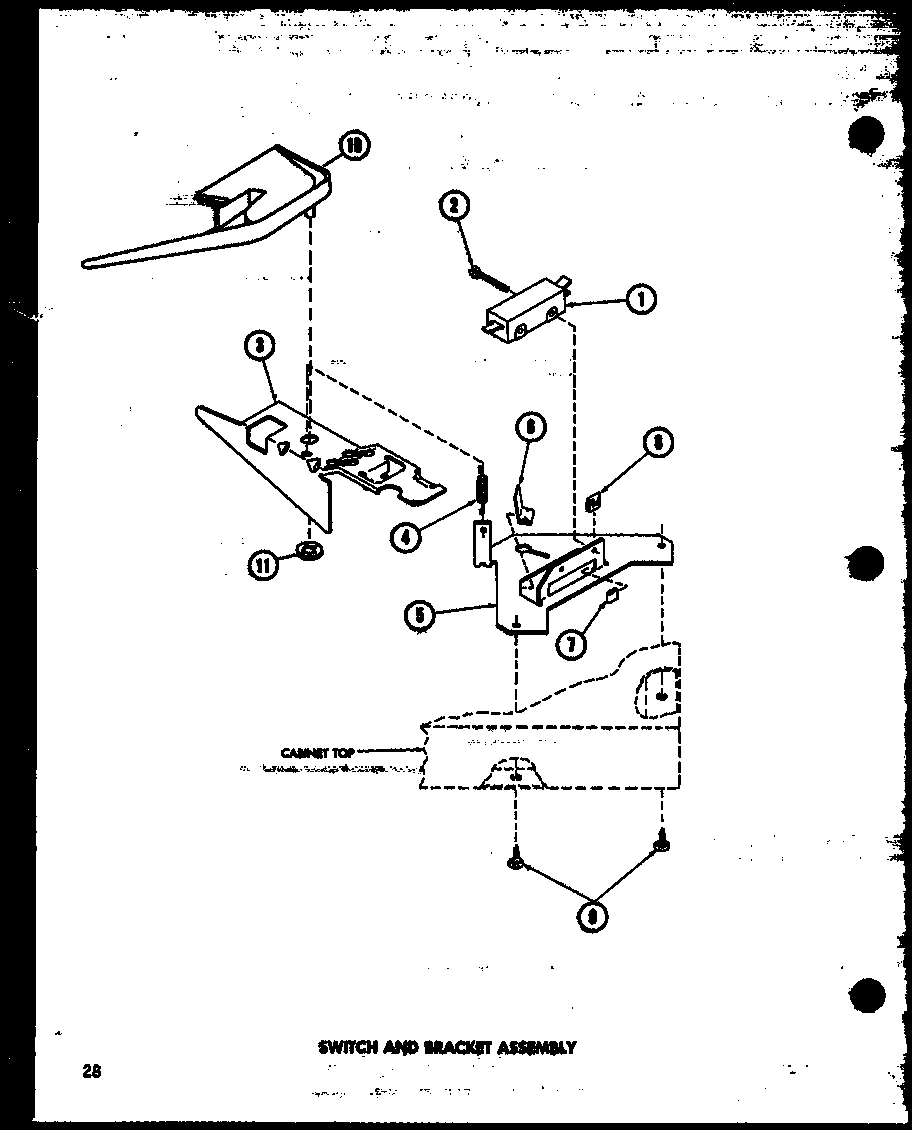

13 - SWITCH AND BRACKET ASSY

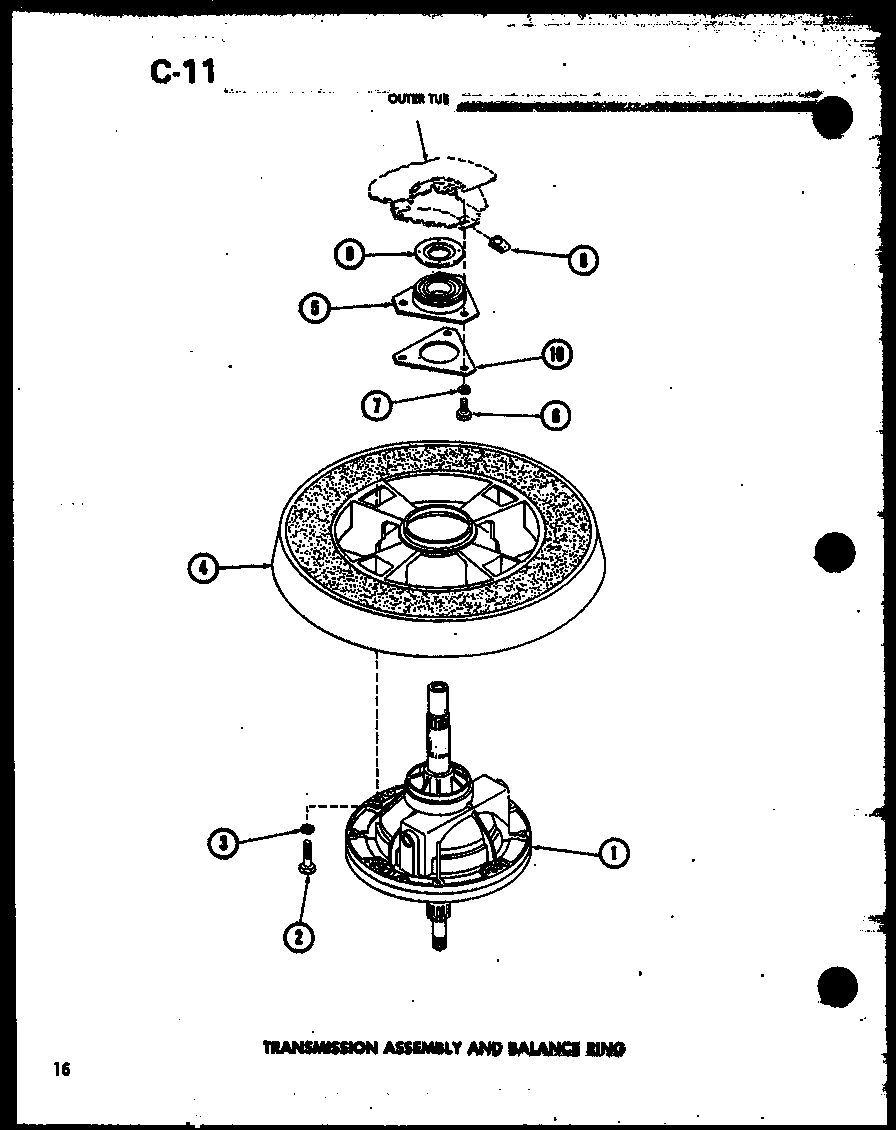

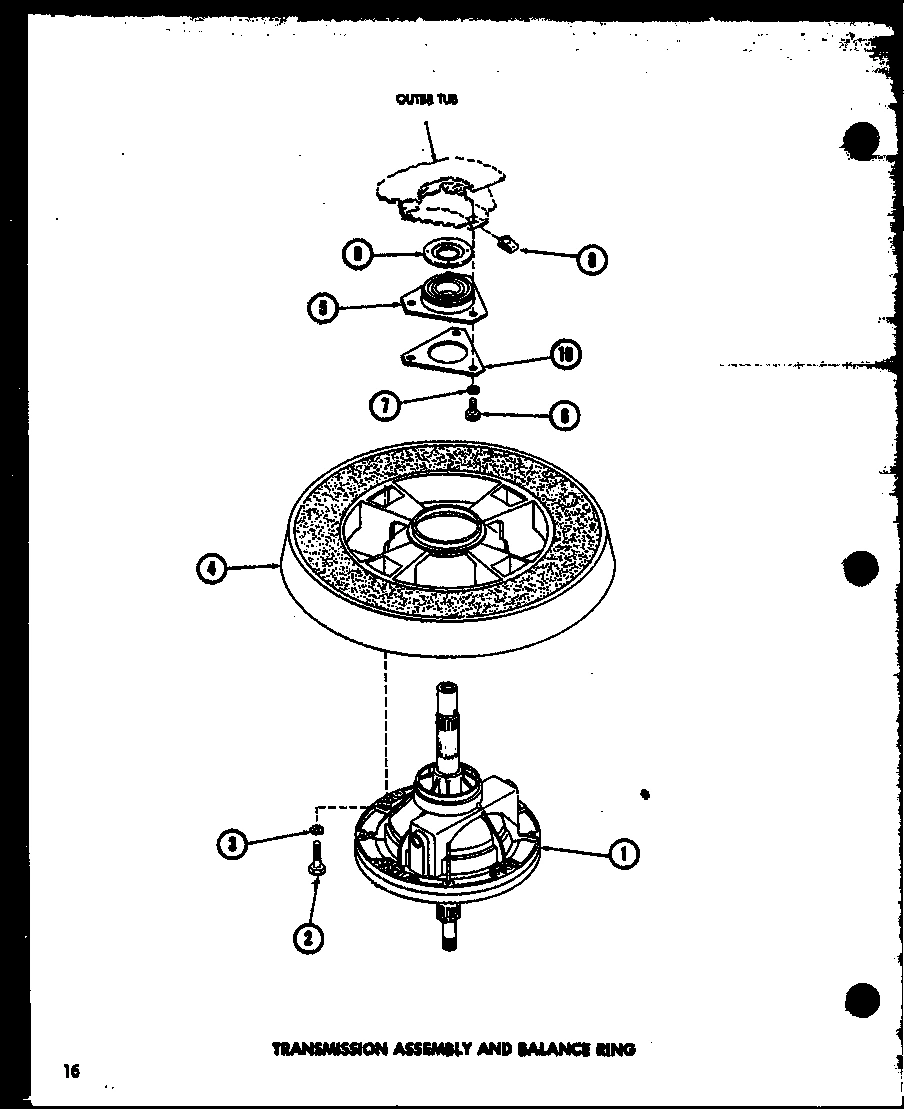

15 - TRANSMISSION ASSY AND BALANCE RING

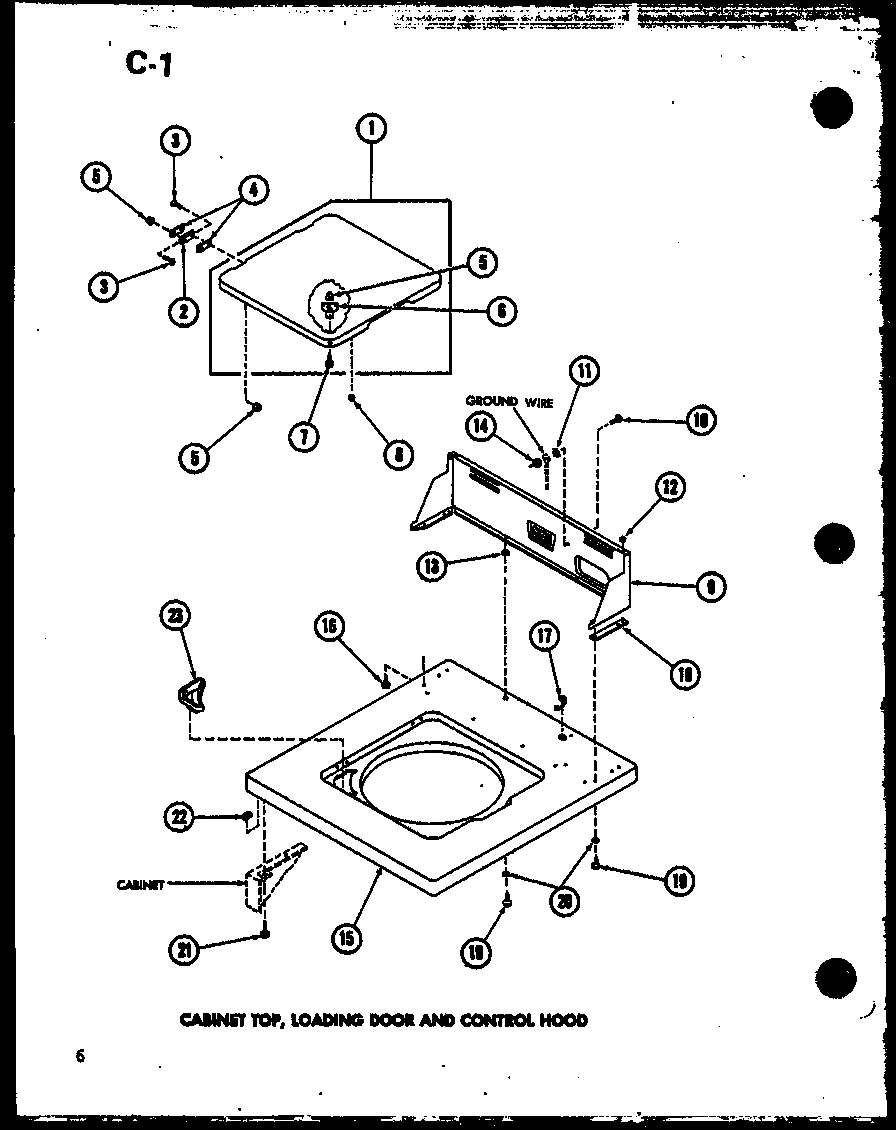

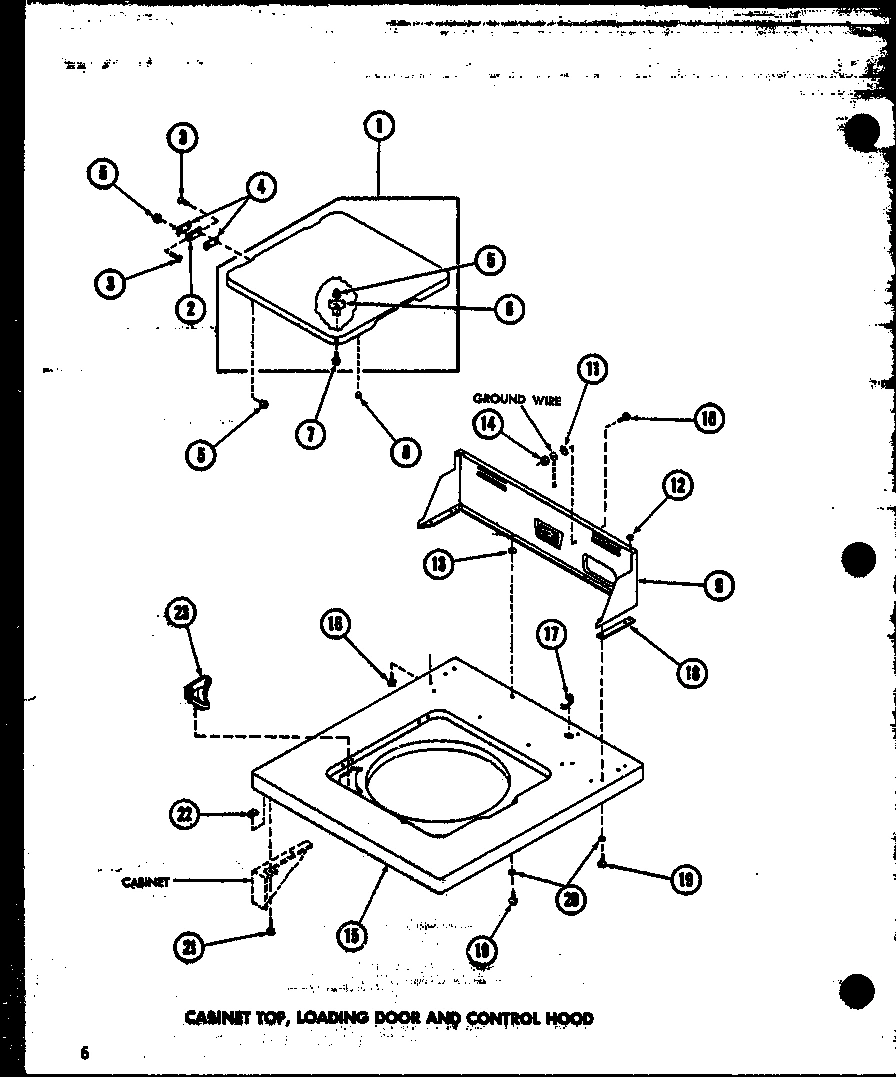

03 - CABINET TOP

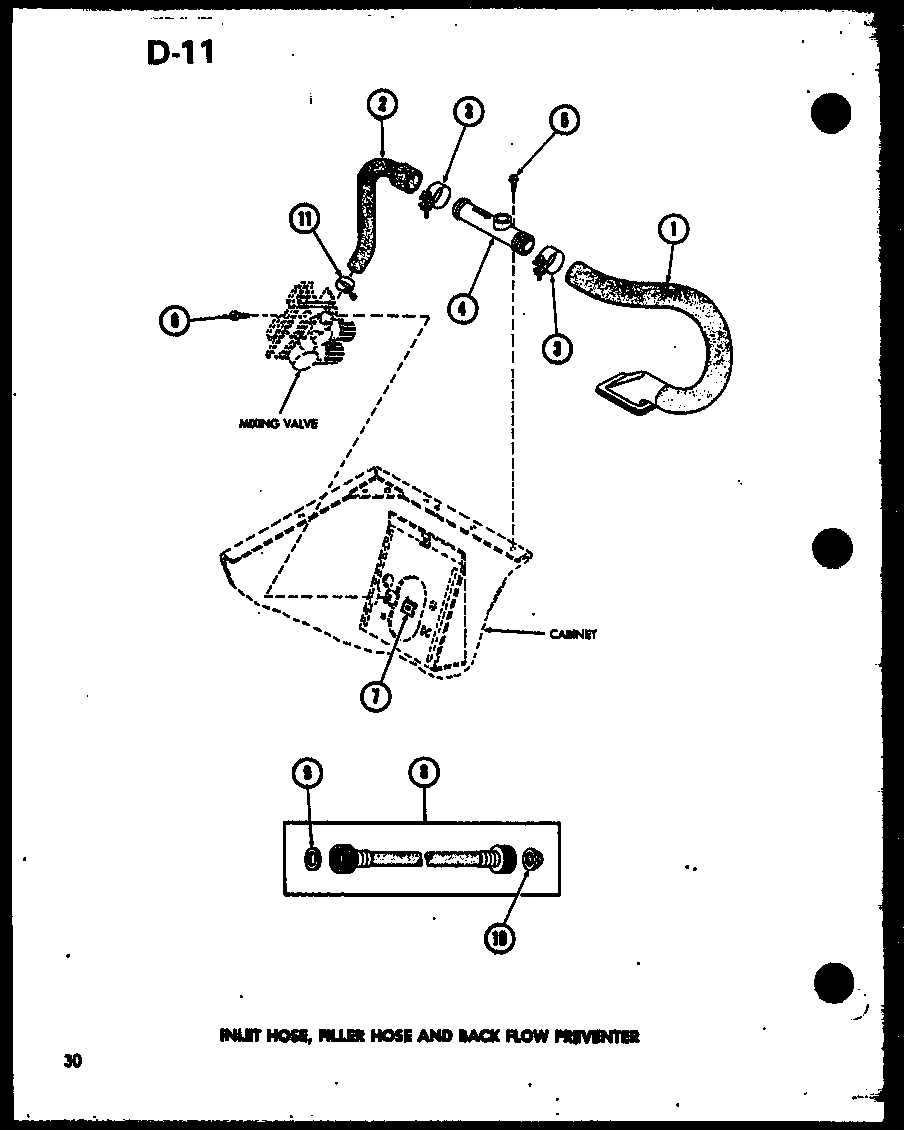

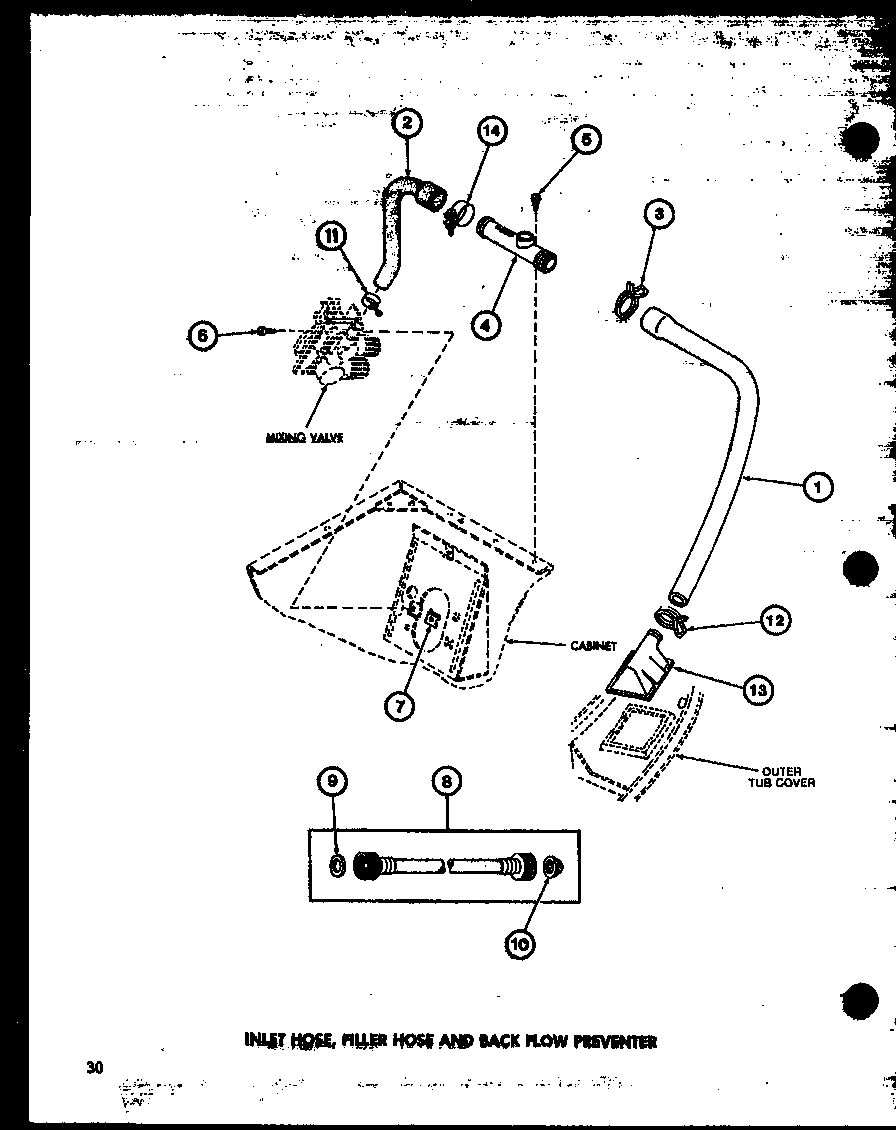

06 - INLET HOSE

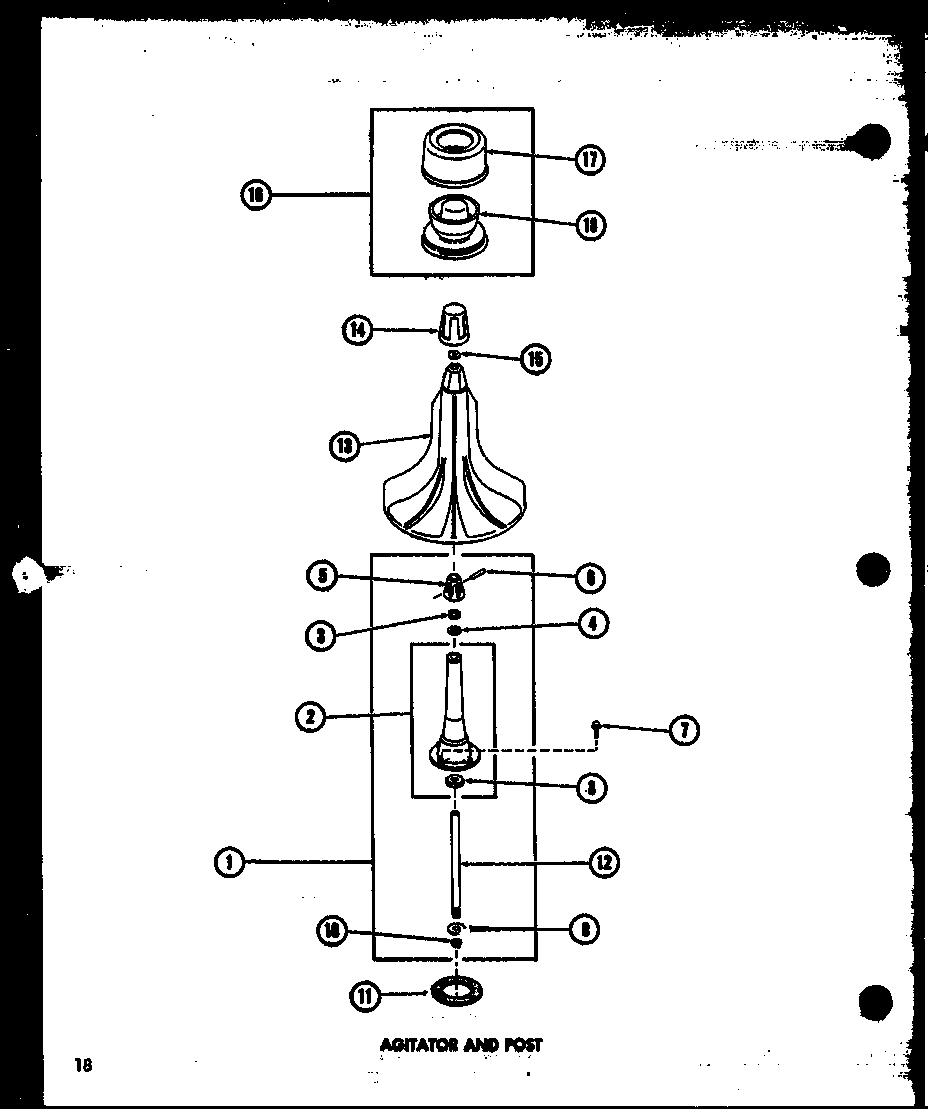

01 - AGITATOR AND POST

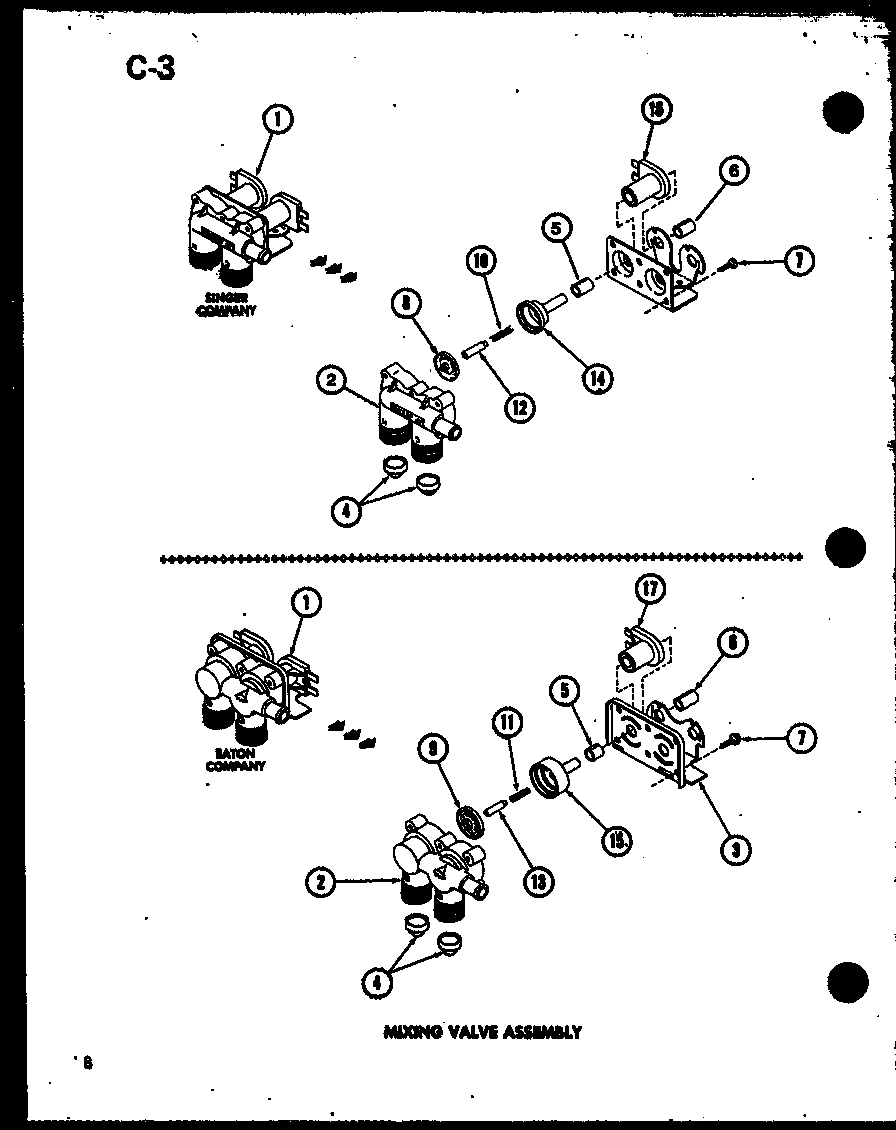

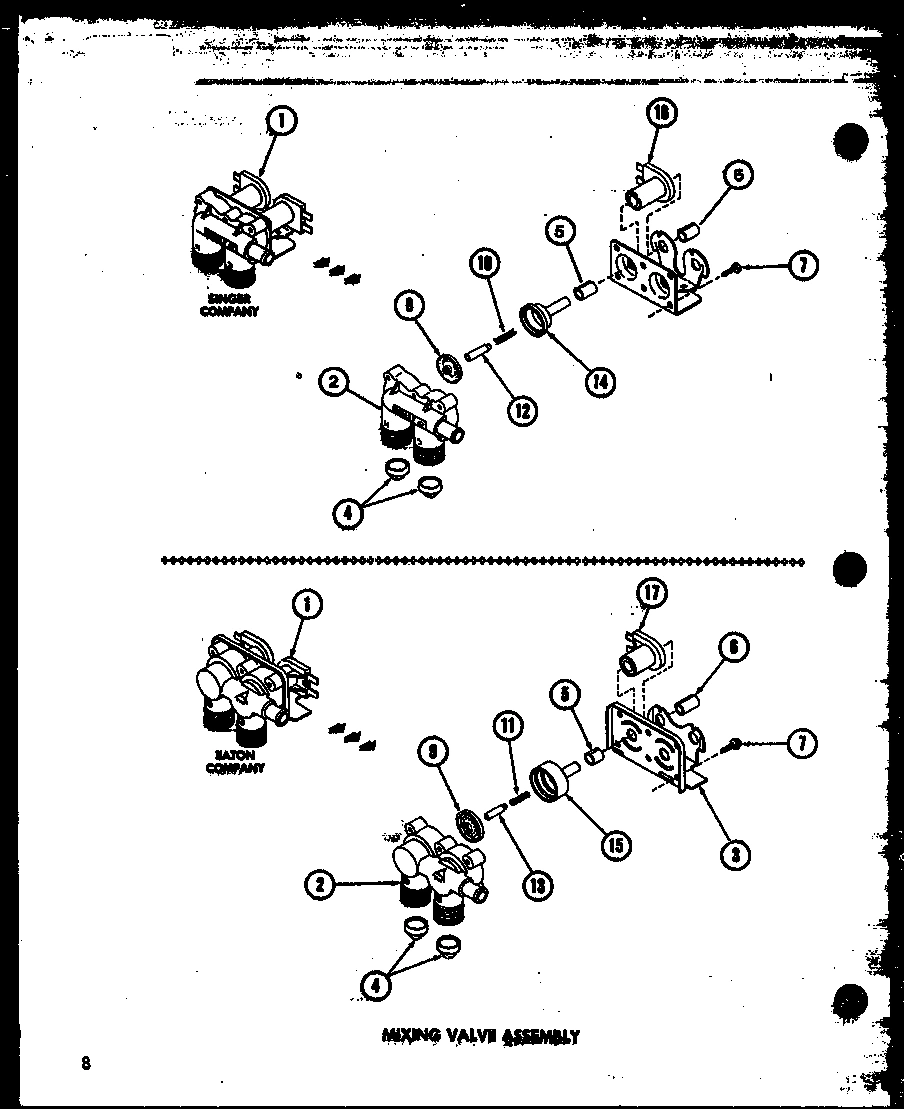

08 - MIXING VALVE ASSY
Common parts from model Whirlpool TAA300 WASHER
1
CONTROL PANEL WPL R0603085 Contact Us For Availability
1
FRONT PANEL WHITE WPL R0603015 Contact Us For Availability
1
FRONT PANEL ALMOND WPL R0603052 Contact Us For Availability
1
ASSY,BEARING HOUSING-L WPL R0610009 Contact Us For Availability
1
FILTER,LINT/CLOTHES GU WPL R0603538 Contact Us For Availability
1
24140 SWITCH WPL R0602509 Contact Us For Availability
1
MOTOR SWITCH WPL R0602511 Contact Us For Availability
1
CORD, LEAD-IN WPL R0605001 Contact Us For Availability
1
ASSY,TRANSMISSION CASE WPL R0610004 Contact Us For Availability
1
COVER OUTER TUB WPL R0603537 Contact Us For Availability
1
SWITCH WPL R0602507 Contact Us For Availability
1
ASSY, TRANSMISSION WPL R0607501 Contact Us For Availability
1
LOADING DOOR WPL R0603008 Contact Us For Availability
1
LOADING DOOR WPL R0603046 Contact Us For Availability
1
HOSE WPL R0606544 Contact Us For Availability
1
ASSEMBLY, AGITATOR POST WPL R0610001 Contact Us For Availability
1
MIXING VALVE WPL R0606001 Contact Us For Availability
2
SCREW WPL R0600002 Contact Us For Availability
2
FASTENER,LINT FILTER WPL R0601512 Contact Us For Availability
2
ASSEMBLY, MOTOR WPL R0607002 Contact Us For Availability
2
DRAIN HOSE SLEEVE WPL R0603546 Contact Us For Availability
2
TRIGGER WPL R0605520 Contact Us For Availability
2
SCREW WPL R0600011 Contact Us For Availability
2
SCREW WPL R0600022 Contact Us For Availability
2
DOOR HINGE WPL R0605502 Contact Us For Availability
2
HOSE WPL R0606503 Contact Us For Availability
2
POST, AGITATOR WPL R0605519 Contact Us For Availability
2
VALVE BODY WPL R0606003 Contact Us For Availability
3
END, CONTROL HOOD WPL R0603005 Contact Us For Availability
3
KIT, BRAKE PAD WPL R0610010 Contact Us For Availability
3
WASH TUB WPL R0603076 Contact Us For Availability
3
MOTOR SHIELD WPL R0603011 Contact Us For Availability
3
SCREW WPL R0600017 Contact Us For Availability
3
CLIP, HOSE RETAINER WPL R0601545 Contact Us For Availability
3
KIT, SHAFT & COUPLER WPL R0610040 Contact Us For Availability
3
LOCKWASHER WPL R0600520 Contact Us For Availability
3
LEVER WPL R0605504 Contact Us For Availability
3
SCREW WPL R0600007 Contact Us For Availability
3
WASHER WPL R0600511 Contact Us For Availability
3
VALVE,MIXING WPL R0605515 Contact Us For Availability
4
HOOD END RH WPL R0603004 Contact Us For Availability
4
PROTECTOR WPL R0603526 Contact Us For Availability
4
BRAKE PAD SHIM WPL R0605531 Contact Us For Availability
4
GASKET WPL R0604504 Contact Us For Availability
4
LOCKNUT WPL R0601008 Contact Us For Availability
4
TIE DOWN STRAP WPL R0603548 Contact Us For Availability
4
SEAL WPL R0606517 Contact Us For Availability
4
SPRING WPL R0605506 Contact Us For Availability
4
ASSY,BALANCE RING-COMPL WPL R0610012 Contact Us For Availability
4
HINGE GASKET WPL R0604502 Contact Us For Availability
4
SYPHON BREAK WPL R0605507 Contact Us For Availability
4
WASHER WPL R0600512 Contact Us For Availability
5
TIMER WPL R0604008 Contact Us For Availability
5
LOCATER LUG WPL R0603525 Contact Us For Availability
5
SCREW WPL R0600027 Contact Us For Availability
5
GASKET WPL R0604505 Contact Us For Availability
5
PULLEY, MOTOR WPL R0609501 Contact Us For Availability
5
PLUG WPL R0605009 Contact Us For Availability
5
BEARING WPL R0605537 Contact Us For Availability
5
HOSE, PRESSURE WPL R0606511 Contact Us For Availability
5
BRACKET WPL R0605505 Contact Us For Availability
5
NYLON NUT WPL R0601002 Contact Us For Availability
5
ASSY,AGITATOR SHAFT&DR WPL R0603518 Contact Us For Availability
5
SLEEVE SHORT WPL R0603508 Contact Us For Availability
6
NUT WPL R0601001 Contact Us For Availability
6
SCREW WPL R0600009 Contact Us For Availability
6
SPACER WPL R0605532 Contact Us For Availability
6
PULLEY, MOTOR WPL R0609502 Contact Us For Availability
6
RECEPTACLE WPL R0605010 Contact Us For Availability
6
HOSE WPL R0606514 Contact Us For Availability
6
AG PINION WPL R0605542 Contact Us For Availability
6
COVER GASKET WPL R0604506 Contact Us For Availability
6
U-CLIP WPL R0601503 Contact Us For Availability
6
SCREW WPL R0600021 Contact Us For Availability
6
ACTUATOR, DOOR SWITCH WPL R0603504 Contact Us For Availability
6
TAPER PIN WPL R0601510 Contact Us For Availability
6
SLEEVE LONG WPL R0603510 Contact Us For Availability
7
TIMER KNOB WPL R0603502 Contact Us For Availability
7
BRACKET, VALVE WPL R0605527 Contact Us For Availability
7
SPEED NUT WPL R0601007 Contact Us For Availability
7
BRAKE ASSEMBLY WPL R0610044 Contact Us For Availability
7
LOCKWASHER WPL R0600519 Contact Us For Availability
7
KIT,SEAL-WASHER WPL R0610014 Contact Us For Availability
7
ROLL PIN WPL R0601508 Contact Us For Availability
7
TERMINAL WPL R0605003 Contact Us For Availability
7
U-CLIP WPL R0601504 Contact Us For Availability
7
OUTER TUB WPL R0603077 Contact Us For Availability
7
SCREW & LOCKWASHER WPL R0600008 Contact Us For Availability
7
SCREW WPL R0600013 Contact Us For Availability
8
SET SCREW WPL R0600005 Contact Us For Availability
8
SPRING WPL R0605529 Contact Us For Availability
8
NUT, LOCK WPL R0601012 Contact Us For Availability
8
ROLL PIN WPL R0601509 Contact Us For Availability
8
TERMINAL WPL R0605004 Contact Us For Availability
8
HOSE, DRAIN WPL R0606547 Contact Us For Availability
8
RACK WPL R0605544 Contact Us For Availability
8
SPRING CLIP WPL R0601513 Contact Us For Availability
8
NUT WPL R0601006 Contact Us For Availability
8
NUT WPL R0601013 Contact Us For Availability
8
BUMPER WPL R0606501 Contact Us For Availability
8
THRUST WASHER WPL R0600513 Contact Us For Availability
8
DIAPHRAM WPL R0606505 Contact Us For Availability
9
INDICATOR WPL R0603505 Contact Us For Availability
9
CABINET WHITE WPL R0603016 Contact Us For Availability
9
CABINET ALMOND WPL R0603054 Contact Us For Availability
9
WASHER WPL R0600523 Contact Us For Availability
9
LOCKWASHER WPL R0600516 Contact Us For Availability
9
MOTOR MTG BRACKET WPL R0605514 Contact Us For Availability
9
TERMINAL,SPADE-3/16 FE WPL R0605002 Contact Us For Availability
9
HOSE RETAINER WPL R0603544 Contact Us For Availability
9
SLIDE WPL R0605545 Contact Us For Availability
9
CENTERING SPRING WPL R0605521 Contact Us For Availability
9
FLINGER WPL R0605536 Contact Us For Availability
9
CONTROL HOOD WPL R0603086 Contact Us For Availability
9
CONTROL HOOD WPL R0603088 Contact Us For Availability
9
WASHER WPL R0600505 Contact Us For Availability
9
WASHER WPL R0600514 Contact Us For Availability
9
DIAPHRAM WPL R0606506 Contact Us For Availability
10
BEARING RACE WPL R0605533 Contact Us For Availability
10
SCREW WPL R0600006 Contact Us For Availability
10
TERMINAL WPL R0605005 Contact Us For Availability
10
RETAINING RING WPL R0601511 Contact Us For Availability
10
ASSEMBLY, TRANSMISSION COVER WPL R0610005 Contact Us For Availability
10
SCREW WPL R0600020 Contact Us For Availability
10
SWITCH SHIELD WPL R0605671 Contact Us For Availability
10
WASHER WPL R0600518 Contact Us For Availability
10
SPRING WPL R0605508 Contact Us For Availability
11
SPRING WPL R0605501 Contact Us For Availability
11
HINGE WPL R0605528 Contact Us For Availability
11
NEEDLE BEARING WPL R0605534 Contact Us For Availability
11
WASHER WPL R0600510 Contact Us For Availability
11
LOCKWASHER WPL R0600503 Contact Us For Availability
11
TERMINAL WPL R0605006 Contact Us For Availability
11
BEARING WPL R0605546 Contact Us For Availability
11
LEG PLATE WPL R0605522 Contact Us For Availability
11
NUT WPL R0601032 Contact Us For Availability
11
GASKET WPL R0604503 Contact Us For Availability
11
SPRING WPL R0605509 Contact Us For Availability
12
SWITCH,PRESSURE WPL R0602501 Contact Us For Availability
12
KIT,PULLEY & WASHERS WPL R0610007 Contact Us For Availability
12
TERMINAL WPL R0605007 Contact Us For Availability
12
ASSY, PUMP WPL R0610503 Contact Us For Availability
12
PIN WPL R0605548 Contact Us For Availability
12
LEG PLATE WPL R0605523 Contact Us For Availability
12
SPEED NUT WPL R0601004 Contact Us For Availability
12
CLAMP WPL R0601542 Contact Us For Availability
12
DRIVE SHAFT AND BLOCK WPL R0610002 Contact Us For Availability
12
ARMATURE WPL R0605510 Contact Us For Availability
13
HELIX WPL R0605535 Contact Us For Availability
13
SPACER WPL R0603511 Contact Us For Availability
13
CONNECTOR WPL R0605008 Contact Us For Availability
13
NUT WPL R0601014 Contact Us For Availability
13
SCREW WPL R0600023 Contact Us For Availability
13
WASHER WPL R0600502 Contact Us For Availability
13
HEAD, WATER INLET WPL R0603542 Contact Us For Availability
13
AGITATOR WPL R0603513 Contact Us For Availability
13
ARMATURE WPL R0605511 Contact Us For Availability
14
NUT WPL R0601030 Contact Us For Availability
14
GUIDE LUG WPL R0603524 Contact Us For Availability
14
RUBBER MTG WPL R0606509 Contact Us For Availability
14
NUT WPL R0601003 Contact Us For Availability
14
CLIP WPL R0601522 Contact Us For Availability
14
PUMP MTG BRACKET WPL R0605524 Contact Us For Availability
14
HOLD-DOWN CAP WPL R0603514 Contact Us For Availability
14
ARMATURE GUIDE WPL R0605512 Contact Us For Availability
15
SLEEVE WPL R0605503 Contact Us For Availability
15
PAD, BUMPER WPL R0606519 Contact Us For Availability
15
SCREW WPL R0600026 Contact Us For Availability
15
SCREW WPL R0600018 Contact Us For Availability
15
RUBBER MTG WPL R0606510 Contact Us For Availability
15
INSULATOR WPL R0605011 Contact Us For Availability
15
ROLLER, CLUTCH WPL R0605547 Contact Us For Availability
15
CABINET TOP WHITE WPL R0603010 Contact Us For Availability
15
CABINET TOP ALMOND WPL R0603050 Contact Us For Availability
15
WASHER WPL R0600515 Contact Us For Availability
15
ARMATURE GUIDE WPL R0605513 Contact Us For Availability
16
PANEL SUPPORT WPL R0603006 Contact Us For Availability
16
ASSY,BASE-COMPLETE-G90 WPL R0603089 Contact Us For Availability
16
PIVOT DOME WPL R0605526 Contact Us For Availability
16
LOCKNUT WPL YR0601010 Contact Us For Availability
16
GROUND CLIP WPL R0601507 Contact Us For Availability
16
HOSE ADAPTER WPL R0603545 Contact Us For Availability
16
WASHER WPL R0600522 Contact Us For Availability
16
SALES ITEM ONLY (DISPENSER) WPL R0603515 Contact Us For Availability
16
VALVE,MIXING WPL R0609001 Contact Us For Availability
17
CAGED NUT WPL R0601015 Contact Us For Availability
17
SUPPORT LEG WPL R0605525 Contact Us For Availability
17
WIRE TIE WPL R0601521 Contact Us For Availability
17
HOSE CLAMP WPL R0601544 Contact Us For Availability
17
INPUT SHAFT WPL R0605540 Contact Us For Availability
17
STRAIN RELIEF K WPL R0601502 Contact Us For Availability
17
TOP:SEE NOTE WPL R0603517 Contact Us For Availability
17
SOLENOID WPL R0609002 Contact Us For Availability
18
WASHER WPL R0600521 Contact Us For Availability
18
TERMINAL MOLEX WPL R0605050 Contact Us For Availability
18
HOSE SUPPORT WPL R0603547 Contact Us For Availability
18
END GASKET WPL R0604501 Contact Us For Availability
18
BODY, DISPENSER WPL R0603516 Contact Us For Availability
19
CONTROL KNOB ASSY WPL R0603007 Contact Us For Availability
19
SCREW WPL R0600025 Contact Us For Availability
19
CLIP WPL R0601539 Contact Us For Availability
19
HOUSING MOLEX WPL R0605053 Contact Us For Availability
19
DRIVE PINION WPL R0605543 Contact Us For Availability
20
FIBRE WASHER WPL R0600501 Contact Us For Availability
20
CLIP WPL R0601501 Contact Us For Availability
20
RUBBER PAD WPL R0606518 Contact Us For Availability
20
LEVER, IDLER WPL R0605586 Contact Us For Availability
20
TERMINAL AMP WPL R0605051 Contact Us For Availability
20
REDUCTION GEAR WPL R0603521 Contact Us For Availability
21
TERMINAL AMP WPL R0605052 Contact Us For Availability
21
INTERNAL GEAR WPL R0605541 Contact Us For Availability
21
SCREW WPL R0600010 Contact Us For Availability
22
LOCKWASHER WPL R0600553 Contact Us For Availability
22
SPACER WPL R0600506 Contact Us For Availability
22
HOUSING AMP WPL R0605054 Contact Us For Availability
22
SCREW WPL R0600024 Contact Us For Availability
22
NUT WPL R0601005 Contact Us For Availability
23
HEX NUT WPL R0601033 Contact Us For Availability
23
SCREW WPL R0600016 Contact Us For Availability
23
TRANSMISSION OIL WPL R0608001 Contact Us For Availability
23
BLEACH DISPENSER WPL R0603503 Contact Us For Availability
24
TEMPERATURE SWITCH WPL R0602522 Contact Us For Availability
24
LOC TITE WPL R0608007 Contact Us For Availability
25
PULLEY, IDLER WPL R0609508 Contact Us For Availability
28
IDLER SHAFT WPL R0605538 Contact Us For Availability
29
BELT WPL R0606507 Contact Us For Availability
NI
LUBRICANT WPL R0608008 Contact Us For Availability
NI
WIRE HARNESS WPL R0605015 Contact Us For Availability
NI
WIRING ASSY WPL R0605044 Contact Us For Availability
NI
WIRE HARNESS LIB SW WPL R0605045 Contact Us For Availability
× ![]()
Login and Registration Form
