Model Whirlpool SVE47600WC ELECTRIC RANGE – Common Parts &amp; Diagrams

1

COVER, MAIN BACK WPL 71002065 Contact Us For Availability

1

COVER, MAIN BACK WPL 71002456 Contact Us For Availability

2

WPW10282527 Whirlpool Oven Rack Backorder WPL WPW10282527 $118.37

2

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $4.82

2

PANEL, ACCESS WPL 71002066 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

3

SCREW WPL 707407 Contact Us For Availability

3

COVER, MOTOR WPL 71002107 Contact Us For Availability

3

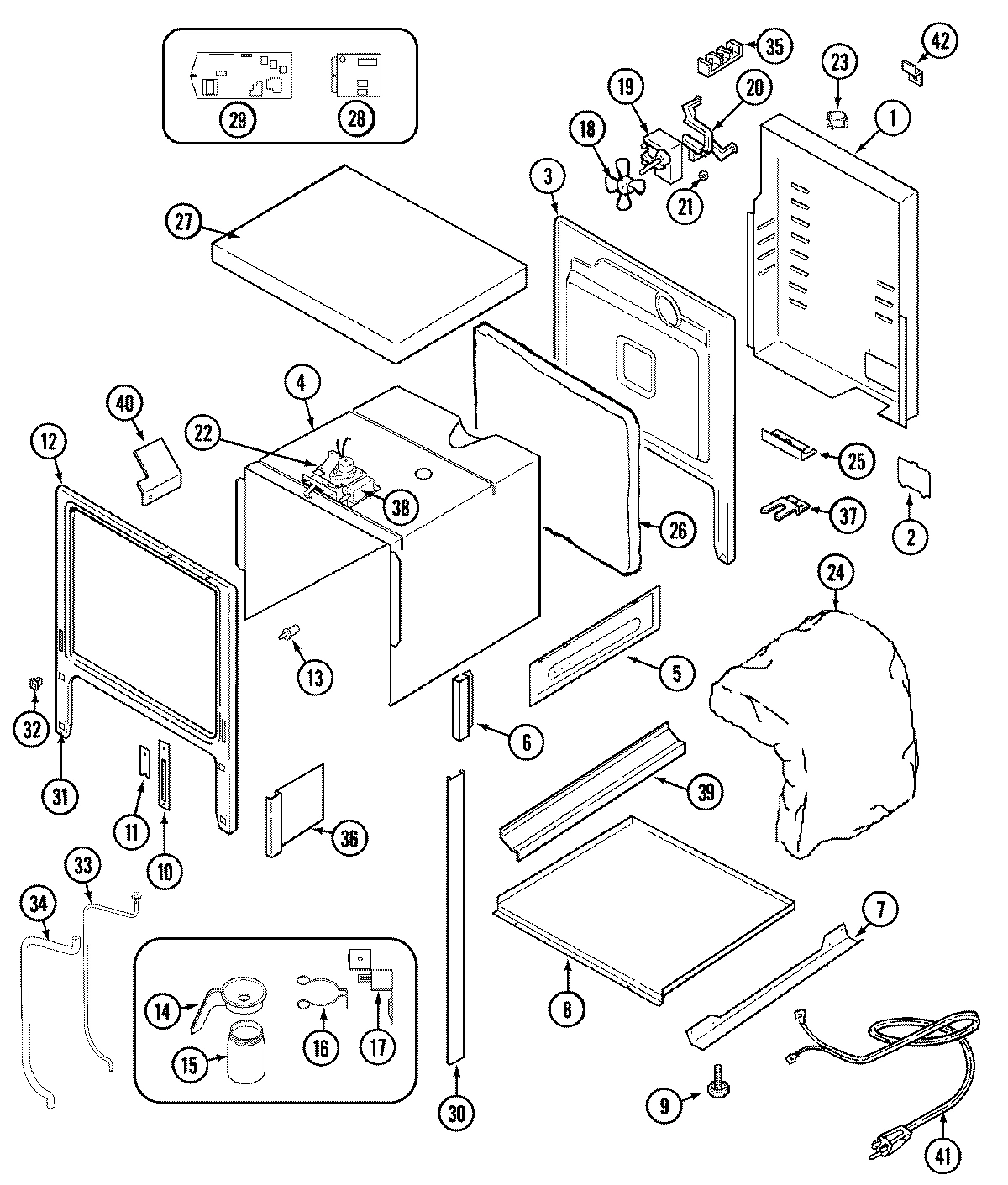

BACK, MAIN WPL 71003032 Contact Us For Availability

3

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

4

STOP, FILTER WPL 71002113 Contact Us For Availability

4

PANEL (SIDE-TOP-SIDE) WPL 71002068 Contact Us For Availability

4

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $76.26

5

WPW10201322 Whirlpool Blower Motor Backorder WPL WPW10201322 $273.52

5

FOAM, URETHANE WPL Y715957 Contact Us For Availability

5

PANEL, SIDE (RT) WPL 71002069 Contact Us For Availability

5

PANEL, SIDE (LT) WPL 71002070 Contact Us For Availability

6

BAND, MOTOR WPL Y707393 Contact Us For Availability

6

RECEPTACLE, HINGE ASSY. WPL 71002075 Contact Us For Availability

6

RECEPTACLE, HINGE WPL 71002206 Contact Us For Availability

7

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

7

RING, RESTRICTOR WPL Y704761 Contact Us For Availability

7

RAIL, BOTTOM WPL 71002076 Contact Us For Availability

7

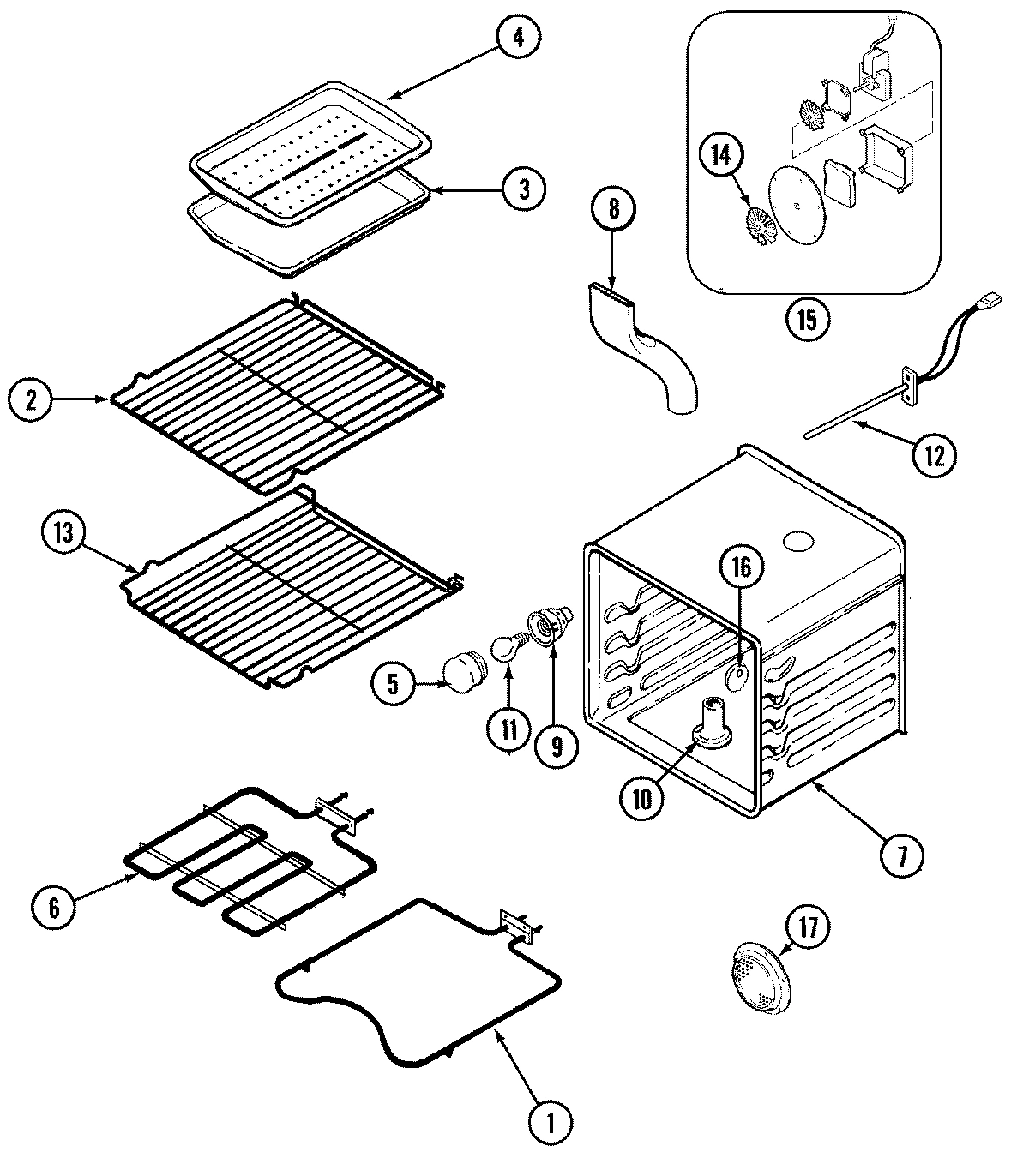

OVEN WELD ASSY. WPL 71001165 Contact Us For Availability

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71003005 Contact Us For Availability

8

WP71002111 Whirlpool Grease Filter In Stock WPL WP71002111 $19.68

8

PANEL, BOTTOM WPL 71002071 Contact Us For Availability

8

TUBE, VENT WPL 71002115 Contact Us For Availability

9

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $7.84

9

NUT WPL 707161 Contact Us For Availability

9

SCREW WPL Y707402 Contact Us For Availability

9

LEVELER, LEG WPL Y04100573 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

10

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $116.81

10

PLATE, HINGE COVER WPL 71002072 Contact Us For Availability

10

TUBE, VENT WPL 71002079 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

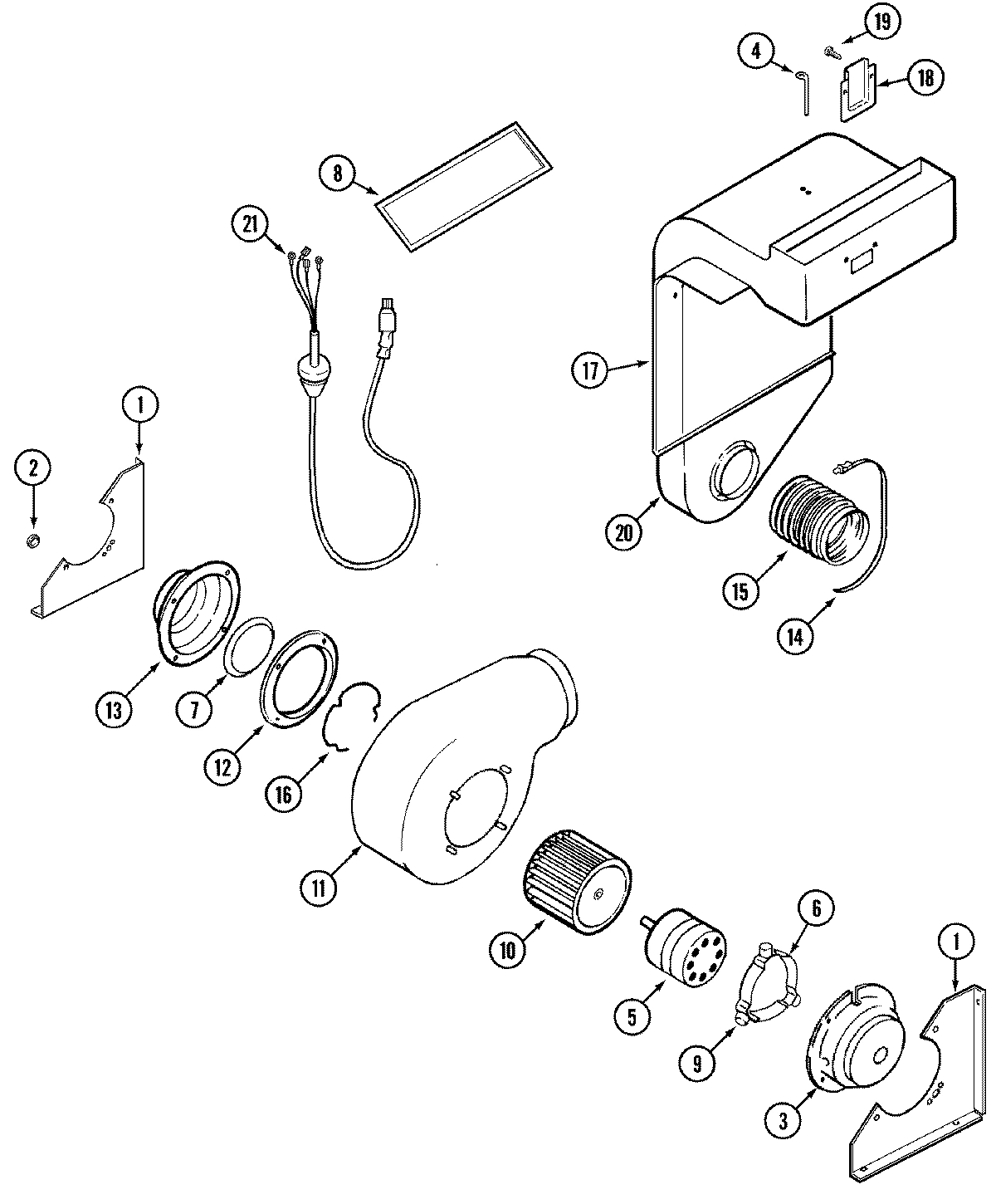

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

PLATE, HINGE RETAINER WPL 71002077 Contact Us For Availability

CLIP, OVEN WPL 71001170 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

RING, INLET WPL Y704758 Contact Us For Availability

FRAME, OVEN WPL 71001186 Contact Us For Availability

FRAME, OVEN WPL 71003087 Contact Us For Availability

13

ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability

13

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

14

CLAMP, HOSE WPL Y702331 Contact Us For Availability

14

TOP, DRAIN JAR WPL 71002170 Contact Us For Availability

14

WHEEL, CONVECT ASSY. WPL 71001855 Contact Us For Availability

15

WPY707869 Whirlpool Drain Jar Backorder WPL WPY707869 $48.41

15

DUCT, FLEXIBLE WPL Y702326 Contact Us For Availability

15

CONVECTION MTR ASSY WPL 71001858 Contact Us For Availability

16

SPRING, DRAIN JAR WPL 71002171 Contact Us For Availability

16

WIRE, GROUND WPL 702643 Contact Us For Availability

16

BUTTON, PLUG WPL 702929 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

PLENUM (UPR) WPL 71002109 Contact Us For Availability

CLIP, J WPL Y700556 Contact Us For Availability

BRACKET, DRAIN TUBE WPL 71002169 Contact Us For Availability

PLATE, CONVECTION (FRT) WPL 71001854 Contact Us For Availability

SCREW W/WASHER WPL 7101P12460 Contact Us For Availability

18

COVER, VENT WPL Y702475 Contact Us For Availability

18

BLADE, FAN WPL 71001852 Contact Us For Availability

19

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

19

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

20

PLENUM (LWR) WPL 71002110 Contact Us For Availability

20

BRACKET, FAN WPL 71001853 Contact Us For Availability

21

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

21

CORD, POWER (D/DRAFT MOTOR) WPL 71002112 Contact Us For Availability

22

LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability

23

WP7403P899-60 Whirlpool Safety Switch Backorder WPL WP7403P899-60 $148.74

24

INSULATION (WRAP) WPL 71001817 Contact Us For Availability

25

BRACKET, ELECTRIC MTG WPL 71002960 Contact Us For Availability

26

INSULATION, BACK WPL 71002073 Contact Us For Availability

27

INSULATION (TOP-BACK) WPL 71002227 Contact Us For Availability

28

BOARD, RELAY (DOWNDRAFT) WPL 71002035 Contact Us For Availability

28

SHIELD, REALY (3.53X3) WPL 74004837 Contact Us For Availability

29

BOARD, RELAY WPL 71002602 Contact Us For Availability

30

CLIP, SIDE TRIM WPL 71002074 Contact Us For Availability

30

TRIM, SIDE WPL 71002078 Contact Us For Availability

30

TRIM, SIDE (WHT) WPL 71002647 Contact Us For Availability

31

GROMMET, BASE DOOR WPL 71002105 Contact Us For Availability

31

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

32

LATCH, BASE DOOR WPL 71002106 Contact Us For Availability

WASHER, TEFLON WPL 702747 Contact Us For Availability

NUT, DRAIN TUBE WPL 702748 Contact Us For Availability

DRAIN CLEANOUT ASSY. WPL 71002402 Contact Us For Availability

TUBE, DRAIN WPL 71002642 Contact Us For Availability

34

INSULATION, DRAIN TUBE WPL 71002173 Contact Us For Availability

35

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $19.62

36

TAPE, DBL. SIDED WPL 704827K Contact Us For Availability

36

PANEL, KICK (SIDE/WHT) WPL 71002103 Contact Us For Availability

37

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

37

BRACKET, ANTI-TIP WPL Y705344 Contact Us For Availability

38

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

39

GUARD, WIRE (RT) WPL 71002208 Contact Us For Availability

40

GUARD, WIRE WPL 71002114 Contact Us For Availability

41

CORD, POWER WPL 702751 Contact Us For Availability

42

COVER, RECEPTACLE WPL 704428 Contact Us For Availability

NI

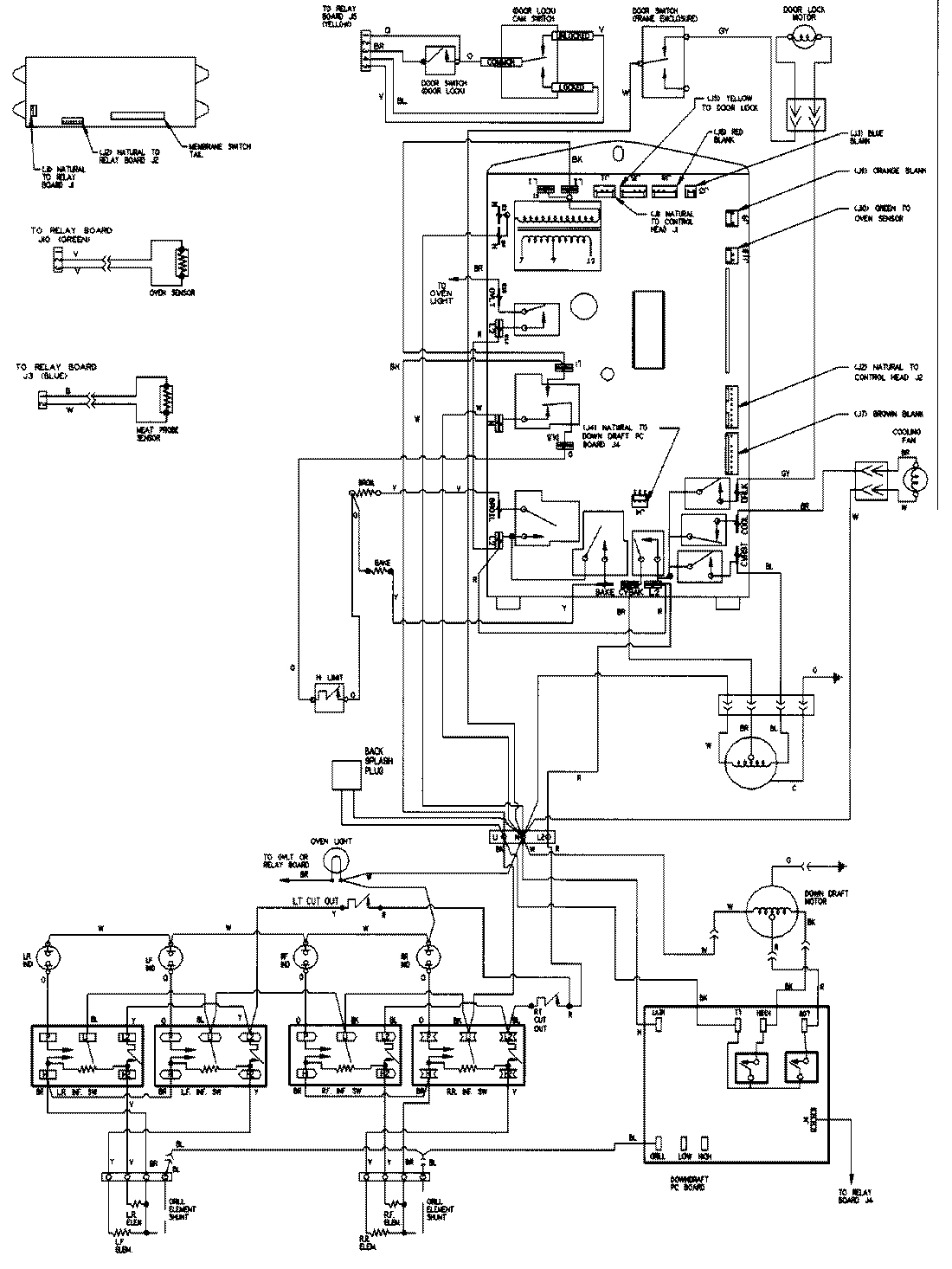

WIRING INFORMATION WPL 15001883 Contact Us For Availability
