Model Whirlpool SU146 ELECTRIC RANGE – Common Parts & Diagrams

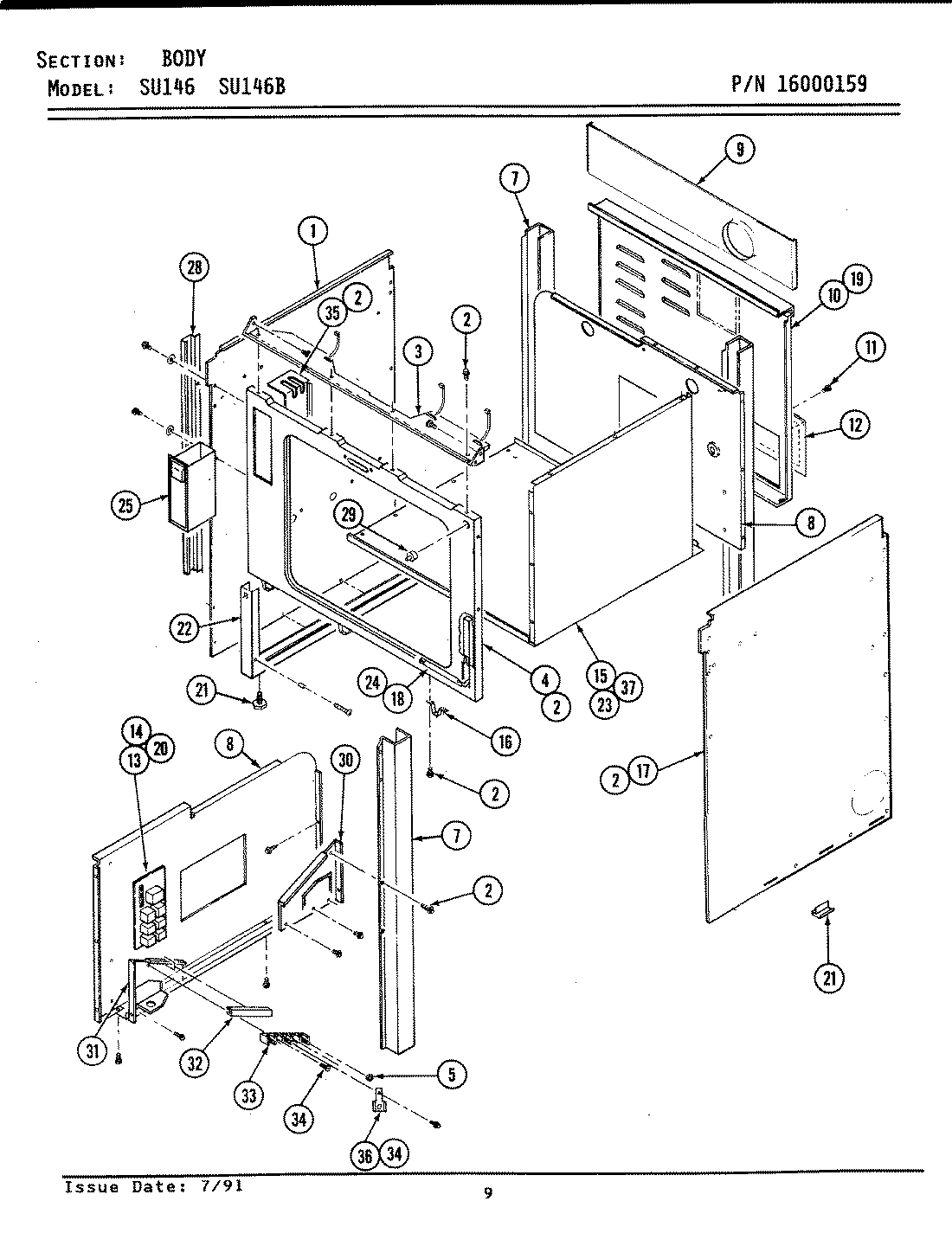

04 - BODY

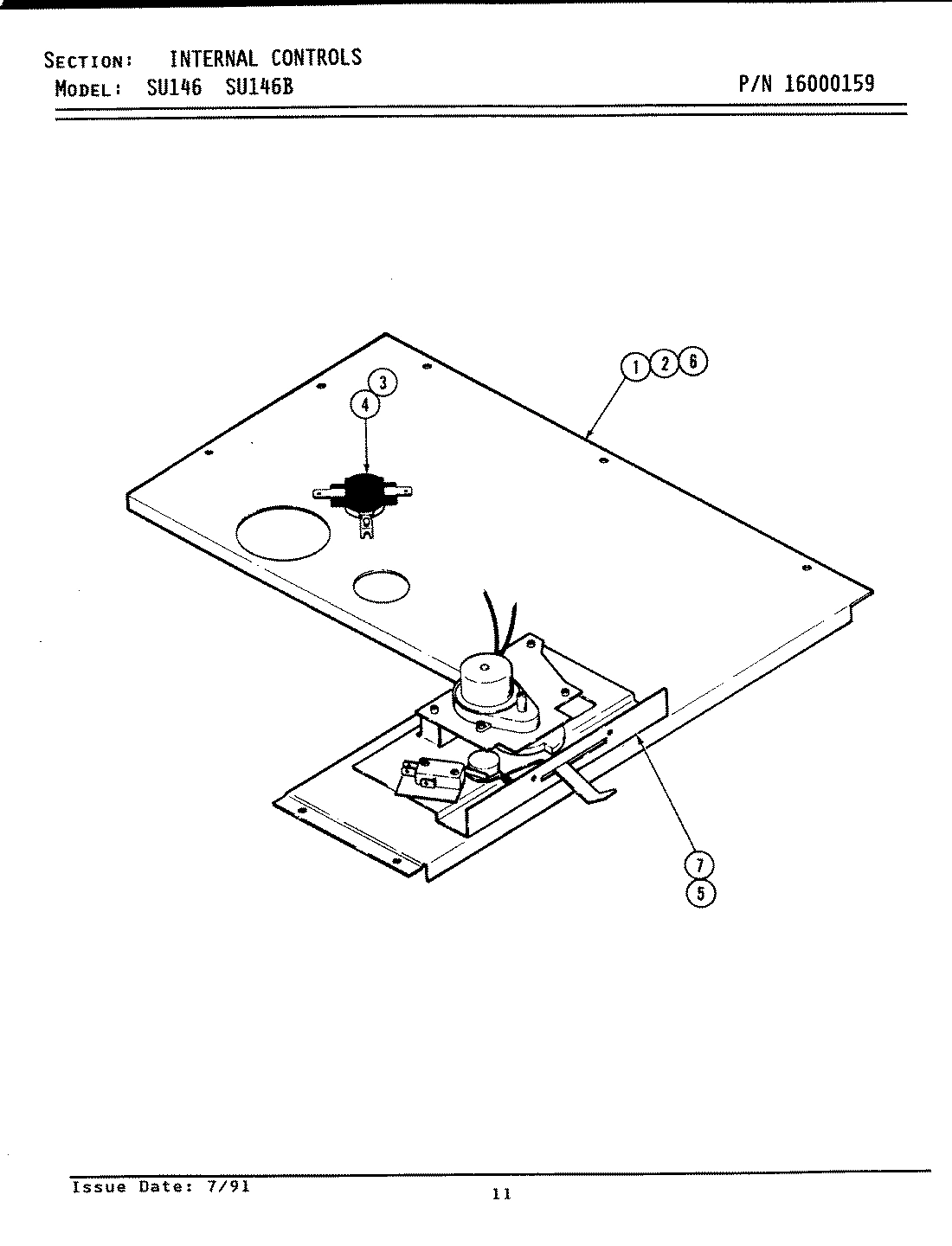

07 - INTERNAL CONTROLS

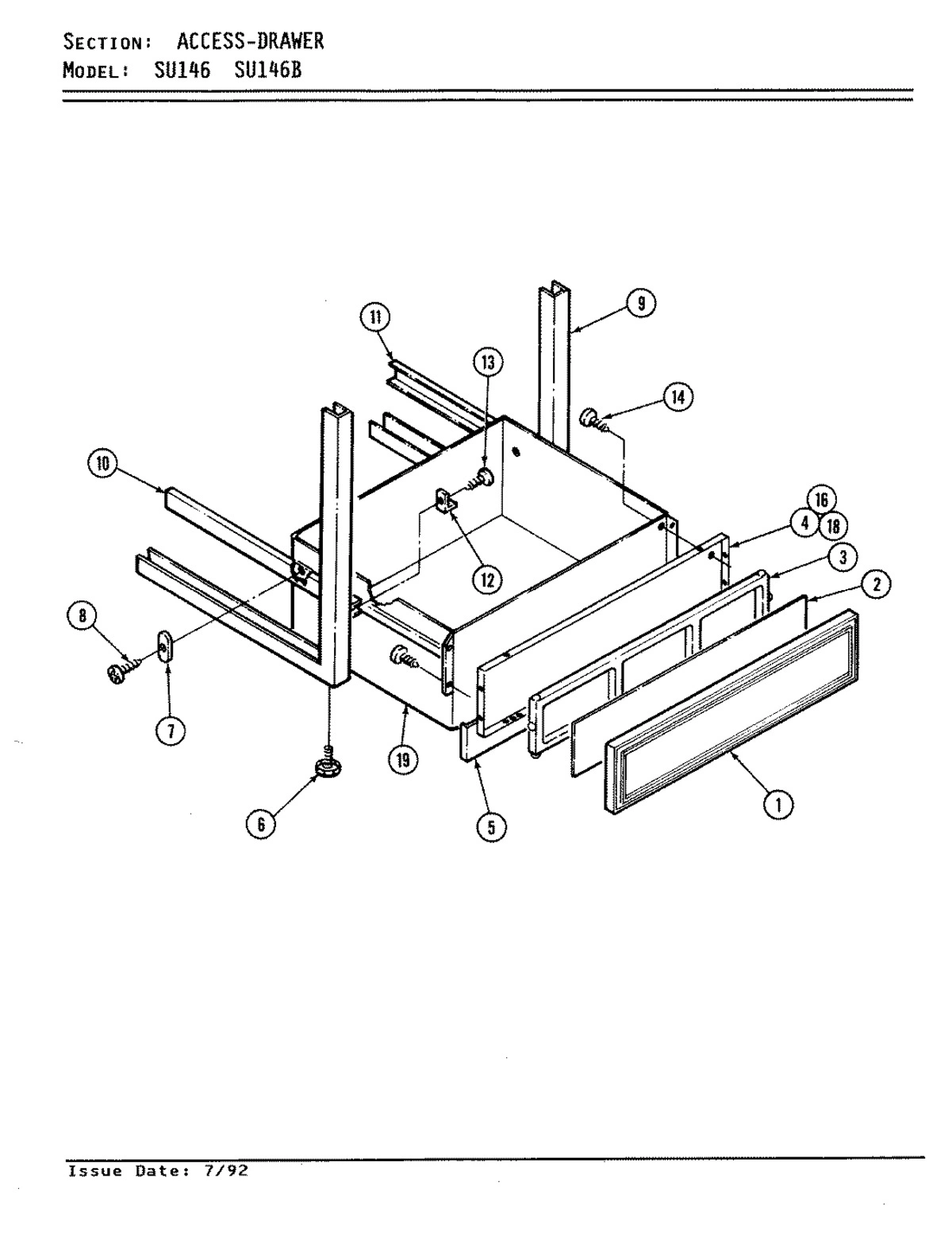

01 - ACCESS DRAWER

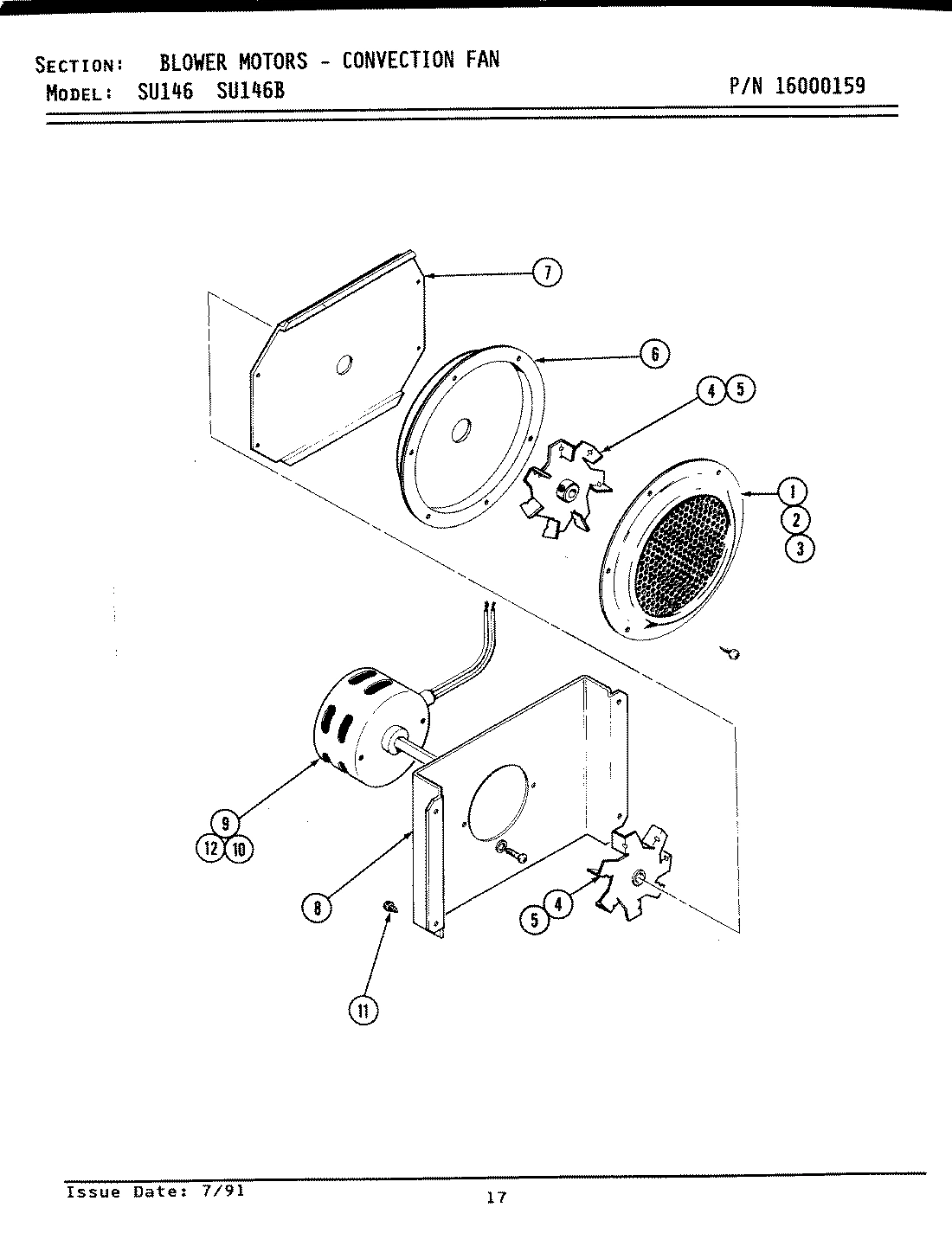

03 - BLOWER MOTOR (CONVECTION)

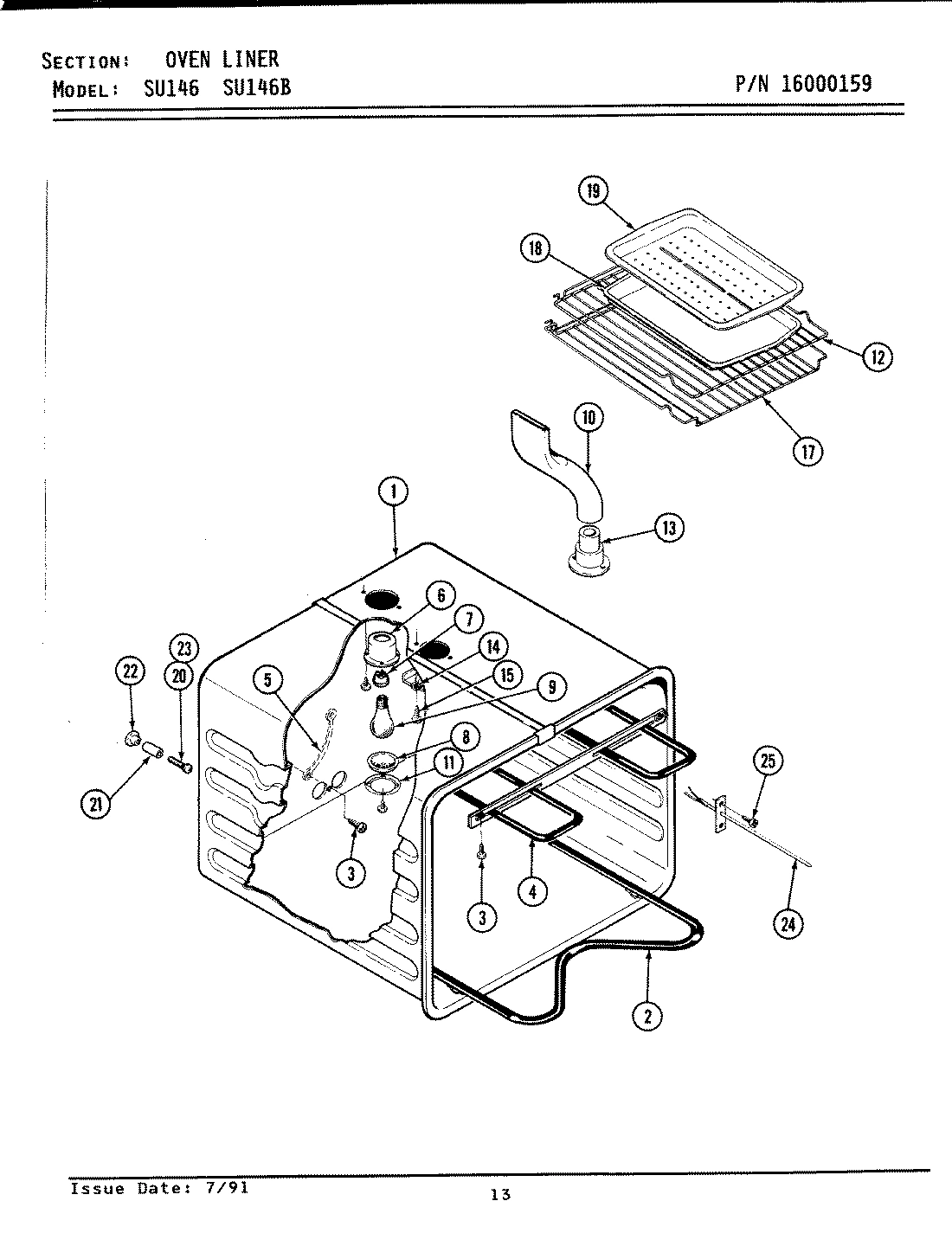

08 - OVEN

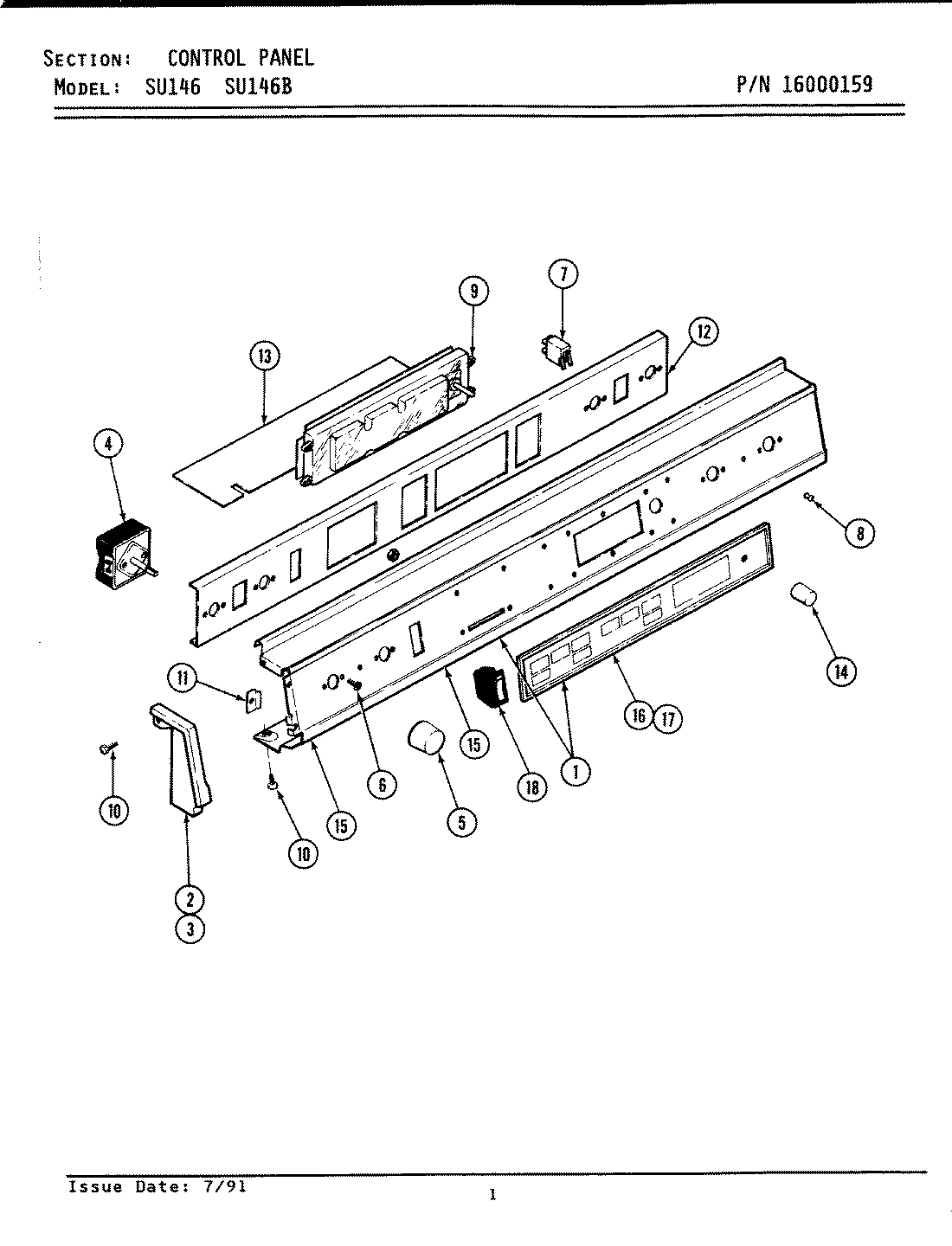

05 - CONTROL PANEL

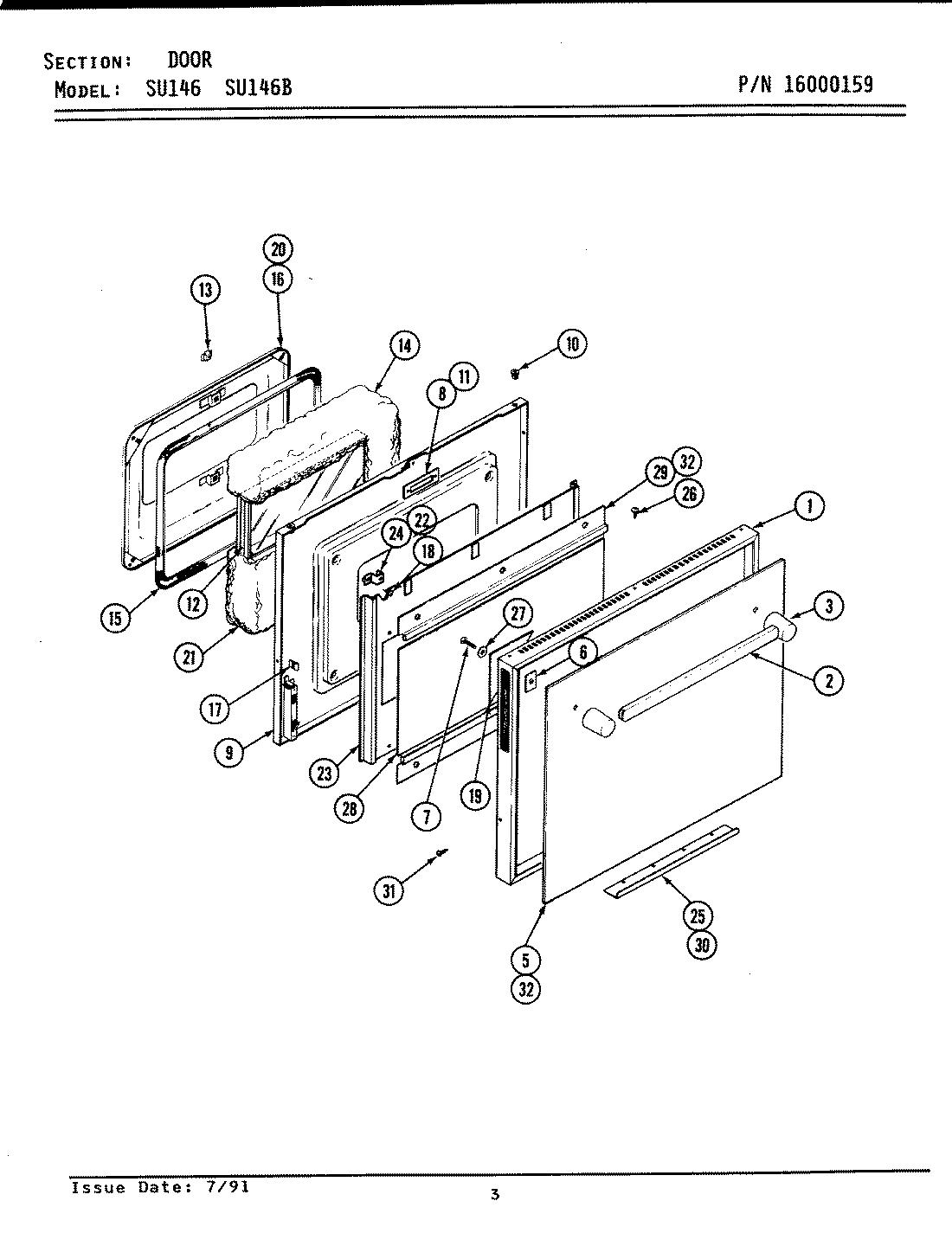

06 - DOOR

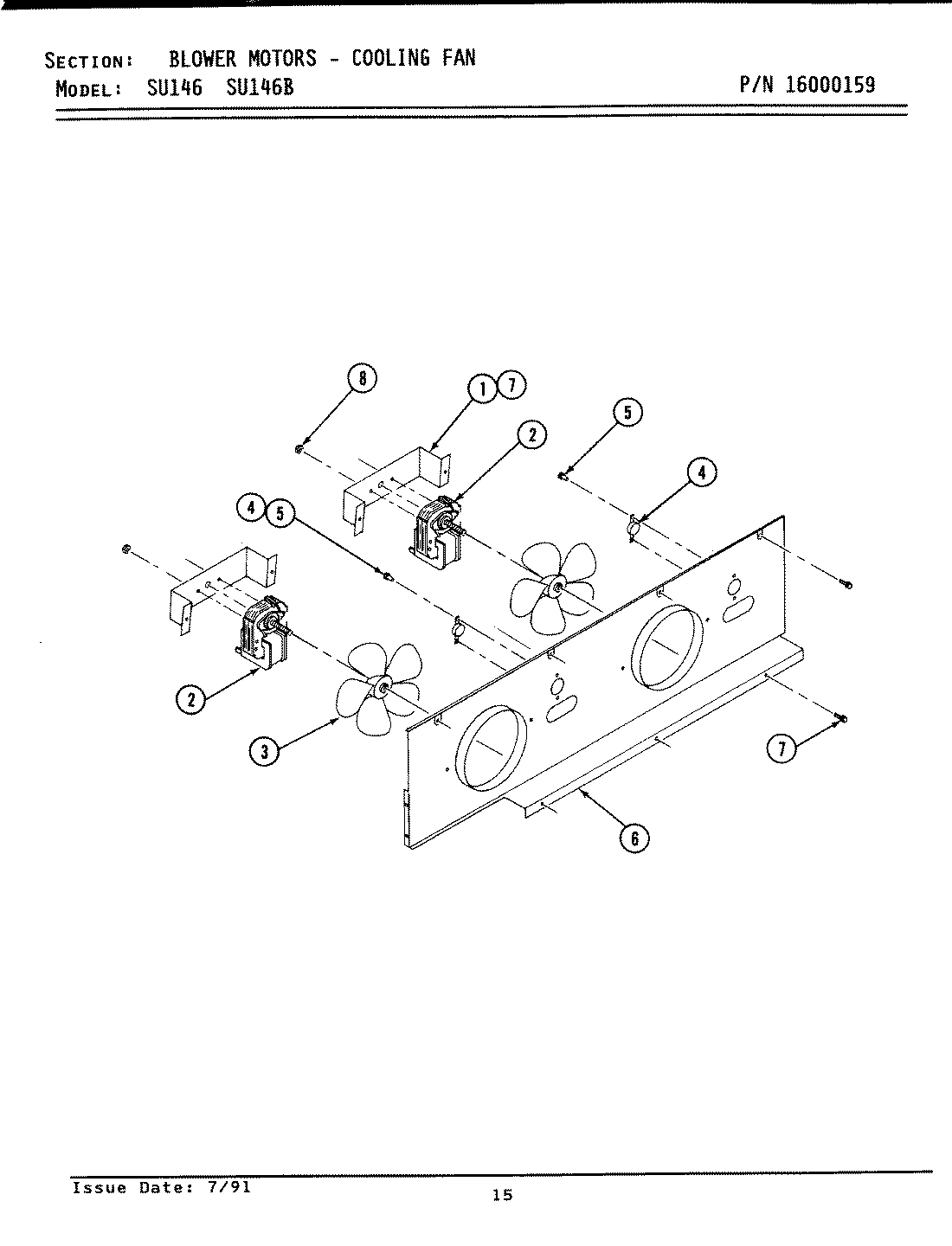

02 - BLOWER MOTOR

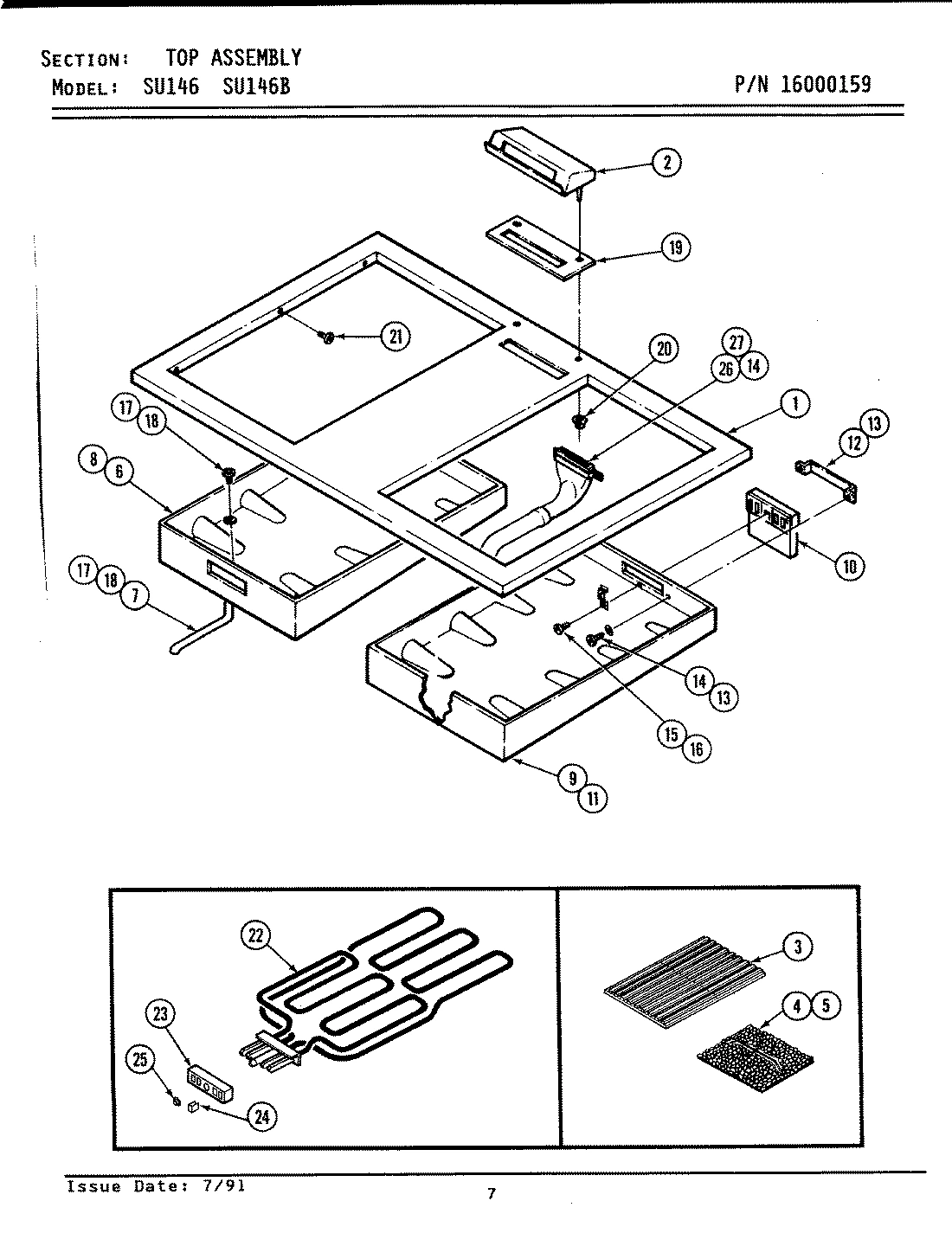

09 - TOP ASSEMBLY
Common parts from model Whirlpool SU146 ELECTRIC RANGE
1
PANEL, TOP WPL 704668 Contact Us For Availability
1
FRAME (BLK) WPL Y704494 Contact Us For Availability
1
PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability
1
LINER WPL 712582 Contact Us For Availability
1
PANEL, CONTROL ASSEMBLY WPL 712607 Contact Us For Availability
1
FRAME WPL 705136 Contact Us For Availability
1
BRACKET, MOUNTING MOTOR WPL Y702542 Contact Us For Availability
1
TOP, RANGE WPL 704291 Contact Us For Availability
2
PANEL, BASE (BLK) WPL 704497 Contact Us For Availability
2
ELEMENT, BAKE (208V) WPL 712247 Contact Us For Availability
2
CAP, END (LT) WPL 702388 Contact Us For Availability
2
HANDLE (BLK) WPL 704226 Contact Us For Availability
2
MOTOR, FAN WPL Y702549 Contact Us For Availability
2
TRIM, VENT WPL 704320 Contact Us For Availability
3
SPACER, BASE DOOR WPL Y702896 Contact Us For Availability
3
CAP, END (RT) WPL Y702387 Contact Us For Availability
3
END CAP (BLK) WPL Y704224 Contact Us For Availability
3
BLADE, FAN WPL Y702525 Contact Us For Availability
3
GRATE, GRILL WPL 703905 Contact Us For Availability
4
CLOSURE, FRONT WPL 702329 Contact Us For Availability
4
LINER, DOOR WPL Y702341 Contact Us For Availability
4
WHEEL, CONVECTION WPL 701711 Contact Us For Availability
4
WIRE, ORANGE (RIGHT) WPL 703523 Contact Us For Availability
4
LIMIT, THERMAL WPL 704317 Contact Us For Availability
4
PLATE, ROCK WPL 708929 Contact Us For Availability
5
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
5
NUT WPL 707161 Contact Us For Availability
5
PANEL, KICK WPL 703966 Contact Us For Availability
5
SCREW, SET WPL 701709 Contact Us For Availability
5
WIRE, GROUND WPL 702643 Contact Us For Availability
5
KNOB, INFINITE (BLK) WPL 703900 Contact Us For Availability
5
GLASS WPL Y704496 Contact Us For Availability
6
CLIP, SPRING WPL Y702476 Contact Us For Availability
6
BRACKET,STIFFENER WPL 702697 Contact Us For Availability
6
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
6
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
6
BUSHING WPL Y704489 Contact Us For Availability
6
BACK, UNIT WPL 704293 Contact Us For Availability
6
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
6
WIRE, BLUE WPL 712354 Contact Us For Availability
6
WIRE, BROWN WPL Y712197 Contact Us For Availability
6
WIRE, YELLOW WPL Y712200 Contact Us For Availability
6
WIRE, VIOLET WPL Y712203 Contact Us For Availability
7
SUPPORT,TUBE WPL 704296 Contact Us For Availability
7
LATCH, AUTOMATIC (UPPER) WPL Y704689 Contact Us For Availability
7
SLIDE, DRAWER WPL 703963 Contact Us For Availability
7
COVER, MOTOR FRONT WPL 701713 Contact Us For Availability
7
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
7
SCREW WPL 704963 Contact Us For Availability
7
TUBE, DRAIN (LEFT) WPL Y702463 Contact Us For Availability
8
BACK, INNER WPL Y704735 Contact Us For Availability
8
SCREW WPL 712066 Contact Us For Availability
8
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
8
LENS, LIGHT WPL Y704143 Contact Us For Availability
8
LENS, PILOT LIGHT WPL Y702615 Contact Us For Availability
8
PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability
8
RECEPTACLE, CERAMIC WPL 704168 Contact Us For Availability
9
PLATE, BACK WPL Y702345 Contact Us For Availability
9
RAIL, SUPPORT ASSEMBLY WPL 712000 Contact Us For Availability
9
MOTOR, CONVECT WPL Y704972 Contact Us For Availability
9
TIMER, ELECTRONIC WPL Y704727 Contact Us For Availability
9
LINER WPL 712567 Contact Us For Availability
9
PAN, GRILL (RT) WPL Y701956 Contact Us For Availability
9
WIRE, BROWN WPL Y712199 Contact Us For Availability
10
COVER, REAR WPL 704294 Contact Us For Availability
10
CHANEL, DRAWER (LT) WPL 703967 Contact Us For Availability
10
TUBE, VENT WPL 702290 Contact Us For Availability
10
SCREW, HEX WPL Y702976 Contact Us For Availability
10
NUT, PUSH IN WPL 701643 Contact Us For Availability
11
CHANEL, DRAWER (RT) WPL 703968 Contact Us For Availability
11
RETAINER, LENS WPL Y704144 Contact Us For Availability
11
BRACKET, RETAINING WPL 702616 Contact Us For Availability
11
HARNESS, SUPPLY WPL 704971 Contact Us For Availability
11
HARNESS, CONTROL WPL Y704703 Contact Us For Availability
11
PLUG, RUBBER WPL Y702825 Contact Us For Availability
12
RACK, OVEN WPL Y704660 Contact Us For Availability
12
COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability
12
GUIDE, DRAWER WPL Y703962 Contact Us For Availability
12
WASHER, LOCK WPL 715910 Contact Us For Availability
12
PANEL, BACK WELD WPL 712580 Contact Us For Availability
12
BRACKET WPL Y702698 Contact Us For Availability
13
RELAY, TRANSFORMER ASSY. WPL Y704710 Contact Us For Availability
13
TUBE, VENT WPL 701738 Contact Us For Availability
13
INSULATOR WPL Y705143 Contact Us For Availability
13
CLIP, RETAINER WPL Y700503 Contact Us For Availability
14
SUPPORT, CIRCUIT BOARD WPL Y704706 Contact Us For Availability
14
SHIELD, VENT WPL Y702632 Contact Us For Availability
14
INSULATION WPL 702293 Contact Us For Availability
15
ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability
15
PANEL, BOTTOM & SIDE (RT) WPL Y702319 Contact Us For Availability
15
PANEL, CONTROL WPL 704724 Contact Us For Availability
16
BRACKET, HAT WPL 702658 Contact Us For Availability
16
HANDLE, DRAWER WPL 704734 Contact Us For Availability
16
SUPPORT, RACK WPL 702701 Contact Us For Availability
16
SWITCH, MEMBRANE WPL Y704733 Contact Us For Availability
16
PLUG WPL 712494 Contact Us For Availability
17
PANEL, SIDE (RT) WPL 702300 Contact Us For Availability
17
TAPE, DBL. SIDED WPL 704827 Contact Us For Availability
17
RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability
17
CLIP WPL 704487 Contact Us For Availability
17
WASHER, TEFLON WPL 702747 Contact Us For Availability
18
HINGE WPL Y703419 Contact Us For Availability
18
SWITCH, OVEN LIGHT (BLK) WPL Y704311 Contact Us For Availability
18
NUT, DRAIN TUBE WPL 702748 Contact Us For Availability
19
STRAIN, RELIEF WPL Y702696 Contact Us For Availability
19
DRAWER WPL 712608 Contact Us For Availability
19
GUSSET----NA WPL 704805 Contact Us For Availability
19
GASKET, VENT TRIM WPL 704443 Contact Us For Availability
20
HARNESS, SUPPLY WPL 704764 Contact Us For Availability
20
SCREW WPL 705170 Contact Us For Availability
20
INSULATION, TOP WPL 701660 Contact Us For Availability
21
LEVELER, LEG WPL Y04100573 Contact Us For Availability
21
SPACER, OVEN WPL 701741 Contact Us For Availability
21
INSULATION, BOTTOM WPL 702292 Contact Us For Availability
22
INSULATION-SIDES,TOP,BOTTOM WPL 702282 Contact Us For Availability
22
INSULATION-BACK WPL 702283 Contact Us For Availability
22
NUT, TEE WPL 715294 Contact Us For Availability
22
BRACKET, STAND-OFF WPL 701652 Contact Us For Availability
22
ELEMENT,COMPLETE,ENERGY SAVER WPL 703944 Contact Us For Availability
23
BAFFLE, INNER WPL 704466 Contact Us For Availability
23
BAFFLE WPL 703782 Contact Us For Availability
24
SCREW WPL 715870 Contact Us For Availability
24
CLIP, SHUNT WPL Y700450 Contact Us For Availability
25
CONTAINER,GREASE ASSEMBLY WPL Y712001 Contact Us For Availability
25
HARNESS WIRE WPL 704975 Contact Us For Availability
25
RAIL, GLASS WPL Y704498 Contact Us For Availability
26
WASHER, CONICAL WPL 702462 Contact Us For Availability
26
TUBE, VENT WPL 704316 Contact Us For Availability
27
SCREW WPL 702731 Contact Us For Availability
27
WASHER WPL 701736 Contact Us For Availability
27
CLIP, J WPL Y700556 Contact Us For Availability
28
TRIM, SIDE WPL 702337 Contact Us For Availability
28
GLASS, BAFFLE WPL Y704820 Contact Us For Availability
29
SWITCH, DOOR WPL 701666 Contact Us For Availability
29
RETAINER, GLASS WPL Y704819 Contact Us For Availability
30
GUSSETT (LT) WPL 702557 Contact Us For Availability
30
SCREW WPL Y700584 Contact Us For Availability
31
GUSSETT (RT) WPL 702556 Contact Us For Availability
31
SCREW (BLACK) WPL Y704488 Contact Us For Availability
32
INSULATOR WPL 702898 Contact Us For Availability
32
TAPE, FOAM WPL 704491 Contact Us For Availability
35
BRACKET, DRAIN TUBE WPL 704312 Contact Us For Availability
36
KIT,BACKSPLASH ADAPTOR WPL 712239 Contact Us For Availability
36
STRAP, GROUND WPL Y702335 Contact Us For Availability
37
PANEL, INNER (LT) WPL 704302 Contact Us For Availability
37
HARNESS, SUPPLY WPL 704766 Contact Us For Availability
37
WIRE, BROWN WPL 704768 Contact Us For Availability
37
WIRE, GREEN WPL 705060 Contact Us For Availability
× ![]()
